ETEKCITY MSR-A2000 User manual

1
Questions or Concerns? [e-mail] • [phone]
Digital Multimeter
Model: MSR-A2000
User Manual

2
Table of Contents
Package Contents
Specications
Features
Safety Information
Safety Terms and Symbols
Multimeter Features & Diagram
Rotary Switch
Keypad
Display Screen
Measurement Units
Input Terminals
Operation
Taking Measurements
Multimeter Features
Care & Maintenance
Technical Specications
Warranty Information
Customer Support
3
3
3
4
8
9
10
11
12
14
15
16
20
28
30
31
36
38
For full details on using your Digital Multimeter, scan the
QR code to see the extended digital manual.
You can also type the following link into a web browser:
www.etekcity.com/support/manual/model/msr-a2000

3
Specications
Package Contents Features
Max Voltage 1000V
Max Display Value 5999
Battery 1 ×9V 6F22 Battery
1 ×Digital Multimeter
1 ×User Manual
1 ×9V 6F22 Battery (Pre-Installed)
2 ×Test Leads
1 ×K-Type Thermocouple
• Auto-Off
• Backlit LCD Display
• Overload Protection
• True RMS
• Auto & Manual Range Options
• Overcurrent & Overvoltage Protection
• Test Lead Insertion Detection Function

4
Safety Information
Before using, read all instructions. Only use the
multimeter as directed, or the multimeter may
be damaged, and you may be seriously injured.
• Limit operation to the specied measurement
category, voltage, or amperage ratings.
• Do not use the multimeter if it is damaged.
Before you use the multimeter, inspect the
case. Look for cracks or missing plastic.
Pay particular attention to the insulation
surrounding the connectors.
• Do not use the test leads provided for other
products. Use only the certied test leads
specied for this multimeter.
• Inspect the test leads for damaged
insulation or exposed metal.
• Before use, verify the multimeter’s operation
by measuring a known voltage.
• Only qualied technicians can perform
maintenance on this multimeter.
• Always use the specied battery type.
This multimeter is supplied with a battery
for power. Observe the correct polarity
markings before you insert the batteries to
ensure proper insertion of the batteries in
the multimeter.
• Check all Terminal Ratings. To avoid re or
shock hazard, check all ratings and markers
for this multimeter. Refer to this manual
for more information about ratings before
connecting anything to the multimeter.
READ AND SAVE THESE INSTRUCTIONS

5
Safety Information (cont.)
• Do not operate the multimeter with the
cover, or portions of the cover, removed or
loosened.
• Use Proper Fuses. Use only the specied
type and rating fuse for the multimeter.
• Do not operate if in any doubt about whether
the multimeter is safe to use. If you suspect
damage has occurred to the multimeter,
have it inspected by qualied service
personnel before further operation.
• To avoid electric shock, do not operate this
multimeter in wet or damp conditions.
• Do not operate in an area with explosive
substances or gasses.
• Always keep the multimeter’s surfaces clean
and dry.
• Do not apply more than the rated voltage (as
marked on the multimeter) between terminals,
or between terminal and earth ground.
• When measuring current, turn off the circuit
power before connecting the multimeter
in the circuit. Remember to place the
multimeter in series with the circuit.
• When servicing the multimeter, use only the
specied replacement parts.
• Use caution when working above 60V DC,
30V AC RMS, or 42.4V peak. Such voltages
pose a shock hazard.
• When using the test leads, keep your ngers
behind the nger guards on the test leads.
Never touch any exposed metal while
measuring.
• Remove the test leads from the multimeter
before you open the battery cover.
• To avoid false readings, which may lead to
possible electric shock or personal injury, replace
the battery as soon as the low battery indicator
appears and flashes.

6
Safety Information (cont.)
• Disconnect circuit power and discharge all high-
voltage capacitors before testing resistance,
continuity, diodes, or capacitance.
• Always use the proper terminals, function, and
range for your measurements. When the range
of the value to be measured is unknown, set
the rotary switch position as the highest range,
or choose the auto-ranging mode. To avoid
damages to the multimeter, do not exceed the
maximum limits of the input values shown in the
technical specication tables (see pages 31–34).
• Connect the common test lead before you
connect the live test lead. When you disconnect
the leads, disconnect the live test lead rst.
• Before changing functions, disconnect the test
leads from the circuit undergoing testing.
• Do not alter the internal circuitry of the
multimeter. This may result in serious injury.
• Do not use or store the multimeter in wet or
humid environments, in very high temperatures,
around explosive or flammable substances, or in
areas with strong magnetic elds. The multimeter
will not perform correctly, which may create a
safety hazard.
• Do not allow children to operate or play with
this multimeter.

7
Safety Information (cont.)
Measurement Category Safety Rating
Measurement Category (CAT)
Denitions:
The multimeter has a safety rating of 1000V,
CAT III and 600V, CAT IV.
Measurement CAT I applies to measurements
performed on circuits not directly connected
to the AC mains. Examples are measurements
on circuits not derived from the AC mains and
specially protected (internal) mains-derived
circuits, such as signal levels, electronics, and
limited-energy parts of equipment, which usually
have little chance of danger or overloading.
Measurement CAT II applies to measurements
performed on circuits directly connected
to the low-voltage installation. Examples
are measurements on energy-consuming
equipment such as TVs, PCs, portable tools,
and other household circuits.
Measurement CAT III applies to
measurements performed on equipment in
xed equipment installations, such as wiring,
distribution panels, feeders and short branch
circuits, and lighting systems in large buildings.
Measurement CAT IV applies to
measurements performed at the source of
the low-voltage installation. Examples are
electricity meters and measurements on
primary overcurrent protection devices and
ripple control units.

8
Safety Terms and Symbols
Safety Terms Safety Symbols
Terms in this Manual. The following terms may
appear in this manual:
Symbols on the Product. The following symbol
may appear on the product:
Terms on the Product. The following terms
may appear on this product:
Warning: Warning indicates the conditions or
practices that could result in personal injury or
death.
Caution: Caution indicates the conditions
or practices that could result in damage to this
product or other property.
Danger: Indicates an injury or hazard may
immediately occur.
Warning: Indicates an injury or hazard may
potentially occur.
Caution: Indicates a potential damage to the
instrument or other property might occur.
Direct current
(DC) Fuse
Alternating
current (AC) CAT II
Category II
overvoltage
protection
Both direct
and alternating
current
CAT III
Category III
overvoltage
protection
Ground terminal CAT IV
Category IV
overvoltage
protection
Equipment
protected
throughout by
double insulation
or reinforced
insulation
Caution, risk of
danger (refer to this
manual for specic
Warning or Caution
information)

9

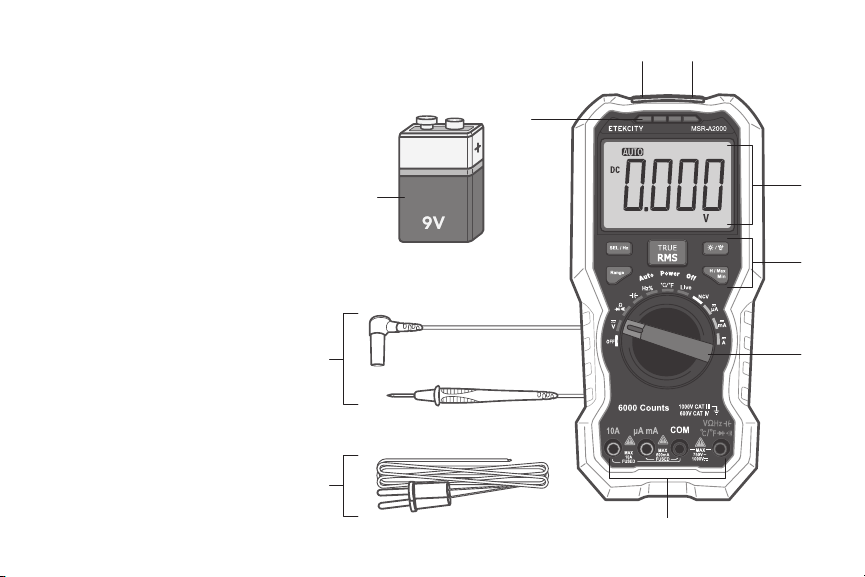

Multimeter Features
A. Display Screen (see page 12)
B. Keypad (see page 11)
C. Rotary Switch (see page 10)
D. Input Terminals (see page 15)
E. LED Indicator
F. Non-Contact Voltage Detector (NCV)
(see page 24)
G. Flashlight (see page 19)
A
B
D
Accessories
E
H
I
J
F G
C
H. 9V 6F22 Battery (Pre-Installed)
I. Test Leads
J. K-Type Thermocouple

10

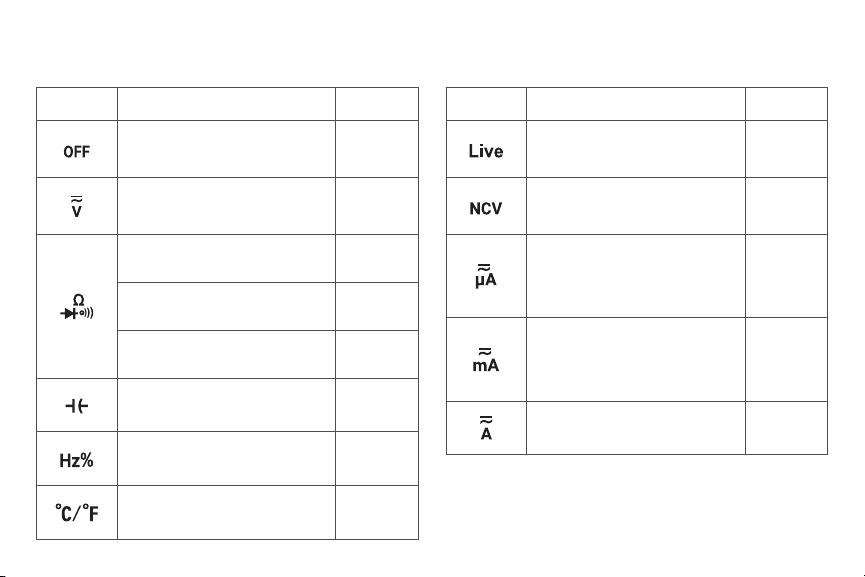

Position Description Details
Power off Page 18
DC or AC voltage measurement Page 20
Resistance measurement Page 21
Continuity test Page 21
Diode test Page 22
Capacitance measurement Page 22
Frequency / duty cycle
measurement Page 23
Temperature measurement Page 23
Rotary Switch
Position Description Details
Single test lead living wire
detection Page 24
Non-contact voltage detection Page 24
DC or AC current measurement,
Up to 6000 microamperes Page 26
DC or AC current measurement,
Up to 600 milliamperes Page 26
DC or AC current measurement Page 26

11
Key Description Details
Select DC or AC. In ACV or ACA function, long press to display Hz ——
Switch frequency / duty cycle when measuring frequency ——
Switch °C/°F when measuring temperature ——
Select Resistance/Continuity/Diode ——
Auto/Manual range Page 19
Select Backlight or Flashlight Page 19
Short press to hold the reading Page 28
Long press to switch Max./Min. value Page 28
Keypad

12

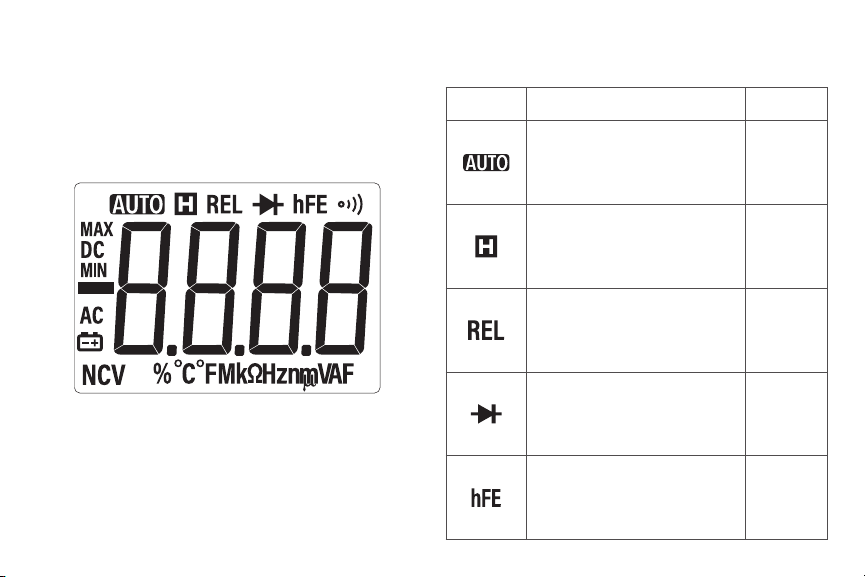

Symbol Description Details
Auto range Page 33
Data hold enabled Page 28
Relative enabled ——
Diode test selected Page 22
Transistor measurement ——
Display Screen

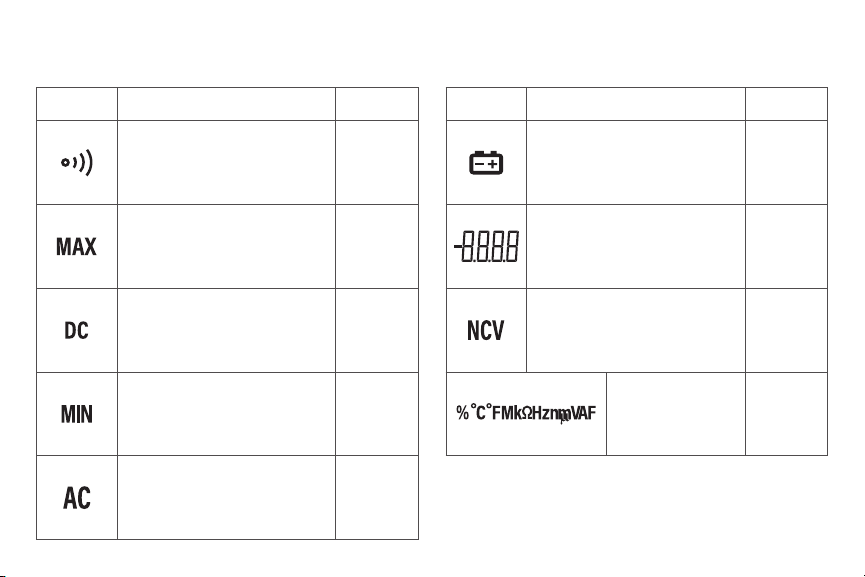

13
Position Description Details
Continuity test selected Page 21
Maximum reading Page 28
DC Page 31
Minimum reading Page 28
AC Page 32
Position Description Details
Battery is low Page 34
Measurement display
(“OL” is short for overload.
Indicates the reading exceeds the
display range)
——
Non-contact voltage detected Page 24
Measuring units Page 31
Display Screen (cont.)

14
Measurement Units
Sign Description
Mega 1E+06 (1000000)
kilo 1E+03 (1000)
milli 1E–03 (0.001)
micro 1E–06 (0.000001)
nano 1E–09 (0.000000001)
Sign Description Measurement Type
Degree Celsius
Temperature
Degree Fahrenheit
Voltage Voltage
Ampere Current
Ohm Resistance
Hertz Frequency
Percent Duty cycle
Farad Capacitance

15

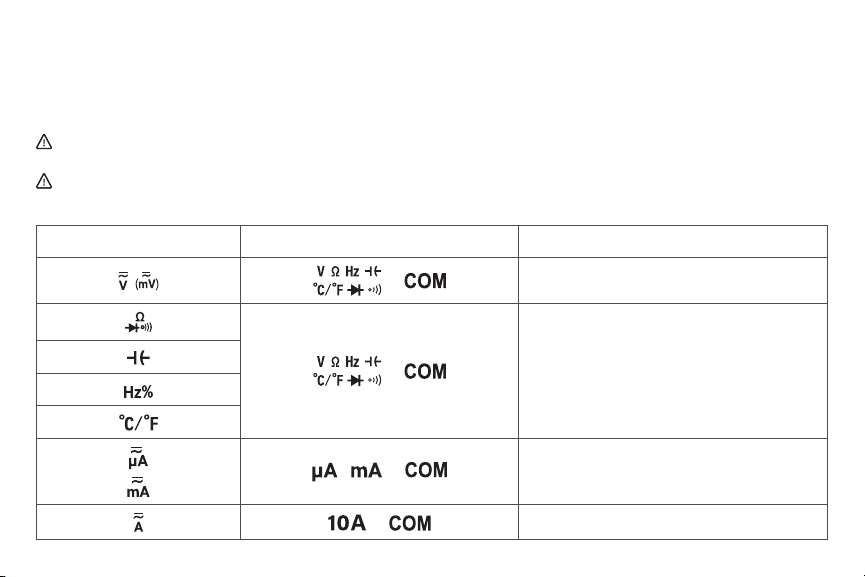

Rotary switch position Input terminals Overload protection
750V AC/1000V DC
250V AC/300V DC
1A/1000V, fast-acting fuse
10A/1000V, fast-acting fuse
Input Terminals
Warning: Before starting any measurement, check the rotary switch position of the multimeter, and then
connect the test leads to the correct terminals.
Caution: To avoid damaging the multimeter, do not exceed the rated input limit. See “Overload protection”
values below, and the ranges listed in Technical Specications (see page 31).
The terminal connections for the different measurement functions of the multimeter are described in the table below.

16
1. Check for any damage caused by transportation.
If the packaging carton or the foamed plastic
protection cushion have suffered serious damage,
do not throw them away until you nish testing the
multimeter and its accessories to make sure they
are working correctly.
2. Check the Accessories
Check the Package Contents (see page 3)
and the Diagram (see page 9) to make sure
all accessories are correctly included. If any
accessory is lost or damaged, please contact
Customer Support (see page 38).
Operation
Before rst using your multimeter, follow these steps to check the instrument:
Getting Started
3. Check the Multimeter
If you nd damage to the appearance of
the multimeter, the multimeter does not
work normally, or the multimeter fails in the
performance test, please contact Customer
Support (see page 38).

17
Follow the steps below to install the battery.
1. Ensure that the rotary switch is at the position.
Remove test leads and any connectors from the
input terminals.
The multimeter is powered by a 9V (6F22) battery.
Install the Batteries
Warning: To avoid false readings, which
could lead to possible electric shock or
personal injury, replace the battery as soon
as the low battery indicator appears.
Before replacing the battery, turn off the
meter, disconnect test leads and any
connectors from any circuit undergoing
testing, and remove test leads from the input
terminals. Use only the specied battery type.
Caution: To avoid damage from battery
leakage, always remove the battery and store
it separately if the multimeter is not going to be
used for a long period of time.
2. Lift the tilt stand and loosen the screws with a
suitable Phillips-head screwdriver and remove the
battery cover.
3. Observe the battery polarity markings indicated
inside the battery compartment. Insert the battery
according to the polarity markings.
4. Place the battery cover back in its original position
and tighten the screws.
Operation (cont.)

18

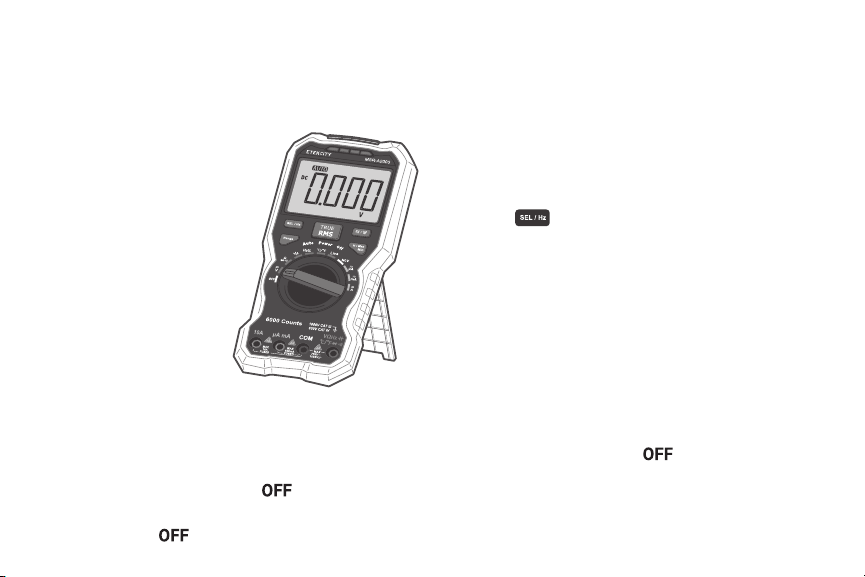

Pull the tilt stand outward to
its maximum reach (about
85° to the meter body).
[Figure 1.1]
The multimeter automatically enters sleep mode if
the rotary switch is not moved or a key is not pressed
for 30 minutes.
Pressing or turn the rotary switch will turn
the multimeter back to operation mode from the
sleep mode.
One minute before Auto Power-Off, the buzzer will
beep ve times to warn the user that the multimeter is
about to shut off. Before shutoff, the buzzer will emit
a long beep, and then the multimeter will shut off.
Adjust the Tilt Stand Sleep Mode
Power On
Operation (cont.)
1. To power ON the multimeter, turn the rotary switch
to any other position except .
2. To power OFF the multimeter, turn the rotary
switch to the position.
Note: In sleep mode, the multimeter will still use
a little power. If the multimeter is not going to be
used for a long period of time, the rotary switch
should be turned to the position.
Figure 1.1

19
When the key is pressed briefly, the LCD
backlight will be turned on. This is useful for testing
at night or in low-light conditions. After the backlight
is turned on, it will automatically turn off after about
one minute. To turn the backlight off manually, press
the key.
When the key is pressed and held for about
2 seconds, the flashlight will turn on. This is also
useful for testing at night or in low light conditions.
To manually turn the flashlight off, press and hold the
key for 2 seconds.
LCD Backlight and Flashlight
Selecting the Range
Operation (cont.)
Note: Manual range mode is not available when
measuring capacitance.
• Auto-ranging mode is set as the default
mode when the meter is powered on.
will be displayed.
• When auto-ranging mode is enabled, press
to enter the manual-range mode.
• In manual range mode, each additional
press of sets the multimeter to the
next higher range, unless it is already in
the highest range, at which point the range
switches to the lowest range.
• When manual range mode is enabled, press
for more than 2 seconds to enter the
auto-ranging mode.

20
This multimeter displays DC voltage values as well
as their polarity. Negative DC voltages will display a
negative sign on the left of the display.
1. Rotate the rotary switch to . Default is DC
measurement mode, and will be displayed.
Press to switch into AC measurement
mode, and will be displayed.
2. Connect the black test lead to the terminal
and the red test lead to the terminal.
Taking Measurements
Measuring AC or DC Voltage
Warning: Do not measure any voltage of over
1000V DC or 750V AC RMS to avoid instrument
damage or electric shock.
Do not apply more than 1000V DC or 750V AC
RMS between the common terminal and the
earth ground to avoid instrument damage or
electric shock.
Note: During AC voltage measurement, long
press the key once to enter the frequency
measurement mode, and long press it again to
return to the original measurement mode.
3. Probe the test points and read the display.
Press to enable and cycle through the
manual ranges.
