ETEKCITY ZAP 1L-S User manual

Model Nos.:
Questions or Concerns?
[phone]
[e-mail]
ZAP Remote Outlet
ZAP 1L-S
ZAP 1L-Rx
ZAP 1L-Tx

Thank You.
Thank you for purchasing the Remote Outlet by Etekcity. We
are dedicated to providing our customers with quality products for building on
better living. Should you have any questions or concerns about using your new
product, feel free to reach out to our helpful Customer Support Team at
[e-mail]. We hope you enjoy your new product!

Table of Contents
Safety Information 5
Function Diagram 7
Operation 9
Reprogramming an Outlet 11
Resetting an Outlet 13
Troubleshooting 15
16
Package Contents
Specifications
16
Warranty Information 19
Customer Support 22

Safety Information
IMPORTANT: Please read, understand, and comply with all of the instructions
provided in this manual before using this device. Failure to comply with the
instructions given in this manual and/or using the device in ways other than
the ones mentioned herein may result in physical harm and/or damage to the
device.
Important Safety Information
• The wireless range may be limited by other electronic devices,
appliances, walls, or other physical barriers.
• The outlets are intended for indoor use only.
• Avoid exposure to high-temperature sources, direct sunlight, or moisture.
• Do not exceed the maximum load current of 10A (~1200W).
5

• Do not use appliances such as refrigerators, air conditioning units, and
washing machines with the outlets. Such appliances exceed the maximum
load current of 10A (~1200W).
• Keep out of reach of children.
• The outlets are best used in areas with proper air circulation.
• When cleaning, use a dry cloth to wipe the outlet and remote surfaces.
• For your safety, make sure the batteries within the remotes are correctly
installed before use.
• dispose of any part of this product in a fire.
• The remote is not compatible with rechargeable batteries.
• This device is not intended for use in areas with high humidity, such as
bathrooms.
• For best performance, regularly change the batteries in the remote controls.
• If the remote is not in use for an extended period of time, remove batteries.
• These outlets are not compatible with the ZAP 3VX remote outlets.
6
Do not

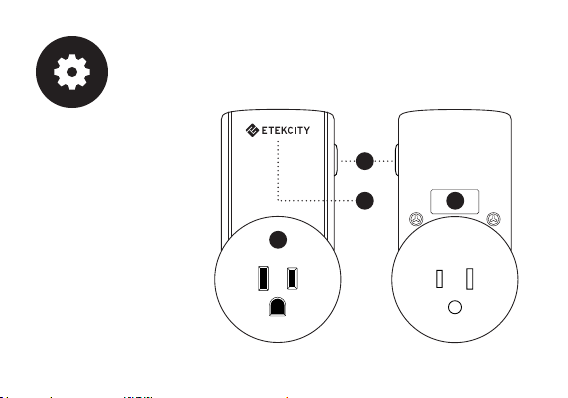

Function Diagram
7
Front Back
1
2
3 4
1. Outlet
2. Power/Program Button
3. Outlet Indicator Light
4. Outlet Number

8

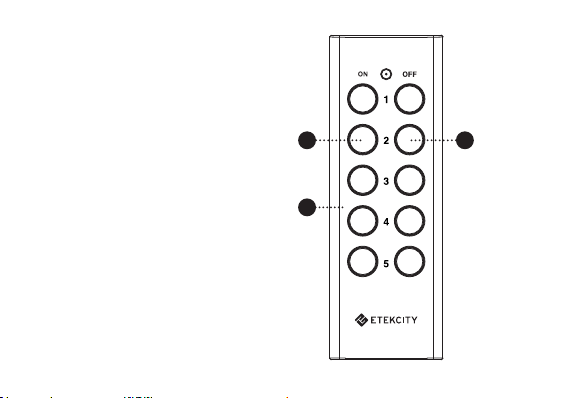

5. Remote
6. ON Buttons
7. OFF Buttons
5
67

Operation
The outlets are pre-programmed
for immediate use, but the
configuration can be customized to
meet your needs.
1. Install one 12V (23A) battery in
each remote control.
2. Plug each outlet into a
powered socket.
9

3. Plug an appliance into each
outl
is switched to ON in order to
et. Make sure the appliance
allow the outlet to control the
device.
4. Press the ON or OFF buttons
for the corresponding outlet number
on the remote. The indicator light
on the corresponding outlet
will turn on or turn off, confirming
that the outlet is now in use.
10
ON
4
5
OFF

Reprogramming an Outlet
1. Unplug device from outlet.
2. Press and hold program
button until indicator light
starts to blink.
Program
Button
11

3. Release program button, press
the ON or OFF button for the
desired number on the remote.
4. Pairing is successful when
indicator light stops blinking.
NOTE: You may repeat the
reprogramming steps to assign
up to 10 outlets to a single number
to simultaneously control multiple
devices with a single click.
12
ON
4
5
OFF

Resetting an Outlet
To remove an outlet from all remote
control pairings:
1. Unplug any devices connected
to the remote outlet.
2. Remove the outlet from the
power socket.
13

6. Program reset will be
complete when indicator
light stops blinking.
Hold program button for
approximately 5 seconds
until LED indicator begins
to flash.
5.3. Press and hold the program
button.
4. Plug outlet back into power
socket while continuing to
hold program button.
14
Program
Button

15
Troubleshooting
Issue Solution
Outlet is
unresponsive
to remote
commands.
Replace the remote batteries with new 12V (23A) batteries. Low
battery power may decrease readable wireless remote range.
Make sure the outlet and device are properly connected
and powered on.
Make sure that the outlet is placed in an area with proper
air circulation to avoid overheating.
Make sure the maximum load current of 10A (~1200W)
isn’t being exceeded. If so, unplug the device from
the outlet immediately.
If the outlet is still unresponsive, refer to the Resetting (page 13)
and Reprogramming (page 11) sectionsin the manual.

16
Specifications
Voltage: 120V~60 Hz
Maximum Current: 10A
Maximum Power: 1200W
Transmission Frequency: 433.92 MHz
Remote Battery Power: 12V (23A)
Remote Control Range: 100 ft (30 m)*
OperatingTemperature: 32°~95°F (0°~35°C)
Storage Temperature: -4°~167°F (-4°~75°C)
Package Contents
*NOTE: The wireless range may
be shortened by other electronic
devices, appliances, walls, and other
physical barriers.
1 x Remote Outlet
1 x Remote Control
1 x 12V (23A) Battery
1 x User Manual
ZAP 1L-S
1 x Remote Control
1 x 12V (23A) Battery
1 x User Manual
ZAP 1L-Tx
1 x Remote Outlet
1 x User Manual
ZAP 1L-Rx
