Wethank you very much for your choice of JBH Medical.
The manual is to assist you operating and maintaining the scooter, please go through it
with necessary information in mind prior to use thescooter. Any problem which is not cover
in here or any confusion of the manual, feel free to communicate with your local dealers or
distributors. Alternatively, you can direct contact with JBH Medical as follows:
The manual has the content of characteristics on main parts, key components, function
of parts, safety requirements and instructions, battery instructions, point of attention, meth-
odsof coping urgent, and maintenance. Symbols are used for reminding matters need to
care for, an understand of the manual fully is highly suggested.
This manual is writtenwith current product information and product photoas thefollow.
It is for the purpose easier understanding for users. The scooter is under continuous im-
provementand innovation. We reserve the right improved products without notification, any
new improvement please feel feel tocontact with us any time.
Westrongly believe that the scooter would bring you more convenientand reach the goal
of free life toyou.
PREFACE
Dear Users,
Recommendation
1
www.jbhmedical.com

LABEL OF THE SCOOTER
2
Symbols on the label represent the meaning as below:
Label of the scooter
Attention, see
instruction for use
IPX
IP Water proof grade
UKCA mark
Type BF applied part
Manufacturer
Medical device
CE mark
Consult instructions for
use
=Radio frequency fields
beyond this point may
exceed FCC general
public exposure limit
Product fulfill
WEEE directive
Date of manufacture
Batch number
Serial number
Use until year &
month (Expiration date)
www.jbhmedical.com

SYMBOLS
3
l
Temperature
imitation
Don’t use when
packing damaged Humidity limitation
Protect from heat and
radioactive sources
Disposal and recycling
Only authorized recy-
cling companies can
recycle parts of this
mobility wheelchair
Danger of explosion
Store in clean & dry
place protected from
rain, snow, ice, salt
and water.
Keep dry
Equipotential
Package Number
Switch
Foot Switch
PCTB
CF application part
Volume control
Fuse
Power 100~24 ~600VAC,50 Hz Frequency 500VA
DC output +29.4V 2.0A
www.jbhmedical.com

4
SECURITY GUIDANCE
Security Guidance
Weight Limitations
An authorized Dealer or qualified technician must perform the initial setup of this scoot-
er and must perform all of the procedures in this manual.
This product is suitable for users with age between 18 to 75 years old.
Do not drive on public highway.
No over cross any gap which is over 100 mm in width.
Never try to overpass obstacle which is over 40 mm in height.
Scooter is suitable for both outdoor and indoor use, hospital, senior center, family or
similar circumstances use only.
The suitable environment of using electric scooter:
Temperature -10～+50℃, Atmospheric Pressure 860～1060hPa, Humidity 10%～
93%.
Power Source Condition:
270W environmental conditionsthat might be harmful to the wheelchair (e.g. inclines
greater than 9 degrees, rain, snow, ice, etc.), such as temperature and humidity.
Operate scooter after it is under unfolded condition and only allow one person on
scooter all time.
The scooter is tested with simulation of human model at 120 kgs load capacity.
Your scooter is rated for a maximum weight capacity. Please refer tothe product specifica-
tions table for this limit. Keep in mind that the maximum weight capacity includes the com-
bined weight of the user and any accessories mounted tothe scooter. Stay within the speci-
fied weight capacity of your scooter. Exceeding the weight capacity voids your warranty. We
will not be held responsible for injuries and/or property damage resulting from failure to ob-
serve weight limitations.
We are not responsible forany damage andinquiry causedue to over
weight.
Not to drive on dangerous slopes.
Not to drive backwards when going up and down a hill. Max grad ability
is uphill 3°,downhill 5°
Warning！
Warning！
Warning！
Charging Voltage AC 220V 50Hz, Battery Voltage DC 24V 6Ah, Power of Motor ≥
8° 8°
www.jbhmedical.com

5
SECURITY GUIDANCE
The Scooter (Models: FDB02) has a base with Aluminium alloy frame, two front wheels, two
rear wheels, two anti-tip wheels, a seat, an adjustable steering column, a tiller console, an
electric motor, an electromagnetic brake, 2 rechargeable Lithium-Ion Batterieswith an
off-board charger. The movement of the scooter is controlled by the rider who operates the
throttle lever, speed control dial and handle on the tiller console. The device isinstalled with
an electromagnetic brake that will engage automatically when the scooter is not in use and
the brake cannot be used manually. The Scooter only can be operated on the flat road.
Indications for use:
It is a motor driven, indoor and outdoor transportation vehicle with the intended
use to provide mobility to a disabled or elderly person limited to a seated posi-
tion.
Statement
Please read the following statement.
Please, read this manual carefully and under-
stand everything clearly before using the Elec-
tric wheelchair for the first time.
Please, do not use the scooter in any unclear
cases, otherwise, the product may be dam-
aged or people may get hurt.
If you have questions, please contact us.
Please, pay attention tothe warning and cau-
tions in this manual. We are not responsible
for anyinjuryand damage caused by wrong
use of this product and neglect of the warnings
and cautions.
Instructions:
Warning！
Notice ！
Advise ！
Warning！
Improper use will cause death or serious injury；
Improper use will cause damage of scooter；
Comply with the manual tokeep scooter in good condition.
DO NOT make sharp turns at high speed or on inclines or reverse direc-
tion abruptly.
DO NOT utilize brake release / freewheeling option on any incline without
assistance tocontrol motion.
Warning！
www.jbhmedical.com

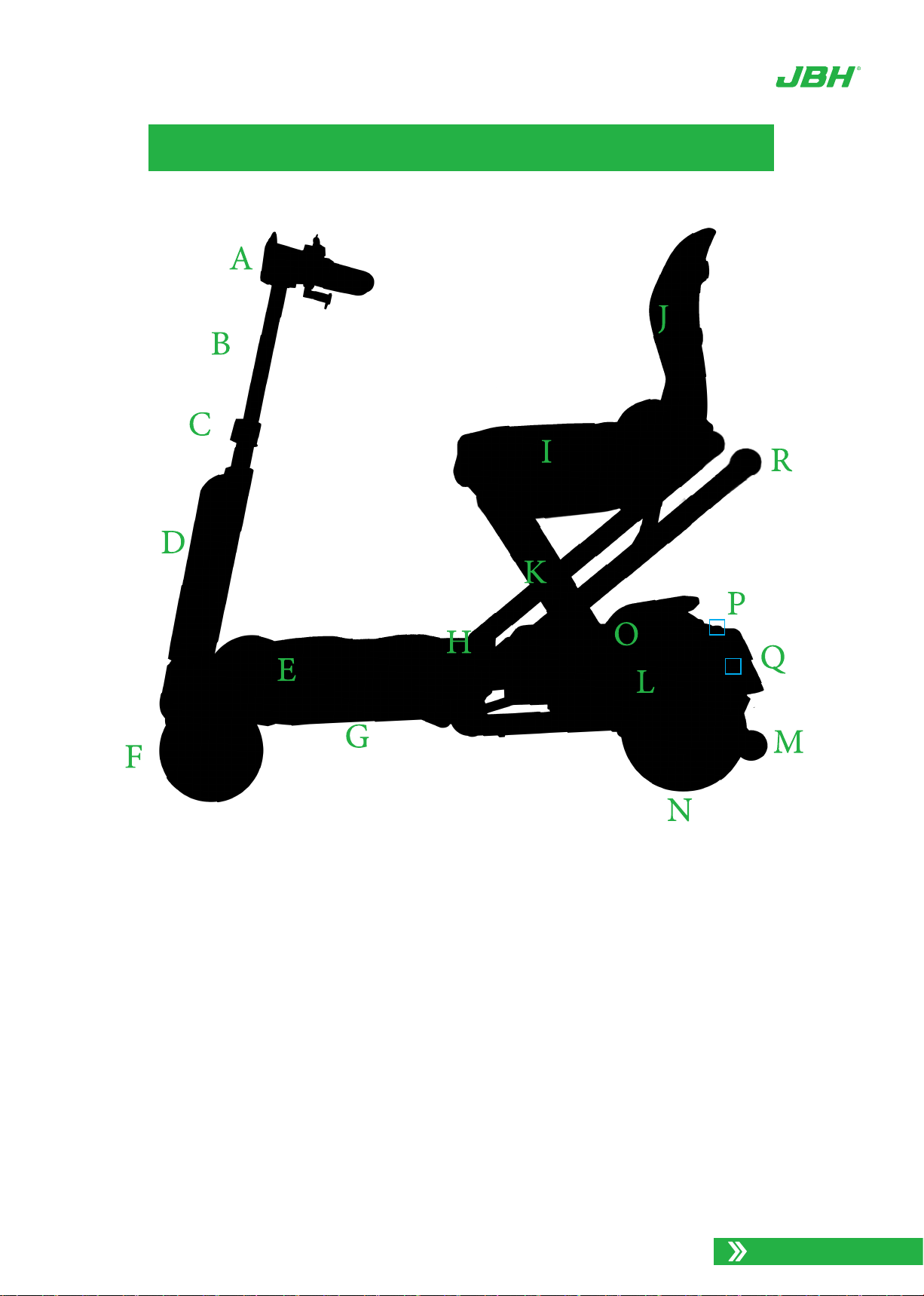

MAJOR PARTS
Fastening Device
Control Panel
Adjustable Height Handle
Gas spring tilting device
Plastic pedal
Front wheel
Front frame
Folding handrail
Seat cushion
Backrest
Seat Supporting Frame
Lithium battery
Charging port
Electric Switch
Support Wheel
Decorative Cover
Anti-tip Wheel
Rear Wheel
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
6www.jbhmedical.com

CONTENTS INSCOOTER CARTON
Upon receipt of the scooter, please open carton packing and check if ther followings are
included:
7
User’s Manual
www.jbhmedical.com

SPECIFICATION
Unfold Size
Fold Size
Front wheel
Rearwheel
Gradient 0~12°
6.5"×2" (163x 50 mm)
472.4" (1200 mm)
38.5"×19.3"×31.5" (L 980W 490H 800 mm)
7.5"×2.15" (190x 54 mm)
15.3"×19.2" × 28.3" (L 390W 490H 720 mm)
Maximum speed
Drive system
Maximum Capacity Weight 125 kgs
3.7 mph (0-6 km)
S-drive 45 A, PG
Endurance Range 20 km for single charging
Weight
Maxload capacity
SeatWidth
Seat Height
Turning Radius
120 kgs
17" (43 mm)
22" (56 mm) from ground
Seat Height 22" (56 mm) from ground
Brake System Intelligent, Regenerative and Electromagnetic
Motor 24 V 120 W
Battery Charger 24 V 2 A
27.5 kgs without battery
85.5 cm
38 cm
16.5 cm 19 cm
2 cm
72 cm
73 cm
49 cm
39 cm
29 cm
46 cm
98 cm
8www.jbhmedical.com

MAIN OPERATIONAL PARTS FUNCTION
The handle bar set including Control Panel (
with LCD display of battery Power, Driving
Speed km/h, Total Driving Distance and clima-
tetemperature, plus Key Switch, Speed Setting
Knob and Horn.), Delta Handle, Directional
Control Lever. The major operational functions
are set.
The adjustment of driving speed through speed
control knob by finger range from 0 km/h to 6
km/h at your choice. Turn the knob tovery left
for speed like turtle while turn very right rabbit
like speed.
Notice Humidity of ambient environ-
mentsignificantly affect on the opera-
tional function main parts. Stay in low
moisture surrounding before operating
or during operating is strongly recom-
mended.
Waring Sudden immediately stop of scooter
occurs when power is switched off during operation
through eletromagnetic braking system control.
Warning Always keep lower speed level during
turning or backward for keeping safe.
Handle Bar Set
Power Switch
Speed Controller
Control Panel
a.
b.
Poweris on afterturn key switch turned clock-
wise, scooter is ready to go.
Power is off if key is turned anti-clockwise,
scooter cannot operated. Turn the power off
through key if drving is terminated.
9
www.jbhmedical.com

Battery Power, Voltage, Milage, Sppeed and
Climate are shown on LCD screen while power
is turned on.
Forward and backward control is under Control
Lever.
a. Gently hold Delta handle with both hands.
b. Scooter go forward bypulling lever on the
right with fingers.
c. God backward by pulling lever on the left
with fingers.
d. Beef sound goes on during backward.
e. The Control Lever automatically to center
position while released and brake is on at the
same moment.
LCD Dispay
Telescopic Handle
Direction Control Lever
Horn
Beep sound will be on by keeping press-
ing the horn button. Sound the horn in time
under any necessary condition during driv-
ing.
Pull up plastic clipper for
adjusting to length of
handle
, push back the clip-
per
at desired length.
MAIN OPERATIONAL PARTS FUNCTION
10 www.jbhmedical.com

Located under rear cover which transfer the signal from control panel to motor, brake
and hub.
Notice Keep controller under low moisture environment and make sure it is in dry
condition before operation.
Controller
Hand Brake Lever
Pause
MAIN OPERATIONAL PARTS FUNCTION
Fold
Unfold
Hand Brake on and off can be done by switching the lever
for manual or electric control.
Electric Control Mode
Pull back the brake lever to
OFFfor electric control
Push forward the brake lever to
ONfor manual control
Manual Control Mode
Remote Control
11
www.jbhmedical.com

Note Manual only version of scooter which do not equipped with remote and switch fold
and unfold functions. Please always unfold and fold scooter manually.
The scooter is designed with 3 ways of Folding and Unfolding for customers choices de-
pending on preferences and circumstances.
They are Automatic, Electric Switch and
Manual
for your choice, please go through the instruction of these 3 ways under here.
Automatic Unfold and Fold
Electric Switch Unfold and Fold
Automatic Fold
A. Keep pressing button of remote controller.
B. Automatic fold will be completed by scooter itself.
C. Release button while scooter is completely folded.
Through switch operation for Unfold and Fold. The location of this switch is on back of
scooter.
Automatic Unfold
A. Keep pressing button of remote controller.
B. Automatic unfold of scooter will be done.
C. Release button after scooter is unfolded.
THE FOLDING AND UNFOLDING
Fold
Unfold
Pause
12 www.jbhmedical.com

THE FOLDING AND UNFOLDING
BATTERY AND CHARGING
Hands or any objects stay in joints of scooter during folding and unfolding cause
damage.
Do not directly try tofold and unfold scooter without opening the release lever.
Warning

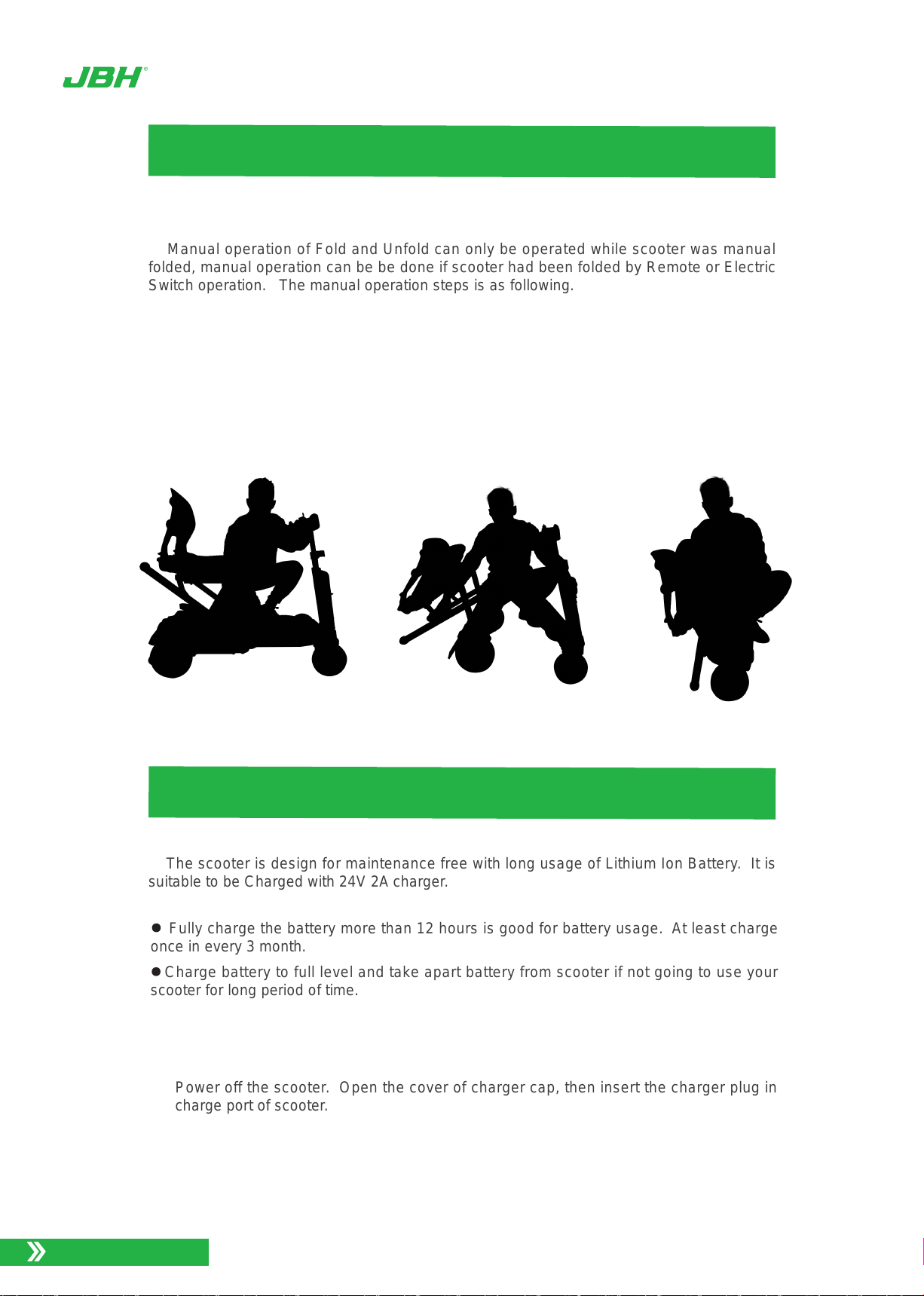

Manual operation of Fold and Unfold can only be operated while scooter was manual
fold
ed, manual operation can be be done if scooterhad been folded by Remote orElectric
S
witch operation. The manual operation steps is as following.
The scooter is design for maintenance free with long usage of Lithium Ion Battery. It is
sui
table to be Charged with 24V 2A charger.
Fully charge the battery more than 12 hours is good for battery usage. At least charge
once
in every 3 month.
Charge battery to full level and take apart batteryfrom scooter if not going to use your
scooter for long period of time.
Power off the scooter. Open the cover of charger cap, then insert the charger plug in
charge
port of scooter.
Manual Unfold and Fold
A.
B.
Steps of charging battery：
1.
13
www.jbhmedical.com

BATTERY AND CHARGING
Close the ship stype
switch or key switchThen open the rear charging
socket and insert the plug
WarningMake sure charger plug is fully plug in the charging port of scooter.
Warning Disconnect AC power source after fully charge of battery will keep the life of Lithi-
um Ion Battery longer.
Connect the A/C power plug of charger to House power source. Check the light on char-
ge
r, orange color light means charging is in progress while green light shows power if
full.
Charger red light is off while power source and power of charger is on. Please check if
t
he power connection is set properly.
The battery can be charged directly with house poer source, simple connect the termial of
battery with power source, charging can be started.
Full charge time is around 3 hours duration.
2.
Turn off power charger when battery is fully charged. Disconnect AC power source
be
fore disconnect the DC charging plug.
3.
4.
5.
Charge battery directly
Caution
!
Do not charge continuously over 6 hours through charging port of controller to pre-
vent over charging while two batteries are inserted. Never charge over 3 hours
when itisonlyonebattery.
Caution
!
Keep charging time of single
battery in 3hours when it
comes to off board charging
to avoid over charging.
Caution
!Immediatly unplug charger from power source as
soon as indicating lighton charger turns green.
14 www.jbhmedical.com

BATTERY AND CHARGING
Large input of current from charge to battery at low voltage level, small current given
from charger when battery is close tofull. Almost zero or little current given to battery, con-
tinuously charging would not cause over charge, however, it is suggested charge duration
not over 8 hours. The battery will continuous be charged under charger connected situation.
The charger is designed for batteryofthe scooter. Stronglysuggest do notuse other
t
ype of charger from original manufacturer.
F
requency of Charging
The frequency of charging is based on the following conditions
A. All day long driving of scooter
B. O
ccasional driving scooter
S
afe and reliablebattery charging
Charge scooter once a weekwhen the use frequency is once in a week. Fully charge
takes 6 hours.
Do not charge continuously over 6 hours through charging port of controller to prevent
over charging while two batteries are inserted. Never charge over 3 hours when it is
only one battery.
Keep charging time of single battery in 3 hours when it comes to off board charging to
avoid over charging.
Immediatly unplug charger from power source as soon as indicating light on charger
turns green.
How to reach maximum driving distance
A.
Make sure full charge before driving
B. K
eep away from go up hills, macadam and soft terrain.
C
. Carry necessities, reduce load of scooter.
D
. Drive smoothly without intermittent.
S
uitable specification of battery
Li
thium Ion battery with specification listed.
W
arningDo not take apart battery on your own. No need to add water for the battery.
Mi
ss use of battery cause damage are excluded in warranty.
Some knowledgeon how charger charge battery
Theindication of charger lights
Other type of charger
B.
A.
D.
E.
C.
Two LED lights are on charger, red stands for power connection, the other is charging
s
tatusindication which shows charging with orange color and turns green on fully charged.
Red
light may continue after power source disconnection, there maybe something wrong.
Normall
y red light will be off in a few seconds if disconnected to power source, it is normal
f
or red light to snuff out whille battery voltage is up to level.
Keep battery at full power.
15
www.jbhmedical.com

BATTERY SAFETY AND LIFE GUIDE
High temperature causes battery power loss while low temperature lead to longer
charging hours. It takes afew days for adapting to ambient environment then turn to normal
after transportation. It takes afew days tor returning to stable perofmance after several
charging and discharging cycles.
The reason ofweak on new battery
The scooter use deep-cycle battery under special chemical technology that allow battery
qui
ck to be charged with longer time use after full charge. Battery along with scooter pack-
ing
is charged full, however, the performance of initial power will be reduced in the process
o
f transportation, such as temperature variation.
Ensure battery life
Full charge of battery keep good performance and life longe
r, while over charge and
s
eldom charge of battery damage.
S
torage of scooter and Battery
Long time for not using scooter, please following the instruction for storage of scooter
A. Charge full battery
B.
Disconnect battery
C. Keep scooter under dry and suitable temperature
D. Avoid dramatically temperature variation during storage
W
arningKeep in warm condition a few days when battery get frozened
Long time storage of scooter is preferred laya plate under foot rest panel for supporting
and
it will avoid stain on tires after long time pressure tothe ground.
Always charge tofull when battery is new to ensure battery has 88% at least.
Al
ways charge battery tofull afteruse and keep on driving scooter is safe and famil-
iar
locations. Stay low speed if you are first time user.
Charge
battery tofull after second time driving, it will increase the battery reach 90%
capa
city performance.
Aft
er 4~5 times of driving with full charging, the performance of scooter will reach
100%
level.
Steps ofimproving battery performance
A .
B .
C.
D .
16 www.jbhmedical.com

INSTRUCTIONOF OPERATION

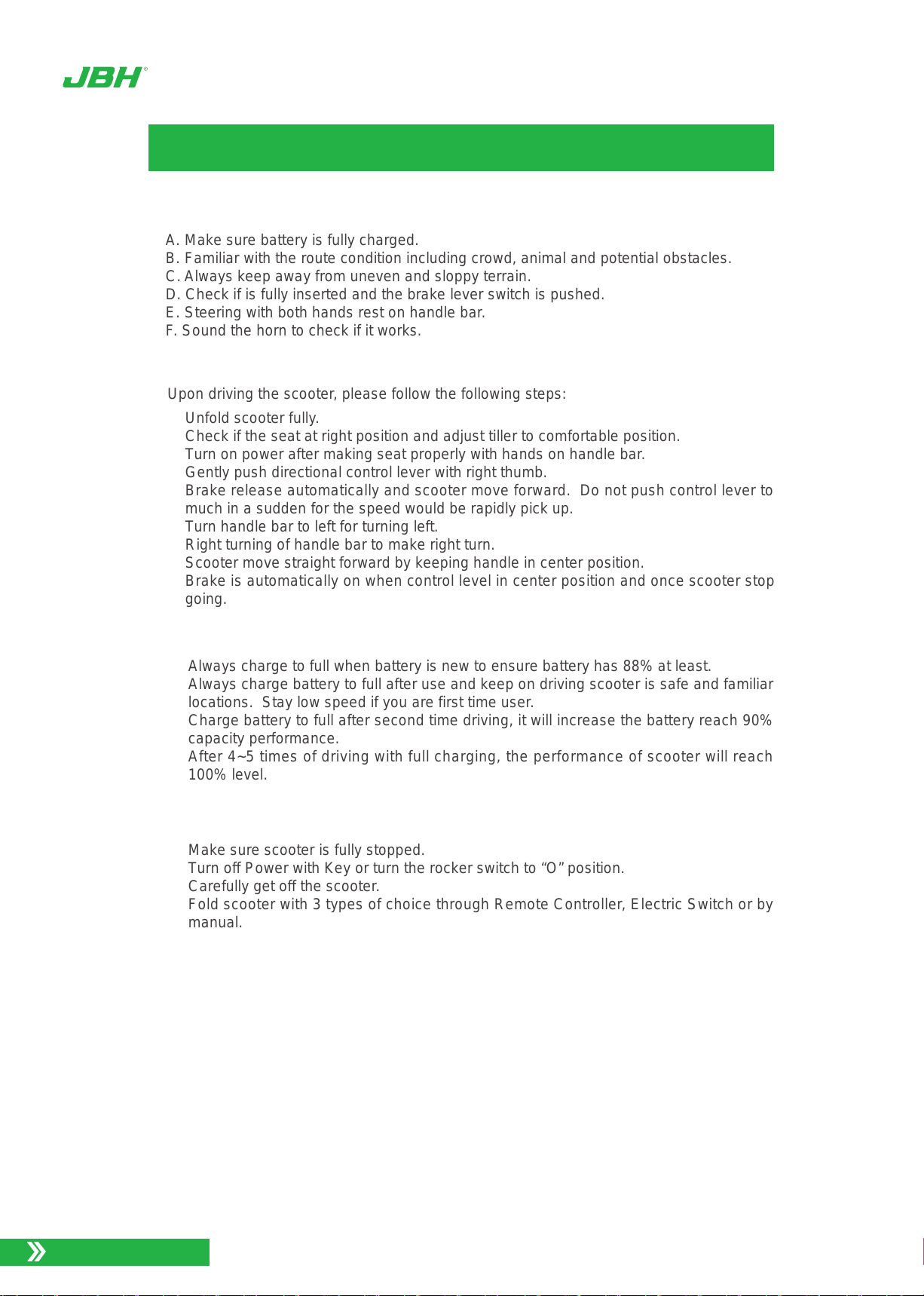

Upon driving the scooter, please follow the following steps:
Un
fold scooter fully.
Che
ck if the seat at right position and adjust tiller tocomfortable position.
T
urn on power after making seat properly with hands on handle bar.
G
ently push directional control lever with right thumb.
B
rake release automatically and scooter move forward. Do not push control lever to
much
in a sudden for the speed would be rapidly pick up.
T
urn handle bar to left for turning left.
Righ
t turning of handle bar to make right turn.
S
cooter move straight forward by keeping handle in center position.
B
rake is automaticallyonwhen control level in centerposition and once scooter stop
going
.
Before operating instruction
Driving
Steps ofimproving battery performance
A. Make sure battery is fully charged.
B. F
amiliar with the route condition including crowd, animal and potential obstacles.
C
. Always keep away from uneven and sloppy terrain.
D
. Check if is fully inserted and the brake lever switch is pushed.
E. St
eering with both hands rest on handle bar.
F
. Sound the horn tocheck if it works.
Always charge tofull when battery is new to ensure battery has 88% at least.
A
lways charge battery to full after use and keep on driving scooter is safe and familiar
loca
tions. Stay low speed if you are first time user.
Charge
battery tofull after second time driving, it will increase the battery reach 90%
capa
city performance.
Aft
er 4~5 times of driving with full charging, the performance of scooter will reach
100%
level.
A.
B.
C.
D.
E.
F.
G.
H.
I.
A.
B.
C.
D.
End of Driving
Make sure scooter is fully stopped.
T
urn off Power with Key or turn the rocker switchto “O” position.
Care
fully get off the scooter.
Fold
scooterwith 3 typesof choice through RemoteController, Electric Switch orby
manual
.
A.
B.
C.
D.
17
www.jbhmedical.com
