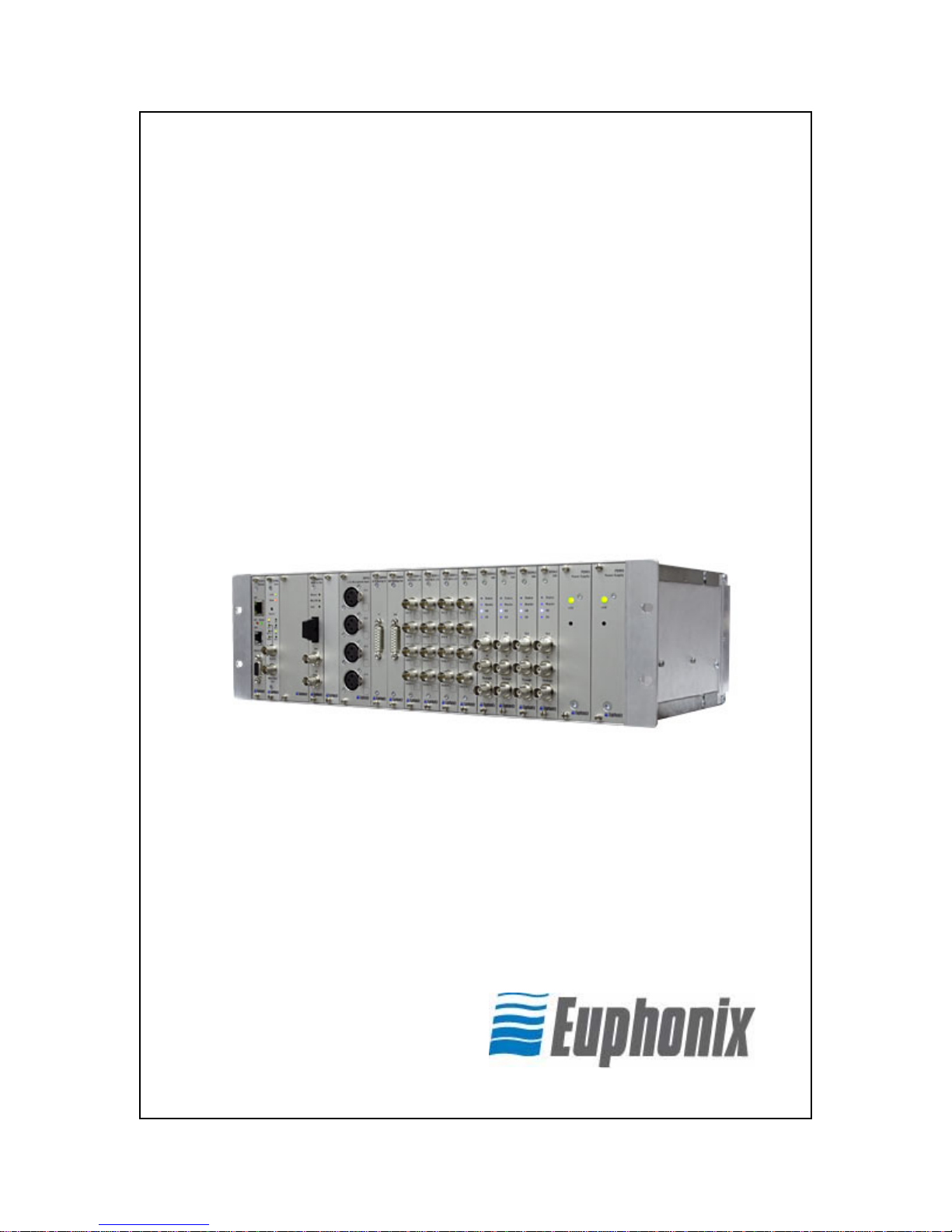

Euphonix Modular I/O User manual

Euphonix Modular I/O
Configuration Guide
Document Revision: 2.0
Release Date: April 2008
Euphonix, Inc.
220 Portage Ave.
Palo Alto, California 94306 USA
Phone: [phone]
Fax: [phone]
Web: www.euphonix.com
email: [email protected]

Euphonix Modular I/O Configuration Guide
3
In the interest of continued product development, Euphonix reserves the right to
make improvements in this manual and the product it describes at any time,
without notice or obligation.
System 5, S-5, PatchNet, eMix, EuCon, R-1, Audio Deck, Studio Hub are
trademarks of Euphonix Inc.
©2007 Euphonix, Inc. All rights reserved worldwide. No part of this publication
may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language in any form by any means without written
permission of Euphonix, Inc.
Note: This equipment has been tested and found to comply with the limits for a
Class A digital device pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequencyenergy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
Caution: Any changes or modifications made by the user that are not expressly
approved by Euphonix could void the user’s right to operate the equipment.

Euphonix Modular I/O Configuration Guide
4
IMPORTANT SAFETY INSTRUCTIONS
The lighting flash with arrowhead symbol within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute a
risk of electrical shock to persons.
The exclamation point within an equilateral triangle, is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the product.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wider blade or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.

Euphonix Modular I/O Configuration Guide Table of Contents
5
Table of Contents
Chapter 1: Product Description .……………….……..……… 9
1.1 Modular I/O Frame ………………………………………………………..9
1.1.1 IO93 Modular Frame .………….….………….………….……10
1.1.2 IO94 Stagebox Frame .………….………...…………..………11
1.1.3 IO95 Modular Frame ……………………………………….....11
1.2 MADI, Control, and Sync Modules ……………………………..………12
1.2.1 MM934/MM934opt MADI In/Out ……………………..………12
1.2.2 MM935 MADI In/Out …………………………………..………13
1.2.3 MM936 MADI In/Out …………………………………..………13
1.2.4 SY982 Sync ……………………………………………….……14
1.2.5 SY983 Sync ……………………………………………….……15
1.2.6 FC972 Remote …………………………………………………15
1.2.7 WC984 4ch WCLK Out ……………………….………………16
1.3 Audio I/O Modules ………………………………………………….……16
1.3.1 AD914 4ch Mic Input ……………...……………………..……16
1.3.2 AD920 4ch Analog Line Input …………………………..……16
1.3.3 DA921 4ch Analog Line Output ………………………………17
1.3.4 AD922 4ch Analog Line Input …………………………..……17
1.3.5 DA923 4ch Analog Line Output ………………………………17
1.3.6 AD924 4ch Mic Input ……………………………………….…17
1.3.7 DD908 4ch AES I/O (110Ω) …...……...………..………….…18
1.3.8 DD909 8ch AES Output (110Ω) ……………………...………18
1.3.9 DD910 8ch AES Input (110Ω) ……………………………..…18
1.3.10 DD911 4ch AES I/O (75Ω) ….………..…………………..…19
1.3.11 DD912 8ch AES Input (75Ω) ……..…………………………19
1.3.12 DD913 8ch AES Output (75Ω) ………..…………….………19
1.3.13 DE901 Dolby D/E Decoder… ………..…….……….………19
1.3.14 DE911 Dolby E Encoder ……………..……..……….………20
1.3.15 DE912 Dolby D+ Encoder …………..……..………..………20
1.3.16 SD941 4ch SD Embedder/De-embedder …..…………..…20
1.3.17 SD942 8ch SD Embedder/De-embedder ……………….…21
1.3.18 HD943 8ch HD/SD Embedder/De-embedder …..…………21
Chapter 2: Configuration .……………….……………………..…23
2.1 Starting-Point Configurations …………………………..…….……….…23

Euphonix Modular I/O Configuration Guide Table of Contents
6
2.1.1 IO93 Modular Frame w/ Linked Audio Busses …….....….…23
2.1.2 IO93 Modular Frame w/ Discrete Audio Busses ………...…24
2.1.3 IO94 Stagebox …………………………………………………25
2.1.4 IO95 Modular Frame as Local-Side MADI-over-Fiber
Interface …………..……………………………………….…...26
2.2 Sample Configurations …………………………………………….……27
2.2.1 Sample Configuration 1 …………………….….……………27
2.2.2 Sample Configuration 2 ………….……………….…………28
2.2.3 Sample Configuration 3 ………………………….……...……29
2.2.4 Sample Configuration 4 ………….………………………..….30
2.3 Summary Reference Spreadsheets ……………………………………31
2.3.1 Summary of Frames……………………….………………..…31
2.3.2 Summary of Sync Modules ……………….………………..…31
2.3.3 Summary of MADI Modules……………...……………………32
2.3.4 Summary of I/O Modules………………….………………..…33
2.3.5 Cross-Reference Between MM934 MADI I/O and
Audio Buss Jumpers ……………………………………..…...34
Chapter 3: Product Data Sheets .……….…………...………35
IO93 Modular Frame …………………………………….……………………36
IO94 Stagebox Frame…………………………………………………………39
IO95 Modular Frame……………………………………..……………………42
MM934/MM934opt MADI In/Out ………………………………………….....46
MM935 MADI In/Out ……………………………………………………….....50
MM936 MADI In/Out ……………………………………………………….....53
SY982 Sync ……………………………………………………..…………….56
SY983 Sync ……………………………………………………..…………….59
FC972 Remote ……………………………………….……………….………62
WC984 4ch WCLK Out……………………………….……………….………69
AD914 4ch Mic Input …………..…………………..…………………………71

Euphonix Modular I/O Configuration Guide Table of Contents
7
AD920 4ch Analog Line Input ……………………..…………………………73
DA921 4ch Analog Line Output ……………………………………….…….75
AD922 4ch Analog Line Input ……………………..…………………………77
DA923 4ch Analog Line Output ……………………………………….…….79
AD924 4ch Mic Input …………………………………………………….……81
DD908 4ch AES I/O (110Ω) ………………….………………………….…..83
DD909 8ch AES Input (110Ω) ……...……………….…………………..…..85
DD910 8ch AES Out (110Ω) …..…….………..……..………….……….…..87
DD911 4ch AES I/O (75Ω) ……………………..……………….……….…..89
DD912 8ch AES Input (75Ω) ………………..……………………………….91
DD913 8ch AES Output (75Ω) ………….……….………………..……...….93
DE901 Dolby D/E Decoder… ………..…………………………….………95
DE911 Dolby E Encoder ……………………………..…………….………97
DE912 Dolby D+ Encoder ………………....…………..…………….………99
SD941 4ch SD Embedder/De-embedder …………………….……..….…101
SD942 8ch SD Embedder/De-embedder …………………..……..………105
HD943 8ch HD/SD Embedder/De-embedder ……………..………….….109

Euphonix Modular I/O Configuration Guide Table of Contents
8
List of Figures
2-1: IO93 Modular Frame w/ Linked Audio Busses ………………………….…23
2-2: IO93 Modular Frame w/ Discrete Audio Busses ………………………...…24
2-3: IO94 Stagebox …………………………………………………………………25
2-4: IO95 Modular Frame as Local-Side MADI-over-Fiber Interface …………...26
2-5: Sample Configuration 1……………………………………………………….27
2-6: Sample Configuration 2………………………….……………………………28
2-7: Sample Configuration 3………………………….……………………………29
2-8: Sample Configuration 4…………………….………………………….……...30
2-9: Summery of Frames …………………………………………………...……31
2-10: Summery of Sync Modules ………………………………………………...31
2-11: Summery of MADI Modules ………….………………………………...……32
2-10: Summery of I/O Modules …………………………………………………...33
2-11: Cross-Reference Between MADI I/O and Audio Buss Jumpers ….…..…34

Euphonix Modular I/O Configuration Guide Product Description
9
Chapter 1: Product Description
Euphonix Modular I/O is designed to add a new level of flexibility in I/O
configuration to the Euphonix range of audio converters. The Modular I/O
system offers several types of frames that can be fitted with a variety of I/O
modules. This allows frames to be customized to exactly meet client
requirements. For interface to the console, all signals are converted to MADI.
Audio formats supported are remote control preamp, line level analog, AES/EBU,
Dolby encoder/decoder, and HD/SD embedder/de-embedder. Other modules
provide sync and remote control interface. Redundant multimode fiber
connection for stageboxes is also supported.
The descriptions that follow are divided into the following groups of components
•Modular I/O Frames
•MADI, Control and Sync Modules
•Audio I/O Modules
Note: The component settings descriptions are not all-inclusive. Only the
most relevant settings for product understanding have been included here.
See the manufacturer’s data sheets for a complete listing of all options
and switch settings.
1.1 Modular I/O Frames
Euphonix offers several frame types, each specified for particular
applications. Characteristics of the frames can be categorized as follows:
•Backplane Space
Module widths are either 1 slot or 2 slots (termed “4HP” per slot).
Single sided frames contain a 19 slot (76HP) “rear-plane”. Double-
sided frames contain a 19 slot “rear-plane” and an 18 slot (72HP)
“front-plane”.
•Power Supplies
All frames contain dual-redundant power supplies. However,
supply power capacity and mounting (built-in vs. removable)
depends on the frame type.
•Audio Busses

Euphonix Modular I/O Configuration Guide Product Description
10
Each audio backplane contains 32 passive stereo audio busses (64
total signal paths). Audio source and destination modules are
connected to audio busses via physical on-board jumpers or via
web-browser interface. Any audio buss may have multiple
destinations but only a single source. Different frames have
options to isolate audio busses in certain physical slot positions.
This enables higher signal densities.
•Control Buss
Each frame contains a single control buss. The control bus
interfaces to LAN via the FC972 Remote module. This enables
console control of mic preamps and web-browser configuration of
certain modules (other modules do not require any external control
and do not appear on the control bus). The FC972 may be
mounted in any frame slot and is assigned a unique IP address.
Up to 16 “controllable” modules may be fitted into a given frame
and each is assigned a unique ID via on-board switches.
•Sync Buss
Each frame contains a single sync buss that is shared by all
modules in the frame. Several modules may act as the frame sync
source such as the SY983 Sync (single and redundant
configurations available) any MADI module (lock to incoming MADI).
The sync source module(s) must be placed in any of the four red
“reserved” slots located in the rear-plane (slot positions 1-4).
These slots may also be used for other modules. If a MADI module
is used a sync source, the frame must not contain any SY983/982
modules for proper operation.
1.1.1 IO93 Modular I/O Frame
General Description
The IO93 is a 3RU double-sided frame with removable dual-
redundant PSUs capable of delivering 5v@12A of usable
power. The frame contains 19 rear-plane slots and 18 front-
plane slots for modules. Rear-plane slots 1-4 are “reserved”
for the sync source module(s). Other modules may be fitted
here also. Sync and control busses are shared by all slots in
the frame. Audio busses may be isolated between the front
and rear planes via an interconnect PCB located in the unit

Euphonix Modular I/O Configuration Guide Product Description
11
(configurable via DIP switched, some disassembly required
to access).
Connections, Power, Space, Weight
Power (IEEEx2); PSU: autosensing (100~240vAC, 50/60Hz);
input current (internal 5vDC rail at maximum load): 1.5A @
99vAC, 700mA @ 207vAC; output: 5v@12A usable power,
3RU, front-plane module space: 72HP, rear-plane space:
76HP (typical module width: 4HP/8HP), audio connections
will appear on front and rear in typical configurations.
Weight: ~5.3kg.
1.1.2 IO94 Stagebox Frame
General Description
The IO94 is a 3RU single-sided frame with built-in dual-
redundant PSUs. The frame contains 19 rear-plane slots.
Rear-plane slots 1-4 are “reserved” for the sync source
module(s). Other modules may be fitted here also. Sync,
control, and audio busses are shared by all slots in the frame.
Connections, Power, Space, Weight
Power (IEEEx2); PSU: autosensing (100~240vAC, 50/60Hz);
input current (internal 5vDC rail at maximum load): 3A @
99vAC, 1.5A @ 207vAC; output: 5v@20A usable power,
3RU, rear-plane space: 76HP (typical module width:
4HP/8HP), audio connections will appear rear only. Weight:
~5.3kg.
1.1.3 IO95 Modular Frame (for local-side redundant MADI-over-Fiber
interface)
General Description
The IO95 is a 3RU double-sided frame with removable dual-
redundant PSUs capable of delivering 5v@12A of usable
power. The frame contains 19 rear-plane slots and 18 front-
plane slots for modules. Rear-plane slots 1-4 are “reserved”
for the sync source module(s). Other modules may be fitted
here also. Sync and control busses are shared by all slots in
the frame.

Euphonix Modular I/O Configuration Guide Product Description
12
For use as a local-side interface for redundant MADI-over-
Fiber, four rear-plane “positions” of 3-slots each are audio
isolated from the rest of the frame. These positions are as
follows: slots 8-10, slots 11-13, slots 14-16, and slots17-19.
Modules placed in these positions share the frames sync
and control busses.
The remaining 7 rear-plane slots (which includes the four
“reserved” slots) may be isolated from the front-plane via an
interconnect PCB located in the unit (configurable via DIP
switched, some disassembly required to access).
Connections, Power, Space, Weight
Power (IEEEx2); PSU: autosensing (100~240vAC, 50/60Hz);
input current (internal 5vDC rail at maximum load): 1.5A @
99vAC, 700mA @ 207vAC; output: 5v@12A usable power,
3RU, front-plane module space: 72HP, rear-plane space:
76HP (typical module width: 4HP/8HP), audio connections
will appear on front and rear in typical configurations.
Weight: ~5.3kg.
1.2 MADI, Control, and Sync modules
1.2.1 MM934/MM934opt MADI In/Out
General Description
The MM934 contains a single MADI I/O and optional multi-
mode fiber transceiver (MM934opt). The module features a
master sync mode that allows it to derive the master sync
source for the rack from its MADI input. MADI working
modes set via on-board switches determine how it connects
to the 32 stereo busses available on the backplane. All
settings are done from on-board switches.
Working modes (label from MADI perspective). See
Chapter 2 for cross reference between MADI I/O and audio
busses.
•<64 in>
•<56 in>
•<48 in, 16 out>
•<32 in, 32 out>
•<16 in, 48 out>

Euphonix Modular I/O Configuration Guide Product Description
13
•<56 out>
•<64 out>
96k Operation:
In frames operating at 96k sample rate, only the first 28
signals in a MADI stream are available. In these cases, <32
in, 32 out> working mode yields the best signal efficiency
with 28 MADI inputs and 28 MADI outputs at 96k.
Note: When used as the master sync source, the
MM934/MM934opt MADI In/Out should only be
removed from a frame after the frame has been
powered down. Possible damage may occur to some
I/O modules if the master sync source is removed
from a live frame.
Connections, Power Consumption, Width, Weight
MADI I/O (BNC x2). Multimode fiber: 62.5/125µm, 1310nm,
one fiber strand per direction (SC x2) in MM934opt, ~350
mA (~500mA for MM934opt), 4HP. ~150g.
1.2.2 MM935 MADI In/Out
General Description
The MM935 contains a single coax MADI I/O. The module
features a master sync mode that allows it to derive the
master sync source for the rack from its MADI input. Certain
settings are done from on-board switches such as device ID.
Buss configuration is accomplished using a flexible
crosspoint matrix configured via web-browser interface.
Note: When used as the master sync source, the
MM935 MADI In/Out should only be removed from a
frame after the frame has been powered down.
Possible damage may occur to some I/O modules if
the master sync source is removed from a live frame.
Connections, Power Consumption, Width, Weight
MADI I/O (BNC x2), ~350 mA, 4HP. ~150g.
1.2.3 MM936 MADI In/Out

Euphonix Modular I/O Configuration Guide Product Description
14
General Description
The MM936 contains a single MADI I/O connected via two
multi-mode fiber transceivers for redundant MADI-over-Fiber
operation. The module is typically placed in an IO94
Stagebox frame and interfaces to the console via a MM936
and MM934 pair placed in an IO95 local-side interface frame.
The module features a master sync mode that allows it to
lock a frame to its MADI input. Certain settings are done
from on-board switches such as device ID. Buss
configuration is accomplished using a flexible crosspoint
matrix configured via web-browser interface.
Note: When used as the master sync source, the
MM936 MADI In/Out should only be removed from a
frame after the frame has been powered down.
Possible damage may occur to some I/O modules if
the master sync source is removed from a live frame.
Connections, Power Consumption, Width, Weight
Redundant multi-mode fiber: 62.5/125µm, 1310nm, one
fiber strand per direction (SC x4), ~500 mA, 4HP. ~150g.
1.2.4 SY982 Sync (discontinued-replaced by the SY983 Sync)
General Description
The SY982 contains an internal clock and can lock to
external AES Sync, Word Clock, or Video signal. Internal
sample rates are 44.1k, 48k, 88.2k, and 96k. The module
features a sync redundancy mode which allows two modules,
designated master and slave, to be fitted into a rack. If the
master loses sync, the slave automatically takes over.
SY982 Sync module(s) must be fitted into any of the four
reserved slots on the rear-plane. All settings are done from
on-board switches.
Note: The SY982 Sync module should only be
removed from a frame after the frame has been
powered down. Possible damage may occur to some
I/O modules if the master sync source is removed
from a live frame.
Connections, Power Consumption, Width, Weight

Euphonix Modular I/O Configuration Guide Product Description
15
Sync in (BNC), Word Clock out (BNC), ~300 mA, 4HP,
~200g.
1.2.5 SY983 Sync
General Description
The SY983 contains an internal clock and can lock to
external AES Sync, Word Clock, Video signal, or Tri-Level
Sync. Internal sample rates are 44.1k, 48k, 88.2k, and 96k.
The module features a sync redundancy mode which allows
two modules, designated master and slave, to be fitted into a
rack. If the master loses sync, the slave automatically takes
over. SY983 Sync modules must be fitted into any of the
four reserved slots on the rear-plane. On-board switches
are used for certain settings including device ID. Web-
browser interface via FC972 Remote provides access to
module status and settings.
Note: The SY983 Sync module should only be
removed from a frame after the frame has been
powered down. Possible damage may occur to some
I/O modules if the master sync source is removed
from a live frame.
Connections, Power Consumption, Width, Weight
Sync in (BNC), Word Clock out (BNC), ~300 mA, 4HP,
~200g.
1.2.6 FC972 Remote
General Description
The FC972 acts as a TCP/IP interface to the frame’s internal
communications buss. Frames with externally configured
modules (remote preamps, 8-ch embedder/de-embedder,
SY983 Sync) must have an FC972 Remote fitted.
Configuration of this module via serial and/or web browser
interface may be necessary. See the manufacturer’s data
sheet for details.
Connections, Power Consumption, Width, Weight

Euphonix Modular I/O Configuration Guide Product Description
16
TCP/IP (RJ45), CAN Remote (RJ45) no longer used, RS232
(9pin DSub) for ip address configuration, ~300 mA, 4HP,
~200g.
1.2.7 WC984 4ch WCLK Out
General Description
The WC984 provides four workclock outputs derived from
the frame’s sync buss, regardless of the module being used
as the master sync source. Sample rates from 44.1k ~ 96k
are supported. This module is highly recommended from
frames where sync-to-MADI is being used as the sync
method. The module requires no settings.
Connections, Power Consumption, Width, Weight
Wordclock out (BNC x4), ~100 mA, 4HP, ~150g.
1.3 Audio I/O modules
1.3.1 AD914 4ch Mic Input
General Description
The AD914 provides 4 remote controlled preamps with 24 bit
resolution and sample rates up to 96k. Preamps are
controlled via Eucon interface or web browser interface via
the TCP/IP network on the FC972 Remote. On-board
switches are used to link the sources to the frame’s audio
busses and to set the device ID.
Connections, Power Consumption, Width, Weight
Analog input (MXLR x4), ~1300mA, 4HP, ~300g.
1.3.2 AD920 4ch Analog Line Input
General Description
The AD920 provides 4 analog inputs with 24 bit resolution
and sample rates up to 96k. All settings are done with on-
board switches including buss linking and analog reference
level.

Euphonix Modular I/O Configuration Guide Product Description
17
Connections, Power Consumption, Width, Weight
Analog input (FXLR x4), ~850mA, 8HP, ~200g.
1.3.3 DA921 4ch Analog Line Output
General Description
The DA921 provides 4 analog outputs with 24 bit resolution
and sample rates up to 96k. All settings are done with on-
board switches including buss linking and analog reference
level.
Connections, Power Consumption, Width, Weight
Analog output (MXLR x4), ~650mA, 8HP, ~200g.
1.3.4 AD922 4ch Analog Line Input
General Description
The AD922 provides 4 analog inputs with 24 bit resolution
and sample rates up to 96k. All settings are done with on-
board switches including buss linking and analog reference
level.
Connections, Power Consumption, Width, Weight
Analog input (15p DSub), ~850mA, 4HP, ~200g.
1.3.5 DA923 4ch Analog Line Output
General Description
The DA923 provides 4 analog outputs with 24 bit resolution
and sample rates up to 96k. All settings are done with on-
board switches including buss linking and analog reference
level.
Connections, Power Consumption, Width, Weight
Analog output (15p DSub), ~650mA, 4HP, ~200g.
1.3.6 AD924 4ch Mic Input

Euphonix Modular I/O Configuration Guide Product Description
18
General Description
The AD924 provides 4 remote controlled preamps with 24 bit
resolution and sample rates up to 96k. Preamps are
controlled via Eucon interface or web browser interface via
the TCP/IP network on the FC972 Remote. On-board
switches are used to link the sources to the frame’s audio
busses and to set the device ID.
Connections, Power Consumption, Width, Weight
Analog input (MXLR x4), ~1100mA, 8HP, ~300g.
1.3.7 DD908 4ch AES I/O (110Ω)
General Description
The DD908 provides 4 AES inputs (2 pairs) with SRC and 4
AES outputs (2 pairs) with 110Ωconnection. Buss link
settings are done with on-board switches.
Connections, Power Consumption, Width, Weight
AES/EBU input (FXLR x2), AES/EBU output (MXLR x2),
~100mA, 8HP, ~200g.
1.3.8 DD909 8ch AES Input (110Ω)
General Description
The DD909 provides 8 AES inputs (4 pairs) with SRC with
110Ωconnection. Buss link settings are done with on-board
switches.
Connections, Power Consumption, Width, Weight
AES/EBU input (FXLR x4), ~100mA, 8HP, ~200g.
1.3.9 DD910 8Ch AES Output (110Ω)
General Description
The DD910 provides 8 AES outputs (4 pairs) with 110Ω
connection Buss link settings are done with on-board
switches.

Euphonix Modular I/O Configuration Guide Product Description
19
Connections, Power Consumption, Width, Weight
AES/EBU output (MXLR x4), ~100mA, 8HP, ~200g.
1.3.10 DD911 4ch AES I/O (75Ω)
General Description
The DD911 provides 4 AES inputs (2 pairs) with SRC and 4
AES outputs (2 pairs) with 75Ωconnection. Buss link
settings are done with on-board switches.
Connections, Power Consumption, Width, Weight
AES/EBU input (BNC x2), AES/EBU output (BNC x2),
~100mA, 4HP, ~150g.
1.3.11 DD912 8ch AES Input (75Ω)
General Description
The DD912 provides 8 AES inputs (4 pairs) with SRC with
75Ωconnection. Buss link settings are done with on-board
switches.
Connections, Power Consumption, Width, Weight
AES/EBU input (BNC x4), ~100mA, 4HP, ~150g.
1.3.12 DD913 8Ch AES Output (75Ω)
General Description
The DD913 provides 8 AES outputs (4 pairs) with 75Ω
connection. Buss link settings are done with on-board
switches.
Connections, Power Consumption, Width, Weight
AES/EBU output (BNC x4), ~100mA, 4HP, ~150g.
1.3.13 DE901 Dolby D/E Decoder
General Description

Euphonix Modular I/O Configuration Guide Product Description
20
The DD901 provides decoding of Dolby E and Dolby digital
signals. Access to metadata parameters is via web-browser
interface (FC972 Remote required). Certain settings are
done from on-board switches such as device ID.
Connections, Power Consumption, Width, Weight
Dolby D/E input (BNC), Metadata out (9-pin DSub), 4HP.
1.3.14 DE911 Dolby E Encoder
General Description
The DD911 provides encoding of a Dolby E signal. Access
to metadata parameters is via web-browser interface (FC972
Remote required). Certain settings are done from on-board
switches such as device ID.
For proper operation, this unit must be locked to video sync
via an SY983 Sync module.
Connections, Power Consumption, Width, Weight
Dolby E output (BNC), Metadata in (9-pin DSub), 4HP.
1.3.15 DE912 Dolby D+ Encoder
General Description
The DD911 provides encoding of a Dolby D+ signal. Access
to metadata parameters is via web-browser interface (FC972
Remote required). Certain settings are done from on-board
switches such as device ID.
Connections, Power Consumption, Width, Weight
Dolby D+ output (BNC), Metadata in (9-pin DSub), 4HP.
1.3.16 SD941 4ch SD Embedder/De-embedder (discontinued)
General Description
The SD941 can embed or de-embed 4 channels of audio
to/from a single SD video signal as per SMPTE272M
standard. Embedding/de-embedding may be applied to any
of the four available 4-channel audio groups. Although the
