Eureka Blaze Plus User manual
BLAZE PLUS™
INSTRUCTIONS MANUAL
Cautions for the rst use
Remember, safety should be your rst priority.
1. Please make sure that you disconnect all other electronic devices
connected to the power line you plan on using for your iron.
2. Make sure that you have removed any packaging or protective covers
from the soleplate.
3. When plugged in for the rst time, you may notice slight smoke due to
production grease. Do not worry as this will cease shortly.
4. Always avoid harsh contact between your iron and other metal objects.
1
2
Safety Instructions
1. Whenever you need to step away from the iron, make sure
that you unplug it and leave the iron in a vertical position with
the soleplate facing upright.
2. Avoid children near the plugged iron.
3. Avoid contact of hot soleplate with your hands or ammable
objects during use.
4. CAUTION! Make sure your iron is disconnected from the power
supply before pouring water in the water tank.
Safety Instructions
1. Whenever you need to step away from the iron, make sure
that you unplug it and leave the iron in a vertical position with
the soleplate facing upright.
2. Avoid children near the plugged iron.
3. Avoid contact of hot soleplate with your hands or ammable
objects during use.
4. CAUTION! Make sure your iron is disconnected from the power
supply before pouring water in the water tank.
5. DO NOT immerse any part of the iron in any type of uid.
6. DO NOT use the iron if the cord is damaged. Consult with the
manufacturer to get your iron xed or replaced.
(See last page for instructions)
7. To prevent deposition of minerals in the steam holes, it is
recommended to use distilled water for cleaner steam holes.
8. Never use chemically descaled water.
9. Avoid directing steam towards people or animals. Steam is
hazardous and can cause severe skin burns.
3
Parts & Features
1. Water Filling Cover
2. Steam Control
3. Auto Surge™ Button
4. LED Indicator Pump Light & 3-Way
Auto Shuto Indicator Light
5. Gripsoft™
Rubberized Handle
6. 10 Foot Electrical Cord
with 360º Pivot
7. Heating LED Indicator Light
8. Heat Settings Dial
9. Water Tank
10. Nano-Ceramic Shield™
Coated Soleplate
1
2
3
456
7
8
9
10
4
Dry Ironing
1. Set the movable Steam Control Lever to point ‘’0’’.
2. Adjust ironing temperature in accordance with the linen’s requirement.
Filling with Water
Before lling the water tank, make sure that the iron is unplugged,
temperature dial is positioned at the “OFF” mark, and the iron is held at
approximately 45º tilt. Now, ll the water tank till the MAX mark.
Steam Ironing
Steam Adjustable
Control Knob
5
6
Auto Surge (Continuous Steam)
1. Fill the water tank in accordance with the instructions in the “Filling with
Water” section.
2. Plug the cord into the outlet and ensure that the steam button is OFF.
3. Choose the fabric temperature desired.
4. The light “ON” indicates that the iron’s temperature is increasing
steadily. Once desired temperature is reached, the light will turn “OFF”
automatically. DO NOT press the steam button until the heating light is
turned OFF.
5. The auto-surge button will emit a blue light to show that it is OFF.
6. According to your fabric’s requirement, adjust the Steam Adjustable
Control knob by turning right for more steam and left for less steam.
7. Once you have chosen your desired temperature and steam setting,
click the auto-surge button on your grip soft handle to activate the
built-in pump that allows for continuous powerful bursts of steam.
You may let go of the button once you have clicked it as one click is
enough to activate continuous steam.
8. When continuous steam is automated, the auto-surge function light
turns pink.
9. To turn OFF, simply click on the auto-surge button again.
This function is specially designed to remove the toughest wrinkles and creases present in heavy fabrics. To achieve strongest
steam discharge make sure that the thermostat dial is set at the MAX mark and that the steam surge knob is turned to MAX.
7
Vertical Steam
By holding the iron in a vertical position, one can apply continuous steam
to remove creases from curtains and any type of hanging fabrics.
Anti-Drip
An advanced system inside your iron prevents water leakage at even the
lowest heat setting.
Auto Surge™
Button
8
Anti-Calc
Over time, lime scales may accumulate inside the iron or on the soleplate’s
surface. To prevent this, an anti-calc lter is permanently installed in this
appliance. It cannot be removed for cleaning purposes.
Auto Shut-O
1. If the iron is left unused for 15 minutes, the light will blink signaling that the
iron has automatically shut o.
2.If the iron is left on the fabric or accidentally tips over, the iron will automatically shut
o within 30 seconds. The blinking light on the iron will indicate that the iron has shut
o. The steam function will not work until the iron has heated up again.
3. Move the iron back and forth on the linen to auto-restart. The light will immediately
stop blinking after achieving sucient temperature for you to continue ironing.
30-Second
Auto-O
30-Second
Auto-O
15-Minute
Auto-O
9

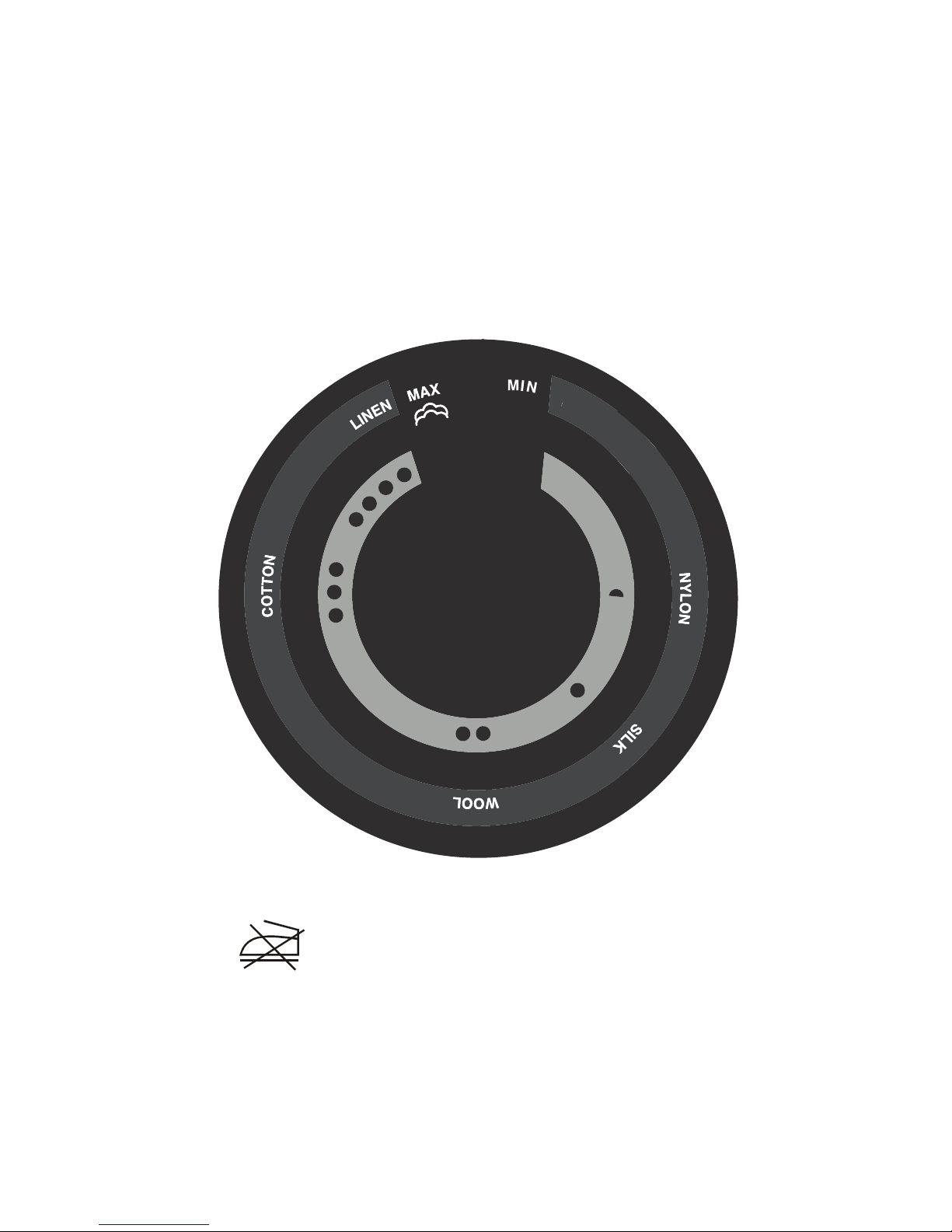

Heat Settings Dial
Caution Please note that this symbol on your fabric’s
label means this article may not ironed.
10
Heater cleaning
1. Before cleaning the heater, unplug the cord, empty the water tank, and
make sure you have given the soleplate enough time to cool down.
2. Carefully turn your iron over, and pry up the cover plate by smoothly
inserting a small spread-eagled-screwdriver into the prying part of the
cleaning hole. Make sure you only insert the screwdriver to a maximum
length of 2mm so that you don’t damage the seal during this process.
3. Unscrew the three screws of the heater ltering unit with a cross-shaped
screwdriver.
4. Take o the heat ltering unit and use a Q-tip to clean it thoroughly.
5. After cleaning, reinstall the cover plate by inserting the two foot fasteners
at the bottom rst and then securely pressing the top for proper placement.
11
Cleaning & Maintenance
Before you begin cleaning, unplug the iron and allow it to cool down.
1. Clean the soleplate with any moist cloth and non-abrasive cleaner.
2. If bers stick to the soleplate, use damp cloth immersed in vinegar to
wipe o adherent bers.
3. Never use strong acids and alkali uids as cleaning agents when
cleaning soleplate.
4. Use a toothpick to remove any scales stuck up in steam holes.
Make sure that you don’t damage the soleplate in the process.
5. Remove any left over water from the water tank.
6. Make sure the steam selector is set to ‘’0’’ and the thermostat dial is
set to “OFF”.
12
Troubleshooting
Problem Possible Reasons
There is little heat or no
heat.
Check thermostat dial and
look for any error in power
transmission.
Adjust thermostat dial to your
desired setting.
Set the thermostat dial to a
higher setting.
Remove excess water.
By turning to the right, adjust
the steam control knob to the
proper position.
Follow the “Heater Cleaning”
instructions on the previous
page.
Fill the water level up to the MAX
mark on the tank.
Give regular pauses between
each vertical burst of steam and
continue ironing in horizontal
position.
Cord may be unplugged or thermostat
improperly set.
Thermostat dial is set at the OFF mark.
Repeated usage of vertical burst of steam or
the iron is not hot enough.
The iron is not hot enough.
The water is exceeding the MAX position mark.
Clogged steam holes.
Steam control knob is not set to the proper
position.
Not enough water in tank.
Steam has stopped or
there is leakage.
There is no ow of steam
or vertical steam is absent.
There is water leaking
from soleplate.
Less Steam
Solution
13
This product has a warranty for 2 years from provable date of purchase against defects in material and
workmanship. During this period such defects will be repaired, or the product will be replaced at no charge.
This warranty does not cover damage caused by misuse, negligence, or improper installation. Warranty
is also invalid in any case that the product is taken apart or serviced by an unauthorized service station.
TO CLAIM:
Purchaser must receive a Return Authorization Number by calling our service center at 1-844-EUREKA5
(844-387-3525) or visit our website www.eurekagarmentcare.net for more info. Once your return has been
authorized, please send your package, prepaid postage, with a copy of your proof of purchase. You will
also need to enclose a letter explaining the nature of your diculty in detail. Please allow 2-4 weeks for
return shipping.
Smartek USA Inc.
12 Hinsdale Street, NY 11207
Eureka is a registered trademark used under license from Electrolux Home Products Inc. Designed in USA.
Assembled in China. © 2015
Warranty
