Euroheat 49991 User guide

© EUROHEAT DISTRIBUTORS (H.B.S) LTD.Aug 2006 Instructions Part number IN1016 Ed G 1
Installation & Servicing
Harmony 5 and Stanford 50 Gas
Conventional Flue Stove
Serial Number
Part No.
Euroheat Distributors
(H.B.S.) Ltd.,
Unit 2, Court Farm
Business Park,
Bishops Frome,
Worcestershire,
WR6 5AY.
49991
EF
EL

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. Aug 2006 Instructions Part number IN1016 Ed G 2
Table of Contents
Technical Data with Eurosit Gas Valve 630 3
Technical Data with Mertik Maxitrol GV34 Gas Valve 4
General Installation and Servicing Instructions 5
Installation of the Gas Supply, BS 6891 6
Appliance Location 7
Installation of the Stove to the Flue System 7

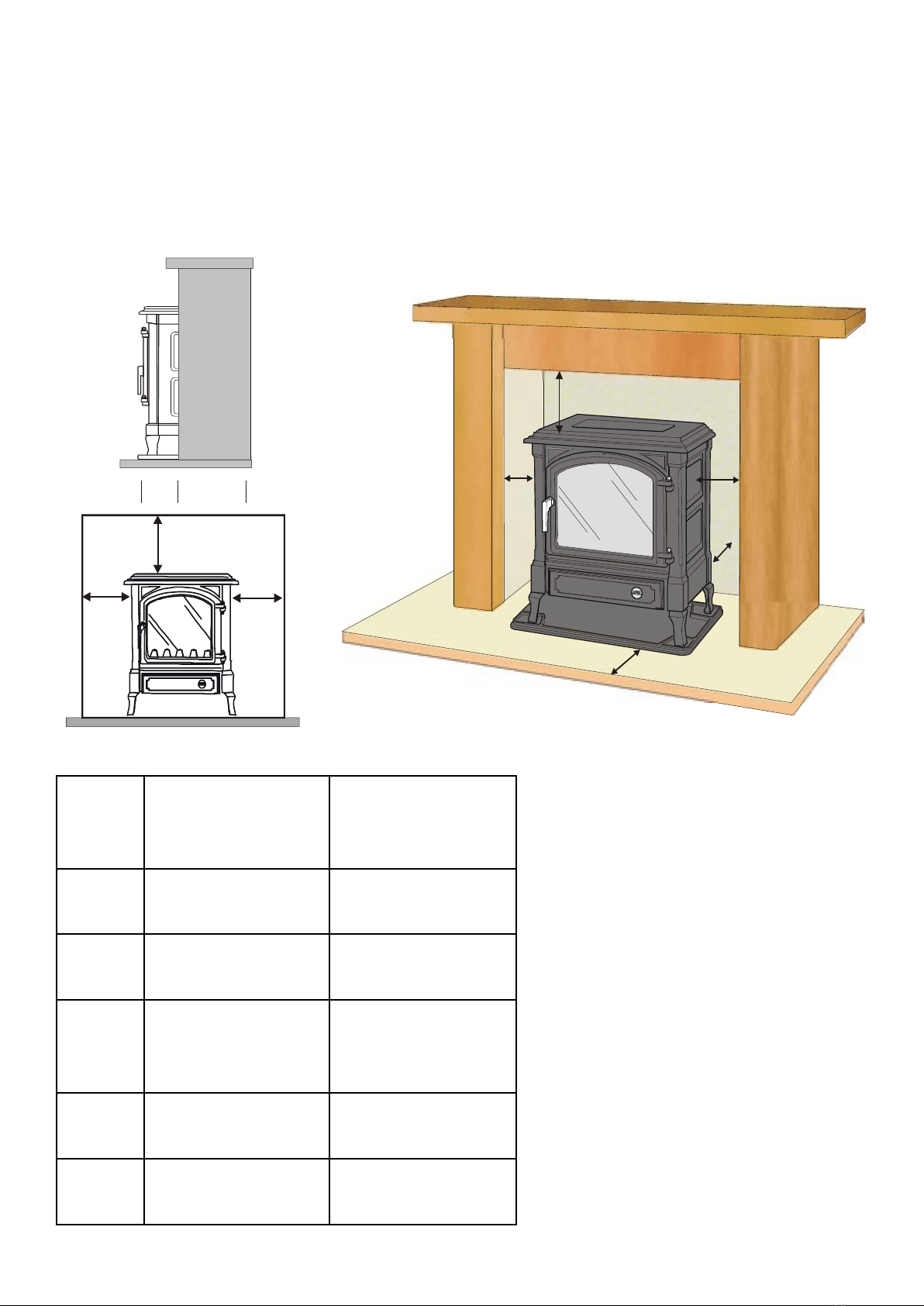

Hearth and Fireplace Requirements 8

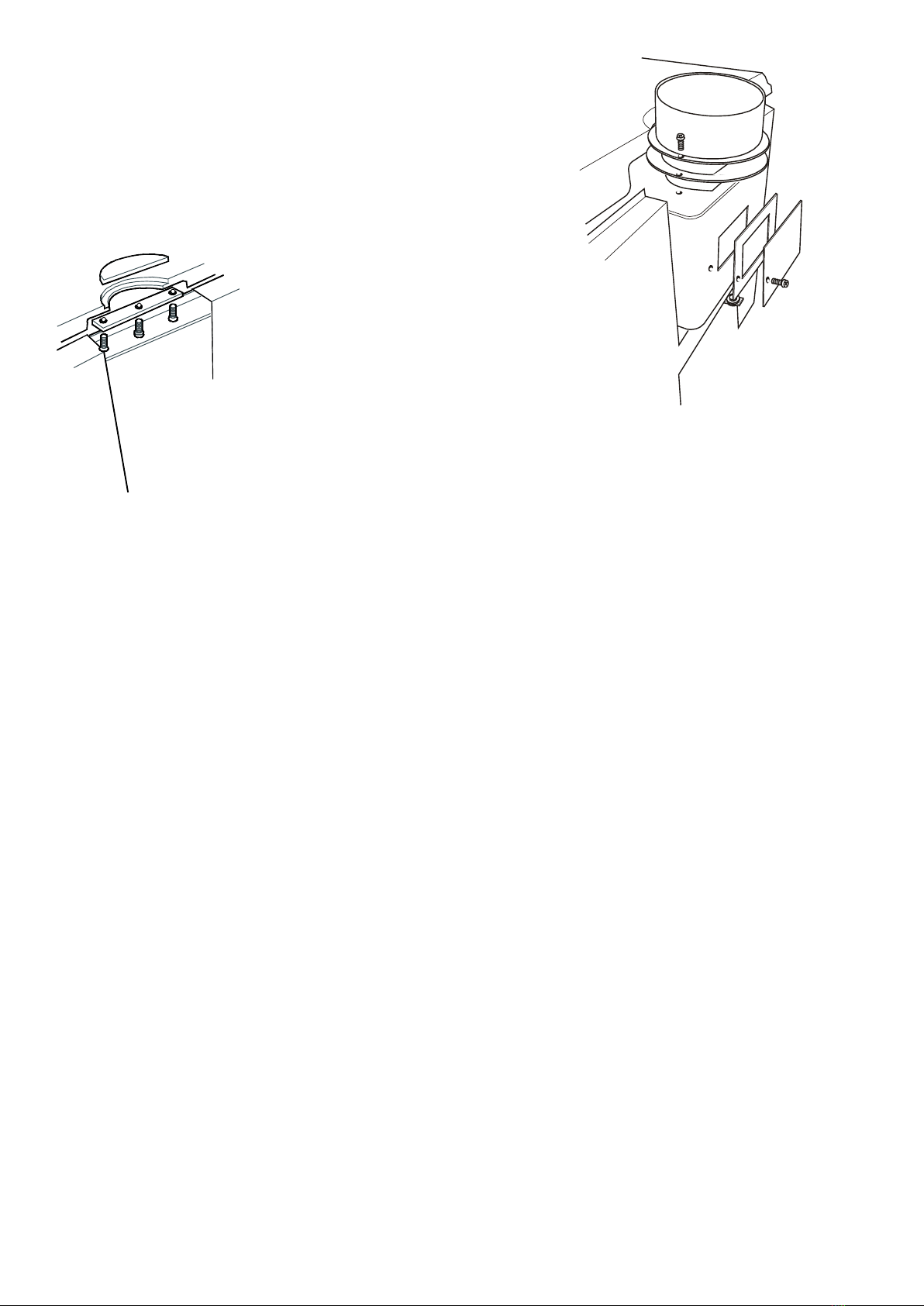

Changing Flue Outlet Direction 9
Gas Connection 9

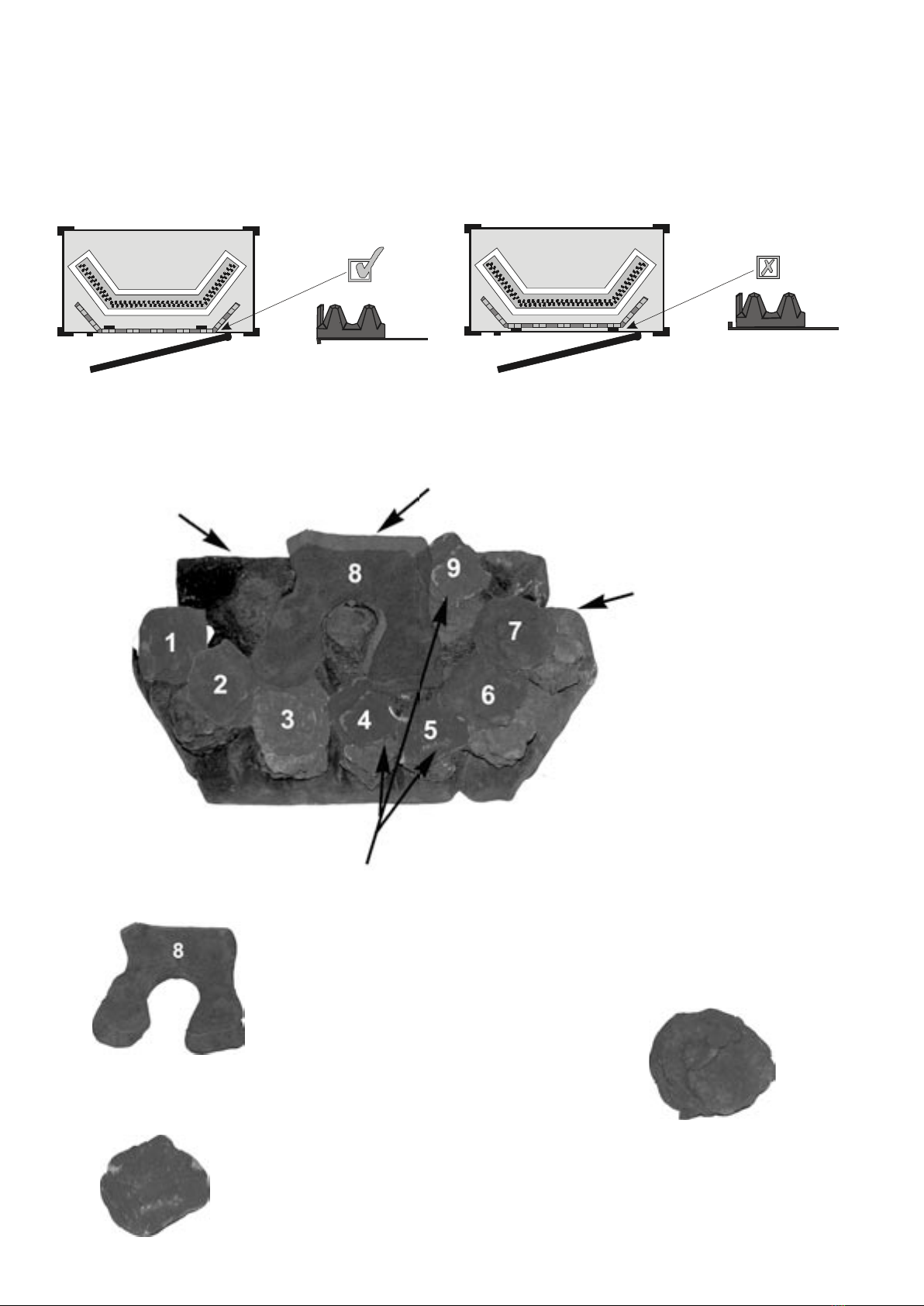

Fitting the Coal Effect Kit and Fuel Guard 10

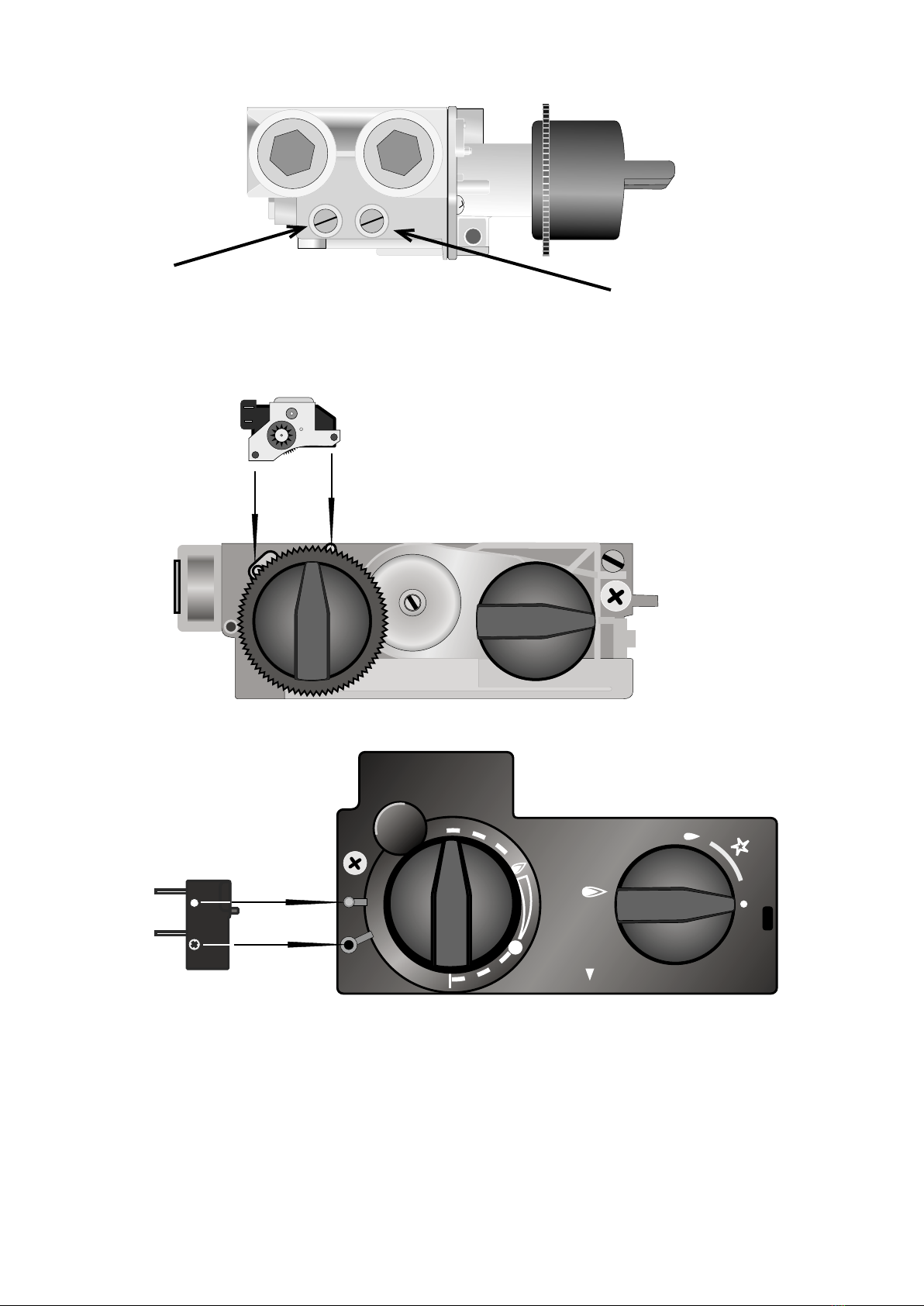

Gas Control Valve 11

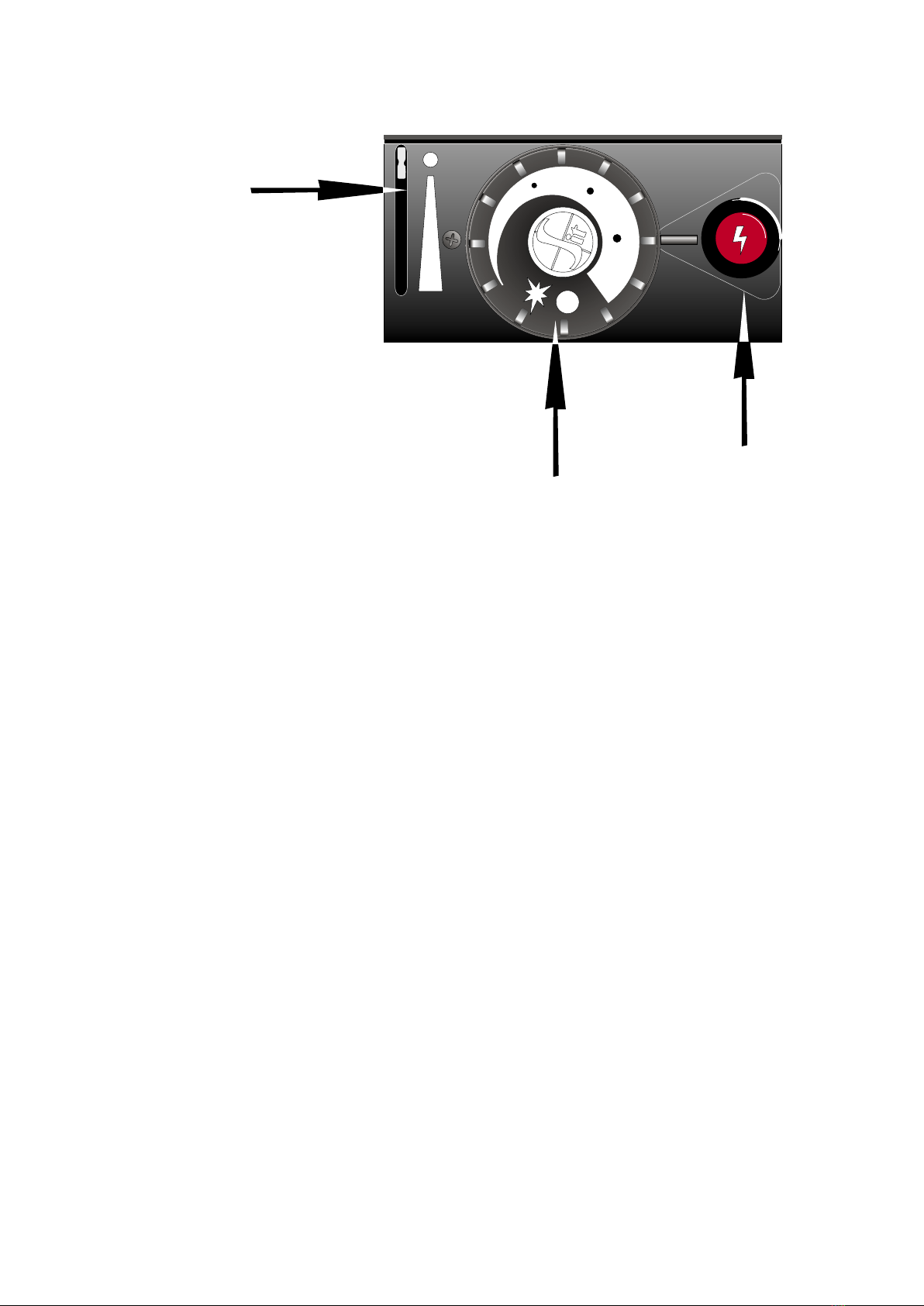

Sit Gas Valve Eurosit 630 11
Thermostatic Eurosit Gas Valve 630 with Manual Override 12
Mertik Maxitrol GV34 Gas Valve 14
Gas Pressure Test Nipple Locations 15
Fitting the Remote Control 15
Commissioning 16
Information for Users which must be advised by the installer verbally or in writing. 17
Servicing Instructions 18

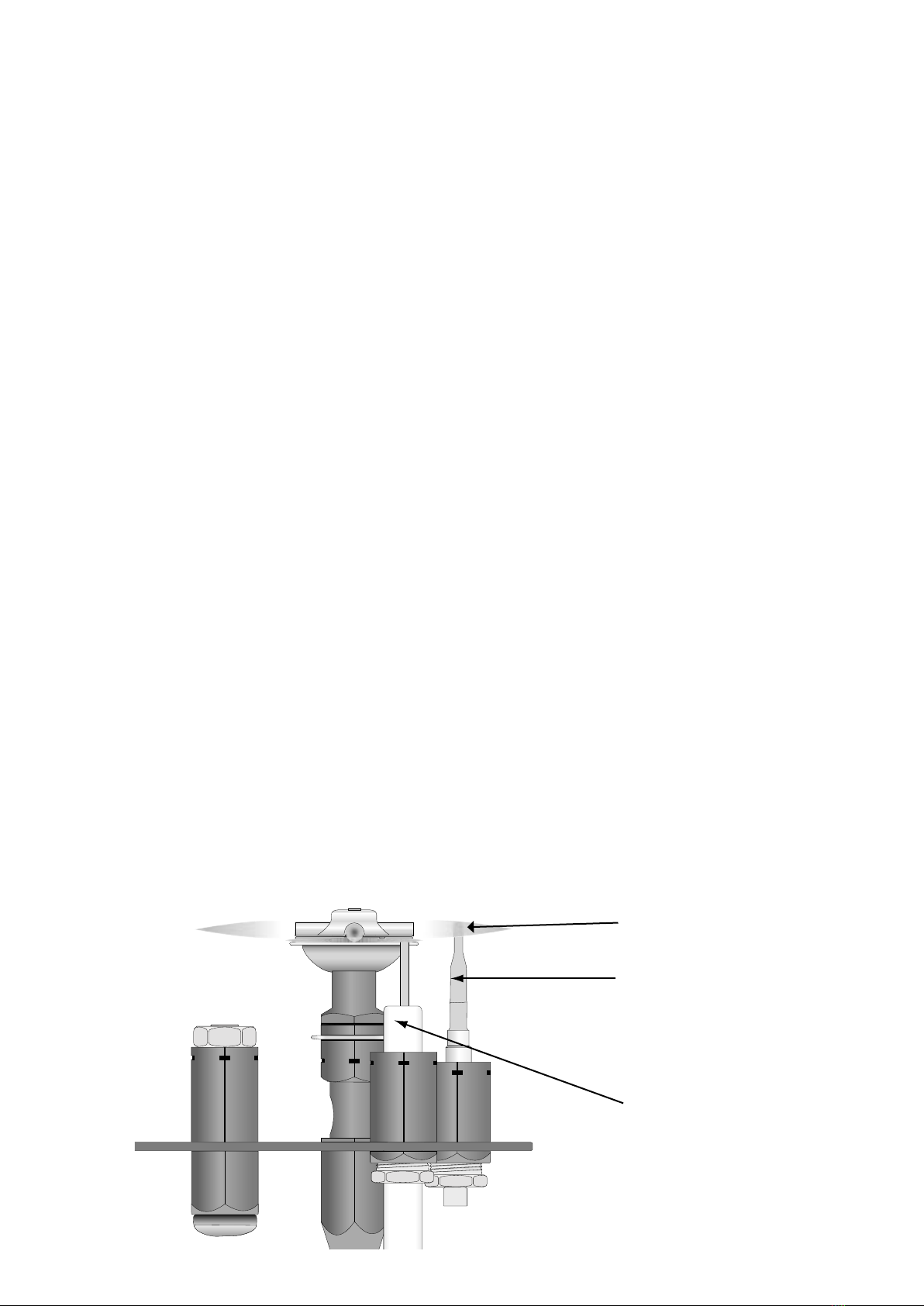

Pilot Assembly 18
Removing Thermocouple and Pilot Assembly 20
Removing Gas Burner 21
Changing Gas Operating Type 22
Primary Air Collar Adjustment 22
Service Record 23
Manufactures Identification Plate
The identification plate is located at the right rear
side. To access the plate swing outwards.
The Euroheat Appliance Serial Number
The serial number can be found at 5 possible
locations:
1: On the front page of this manual
2: On the front page of the operating instructions
3: On the rear heat shield of the stove
4: On the registration form
5: On the registration certificate returned to the user
after successful registration.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD.Aug 2006 Instructions Part number IN1016 Ed G 3
Harmony 5 Stanford 50 Gas Conventional Flue
Model Number 49991
Heat Output Maximum 4.8 kW/hr (16,377 BTU)
Heat Output Minimum 1.9 kW/hr (6482 BTU)
Gas Input Maximum 6 kW/hr (20472 BTU)
Gas Input Minimum 2.5 kW/hr (8530 BTU)
Heat Control Thermostatic and Manual
Fuel Types Natural Gas or L. P. G.
(Specify at time of order)
Efficiency 80% + (net)
Ignition Type Battery Spark
Pilot Flame Yes
Flame Failure Yes
Flue Spillage Sensor Thermocouple Interrupter (TTB)
Fuel Effect Type Coal
Fuel Outlet Options Top or Rear (Top pre fitted)
Flue Size 4” (100mm) Internal Diameter
Warranty Standard 1 Year
Colour Options Cast Black, Satin Black Enamel,
Bottle Green Enamel, Blue Enamel
Decorative Plinth Optional Extra

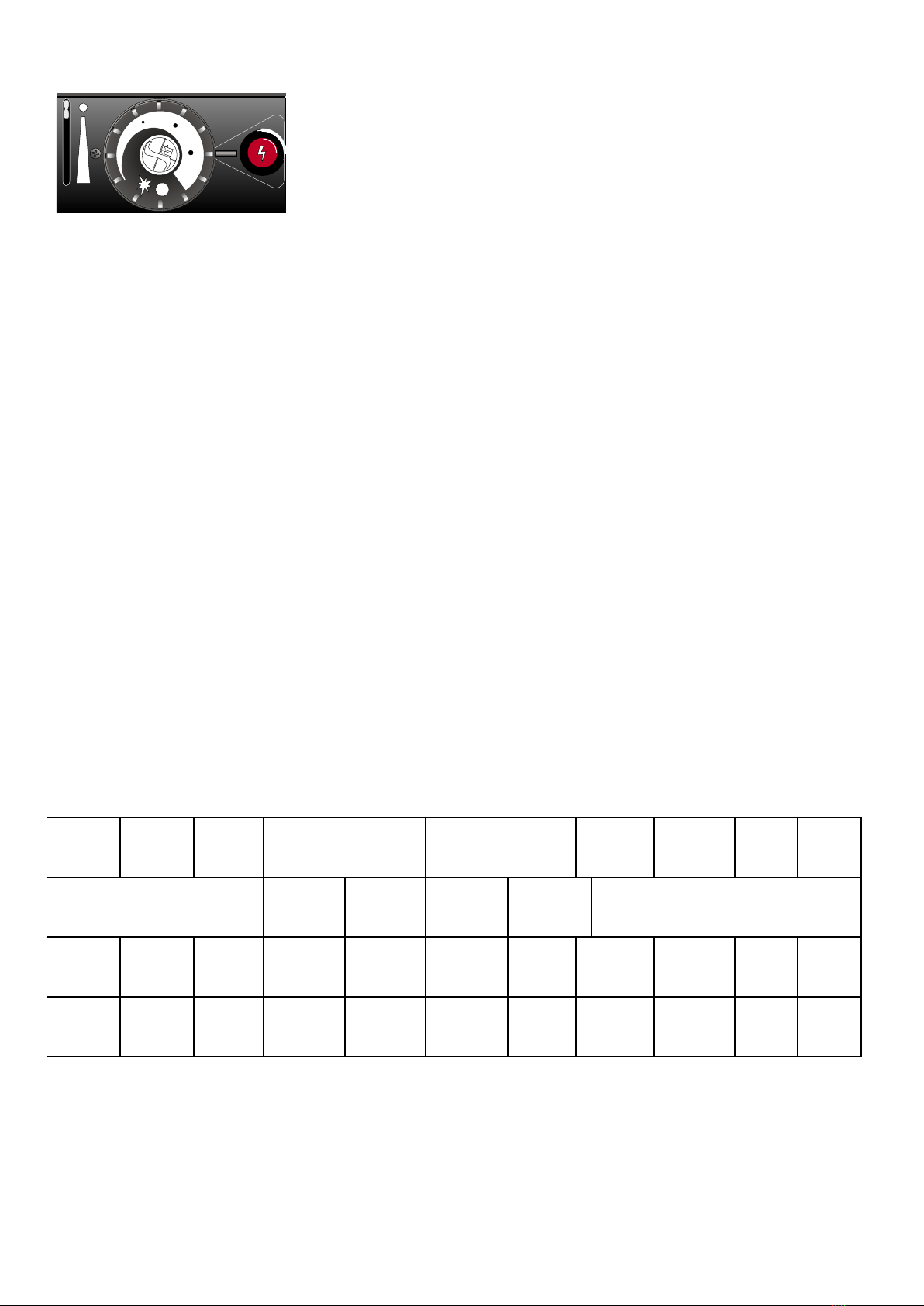

Technical Data with Eurosit Gas Valve 630
Gas
Type
System
Pressure
Main
Burner
Nozzle
Nominal Output
(Maximum operation)
Minimum Output
(Low operation)
Pilot
N o z z l e
size
Low
Operation
By Pass
Heat
Output
Gas
Input
Hourly
Input
Burner
Operating
Pressure
Hourly
Input
Burner
Operating
Pressure
G20
Natural
Gas
20mbar
1 jet
4 x 1.11 0.64
m³/h
9.7mbar 0.266
m³/h
1.5mbar 37 1.70
5kW/hr
17,060
BTU/hr
6kW/hr
20,472
BTU/hr
G31
Propane 37mbar
1 jet
4 x 0.66 0.477g 32.5mbar 0.193kg 5.5mbar 23 1.11
5kW/hr
17,060
BTU/hr
6kW/hr
20,472
BTU/hr
6
4
2
Seasonal Efficiency
The efficiency of this appliance has been measured as specified in BS EN 613:213 and the result is
72% Nat Gas and 73.7% LPG. The gross calorific value of the fuel has been used for this efficiency
calculation. The test data from which it has been calculated has been certified by BELTEST. The
efficiency value may be used in the Governments Standard Assessment Procedure (SAP) for energy
rating of dwellings.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. Aug 2006 Instructions Part number IN1016 Ed G 4
Harmony 5 and Stanford 50 Gas Conventional Flue
Model Number 49991
Heat Output Maximum 5 kW/hr (17060 BTU)
Heat Output Minimum 1.9 kW/hr (6482 BTU)
Gas Input Maximum 6 kW/hr (20472 BTU)
Gas Input Minimum 2.5 kW/hr (8530 BTU)
Heat Control Manual with remote control option
Fuel Types Natural Gas or L. P. G.
(Specify at time of order)
Efficiency 80% + (net)
Ignition Type Piezo
Pilot Flame Yes
Flame Failure Yes
Flue Spillage Sensor Thermocouple Interrupter (TTB)
Fuel Effect Type Coal
Fuel Outlet Options Top or Rear (Top pre fitted)
Flue Size 4” (100mm) Internal Diameter
Warranty Standard 1 Year
Colour Options Cast Black, Satin Black Enamel,
Bottle Green Enamel, Blue Enamel
Decorative Plinth Optional Extra

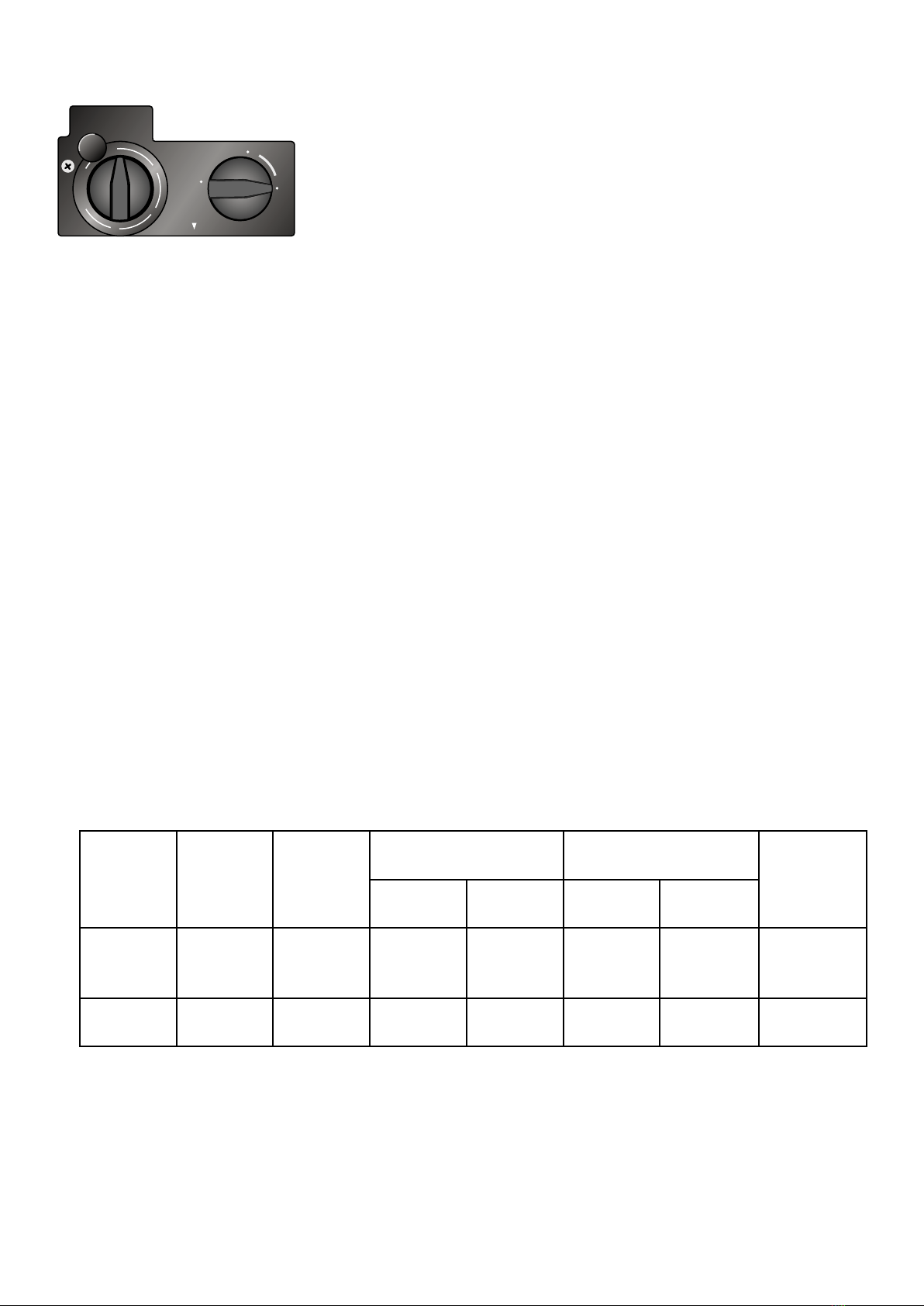

Technical Data with Mertik Maxitrol GV34 Gas Valve
5
6
2
1
3
4
PILOT
OFF
IGN
ON
Gas
Gas
Pressure
mbar
Main Jet
mm
Maximum output Minimum output
Low Burn Pilot Jet
Hourly
Flow
Burner
Pressure
Hourly
Flow
Low burn
pressure
G20H
Natural
Gas
20 1 jet with
4 x 1.09 0.62 m3/h 9.8 mbar 0.25 m3/h 2 mbar 51
G31
LPG 37 1 jet with 4 x 0.66 0.47kg/h 33 mbar 0.24 kg/h 9 mbar 30
Seasonal Efficiency
The efficiency of this appliance has been measured as specified in BS EN 613:213 and the result is
72% Nat Gas and 73.7% LPG. The gross calorific value of the fuel has been used for this efficiency
calculation. The test data from which it has been calculated has been certified by BELTEST. The
efficiency value may be used in the Governments Standard Assessment Procedure (SAP) for energy
rating of dwellings.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD.Aug 2006 Instructions Part number IN1016 Ed G 5
General Installation and Servicing Instructions
Safety Precautions
a) It is a requirement of the Gas Safety (Installation and Use) Regulations 1994 that these
instructions, together with the Appliance User Instructions, be left intact with the user.
b) In your own interest, and those of safety, and in accordance with the Gas Safety (Installation
and Use) Regulations 1994, stoves must be installed by competent persons. Failure to install the
appliance correctly could lead to prosecution.
c) It is important to ensure that the flue system into which the appliance is to be installed is
working properly. Products of combustion which enter a room could be a serious health risk. It is
therefore important, in the interests of safety, that Section 3 of these instructions is strictly followed,
together with the legal Statues and Codes of Practice listed below.
d) Any unauthorised modification will automatically invalidate any guarantee.
e) The installation must be in accordance with the Gas Safety (Installation and Use) Regulations
1994 and with these instructions, and the relevant parts of the Local and National Building Regulations,
and the recommendations of the following British Standards.
BS 715 : 1993 Metal Flue Systems
BS 1251 : 1987 Fireplace Components
BS 1289 : PT 1 1986 Flue Block Systems
BS 5440 : PT 1 2000 Flues
BS 5440 : PT 2 1989 Ventilation
BS 5871 : PT 1 1991 Installation of Gas Fires
BS 5482 : PT 1 1994 LPG Installations
BS 6891 : 1988 Pipe work Installation
f) The plastic bags used to protect components of this appliance are a potential hazard to
young children, and should be disposed of immediately.
Flue and Chimney Requirements
BS 5440 : PART 1
Before installation of the appliance, the chimney or flue system must be inspected and passed as
suitable. In particular, the following should be checked:
a) This appliance is suitable for installation onto the following flue types:
A suitable sized diameter flexible or fabricated steel flue system, or a standard masonry chimney.
(See appliance data for flue size)
NOTE:
Any steel flue systems used should be manufactured in line with the requirements of BS 715, and installed with due
regard to the manufacturers recommendations.
b) The minimum effective height of the chimney or flue must be 10ft (3 metres) measured from
the hearth to the termination of the flue (chimney pot). If the flue has any non vertical sections the
height should be increased in line with BS 5440 : Part 1.
c) The chimney or flue must be free from any obstruction. Any flue damper or restrictor must be
removed or permanently fixed in the fully open position.
d) The chimney should be swept prior to installation of the stove. However, if the flue is clean
and unobstructed throughout its entire length, it need not be swept.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. Aug 2006 Instructions Part number IN1016 Ed G 6
e) Ensure that only one fireplace is served by the chimney or flue system.
f) Ensure that the chimney or flue system is continuous from inlet to termination.
g) Ensure that the chimney is structurally sound so the combustion products do not come into
contact with combustible materials outside the chimney.
NOTE:
A guide is published by the ‘British Flue and Chimney Manufacturers’ Association’ which contains
general information on chimneys and flues. It can be obtained from:
Sterling House, 6, Furlong, Bourne End, Bucks, SL8 5DG.
Ventilation, BS 5440 : PART 2
Before proceeding further, the following ventilation requirements must be satisfied.
a) If the stove is installed in a builder’s opening or fireplace recess that has an air supply entering
from below floor level, this must be completely sealed off.
b) If there is another gas appliance fitted in the same room, or adjacent area, or extractor fan system,
air conditioning, etc., it will be necessary to refer to BS 6714 and BS 5440 : Part 2 to ascertain the
additional precautions necessary.
If any of the pre-installation checks reveal inadequacies, the installation should not proceed until
they are rectified.
Do not fit the appliance, seek expert advice.
Installation of the Gas Supply, BS 6891
NOTE:
Ensure that the gas supply is capable of delivering the required amount of gas, and is in
accordance with the relevant current standards.
It is generally preferred to conceal the gas supply by bringing it under the hearth, or through masonry
to the side of the fireplace. Any pipe work in 15mm tube connecting the stove to the main pipe work
should be kept as short as possible with as few fittings as possible to prevent restrictions.
a) Whenever a gas pipe passes through any masonry it must have a sleeve of non combustible
material sealed at both ends to prevent the gas supply from coming in contact with masonry or lime
based mortars.
b) The gas pipe should be adequately supported over longer lengths.
c) Soft copper tubing and soft soldered joints are suitable, providing the tube is not closer than
150mm to the stove casing i.e. the temperature must not exceed 100°C.
d) A means of isolating the gas supply to the appliance must be provided independent of any
appliance control. This may be a gas cock, ideally of the nursery type to prevent children interfering
with the gas supply.
e) Any gas tubing that has been passed through masonry, should be purged to expel any foreign
materials that may have entered the supply.
f) Care should be taken to ensure that pipe work brought through metal structures has been
secured to prevent chaffing, but allow for thermal expansion.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD.Aug 2006 Instructions Part number IN1016 Ed G 7
Appliance Location
a) This stove must be mounted on a non combustible hearth. The hearth must have a minimum
of 12mm non combustible material thickness.
b) The stove is not suitable for installation into a rear combustible wall, any combustible materials
must be removed from an area of 300mm around the installation of the appliance.
c) There must be a minimum of 450mm from the top of the stove to the underside of any
combustible shelf, Note that for every 50mm increase on clearance, the shelf may project by a further
50mm. See page 8.
d) The appliance must not be installed in a room or space which contains a bath or shower.
e) Ensure that the stove fits neatly into its intended location.
f) Any manufactured surround used with this stove should comply with the appropriate British
Standard.
g) Do not place furniture or furnishing within 1 metre of the stove.
h) Do not obstruct the area directly beneath the stove as this may block the passage of air into
the appliance.
If any of these conditions are not fulfilled,
DO NOT FIT THE STOVE until the problem has been rectified.
Installation of the Stove to the Flue System
Refer to section 3 to determine which flue systems are suitable for your stove size, having selected
a suitable flue system, please follow the applicable installation method.
7.1 Installation to a flue pipe system
IMPORTANT: The flue pipe system should be manufactured in line with BS 715, it should be
either a flexible flue liner or a rigid tubular steel construction, and it must be continuous from
appliance outlet spigot to terminal.
IF IT IS INTENDED TO FIT INTO AN EXISTING MASONRY BUILT CHIMNEY SYSTEM INCLUDING
THOSE THAT ARE TERRACOTTA LINED, A SUITABLE DIAMETER FLEXIBLE FLUE LINER MUST
BE USED.
(See page 4 appliance data for flue size)
The stove is factory assembled for either rear or top flue connection. To choose a different direction
swop the flue blanking plate and the flue spigot. See page 9.
a) The flue system may now be connected to the stove, ensure that all joints are sealed with a
suitable fire resistant sealant. It is also recommended that a physical retention method be used at
the flue spigot joint, self tapping screws being favoured.
Note:
If the flue is to be connected to the rear outlet, there should be no more than 150mm of
horizontal flue run before the flue rises vertically. Under certain circumstances it may be
necessary to use a 45 degree bend directly from the top of the stove, this is acceptable as
long as it does not compromise the drawing power of the flue and the stove passes the
necessary flue spillage test.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. Aug 2006 Instructions Part number IN1016 Ed G 8
Hearth and Fireplace Requirements
Do not be tempted to fit the stove into an unsuitable fireplace. Beyond the requirements of the building
regulations and access to facilitate servicing the stove, providing a setting which will complement
the Harmony is not a luxury, it is the practicality of making the most of an investment. A good builder
will be able to transform even the most utilitarian of fireplaces, whether altering its proportions to
those of the “Golden Mean” ideal, exposing a wooden lintel, stone or simply removing superfluous
detailing for comparatively small costs, and the result will be a pleasure for many years.
The measurements are for advice only. In
all installations surrounding inflammable
materials must not exceed 80ºC. The
stove must always stand perfectly level
and have sufficient space allowed for
service work.
Minimum installation clearances
F = Decorative Hearth Plate
Supplied as optional extra
1/3 2/3
1
2/3 2/3
A
B
D
C
E
F
The stove can be placed on a
wooden floor if it can support the
weight as long as the hearth plinth
is utilized.
Minimum clearance
from combustable
materials
Minimum clearance
from non
inflammable
materials
A12" 300mm** 9" 230mm
B6" 150mm** 4" 100mm
C
0 if stove is fitted
with hearth plate
otherwise
1” 25mm**
N/A
D2" 50mm** 2" 50mm
E6" 150mm** 4" 100mm
** The measurements provided
are for guidance only

© EUROHEAT DISTRIBUTORS (H.B.S) LTD.Aug 2006 Instructions Part number IN1016 Ed G 9
Changing Flue Outlet Direction
Remove flue spigot.
Remove flue outlet blanking plate.
Refit flue spigot using gasket as a seal.
Refit flue blanking plate.
Fit the half moon blanking plate in the
recess of the top plate using the fitting
bracket.
Gas Connection
a) Connect the gas supply pipe to the 13mm connection at the rear of the appliance.
b) Connect a suitable gas pressure gauge to the test nipple, turn the gas supply on and check
that the gas connections are sound. If satisfactory light the appliance. Check all the gas connections
on the appliance for leaks. The appliance is factory tested, but it is possible for a connection to have
been disturbed during transportation and installation.
c) Set the control to the high setting, and check that the gas pressure is as stated on the data
table.
d) Turn off the gas, remove the pressure gauge and refit the test point screw, turn the gas supply
on and check that test nipple is gas sound.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. Aug 2006 Instructions Part number IN1016 Ed G 10
Coal retainer
behind the metal
location tags.
Coal retainer in
front of metal
location tags.
Fitting the Coal Effect Kit and Fuel Guard
Under no circumstances should additional coals be added other than those supplied with
the appliance.
The coal effect is very fragile under no circumstances should force be used to locate the
effect. Damage to the coal effect is not covered by warranty.
Correct location of fuel guard. Incorrect location of fuel guard.
Front Coal
Rear Coal Horse Shoe Coal
Small Coals
8 = Horse Shoe Coal
4, 5 & 9 Small Coals 1,2,3,6,7 = Large coals
Coals 1-7 Should be placed
between the front and rear
coal blocks in such away
to give evenly distributed
fl ames.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD.Aug 2006 Instructions Part number IN1016 Ed G 11
Gas Control Valve
6
4
2
Manual control.
Disables the thermostatic
control of the stove and
allows the stove to operate
at any chosen setting.
Thermostatic control.
Allows the stove to be controlled
by the room temperature,
maintaining a constant ambient
temperature.
Ignition Button.
Pushing the button energizes
the electronic spark generator to
produce a pulsed sparks to ignite
the pilot flame.
Sit Gas Valve Eurosit 630
a) (see operating instructions for full details) Ignition is by battery spark, ensure battery is fitted.
Ensure control knob is in the off position. Push in the control knob and turn to the pilot position,
keeping the knob depressed. Press the ignition button. The pilot should now be alight after the
system has been purged. Keep the knob depressed for 20-30 seconds, when the knob is released
the pilot should stay lit. It may be necessary to repeat the procedure if the pilot does not light,
particularly when the fire is first used.
b) With the pilot burning, turn the control knob clockwise, this will turn the main burner on.
c) In the unlikely event of the flame being extinguished whilst the gas control is in the “on”
position, immediately turn “off” and wait 2 minutes before attempting to relight.
For full operating instructions see operation manual.
Lighting

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. Aug 2006 Instructions Part number IN1016 Ed G 12
6
4
2
6
4
2
Thermostatic Eurosit Gas Valve 630 with Manual Override
Removing Gas valve Cover Plate
6
4
2
Remove screw and
gently remove cover
Supply
pressure
test nipple
Operating
pressure
test nipple
Operating pressure
adjustment
6
4
2
Front
Remove screw and
gently remove cover
Pilot adjustment
SHOULD NOT BE
ALTERED
Low operation bypass.
SHOULD NOT BE
ALTERED

© EUROHEAT DISTRIBUTORS (H.B.S) LTD.Aug 2006 Instructions Part number IN1016 Ed G 13
Lighting
For full operating instructions see operation manual.
Turn the on/off knob, smaller right hand knob, slightly counter-clockwise towards the ignition position
until the control knob stops turning, press it down and hold for 5 seconds to allow the gas to the pilot
light.
After 5 seconds turn the control to the pilot position with the knob still depressed. There will be an
audible click as the Piezo spark is generated. Hold down the control knob for 30 seconds if the pilot
has lit, if it has not lit then repeat the pilot lighting procedure to maximum of 6 attempts. If after 6
attempts the pilot has not ignited leave the appliance for 2 minutes before attempting again. (This
assumes the system has been purged)
Once the pilot has been established, let out the control knob and turn it anticlockwise to the “ON”
position.
Manual Control
Turn the larger left hand control anti clockwise to increase, clockwise to decrease the desired heat
output.
5
6
2
1
3
4
PILOT
OFF
IGN
ON
Manual Control.
The manual control will
set the output from the
burner, varying from
maximum to minimum
output or any setting in
between.
On/Off
Pilot Setting and
Ignition Control
Mertik Maxitrol GV34 Gas Valve

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. Aug 2006 Instructions Part number IN1016 Ed G 14
Mertik Maxitrol GV34 Gas Valve
Removing Gas valve Cover Plate
Pilot gas and pressure regulator adjustment screws are located under the cover. To remove the
cover, first loosen the screw next to the temperature knob.
Insert the tip of a small screwdriver into the slot on the side of the front cover next to the on/off knob,
push outwards and lift the cover off.


Pilot flame
adjustment screw
(preset at factory)
Operating pressure
adjustment screw
(The direction is indicated on
the brass cover of the
adjustment screw)
Insert a small
screwdriver
into slot, lift
outwards and
lift cover off
On/Off
Pilot Setting and
Ignition Control
Manual Control
Front cover screw
Low pressure adjusting screw
(The flat blade screw can be accessed through a
hole in the bottom plate of the stove under the valve,
anti clockwise to increase, clockwise to decrease.)

© EUROHEAT DISTRIBUTORS (H.B.S) LTD.Aug 2006 Instructions Part number IN1016 Ed G 15
Fitting the Remote Control
Fitting the Electrical Connections
The wiring loom has 5 connections.
a. 1 x four wire white connector. Connect this to the remote control receiver.
b. 2x small single wire connectors. Fit to the micro switch.
c. 2x larger connectors fit to the motor. Note these two connectors are different in size and fit only
to the appropriate sized connector on the motor.
Receiver location
Place the receiver on the hearth under the gas valve, or hidden on the hearth behind the stove.
Motor and Micro switch
Gas Pressure Test Nipple Locations
Operating
Pressure
Test Nipple System Pressure Test
Nipple (Line Pressure)

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. Aug 2006 Instructions Part number IN1016 Ed G 16
TTB
Thermocouple TTB Flue Spillage Sensor.
Commissioning
a) Carry out a gas leak test as regulations require.
b) Ensure that all openable doors and windows in the room are shut, light the stove and operate
on maximum for five minutes. Position a smoke match just beside the thermocouple TTB (see
diagram) and check that all the smoke is drawn into the opening to the flue diverter.
IF SPILLAGE IS STILL OBSERVED, THERE MAY BE A PROBLEM WITH THE FLUE SYSTEM OR
CHIMNEY, DISCONNECT THE APPLIANCE UNTIL THE PROBLEM HAS BEEN IDENTIFIED.
TTB
The TTB is a thermocouple interrupter (switch) which when it exceeds its predetermined temperature
will break the thermocouple circuit switching off the gas to the pilot assembly. The TTB acts as a flue
spillage detector. This detector responds very quickly to flue spillage with in 1-2 minutes.
Note:
If there are any extractor fans in the room or adjacent rooms, these must be running at maximum
setting with all interconnecting doors left open, and the spillage test repeated.
c) Carry out a gas operating pressure test. Attach a manometer to the operating pressure
test nipple. With the appliance operating at maximum, observe the operating pressure. Adjust if
required.
d) Carry out a low burn operating pressure test. Attach a manometer to the operating pressure
test nipple. Turn the gas valve control knob to the minimum flame size. Observe the operating
pressure.
e) Carry out a gas supply pressure test with the appliance operating. Attach a manometer to the
supply pressure test nipple. If the pressure is below requirements inspect gas pipe installation for
possible problems.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD.Aug 2006 Instructions Part number IN1016 Ed G 17
Information for Users which must be advised by the installer
verbally or in writing.
Hand this manual and the users manual to the user and explain the operation of the appliance.
Also explain that:
a) The stove must not be run with the door open.
b) It must be serviced on a regular basis, i.e. every 12 months.
c) Servicing and spare parts can be obtained by contacting the stockist from which the stove
was purchased.
d) The stove’s paint may smell for at least 3-4 hours as it cures. It is advisable to operate the
stove at maximum with the gas valve set for manual operation.
e) The stove imitates a solid fuel stove, and like a solid fuel stove, ITS SURFACES BECOME
VERY HOT.
f) Do not use the appliance if the glass is craked or broken.
h) Do not use the appliance if any of the coal effect components are broken.
i) The appliance must be guarded to protect children, the aged or infirm.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. Aug 2006 Instructions Part number IN1016 Ed G 18
Servicing Instructions
Note:
This stove must be serviced regularly, at least once a year by a qualified and competent gas
fitter registered with C.O.R.G.I., the Council of Registered Gas Installers.
Annual Service
The following outlines the minimum work required at the annual service.
a) Carry out the ignition functional check.
b) Carry out the flame functional check.
c) Remove all ceramic components by referring to the coal layout diagram
d) Use the vacuum cleaner to remove all traces of dust and debris from inside the stove paying
particular attention to the burner ports.
e) Carry out any remedial work as a result of the functional checks.
f) Inspect all the ceramic parts and replace any which are broken or badly damaged. Gently clean
with a soft brush.
g) Repeat the functional checks for the ignition and the flame failure devices.
h) Check gas operating pressures.
i) Check gas supply.
j) Check installation for gas leaks and check flue for clearance of products of combustion.
k) Complete the yearly service record at the rear of this document.
l) Confirm appliance is left in a safe operational condition.
Use only genuine replacement parts, non standard components could invalidate the warranty
and may be dangerous.
Thermocouple
Ignition Electrode
Pilot Assembly Correct position of
thermocouple in pilot flame

© EUROHEAT DISTRIBUTORS (H.B.S) LTD.Aug 2006 Instructions Part number IN1016 Ed G 19
Note locating lug
PUSH
Reassembly
4mm Hexagon
key.
Pilot jet removal
and replacement
Dismantling
LOCATE
OPRN
SLIGHTLY
LIFT

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. Aug 2006 Instructions Part number IN1016 Ed G 20
Remove right hand side panel to gain access to thermocouple and pilot assembly.
Loosen rear heat shield screws.
Gently slide backwards the rear heat shield 15mm.
Lift bottom of side panel upwards.
Pull the side panel towards the rear of the stove.
Lift side panel outwards at the bottom and remove.
Remove thermocouple from pilot assembly.
Removing Thermocouple and Pilot Assembly
Caution :
Side panel coating can be
easily damaged.
Accessing and removing thermocouple TTB
(flue spillage detector)
Loosen rear panel retaining screws.
Slide rear panel clear of stove.
Remove TTB.
Remove thermocouple from rear of gas valve.
Removing Main Burner Nozzle
Remove right hand side panel as above.
When fitting main gas burner jet ensure
sealing washers are fitted.
