Installation &
Servicing Instructions
Nestor Martin
IT13
IN1179 Edition E1 June 2010
Euroheat
Natural Energy Company
This Manual Must Always Be Available To The Stove Operator
This manual must be used in
conjunction with document IN1173.
The Wood and Mutlifuel Chimney
and Installation Guide.
Exempt
Smoke
Control

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2010 E & OE Instructions Part number IN1179 Edition E1
2
Table of Contents
The Model Range Explained .................................................................................................. .....4
Technical Data, Intermittent Operation ....................................................................................... 6
Technical Data, Continuous Operation......................................................................................... 6
General Technical Data................................................................................................................. 6
IT13 Dimensions ........................................................................................................................... 7
IT13 Aperture Size ........................................................................................................................ 7
Housing Construction, when Using an Existing Chimney Breast................................................ 8
Housing Construction, without an Existing Chimney Breast .................................................... 11
Ideal installation......................................................................................................................... 12
Installation of Flue Spigot to Flue Pipe......................................................................................14
The Flue....................................................................................................................................... 14
Installation of Vent Duct Tubes .................................................................................................. 15
The Hearth and Fire Surround.................................................................................................... 16
Minimum Air Setting .................................................................................................................. 17
Remote Control Option............................................................................................................... 18
Fitting and Removing Surround................................................................................................. 19
Fitting Remote Control Receiver ................................................................................................ 19
Firebox Components................................................................................................................... 20
Commissioning Check List ........................................................................................................ 22
Ensure that all joints are sealed with a suitable fire resistant sealant we recommend Fraxfill
(available from Euroheat Part No: MS9045).
Some so called “Heat Proof” mastiks will only stand a temperature of 300°C before they
start breaking down. In many cases they may give off an obnoxious smell at temperatures
much lower than this which will persist and become apparent each time the stove is lit.
Since April 2002 only Registered Competent Engineers may install solid fuel fired appliances without involving
the Local Authority Building Control Department. For more details contact HETAS. (Contact details page 3)
Euroheat would suggest only Registered Competent Engineers such as HETAS approved engineers install Euroheat
appliances.
If a competent engineer is not employed to install your appliance, building control must to contacted and a
building control number is issued.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2010 E & OE Instructions Part number IN1179 Edition E1
3
Euroheat is a Registered manufacturer with HETAS
HETAS is the independent UK body recognised by DEFRA for the official testing and approval
of domestic solid fuels, solid fuel and wood burning appliances and associated equipment
and services.
HETAS is approved by DCLG (by Statutory Instrument) to run a Competent Persons self-
certification scheme for installers of wood, biomass and solid fuel appliances/systems.
HETAS provide a fuel testing scheme for solid mineral fuels.
HETAS list chimney and flue products which are suitable for use with solid fuel burning equipment.
HETAS register installers who are trained and competent to carry out work installing or maintaining wood,
approved biomass or mineral fuels.
HETAS have a list of approved chimney sweeps who have been on courses and are able to support customers in
sweeping and safety matters.
After 1st January 2003 Type Testing is now carried out to the relevant BS ENs.
These new European Standards, now adopted as British Standards are as follows:-
Independent boilers BS EN 12809; Cookers BS EN 12815;
Room heaters BS EN 13240; Open Fires BS EN 13229.BS EN 303-5 for boilers.
The CE mark means that the item has passed operational safety tests and the efficiency and heat output stated
have been independently tested.
All appliances supplied by Euroheat have been tested to the relevant CE standard.
The Smoke Exemption Act gave local authorities the power to control emissions from
both industrial and domestic premises by declaring certain areas to be “smoke control
areas”. The Act and associated legislation were later revised and consolidated into the
“Clean Air Act 1993” which provide the current rules governing the emissions of smoke.
The Act allows a local authority to declare districts to be a smoke control area with the
power to impose fines of £1,000 on domestic properties emitting smoke.
Burning fuels not authorized as being “smokeless” in an appliance that was not permitted to burn unauthorized
fuels is not allowed. Appliances with a proven capability for burning unauthorized fuels without producing smoke
are classified as being an “exempt appliance”.
We have always been developing products to achieve high efficiency levels and our multifuel stoves have been
no exception. The emission of smoke is an indication of low efficiency, we have developed stoves capable of
meeting the requirements for achieving the status of an “exempt appliance”. This is an appliance proven to be
capable of burning “unauthorized fuels” such as wood whilst not emitting smoke.
These stoves are meeting the stringent emission requirements for daily use and, we believe, uniquely for burning
wood overnight. Wood is a sustainable fuel and it can be burned cleanly to the benefit of everyone.
Exempt
Smoke
Control

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2010 E & OE Instructions Part number IN1179 Edition E1
4
Useful organizations
Solid Fuel Association 0845 601 4406 www.solidfuel.co.uk
The National Association of Chimney Sweeps 01785 811732 www.chimneyworks.co.uk
HETAS Ltd. 0845 634 5626 www.hetas.co.uk
The Model Range Explained
Thank you for purchasing your stove and helping to protect our environment. Nestor Martin and Euroheat insist
on progressive development to produce products which are market leading. Our aims are to produce stoves with
the latest innovations, user friendly operation and highly efficient for lower cost operation. When burning wood
you will be greatly assisting with reducing Co2 to the environment when compared to coal oil or gas.
This installation manual offers user information for the Nestor Martin IT13 Insert model.
Model Identification
You will see on the front page of this document a label which confirms which model you have. This label also
advises you of the stove`s unique serial number. This information is also attached to your stove for reference.
Important
Please ensure the warranty registration form is completed if you are the installer and confirm with the user that it
is their responsibility to return it to Euroheat. In this way the model and its history will be recorded for reference
in the future.
For the latest versions of manuals, technical information, accessories and spare parts visit the euroheat web
site.
Stoves Supplied Through Euroheat Authorized Retailers.
For England, Wales, Scotland and Northern Ireland
Euroheat Distributors (H.B.S). Ltd.
Unit 2,
Court Farm Business Park,
Bishops Frome,
Worcestershire, WR6 5AY.
www.euroheat.co.uk
[e-mail]
Whilst Euroheat are always happy to assist, please ensure you have read this manual and the chimney and
installation guide IN1173.
First contact your supplying retailer for assistance. If you find this not successful contact the Euroheat Technical
Support Team. Technical support telephone Number 01885 491117. E-mail [e-mail].
Before telephoning ensure you have the stoves serial number to hand and that you are a Registered Competent
Engineer. If you are not a registered engineer seek one for assistance. A list of engineers can be obtained from
HETAS.
Euroheat unfortunately are unable to offer support for appliances which were not supplied by Euroheat.
Stoves supplied through Eireheat authorized retailers.
For Eire
Sean Murphy Heating Ltd
Kinvara
Co Galway
Eire
www.eireheat.com
[e-mail]
[phone] Fax: [phone]
International [phone]
For support for appliances supplied through Eireheat in Ireland please contact using the
details listed above.
Thermic Distribution Europe Sa
11 Rue De Lion
B-5660
Frasnes Les Couvin, Belgium.
www.nestormartin.com

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2010 E & OE Instructions Part number IN1179 Edition E1
5
IMPORTANT
.
The installation of this appliance must comply with all local regulations, including those referring to
National and European Standards before it can be operated. The stove is not suitable for a shared flue. However,
for England and Wales, only, the coming into force on 1st April 2002 of SI 2002 No 440 exempts the householder
from this legal requirement for the installation of solid fuel fired appliance whose rated heat output is 50kW or
less in a building having no more than 3 storeys (excluding any basement) if a Competent Engineer is employed
who is registered under the Registration Scheme for Companies and Engineers involved in the Installation
and Maintenance of Domestic Solid Fuel Fired Equipment operated by HETAS Ltd. These registered Competent
Engineers may also carry out associated building work necessary to ensure that the installed appliance complies
with Building Regulations without involving the Local Authority Building Control Department.
 Improper adjustment, alteration, maintenance or the fitting of replacement parts not recommended by
the manufacturer can cause injury or property damage. Do not operate the stove with faulty seals or damaged
glass.
 Due to the high operating temperatures of this appliance it should be located away from pedestrian traffic
and away from furniture and draperies. Do not store paper or wood near the appliance. Any mats and rugs put
in front of the stove should be fireproof and secured to prevent the possibility of tripping.
Advise all persons as to the stove’s high surface temperatures. If it is possible for children or infirm adults
to come into contact with the stove, fit a suitable fire guard.
It is imperative that all air passageways into, out of, and within the appliance are kept clean. All
permanent ventilation into the room provided for the stove must remain clear and unobstructed at all times.
Consideration must be given to the need for extra ventilation if another heating source needing air is to be
operated simultaneously. If an extraction fan is proposed to be fitted to a connecting area of the house, after the
stove has been installed, professional advice should be sought from a qualified engineer.
The user should be advised that the appliance should be inspected regularly and the chimney cleaned at
least annually. More frequent cleaning may be required and the advice of a qualified chimney sweep should be
sought.
 Our range of stoves is capable of operating with outstanding efficiency if the flue system is correct.
Because so little heat is wasted to the flue it is possible that moisture within the products of combustion will
condense if the heat losses within the flue way are too great and allow the flue gasses to cool. For this reason we
recommend that the stove is fitted with a suitable flue liner, the same diameter as the flue spigot, to prevent the
possibility of acidic damage to the fabric of the chimney and damage to the stove which will reduce the longevity
of the stove.
 When correctly installed, the stove is designed to produce heat, safely. It cannot do so if the installation
is less than absolutely stable, constructed of materials suitable for such an installation and consideration has not
been given to the possibility of people with less than ideal common sense operating it.
Have the existing chimney swept by a chimney sweep. Although you will be lining the chimney, any
deposits left in the chimney will cause problems and may become a fire hazard.
 Your attention is drawn to the precautions and responsibilities under the Health and Safety at Work Acts,
and whatever new legislation being introduced during the life of this document.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2010 E & OE Instructions Part number IN1179 Edition E1
6
Technical Data, Intermittent Operation
Model
Heat
Output
Wood
Refuelling
Interval
Wood
Energy
Efficiency
Wood
Heat
Output
Smokeless
Coal**
Refuelling
Interval
Smokeless
Coal**
Energy
Efficiency
Smokeless
Coal**
IT 13 Wood 5 kW 0.70 hr 77.1% Net
70.2% Gross
IT 13 Multifuel 5 kW 0.70 hr 77.1% Net
70.2% Gross 3.6 kW 1.05 hr 82.8% Net 75.4% Gross
Technical Data, Continuous Operation
Model
Heat
Output
Wood
Refuelling
Interval
Wood
Energy
Efficiency
Wood
Heat Output
Smokeless
Coal**
Refuelling
Interval
Smokeless
Coal
Energy
Efficiency
Smokeless
Coal
IT 13 Wood 5 kW 1.45 hr 83.4% Net
75.9% Gross
IT 13 Multifuel 5 kW 1.45 hr 83.4% Net
75.9% Gross 3.6 kW 4 hr 78.3% Net 71.2% Gross
General Technical Data
Model
Model
Number
Weight KG Flue
Draught
Nominal
Flue Gas
Mass Flow
g/s
Flue Gas
Temperature
Down Stream of
Flue Spigot
Free Air
Requirement
IT13 Wood IT13* 108 12pa 4.9 350 0c 0mm²**
IT13 Coal IT13* 108 12pa 3.8 210 0c 0mm²**
** In well sealed properties additional free
air might be required.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2010 E & OE Instructions Part number IN1179 Edition E1
7
486
356
65
114
306
349
Heat vent options
192
653
608
595
50
324 64
29 115
100 18
IT13 Dimensions
IT13 Aperture Size
316mm Min
508mm Min/590mm Max
610mm Min/
640mm Max
Heat vent installation
Additional 300mm

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2010 E & OE Instructions Part number IN1179 Edition E1
8

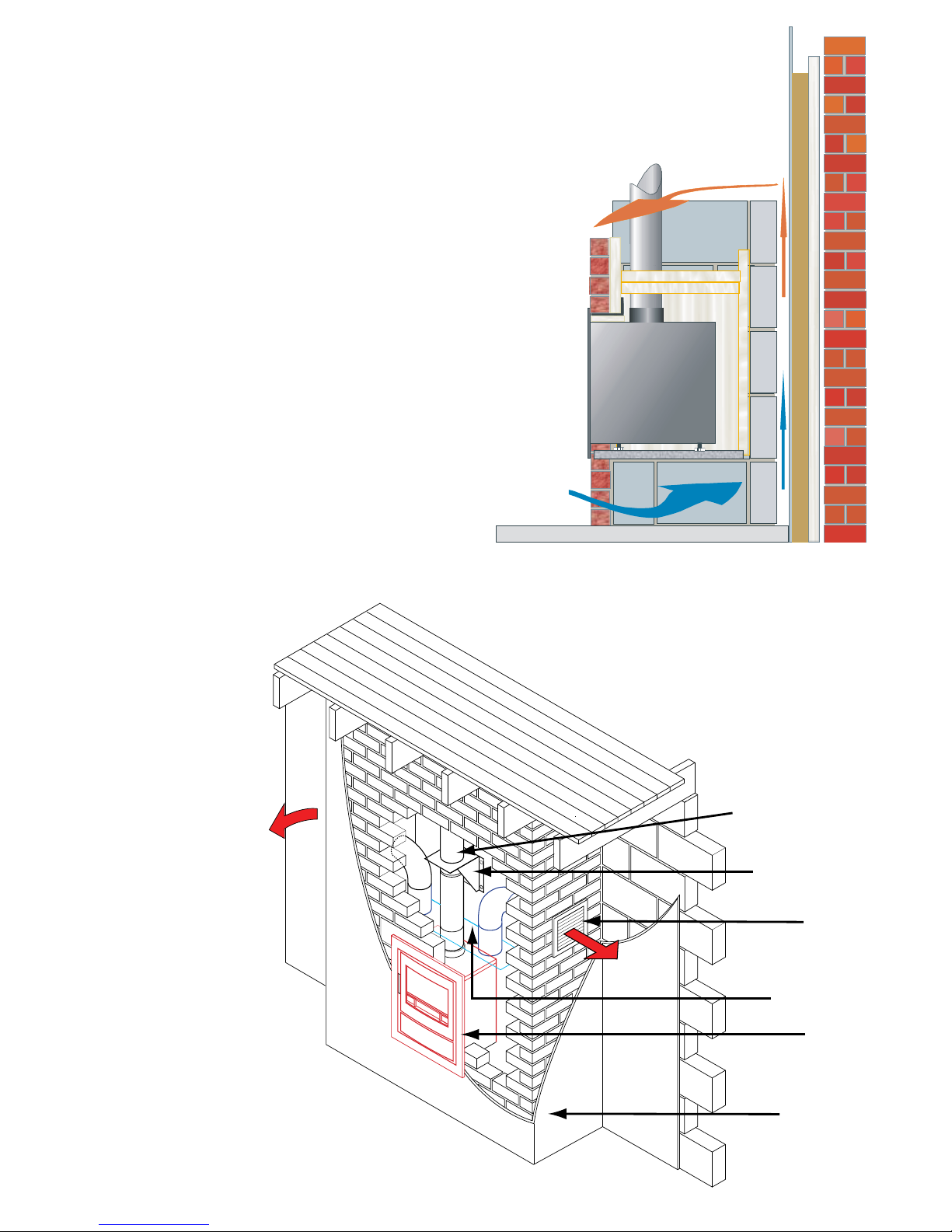

Housing Construction, when Using an Existing Chimney Breast
Whilst it is almost certain that the fabric of an existing fireplace and chimney will be non-combustible and will
have a hearth which conforming to the regulations, should be inspected to ensure that it has not been modified
by an over zealous “do it yourselfer”.

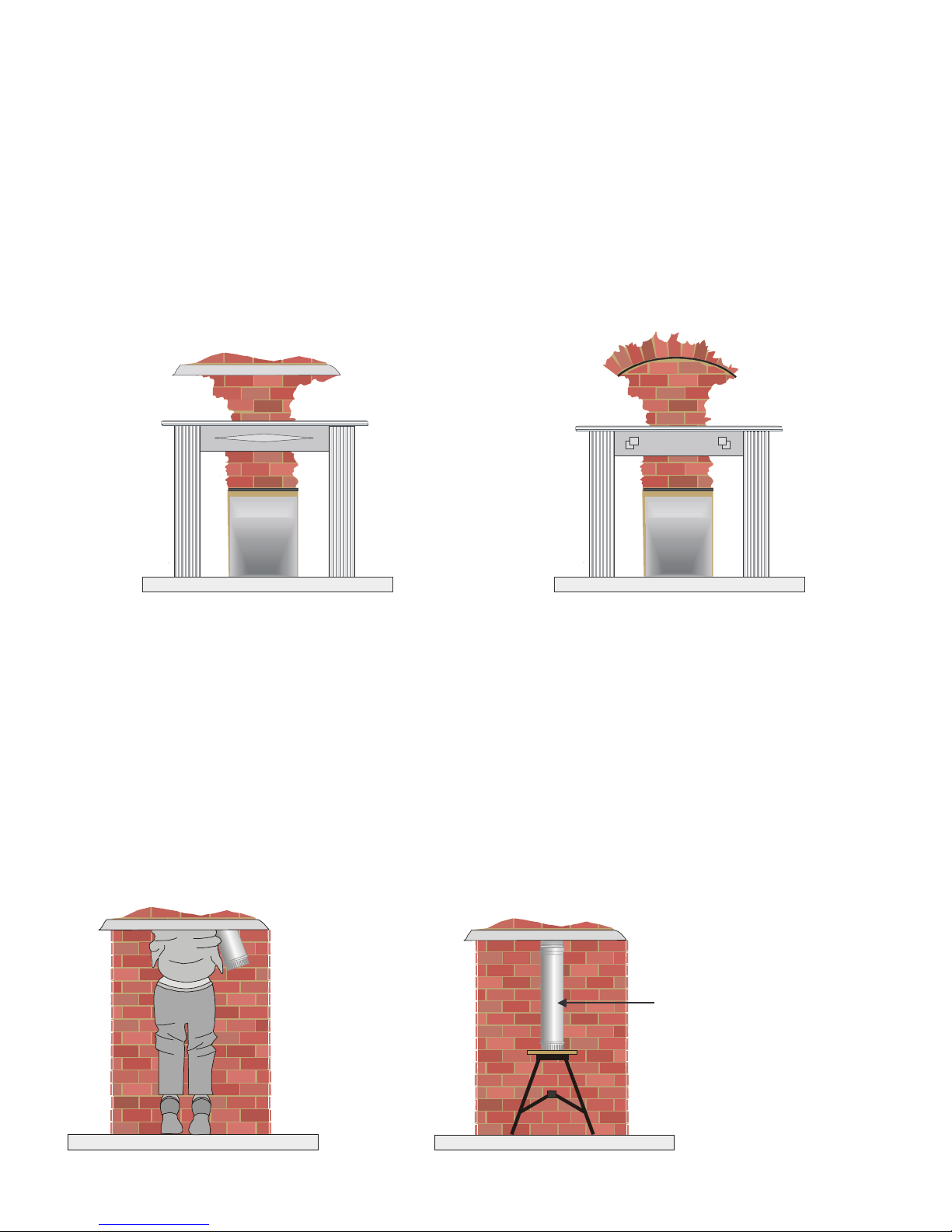

The depth and width of the fireplace should be measured to confirm there is sufficient room to fit the stove,
before removing any brickwork. Many upper floor chimney breasts house not only the fire place but also the
lower floor chimneys, and the depth is often much less than those of the ground floor.
Before removing any brickwork, the covering plaster should be removed so that any lintels can be identified.
There will probably be two, the first supporting a few courses of bricks above the fire back opening and a second,
higher up, which may be in the form of arched brickwork or a reinforced concrete lintel, which spreads the weight
of the complete chimney structure onto the chimney breast side walls. Removing this lintel without adequate
replacement support may result in a catastrophic collapse of a large area of brickwork. Remove no brickwork
until the main supporting lintel is identified and is confirmed to be sound.
If the main supporting lintel is positioned high enough to accommodate the stove’s housing to give the required
stove position, with the extra height necessary if air ducts are to be fitted, the fire back, surround, bricks and
lower lintel can be removed. If no upper lintel can be observed, its condition is doubtful or it is found to be too
low, a qualified builder should be brought in to install a new lintel. This is not something to be attempted by
anyone without specialist knowledge and experience.
With the fireplace opened to its full size the chimney should be inspected. If the property is very old the cross
sectional area may permit you to install hot air ducts at the top of the chimney breast or even to extend the
hot air ducts to another floor easily, but as before no brickwork should be removed unless you are experienced
and qualified to understand the implications of modifying supporting structures. To afford the easiest access it is
advisable to fit the flue liner before infilling the fireplace. If the flexible liner is to be lowered from the top, it is
advisable to lower enough flexible liner to allow the rigid to flexible adapter and rigid pipe to be fitted in relative
comfort. Struggling with both arms fully extended into a black void, whilst holding a torch between you teeth is
not the ideal way to ensure this joint is done perfectly which it needs to be if it is to be reliable.
Directly from the flue
spigot a minimum
300mm of stainless
steel 316 flue pipe
fitted prior to the
flexible flue liner.
Bends can be utilized
to achieve correct
positioning.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2010 E & OE Instructions Part number IN1179 Edition E1
9
The stove’s flue spigot is fitted to the flue pipe by pushing it upwards from within the stove, see page 7, so that
the flue can be positioned exactly before infilling the fireplace to give the required housing size. A register plate
should now be fitted. This is a plate of metal or a proprietary non-combustible board made for this purpose,
which closes all but a hole cut for the flue pipe of the chimney opening. Its purpose is primarily to prevent the
inevitable debris, and especially lime mortar falling onto the stove top, which will cause corrosive damage to
the stove top, but it also serves to position, exactly, the flue pipe in readiness for the stove. If air ducts are to be
attached, holes in the register to accommodate these will need to be added. A secondary lintel will need to be
fitted at the top of the opening into which the stove is to be fitted unless the existing lintel is at the top of the
desired opening.
Before infilling the fireplace, consideration must be given to the heat generated by all the surfaces of the stove.
If the face of the chimney breast is to be a smooth wall the heat surrounding the stove facia may be sufficient to
crack ordinary plaster, especially if it has been applied recently. Heat resistant plasters and screed are available.
The walls on top of the stove will become very hot and no combustible materials should be used as for any part
of the infilling. Insulating blocks such as “Durarock” may be used to line the cavity if you need to keep the heat
to the fireplace walls at a minimum to protect any pictures that may be hanging on them. Because the flow
of rising hot air from the stove front can be considerable and constantly changing in temperature, no valuable
pictures should be hung above the stove.
Insulating block
construction
Secondary lintel
Existing lintel

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2010 E & OE Instructions Part number IN1179 Edition E1
10
If a secondary lintel is to be fitted with only a single thickness of brick to be used as the closure, the inner face
of the bricks should be faced with insulation material to reduce the temperature of the wall face. Rockwool,
fibreglass or several layers of Glasrock are suitable.
Insulation
Register Plate

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2010 E & OE Instructions Part number IN1179 Edition E1
11
Housing Construction, without an Existing Chimney Breast
If the property has no existing chimney or chimney breast the first consideration will be the positioning of the
flue. Taking the flue to the roof internally through the property will involve complying with many regulations
and even an external flue may be subject to planning regulations. Because there will be no existing structural
hearth, this will need to be constructed following the strict Building Regulation requirements. For these reasons
we cannot recommend that anyone without the necessary experience constructs the housing and flue system for
a multifuel insert stove.
Insulation
Steel support
Lintel
Insulating board
Insulating blocks
Because the temperatures reached by the stove’s top and side panels may reach over three hundred degrees
Celsius all materials used for constructing the housing must be both non-combustible, stable at high temperatures
and insulate any part of the building which may be affected by heat. It should be bourne in mind that insulating
materials only limit the rate of heat transference from the heated surface to the unheated surface and if the
dispersal of heat from the unheated surface is less than the rate of heat transference the entire body of insulating
material will reach an almost uniform temperature.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2010 E & OE Instructions Part number IN1179 Edition E1
12
The insulating properties of many modern houses
are extremely high and many external walls are now
constructed with an inner skin of plasterboard, supported
on a wooden frame which is thermally insulated from the
outer skin of brick. Having such a low thermal conductivity
makes it impossible to use the outer wall as the back of
the stove’s housing unless a means of ensuring that non
of the heat from the stove is transferred to the house
wall. Whilst this may sound daunting the reward will be
a vast increase in heating efficiency.
One solution to the problem is to leave a space between
the stove’s housing back and the wall and provide
ventilation to give an air flow between the two. The
housing should be constructed with insulating blocks such
as “Durarock” and faced with brick or an insulating board
such as “Glasroc” and for extra protection the housing can
be lined with fibreglass or “rockwool” but these should
be supported so as not to touch the stove body.
The provision of insulation and air flow will also apply to
the heat reaching the ceiling of the room and this will
need extra care if the chimney is to be routed internally
through the property.
Insert stove
Register plate for
insulation & ducting
Flue support bracket
Various flue type options
Warm air
duct to room
Chimney breast
Ideal Installation

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2010 E & OE Instructions Part number IN1179 Edition E1
13
Ideal Installation

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2010 E & OE Instructions Part number IN1179 Edition E1
14
The Flue
It is possible to remove the top chamber baffle to access the flue for cleaning. However we would advise that if
at all possible an external cleaning access is provided. If the chimney has been lined with the same size flue as
the flue pipe it will be possible to sweep from the flue access point. If the flue is of a larger size than the flue pipe
it may not be possible to use a sweeping brush of adequate size. In which case another cleaning access will be
required. For detailed information see IN1173 The Wood and Multifuel Chimney and Installation Guide.
Installation of Flue Spigot to Flue Pipe

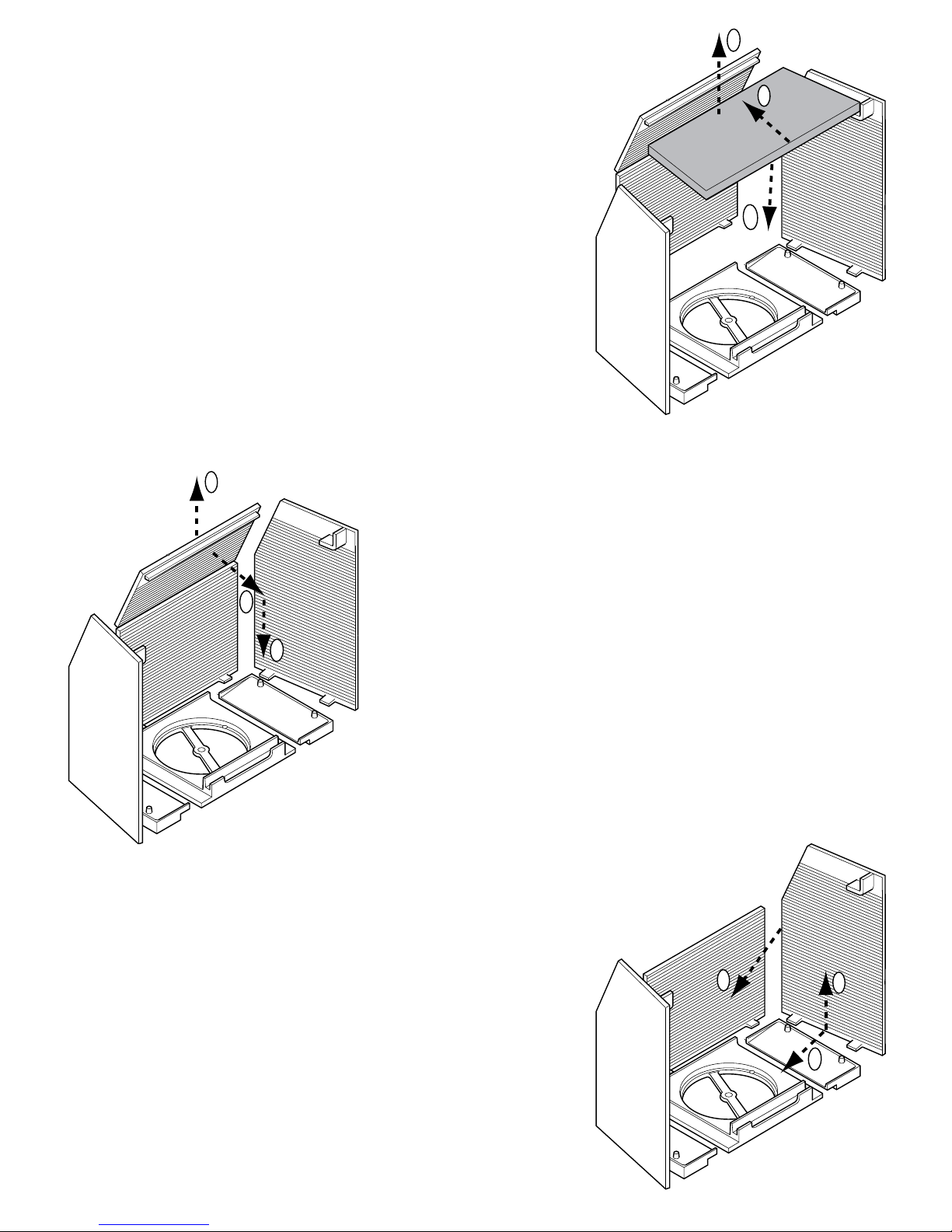

The flue spigot is mounted internally within the top of the stove retained by four bolts, see picture below.
The top chamber baffle may be in place and will need to be removed to gain access to fit the flue spigot. This
baffle is held in place by two bolts and baffle MUST be replaced once the flue has been connected.
A physical retention method MUST be used
at the flue spigot joint with the flue pipe, self
tapping screws being favoured and ensure
that all joints are sealed with a suitable
fire resistant sealant we recommend
Fraxfill (available from Euroheat Part No:
MS9045).
Some so called “Heat Proof” mastiks will
only stand a temperature of 300°C before
they start breaking down. In many cases
they may give off an obnoxious smell at
temperatures much lower than this.
4 Flue Spigot
Retaining Bolts

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2010 E & OE Instructions Part number IN1179 Edition E1
15
Installation of Vent Duct Tubes
Installing ducts to distribute the heat produced by the stove firstly reduces the temperature of the stove’s housing
and secondly allows other areas to be heated directly from the stove.
The lowest grade of flexible flue liner is an ideal choice of material for the ducts themselves and a wide range
of discrete or decorative grills are available for the outlets from builders merchants and architectural fitting
suppliers.
We would recommend that in all cases where the insert might be utilized in a white wall installation (plaster
finished) that the vent ducts are used. This will reduce the temperature around the installation.
Although the ducts should never become hot enough to cause a problem, they should be protected from any
combustible materials. Where the ducts are to be taken into other rooms, consideration should be given to the
fact that they will form a permanent passage for air to these rooms. If the stove is to be installed into a property
which has gas appliances the ducts must be installed with reference to any applicable gas regulations and no
gas appliance should be operated in any room to which air is being ducted, not because the hot air will cause a
problem but because any gas spillage may find its way into, and remain, in cold duct work. At no time should
a gas appliance be operated in the same room as the stove if the stove is operating with, or without warm air
ducts being fitted. If venting to other rooms they must be interconnecting.
Lintel
300
Steel
support
B
For installations with heat vent
pipes, space (B) must be allowed
for the vent connection. After vent
pipe installation space (B) can be
filled as required.
The larger dimension given for the stove installation housing allows the duct work to be fitted to the stove when
it is in situ.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2010 E & OE Instructions Part number IN1179 Edition E1
16
The Hearth and Fire Surround
The existing regulations give rigid rules for the construction and size of hearth required for an appliance burning
solid fuel, 225mm minimum in front of the appliance, but these should be regarded as a minimum standard
because they were written with an open fire or typical stove on legs in mind. These rules make provision for the
protection of the property in the event of burning fuel falling from the fire, but the height of the fire bed in an
open fire or conventional stove is not very high and as the horizontal distance any falling item travels is, amongst
other factors, dependant upon the height from which it starts, it should be apparent that anything falling from an
insert stove positioned with its fire bed one meter above the floor will have the impetus to travel further across
the floor than the regulations allowed for. A hearth having an edge lip is preferable to a simple flat hearth in its
ability to reduce the hazard but because no hard and fast rules can be given you have to assume that Murphy’s
Law which states that “If it can, it will” applies and any combustible flooring should be kept well out of range of
the likely and even unlikely range of falling embers.
Germany has a long tradition of stoves called “Kachelöfen”, which are stoves built into a tiled structure that acts as
a heat store. The insert stove installed within its brick or block housing will behave in much the same way, using
the bricks as a heat store. Although the brickwork will never become excessively hot it will become very warm
if the stove is kept burning at a high rate. For this reason anything attached to the wall will also become very
warm. This may cause damage to oil paintings and cause accelerated ageing in photographs and we advise you
to restrict the pictures you hang on the walls of the stove housing to those which are of limited importance.
There has been a revival of interest in all forms of real fires and fire surrounds of every possible style and
material now abound but sadly not all are built to the highest standards or with materials best suited to the
high temperatures they will be subjected to. The minimum distances given in the drawing below will ensure
the surround will be subjected to safe temperatures but it will not guarantee that a fire surround made from
unseasoned wood will not shrink. If stone is to be used in any part of a fire surround it is important that both
the shape and fixing allow for the stone’s expansion as its temperature rises. Failure to make provision for the
uneven expansion a fire surround will inevitably result in the stone cracking, in general the stone surround should
comprise of four or more sections.
Minimum distance from extreme of stove
front frame to any combustible material is
300mm. This includes wall coverings such as
wallpaper.
All fire surrounds must be suitable for a real
fire.
All stone must have provision for uneven
expansion.
A non-combustible hearth must be provided in
front of the stove to a minimum of 300mm.
A fire guard must be fitted if children or infirm
adults are at risk of coming into contact with
the stove.
300mm
200mm

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2010 E & OE Instructions Part number IN1179 Edition E1
17

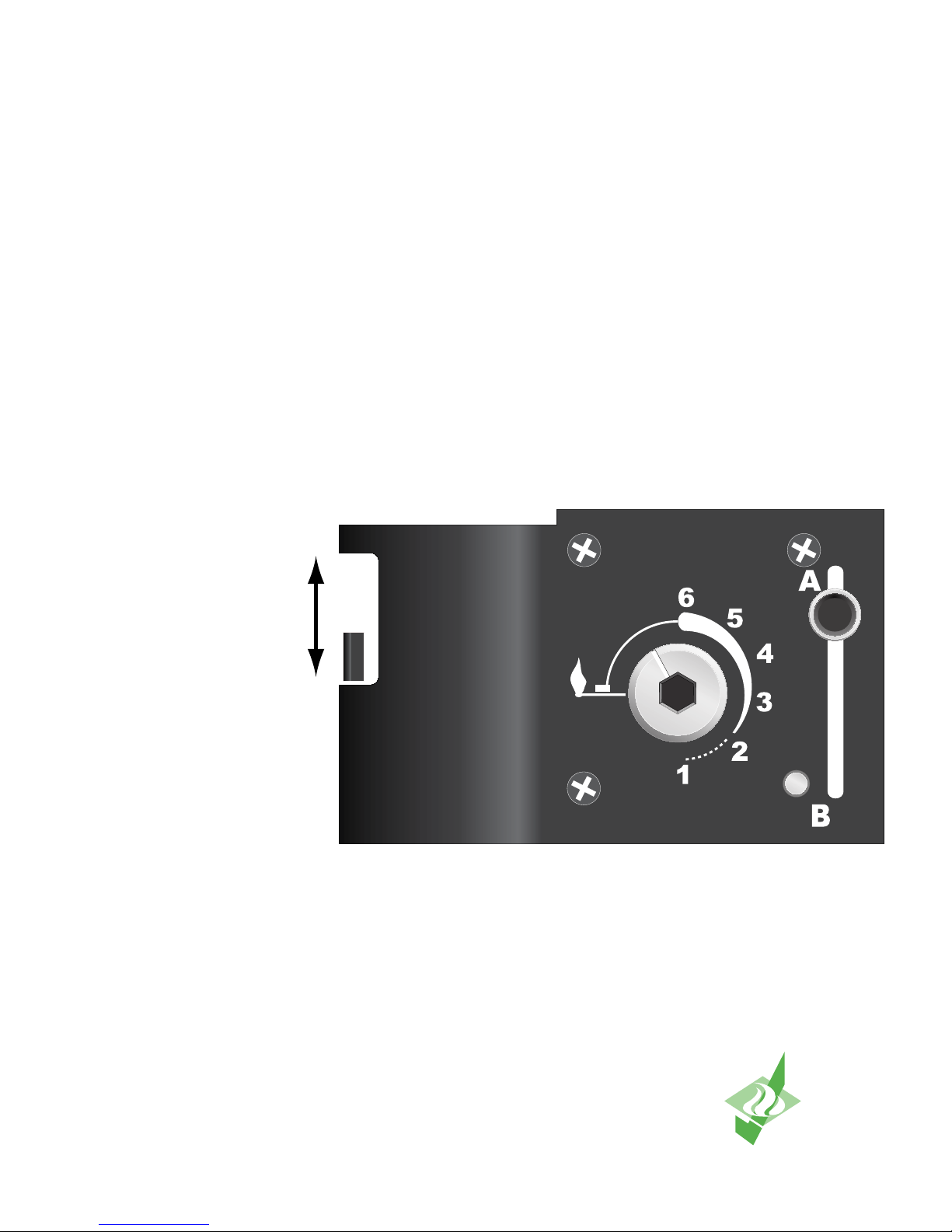

Minimum Air Setting
This facility of having an adjustable minimum air setting provides a positive repeatable air setting that will give
the lowest burning rate at which the stove will continue burning when the firing rate control is turned to its
minimum position. It will also give a small feed to the air wash when the stove is burning coal, not enough to
risk damage to the grate, but enough to help keep the glass clean. It is also an important safety feature. If the
stove has been burning with a constant air supply it has been generating and burning the volatile gasses from
the fuel. If the air supply is abruptly and completely removed the fire will extinguish but the release of gasses
will continue for some time. These gasses will be above their ignition temperature and be potentially explosive if
they come into contact with air. The constant air bleed that the small flap allows will keep some of these gasses
burning and prevent sudden ignition whilst the generation of gasses reduces.
Adjustment
If it is found that the fire burns for only short periods whilst set to the “0” position it will be most likely that the
flue draught is high. Commonly found in tall or excessive sized chimneys.
To extend the burning cycle the minimum bypass flap can be adjusted to allow less air to enter at low settings.
Adjust the flap to give your required settings.
Minimum
Maximum
This lever should be set to maximum (fully open) at all times unless advised otherwise by
your heating engineer or the Euroheat Technical Department.
Minimum Air
Setting Lever
Normal operational
position is at
maximum
Important
Do not fully close the flap.
If the appliance is to be used with wood in a smoke exempt area the minimum air control flap must be set at its
maximum position. This flap should only be adjusted by approved engineers.
Exempt
Smoke
Control

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2010 E & OE Instructions Part number IN1179 Edition E1
18
Remote Control Option
Fitting the Remote Control Motor
The friction plate is hinged. To fit the motor this friction plate needs to be detached from the magnet and swung
downwards.
The motor can now be slipped into place. The magnet retains the motor.
Connect the electrical lead to the receiver box and
place the receiver box in its holder.
For full operating
instructions for the
remote control see
the Remote Control
Guide.

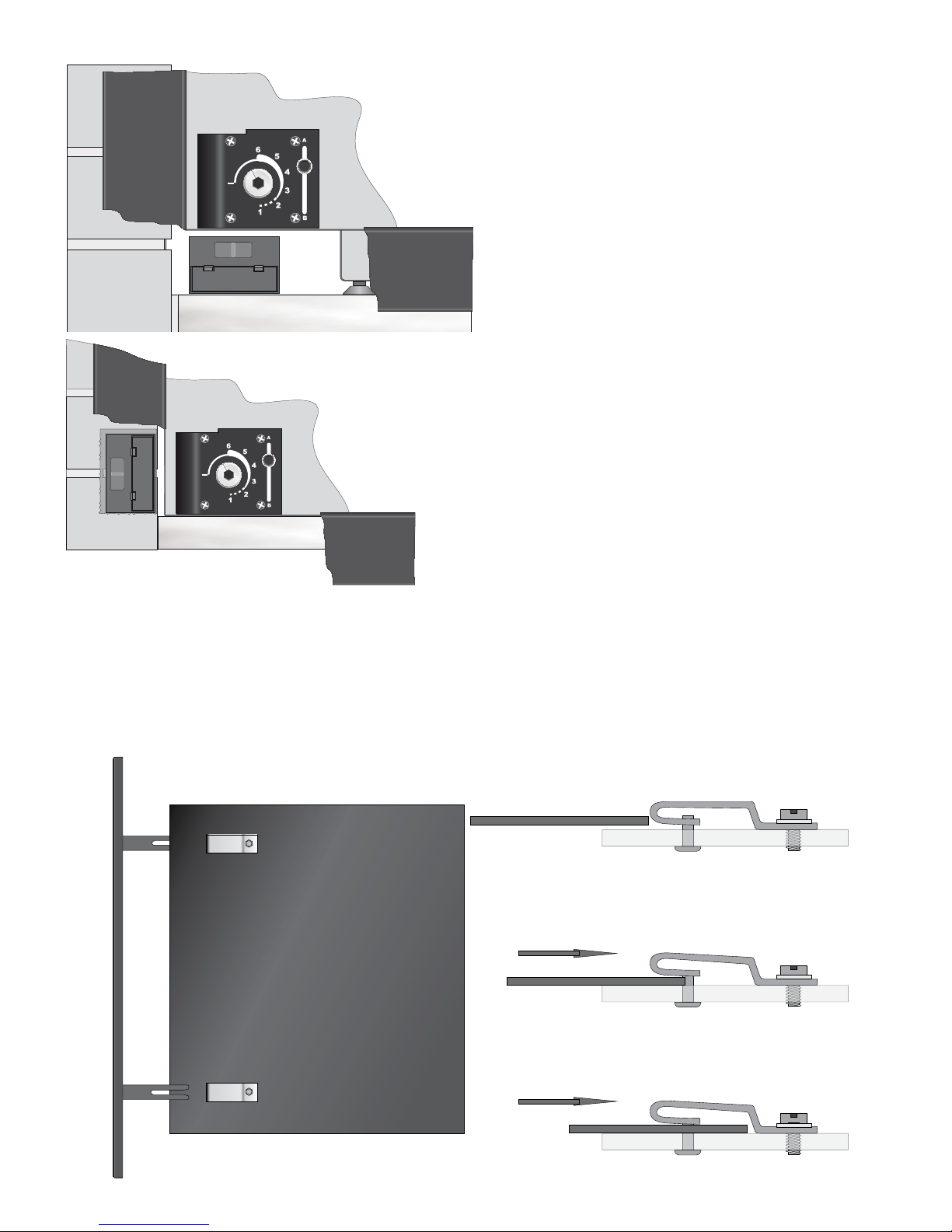

Slip the motor in from the side, then over the retaining
bracket, rotate to the right and lower into place. The motor
is retained by the magnet.
To fit the remote control motor, remove the 4
securing screws which retain the plexus cover
plate. Remove the volume control knob and the
fuel select lever knob.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2010 E & OE Instructions Part number IN1179 Edition E1
19
ON RS OFF
ON RS OFF
Fitting Remote Control Receiver
If the support rails and adjustable feet are utilized the
remote control receiver should be mounted under the
base plate of the stove on the left. The frame fixing
system has been designed for simple removal.
If the installation conditions require the removal of
the support rails and adjustable feet, provision needs
to be included for fitting of the receiver behind the
surround.
As the batteries need replacing in the receiver fairly
regularly, it is important the user is informed where
the receiver is located and how to access.
Fitting and Removing Surround
The IT13 surround mounting system has been designed so the frame can be removed for access for cleaning or
remote receiver access. Carefully line up the surrounds mounting prongs with the locating pins and press gently
to locate the frame.

© EUROHEAT DISTRIBUTORS (H.B.S) LTD. June 2010 E & OE Instructions Part number IN1179 Edition E1
20
Firebox Components
Removal of the Top Mica Baffle Plate
The top mica baffle is located in the top of the fire box where it sits
on the L shaped baffle support lugs which are part of the casting of
the left and right side protection plates. For easier access remove the
front fuel guard. To remove (1) slide the baffle board towards the rear
of the fire box (2) whilst lifting the rear of the board upwards. Once
the front of the board has passed the end of the L shaped support lug
(3) the front can then be dropped down and the baffle pulled down
into the main body of the fire box. It can then be angled to withdraw
it through the door.
To refit the replacement reverse the procedure.
Removal of the Upper Protection Plate
The upper protection plate is held in place by the two side protection
plates. To remove (1) lift up the plate and then (2) draw it towards
the front of the fire box.
As it is drawn forward (3) pull the front edge downwards so moving
it free of the side protection plates. It can then be angled within the
fire box to withdraw it through the door.
To refit the replacement reverse the procedure.
Removal of the Side Protection Plate
To remove (1) lift up the plate so it is higher than the lugs on the
lower side protection plates and then (2) draw it towards the centre
of the fire box.
As it is drawn towards the centre (3) twist the rear edge towards
the front of the fire box. It can then be angled within the fire box to
withdraw it through the door.
To refit the replacement reverse the procedure.
1
2
3
1
2
3
1
2
3
