Euroheat Harmony 5 User manual

1
© Euroheat Distributors (H.B.S) Ltd. Dec 2004 E & OE Installation Servicing IN1045 Ed C
Installation & Servicing
Harmony 5
&
Stanford 50
Gas Balanced Flue Stove
Serial Number
Part No.
Euroheat Distributors
(H.B.S.) Ltd.,
Unit 2, Court Farm
Business Park,
Bishops Frome,
Worcestershire,
WR6 5AY.
EF
EL

© Euroheat Distributors (H.B.S) Ltd. Dec 2004 2 E & OE Installation Servicing IN1045 Ed C
Contents
Safety Precautions 3
Manufactures Identification Plate 3
The Euroheat Appliance Serial Number 3
Technical Data with Eurosit Gas Valve 630 4
Technical Data with Mertik Maxitrol GV34 Gas Valve 5
Primary Air Collar 6
Appliance Location 6
Hearth and Fireplace Requirements 7
Standard Top to Horizontal Balnaced Flue Kit 8
(Part Number MS91032) 8
Standard Top to Vertical Balanced Flue Kit 8
(Part Number MS91060) 8
Balanced Flue Additional Flue Lengths, Elbows and Accessories 9
Example Horizontal to Vertical Ratio calculations 11
Vertical to Horizontal Ratio Graphs A & B 12
Fitting the Flue Kit 14
Position of flue terminal on outside wall 15
Flueing through combustible material 15
Balanced Flue Terminal Positions 16
Location of outlets from flues serving balanced flue gas appliances 16
Installation of the Gas Supply, BS 6891 17
Appliance Location 17
Gas Connection 18

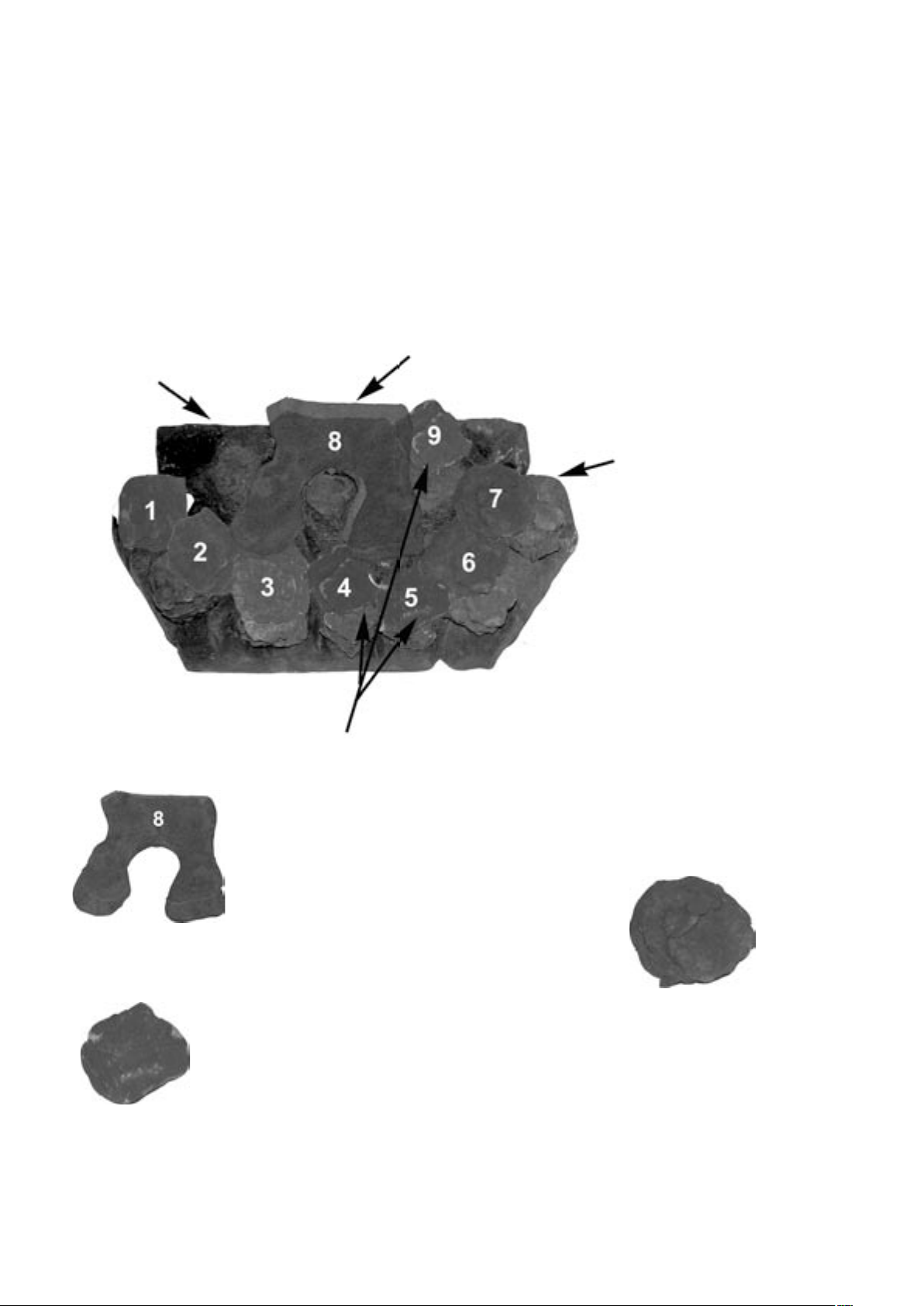

Fitting the Coal Effect Kit and Fuel Guard 19
Gas Control Valve 20
Sit Gas Valve Eurosit 630 20
Lighting 20
Thermostatic Eurosit Gas Valve 630 with Manual Override 21
Lighting 22
Manual Control 22
Mertik Maxitrol GV34 Gas Valve 23
Gas Pressure Test Nipple Locations 24
Fitting the Remote Control 24
Motor and Micro switch 24
Fitting the Electrical Connections 24
Receiver location 24
Information for Users which must be advised by the installer verbally or in writing. 25
Removing Main Burner Jet 26
Service Record 28

3
© Euroheat Distributors (H.B.S) Ltd. Dec 2004 E & OE Installation Servicing IN1045 Ed C
Safety Precautions
a) The stove should be visually inspected and if damaged should not be installed.
b) The flue components should be checked to ensure that all are present and are not damaged. If
any damage is found then the flue system should not be installed, until replacement parts have been
obtained.
c) It is a requirement of the Gas Safety (Installation and Use) Regulations that these instructions,
together with the Appliance User Instructions, be left intact with the user.
d) In your own interest, and those of safety, and in accordance with the Gas Safety (Installation
and Use) Regulations, all stoves must be installed by a suitably qualified gas technician using the
appropriate fittings for the gas type being used and the stove must not be modified in anyway. The gas
technician will be responsible for the installation conforming to all current regulations and standards.
Failure to install the appliance correctly could lead to prosecution.
e) It is important that the stove is installed so that the clearances specified in these instructions are
complied with.
f) Fireguards, in accordance with current British Standards, should be fitted when the appliance is
used in the presence of young children, the elderly or infirm.
g) The stove must not be run with its door open.
h) It is also important that the occupiers of the property have their attention drawn to the high
temperatures which are normally present on the external surfaces of the stove during operation.
i) Do not use the stove if any of the ceramic coal components are damaged or broken.
j) The plastic bags used to protect components of this appliance are a potential hazard to young
children, and should be disposed of immediately.
k) The stove must be serviced annually by a suitably qualified gas technician.
Manufactures Identification Plate
The identification plate is located at the right rear
side. To access the plate swing outwards.
The Euroheat Appliance Serial Number
The serial number can be found at 5 locations:
1: On the front page of this manual
2: On the front page of the operating instructions
3: Under the base of the stove.
4: On the warranty registration form
5: On the warranty certificate returned to the user
after successful registration.

© Euroheat Distributors (H.B.S) Ltd. Dec 2004 4 E & OE Installation Servicing IN1045 Ed C

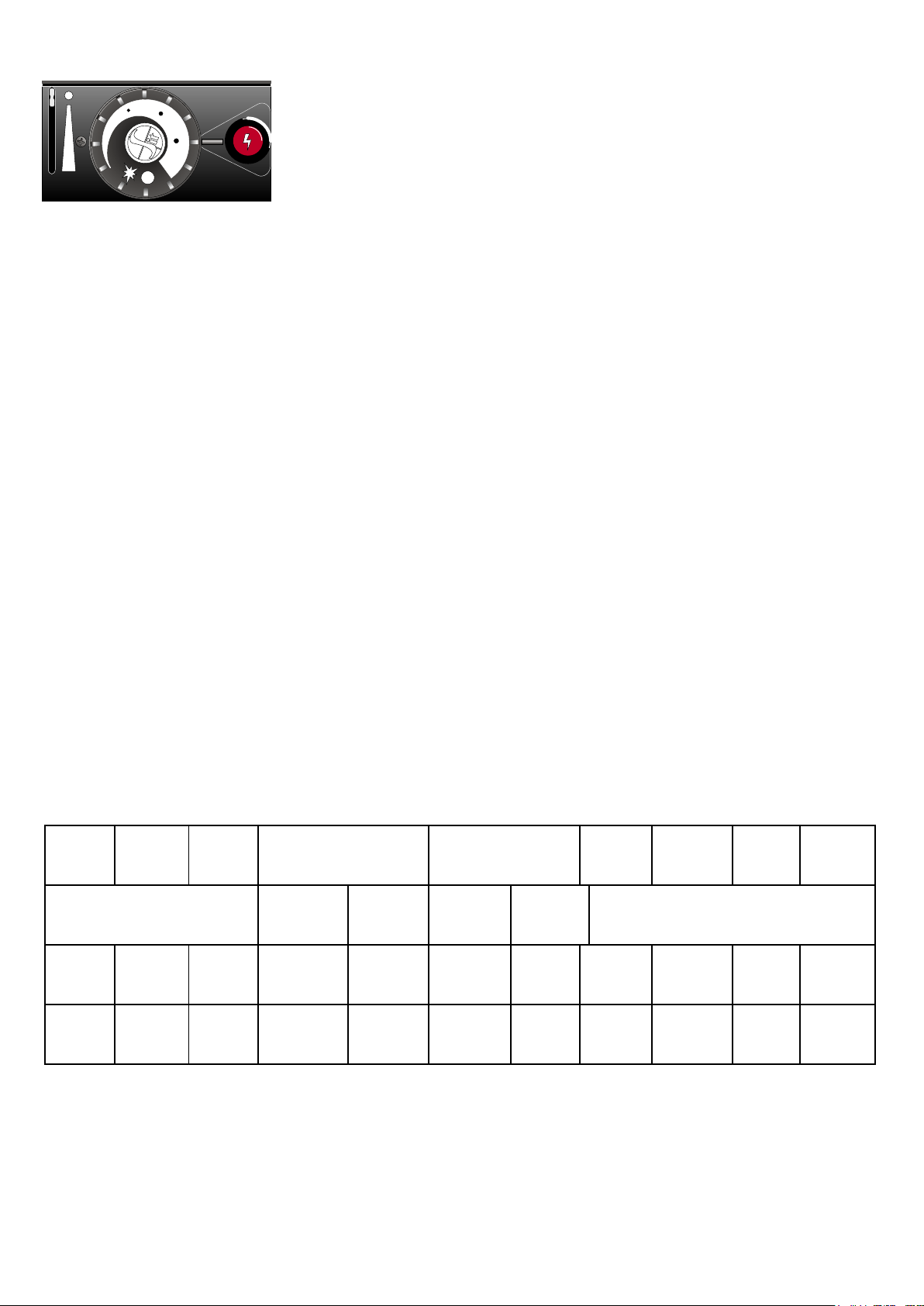

Technical Data with Eurosit Gas Valve 630
6
4
2
Harmony 5 Gas and Stanford 50 Balanced Flue
Model Number 49990
Heat Output Maximum 5 kW/hr (17060 BTU)
Heat Output Minimum 1.9 kW/hr (6482 BTU)
Gas Input Maximum 6 kW/hr (20472 BTU)
Gas Input Minimum 2.5 kW/hr (8530 BTU)
Heat Control Thermostatic and Manual
Fuel Types Natural Gas or L. P. G.
(specify at time of order)
Efficiency 80% + (net)
Ignition Type Battery Spark
Pilot Flame Yes
Flame Failure Yes
Fuel Effect Type Coal
Fuel Outlet Top Balanced Flue
Flue Size 150mm External
Terminal Guard Optional Extra
Warranty Standard 1 Year
Colour Options Cast Black, Satin Black Enamel,
Bottle Green Enamel, Blue Enamel
Decorative Plinth Optional Extra
Gas
Type
System
Pressure
Main
Burner
Nozzle
Nominal Output
(Maximum operation)
Minimum Output
(low operation)
Pilot
Nozzle
size
Low
Operation
By Pass
Heat
Output
Gas
Input
Hourly
input
Burner
operating
pressure
Hourly
input
Burner
operating
pressure
G20
Natural
Gas
20mbar
1 jet
4 x 0.98 0.637
m³/h
14.8mbar 0.273
m³/h
2.8mbar 37 1.39
5kW/hr
17,060
BTU/hr
6kW/hr
20,472
BTU/hr
G31
Propane 37mbar
1 jet
4 x 0.59 0.434g 33.7mbar 0.196kg 7mbar 23 0.85
5kW/hr
17,060
BTU/hr
6kW/hr
20,472
BTU/hr

5
© Euroheat Distributors (H.B.S) Ltd. Dec 2004 E & OE Installation Servicing IN1045 Ed C
Technical Data with Mertik Maxitrol GV34 Gas Valve
5
6
2
1
3
4
PILOT
OFF
IGN
ON
Gas
Gas
Pressure
mbar
Main Jet
mm
Maximum output Minimum output
Low Burn Pilot Jet
Hourly
Flow
Burner
Pressure
Hourly
Flow
Low burn
pressure
G20H
Natural
Gas
20 1 jet with
4 x 0.96 0.62 m3/h 18.5 mbar 0.26 m3/h 3.4 mbar 51
G31
LPG 37 1 jet with 4 x 0.62 0.48kg/h 36.1 mbar 0.18 kg/h 7.4 mbar 30
Harmony 5 Stanford 50 Gas Balanced Flue
Model Number 49990
Heat Output Maximum 5 kW/hr (17060 BTU)
Heat Output Minimum 1.9 kW/hr (6482 BTU)
Gas Input Maximum 6 kW/hr (20472 BTU)
Gas Input Minimum 2.5 kW/hr (8530 BTU)
Heat Control Thermostatic and Manual
Fuel Types Natural Gas or L. P. G.
(specify at time of order)
Efficiency 80% + (net)
Ignition Type Battery Spark
Pilot Flame Yes
Flame Failure Yes
Fuel Effect Type Coal
Fuel Outlet Top Balanced Flue
Flue Size 150mm External
Terminal Guard Optional Extra
Warranty Standard 1 Year
Colour Options Cast Black, Satin Black Enamel,
Bottle Green Enamel, Blue Enamel
Decorative Plinth Optional Extra

© Euroheat Distributors (H.B.S) Ltd. Dec 2004 6 E & OE Installation Servicing IN1045 Ed C
Appliance Location
a) This stove must be mounted on a non combustible hearth. The hearth must have a minimum of
12mm non combustible material thickness. The stove can be placed on a wooden floor if it is stable and
can support the weight and as long as the hearth plinth is utilized.
b) Combustible material at the rear of the stove shall be protected against the effects of heat.
c) There must be a minimum of 300mm from the top of the stove to the underside of any combustible
shelf. Note that for every 50mm increase on clearance, the shelf may project by a further 50mm.
d) Any manufactured surround used with this stove should comply with the appropriate British
Standard.
e) Do not place furniture, furnishing or combustible objects within 1 metre of the stove.
If any of these conditions are not fulfilled,
DO NOT FIT THE STOVE until this has been rectified.
Primary Air Collar
Natural Gas
The air collar should be adjusted to give
a 3 mm wide opening.
L.P.G
The air collar should be adjusted to give
a 10 mm wide opening.
3mm 10mm

7
© Euroheat Distributors (H.B.S) Ltd. Dec 2004 E & OE Installation Servicing IN1045 Ed C

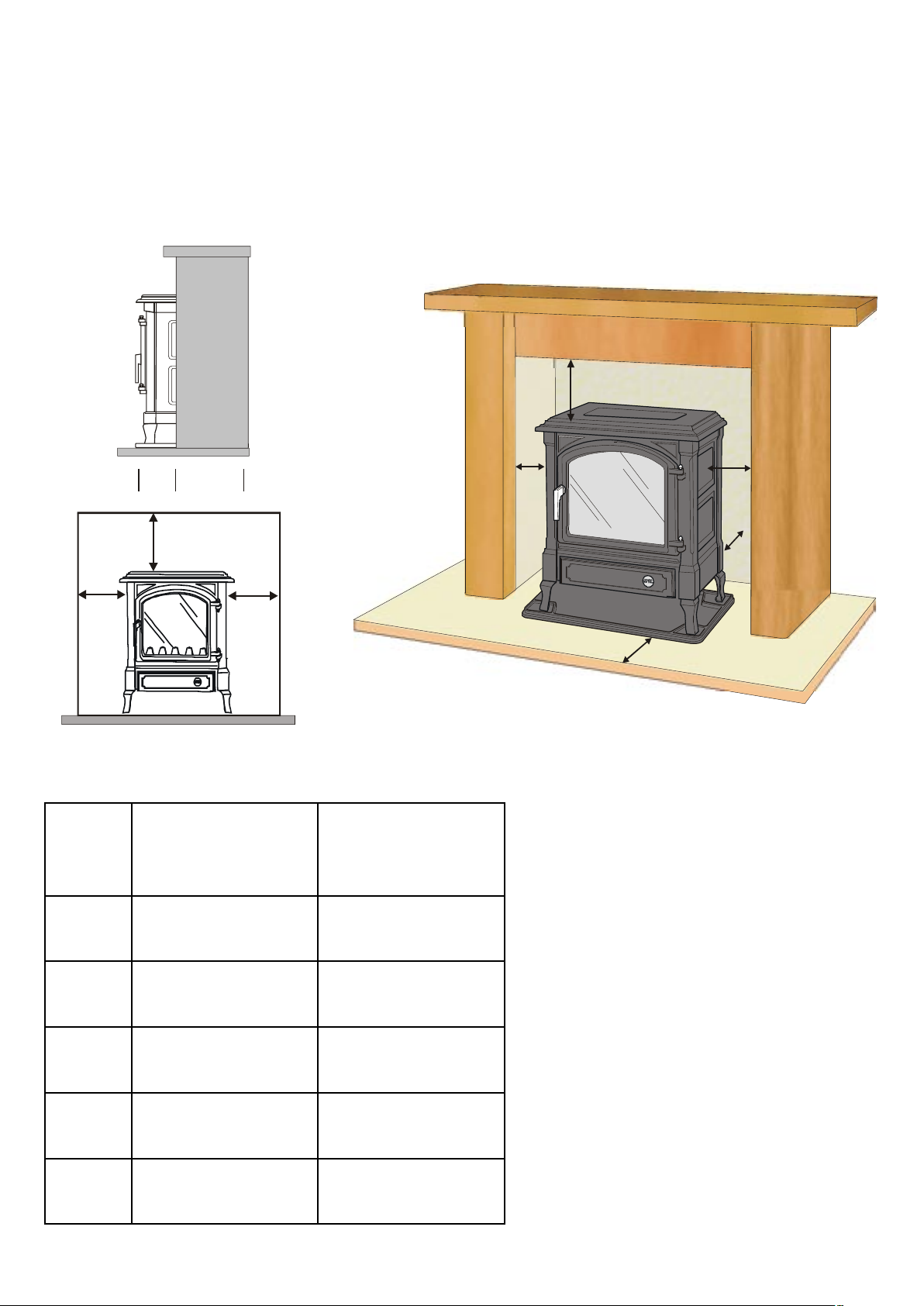

Hearth and Fireplace Requirements
Do not be tempted to fit the stove into an unsuitable fireplace. Beyond the requirements of the building
regulations and access to facilitate servicing the stove, providing a setting which will complement the
Harmony is not a luxury, it is the practicality of making the most of an investment. A good builder will
be able to transform even the most utilitarian of fireplaces, whether altering its proportions to those of
the “Golden Mean” ideal, exposing a wooden lintel, stone or simply removing superfluous detailing for
comparatively small costs, and the result will be a pleasure for many years.
The measurements are for advice only. In
all installations surrounding inflammable
materials must not exceed 80ºC. The
stove must always stand perfectly level
and have sufficient space allowed for
service work.
Minimum installation clearances F = Decorative Hearth Plate
Supplied as optional extra
1/3 2/3
1
2/3 2/3
A
B
D
C
E
F
Minimum clearance
from combustable
materials
Minimum clearance
from non
inflammable
materials
A12" 300mm 9" 230mm
B12" 300mm 6" 150mm
C1" 25mm N/A
D2" 50mm 2" 50mm
E12" 300mm 6" 150mm

© Euroheat Distributors (H.B.S) Ltd. Dec 2004 8 E & OE Installation Servicing IN1045 Ed C
T2
T1
Stove adaptor
Locking band
Telescopic module
Telescopic module
Standard supply flue bend
Standard Top to Horizontal Balnaced Flue Kit
(Part Number MS91032)
T1
Locking band
Telescopic module
Terminal
Standard Top to Vertical Balanced Flue Kit
(Part Number MS91060)

9
© Euroheat Distributors (H.B.S) Ltd. Dec 2004 E & OE Installation Servicing IN1045 Ed C

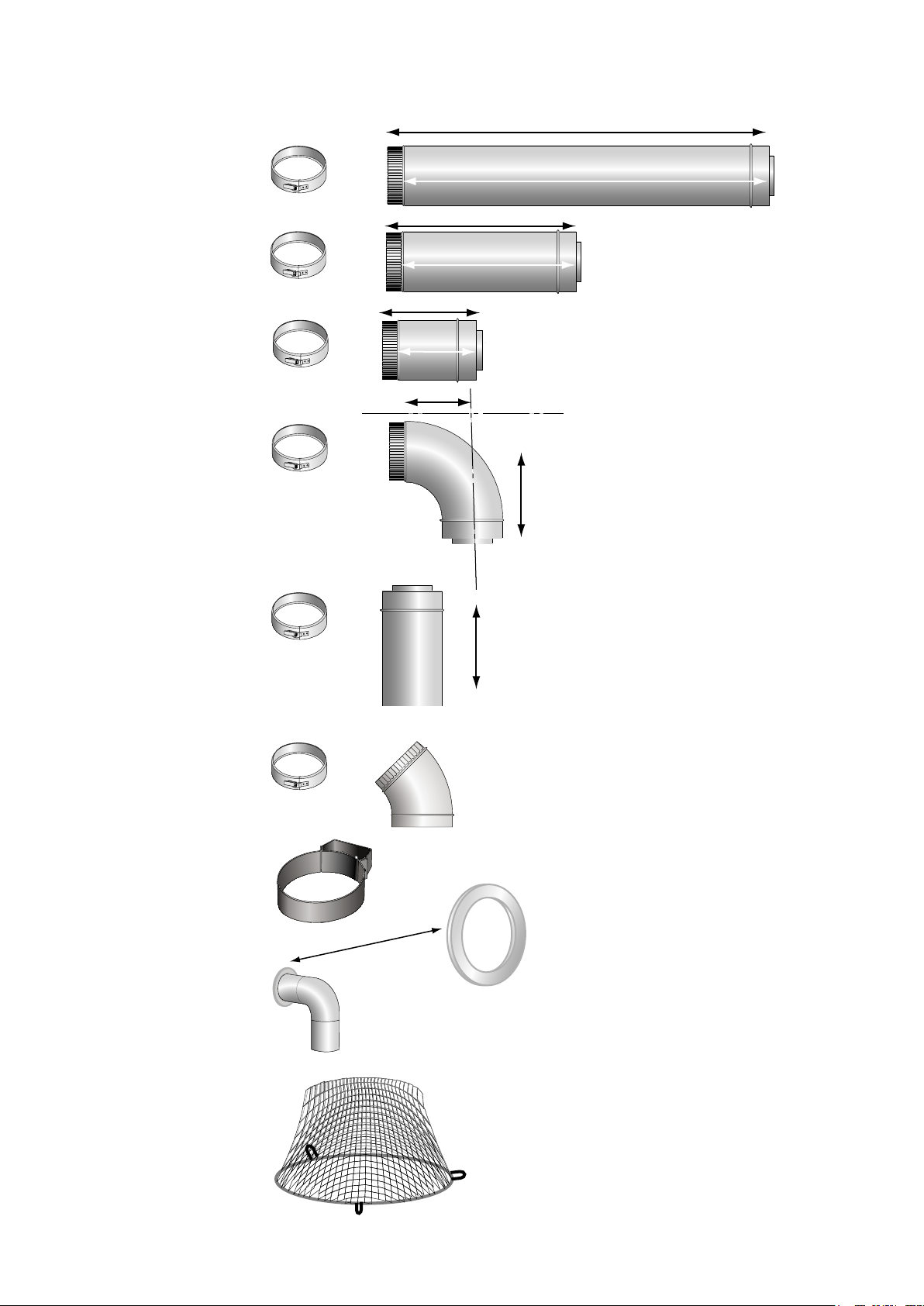

Balanced Flue Additional Flue Lengths, Elbows and Accessories
FF??mm
= useable length
F960mm
1 Meter
F460mm
F960mm
500mm
250mm
250mm
1 Meter
Part Number
MS91028
500 mm
Part Number
MS91029
250 mm
Part Number
MS91030
90 degree Bend
Part Number
MS91031
45 degree Bend
Part Number
MS91054
250 mm Adjustable
Part Number
MS91045
Wall Band
Part Number
MS91052
Closure Bezel
Part Number
MS91033
Terminal Guard
Part Number
FP767
Other Options
Ceiling Support MS91056
Fire Stop Spacer MS91058
Roof Flashing MS91063
Existing Chimney Converter Kit
to Balanced Flue MS91085

© Euroheat Distributors (H.B.S) Ltd. Dec 2004 10 E & OE Installation Servicing IN1045 Ed C
Calculating Flue Aspect Ratios
The stove operates correctly only with air flow induced by the flue system being within the defined
parameters. To achieve these, the vertical elements of the flue, which induce flue draught and increase
the air supply to the stove, must be balanced against the horizontal elements of the flue, which offer
resistance to flue draught and reduce the air supply to the stove.
The ratio of vertical to horizontal lengths must be calculated to ensure the correct flue draught will be
induced by the proposed flue.
The difference in height between the top of the stove and the bottom of the terminal determines the
vertical height to be used in the calculation. The flue run may necessitate the vertical elements to be
separated by several horizontal runs, this is not important, only the total height gain is needed.
The horizontal length is often more tedious to determine, but again, it is the total length which needs
to be determined, regardless of their being continuous or in stages. Any change of direction within the
flue will offer resistance to flue draught and each change of direction will offer the same resistance to
the flue draught as a horizontal run of 1000mm.


It is important to note that the balanced flue pipe must only ever rise
vertically or travel horizontally at 90°.
Add 1000mm to the
measured horizontal
length for each
additional
change of direction
(each 90deg elbow)

11
© Euroheat Distributors (H.B.S) Ltd. Dec 2004 E & OE Installation Servicing IN1045 Ed C
Example Horizontal to Vertical Ratio calculations
In these two examples the horizontal length will include an additional 2000mm to allow for the
two additional elbows.
E
FEL
L
H
Telescopic
Telescopic
Having determined the vertical and horizontal length, reference should be made to the two
drawings showing the permissible aspects.
Drawing A (page 11) illustrates the vertical heights necessary to overcome the inertia of
horizontal lengths. If the proposed flue would terminate within the shaded area, the flue will
not generate sufficient draught.
Drawing B (page 11) illustrates the maximum permissible vertical height of the flue for a
given horizontal run. If the proposed flue would terminate within the shaded area the flue
would induce too much draught and to prevent this any such flue will need the restricter Part
Number 35432 fitted, which is part of the standard flue kit.


© Euroheat Distributors (H.B.S) Ltd. Dec 2004 12 E & OE Installation Servicing IN1045 Ed C
Choke Plate
2000
1000 3000 4000 5000 6000 7000
800
1000
2000
4000
Length of vertical run flue in millimetres
A
Length of horizontally run flue in millimetres
Maximum vertical heights
to a horizontal flue length
before needing restricting
B
Flue configurations within the shaded area
have dimensions which are unacceptable
450 2000 3000 4000 5000 6000 7000
400
1000
Length of horizontally run flue in millimeters
Length of vertical run flue in millimetres
Minimum vertical height needed
to a horizontal flue length
Vertical to Horizontal Ratio Graphs A & B

13
© Euroheat Distributors (H.B.S) Ltd. Dec 2004 E & OE Installation Servicing IN1045 Ed C
Example of Flue Calculation
Taking the attached diagram as an example
we can calculate the flue parameters
Total Height = A
Total Horizontal = B
In this example
A = 2.8 Metres
B = 1.5 Metres
3 x 90deg bends have been used 1 of which
(C) is the standard supply kit bend. This bend is
ignored from the calculation as it is presumed
it will always be used. The two remaining
90deg bends increase the horizontal length
by 2 metres
(1 metre extra horizontal length per additional
90deg bend)
Total height A = 2.8 Metres
Total Horizontal B = 3.5 Metres
In this example there is sufficient vertical rise for the horizontal run.
The vertical rise requires that the choke plate is fitted. (See page 11)






© Euroheat Distributors (H.B.S) Ltd. Dec 2004 14 E & OE Installation Servicing IN1045 Ed C








Fitting the Flue Kit
The flue system adaptor should be sealed
to the stove’s flue spigot with a heat proof
sealant, taking care to ensure that at least
two continuous lines of sealant are around
the spigot before pushing on the adaptor to sit
flat onto the spigot flange. The clamp should
be used to secure the first elbow and the
appropriate tape used to secure the telescopic
fitting. The guide giving the permitted flue
configurations must be consulted to
verify that a proposed flue is possible.
If the telescopic termination piece is
to be used the “long bend” supplied
as standard with the stove must be
incorporated into the system to ensure a
non crimped end at the last fitting before
the termination piece.
Where the flue passes
through any wall, the hole
must be sleeved for its entire
length.
All joints between the fixed lengths of flue must be secured
with locking bands, and no more than one length must
be unsupported. It is your responsibility to ensure that no
part of the flue installation contravenes any gas or building
regulations.

15
© Euroheat Distributors (H.B.S) Ltd. Dec 2004 E & OE Installation Servicing IN1045 Ed C
Flueing through combustible material













T
12mm
Position of flue terminal on outside wall

© Euroheat Distributors (H.B.S) Ltd. Dec 2004 16 E & OE Installation Servicing IN1045 Ed C
Balanced Flue Terminal Positions
N
M
K
I
D,E
HH
A
G
A
I
J
F
B
CC
L
Minimum separation distances for terminals in mm
Location Balanced flue terminals
A Below an opening
(1)
Appliance
rated heat
input (net)
0 - 7kW
>7 - 14kW
>14 - 32kW
>32kW
300
600
1500
2000
B Above an opening
(1)
0 - 32kW
>32kW
300
600
C Horizontally to an
opening (1)
0 - 7kW
>7 - 14kW
>14kW
300
400
600
D Below gutters, soil
pipes or drain pipes
300
E Below eaves 300
F Below balcony or car
port roof
600
G From a vertical drain
pipe or soil pipe
300
H From an internal
or external corner
or to a boundary
alongside the
terminal (2)
600
I Above ground, roof
or balcony level
300
J From a surface or a
boundary facing the
terminal (2)
600
K From a terminal
facing a terminal
600
L From an opening in
the car port into the
building
1200
M Vertically from a
terminal on the
same wall
1200
N Horizontally from
a terminal on the
same wall
300
1. An opening means a window or door that is able to be
opened or a fixed opening such as an air vent.
Location of outlets from flues serving
balanced flue gas appliances

17
© Euroheat Distributors (H.B.S) Ltd. Dec 2004 E & OE Installation Servicing IN1045 Ed C
Installation of the Gas Supply, BS 6891
NOTE:
Ensure that the gas supply is capable of delivering the required amount of gas, and is in
accordance with the relevant current standards.
It is generally preferred to conceal the gas supply by bringing it under the hearth, or through masonry
to the side of the fireplace. Any pipe work in 15mm tube connecting the stove to the main pipe work
should be kept as short as possible with as few fittings as possible to prevent restrictions.
a) Whenever a gas pipe passes through any masonry it must have a sleeve of non combustible
material sealed at both ends to prevent the gas supply from coming in contact with masonry or lime
based mortars.
b) The gas pipe should be adequately supported over longer lengths.
c) Soft copper tubing and soft soldered joints are suitable, providing the tube is not closer than
150mm to the stove casing i.e. the temperature must not exceed 100°C.
d) A means of isolating the gas supply to the appliance must be provided independent of any
appliance control. This may be a gas cock, ideally of the nursery type to prevent children interfering
with the gas supply.
e) Any gas tubing that has been passed through masonry, should be purged to expel any foreign
materials that may have entered the supply.
f) Care should be taken to ensure that pipe work brought through metal structures has been secured
to prevent chaffing, but allow for thermal expansion.
Appliance Location
a) This stove must be mounted on a non combustible hearth. The hearth must have a minimum of
12mm non combustible material thickness.
b) The stove is not suitable for installation into a rear combustible wall, any combustible materials
must be removed from an area of 300mm around the installation of the appliance.
c) There must be a minimum of 450mm from the top of the stove to the underside of any combustible
shelf, Note that for every 50mm increase on clearance, the shelf may project by a further 50mm. See
page 8.
d) The appliance must not be installed in a room or space which contains a bath or shower.
e) Ensure that the stove fits neatly into its intended location.
f) Any manufactured surround used with this stove should comply with the appropriate British
Standard.
g) Do not place furniture or furnishing within 1 metre of the stove.
h) Do not obstruct the area directly beneath the stove as this may block the passage of air into the
appliance.
If any of these conditions are not fulfilled,
DO NOT FIT THE STOVE until the problem has been rectified.

© Euroheat Distributors (H.B.S) Ltd. Dec 2004 18 E & OE Installation Servicing IN1045 Ed C
Gas Connection
a) Connect the gas supply pipe to the 15mm connection at the rear of the appliance.
b) Connect a suitable gas pressure gauge to the test nipple, turn the gas supply on and check that
the gas connections are sound. If satisfactory light the appliance. Check all the gas connections on
the appliance for leaks. The appliance is factory tested, but it is possible for a connection to have been
disturbed during transportation and installation.
c) Set the control to the high setting, and check that the gas pressure is as stated on the data
table.
d) Turn off the gas, remove the pressure gauge and refit the test point screw, turn the gas supply
on and check that test nipple is gas sound.

19
© Euroheat Distributors (H.B.S) Ltd. Dec 2004 E & OE Installation Servicing IN1045 Ed C
Fitting the Coal Effect Kit and Fuel Guard
Under no circumstances should additional coals be added other than those supplied with
the appliance.
The coal effect is very fragile under no circumstances should force be used to locate the
effect. Damage to the coal effect is not covered by warranty.
Correct location of fuel guard. Incorrect location of fuel guard.
Front Coal
Rear Coal Horse Shoe Coal
Small Coals
8 = Horse Shoe Coal
4, 5 & 9 Small Coals 1,2,3,6,7 = Large coals
Coals 1-7 Should be placed
between the front and rear
coal blocks in such away
to give evenly distributed
fl ames.

© Euroheat Distributors (H.B.S) Ltd. Dec 2004 20 E & OE Installation Servicing IN1045 Ed C
Gas Control Valve
6
4
2
Manual control.
Disables the thermostatic
control of the stove and
allows the stove to operate
at any chosen setting.
Thermostatic control.
Allows the stove to be controlled
by the room temperature,
maintaining a constant ambient
temperature.
Ignition Button.
Pushing the button energizes
the electronic spark generator to
produce a pulsed sparks to ignite
the pilot flame.
Sit Gas Valve Eurosit 630
a) (see operating instructions for full details) Ignition is by battery spark, ensure battery is fitted.
Ensure control knob is in the off position. Push in the control knob and turn to the pilot position, keeping
the knob depressed. Press the ignition button. The pilot should now be alight after the system has
been purged. Keep the knob depressed for 20-30 seconds, when the knob is released the pilot should
stay lit. It may be necessary to repeat the procedure if the pilot does not light, particularly when the fire
is first used.
b) With the pilot burning, turn the control knob clockwise, this will turn the main burner on.
c) In the unlikely event of the flame being extinguished whilst the gas control is in the “on” position,
immediately turn “off” and wait 2 minutes before attempting to relight.
For full operating instructions see operation manual.
Lighting
