Europace Epu 9800w User manual

For safety purpose, please read this operating instruction manual carefully before using

and keep it for future reference.

9800W

Instruction Manual

产品使用说明书

Content

I. Performance index................................01

II. Functions.............................................01

III. Features............................................ 01

IV. Characteristics of filter screen..............01

V. Product Structure.................................02

VI. Key & Display Panel............................ 03

VII. Requirements on the placement.......... 05

VIII. Installation of filter screen..................05

IX. Methods of Use...................................06

X. Maintenance and Service......................09

XI. Precautions........................................13

XII. Packing Details..................................13

XIII.Troubleshooting................................ 14

Product Specication

PM CADR

PM CCM

Gaseous pollutant CADR

Gaseous pollutant CCM

Noise

Applicable area

800m3/h

≥300m3/h

≤66dB(A)

56 ~ 96m²

Mode of operation

Rated voltage

Rated power

Size (L×W×H)

Net weight

Intelligent purification

220V-240V

50/60Hz

40x40x66.9 cm

Product name Air purifier Model EPU 9800W

Use To eliminate the pollutants such as particulate matters (PM),

gaseous pollutants, microorganisms and the like in air.

1.Primary filter screen: To filter out large particles such as human hair, pet hair, cotton

wool and other substances.

2.Copper ions and silver ions anti-virus PET skeleton composite filter

The latest research and development of copper ion and silver ion antibacterial

antiviral technology, using PET skeleton as a carrier, carrying copper and silver ions,

and then cooperate with medical H13 grade HEPA filter, so as to achieve the best

effect of bacteria isolation, sterilization and antivirus. The third release test

confirmed the obvious removal effect of SARS (SARS), H7N9 (avian influenza,

coronavirus), H1N1 (respiratory influenza virus) and other viruses.

The H13 medical grade HEPA filtration accuracy is less than 0.3 microns, which can

capture and reduce 99.97% of fine particulate matter in the air, such as pollen,

pollutants, and allergens, and reduce the carrier of bacteria and viruses in the air.

II. Functions

III. Features

• To purify gaseous pollutants such as smoke, dust particles and formaldehyde.

• To realize the sterilization and air purification of large-space houses, offices, restaurants,

bars and entertainment places.

• Air quality is shown by the four-color LED atmosphere light.

• Double filter screens generate clean air of double volume.

• The built-in high-precision particle sensor detects the air quality in real time.

• WiFi function, manual operation control, night sleep automatic control and infrared

remote control.

• MANUAL, AUTO, TOPSPEED and NIGHT models.

IV. Characteristics of filter screen

Rated frequency

I. Performance Index

Host

HEPA composite

filter screen

HEPA composite

filter screen

Rear cover

Front cover

解锁

锁定

复位极速

Remote controller

Primary filter screen Primary filter screen

V. Product Structure

VI. Key & Display Panel

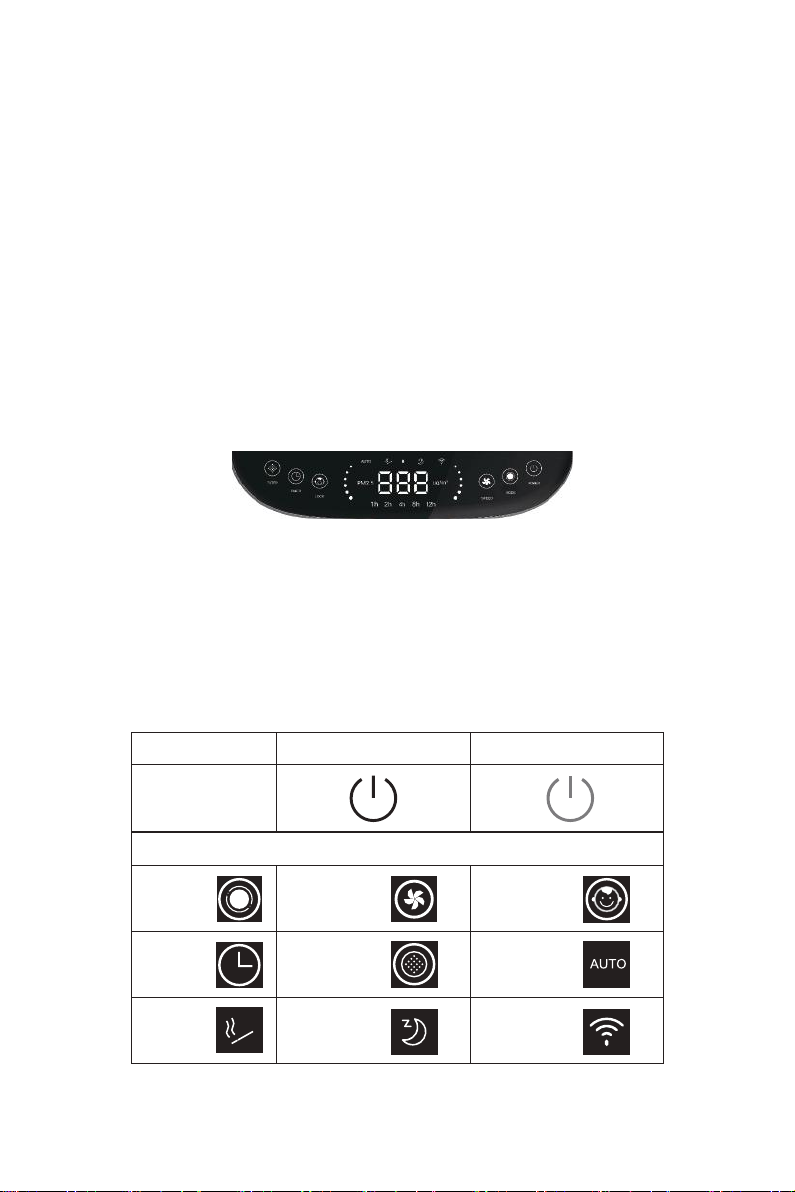

1. Switch key and function key

Standby Power on

Switch key

Function key

Mode

Timing

topspeed

Air speed

Filter screen

SLEEP

Child lock

AUTO

WiFi

Red Green

Display panelKey panel Key panel

Normal Due

2.1 Replacement reminder for filter screen

No display

The flashing red indicator,

indicates the cleaning of the

filter screen.

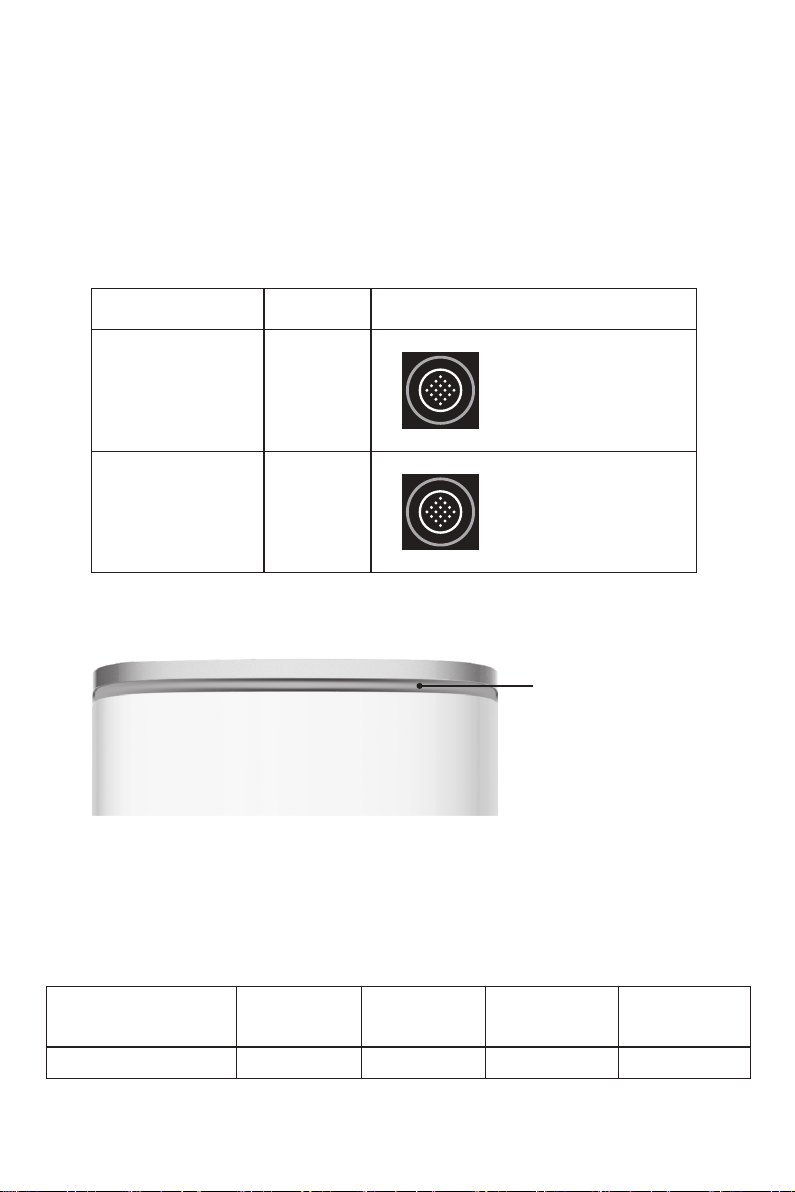

Air quality indicator

(Blue) Good (Green) Fair (Orange) Bad (Red) Dirty

1-35 36-75 76-150 151-500

2.2 PM value correspondence table

PM2.5

concentration ug/m³

Air quality

Primary filter

screen

HEPA composite

filter screen

The normally-on red indicator,

indicates the replacement of the

filter screen.

No display

The machine is designed with a reminder for regular replacement of the filter

screen. When the machine has been operated for 300 hours, the red indicator

flashes to indicate the need of cleaning the filter screen. When the machine has

been running for 3,000 hours, the red indicator on the panel will be on normally

to indicate the need of replacing the filter screen. At this time, the reset function

of the key comes into effect. Keep pressing the key to reset the timing and

re-start the timing.

In the operation, the back of purifier should be kept 20cm away from the wall,

and over 30cm on both sides.

The back is 20cm away from the wall

30cm way from the wall

VII. Requirements for the placement

30cm way from the wall

VIII. Installation of filter screen

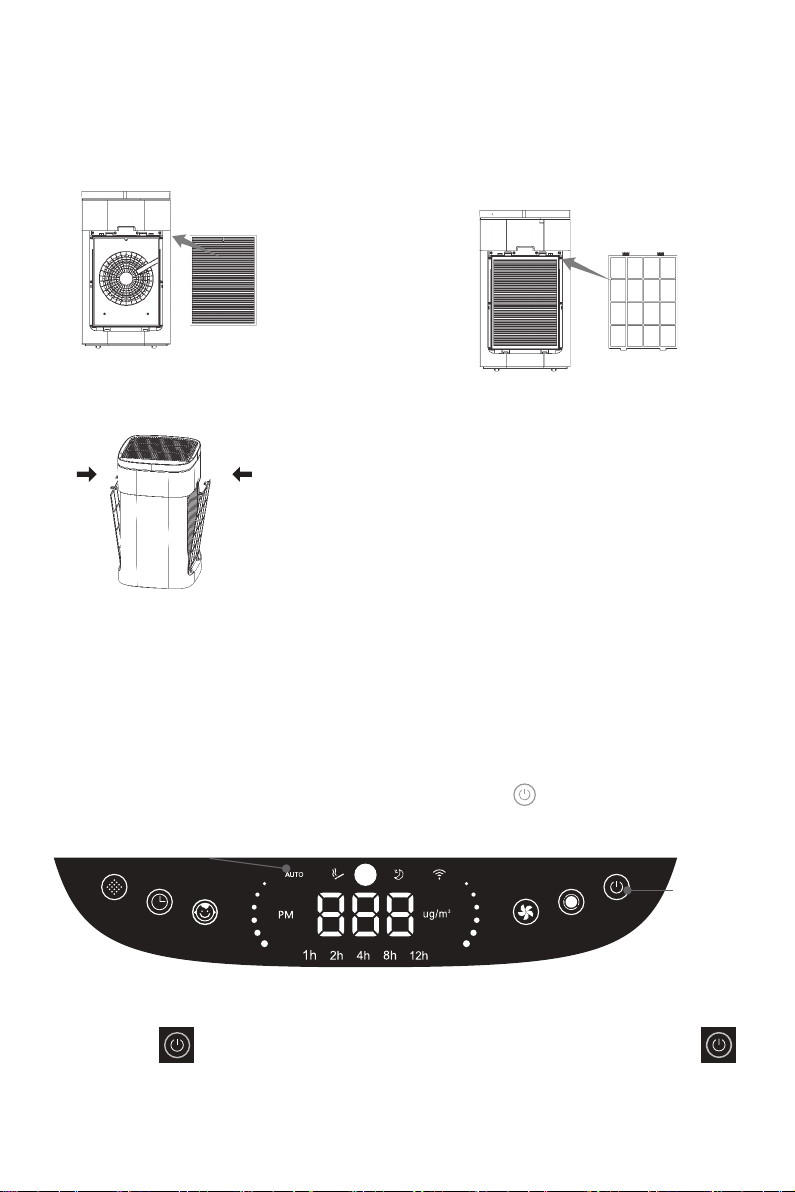

1. Take out the filter screen from the plastic bag

a.Remove the front and rear covers b.Remove the filter screen

c.Take out the filter screen from the plastic bag

※ Before use, be sure to remove the plastic bag on the filter screen.

2.5

2. Install the filter screen and the front and rear covers

a.Install the HEPA composite screen

Note: One side of the strap is installed outward

b.Install the primary filter screen

(with internal and external differentiation)

Note: The side with buckle is installed outward

c.Install the front and rear covers ※ Before use, be sure to install the

front and rear covers

For first use, firstly take out the product from the packaging box, remove the binding

wire of power cord, and then insert the plug into the power socket. When energized,

the power key icon on the product panel will display red .

IX. Methods of Use

1.Power it on

Gently touch the machine to turn it on. Then the POWER key changes to green ,

and the machine enters the AUTO mode by default. At the same time, the front panel of

the machine displays: AUTO (automatic mode).

Power key

AUTO

Filter screen

Timing

Child lock Air speed

Mode

Power

3. Manual: In the startup state, touch the AIR SPEED key to switch the gear

of the motor and adjust the operating speed of the machine. The motor is not

controlled by the sensor after the man-made modification of the motor gear,

and the motor can only work on the currently set gear.

4. Child lock: In the startup state, press the CHILD LOCK key to enter the key

locking state. At this time, all the keys are in the state of being unable to be touched

or controlled, but the machine works in the pre-locked setting state. And then press

the Child Lock for 5 seconds to release this state. (The icon of the key is on when

the child lock function is activated, and half-lit when released.)

2. Mode selection: In the startup state, press the MODE key to select the mode:

AUTO , TOPSPEED and SLEEP . When the AUTO light is on, the anion is

turned on, and the gear of the motor is changed upon receiving the data of the sensor.

(The icon of the key is on when the AUTO function is on, and the icon is half-lit when it

is turned off).

When the TOPSPEED light is on, the machine enters the TOPSPEED model.

When the SLEEP light is on, the SLEEP function is turned on, and only the SLEEP

light is half-lit. The machine can only work in the SLEEP mode and is not controlled

by the sensor.

Air speed

2.5

Filter screen

Timing

Child lock Air speed

Mode

Power

2.5

Filter screen

Timing

Child lock Air speed

Mode

Power

2.5

Filter screen

Timing

Child lock Air speed

Mode

Power

Mode

Child lock

5. Timing: Press this key to set timing shutdown in the startup state. Touch the

TIMING key, and then the timing function will be added for 1 hour every time. After

pressed for 12 hours, press it again for release the timing function. The timing shall

be set in the range of 1-12 hours. (The icon of the key is on when the timing shutdown

function is activated, and the icon is half-lit when deactivated.)

6. WiFi: The MODE key can be long pressed for 5 seconds in both startup and

shutdown modes. Then this pattern flashes. At this time, the machine enters the state of

pairing with the mobile phone APP. Refer to the mobile phone APP operation methods

specified on the Wi-Fi instructions folding. The pattern will be normally on after successful

pairing. This pattern does not light when there is no WIFI signal in the environment in

which the machine is located. When the machine is powered on, the pattern is slowly

flashing when the WIFI signal is received, and normally on when the machine is connected.

If the machine has been paired with the WIFI before and it has the memory function, the

machine can control the start-up, shutdown and other functions by the WIFI in the standby

state.

WIFI

2.5

Filter screen

Timing

Child lock Air speed

Mode

Power

2.5

Filter screen

Timing

Child lock Air speed

Mode

Power

Timing

Position of the handle

X. Maintenance and Service

1.Primary filter screen: The cleaning frequency of the primary filter screen should

be determined according to the air speed, air pollution degree and cumulative

operation time of product operation. It should normally be cleaned once normally

for 2-3 months. Please clean it in time, otherwise the purification efficiency of the

air purifier will be affected.

2. Copper ions and silver ions anti-virus PET skeleton composite filter
