FILTER CHANGE INSTRUCTIONS

Filter Change Instructions
Ejection
Port
October 2021 ENGLITVMAXFILTER A 2
Important Notes / Warnings
When to change the Vortex MAX filter
•Replace filter only; do not clean or re-use filters.
Re-using filters can cause filter failure. Replace with
genuine Sy-Klone filters only.
•When cleaning equipment, care should be taken to
prevent high-pressure water or high-pressure air from
entering the Vortex MAX ejection port.
•When replacing the filter, do not point ejection
port at a solid surface in close proximity to the
port, as ejected debris exits at high velocity and
may damage glass, paint, or other surface area.
•Replace the Vortex MAX filter when the restriction reaches
the manufacturer’s suggested limit.
•Change the Vortex MAX filter element every 1000 hours of
operating time, even if the restriction limit is not reached
and there are no noticeable performance changes.
•Replace factory-installed engine filter(s) per the
manufacturer’s suggested maintenance cycle.
1. Work in a clean, covered area to reduce intake exposure to harmful particles.
2. Wear appropriate personal protection equipment, such as gloves, mask, and
coverall to protect against contaminants.
3. The machine should be off.
4. Inspect the Vortex MAX system for any damage.
5. Remove the filter, noting the orientation of the ejection port.
6. Bag and seal the used filter element and dispose of according to local regulation.
7. Inspect and remove any loose debris using a clean rag.
Note: Never use compressed air.
8. Install new filter, ensuring the ejection port orientation is correct.
9. Install the motor assembly, ensuring it is properly locked in position.
10. After installing the new filter, inspect the Vortex MAX system for proper
operation:
a. System is running.
b. Air flow out of Vortex MAX system ejection port is strong.
Replacing the Vortex MAX Filter
1. The machine
should be off.
2. Unplug
wiring
harness from
motor
assembly.
Wiring
Harness
Filter Removal Wiring Harness
Filter
Handle
for easy
removal

Filter Change Instructions
The Vortex MAX filter has four alignment pins and one ejection
port. The ejection port can be oriented in four different
positions, every 90°, in the filter housing.
The filter housing has four alignment grooves for orienting the
filter ejection port.
October 2021 ENGLITVMAXFILTER A 3
Filter Removal, continued

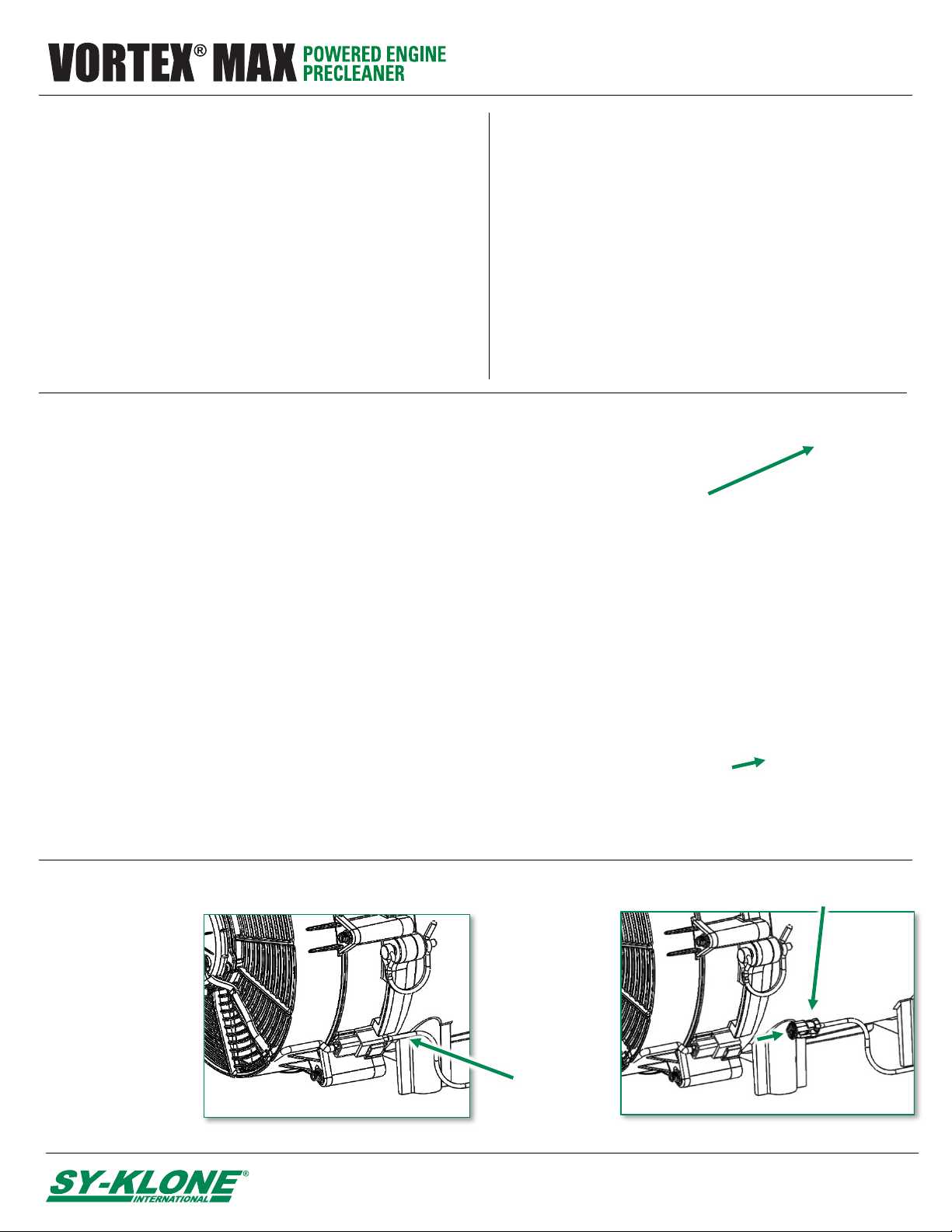

3. Release wire lock
from clevis pin.
4. Remove clevis pin
from locking tab.
5. Rotate motor
assembly,
approximately 20
degrees, until motor
mount tabs
disengage.
Note: Motor
assembly can be
rotated clockwise or
counter-clockwise to
disengage motor
mount tabs.
6. Pull motor assembly
forward to remove
and set aside.
7. Pull filter straight out
of housing, noting the
orientation of the
ejection port.
Clevis Pin
Wire Lock
Clevis
Pin Wire
Lock
Locking Tab
Locking
Tab
Alignment Pin (1 of 4)
Ejection Port Alignment Groove (1 of 4)
Filter Filter Housing
Filter Orientation / Reinstallation
Install Filter
1. Orient filter ejection
port in desired
position.
2. Align filter pins with
filter housing
alignment grooves.
3. Insert filter until fully
seated in outlet port.
4. Reinstall motor
assembly on filter
housing.
5. Align locking tab.
6. Insert clevis pin and
secure with wire lock.
7. Plug in wire harness.

Filter Change Instructions
October 2021 ENGLITVMAXFILTER A 4
Service Part Numbers
Part Number Description
EF800 Vortex MAX: Replacement Filter
VMAX0701 Vortex MAX: Vertical Mounting Plate
VMAX0702 Vortex MAX: Horizontal Mounting Plate
VMAX0901 Vortex MAX: Rain Cap
VMAX0902 Vortex MAX: Motor Mount
VMAX0903 Vortex MAX: 24V Motor
VMAX0904 Vortex MAX: 12V Motor
VMAX0905 Vortex MAX: Clevis Pin Assembly
VMAX0906 Vortex MAX: Filter Housing Section
VMAX0907 Vortex MAX: Heavy Debris Screen
VMAX0908 Vortex MAX: Wiring Kit
Contact your dealer for Sy-Klone filters, parts and technical
support, or contact Sy-Klone.
Technical Support
Sy-Klone International
Tel: [phone]
email: [e-mail]
