FRANZ ZIEL Air Infect Protect 1.5T Manual

160cb721c4bc5c8feafcbba01acf5953cb43c3679fc70bc4e
a4bc94796f3deb6
English
Disclosure to third parties and duplication of this document, as well as use and communication of its content, are only permitted with our consent. All rights reserved.
Operating and Maintenance
Instructions
Air purifier Air Infect Protect 1.5T
FRANZ ZIEL GmbH
Raiffeisenstraße 33
48727 Billerbeck
Germany

160cb721c4bc5c8feafcbba01acf5953cb43c3679fc70bc4ea4bc94796
f3deb6
Page 2of 51
English
Disclosure to third parties and duplication of this document, as well as use and communication of its content, are only permitted with our consent. All rights reserved.
Identification details
Tool / machines / system:
Machine name:
Air purifier
Model
Air Infect Protect 1.5T (AIP 1.5T)
Year built:
2020 onwards
Manufacturer:
Company name:
FRANZ ZIEL GmbH
Street:
Raiffeisenstraße 33
Place:
48727 Billerbeck, Germany
Phone:
+49 (0)2543/2335-0
Fax:
+49 (0)2543/2335-29
Email:
[e-mail]
Website:
www.ziel-gmbh.com
Technical customer service; spare parts
service
Franz Ziel GmbH:
Customer service phone:
+49 (0)2543/2335-8888
Customer service email:
[e-mail]
Document details:
Version:
V1.6
Date created:
5. Januar 2021
Authors:
Thomas Hecking / Frank Will
Document title:
Translation of original operating instructions

160cb721c4bc5c8feafcbba01acf5953cb43c3679fc70bc4ea4bc94796
f3deb6
Page 3of 51
Disclosure to third parties and duplication of this document, as well as use and communication of its content, are only permitted with our consent. All rights reserved.
English
Contents
1About these operating instructions..............................................5
Notes on copyright and patent rights ...........................................................................5
Sign and symbol information .......................................................................................5
Denoting text elements................................................................................................7
Part number code........................................................................................................7
2Safety ...............................................................................................8
General safety information...........................................................................................8
Safety instructions for setting up the device.................................................................9
Intended use..............................................................................................................10
Use contrary to that intended.....................................................................................10
Qualification of personnel..........................................................................................11
Residual risks............................................................................................................12
Markings and signs on the air purifier........................................................................13
Description of protective equipment...........................................................................14
2.8.1 Air grills on the air outlet........................................................................................................14
2.8.2 Safety temperature limiter .....................................................................................................14
2.8.3 Differential pressure monitor..................................................................................................14
Actions to take in an emergency................................................................................14
3About the air purifier ....................................................................15

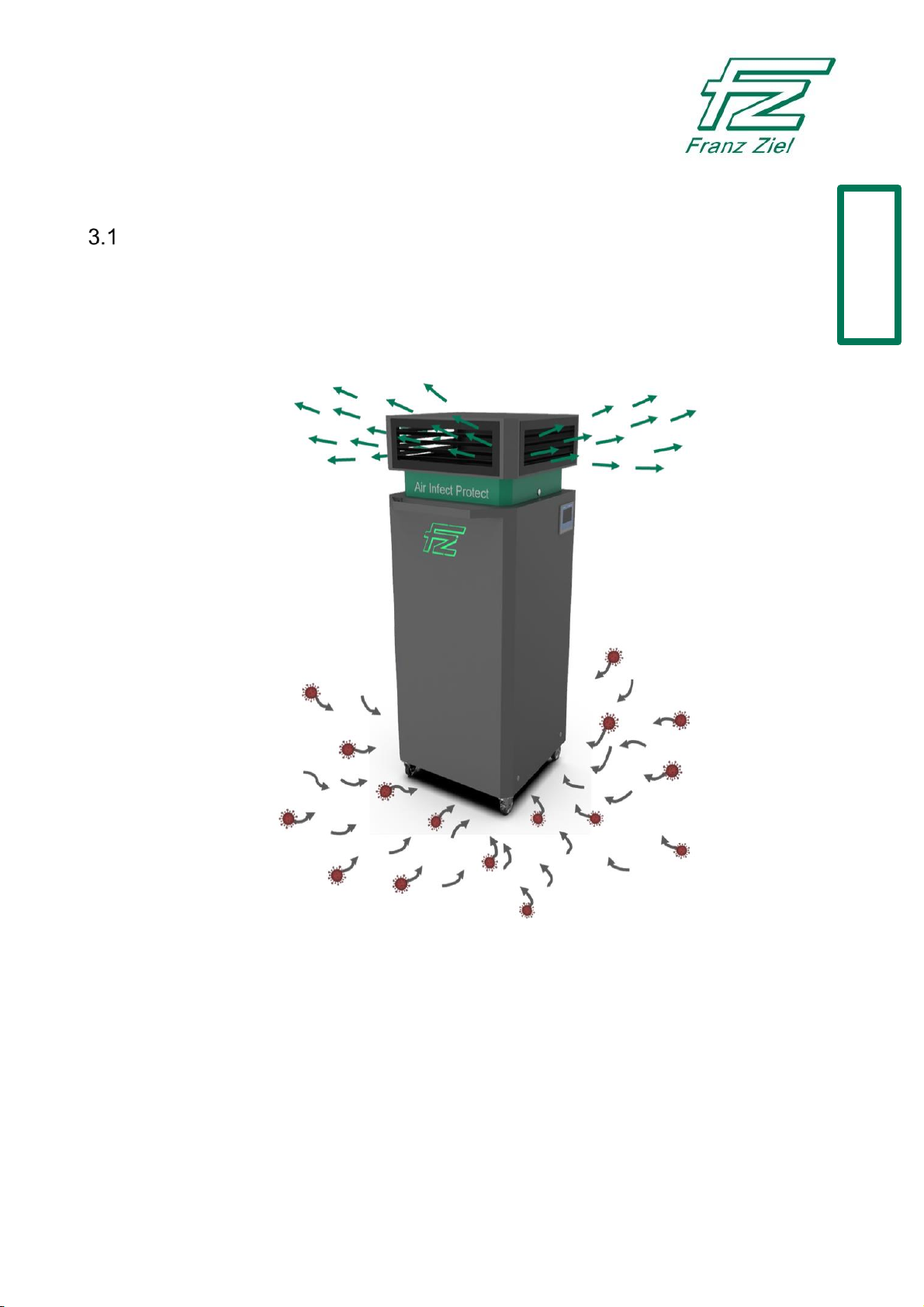

Description of functions and specifications ................................................................15
Power settings...........................................................................................................16
Component descriptions............................................................................................17
Technical details........................................................................................................19
4Prior to initial use .........................................................................20
Removing the packaging...........................................................................................20
Transporting the device.............................................................................................20
Setting up the device.................................................................................................21
5Operating the air purifier .............................................................22
Start screen...............................................................................................................23
Removing access protection on the operator panel...................................................24
Re-enabling access protection on the operator panel................................................25
Colour depiction of the operating states.....................................................................26
Manual mode.............................................................................................................27
5.5.1 Starting air purification manually............................................................................................28
5.5.2 Starting decontamination manually........................................................................................29

160cb721c4bc5c8feafcbba01acf5953cb43c3679fc70bc4ea4bc94796
f3deb6
Page 4of 51
Disclosure to third parties and duplication of this document, as well as use and communication of its content, are only permitted with our consent. All rights reserved.
English
Setting the weekly clock timer ...................................................................................30
Starting and ending Automatic mode.........................................................................32
Information ................................................................................................................33
Set time.....................................................................................................................34
Switching off the device.............................................................................................35
6Faults and malfunctions ..............................................................36
7Servicing and maintenance.........................................................38
Necessary preparations prior to all maintenance work...............................................38
Outer cleaning...........................................................................................................40
Air grills .....................................................................................................................41
Replacing the pre-filter ..............................................................................................42
Replacing a HEPA filter.............................................................................................43
Cleaning the inside of the device...............................................................................45
8Permanently taking the device out of service and disposal....46
Environmental protection...........................................................................................46
Plastic materials........................................................................................................46
Metals........................................................................................................................46
Electric and electronic scrap, batteries ......................................................................46
Permanently taking the system out of service............................................................46
9Appendix........................................................................................47
Wording of the EC declaration of conformity..............................................................47
Spare part list for wearing parts.................................................................................48
Technical drawing......................................................................................................49
List of keywords.........................................................................................................50
Notes.........................................................................................................................51

160cb721c4bc5c8feafcbba01acf5953cb43c3679fc70bc4ea4bc94796
f3deb6
Page 5of 51
Disclosure to third parties and duplication of this document, as well as use and communication of its content, are only permitted with our consent. All rights reserved.
English
1 About these operating instructions
Safe and effective operation of the air purifier is guaranteed when all instructions in this
guide are heeded. We recommend keeping the operating instructions near to the air purifier
so that this information is close to hand for every life cycle of the device. Air purifier and
“device” are used interchangeably in this guide.
Notes on copyright and patent rights
These Operating and Maintenance Instructions must be kept confidential. They may only be
made accessible to authorised personnel and may only be given to third parties with the
written consent of Franz Ziel GmbH.
All documents are protected by copyright law. The dissemination and duplication of
documents, in whole or in part, and any use or communication of their content, are not
permitted unless expressly authorised in writing.
Those infringing these stipulations are liable to prosecution. Claims to compensate
damages might entail. Franz Ziel GmbH reserves all rights to exercise industrial property
rights.
Sign and symbol information
It is essential that information and symbols attached directly to the device, such as warning
signs, operation signs, component markings, etc., are observed. They must be kept in a
fully legible condition and not removed.
The following terms, signs and symbols are used for particularly important information in
these Operating and Maintenance Instructions:
DANGER
This is a warning about an immediately imminent hazardous situation, the
inevitable consequence of which is highly severe injury or death if the instruction
given is not followed.
WARNING
This is a warning about a hazardous situation, the potential consequence of which
is highly severe injury or death if the instruction given is not followed.

160cb721c4bc5c8feafcbba01acf5953cb43c3679fc70bc4ea4bc94796
f3deb6
Page 6of 51
Disclosure to third parties and duplication of this document, as well as use and communication of its content, are only permitted with our consent. All rights reserved.
English

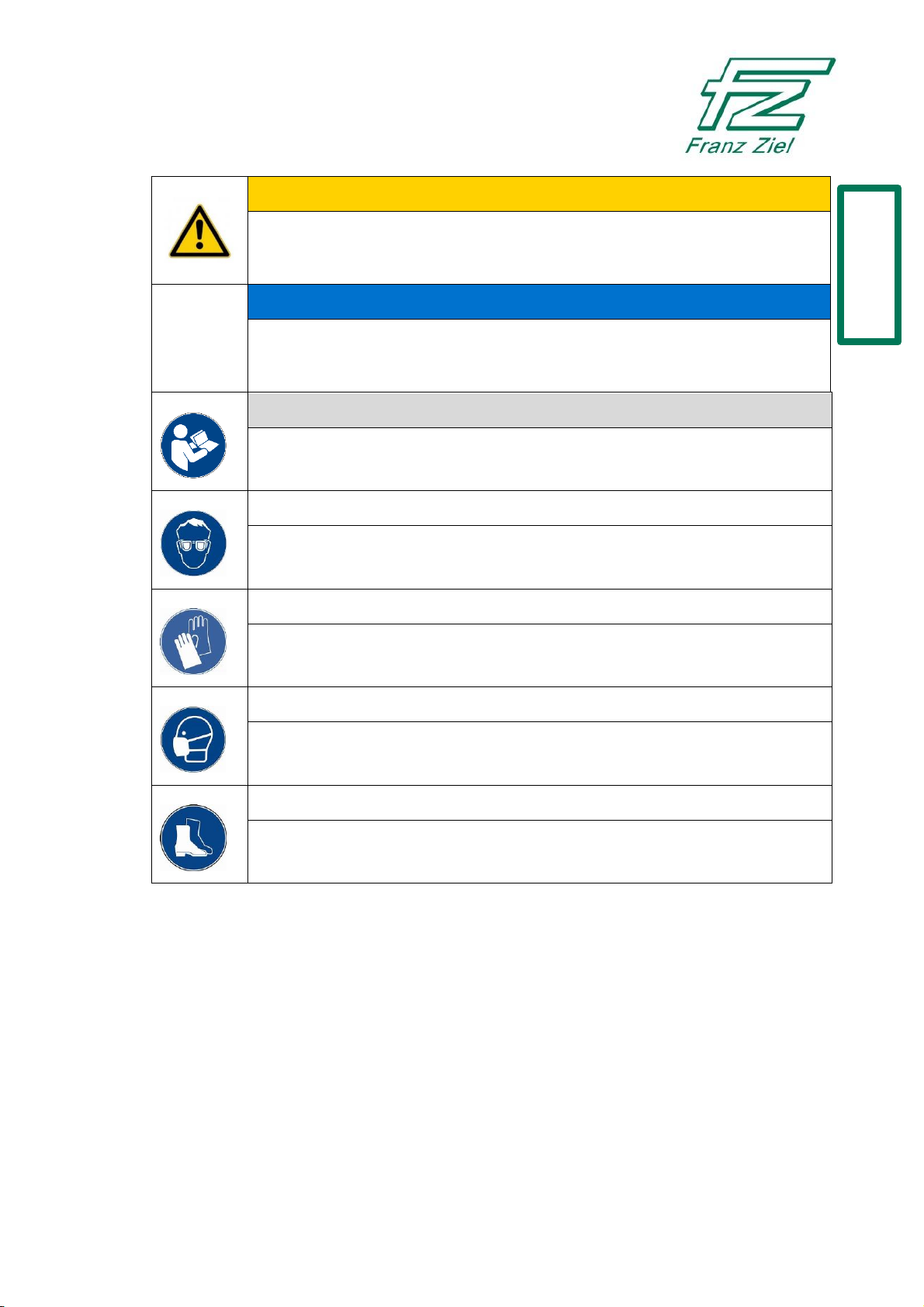

CAUTION
This is a warning about a hazardous situation, the potential consequences of
which are slight to semi-serious injury and material damage if the instruction given
is not followed.
NOTICE
This is a warning about a situation, the potential consequences of which are minor
damage to the machine or surrounding environment if the instruction given is not
followed.
INFO
This contains information on safe and proper actions.
WEAR PROTECTIVE GOGGLES
This pictogram is used in the operating instructions when an eye shield must be
worn for the work described.
WEAR PROTECTIVE GLOVES
This pictogram is used in the operating instructions when protective gloves must
be worn for the work described.
WEAR A PROTECTIVE MASK
This pictogram is used in the operating instructions when an FFP-2 protective
mask must be worn for the work described.
WEAR PROTECTIVE SHOES
This pictogram is used in the operating instructions when protective shoes must
be worn for the work described.

160cb721c4bc5c8feafcbba01acf5953cb43c3679fc70bc4ea4bc94796
f3deb6
Page 7of 51
Disclosure to third parties and duplication of this document, as well as use and communication of its content, are only permitted with our consent. All rights reserved.
English
Denoting text elements
Conditions that must be satisfied for the action described underneath are denoted
by a diamond in these instructions.
Bullet points are used to denote work and/or operating steps. Steps are numbered and
must be performed in the order specified.
1. First step
2. Second step
The results of an action are indented and denoted by an arrow
- Bullet points are used to denote lists
Part number code
Specification
Explanation
Air Infect Protect 1.5 T
Model name
Thermal decontamination
Max. air flow (1.5 = 1500 m³/h, 0.5 = 500
m³/h)
Product name

160cb721c4bc5c8feafcbba01acf5953cb43c3679fc70bc4ea4bc94796
f3deb6
Page 8of 51
Disclosure to third parties and duplication of this document, as well as use and communication of its content, are only permitted with our consent. All rights reserved.
English
2 Safety
The air purifier has been developed and built in line with best available technology and
recognised safety codes. Nevertheless, hazards for the user or third parties, or impairments
of the device and other material assets, may arise during its use.
To guarantee safe operation of the device in each life cycle, and to minimise the residual
risks potentially arising when the device is used, all specifications in these operating and
maintenance instructions must be read, understood and heeded. This applies in particular
for all instructions and specifications in Section 2, “Safety”, and for instructions and
warnings in the individual sections in this guide.
General safety information
- The device may only be operated by specialist personnel trained by the operating
company.
- Keep animals, children and unauthorised individuals away from the device.
- Do not tilt the device.
- Do not operate the device inside a room with a potentially explosive atmosphere,
and do not set up the device in such an atmosphere.
- Do not store explosive or combustible materials in the direct vicinity of the device.
- Do not set up the device in an environment where there is too much exposure to
dust. Otherwise premature clogging of the filters can result.
- Do not operator the device when your hands are wet or damp.
- Only perform work on the device when wearing corresponding personal protective
equipment.
- Do not spray the device with water.
- Do not cover the device while it is running and do not put any objects on it.
- Do not transport or move the device while it is running. The device must be secure
and stable when operating. The locks on the transport rollers must be applied.
- Do not poke any objects or limbs into the device (such as through the openings on
the air inlet/outlet).
- After wiping the surfaces using a moist, lint-free cloth, allow the device to dry before
using it again.
- Every time the device is used, check the accessory and connector parts for damage
beforehand (such as electrical cable and connector plug). Operating a faulty device
with defective components and connector parts is not permitted. If the device is
damaged, immediately contact customer service at the manufacturer.

160cb721c4bc5c8feafcbba01acf5953cb43c3679fc70bc4ea4bc94796
f3deb6
Page 9of 51
Disclosure to third parties and duplication of this document, as well as use and communication of its content, are only permitted with our consent. All rights reserved.
English
- Only use original parts for the device. For maintenance and repair work, contact
customer service at the manufacturer.
- Always isolate the device from the power for maintenance, repair and cleaning work:
Switch off from the main switch and unplug the connector from the mains socket.
Note that electrical components can still be live even when switched off.
- The device becomes hot during the decontamination phase. Do not touch the air
grill or air outlet.
- After decontamination, always allow the air purifier to cool before performing work
on and with it.
- Warnings and stickers on the device must be kept legible and free of dirt. They must
not be removed.
- Additional signs, stickers, paint and other materials may not be affixed or applied to
the device.
- It might be the case that the filter elements have separated off harmful substances
(such as paint, lacquer, mineral particles, and asbestos). The filter elements must
therefore be removed and disposed of properly. Wear personal protective
equipment (see Section 7.1, Page 38).
Safety instructions for setting up the device
- When setting up the device, ensure to maintain a minimum distance of 0.5 m to
other structural (objects) at the front and sides. Maintain a minimum gap of 0.1 m at
the back of the device.
- Only place the device on a cleaned, dust-free floor that is capable of supporting the
weight. Ensure the device can not tip over.
- In rooms fitted with smoke detector systems (e.g. with infrared sensors), it is
possible for an alarm to be triggered during a decontamination phase for the device.
Open windows as required to prevent too high a temperature difference.
- Ensure that the air flow can not be interrupted by other objects.
- Ensure that the device can not be subjected to thermal interaction from other
devices in the room.
- Ensure that the device is protected from direct sunlight.
- Only set up the device in rooms having permitted ambient temperatures as in
Section 3.4, “Technical details”.
- Position the device such that the connector cable is not damaged or tensioned.
- The connector cable must not be a stumbling hazard. There must be unhindered
access to the device and its surrounding area.

160cb721c4bc5c8feafcbba01acf5953cb43c3679fc70bc4ea4bc94796
f3deb6
Page 10 of 51
Disclosure to third parties and duplication of this document, as well as use and communication of its content, are only permitted with our consent. All rights reserved.
English
- Ensure that the device at the location intended can not be moved by those without
authorisation.
Intended use
The device is used solely for the purification of atmospheric air in enclosed spaces where
multiple people are situated, and where the room air can not be exchanged to an adequate
level.
The device is also used to purify air in enclosed work areas that are contaminated by
airborne micro-particles, paper and textile micro-fibres, spores, bacteria, viruses, aerosols
and/or fine dust.
The device may only be used in the commercial sector. When using the device, always
adhere to the technical details given in Section 3.4, Page 19.
For the intended use and proper operation of the device, all safety information, warnings
and residual risks in this operating guide must be read, understood and heeded.
The device may only be operated from a properly fused socket. Any extension to the mains
cable must satisfy the general regulations.
Use contrary to that intended
DANGER
Risk to life.
Not operating the air purifier as intended poses a fire hazard and a risk to life.
INFO
Franz Ziel GmbH assumes no responsibility for accidents or damage resulting
from misuse of the air purifier or modifications made to it by the customer.
- Never use the air purifier when the device or its individual components are defective
or fitted incorrectly.
- Do not use the device in rooms with increased moisture or aggressive atmosphere
(such as slaughterhouses and meat processing plants).
- Do not use the device outdoors.
- Do not use the device as a radiator or dryer.
- Do not use the device to draw in liquids or vapour.
- When using the device, adhere to the technical details given in Section 3.4, Page
19.

160cb721c4bc5c8feafcbba01acf5953cb43c3679fc70bc4ea4bc94796
f3deb6
Page 11 of 51
Disclosure to third parties and duplication of this document, as well as use and communication of its content, are only permitted with our consent. All rights reserved.
English
- Only use the device when the air inlet and outlet are not dirty, and when
unobstructed air flow is guaranteed.
- Do not make any design changes to the device.
- Only grant access to the device to authorised and trained personnel having the
relevant skill set.
- Children and those unable to assess the risks of electrically operated equipment
may not operate the air purifier. Position the device such that this is the case, or put
other measures into place such that these people are unable to reach the air
purifier.
Qualification of personnel
The company operating the device must ensure that those operating the device and
entrusted with servicing or maintenance work have the relevant professional skills and have
undergone training in all hazards that can occur when working with electrically operated
equipment. These people must have fully read and understood the operating instructions, in
particular the advisories on safety, intended use, warnings and residual risks.
Service and repair work is performed by the manufacturer’s customer service team. When
faults occur that can not be rectified by the actions given in Section 6, “Faults and
malfunctions”, always contact customer service at the manufacturer.

160cb721c4bc5c8feafcbba01acf5953cb43c3679fc70bc4ea4bc94796
f3deb6
Page 12 of 51
Disclosure to third parties and duplication of this document, as well as use and communication of its content, are only permitted with our consent. All rights reserved.
English
Residual risks
Although the machine guarantees a high level of operational reliability, risks can arise when
the device is being used:
DANGER
Danger to life from electric shock
Live components in the cabinet pose a risk to life from electric shock.
- Isolate the device from the power by switching off from the main switch
and unplugging the connector from the socket.
- Only authorised personnel may carry out work on electrical components.
- Never expose the device to direct jets of water or clean it with a high-
pressure cleaner.
DANGER
Danger to life from electric shock
There is a danger to life from electric shock if the housing of the air outlet element
(Page 43, Fig. 7-4, (3)) is not grounded.
The make contacts of the toggle fasteners of the air outlet element must be kept
electrically conductive.
- Ensure that no substances, paint, lacquer or other materials have an
adverse effect on the conductivity of the make contacts.
WARNING
Risks from incorrect operation
Placing flammable objects on or right next to the air purifier represents a fire
hazard.
- Never use the air purifier as a storage area.
Misusing the device for other purposes poses a crushing hazard.
- Do not sit on the device.
- Never use the device as a step.
- Do not move the device while it is operational.
WARNING
Harmful materials pose hazards.
Improper disposal of the filter elements represents a contamination risk.
- Dispose properly of dirty filters, especially when harmful substances from
the air are filtered.

160cb721c4bc5c8feafcbba01acf5953cb43c3679fc70bc4ea4bc94796
f3deb6
Page 13 of 51
Disclosure to third parties and duplication of this document, as well as use and communication of its content, are only permitted with our consent. All rights reserved.
English
CAUTION
An incorrect set-up can pose a crushing hazard and cause material damage.
The device can tip over if positioned on an incline.
- The device may only be operated when horizontal.
Markings and signs on the air purifier
Nameplate (affixed to the housing)
Warning about electrical voltage (affixed on the housing)
Note: Before using the air purifier, read the operating and
maintenance instructions.

160cb721c4bc5c8feafcbba01acf5953cb43c3679fc70bc4ea4bc94796
f3deb6
Page 14 of 51
Disclosure to third parties and duplication of this document, as well as use and communication of its content, are only permitted with our consent. All rights reserved.
English
Description of protective equipment
DANGER
Defective protectors pose a risk to life.
- Never operate the air purifier when protectors are damaged, installed
incorrectly or not in position.
2.8.1 Air grills on the air outlet
The device has air grills on the air outlet. They prevent burns should somebody reach into
the device during the decontamination phase.
2.8.2 Safety temperature limiter
The air purifier is fitted with a safety temperature limiter. It switches the device off as soon
as too high a temperature is measured inside.
2.8.3 Differential pressure monitor
The air purifier is also fitted with differential pressure monitors. As soon as the pre-filter or
HEPA filter becomes clogged, a corresponding alarm is shown on the display and the logo
lights orange. In such a case, operation continues to be possible but the filter in question
needs to be replaced immediately (refer to Section 7.5, Page 43).
Actions to take in an emergency
DANGER
Danger to life from electric shock
- Never switch off from the main switch when your hands are wet.
- Never unplug the connector from the socket when your hands are wet.
- Switch the device off (refer to Section 5.10, Page 35).
- Isolate the device from the power by unplugging the mains connector from the
socket.
- Never reconnect faulty devices to the mains supply.

160cb721c4bc5c8feafcbba01acf5953cb43c3679fc70bc4ea4bc94796
f3deb6
Page 15 of 51
Disclosure to third parties and duplication of this document, as well as use and communication of its content, are only permitted with our consent. All rights reserved.
English
3 About the air purifier
Description of functions and specifications
Franz Ziel GmbH is a company based in Billerbeck (Westphalia) and that has more than 40
years’ experience in ensuring virus and germ sterility in pharmaceutical systems. We
developed the air purifier on this basis, whilst placing special focus on flexible and mobile
deployment.
Fig. 3-1: Air routing for air purifier
Air contaminated with aerosols, viruses and micro-particles is drawn in from below (grey
arrows) and first cleaned by a pre-filter (ISO ePM1 55%). The pre-filter ensures that coarse
dirt particles do not pollute the HEPA filter (H14), thereby enabling prolonged life of the
HEPA filter - that separates off significant amounts of germs, micro-particles, viruses,
aerosols and fine dust from the ambient air. Operating the device with filters that have
reached or exceeded their load limits is only possible for a transition period (see Section 6,
Page 36).
The filtered air (green arrows) is fed back to the surrounding area through the air grills.

160cb721c4bc5c8feafcbba01acf5953cb43c3679fc70bc4ea4bc94796
f3deb6
Page 16 of 51
Disclosure to third parties and duplication of this document, as well as use and communication of its content, are only permitted with our consent. All rights reserved.
English
The bacteria, germs and viruses filtered by the HEPA filter are reliably deactivated by
regular and long-lasting heat treatment. For this decontamination, two infrared emitters
generate the temperature necessary. The fan “presses” the hot air through the HEPA filter
using a specially tuned pulse method.
Differential pressure sensors check the pollution levels of the filters and indicate when they
need to be change. This way, consistent qualities of filtering and deactivation of germs,
bacteria and viruses are guaranteed.
The power setting for the device can be adjusted according to room size.
Power settings
The device can be adjusted to the room size using 6 power settings. The values for the
specific air flow (m³/h) per power setting are listed in the following table. The “For room
volume” columns show which setting is required for which room volume to attain the
relevant air exchange rate per hour.
Power setting
Air flow
(m³/h)
For room volume
at 6x air exchange
rate*
Approx. room
size (example)
For room volume
at 5x air exchange
rate
Approx. room
size (example)
1
250 m³/h
42 m³
3.5 x 4 x 3 m
50 m³
3.5 x 5 x 3 m
2
500 m³/h
83 m³
5.0 x 5.5 x 3 m
100 m³
6.5 x 5 x 3 m
3
750 m³/h
125 m³
7 x 6 x 3 m
150 m³
6.5 x 8 x 3 m
4
1,000 m³/h
167 m³
8 x 7 x 3 m
200 m³
7 x 9 x 3 m
5
1,250 m³/h
210 m³
10 x 7 x 3 m
250 m³
8.3 x 10 x 3 m
6
1,500 m³/h
250 m³
12 x 7 x 3 m
300 m³
8.5 x 12 x 3 m
* 6x air exchange rate as per recommendation from the Bundeswehr University in Munich, Institute of Fluid
Mechanics and Aerodynamics

160cb721c4bc5c8feafcbba01acf5953cb43c3679fc70bc4ea4bc94796
f3deb6
Page 17 of 51
Disclosure to third parties and duplication of this document, as well as use and communication of its content, are only permitted with our consent. All rights reserved.
English
Component descriptions
Pos.
Name
1
Air inlet (base) with pre-filter
tray and pre-filter
2
Touch panel (user interface)
3
Air outlet with HEPA filter
4
Transport rollers (4x) with
locks (2x)
5
Handle for moving
6
FZ logo, indicator of operating
states
7
Bracket for cable (at back)
8
Main switch (at back)
9
IEC socket (at back)
10
IEC supply with angle junction
box (1.8 m)
Fig. 3-2: Air purifier components
⑤
④
③
①
②
①
③
⑧
⑨
⑥
⑦
⑩

160cb721c4bc5c8feafcbba01acf5953cb43c3679fc70bc4ea4bc94796
f3deb6
Page 18 of 51
Disclosure to third parties and duplication of this document, as well as use and communication of its content, are only permitted with our consent. All rights reserved.
English
Pos.
Name
1
Pre-filter (ISO ePM1 55%) in
tray
2
Fan
3
Infrared heating element
4
HEPA filter (H14)
5
Tensioning element
for HEPA filter (4x)
Fig. 3-3: Inside the air purifier
④
③
①
②
①
⑤

160cb721c4bc5c8feafcbba01acf5953cb43c3679fc70bc4ea4bc94796
f3deb6
Page 19 of 51
Disclosure to third parties and duplication of this document, as well as use and communication of its content, are only permitted with our consent. All rights reserved.
English
Technical details
Outer dimensions (W x H x D):
657.5 x 1590 x 702.5 mm (including handle)
Material:
Steel ST1203 powder-coated or stainless steel 1.4301
Connected voltage:
230
V AC
Frequency:
50
Hz
Max. nominal power:
2.81
kW
Max. nominal current:
13
A
Max. short circuit current:
6
kA
Max. pre-fusing:
16
A
Protection class:
11
IP
Weight:
160
kg
Max. air flow
1,500
m³/h
Sound:
Level 1 (250 m³/h):
30.6
dB(A)
Level 6 (1,500 m³/h):
52.7
dB(A)
Heating power for decontamination
2
kW
Ambient temperature at place of
installation
15 - 24
°C
Minimum distance to other objects
(at front and sides)
0.5
m
Minimum distance to other objects
(at back)
0.10
m

160cb721c4bc5c8feafcbba01acf5953cb43c3679fc70bc4ea4bc94796
f3deb6
Page 20 of 51
Disclosure to third parties and duplication of this document, as well as use and communication of its content, are only permitted with our consent. All rights reserved.
English
4 Prior to initial use
Removing the packaging
To prevent damage during transit, the air purifier is delivered in packaging. This packaging
is raw material and so can be reused. Return the packaging to the raw material cycle.
Transporting the device
CAUTION
Material damage.
The controller for the device can be damaged beyond repair when voltage is being
applied to it and it is dropped.
- If the requirement is to lift the device for transportation, the device must be
set down beforehand and the mains connector unplugged.
The pre-filter can suffer damage during transportation.
- Before transportation, clear out the way all obstructions that could damage
the pre-filter.
The air purifier has 4 transport rollers for easy movability. Two of them have locking
devices.
Pos.
Name
1
Steerable transport rollers
2
Steerable and lockable transport
rollers
3
Lock
Fig. 4-1: Transport rollers on the air purifier
1. Release the brakes of the lockable transport rollers and carefully push the air
purifier out of its packaging (over a ramp affixed).
2. Only use the handle at the front for pushing.
3. All movements must be slow and controlled.
①
②
③
