EuropAce EDH 358B User manual

DEHUMIDIFIER
EDH 358B
35L | ROTARY COMPRESSOR

Thank you for purchasing EuropAce Dehumidifier.
For safety purpose, please read this operating instruction manual carefully before using
and keep it for future reference.
OPERATION MANUAL

Precautions .………… .…………………….……………….......3
Precautions During Use .………….……………………….…..7
Spare parts of product………………………………….………9
Operating Panel.………..…………………………………….…11
Display Screen ……………………………….………………….12
Operating Methods..…………………..……………………….13
Air Purification and Use of Strainer.….………….………..17
Description of Air Purification Function.………………….19
Drainage………………………………….……………………....20
Maintenance……………………………………………………..22
Trouble shooting……………………………….……………….24
Technical data ………………………………………………….25
Responsible Disposal of Product…………………………...26
CONTENT
This product is distributed by Strategic Marketing (S) Pte Ltd
If there is any technical amendment for the product, it will be edited on the updated version
of the instruction manual without prior notice. The pictures shown in the instruction manual
is only for illustration purpose only. If the appearance or colour of the product is modified,
please refer to the actual appliance as a standard.

PRECAUTIONS
Meanings of legends are as follows
PROHIBITION
Please prohibit such operations for the sake of you and your families’ safety and health.
COMPULSORY DUTY
Please see to it for the sake of you and your families’ health.
3
•

Compulsory Duty
The power supply applicable to this dehumidifier is
single-phase 220-240V, if voltage is 10% higher or
lower than normal voltage, this dehumidifier will not
able to operate normally and even the fuse is burnt
out, the dehumidifier is easy to be damaged, so it is
recommended to provide voltage regulator.
The operating temperature of this dehumidifier is
5-32 . When temperature is out of this range, the
dehumidifier cannot operate normally.
Please do not put this dehumidifier in the vicinity of
heating devices (for example: flame or heater, etc.).
Maintenance of this dehumidifier can only be
performed by professional electricians.
This dehumidifier when used is prohibited to
be inserted on the same power supply panel
simultaneously with other household appliances,
especially connection inside the socket of power
supply panel with very fine wires will incur a fire in
some case!
Please do not use the dehumidifier in the case that
power line or other connections are damaged.
Please put this dehumidifier in smooth and solid
places to reduce vibration and noise.
4
h
h
c

Compulsory Duty
Please do not place this dehumidifier in water or other
liquids.
Please pull out power plug when the dehumidifier is
out of service for a long period.
Please do not scratch outer sur face of this
dehumidifier with sharp stuffs.
Please do not wipe this dehum idifier with sharp
stuffs. with chemical solvents such as benzene,
approximate 40 gasoline and alcohol, etc. If the
dehumidifier body is indeed dirty, please wipe it with
neutral cleaning agents.
Please do not use insecticide sprays or other
flammable substances in the vicinity of this
dehumidifier.
Please do not incline in case that w ater in tank
overflows.
Please do not put articles on this dehumidifier.
5
This appliance is intended to be used in household
and similar applications.
c

For abnormalities (such as emission of burnt flavor
or smoke, etc.), if any, please shut down this
dehumidifier and pull out power plug, and contact
professionals for maintenance.
Direct flushing the dehumidifier with tap water pipes
is forbidden. It is prohibited to put automatic drainage pipe outdoors directly in cold winter.
Please do not hang obstacles such as curtains or
wet clothes, etc. at air outlet. This will decrease
dehumidifying capability and increase noise.
Please do not tie up, pull, heat and process power
line, and do not hang articles on power line and make
power line be stuck between articles.
If the dehumidifier is not used for long time, operation
of air drying function inside the dehumidifier can
guarantee dryness of heat exchange fins of the
dehumidifier without mildew in favor of maintenance
For long-time operation, if the dehumidifier is used
with fuel gas appliances in the same room, please
ventilate air frequently.
6
Compulsory Duty
If the supply cord is damaged, it must be replace
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
This appliance is not intended for use by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety.
Children should be supervised to
ensure that they do not play with
the appliance.
•
•
•
•
•
If the supply cord is damaged, it must be replace
•
If the supply cord is damaged, it must be replace
, its service agent or similarly
•
, its service agent or similarly
qualified persons in order to avoid a hazard.
•
qualified persons in order to avoid a hazard.

Precautions During Use
On condition that automatic drainage function is
used, please guarantee that the level of drainage
pipe is not over the height of outlet, otherwise
your floor is easy to get wet.
For use of this dehumidifier, please make sure
that the space around the dehumidifier is over
30cm.
This dehumidifier is forbidden to blow potted
landscapes and raised pets, etc. for long time.
Under the condition of use, please prevent direct
sunlight on the dehumidifier since this will affect
volume of dehumidification.
7

The relationship between volume of
dehumidification and temperature is
shown in figure on the right.
The optimal temperature range for use is 16-32 C, and relative
humidity is 30-85%. Dehumidification at ambient temperature
over 32 C is easy to cause protection due to higher temperature;
If ambient temperature is lower than 5 C, both temperature and
humidity are lower. When weather is dry the dehumidifier is forced
and cannot dehumidify, and low-temperature icon (snowman)
flickers;
When ambient temperature is 5-15 C, although temperature is
low, too, dehumidification can be performed, but low-temperature
icon displays constantly, so no dehumidification is suggested.
The ambient temperature for use of this
dehumidifier is 5℃ ℃ ~32 .
This dehumidifier has air purification
function, which enables you to obtain
to breathe in fresher and healthier air.
Maintaining and mildew proof function,
the dehumidifier under the condition of
no use for long time can start internal
drying function to blow heat exchanger
dry in favor of maintenance and mildew
resistance
8
This model includes IONIZER function.
and 80% relative humidity.
The rated volume of dehumidification is measured at 30
c
freshness beyond eight hours and able

SPARE PARTS OF PRODUCT
9
Front side
Back Side
Pre-Filter
Water Tank
Cover
Buoy
Water Level
Window
Water Tank
Control Panel
Inlet Grid
Handle
Air Guide Blade
Outlet
Air Purification Assembly
(HEPA Filter)
Decorating Plate
of Front Panel
•

A Few Tips Operating Panel
1. Before running please pour off water in tank;
2. During running please do not open windows and doors as much as possible so as to save
energy;

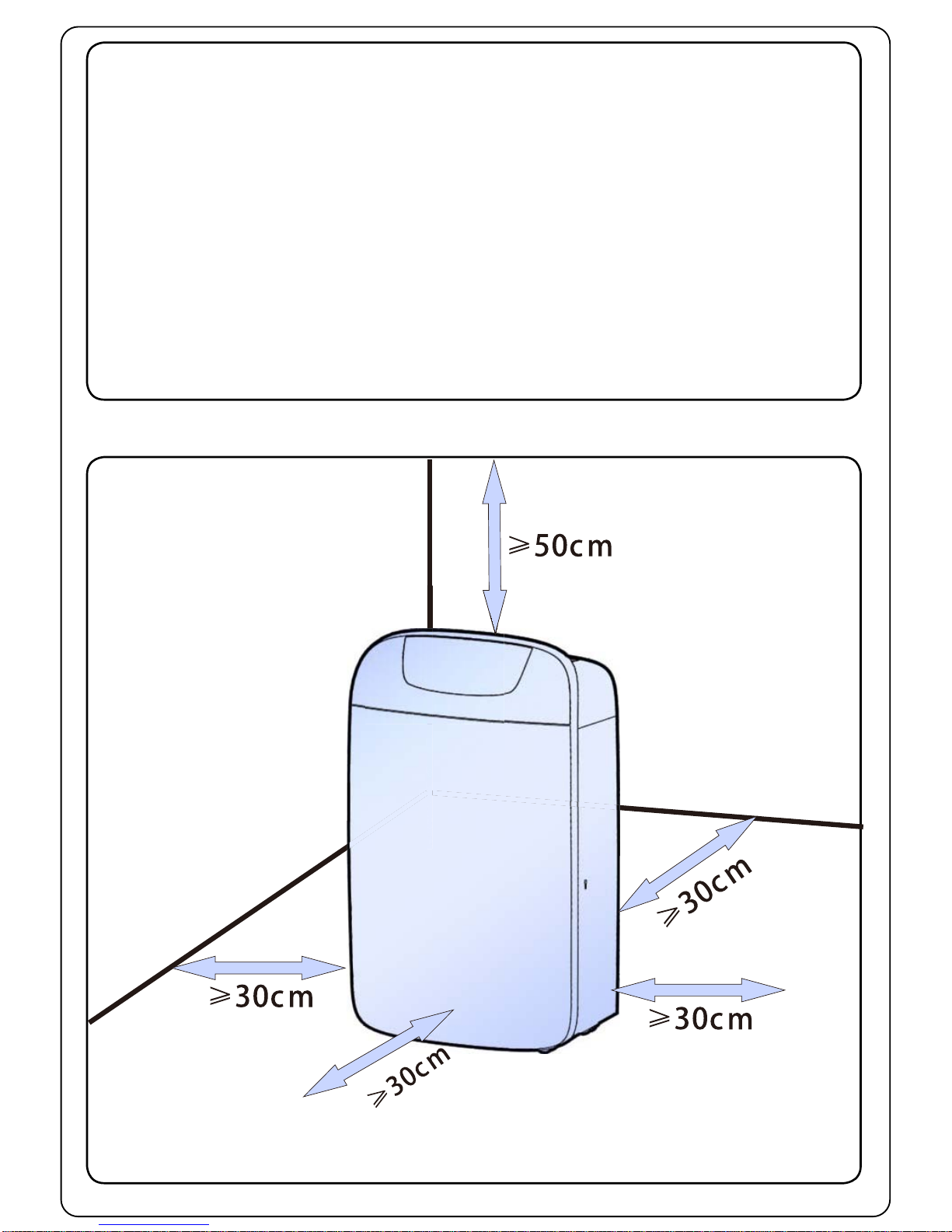

3. When installing the dehumidifier, see to leave a certain space around the dehumidifier,
specifically over 50cm on the top and over 30cm in front, back, left and right directions, as
shown in figure below.
4. During use of this dehumidifier if big noise is found, it is suggested to insert cushions or
damping rubber plates under the dehumidifier so as to reduce vibrationand noise as well as
indentation of wood floor or carpet.
10
•
•
•
•
•
•

OPERATING PANEL
POWER: start or shut down the dehumidifier;
MODE:select auto demumidification，Continuous dehumidification ，Drying clothes，
purification and ventilation, etc. Pressing this button for more than 2s can enable child lock;
DRYING: press it for more than 2s to start internal drying function;
IONIZER: start anion function;
SWING: start air swing function to realize wide-angle air sweeping;
TIMER: realize start/shutdown of the dehumidifier at fixed time;
HUMIDITY:
DISPLAY SCREEN: liquid crystal patterns displayed area;
WARM REMINDER: this dehumidifier is operated by sensor touch buttons,which only require
light touch.
SLEEP: start ultra silent air speed;
11
MODE
TIMER
IONIZER
SWING
HUMIDITY
DRYING
POWER
SLEEP
Humidity Setup Button
Air Swing Button
Anion Button Internal Drying Button
Sleep Button
Timing Button Mode Button
Display Screen Switch Button
3
Humidity can be set in Auto mode，wind speed can be adjusted in
air purification mode and wind mode;press "humidity" button and "
Timer"button together to achieve and conversion。
cF
start or shut down the dehumidifier;
MODE:select auto demumidification
，
Continuous dehumidification
essing this button for mor
•
•

Display Screen
DISPLAY SCREEN
DRYING PATTERN: flickers in internal drying mode;
CHILD LOCK PATTERN: press MODE for over 2s to start child lock function;
FULL WATER ALARM PATTERN: full water alarm status flickers with alarm sound;
ANION PATTERN: starting state tree leaf displays, and upper icon flickers;
SLEEP PATTERN: starting sleep state pattern displays, and upper icon flickers;
FILTER USE TIMING PATTERN: Strainer pattern: Temperature and timer pattern:
AIR SPEED ANDSWING PATTERN: fast and slow rotation of air blades represents changes
of air speed, and swing of vertical bars to left/right means air swing;
,noitacifidimuhlufrewop,noitacifidimuhed edotua:thgirottfelmorf:SNRETTAPEDOM
mild dehumidification, air purification and ventilation;
LOW-TEMPERATURE PATTERN: display when ambient temperature is lo wer than 15 C,
;
12
Mode Patterns Drying Patterns
Temperature and Timer display
Patterns
Pattern Filter
Strainer use timingPattern
Anion Pattern Sleep Pattern
Air Speed and Swing Pattern
Child Lock Patterns
Humidity Display
Full Water Alaem
Patterns
Low-temperature
Patterns
and flicker when ambient temperature is lower than 2 C

Operating Methods
OPERATING METHODS

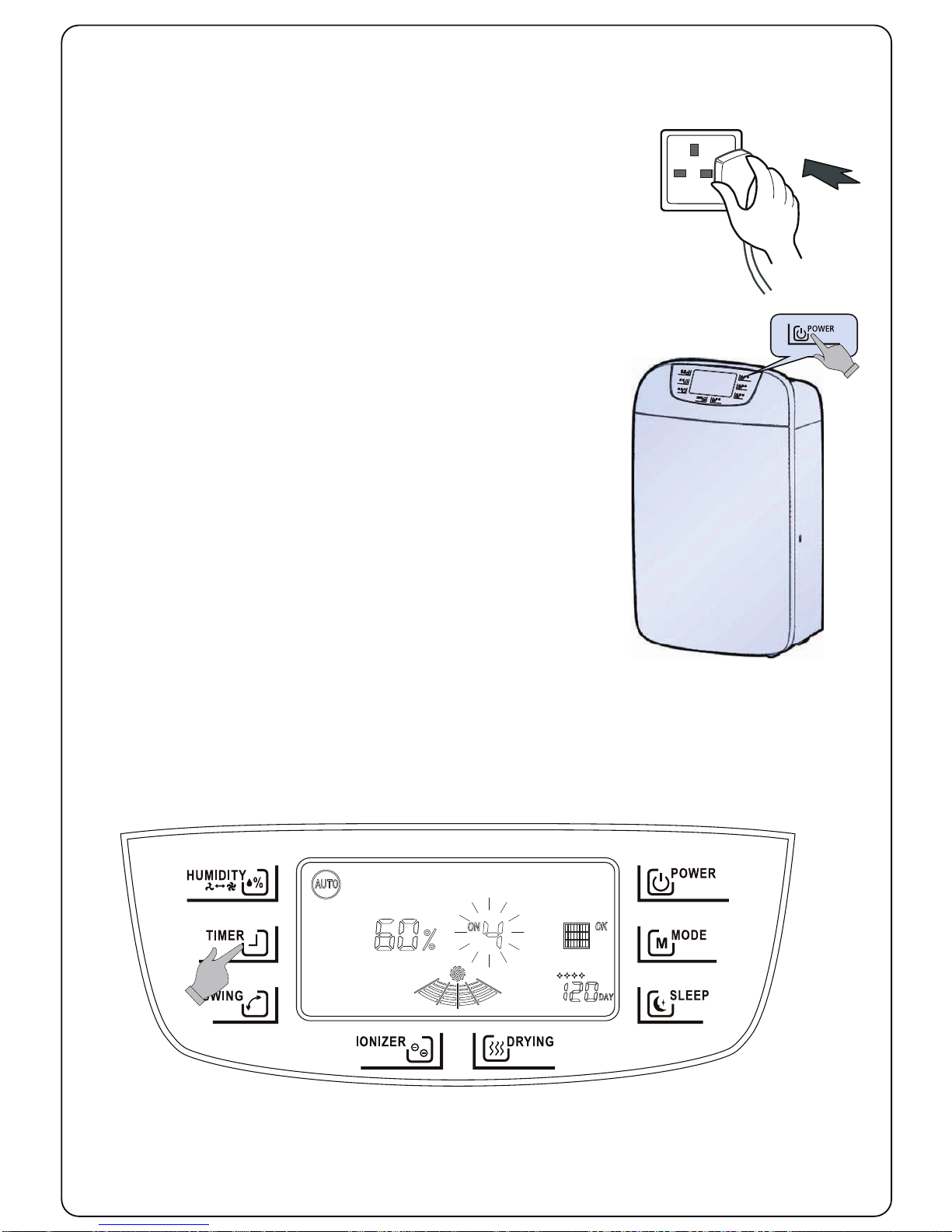

Insert Power Plug
Please assure consistency of power su pply for the
dehumidifier with power grid. The operating voltage for
this dehumidifier is 220-240V~50Hz.
Press POWER,t he Dehumidifier
Starts Operation.
function. On the condition of direct interruptio n of
power without shutdown, the dehumidifier automatically
operates in the state before interruption after re-
energization.
Setup of Startup at Fixed Time

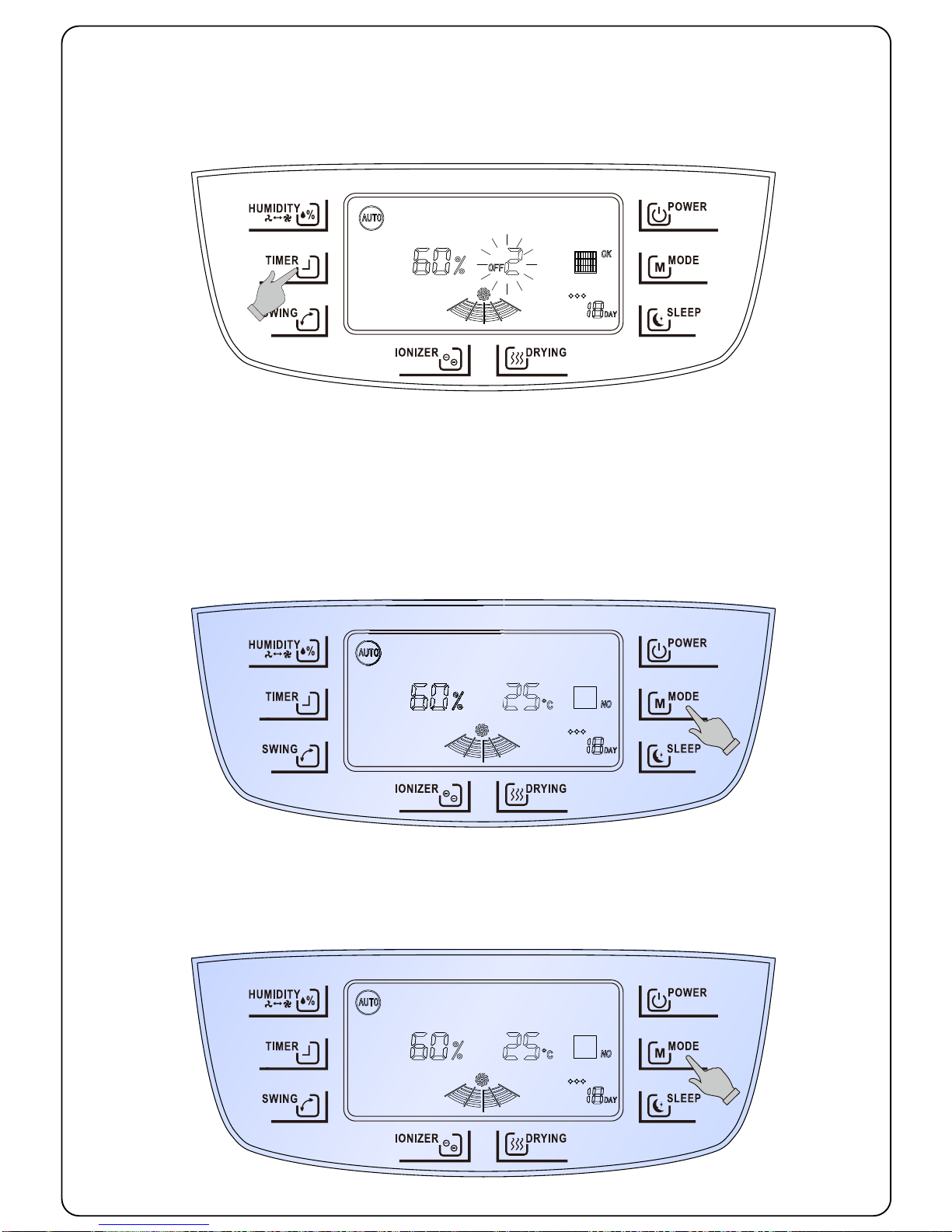

In standby state touch TIMER slightly, 88 on LCD will flicker, and slightly touch TIMER to adjust
time, every one touch increases one hour (press and hold TIMER to increase time continuously).
After over 24 hours numeral returns to 1 for circulation, after the set time expires, the d e humidifier
automatically starts.
During timing if time is to be changed, touch TIMER again to
cancel timing and set up once more.
13
This dehumidifier is complete with power-down memory

Timing Shutdown
During operation of the dehumidifier, slightly touch TIMER, 88 on LCD will flicker for 5 times for
confirmation, at the moment touch TIMER to adjust the set time as required, and the method is the
same as that for startup.

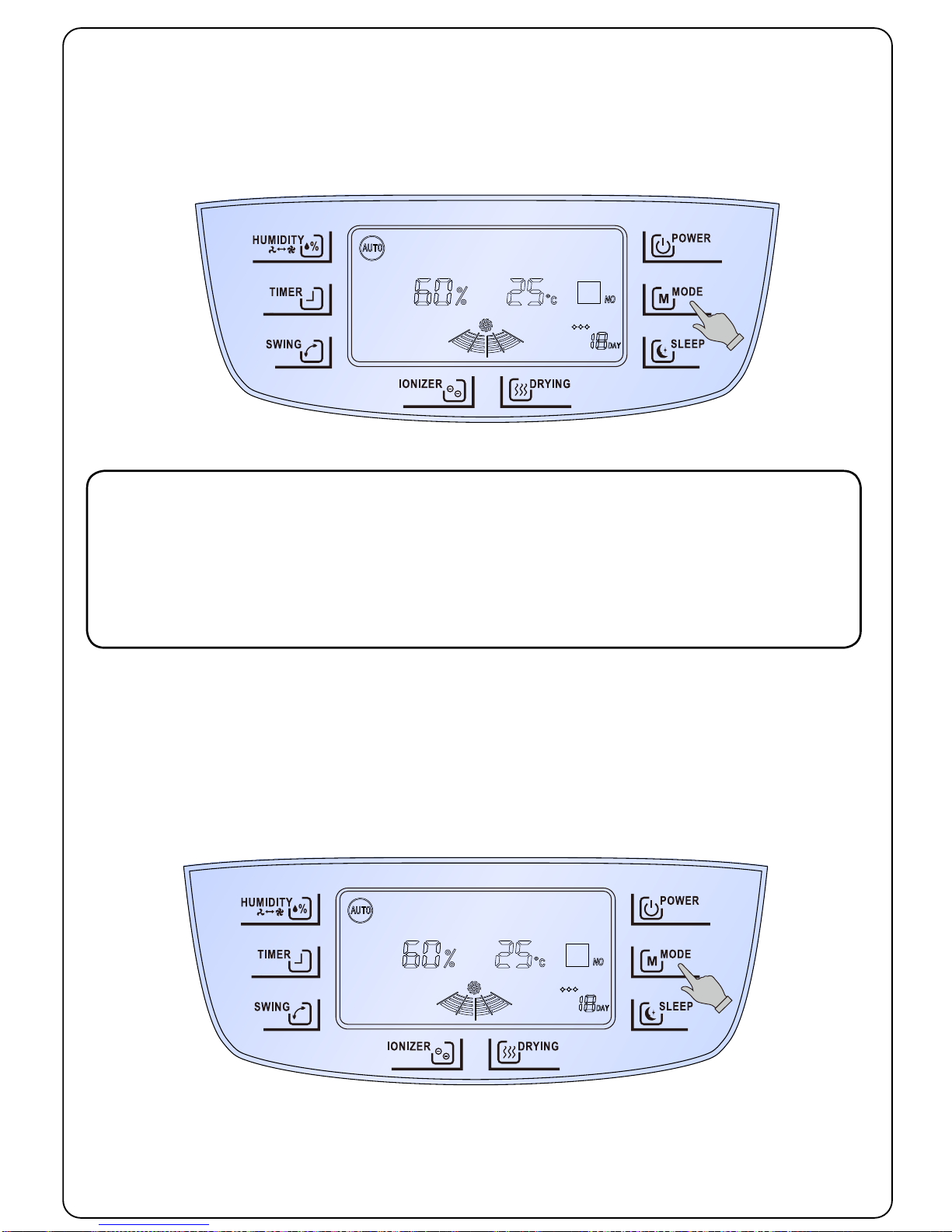

Auto Dehumidification
Initial startup of the dehumidifier defaults auto dehumidification mode or select this mode via MODE.
This mode can judge operating states in accordance with relative humidity in the room. In addition
thehumidity can also be set up fordehumidification with the setup range: 4 0 %-4 5 %-5 0 %-5 5 %- 6
0 %-6 5 %-7 0 %, which can be circularly selected. When the setup humidity is lower than ambient
humidity, the compressor starts for dehumidification.
Powerful dehumidification
Select this item, the compressor starts regardless of relative humidity indoor, and the fan forces to
operate by high-speed air for dehumidification.
14
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

Mild dehumidification
Select this item, the compressor starts regardless of relative humidity indoor, and the fan forces to
operate by low-speed air for dehumidification.
Ventilation function
To operate this mode, first remove the HEPA filter, if not, the filter pattern
flickers to remind the user of removing the HEPA filter .
In order to guarantee
service life of the HEPA filter , removal is recommended.
Tips
In the above three dehumidification modes, if the air purification pattern (two small trees)
flickers, it is not fault, but the filter (H E P A ) is not removed, and air
performed with purifying function is dehumidification. If the HEPA filter
no filter.
is removed, the strainer pattern displays
15

Internal drying mode
Touch DRYING for over 2s to start internal drying process, which requires approximate one hour:
Supply air (high-speed) operation lasts about 30min; the dehumidifier continues high-speed air
operation and air guide blades sweep air at wide angle for about 10min; and then the dehumidifier
continues high-speed air operation and air guide blades return to fixed position and continue
operation for approximate 15min.
How to Stop
Press DRYING again for over 2s to cancel internal drying function and return to running status before
startup of drying; press POWER to stop internal drying and recover standby;
Tips
When it is humid and clothes are not easy to dry, operate in powerful
and press SWING, enabling auto swing of
effectively feed dry air to each corner for faster and more effective drying of clothes
16
Clothes Drying Effect
Press 2s
e
effective
Press "HUMIDITY" and "TIMER" together to achieve transformation of fahrenheit and Centigrade.
dehumidification mode
louver enlarge air supply range and
to

FILTER
filter
filter
filter
filter
1
filter
filter filter
21Pre-Filter
2HEPA Filter

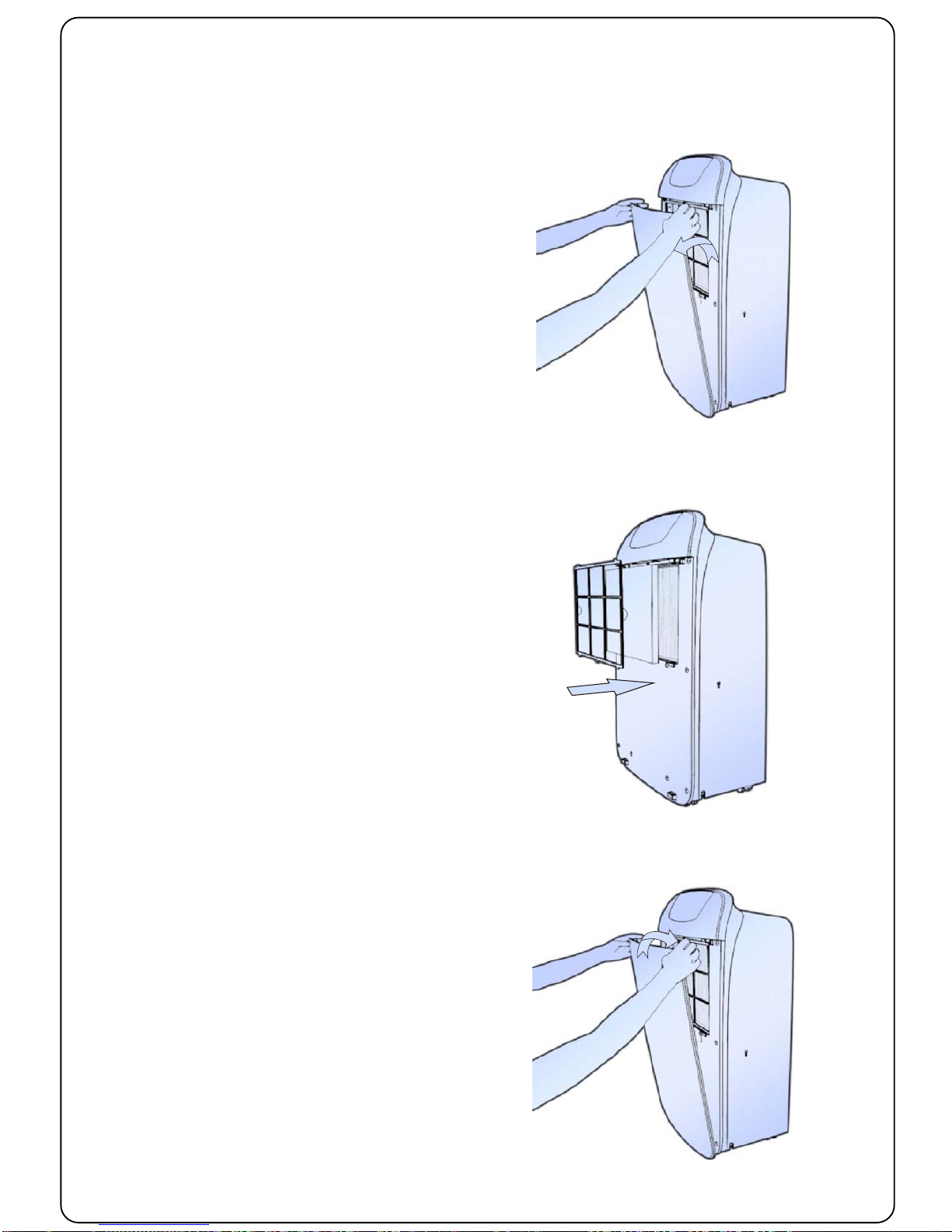

Step 1
Open decorating plate of front panel
Step 2
Embed filter for air purification
(HEPA filter) into plastic framework.
Step 3
Recover decorating plate of front panel after the above
two steps.
Air purification filters (HEPA filter
)．
18

filter
filter
1
filter
21Pre-Filter
2HEPA Filter
High-efficiency HEPA Filter
(Optional)
Pre-Filter
DESCRIPTION OF AIR PURIFICATION FUNCTION
The activated carbon strainer has perfect adsorptivity and air purification function and can
effectively remove volatile organic compounds and pollutants such as particulates, smoke, odour,
ammonia, dimethylbenzene and methanal, etc.with perfect purification effect.
High-efficiency composite HEPA filter
It can effectively remove trivial dust and smoke. In combination with mu lti-function filter, the
HEPA filter can filter dust in size of more than 20nm, allergens and particulates, including bacteria
and part of viruses.
The high-efficie composite HEPA filter cannot beused
simultaneously, but only one of them is permitted at one time. Furthermore, the filter cannot be
effective for long time, you can replace the above two filters as appropriate according to local
environmental quality. For good environmental quality, a life cycle of the
1.5 years is recommended. For general environmental quality, HEPA filter for approximate
it is recommended that the life cycle of and the HEPA filter is about
1 year. For bad environmental quality, it is recommended that the life cycle of the
the HEPA filter is about 9 months.
19
s
pe
r
fe
c
t
ad
s
o
r
p
t
co
m
p
o
u
n
ds
a
n
d
pollu
ammonia, dimethylbenzene and methanal, etc.with perfect purification e
Please come to our service centre if you need to purchase the replacement filter.
Notice

DRAINAGE
When water tank is full of water, the icon for full water on LCD flickers, and BUZZE sounds for 10
times to remind the user till water is poured off.

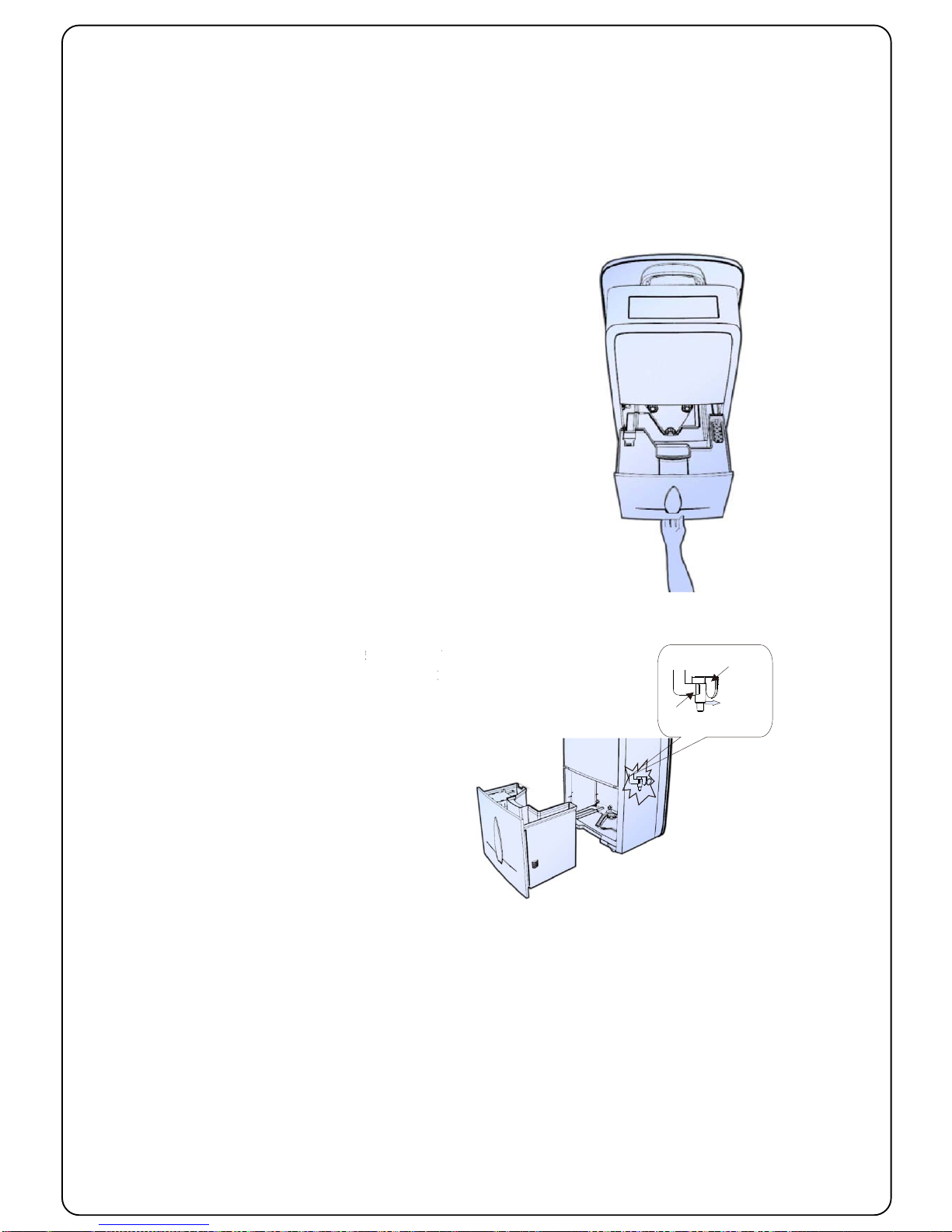

Put hand at depressed place on the bottom
of water tank and take it out slightly, remove
water tank cover and pour off water in tank.
Put the cover on water tank, and then recover
water tank at correct position slightly and start
the dehumidifier again.
Notice
when water tank is full of water, please evacuate water. Before putting water tank into dehumidifier
body please confirm whether water tank and its cover are closely installed , floating ball rotates
flexibly or not, and then push water tank in position with both hands.
Use of water tank
20
Outlet platen
Outlet Unplug
•
Put the cover on water tank, and then recover
•
Put the cover on water tank, and then recover
water tank at correct position slightly and start
•
water tank at correct position slightly and start
