European Touch sogno dreamwave User manual

70080000 Manual Sogno DreamWave Spa Rev A Revision Date: 25 March 2010 Page 2 of 42
TABLE OF CONTENTS
EUROPEAN TOUCH –WARRANTY INFORMATION ........................................................................................ 4
IMPORTANT INFORMATION........................................................................................................................ 5
SPECIFICATIONS...................................................................................................................................... 6
PEDICURE SPA SPECIFICATIONS ...........................................................................................................6
MASSAGE CHAIR SPECIFICATIONS.........................................................................................................7
INTRODUCTION ........................................................................................................................................ 8
IMPORTANT SAFETY INSTRUCTIONS .......................................................................................................... 8
DANGER..............................................................................................................................................9
WARNINGS ..........................................................................................................................................9
IMPORTANT REQUIREMENTS ...............................................................................................................10
HEALTH RISK WARNING .....................................................................................................................10
SAFETY PRECAUTIONS .......................................................................................................................10
DISPLAY WARNINGS...........................................................................................................................10
TYPES OF SYMBOLS AND DESCRIPTION ..............................................................................................10
SAFETY PRECAUTIONS:INSTALLATION .................................................................................................10
SAFETY PRECAUTIONS:BEFORE USE ..................................................................................................11
SAFETY PRECAUTIONS:DURING USE ..................................................................................................13
SAFETY PRECAUTIONS:AFTER USE OR WHEN NOT IN USE ..................................................................14
OTHERS PRECAUTIONS ......................................................................................................................15
BASIN COMPONENTS..........................................................................................................................16
PEDICURE PRODUCT GUIDELINES........................................................................................................... 16
MAIN FEATURES ................................................................................................................................... 17

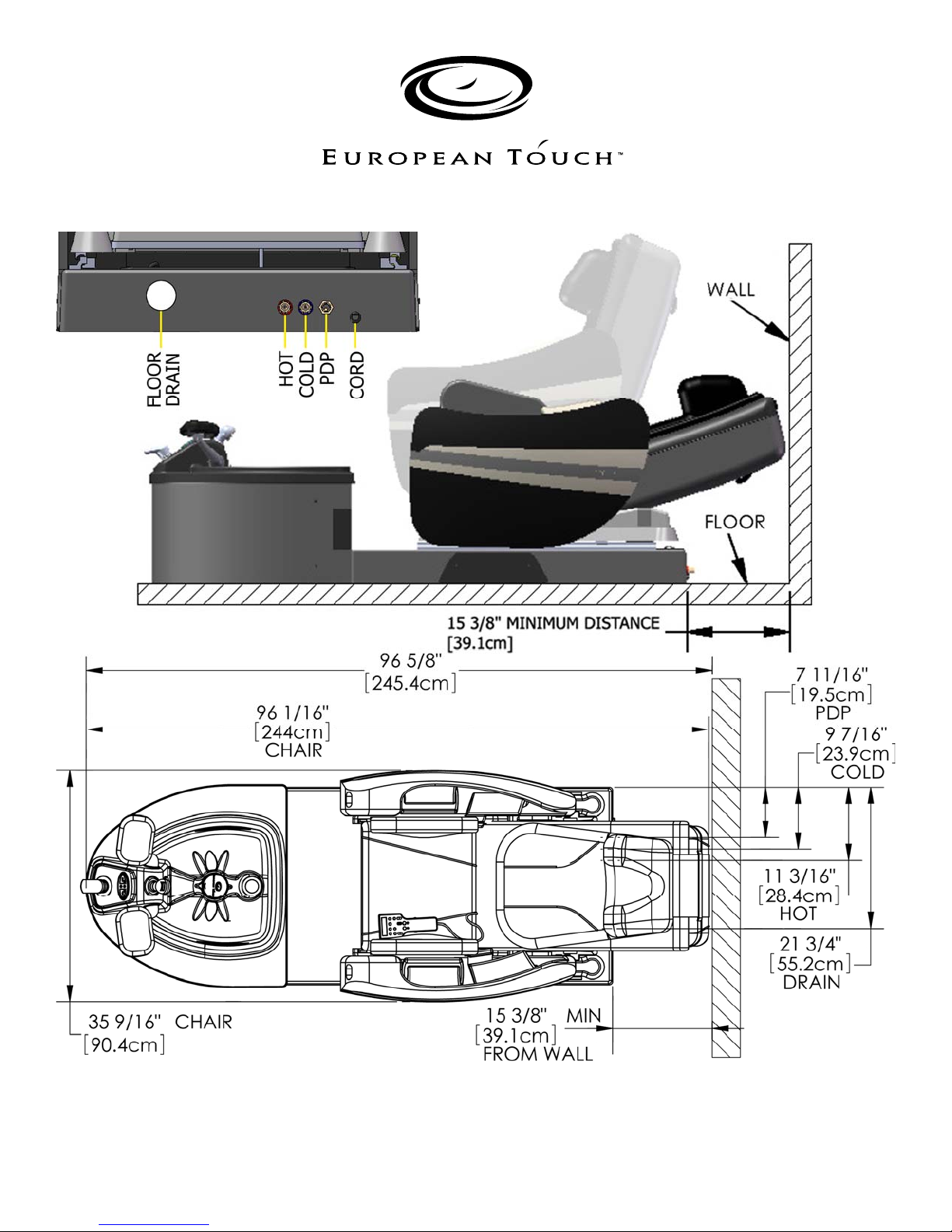

LOCATION DIMENSIONS ......................................................................................................................... 18
COMPONENTS &DESCRIPTION ............................................................................................................... 19

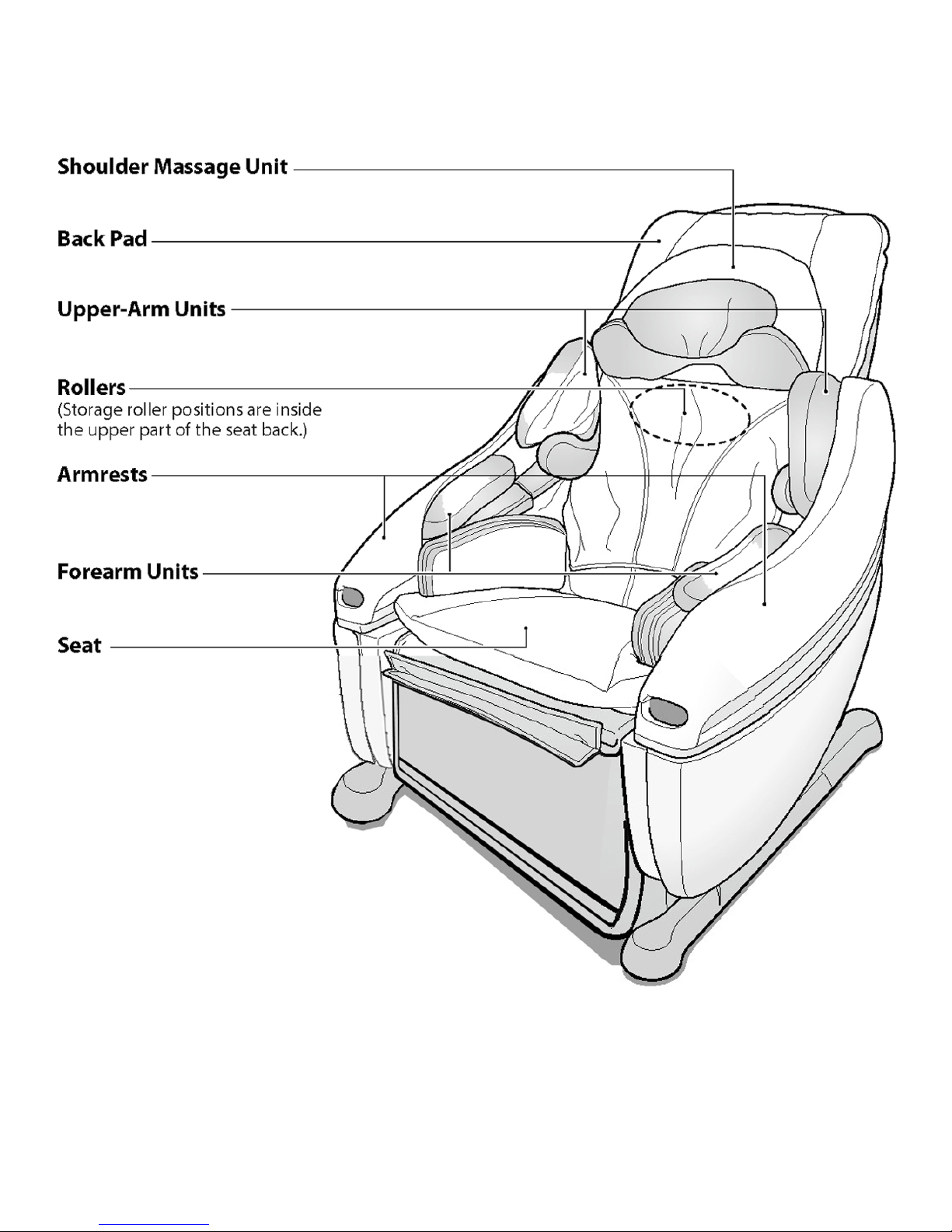

CHAIR COMPONENTS .........................................................................................................................19
REMOTE CONTROL ............................................................................................................................21
REMOTE CONTROL DISPLAY ...............................................................................................................22
REMOTE CONTROL/INSIDE THE PANEL ................................................................................................22
CHECKING THE SEAT COVER..............................................................................................................23
HOW TO USE THE CHILD SAFETY LOCK...............................................................................................23

70080000 Manual Sogno DreamWave Spa Rev A Revision Date: 25 March 2010 Page 3 of 42
HOW TO SIT ......................................................................................................................................23
HOW TO USE THE RECLINING SEAT BACK ...........................................................................................23
HOW TO USE THE SHOULDER MASSAGE UNIT .....................................................................................24
HOW TO USE THE CHAIR WITHOUT THE SHOULDER MASSAGE UNIT......................................................24
* The lock belts are located at the both sides of the unit. ................................................................24
HOW TO USE THE SHIATSU PADS FOR SHOULDERS .............................................................................25
HOW TO USE THE BUFFER PADS ........................................................................................................25
HOW TO USE THE UPPER-ARM/FOREARM UNITS .................................................................................26
HOW TO USE THE HEATER .................................................................................................................26
SPEAKER ON THE REMOTE CONTROL .................................................................................................26
AFTER USE .......................................................................................................................................26
PRESET PROGRAMS .............................................................................................................................. 27
CHANGING COURSES .........................................................................................................................28
MANUAL SELECTION MODE.................................................................................................................... 30
HOW TO OPERATE MANUAL SELECTION MODE ....................................................................................30
BASIC OPERATIONS ...........................................................................................................................30
AIR MASSAGE....................................................................................................................................31
ROLLING ...........................................................................................................................................31
VIBRATION ........................................................................................................................................31
VARIOUS ADJUSTMENTS .....................................................................................................................32
HOW TO OPERATE MANUAL SELECTION MODE ....................................................................................33
CHANGING COURSES............................................................................................................................. 33
SWITCHING FROM MANUAL SELECTION MODE TO APRESET PROGRAM.................................................33
STOPPING IN THE MIDDLE OF AMASSAGE ..........................................................................................33
CLEAN TOUCH™PIPE-FREE SPA CLEANING AND DISINFECTING PROCEDURES ......................................... 34
CARE AND STORAGE............................................................................................................................. 35
STORAGE ..........................................................................................................................................35
CARE AND MAINTENANCE...................................................................................................................35
CARING FOR THE BACK PAD AND COVERS ..........................................................................................35
CARING FOR THE REMOTE CONTROL ..................................................................................................35
CARING FOR OTHER PLASTIC PARTS ..................................................................................................35
REGULAR MAINTENANCE FOR SAFETY ................................................................................................... 35
PARTS BREAK DOWN ............................................................................................................................ 36
TROUBLESHOOTING...............................................................................................................................38
PEDICURE SPA ..................................................................................................................................38
MASSAGE CHAIR................................................................................................................................39
FREQUENTLY ASKED QUESTIONS ........................................................................................................... 41

70080000 Manual Sogno DreamWave Spa Rev A Revision Date: 24 March 2010 Page 5 of 42
OWNERS MANUAL For
Sogno DreamWave Spa
IMPORTANT INFORMATION
Serial Number:
Work Order Number:
Installed by:
Installation Date:
The serial number and work order number are located at the top front edge of the access panel

70080000 Manual Sogno DreamWave Spa Rev A Revision Date: 24 March 2010 Page 6 of 42
SPECIFICATIONS
PEDICURE SPA SPECIFICATIONS
Hot and cold water supply lines required (hot and cold shut offs may be installed under pedicure spa base)
SHIPPING INFORMATION
Spa Carton Dimensions: 63” L x 34” W x 34” H [160.02cm L x 86.36cm W x 86.36cm H]
Spa Carton Dimensions with pallet:
65” L x 36” W x 67” H [165.1cm L x 91.44cm W x 170.18cm H]
Armrest Box Dimensions: 36” L x 24” W x 28” H [91.44cm L x 60.96cm W x 71.12cm H]
Basin Carton Dimensions: 38” L x 30” W x 34” H [96.52cm L x 76.2cm W x 86.36cm H]
Basin Carton Dimensions with pallet:
48” L x 40” W x 39” H [121.92cm L x 101.6cm W x 99.06cm H]
Weight (Spa/Armrest): 375 lbs. [170.1 kg] - includes spa, carton, pallet
Weight (Basin): 175 lbs. [79.4 kg] - includes basin, carton, pallet
SPA INFORMATION
Overall dimensions: 97” L x 36” W x 54” H [246.38cm L x 91.44cm W x 137.16cm H]
Water Fill Line Capacity: 4.5 U.S. gallons
Whirlpool pump motor: 110V: 1/6 HP, 110V, 60Hz
Seat upholstery: Polyurethane
Power source: 110V: 10V AC, 2.75 Amps, 60 Hz (GFCI Protected)
XCaution: Pedicure spa must be installed by a licensed electrician and a licensed plumber,
conforming to all local and national electrical codes
Construction: Wooden frame supporting the faux marble basin
Fiber glass platform to support the massage chair
Clean Touch™Pipe-Free®Technology: 4 water massage channels, no closed loop circulating pipes, fully
drained, easy to clean and sanitize.
Electrical switches: On/Off switch for whirlpool pump. A single hand-held, low voltage remote control for
massage motors, heat and seat/back position.
Compliances: Tested by TUV
Limited warranty: Three (3) year on parts from date of shipment. Labor is not included.
___________________________________________________________________________________________________________
NOTE: Due to our policy of continuous improvements, all specifications are subject to change without notice.
All dimensions and weights are approximate
