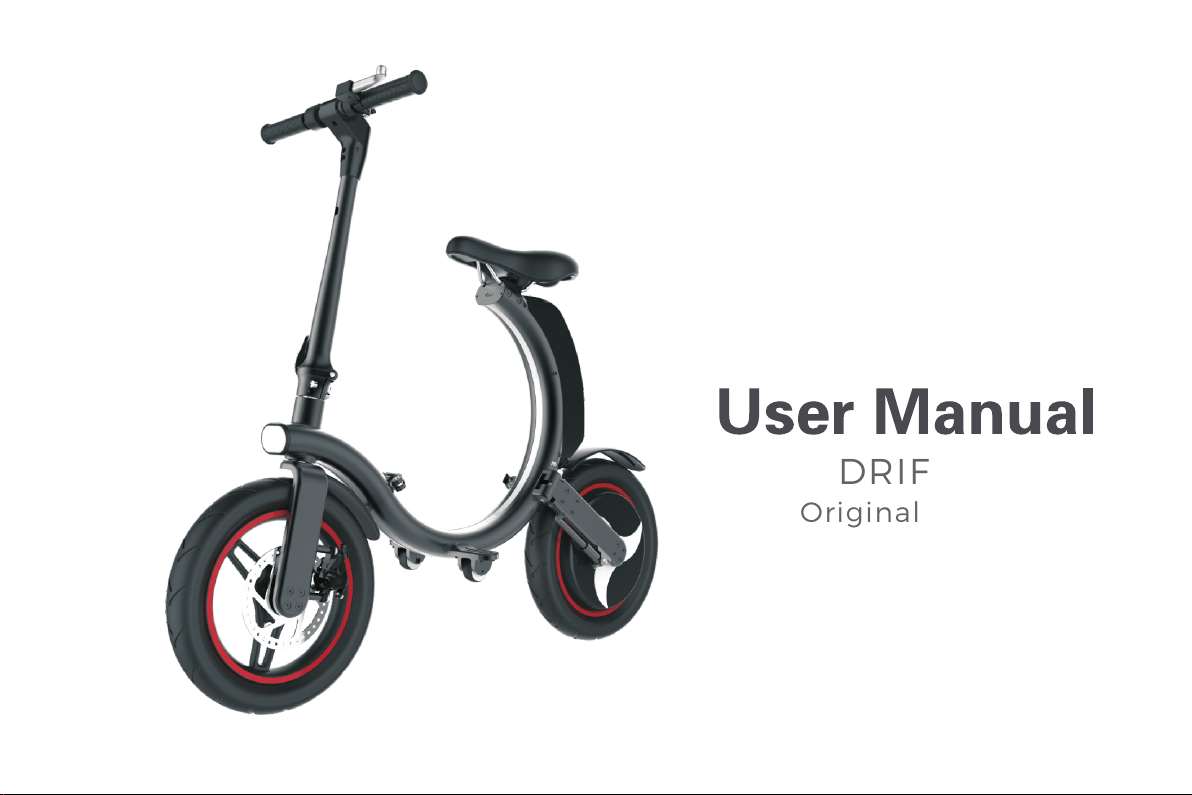

Evelo DRIFT Series User manual

DRIFT SERIES
Original Instruction
C2

6
9
3
Table of Content
1
5
6. Care and maintenance
6.1 Storage
6.2 Cleaning
6.3 Inflation and tire replacement
7. Safety warnings
8. Warranty
8.1 Guarantees Standard
8.2 Limited product warranty
8.3 Warranty policy
7
8
2
1.What is in the box
2. How to assemble
3. Features and Specifications
3.1 Product serial number
3.2 Dimension
3.3 Specifications
3.4 Product composition
4. Charging the battery
4.1 How to charge
4.2 Cautions when charging
5. Riding
5.1 Before riding
5.2 Cautions when riding

1
The MINI Micro Electric Vehicle C2 leaving the factory with the following components, please check after opening the box. If
there are any missing, please consult the dealer or factory after-sales department.
The use of unapproved components or incorrect installation may lead to damage or even personal injury to C2. In order to
ensure quality and safety, all parts of C2 need to be approved by the distributor or manufacturer and installed correctly .
Please don't try to ride on a C2 that is not properly and effectively installed.
Do not disassemble or refit C2 without permission, otherwise it may cause irreversible damage to the vehicle and may cause
personal injury.
1. Wh at is in the b ox
Model
Number
1
2
3
4
5
Name
Vehicle
Charger
User Manual
Pedal lever*2
4mm Hexagonal Spoon
Quantity
1 pc
1 pc
1 pc
1 pair
1 pc
C 2

2
1.Spread head tube 2.Revolving and unfolding
the rear wheel after screwing
out the rear wheel screw pin
3.Lock the rear quick
detachment button
4.Release the front quick
detachment button and rotate
the front wheel
5. Locking quick detachment
button after rotating and unfolding
the wheel
6.Tighten the screw below
the brake handle after
adjusting the brake handle
to a comfortable position
2. How t o assem b le

3
3. Feature and Spec if ication s
C2 is a compact, efficient and economical personal walking tool. Its styling has a trendy sense of science and technology,
extremely light structure design, powerful lithium battery power, to provide you with a pleasant driving experience.
3.1 Product serial number
Product serial number is the unique identifier of the product, which is used for product quality tracking, after-sales service and
so on. Be sure to record and save the serial number of the product. You can get the product serial number from the following
locations: product packaging box, warranty card, the product (the frame on the side of the controller box).
3.2 Product Dimension
9 40 m m
110 0 mm
740 mm
9 40 m m
430 mm

4
3.3 Specifications
Name
Waterproof grade
Speed
Load
Distance
Max. Slope
Charger power
Charger time
Braking distance
Braking mode
Age range
Height range
working temperature
Storage temperature
Net weight
Gross weight
Parameter values
IPX4
Max.25km/h
Max.120KG
20-25km
18°
63W
4-5h
2.4m (Dry state)
Disc Brake + Electronic Brake
12-50 years old
120-200 cm
-10～40°C
-20～45°C
20kg
22.5kg
3.4 Product composition
Right slee ve
Disp lay sc re e n
Fold ing v e rt ic al pip e
Fold ing a nd q uic k
d is as se m b ly
Foot l e ve r
12-inc h h ub
14-inc h t ire
Hand b rake
C ushion
B at t e ry
Frame
14-inc h t ire
C u sh io n
C o nt rolle r b ox
and c o nt rolle r
Re ar f e nde r

4 . Charging th e b atter y
4.1 How to charge
First step Plug the charger into wall before the charger port
Second step: Red light indicate battery is charging
Green light indicate charging is complete
Last step: Don't forget to plug the dustproof cap back after charging complete
4.2 Cautions when charging
Please charge for more than 5 hours before first use.
Please charge once a month or 2 days after each ride to maximize battery life and avoid battery to be over-discharged.
Please only use the included charger, and cable supplied by the original manufacturer. In order to avoid battery overcharge, it is
dangerous.
Please make sure the charger cable is properly connected
Please be sure to charge in a dry environment. Never allow the charger or cable to come into contact with water as this may
result in electric shock. Never touch with wet hands. Unplug the power cord immediately if any problems occur during charging.
Please do not let the charger or cable to touch sharp or hot items.
Please do not use the charger to avoid further damage, and contact for replacement if the charger or cable is damaged
Do not repair the battery, charger or cable by yourself, If you have any questions, please contact us to serve you.
:

6
5.1 Before riding
please make sure following items:
Make sure that the parts of the bike are securely
assembled and undamaged.
Make sure the brakes are functioning properly.
Make sure the folding mechanism is locked.
Make sure you battery have enough power.
Make sure the tires are intact.
Make sure the handlebars are secure and tighten
without looseness.
Please have an person assists you if it is the first time you
learn to ride. This person needs to be proficient in
operating electric vehicle.
5.2 Cautions when riding
Please do not ride on a smooth, slippery road.
Always wear a safety helmet and protective gear to avoid injury.
Please note that riding on rainy days should increase the braking
distance.
Please don't use this product in a day with bad weather such as
in rain, snow, or ice.
Do not exceed 18° when going up and down, and do not
accelerate or decelerate on the slope.
Pay attention to obstacles and road skidding; do not ride on grass
or pebbles.
The wading depth should not exceed 30mm.
It is forbidden to ride the stairs up and down.
It is forbidden to drive on the motorway.
The bike is a single-passenger tool that prohibits multiple people
from riding at the same time.
Please confirm that the battery is fully charged before use and
the tire is inflated normally.
The bike is only used for daily travel, and should not be used for
extreme sports or dangerous riding meth.
5.Rid in g

7
6.1 Storage
Avoid storing C2 in direct sunlight (even in your trunk)
because the temperature of the body and battery can be as
high as 50 degrees Celsius after a period of time, resulting in
damage to battery function and product life.
Avoid storing C2 in humid environments.
When the C2 is not in use, the battery will also discharge
slowly and automatically. Battery power should be
monitored at least every three months and charged in time
to ensure that the battery has sufficient power. Avoid
irreparable losses caused by long-term storage of batteries
without electricity (e.g. deep discharge of batteries)
In winter, batteries may lose power faster because of low
temperatures.
The unreasonable storage will lead to the life of lithium
batteries or other hidden dangers. Please store the electric
vehicle in a dry, humid place indoors. If you don't use C2 for
a long time, please fill the battery and charge it at least once
a month.
If you need to store C2 for a long time, please fully charge it.
6 .Care and m ain ten ance
6.2 Cleaning
Make sure that the car body shuts down before cleaning,
then pull out the charging wire and close the charging port.
During cleaning, be careful not to let water flow into the
charging port.
Use soapy water or clean water and soft cloth to wipe the
shell of the electric vehicle, and prohibit the use of high-
pressure water guns to wash the electric vehicle.
The waterproof and dust-proof grade of C2 is IP54, that is,
anti-splash and dust-proof. Therefore, the electric vehicle
should not be immersed in water, which will lead to
permanent damage to the electric vehicle.
6.3 Inflation and tire replacement
When there is insufficient air pressure in the tire or when the
pressure of the two tires is different, please inflate them in
time to ensure that the pressure of the two tires is the same.
The default factory tire pressure of C2 is 2.8 Bar for front
wheel and 2.5 Bar for rear wheel.
If the electric vehicle needs to be replaced due to tire burst
or other reasons, please contact after-sales department for
repair (or repair at the bicycle repa
irs hop).

For your safety and good driving experience, we ask you to
use the product strictly according to the following
requirements:
1. Be sure to read carefully and fully understand the C2 User
Manual before use it.
2. Do not let people who are not 14 to 50 years to use it.
3. Pregnant women and persons who are physically or
mentally unsuitable are prohibited from using them.
4. It is forbidden for two or more adults to ride one bicycle
at the same time. It is also forbidden to ride with children or
heavy loads.
5. Do not refit and repair C2 privately or by non-
manufacturer authorized personnel. If there are any
problems with the product, please contact the
manufacturer after-sales immediately.
6. Please use the electric vehicle after ensuring that there is
no looseness, damage, malfunction and other abnormal
conditions.
7. Before charging, make sure the outlet is dry, trouble-free
and free of foreign matter. When charging, be sure to insert
the correct socket (220V/50HZ) and avoid children and pets
contacting, staying away from flammable items.
8. The batteries must be stored in an environment of -20 ° C
to 45 ° C. Do not put it in an environment where the
temperature is higher than 45 degrees .
7.Safety warnin g
9. If the battery leaks (including damage, odor, smoke or
overheating) and other abnormalities, please immediately
stop using and avoid contacting with other objects.
10. Do not attempt to open or disassemble the battery and
any abnormal operation or use of the battery.
11. Full-charged C2 (display screen shows full power), due to
different battery status and storage environment, standby
time is up to 180 days; Non-full-charged C2 (display screen
shows 1 grid power), standby time is up to 30 days, please
pay attention to standby time to prevent irreparable
damage to the battery caused by not charging in time.
12. Do not wear shoes that are not suitable for driving, such
as high-heeled shoes, too-loose clothes . Wear professional
protective gear when using.
13. It is forbidden to ride C2 on rainy weather and other wet
roads, because when the road is wet and slippery, the grip of
tires decreases, the braking distance increases, and it is easy
to slip and cause accidents such as electric vehicles out of
control.
14. It is forbidden to use C2 in bad weather, low visibility and
poor light. Do not use in extreme fatigue.
15. Do not use in stairs, elevators or through revolving doors
which are not suitable for road conditions and
environments.
8

16. Do not turn at high speed, and do not brake suddenly on a smoother road. The above-mentioned behavior can easily lead to
skidding and other out-of-control situations.
17. Please drive on non-motorized lanes, prohibit driving in inappropriate places such as motorized lanes, and strictly abide by
laws and regulations such as traffic rules. When approaching or passing intersections, motor lanes, turning points, doors and
other places, please pay attention to deceleration and avoidance, but also have a sense of defense, pay attention to the traffic
vehicles and pedestrians may cause dangerous behavior.
18. Do not answer the phone or do any activities or actions that may distract your attention while driving C2, so that you can
focus on monitoring the external environment at any time.
8 . Warran ty
C2 folding version of the micro-electric vehicle core parts warranty for 1 year or cumulative mileage of 2000 kilometers, the two
are based on the first period or mileage (the core components include the motor and frame of the C2 micro-electric vehicle),
other MINI micro-electric Car parts warranty should be implemented in accordance with the "C2 MINI Micro Electric Vehicle
Guarantees Standard".
9

8.1C2 MINI Micro Electric Vehicle Guarantees Standard
Frame, handlebar
Front wheel
Seat, foot support
Plastic, inside tire,
brake wire, foot pedal
Painted parts,
plated parts
Frame
PRODUCT DETAILS WARRANTY
PERIOD
Desoldering, fracture naturally
Deformation, fracture naturally, etc. due to poor
manufacturing quality problems
Paint peeling, blistering, cracking for large area
Deformation, fracture naturally, etc. due to poor
manufacturing quality
Damage easily
12 Months
12 Months
6 Months
6 Months
Not including
6 months
12 months
12 months
6 months
Not including
6 months
Component
Motor
Battery
Charger, light, switch,
brake
Controller, main cable
Motor
Hall, bearing
DC charger; USB charger
Battery
Performance failure due to poor manufacturing
and cannot be repaired
Damaged; demagnetization
Hall damaged; bearing with abnormal sound
Damage easily
Performance failure due to poor manufacturing
and cannot be repaired
The range of environment temperature
of Lithium battery charging is 1 °C-34 °C,
ambient temperature range -10 ° C-45 ° C.
At low temperatures, lithium battery
capacity will have varying degrees of
decline, the specific reference level is:
The capacity is 68% when -10° C.
The capacity is 85% when 0° C.
The capacity is 100% when 25° C.
The warranty includes these
situation, abnormal voltage, unable
to charge, less than 60% of capacity
detected by discharge meter, when
the vehicle is not affected by
external force,
(not including the battery is not
protected according to the user
manual, and the battery is not
periodically charged during storage.)
10

8.2 LIMITED PRODUCT WARRANTY
The following conditions are not covered by the warranty. Customers should afford the related costs
(1)The accumulated mileage over 2000 kilometers;
(2)Any damage caused by failure to use, maintain and adjust as required by the User Manual;
(3)Serial number is deleted or is changed;
(4)Serial number in the warranty card is not matched the product;
(5)Dismantled or repaired with unauthorized person;
(6)Beyond normal use conditions, using this product deliberately to cause malfunction or damage;
(7)Damage caused by overloading, falling, or other extreme exercises;
(8)Other failures or damages not caused by this product itself design, manufacturing and quality;
(9)Damage caused by irresistible factors;
(10)Exceeding the expiration date;
(11)Warranty card lost;
If any situation metioned above happens, customers should afford the costs of repairs.
8.3 Warranty policy
1. Customers can seek technical support of after-sales assistance through the manufacturer, or they can directly contact the
dealer at the place of purchase to assist in the after-sales service process.
2. Within 3 working days after receiving the customer's faulty product, our company will report to the customer with the
product failure analysis, fault responsibility, maintenance cost and estimated repair completion time.
3. After the customer has no objection to the cause of the fault, the fault responsibility, the repair cost and the repair completion
time, the company will begin to repair the product.
11
