USER MANUAL

1
TO OUR VALUABLE
CONSUMERS
Thank you very much for choosing or e-scooter.
This manual focuses on the basic performance, adjustment
methods, safe driving instructions and maintenance informa-
tion of electric scooters. For your own safety and more enjo-
yable riding experience, please carefully read the contents of
this manual before riding the electric scooters.
Your riding safety depends not only on your personal alert-
ness and your driving proficiency, but also depends on the
mechanical performance of the electric scooters. It is essential
that you check and perform maintenance for the electric
scooter before riding every single time.
This electric scooter will be your ideal transportation tool
as long as you check in advance, master the safe driving
method and obey the trac rules. Due to the continuous
improvement of this product, the relevant data and structure
of this manual are subject to change without further notice.
Kind reminder：
Please do not use the electric scooter without carefully
reading the instructions and understanding the function of
electric vehicle. Please do not lend it to people who do not
know how to operate and ride the electric vehicle.
Please do not discard the waste battery at will to avoid pollu-
ting the environment.

1
Vehicle configuration list...................................................
Complete vehicle structure drwing..............................
Keyhole ......................................................................................
Correct use of changer ......................................................
Battery maintenance ...........................................................
Vehicle body maintenance ...............................................
Important notes .....................................................................
Inspections before riding ...................................................
Common faults and troubleshooting ..........................
Non-warranty clause ...........................................................
Correct use of vehicle .........................................................
Maintenance record .............................................................
CONTENT
04
04-05
05
10-11
11-12
12-13
13-14
14-15
15-16
17
17
18

Once the purchased product is used, it shall be deemed that the
user agrees that the product’s configuration is complete and intact,
other free configuration request from customers will no longer be
accepted.
No. Name
Electric Scooter unit
set
pcs
pcs
pair
1 1
1
1
1
22
3
4
5
Key
Charger
Manual
Rear view mirror
Unit Qty. Remarks

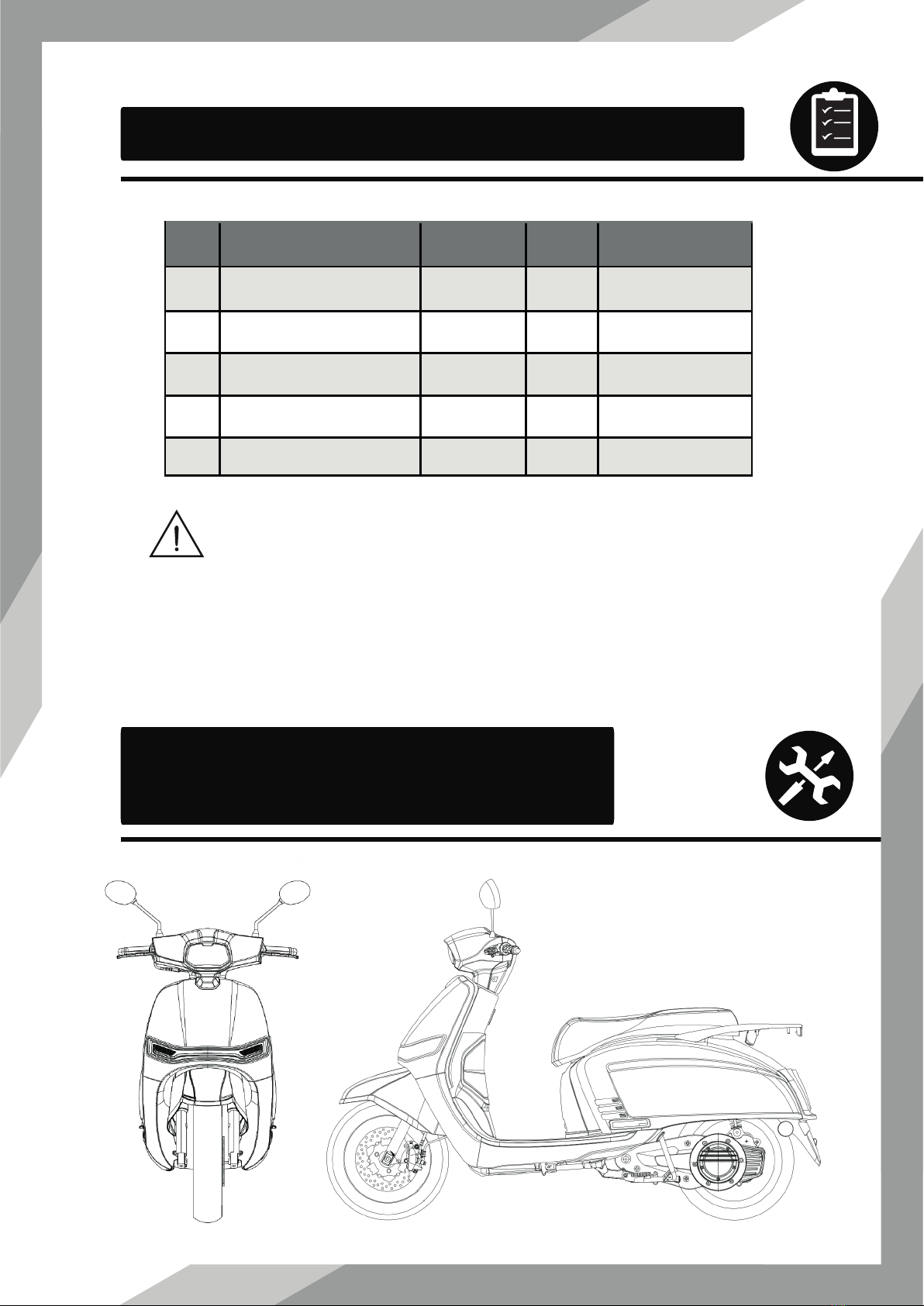

VEHICLE CONFIGURATION LIST
COMPLETE VEHICLE
STRUCTURE DRAWING

*Notice: Max range data teste theoretically under the condition of ambiente temperature 23-35 ºC,
loading mass 75kgs, on flat road. Actual data may be different according to different
KEYHOLE
Model parameters chart
LOCK OFF Position ON Position
=158
$
Version
Battery type
Charging time
Motor
Brake system
Tyre
Mas speed
Max range
72V 40AH
3000W
F/R Disc brake
120/70-12
45 km/h
100km
2.5 H
72V 40AH
3000W
F/R Disc brake
120/70-12
80 km/h
80km
2.5 H
Lithium L1E Lithium L3E

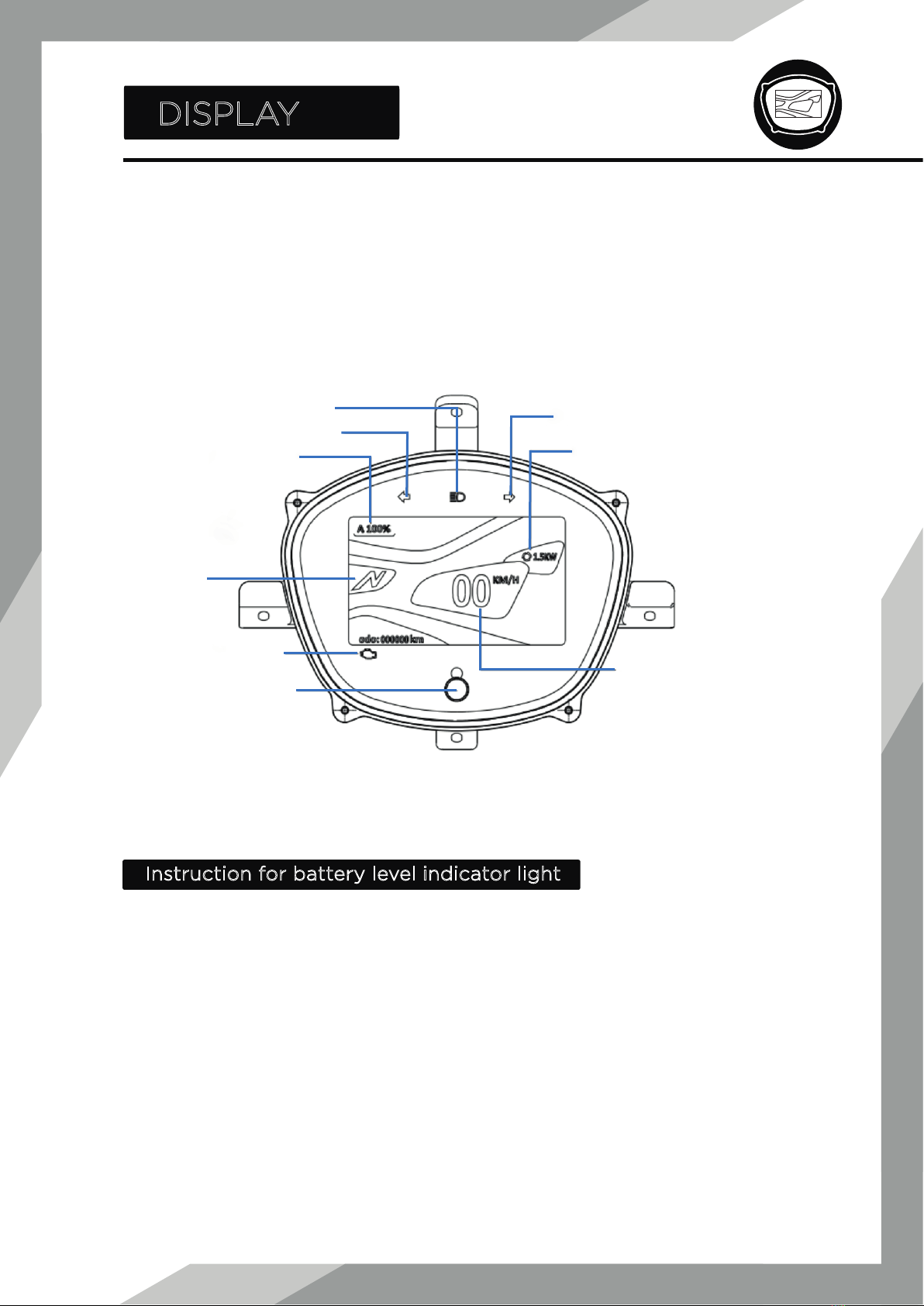

Instruction for battery level indicator light
It adopts intelligent operation console, the display mode is the same as that of
conventional household scooter including battery electricity capacity, current
speed, odometer & trip meter, direction signal light indication, parking indication,
riding mode indication.
Right direction
Energy recovery
“Ready” display
when engine start
Main beam lamp
Left direction
Battery capacity
N: Neutral
D: Economic mode
S: Sport mode
R: Reverse
Malfunction indicator light
Odometer
SOC A 100%
The battery level is displayed by the percentage energy in the display.
When there is only 5% battery bar remaining, please charge the
vehicle as soon as possible.
DISPLAY

Main beam
Dipped beam
Horn
Left direction control
Right direction control
DRIVING MODES
N (neutral
D (economic mode)
S (sports mode)
long press display “R (reverse)”
(optional swith)
Warning control
Left hand switch comp includes: High & low beam light switch, turning
light switch, horn button.
Right hand switch comp includes: warning light switch, riding mode button.
SWITCH COMP

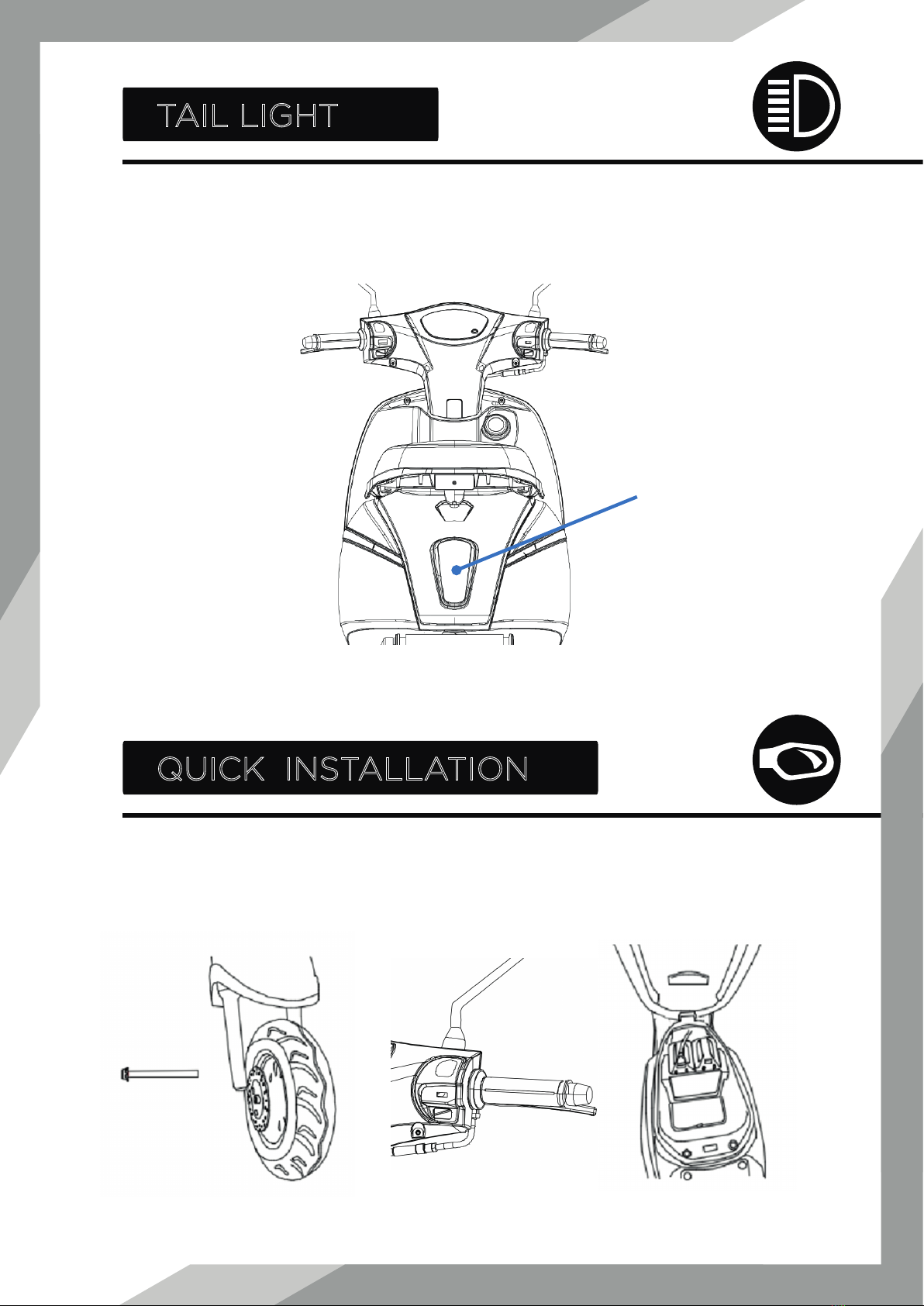

The rated voltage of vehicle tail light is 12V, and the spotligh eect is outstanding
which can help you ride at night freely.
QUICK INSTALLATION
You can start to travel comfortably with simple installation steps.
1. Front wheel installation 2. Rear-view mirros installation 3. Connect the power
cord
TAIL LIGHT
QUICK INSTALLATION

BATTERY SERVICE
ENVIRONMENT
Tool box including (manual, charger, rear-view mirror).
We use lithium batteries for this model, lithium batteries are small in size, light
in weight, long in service life, easy to take out and charge.
Meanwhile, please pay attention to the following issues when using the vehi-
cle:
If the battery has peculiar smel, abnormal heating and deformation, please
stop using immediately and keep away from the battery.
VEHICLE ITEMS

Correct use of charge
1
Battery charging environment
4
5
6
7
3
CORRECT USE OF CHARGER
Please charge as shown in the figure.
When the input & ouput terminals of the charger connected, the red indi-
cator light of the charger will be on: The standard charching time should
be: Charge according to the time specified by the matching charge:
Note: When charging for the firs time, the battery shall be fully charged
before use; Do not disassemble the charger without premission because
it contains high voltage circuit; When charging the battery, do not cover
anything on it to accidentes.
Please charge the scooter when the environmental temperature is 0º-45º.
Please place the charger in a safe place that children cannot reach when
charging.
In order to avoid aecting the service life of the battery, do not charge
for more than 12 hours.
If the battery is not fully charged for continuous 12 hours, please stop
charging.
In order to ensure good battery life and superior performance, please
ride when the battery level is between 20% -90%.
If you need to lay the scooter aside for a long time, please make sure that
the storage environment is between 0 - 30 and the battery store
above 50%. At least one month. Please charge and discharge the scooter
battery completely once in a month at least, otherwise the battery will
experience a irreversible power decay.
Avoid storing the battery in the place where there is a risk of falling,
because it may cause the risk of leakage, abnormal heating, smoke, even
fire and other hazard.
2
1

In order to achieve the best performance, please
maintain the battery according to the instruc-
tions.
Specific requirements are as follows：
Charging time should not be too long or too
short. After the charging process appears to
finish, try to keep it for a while and disconnect
the power supply to ensure the battery is fully
charged.
Battery storage with low power is strictly pro-
hibited.
1
2

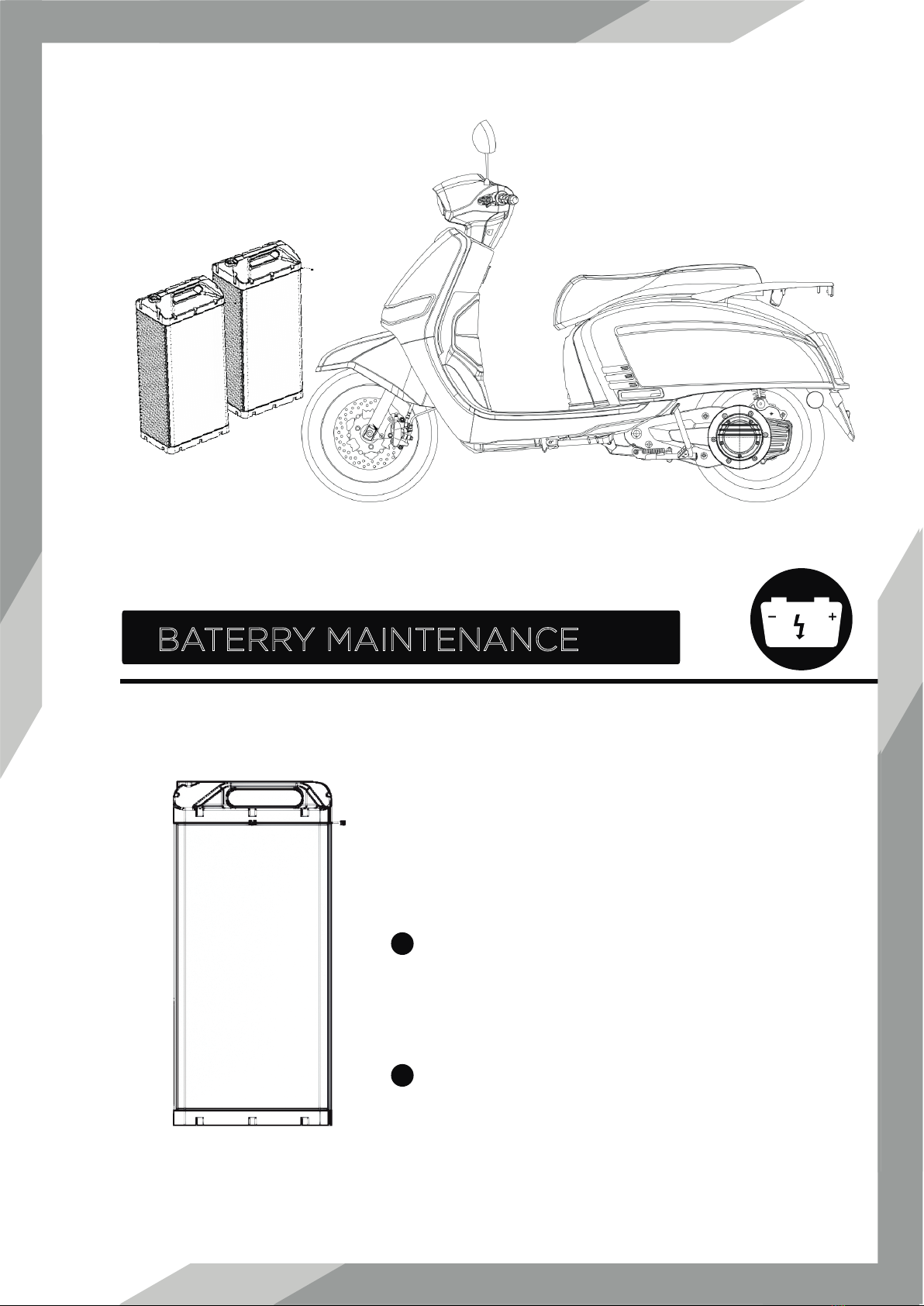

BATERRY MAINTENANCE

3
4
5
Exposure in high temperature or rainy environment will lead to an irrever-
sible impact on battery life. Therefore, the battery of this product should
avoid the above conditions.
Capacity drops by 1% if the temperature drops by 1°C. When battery
is under high temperature in winter, the battery cycle capacity is weak
and the electrolyte viscosity increases, so the chemical reaction resistance
increases and the charging time may be shortened (70% will be charged
below 5°C)
The charging capacity is 60%~70%, the discharge is 50%~60%, and
the mileage will be reduced (namely the scooter cannot run long distance).
It is strictly forbidden to charge electric scooters in an environment
below 0°C!
In order to avoid the occurrence of large current discharge, please pay atten-
tion to slowly adjust the speed handle when you riding
Batería

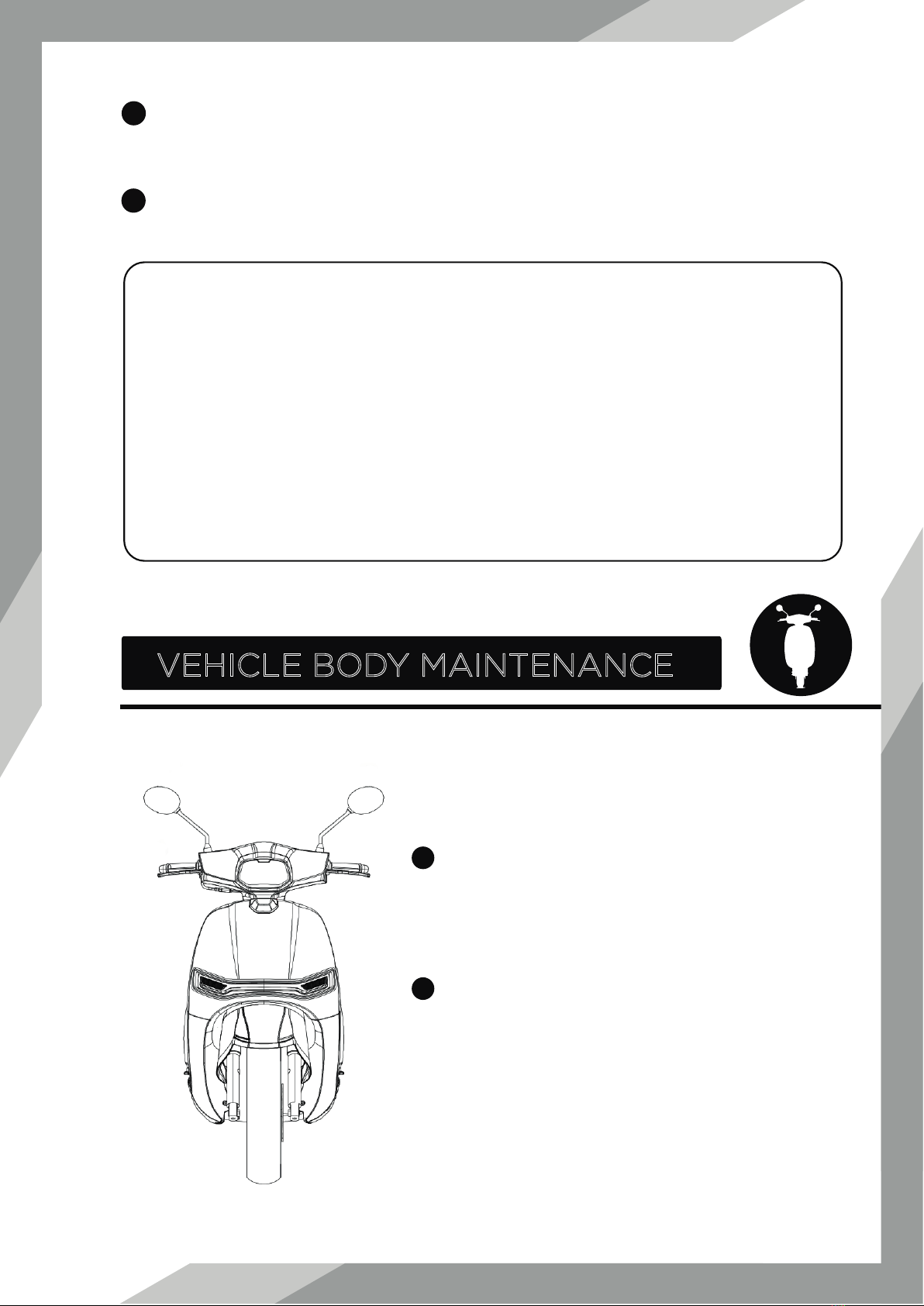

Although the scooter has good waterproof
performance, in order to achieve the best riding
state, please avoid direct rain or exposure to
insolation to prevent scooter body or rotating
components from rusting.
If direct contact of the rain cannot be avoi-
ded, be sure to wipe the scooter body clean
after riding so that the rusting can be preven-
ted and the riding performance will not be
aected.
1
2
VEHICLE BODY MAINTENANCE

Electronic control systems usage precautions
1
2
3
5
4
The electronic control system is the core of the scooter electric system and
has protective functions such as under voltage, current limit and self-test. As
the main circuit of an electric vehicle, the electronic control system has a large
current and emits heat when working.
Therefore, the electric vehicle should not be parked under the sunlight or near
a heat source, so as to avoid the malfunction of the controller and aect the
normal use of this product.
Develop a good charging habit. Make sure the energy of scooter is
above the minimum allowable riding level before each riding.
As an important part of the scooter, the battery is aected by various
external factors.
Generally speaking, the discharge performance of the battery is good
when the temperature is high. But the power of the battery may drop
by more than 1/3 if the temperature drops below 0°C. Therefore, when
the cold winter arrives, the reduction of the cruising range after one-ti-
me charging is quite normal. When the temperature rises above 25°C,
its function will naturally recover.
It is forbidden to use a charger that does not match the scooter (or not
provided by our company) for charging. Our company shall not be
liable for any accident arising out of this.
When riding downhill, be sure to use both brakes first to avoid acci-
dental injury caused by the forward movement of the center of weight.
Before riding, please make sure that the brakes, cushions, body, hand-
lebars, tires are safe and reliable to avoid accidents.
IMPORTANT NOTES

Expects you to do a thorough inspection before riding in order to ensure your
driving safety:
6
7
8
9
Whether the tire pressure is normal.
Whether the front & rear hubs are locked.
The brakes should be reliable and can reset flexibly. The braking distance
should be increased in rainy and snowy days.
1
2
3
Please avoid riding in muddy, bumpy and stairs roads to avoid acci-
dental puncture, wheel hub deformation and damage to your electric
vehicle.
Please do not hang heavy objects on the handlebars to avoid runaway.
It is strictly forbidden to short the positive & negative poles of the bat-
tery with wires or conductors to avoid danger and damage to the bat-
tery.
Handle the battery gently to avoid collision and damage to the bat-
tery.t.
INSPECTIONS BEFORE RIDING

Battery voltage under
normal voltage
Battery life exhausted
Charging immediately
Replace the battery
Replace the power lock
Power lock damaged
Fault phenomenon Fault diagnosis Troubleshooting
INSTRUCTION FOR USE
Insert the key into the keyhole and turn it to the“ON” position so the
battery indicator light will be on, indicating that the power is on.
Turn the speed control knob(right handle) inward (counter clock wise).
When the vehicle is starting , the turning angle of the speed control handle
changes from small to large, so the vehicle speed changes from slow to fast
as well.
At the beginning of starting up, it should be slowly accelerated to avoid
excessive rapid start up current.
1
2
3
Rider should choose constant speed during the riding process and minimize
frequent braking and starting for the sake of safety .
4
The console indicator is
not on the
motor won’t operate
High-speed operation of
the motor cannot be
controlled after the
power lock is turned on
Original parts in the
controller damaged Replace the controller
COMMON FAULTS AND
TROUBLESHOOTING

Fault phenomenon Fault diagnosis Troubleshooting
Poor battery contact Adjust or polish contacts
Replace the power lock
Power lock burned down
n
Battery cannot be
(fully) charged
Motor runs & stops
randomly
Short distance ride after
one time charging
Headlight is not bright
Controller component
burned out
Water in the controller,
short circuit, etc Replace the controller
Headlight switch
damaged Replace the switch
Charger no output
Replace the battery
End of battery life
Replace the charger
Replace the charging
socket
Poor contact between
charger and charging
socket
Poor battery contact Replace the battery
Replace the charger
Power lock burned down

1
2
3
4
Exceeding the maintenance period.
Damage caused by improper usage, such as: crash, falling, overload, overs-
peed and failure caused by not driving according to electric vehicle driving
instructions.
Damage caused by smoke, drugs, chemicals and failures caused by force ma-
jeure such as earthquakes, typhoons, floods, fires, etc.
Phenomenon that does not aect the feeling of normal driving or performan-
ce to a certain extent, such as: shock vehicle, noise, etc.
Unauthorized disassembling or damage of the vehicle component.
Damage to the charger, battery and motor due to violating using instructions.
Unauthorized use of non-original vehicle accessories and cause damage to
components.
Change the "Product warranty" certificate or the product model and motor
number are inconsistent with the“Product warranty” certificate.
Damage to components due to human factors.
Use the charger on another brand vehicle without permission.
5
6
7
8
9
10
1
2
3
Please read this product manual carefully and ride the scooter safely to
enjoy a comfortable trip.
Please obey the relevant trac regulations of your country.
Do not use mobile phones or wear headphones while riding to avoid poten-
tial safety hazards;
Please do not use third-party accessories that are not ocial scooter stan-
dard. Do not disassemble, crack and modify the scooter without authoriza-
tion. Otherwise, the damage caused will be borne by you and you will lose
the scooter electric warranty.
NON-WARRANTY CLAUSE
CORRECT USE OF VEHICLE

Date/km Center Comments
MAINTENANCE RECORD
