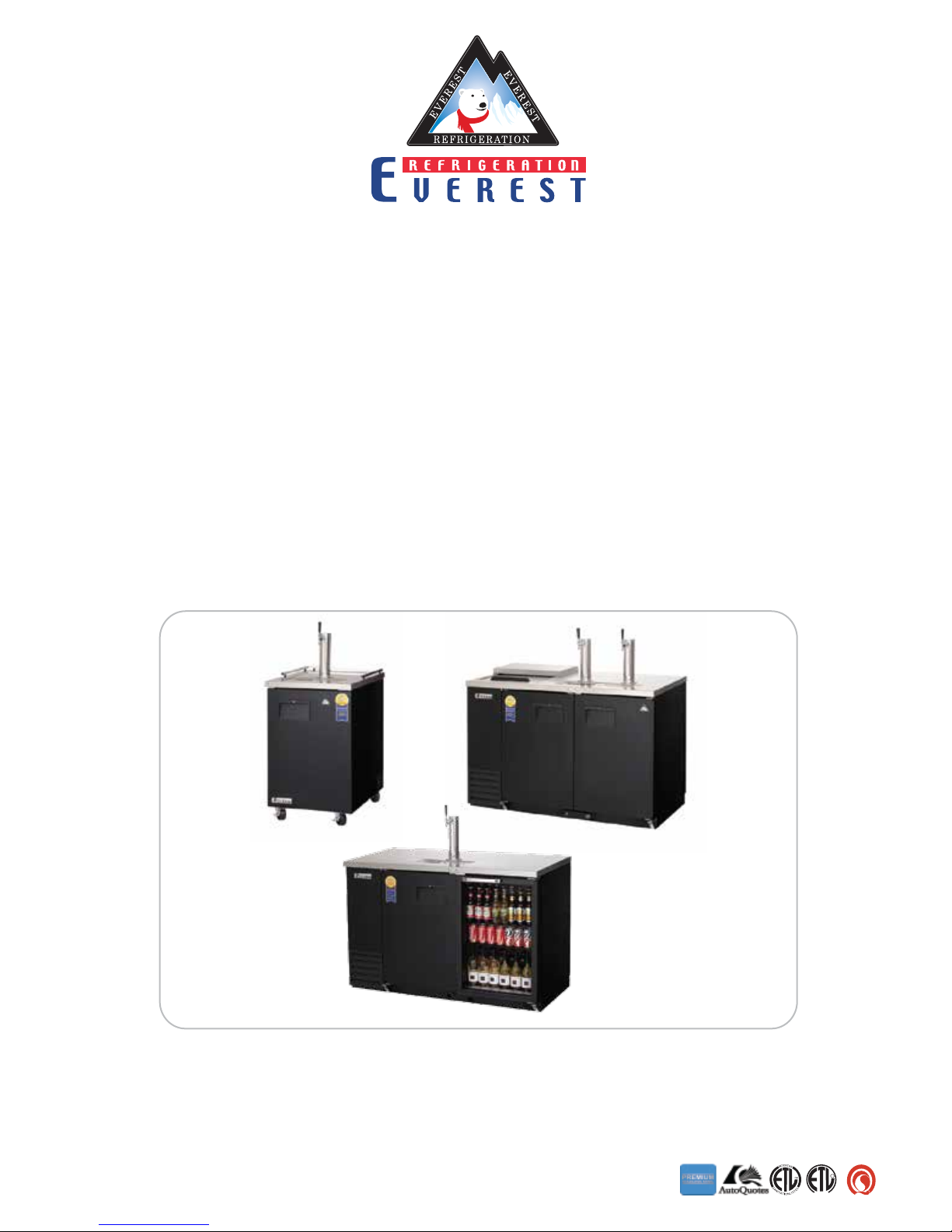

Everest ebd1 User manual

EBD1, EBD2, EBD3, EBD4
EBDS2-24, EBD2-24, EBD3-24, EBD4-24
EBD2-BB, EBD2-BBG, EBD3-BB, EBD3-BBG
EBDS2-BB-24, EBD2-BB-24, EBD3-BB-24
EBDS2-BBG-24, EBD2-BBG-24, EBD3-BBG-24
EBD2-CT, EBD3-CT, EBD4-CT
Direct Draw Keg Refrigerators
24" Deep Direct Draw Keg Refrigerators
Back Bar & Direct Draw Keg Refrigerators
24" Deep Back Bar & Direct Draw Keg Refrigerators
Club Top Direct Draw Keg Refrigerators
ISO-9001
US
L
I
S
T
E
D
R
C
Thank you for choosing EVEREST
A Step Above the Standard
Owner’s Manual for models:
www.EVEREST .ref
com

When installing the unit, be careful that the
electrical cord is not under the unit or
pressed against the wall.
This could cause a damage
to the cord.
time, make sure the unit
is free from all packaging.
Packaging left
on the unit
during
operation may
To prevent electrical shock, please do
not plug or unplug the cord
with wet hands.
WARNING - When using your appliance, always follow basic precautions, including
the following :
Install the unit on a hard
and level surface.
Before cleaning or maintaining the unit,
please unplug it. Do not use any
around the unit.
Please do not store temperature
sensitive items in the unit,
such as medical or
science research
related materials.
If you suspect a refrigerant leak,
unplug the unit and
immediately contact an
authorized service
technician.
Please do not hang or climb
on the unit as this may
cause the unit to fall.
Safety Notices
Safety Notices
REFRIGERATION
1

Safety Notices
Safety Notices
To prevent electrical shock and
malfunction, do not spray the
unit with water.
Clean the pronges of the electrical plug
with a soft cloth or brush before plugging
it into an electrical receptacle to prevent a
WARNING - Read and follow all safety notices in this installation guide.
information. Failure to do so may lead to serious injury and /
or damage to the unit.
When it is time to salvage the unit,
make sure to remove the rubber gaskets
from the doors to prevent the risk of
children or animals getting
trapped inside the unit.
REFRIGERATION
2
To minimize shock and re hazards, be sure
not to overload the outlet into which the
unit is plugged into. A dedicated circuit of
sucient amperage is required.
To prevent damage to the electrical
components, have the unit plugged in directly
to its own circuit. EVEREST is not responsible
for any damage caused by improper electrical
connections resulting from electrical power
failure, use of extension cords &
surge protectors, and any
voltage drops to the unit.

Caution!
Caution!
To prevent electrical shock and damage to
the electrical cord, please hold
the plug head
when plugging
and unplugging
the unit.
Do not use the
electrical cord
or plug if they
are damaged
in any way.
To avoid personal injuries
from broken glass,
please do not
place glass items
in the freezer.
After unplugging the unit, please wait at
least 6 minutes
before re-plugging
it in. Failure to do
so could cause
extensive damage
to the compressor.
Avoid installing the
unit where it could
be exposed to
water or
moisture.
If the unit will
not be used for an
extended period of
time, please unplug
it from the outlet.
Please do not attempt to
remove or
repair any
components
unless you are
an authorized
service technician.
The refrigerator compartment temperature
should be set at 32°F~41°F(See page 9).
Setting the temperature out of the recom-
mended ranges will void the unit’s warranty.
Do not put your hands under the unit when
moving it. You could be injured by sharp
edges, protruding parts,
crushing, etc.
REFRIGERATION
3

Installation Guide
Installation Guide
Install the unit on a hard and level surface
or the unit could produce undesired noises.
The unit should be at least 2” away from the
wall.
Indoor Use Only
Outdoor use may cause a decrease in
unit.
Dusty and High Humidity Areas
Dusty environments will cause the
condenser coil to prematurely clog which
will require it to be cleaned more often.
High humidy environments could cause
the unit to rust.
Do not build an enclosure or cabinet
around the unit.
condenser area will cause the compressor to
work harder, which can result in compressor
failure and the unit not being able to
maintain the desired temperature.
Select a location away from other heat
and moisture generating equipment
such as stoves, ovens, dish washers, etc.
High ambient temperatures cause the
compressor to work harder, which can result
in compressor failure and the unit not being
able to maintain the desired temperature.
REFRIGERATION
4

Maintenance Guide
Maintenance Guide
Shelf Cleaning
Periodically remove the shelves from the unit
and clean them
with mild soap
and warm water.
Door Gasket Cleaning
To preserve the life span of the door gaskets,
clean the gaskets
with mild soap
and water on
a regular basis.
Do not use the following products when cleaning
Clean the exterior of the product with mild soap and warm water.
Never use steel wool, strong acids, abrasive cleaners or degreasers.
Acidic products and products containing vinegar must be stored
in sealed containers to prevent corrosion to the interior of the
unit and the evaporator coil. (corrosion resulting from the lack
of or improper maintenance will not be covered under warranty).
Interior Cleaning
Clean the interior surface of the unit with mild soap and warm
water. Do not let water accumulate inside the unit. To prevent
water damage, wipe the interior of the unit with a dry cloth as
needed. Do not use abrasive cleaners, concentrated detergents,
bleaches, cleaning waxes, solvents or polishes to clean the interior
of the unit.
Condenser Coil Cleaning
Poor condensing unit performance is caused by heavy dust
build-up on the condenser coil. The condenser coil should be
condenser with a soft brush or a vacuum with a brush
attachment. The condenser coil should be cleaned in the
REFRIGERATION
5

Please check the following before requesting service.
Trouble Shooting
Trouble Shooting
Symptom Possible Solutions
Condensing unit
fails to start
Refrigerated
compartment is too
cold
Sound of water
dripping
Exterior walls are
warm
Condensation on the
interior
Condensation on the
exterior surface
Noisy operation
Cabinet does not
maintain proper
temperature
REFRIGERATION
6
heat
a. Ensure the electrical cord has been connected.
b. Ensure the unit is turned on.
a. Adjust the temperature control to a warmer
setting.
a. This is the sound of the refrigerant circulating
during the compressor rest period and it is
normal.
a. Heaters have been placed around the door
openings to prevent condensation buildup.
This is normal.
a. Condensation can occur during hot and humid
weather with frequent or prolonged door
opening.
This is normal.
b. The doors might not be closed properly. Check door
alignment and for proper seal.
a. Condensation on the exterior surface of the
unit is perfectly normal during periods of high
humidity.
b. Check door alignment and gaskets for proper
seal.
a. Check for loose parts.
b. Check for tubing rattle.
c. Check for a bent fan blade.
d. Check for damaged fan motor bearings.
e. Ensure the unit is stable.
f. Ensure the cabinet is level.
a. Check the door gaskets for proper seal.
b. Check to see if the temp. control setting is too
high, then adjust as necessary.
c. Avoid installing the unit next to heat generating
equipment and direct sunlight.
d. Avoid storing hot contents.
e. Ensure the doors are fully closed.

Warning - Never attempt to adjust a shelf when loaded!
Shelves(If equipped)
The unit’s shelves are adjustable so that
the refrigerated compartment can be
The shelf clip pilasters are spaced and
labeled in 1” increments for your
convenience.
To install a shelf, hook the shelf clips into the pilasters by inserting the top part of the clips
To remove a shelf, start by unloading the shelf. Second, remove the shelf itself. Finally,
remove the shelf clips by tilting them up and allowing the bottom of the clip to come out
Shelf Clip
Pilaster
1”
Shelves
Shelves
REFRIGERATION
7

Specification
Specifications
REFRIGERATION
8
Model
Capacity( Cu. Ft.)
Door(s)
Shelves
Compressor (HP)
Power (V-Hz-Ph)
Temp. Range (°F)
32 - 42 32 - 42 32 - 42 32 - 42
32 - 42 32 - 42 32 - 42 32 - 42
Refrigerant
Crated Weight (LBS)
Amps (A)
20.09
2
-
115 -60-1
R-134A
275
4.50
57 3/4 x 27 1/8 x 37 1/8
8.19
1
-
115-60-1
R-134A
160
3.90
24.01
2
-
115-60-1
R-134A
313
4.50
68 x 27 1/8 x 37 1/8
32.37
3
-
1/4+1/5 1/4+ 1/3
115-60-1
R-134A
363
4.50
89 1/4 x 27 1/8 x 37 1/8
EBD1 EBD2 EBD3 EBD4
Exterior Dimensions
(W x D x H* inches) 23 3/4 x 31 1/8 x 39
a b
* Ext. height does not includes 5” for towers.
(This EBD1 model is equipped with pre-installed casters as standard feature).
†Depth does not include protruding door handle.
aDepth includes 1 1/2” for back grill.
bHeight includes 5” for casters.
[NOTE]
Direct Draw Keg Refrigerators
Model
Capacity( Cu. Ft.)
Door(s)
Shelves
Compressor (HP)
Power (V-Hz-Ph)
Temp. Range (°F)
Refrigerant
Crated Weight (LBS)
Amps (A)
20.09
1(SD), 1(GD) 1(SD), 1(GD)
2
115 -60-1
R-134A
297
4.504.50 4.50
57 3/4 x 27 1/8 x 37 1/857 3/4 x 27 1/8 x 37 1/8
20.09
2(SD)
2
115-60-1
R-134A
280
24.01
2(SD)
2
115-60-1
R-134A
320
4.50
68 x 27 1/8 x 37 1/8 68 x 27 1/8 x 37 1/8
24.01
2
115-60-1
R-134A
337
EBD2-BB EBD2-BBG EBD3-BB EBD3-BBG
Exterior Dimensions
(W x D x H* inches)
1/4+ 1/4+ 1/4+ 1/4+
Capacity
12 oz. Cans / Bottles 280 / 192 280 / 192 360 / 240 360 / 240
Back Bar & Direct Draw Keg Refrigerators
Model
Capacity( Cu. Ft.)
Door(s)
Shelves
Compressor (HP)
Power (V-Hz-Ph)
Temp. Range (°F) 32 - 42 32 - 42 32 - 42 32 - 42
Refrigerant
Crated Weight (LBS)
Amps (A)
16.86
2
115 -60-1
R-134A
280
4.50
57 3/4 x 24 1/2 x 37 1/8
13.95
2
115-60-1
R-134A
250
4.50
20.41
2
115-60-1
R-134A
297
4.50
68 x 24 1/2 x 37 1/8
27.76
-- - -
3
1/4+1/4+ 1/4+ 1/3
115-60-1
R-134A
380
4.50
89 1/4 x 24 1/2 x 37 1/8
EBDS2-24 EBD2-24 EBD3-24 EBD4-24
Exterior Dimensions
(W x D x H* inches) 49 x 24 1/2 x 37 1/8
24" Deep Direct Draw Keg Refrigerators
†

24.01
2
1
1/4+
115 -60-1
R-134A
331
4.50
20.09
2
1
1/4+
115-60-1
R-134A
293
4.50
32.37
3
1
1/3
115-60-1
R-134A
373
4.50
EBD2-CT EBD3-CT EBD4-CT
57 3/4 x 27 1/8 x 37 1/8 68 x 27 1/8 x 37 1/8 89 1/4 x 27 1/8 x 37 1/8
Club Top Direct Draw Keg Refrigerators
Model
Capacity( Cu. Ft.)
Door(s)
Shelves
Compressor (HP)
Power (V-Hz-Ph)
Temp. Range (°F)
Refrigerant
Crated Weight (LBS)
Amps (A)
Exterior Dimensions
(W x D x H* inches)
Specification
Specifications
REFRIGERATION
9
32 - 42 32 - 42 32 - 42
* Ext. height does not includes 5” for towers.
†Depth does not include protruding door handle.
[NOTE]
24" Deep Back Bar & Direct Draw Keg Refrigerators
16.86
2(SD)
2
1/4+
115 -60-1
R-134A
277
4.50
13.95
2(SD)
2
1/4+
115-60-1
R-134A
254
4.50
20.41
2(SD)
2
1/4+
115-60-1
R-134A
310
4.50
EBDS2-BB-24 EBD2-BB-24 EBD3-BB-24
49 x 24 1/2 x 37 1/8 57 3/4 x 24 1/2 x 37 1/8 68 x 24 1/2 x 37 1/8
Model
Capacity( Cu. Ft.)
Door(s)
Shelves
Compressor (HP)
Power (V-Hz-Ph)
Temp. Range (°F)
Refrigerant
Crated Weight (LBS)
Amps (A)
Exterior Dimensions
(W x D x H* inches)
32 - 42 32 - 42 32 - 42
16.86
1(SD), 1(GD)
2
1/4+
115 -60-1
R-134A
287
4.50
13.95
1(SD), 1(GD)
2
1/4+
115-60-1
R-134A
263
4.50
20.41
1(SD), 1(GD)
2
1/4+
115-60-1
R-134A
325
4.50
EBDS2-BBG-24 EBD2-BBG-24 EBD3-BBG-24
49 x 24 1/2 x 37 1/8 57 3/4 x 24 1/2 x 37 1/8 68 x 24 1/2 x 37 1/8
Model
Capacity( Cu. Ft.)
Door(s)
Shelves
Compressor (HP)
Power (V-Hz-Ph)
Temp. Range (°F)
Refrigerant
Crated Weight (LBS)
Amps (A)
Exterior Dimensions
(W x D x H* inches)
32 - 42 32 - 42 32 - 42
Capacity
12 oz. Cans / Bottles 175 / 126 245 / 168 315 / 210
Capacity
12 oz. Cans / Bottles 175 / 126 245 / 168 315 / 210
†

REFRIGERATION
Temperature Setting
Temperature Setting
OFF
( )
5
6
7
89
4
32
1
10
℉
[Temperature Setting Range]
1 ~ 3
3 ~ 5
6 ~ 9
On
O
On
O
On
O
REF (℉)
48
41
39
31
30
21
Setting Range
Comp.
•Factory Recommended Setting: “5”

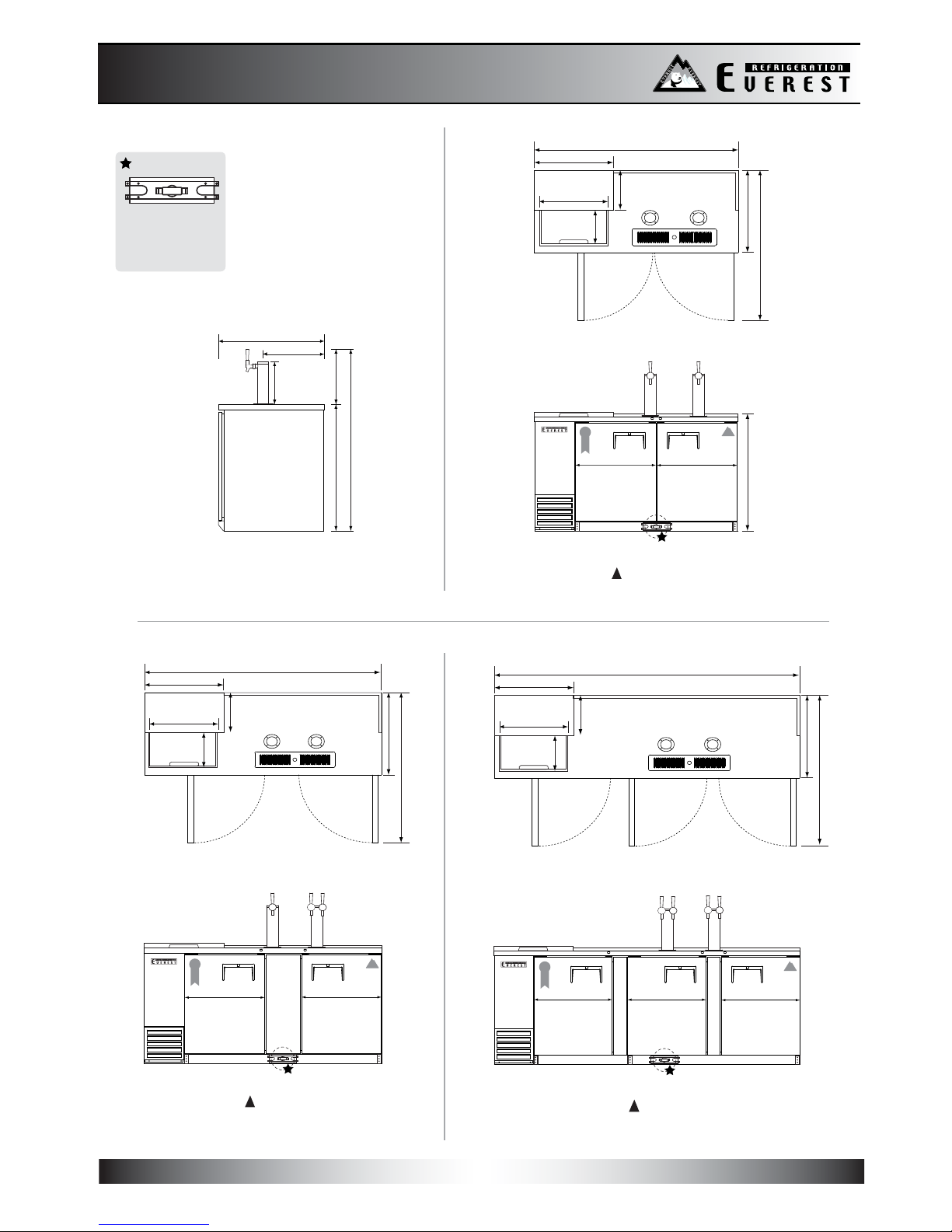

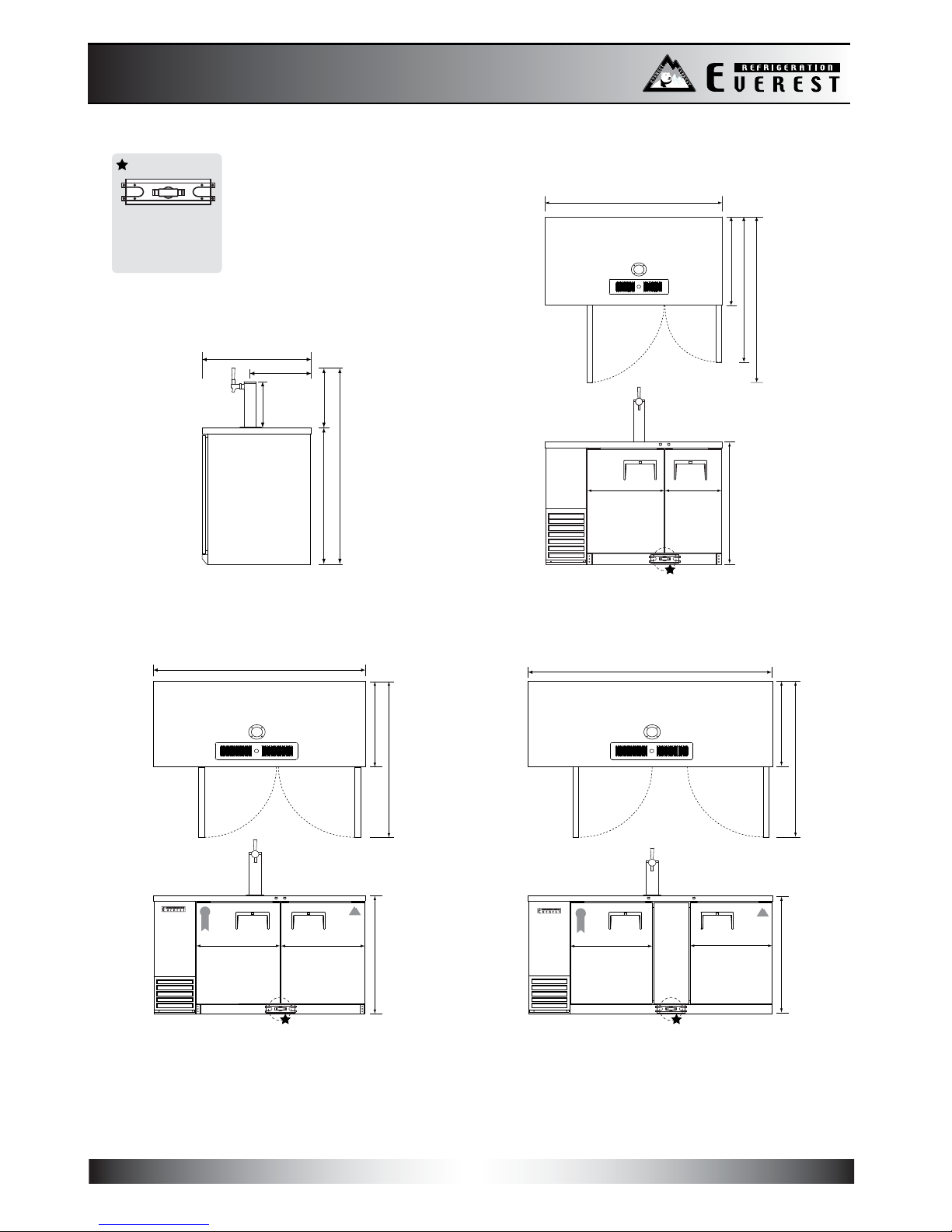

Product Drawings
Product Drawings
REFRIGERATION
11
Side View
27 1/8"
37 1/8"
12"
15 1/2"
16 3/4"
53 7/8"
EBD2
EBD3 EBD4
68"
22 3/4"22 3/4"
49"
27 1/8" 37 1/8"
89 1/4"
22 3/4"22 3/4" 22 3/4"
49"
27 1/8" 37 1/8"
31 1/8"
52"
23 3/4"
EBD1
22 3/4"
Pre-installed casters Top view
39"
5"
34"
16 3/4"
34"
50 3/4"
30"
31 1/8"
12"
16 1/2" 1 1/2"
57 3/4"
22 3/4" 22 3/4"
49"
27 1/8"
37 1/8"
Direct Draw Keg Refrigerators
T-Shaped PVC
Drain Fittings w/
Moveable Plug
3/4" O.D.

Product Drawings
Product Drawings
REFRIGERATION
12

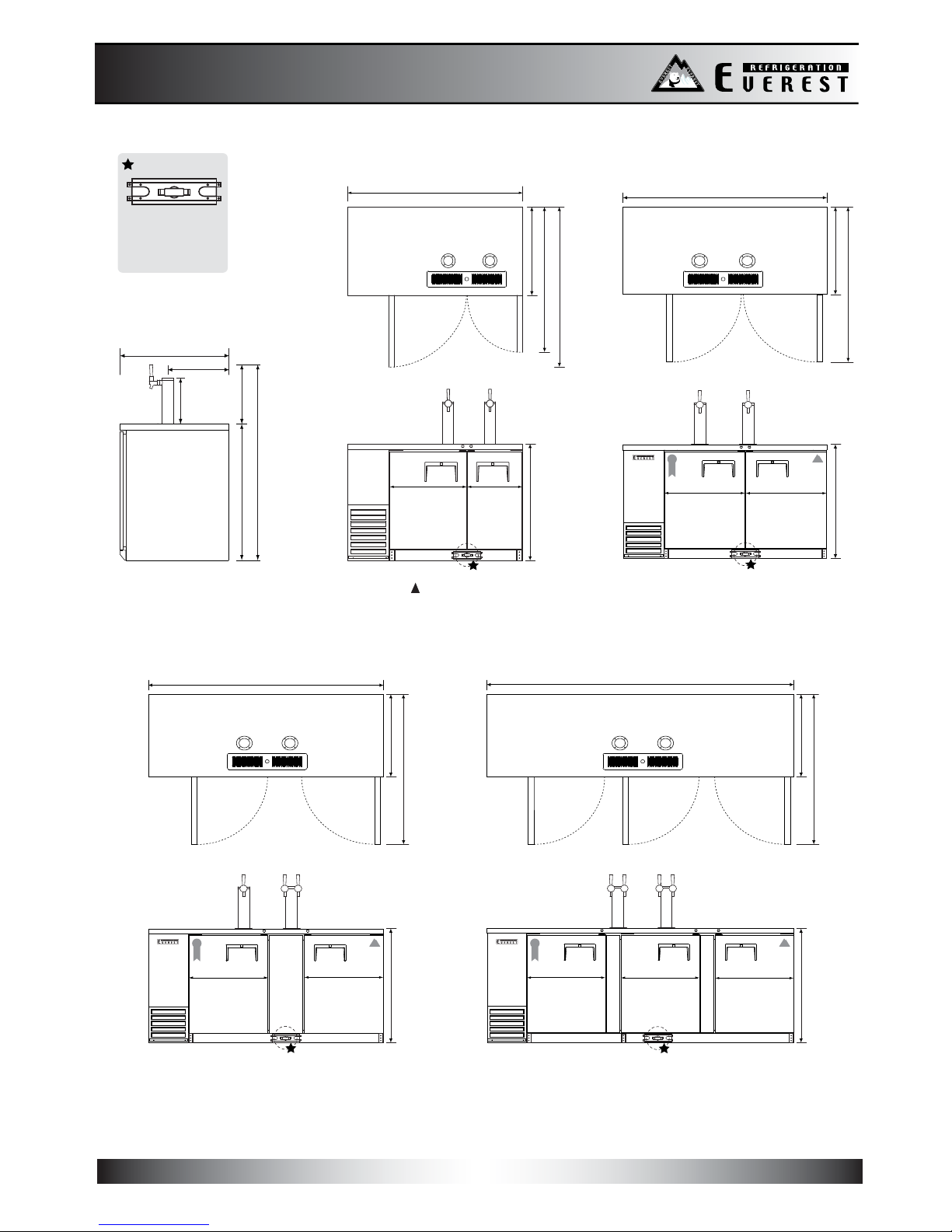

24" Deep Direct Draw Keg Refrigerators
37 1/8"
12"
16 3/4"
53 7/8"
13"
24 1/2"
24 1/2"
EBD2-24
EBD3-24 EBD4-24
57 3/4"
89 1/4"
22 3/4"22 3/4" 22 3/4"
37 1/8"
37 1/8"
37 1/8"
68"
22 3/4"22 3/4"
22 3/4" 22 3/4"
24 1/2"
46 1/2"
24 1/2"
46 1/2" 46 1/2"
Side View
T-Shaped PVC
Drain Fittings w/
Moveable Plug
3/4" O.D.
20 3/4" 16"
49"
24 1/2"
39 3/4"
44 1/2"
EBDS2-24
37 1/8"

Product Drawings
Product Drawings
REFRIGERATION
13
EBD2-BB
22 3/4" 22 3/4"
Beer
Kegs
Bottles
&
Cans
37 1/8"
57 3/4"
27 1/8"
49"
EBD2-BBG
22 3/4" 22 3/4"
Beer
Kegs
Bottles
&
Cans
37 1/8"
EBD3-BB
22 3/4"22 3/4"
Beer
Kegs
Bottles
&
Cans
37 1/8"
68"
27 1/8"
49"
68"
27 1/8"
49 1/2"
EBD3-BBG
22 3/4"22 3/4"
Beer
Kegs
Bottles
&
Cans
37 1/8"
27 1/8"
37 1/8"
12"
15 1/2"
16 3/4"
53 7/8"
Side View
(EBD2-BB / EBD3-BB)
Back Bar & Direct Draw Keg Refrigerators
T-Shaped PVC
Drain Fittings w/
Moveable Plug
3/4" O.D.
27 1/8"
37 1/8"
12"
15 1/2"
16 3/4"
53 7/8"
Side View
(EBD2-BBG / EBD3-BBG)

Product Drawings
Product Drawings
REFRIGERATION
14
24" Deep Back Bar & Direct Draw Keg Refrigerators
EBDS2-BB-24
EBD3-BB-24
68"
37 1/8"
22 3/4"22 3/4"
Beer
Kegs
Bottles
&
Cans
37 1/8"
37 1/8"
12"
16 3/4"
53 7/8"
13"
24 1/2"
24 1/2"
46 1/2"
20 3/4" 16"
49"
24 1/2"
39 3/4"
44 1/2"
Beer
Kegs
Bottles
&
Cans
EBD2-BB-24
57 3/4"
22 3/4" 22 3/4"
Beer
Kegs
Bottles
&
Cans
24 1/2" 37 1/8"
46 1/2"
T-Shaped PVC
Drain Fittings w/
Moveable Plug
3/4" O.D.

Product Drawings
Product Drawings
REFRIGERATION
15
24" Deep Back Bar & Direct Draw Keg Refrigerators
EBDS2-BBG-24
37"
20 3/4" 16"
49"
24 1/2"
40 1/4"
44 1/2"
Beer
Kegs
Bottles
&
Cans
37 1/8"
12"
16 3/4"
53 7/8"
13"
24 1/2"
EBD2-BBG-24
57 3/4"
22 3/4" 22 3/4"
Beer
Kegs
Bottles
&
Cans
37 1/8"
24 1/2"
47"
22 3/4"
Bottles
&
Cans
EBD3-BBG-24
68"
22 3/4"22 3/4"
Beer
Kegs
Bottles
&
Cans
37 1/8"
24 1/2"
47"
T-Shaped PVC
Drain Fittings w/
Moveable Plug
3/4" O.D.

Product Drawings
Product Drawings
REFRIGERATION
16
EBD2-CT
12 3/4"
27 1/8"
49"
12 3/4"
37"
23 1/16"
19 7/8"
57 3/4"
22 3/4" 22 3/4"
EBD3-CT
12 3/4"
27 1/8"
49"
12 3/4"
23 1/16"
19 7/8"
68"
22 3/4" 22 3/4"
EBD4-CT
22 3/4" 22 3/4" 22 3/4"
12 3/4"
27 1/8"
49"
23 1/16"
19 7/8"
89 1/4"
27 1/8"
37 1/8"
12"
15 1/2"
16 3/4"
53 7/8"
Side View
Club Top Direct Draw Keg Refrigerators
T-Shaped PVC
Drain Fittings w/
Moveable Plug
3/4" O.D.
12 3/4"

REFRIGERATION
17
Installation
Installation

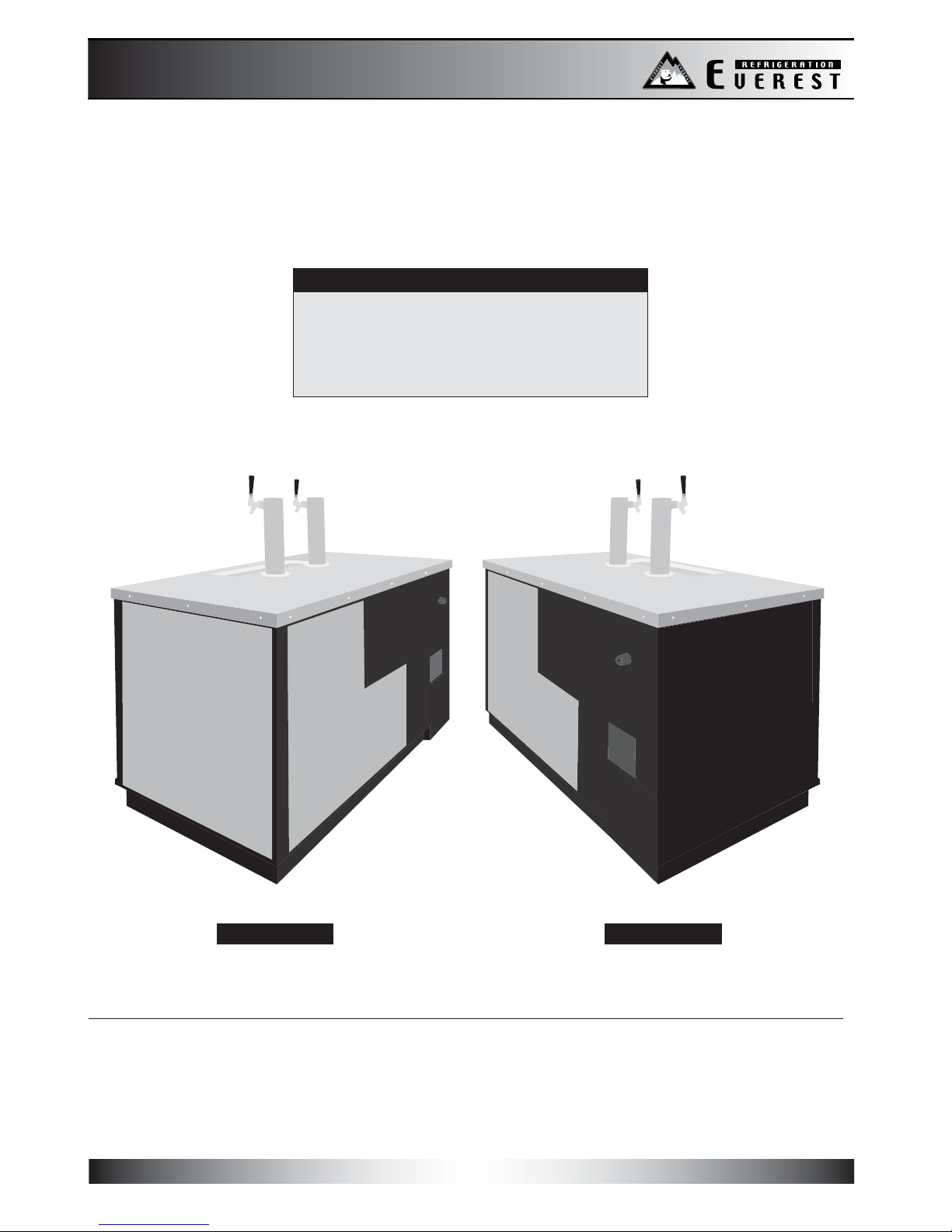

To avoid damaging refrigeration components and wiring, please drill holes for CO2 lines only in the highlighted areas.
For further assistance, please contact our Technical Support Department at 1-800-444-6285.
Drilling Ports For CO2 Lines
Applicable Serial Numbers
BBD1-0801-XXXX ~ BBD1-1209-XXXX
BBD2-0801-XXXX ~ BBD1-1209-XXXX
BBD3-0801-XXXX ~ BBD1-1209-XXXX
BBD4-0801-XXXX ~ BBD1-1209-XXXX
Right Back ViewLeft Back View
Wall-integrated Drain Line

REFRIGERATION
18
To avoid damaging refrigeration components and wiring, please drill holes for CO2 lines only in the highlighted areas.
For further assistance, please contact our Technical Support Department at 1-800-444-6285.
Drilling Ports For CO2 Lines
Applicable Serial Numbers
BBD1-1210-XXXX ~ Present
BBD2-1210-XXXX ~ Present
BBD3-1210-XXXX ~ Present
BBD4-1210-XXXX ~ Present
Right Back ViewLeft Back View
Installation
Installation

REFRIGERATION
NOTE

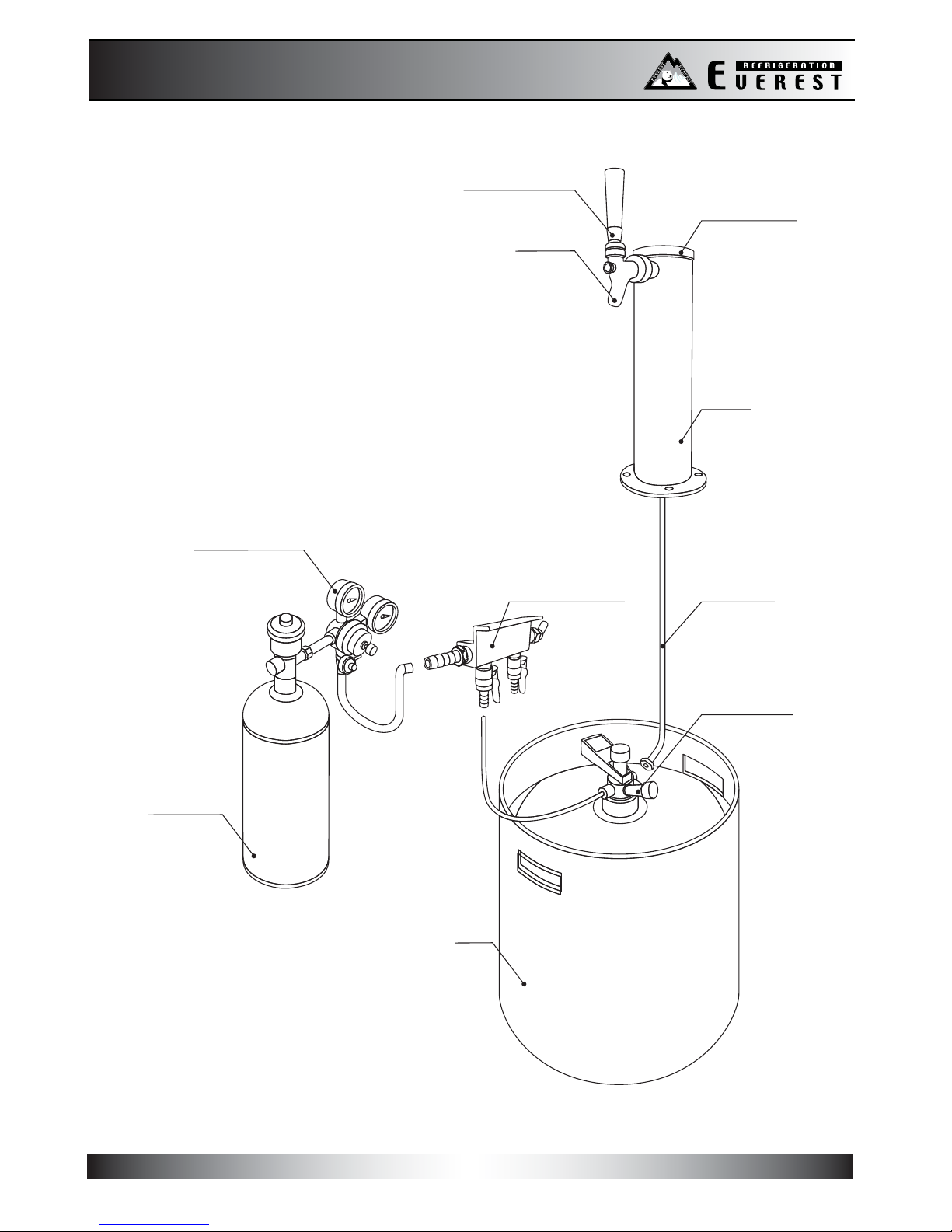

The keg, keg coupler, CO2 regulator, CO2 tank, keg coupler to CO2 distributor line, and CO2 distributor to CO2 regulator line,
are not included with your keg refrigerator. These items can be obtained from your beverage distributor. The beer tower with
faucet, faucet handle, tower beer line, and CO2 distributor are included.
Faucet Handle
Faucet
Tower Cover
Tower
Beer Line
Co2 Regulator
Co2 Tank
Keg
Keg Coupler
Co2 Distributor*
Air distributor is only on multiple keg units, each keg
is conneted to a valve on the air distributor.
Single keg is connected directly to the regulator.
*
19
Installation Instructions
Installation Instructions
