EverFocus eIVP-CML-AI-D0000 User manual

eIVP-CML-AI-D0000
Intel® 10th Gen. AI Box
User’s Manual
Copyright © EverFocus Electronics Corp.
Release Date: September 2021

EVERFOCUS ELECTRONICS CORPORATION
eIVP-CML-AI-D0000
Intel® 10th Gen AI Box
User’s Manual
1995-2021 EverFocus Electronics Corp.
www.everfocus.com.tw
Disclaimer
All the images including product pictures or screen shots in this document are for example only. The
images may vary depending on the product and software version. Information contained in this document
is subject to change without notice.
Copyright
All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form
or by any means without written permission of the EverFocus Electronics Corporation.
-Intel Core is a registered trademark of Intel Corporation
-HDMI and VGA are trademarks of International Business Machines Corporation.
All other product names or trademarks are properties of their respective owners.

ii
Safety Precautions
Please read the following safety instructions carefully. It is advised that you keep this manual
for future references.
All cautions and warnings on the device should be noted.
All cables and adapters supplied by EverFocus are certified and in accordance with the
material safety laws and regulations of the country of sale. Do not use any cables or
adapters not supplied by EverFocus to prevent system malfunction or fires.
Make sure the power source matches the power rating of the device.
Position the power cord so that people cannot step on it. Do not place anything over the
power cord.
Always completely disconnect the power before working on the system’s hardware.
No connections should be made when the system is powered as a sudden rush of power
may damage sensitive electronic components.
If the device is not to be used for a long time, disconnect it from the power supply to avoid
damage by transient over-voltage.
Always disconnect this device from any AC supply before cleaning.
While cleaning, use a damp cloth instead of liquid or spray detergents.
Make sure the device is installed near a power outlet and is easily accessible.
Keep this device away from humidity.
Place the device on a solid surface during installation to prevent falls.
Do not cover the openings on the device to ensure optimal heat dissipation.
Watch out for high temperatures when the system is running.
Do not touch the heat sink or heat spreader when the system is running.
Never pour any liquid into the openings. This could cause fire or electric shock.
As most electronic components are sensitive to static electrical charge, be sure to ground
yourself to prevent static charge when installing the internal components. Use a grounding
wrist strap and contain all electronic components in any static-shielded containers.
If any of the following situations arises, please contact our service personnel
([e-mail]):
-Damaged power cord or plug
-Liquid intrusion to the device
-Exposure to moisture
-Device is not working as expected or in a manner as described in this manual
-The device is dropped or damaged
-Any obvious signs of damage displayed on the device
DO NOT LEAVE THIS DEVICE IN AN UNCONTROLLED ENVIRONMENT WITH TEMPERATURES
BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE SPECIFICATION) TO
PREVENT DAMAGE.

iii
FCC Statement
This device complies with Part 15 FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received including
interference that may cause undesired operation.
Caution:
There is a danger of explosion if the battery is incorrectly replaced. Replace only with the same
or equivalent type recommended by the manufacturer. Dispose of used batteries according to
the manufacturer’s instructions and your local government’s recycling or disposal directives.
Attention:
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte.
Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur.
Recycler les batteries usées en accord avec les instructions du fabricant et les directives
gouvernementales de recyclage.
This product complies with the High-Definition Multimedia Interface (HDMI) Specification
Adopter Agreement.

iv
TABLE OF CONTENTS
1. Introduction ............................................................................................................................ 1
1.1 Features .......................................................................................................................... 1
1.2 Dimensions...................................................................................................................... 2
1.3 Packing List...................................................................................................................... 2
1.4 Front Panel...................................................................................................................... 3
1.5 Rear Panel ....................................................................................................................... 3
2. Connection and Installation.................................................................................................... 4
2.1 Removing the Housing Cover.......................................................................................... 4
2.2 Memory Modules (SO-DIMM) Installation ..................................................................... 5
2.3 M.2 SSD Module Installation .......................................................................................... 6
2.4 M.2 WiFi/BT Module Installation.................................................................................... 7
2.5 2.5" SATA HDD Installation ............................................................................................. 8
2.6 VESA Mount Installation ................................................................................................. 9
3. Jumpers and Connectors on the Motherboard .................................................................... 10
3.1 Motherboard Layout..................................................................................................... 10
3.2 Jumpers Setup............................................................................................................... 11
3.3 Onboard Headers and Connectors ............................................................................... 12
3.4 Smart Switch ................................................................................................................. 13

eIVP-CML-AI-D0000 AI Box
1
1. Introduction
The eIVP-CML-AI-D0000 is a small-sized AI Box adopting Intel® 10th Gen Intel® 10th Gen LGA1200
Processors CPU with Intel® H410 chipset. The small footprint makes it suitable to fit on any desk or
rear monitors by using the VESA hole patterns.
Featured with an integrated heat sink and fan, the eIVP-CML-AI-D0000 comes with dual channel
DDR4 SO-DIMM memory slots, supporting up to 64GB memory. For storage, the model has a 2.5"
SATA bay and a key M (2280) slot, which supports PCIe x4 and SATA3 for SSD.
Connectivity-wise, the eIVP-CML-AI-D0000 supports additional M.2 (key E 2230) slot for wireless
connection; one RS-232 COM port; and two USB 3.2
Gen 1 Type-A ports, two USB 3.2 Gen 1 type-C ports and four USB2.0 ports. For audio and video,
the model provides a headphone and a microphone jack on the front panel, an audio line-out jack
on the rear panel, and triple display outputs including HDMI, DP and VGA ports.
1.1 Features
•Intel® 10th Gen LGA1200 Processors, up to 65W
•260-pin DDR4 2933 MHz SO-DIMM x 2, up to 64GB (32GB per DIMM)
•USB 3.2 Gen1 (Type-A) x 2, USB 3.2 Gen1 (Type-C) x 2, USB 2.0 x 4
•M.2 Key E x 1, M.2 Key M x 1, COM x 1, SATA3 x 1
•Realtek 1GbE LAN x 1
•Supports dual display, HDMI 1.4b x 1, DP 1.4a x 1, VGA x 1
•CE, FCC, RoHS certified
Chapter
1

eIVP-CML-AI-D0000 AI Box
2
1.2 Dimensions
178mm / 7"
186.29mm / 7.33"
179.49mm / 7.07"
177.9mm / 7"
33.95mm / 1.34"
35.75mm / 1.41"
1.3 Packing List
•AI Box x 1
•19V/90W AC-DC power adapter x 1
•SATA screw package x 1 (already installed inside)
•WiFi antenna x 2 (only for models built-in with WiFi module)
•Stand bracket x 1
•VESA mount bracket and screw package x 1
Note:
1. Equipment configurations and supplied accessories vary by country. Please consult your
local EverFocus office or agents for more information. Please also keep the shipping carton
for possible future use.
2. Contact the shipper if any items appear to have been damaged in the shipping process.

eIVP-CML-AI-D0000 AI Box
3
1.4 Front Panel
13 4
25 6 7
No. Description
No
Description
1 Power Button (SW1). Press the button to
quickly turn on/off the system. 5 USB 3.1 Gen1 Type-A Port (USB_2)
2 USB 3.1 Gen1 Type-A Port (USB_1) 6 Microphone Input (AUDIO2)
3 USB 3.1 Gen1 Type-C Port (USB31_TC_1) 7 Headphone/Headset Jack
4 USB 3.1 Gen1 Type-C Port (USB31_TC_2)
1.5 Rear Panel
1 2 3 4 5 678 9 1010
No. Description No. Description
1 Headphone Jack (Audio Line-Out) 6 LAN RJ-45 Port (Refer to Note)
2 Display Port 7 USB2.0 Ports (USB_4_5)
3 HDMI Port 8 USB2.0 Ports (USB_6_7)
4 VGA Port 9 DC Jack
5 COM Port (RS-232) 10 Antenna Port
Note: There are 2 LED indicators on the LAN port. Please refer to the below LED status.
Speed ACT/LINK
Speed LED Status
Off: 10Mbps connection
Green: 100Mbps connection
Orange: 1Gbps connection
Activity / Link LED Status
Off: No link
Green: Data activity
Orange: Link

eIVP-CML-AI-D0000 AI Box
4
2. Connection and Installation
2.1 Removing the Housing Cover
Make sure the system is power-off. Unscrew the two screws on the rear panel, slightly pull the
cover backward and then lift up the cover to remove it.
1
2
Chapter
2

eIVP-CML-AI-D0000 AI Box
5
2.2 Memory Modules (SO-DIMM) Installation
You can install up to two 260-pin DDR4 SO-DIMM slots to the system.
Note:
1. It's not allowed to install any DDR rather than DDR4 into the DDR4 slots, such as DDR,
DDR2 or DDR3, which may cause damage to the motherboard and SO-DIMM.
2. The SO-
DIMM only fits in one correct orientation. It will cause permanent damage to the
motherboard and SO-DIMM if you force the SO-DIMM into the slot at incorrect
1. Find the SO-DIMM slots on the motherboard.
2. Carefully insert the SO-DIMM memory modules into the slots at a 30-degree angle. Push
down until the modules snap into place.
SO-DIMM Memory Modules

eIVP-CML-AI-D0000 AI Box
6
2.3 M.2 SSD Module Installation
The M.2 SSD socket (M2_1) supports SATA3 6Gb/s module and M.2 PCIe module up to Gen3 x4
(32Gb/s).
1. Prepare a M.2 SSD module and a screw.
2. Gently insert the M.2 SSD module into the M.2 slot. Please be aware that the M.2 SSD
module only fits in one orientation.
3. Tighten the screw to secure the module into place. Please do not overtighten the screw as
this might damage the module.

eIVP-CML-AI-D0000 AI Box
7
2.4 M.2 WiFi/BT Module Installation
The M.2 key E socket supports type 2230 wireless (WiFi/BT) module. Note that this M.2 socket
does not support SATA M.2 SSD.
1. Prepare a type 2230 wireless module and a screw.
2. Gently insert the wireless module into the M.2 slot. Please be aware that the M.2 SSD
module only fits in one orientation.
3. Tighten the screw to secure the module into place. Please do not overtighten the screw as
this might damage the module.
4. Connect one end of the RF cables to the module and the other end to the Antenna ports on
the rear panel of the system.
5. Connect the wireless Antenna to the Antenna ports on the rear panel of the system.

eIVP-CML-AI-D0000 AI Box
8
2.5 2.5" SATA HDD Installation
You can install one 2.5” SATA SSD/HDD inside the system.
1. Make sure the system is power-off and remove the housing cover.
2. Use the provided screws to secure the HDD on the HDD holder.
3. Pull the release lever of the HDD bracket outward. Place the HDD into the HDD bracket and
slide the HDD into the bracket firmly.
4. Connect the HDD SATA cable to the SATA port.

eIVP-CML-AI-D0000 AI Box
9

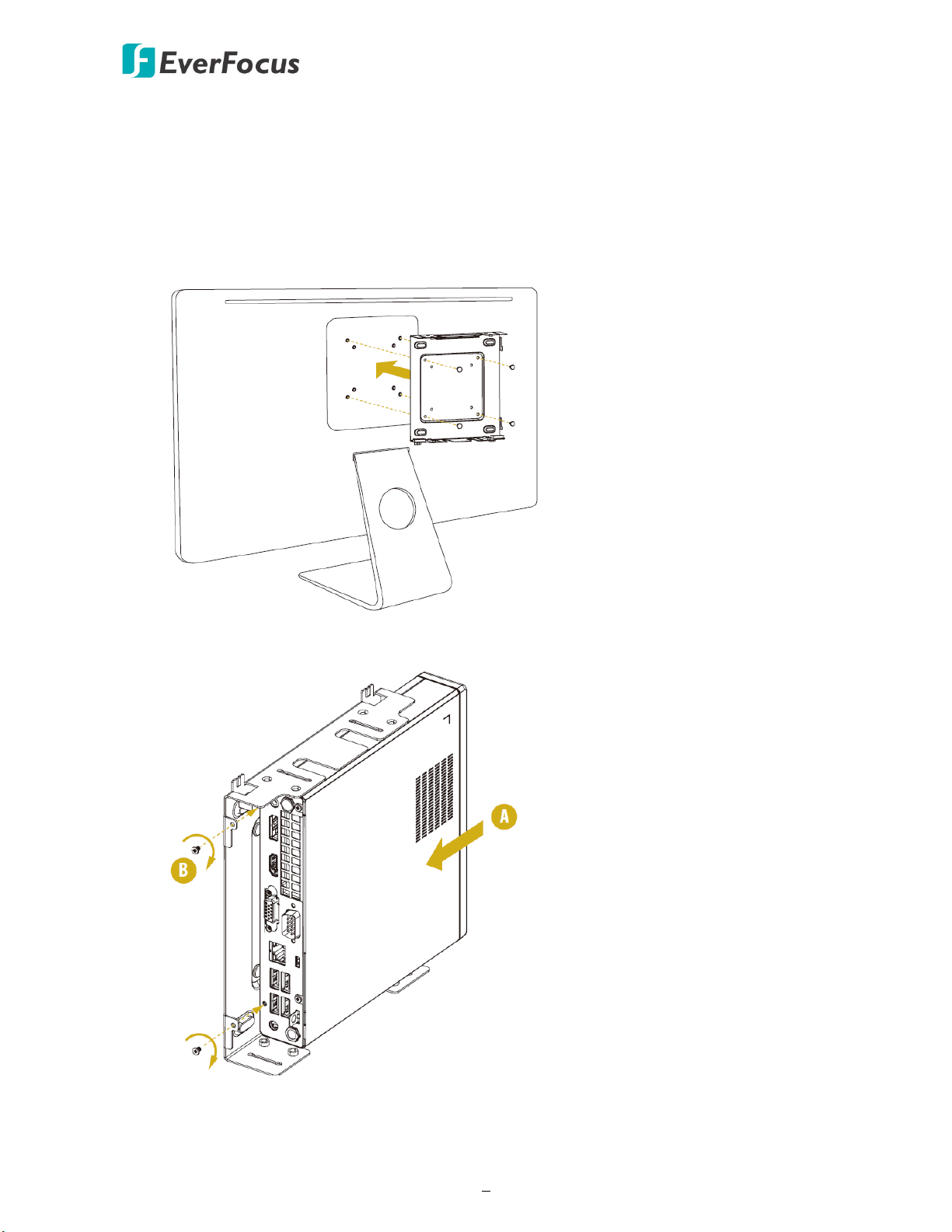

2.6 VESA Mount Installation
You can use the provided VESA mount bracket and screw package to install the system on the
rear side of a monitor.
1. Screw the VESA mount plate to the rear side of a monitor.
2. Slide the system into the VESA mount plate and then using the M2.5 screws to secure the
system to the VESA mount plate.

eIVP-CML-AI-D0000 AI Box
10
3. Jumpers and Connectors on the Motherboard
3.1 Motherboard Layout
1 2
3
4
5
6
7
8
No. Description
1 2 x 260-pin DDR4 SO-DIMM Slots (DDR4_A1, DDR4_B1)
2 CPU Fan Connector (CPU_FAN1)
3 2.5W Mono Out Speaker Header (MONO1)
4 SATA3 Connector (SATA0)
5 ROM Recovery Header (ROM_R)
6 Clear CMOS Jumper (CLRMOS1)
7 Chassis Intrusion Header (CI1)
8 COM Port Header (COM1)
Chapter
3

eIVP-CML-AI-D0000 AI Box
11
3.2 Jumpers Setup
The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the
jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”.
Clear CMOS Jumper
(CLRCMOS1)
(see p.10, No. 6)
Short: Clear CMOS
Open: Default
CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS includes system setup
information such as system password, date, time, and system setup parameters. To clear and
reset the system parameters to default setup, please turn off the computer and unplug the power
cord, then use a jumper cap to short the pins on CLRCMOS1 for 3 seconds. Please remember to
remove the jumper cap after clearing the CMOS. If you need to clear the CMOS when you just
finish updating the BIOS, you must boot up the system first, and then shut it down before you do
the clear-CMOS action.
Note: If you clear the CMOS, the case open may be detected. Please adjust the BIOS option
“Clear Status” to clear the record of previous chassis intrusion status.

eIVP-CML-AI-D0000 AI Box
12
3.3 Onboard Headers and Connectors
Please note that the onboard headers and connectors are NOT jumpers. Do NOT place jumper
caps over these headers and connectors, otherwise, it will cause permanent damage to the
motherboard.
CPU Fan Connectors (CPU_FAN1)
The motherboard provides a 4-Pin CPU fan
(Quiet Fan) connector. If you plan to connect a
3-Pin CPU fan, please connect it to Pin 1-3.
Refer to No.2in 3.1 Motherboard Layout.
ROM Recovery Header (ROM_R)
Thus header allows qualified technicians to
reload firmware into the SPI boot flash in case
there is problem with the data.
Refer to No.5in 3.1 Motherboard Layout.
2.5W Audio Amp Output Header (MONO1)
Please connect the chassis speaker to this
header.
Refer to No.3in 3.1 Motherboard Layout.
Chassis Intrusion Header (CI1)
The motherboard supports Case Open
detection feature that detects if the chassis
cover has been removed. This feature requires
a chassis with chassis intrusion detection
design.
Refer to No.7in 3.1 Motherboard Layout.
Serial ATA3 Connector (SATA0)
The SATA3 connector supports SATA data
cables for internal storage devices with up to
6.0 Gb/s data transfer rate.
Refer to No.4in 3.1 Motherboard Layout.
Serial Port Header (COM1)
The COM1 header supports a serial port
module.
Refer to No.8in 3.1 Motherboard Layout.

13
3.4 Smart Switch
The motherboard has one smart switch: Power Button.
Power Button
(SW1)
(see p.3, No. 1)
Power Button allows users to
quickly turn on/off the
system.

14
EverFocus Electronics Corp.
EverFocus Taiwan:
2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng
Dist., New Taipei City 222, Taiwan
TEL: [phone]
FAX: [phone]
www.everfocus.com.tw
[email protected]
EverFocus China - Shenzhen:
2F, No.9, Baoke Industrial Park, Langkou Industrial
Zone, Langkou Community, Dalang Street,
Longhua, Shenzhen 518109, Guangdong, China
TEL: [phone]
FAX: [phone]
www.everfocus.com.cn
[email protected]
EverFocus USA - California:
324 W Blueridge Avenue, Orange, CA 92865, USA
TEL: [phone]
FAX: [phone]
www.everfocus.com
[email protected]
EverFocus Japan:
4F, Maruei Building, 2-19-9 Iwamotocho, Chiyoda-
ku, Tokyo, Japan
TEL: [phone]
FAX: [phone]
www.everfocus.co.jp
[email protected]
Your EverFocus product is designed and
manufactured with high quality materials
and components which can be recycled
and reused.
This symbol means that electrical and
electronic equipment, at their end-of-life,
should be disposed of separately from
your household waste.
Please, dispose of this equipment at your
local community waste
collection/recycling centre.
In the European Union there are
separate collection systems for used
electrical and electronic product.
Please, help us to conserve the
environment we live in!
Ihr EverFocus Produkt wurde entwickelt
und hergestellt mit qualitativ
hochwertigen Materialien und
Komponenten, die recycelt und wieder
verwendet werden können.
Dieses Symbol bedeutet, dass elektrische
und elektronische Geräte am Ende ihrer
Nutzungsdauer vom Hausmüll getrennt
entsorgt werden sollen.
Bitte entsorgen Sie dieses Gerät bei Ihrer
örtlichen kommunalen Sammelstelle oder
im Recycling Centre.
Helfen Sie uns bitte, die Umwelt zu
erhalten, in der wir leben!
