EverFocus EMX32 User manual

EMX32
16-Channel IP Decoder
Quick Installation Guide
Copyright © EverFocus Electronics Corp.
Release Date: November, 2017
All the images including product pictures or screen shots in this document are for example only.
The images may vary depending on the product and software version. Information contained in
this document is subject to change without notice.

EMX32
1
1. Introduction
The EverFocus EMX32 IP Decoder is an open, true 1080p HD Decoder. The device can
simultaneously decode up to four high definition (1080p) or standard definition (720p) video
streams, and display those streams in up to four division screens on a monitor. The EMX32 IP
Decoder can display its views on HD monitors or televisions.
The EMX32 IP Decoder is able to decode IP streams from EverFocus and ONVIF and
RTSP-compliant IP devices. It is used as a medium to connect the cameras and the monitor for
displaying video in different screen division. It supports the third-party IP cameras which are
compatible with ONVIF standards and RTSP protocol, and it can automatically search for ONVIF
supported third-party IP devices under the same LAN.
The cost-effective EMX32 IP Decoder eliminates the cost of the traditional DVR or PC. Just used
with a monitor only, you can easily view all the IP or analog (through RTSP) video streams. The
operator can control and configure the settings either through the user-friendly local display
OSD or by the intuitive web-based user interface.
The EMX32 provide two video outputs HDMI and VGA, and both video output ports can be used
simultaneously. It also has one RS-485 port for connecting joystick or keyboard. This slim,
compact and VESA-mountable design is easy to install and can be used anywhere such as retail
stores or offices.
Remote Client System Minimum Requirements
Before installing, please check that your computer meets the following system requirements.
Operating System
Windows XP (32-bit) / Win7 (32 and 64-bit)
CPU
Intel Core I3-2100
RAM
2GB
VGA
Intel HD 2000
LAN Speed
10 / 100 / 1000 Mbps (RJ45)
Web Browser
IE11 and later, Firefox 50 and earlier, Chrome 44 and earlier, EF
browser
Other Remote
Application
EverFocus’ mobile app: MobileFocus (iOS and Android);
MobileFocusHD (iPad).
EverFocus IP Camera Support List
The latest EverFocus IP Camera Support List for EMX32 will be updated on our website, please
go to the product page and click the Download tab.
www.everfocus.com.tw

EMX32
2
Packing List
•EMX32 x 1
•QIG x 1
•
CD x 1 (Please see Note 3.)
•
Mouse x 1
•Power Cord x 1
•Power Adaptor x 1
•
IR Remote Control x 1
•
AAA Battery x 2 (Please see Note 4.)
•VESA Monitor Mount Bracket
•Washer Head Sliver Screw x 4 for VESA
Mount ( 50x50 / 75x75 / 100x100 mm)
•Washer Head Black Screw x 4 for VESA
Mount( 200x200 mm)
•Small Black Screw x 4
Optional Accessories
•EKB200 USB controller keyboard: connect
to the PC or the IP decoder to control the
PTZ cameras connected to the IP decoder.
•EKB500 RS-485 keyboard: connect to the
RS-485 port to control OSD or the PTZ
cameras connected to the IP decoder.
Note:
1. Equipment configurations and supplied accessories vary by country. Please consult
your local EverFocus office or agents for more information. Please also keep the
shipping carton for possible future use.
2. Contact the shipper if any items appear to have been damaged in the shipping process.
3. The CD contains the IP Utility software, EFPlayer, User Manual and Quick Installation
Guide.
4. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries
according to the instructions.
a. Use only two AAA dry cell batteries.
b. Do not dispose of the batteries in a fire as it may explode.

EMX32
3
Front Panel
1234
No. Name Description
1 Power Indicates the power is on.
2 LAN Indicates the IP decoder is connected to the network.
3 I/O Indicates an alarm input is triggered.
4 IR Receiver Receiver for signals from the IR remote control.
Rear Panel
3
1 2 456
7 8
No. Name Description
1
Alarm Input /
Output
Connects up to 4 alarm inputs and 1 alarm output devices. Please refer
to 2.2.3 Alarm IO in the User’s Manual.
2 HDMI Port
Connects to the Main monitor using a HDMI cable. Please refer to 2.2.1
Monitor Connection in the User’s Manual.
3 VGA Port
Connects to the Main monitor using a VGA cable. Please refer to 2.2.1
Monitor Connection in the User’s Manual.
4 LAN
Connects to IP cameras or to the network using a standard RJ-45 CAT5
10/100Mb Ethernet cable. Please refer to 2.2 Basic Connection.
5 USB
The USB2.0 port for connecting to a mouse, external storage device or
EKB200 keyboard.
6 Power Switch Press to turn On / Off the IP decoder.
7 RS-485 Port
Connects to the RS-485 device, such as EverFocus’ EKB-500 keyboard.
Please refer to 2.2.4 RS-485 Port in the User’s Manual.
8 Power Port Connects to power using the supplied Power Adaptor and Power Cord.

EMX32
4
2. Installation
You can simply place the IP decoder, EMX32, on the desk or install it behind a VESA monitor. (VESA Mount Bracket:
50mmx 50mm / 75mm x 75mm / 100mm x 100mm / 200mm x 200 mm).
200
100
75
50
EMX32 VESA Mount Bracket
Unit: mm
2.1 VESA Monitor Mount
1. Screw the VESA Mount Bracket on either side of the EMX32 using the four supplied Small
Black Screws.
VESA Mount
Bracket

EMX32
5

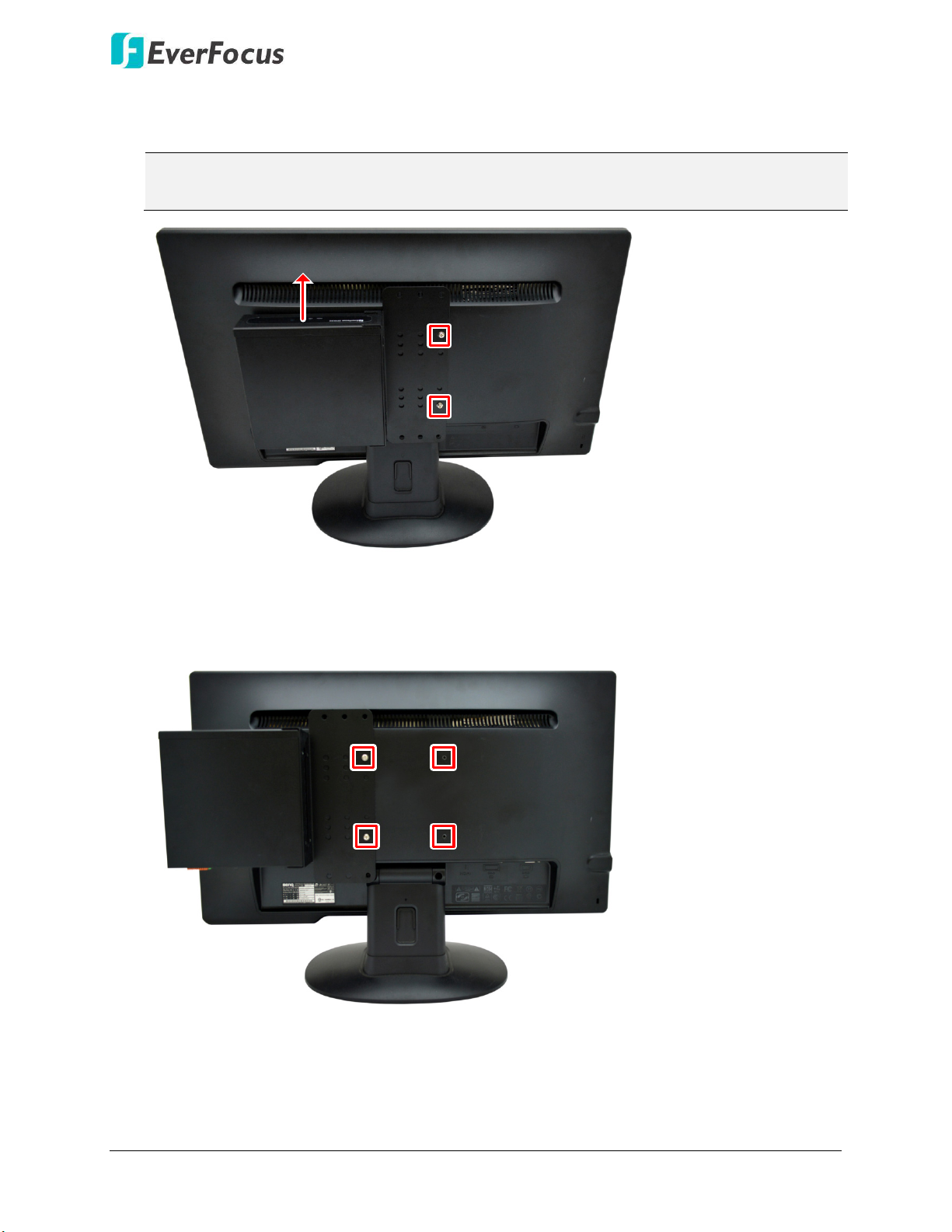

2. You just need to use two Washer Head Screws to fix the EMX32 onto the back of the
monitor, and the front panel of the EMX32 has to be facing UPWARD.
Note: VESA mount (50x50 / 75x75 / 100x100 mm): Use the Washer Head Sliver Screws.
VESA mount (200x200 mm): Use the Washer Head Black Screws.
3. If your monitor is to be mounted on the wall, you should attach the EMX32 to the very
right or left side of the monitor and leave the four VESA mounting holes of the monitor
uncovered so that you can screw the monitor on the wall.

EMX32
6
2.2 Basic Connection
The instructions below describe the basic connection for EMX32.
Main Monitor
(VGA)
Main Monitor
(HDMI)
Web Remote
Client
ONVIF/RTSP
IP Camera
Mouse or EKB200
Keyboard
Power
supply
DVR
Analog Camera
1
Network
234
1. To view videos, connect a monitor to the HDMI or VGA port using the HDMI or VGA cable
supplied by the monitor manufacturer.
2. To receive video streams or to manage the IP decoder over network, use a standard RJ-45
CAT5 10/100/1000Mb Ethernet cable to connect the LAN port to the network. Please refer
to 2.4 Connecting the IP decoder to the Network in the User’s Manual.
3. Optionally connect a mouse or a keyboard (EKB200) to the IP decoder to control the
system. You can also control the system using the supplied IR Remote Controller.
4. Using the supplied Power Cord with Adaptor, connect one end to the DC 12V port on the IP
decoder and the other end to the power outlet.

EMX32
7
3. Accessing the IP decoder
You can look up the IP address and access the Web interface of the NVR using the IP Utility
(IPU) program, which is included in the software CD. The IP Utility can also be downloaded
from EverFocus’ Website: http://www.everfocus.com.tw/product/ip-utility/
Please connect the NVR on the same LAN of your computer.
1. Save IP Utility Setup .exe in your computer. Double click the .exe file and follow the
on-screen instructions to install the IP Utility.
2. Click the Finish button, the IP Utility will be automatically launched to search the IP devices
connected on the same LAN.
3. To access to the Live View window, double click the IP address of the desired device, the
login window pops up. Type the user ID and password to log in. By default, the user ID is
admin and the password is 11111111

EMX32
8

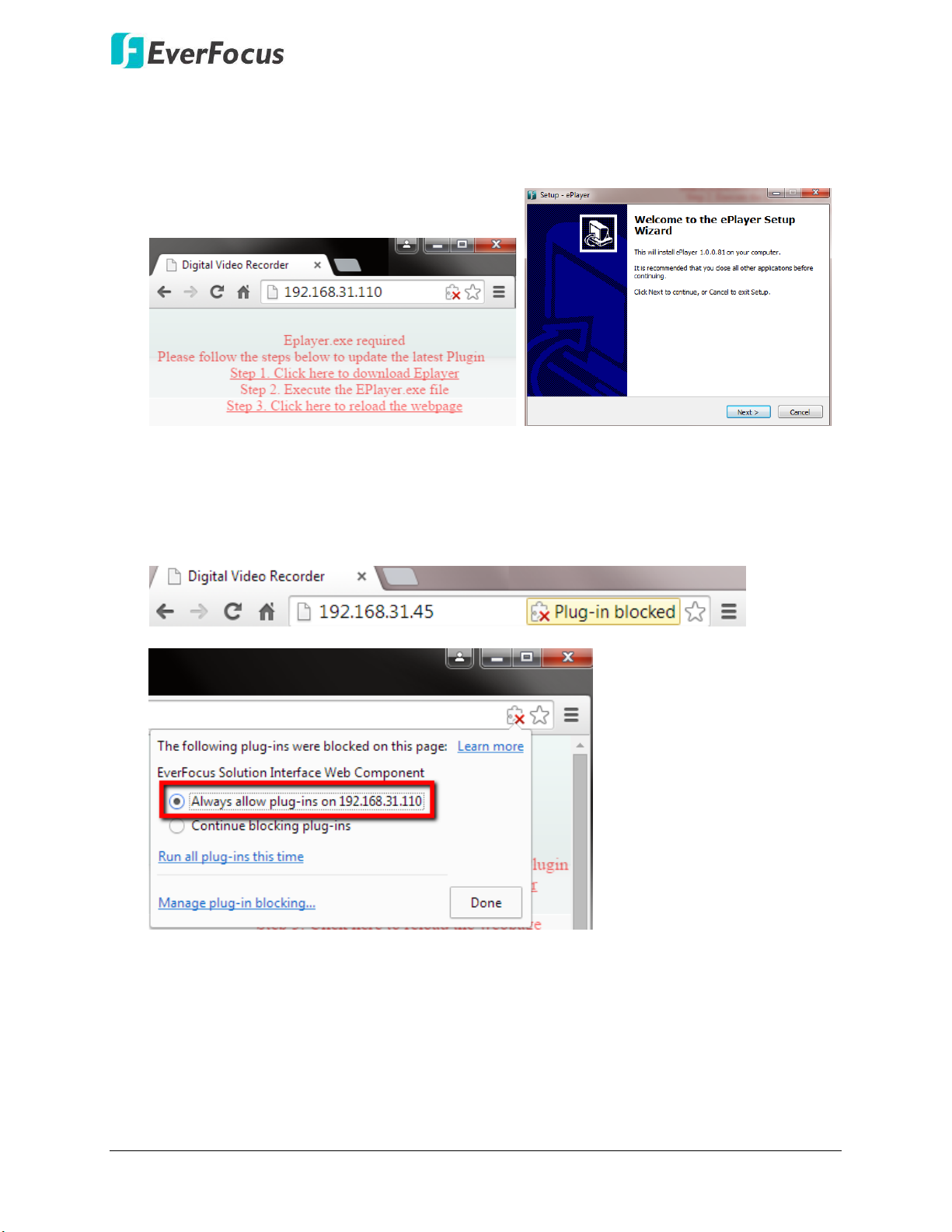

4. If you log in for the first time, follow the instruction steps on the interface to update the
latest Plugin version (ePlayer). After reloading the webpage, the login window pops up
again. Type the user ID and password to log in again. By default, the user ID is admin and the
password is 11111111
Note for the first time login:
The “Download ePlayer Instruction” page will only be prompted for the first time login in
order to update the system to the latest plugin version.
When the Plug-in blocked appears on the browser, select Always allow plug-ins on xxx,
click Done and then reload the webpage.
5. Now you will be able to see the remote live page.

EMX32
9

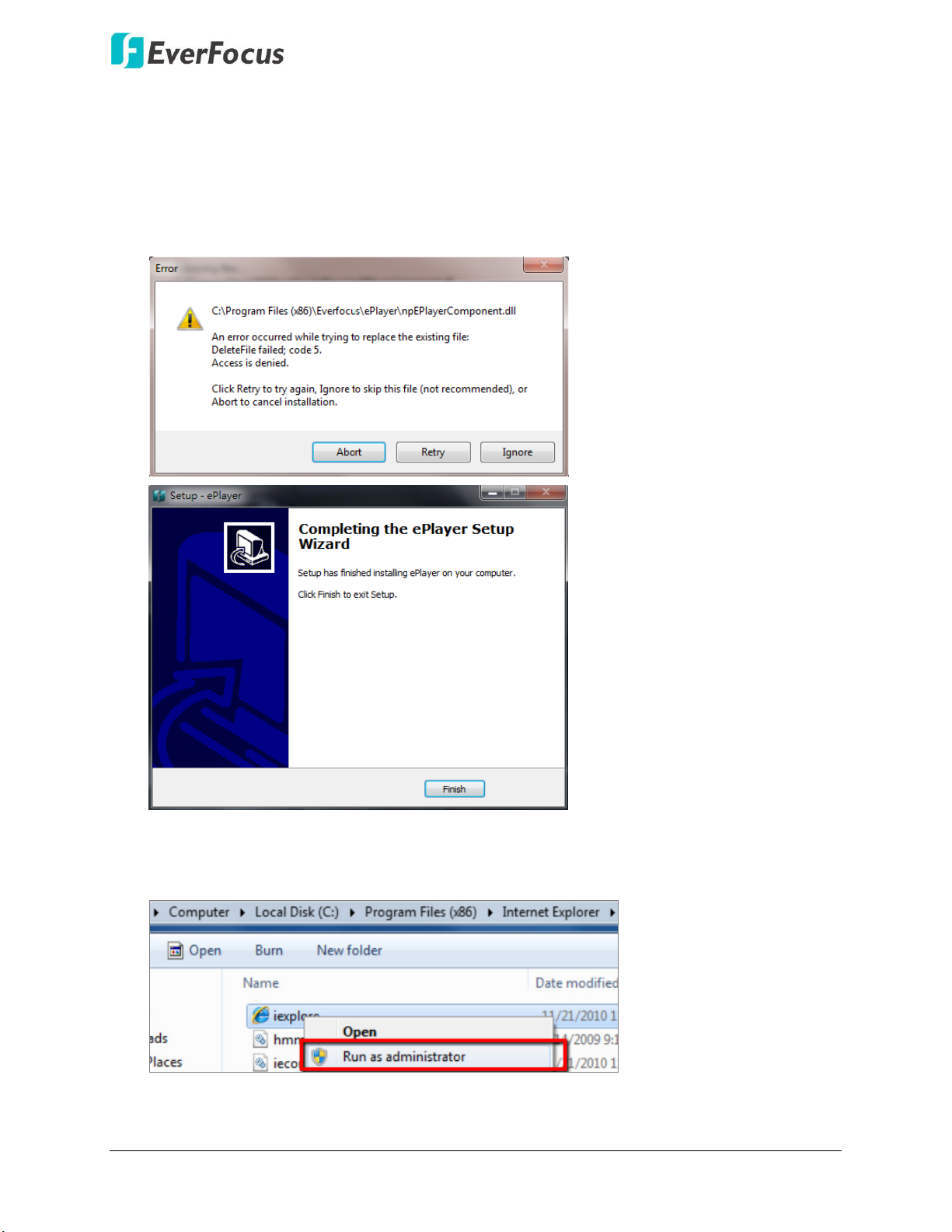

If you encounter the following problem or still can’t access the remote Web interface, please
see below:
If the Error window appears, please be sure to close ALL the Web browser windows first
and then click Retry. When the Completing the ePlayer Setup Wizard window shows up,
click Finish. Then, you can open a new browser again to access the DVR’s remote Web
interface.
If your PC or laptop is running with Windows, it’s required to run the browser as
administrator when first entering the remote web page of the device. Go to C:\Program
Files (x86)\Internet Explorer, right-click the browser and then click Run as administrator.

EMX32
10

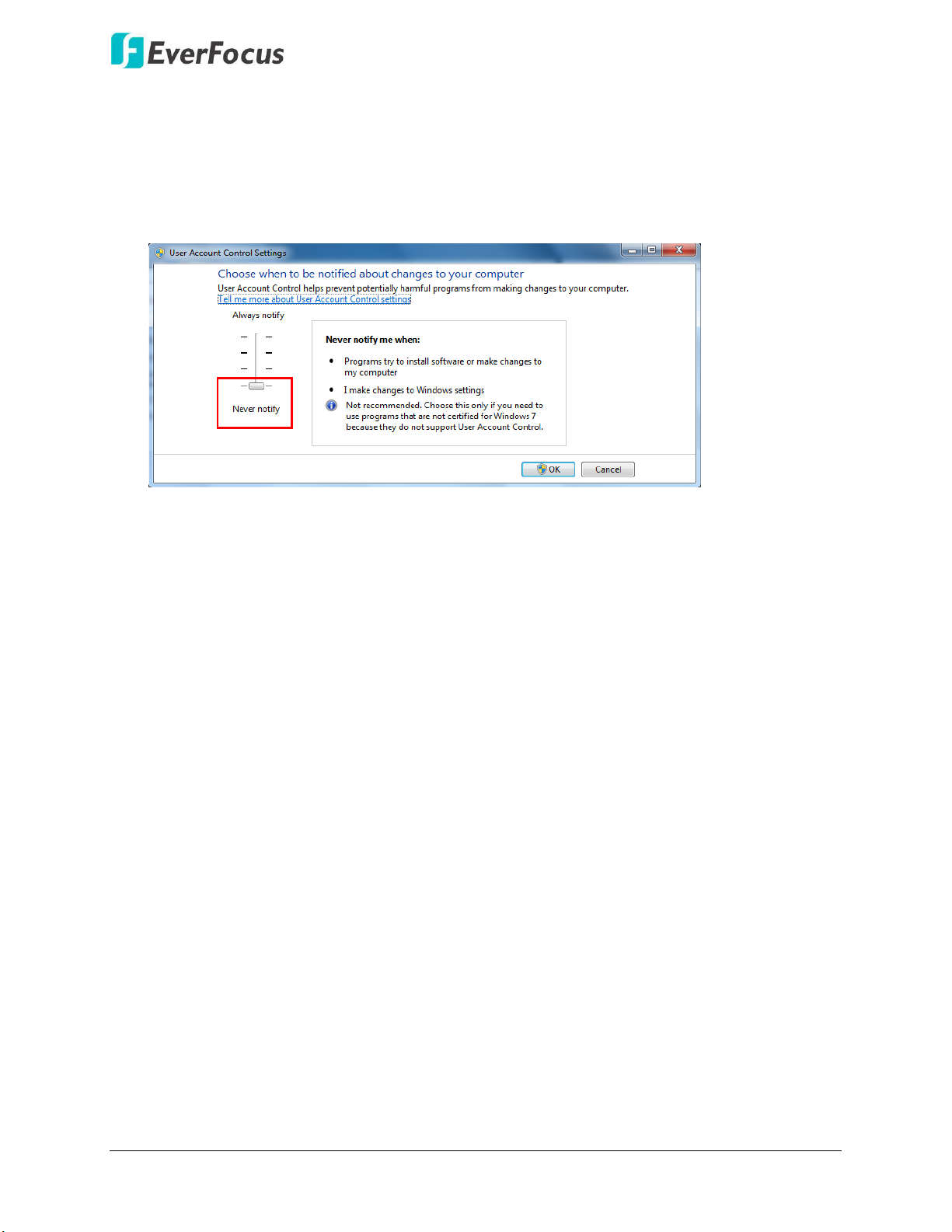

You may need to turn off the firewall and turn User Account Control off if you still can’t
see the Remote Live View.
To turn User Account Control off, on the computer, click Start > Control Panel > System
and Security > Action Center (click Change User Account Control Settings), the User
Account Control Settings window appears. Adjust the slide bar to Never Notify and then
click OK. Restart your computer if requested.
