EverFocus EBN288 User manual

Value IP Series Outdoor Network Camera
2-Megapixel 288 Series / 3-Megapixel 368 Series / 4-Megapixel 468 Series
Quick Installation Guide
EBN288/368/468
EDN288M/368M/468M
EMN468W EZN288/368/468
EMN468
EZN288M/368M/468M
Copyright © EverFocus Electronics Corp.
Release Date: November, 2017
All the images including product pictures or screen shots in this document are for example only. The images may vary
depending on the product and software version. Information contained in this document is subject to change without notice.

Value IP 288 / 368 / 468 Series
1

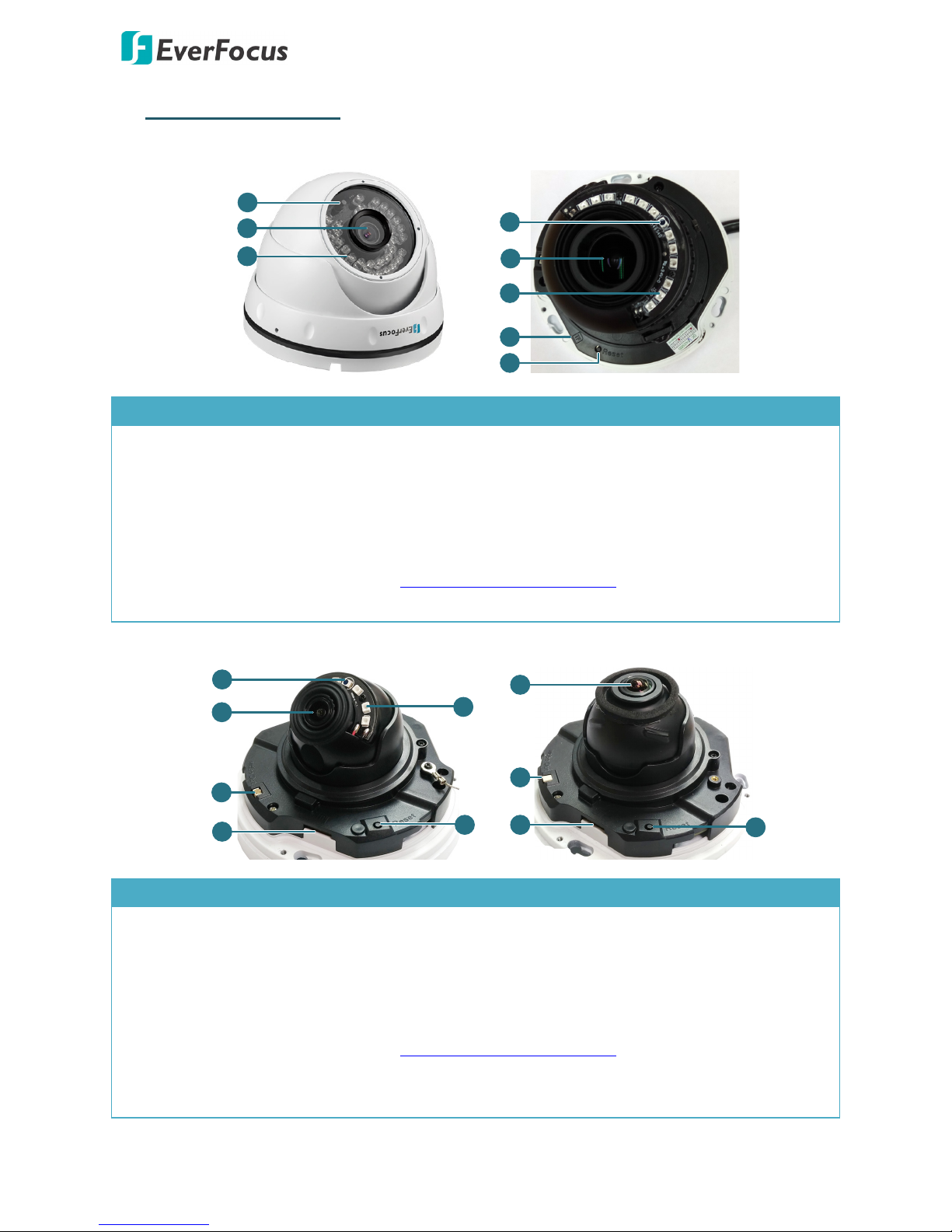

1. Physical Description
3
2
4
1
3
2
EBN288/368/468 EDN288M/368M/468M
1
5
No. Item Name Descriptions
1Light Sensor Detects lights.
2Lens Lens.
3IR LEDs IR LEDs for infrared illumination in night vision applications.
4Micro SD/SDHC/SDXC Slot
Insert a micro SD/SDHC/SDXC card. Please go to the web page of
the IP camera to see the latest Storage Compatibility
List. http://www.everfocus.com.tw
5Reset Button Press the button to restore the camera to factory default.
EMN468 EMN468W
1
2
3
46
2
3
46
5
No. Item Name Descriptions
1Light Sensor Detects lights.
2Lens Lens.
3Video Test Output Connects to a monitor.
4Micro SD/SDHC/SDXC Slot
Insert a micro SD/SDHC/SDXC card. Please go to the web page of
the IP camera to see the latest Storage Compatibility
List. http://www.everfocus.com.tw
5IR LEDs IR LEDs for infrared illumination in night vision applications.
6Reset Button Press the button to restore the camera to factory default.

Value IP 288 / 368 / 468 Series
2
EZN288/368/468
2
4
3
IR LED
Light Sensor
Lens
1Sunshield
6Micro SD/SDHC/SDXC Card Slot
5Reset Button
No. Item Name Descriptions
1Sunshield Protect the camera from the direct rays of the sun.
2IR LEDs IR LEDs for infrared illumination in night vision applications.
3Light Sensor Detects lights.
4Lens Fixed lens.
5Reset Button Press the button to restore the camera to factory default.
6Micro SD/SDHC/SDXC Slot
Insert a micro SD/SDHC/SDXC card. Please go to the web page of
the IP camera to see the latest Storage Compatibility
List. http://www.everfocus.com.tw
EZN288M/368M/468M
1
2
3
1
4Sunshield
No. Item Name Descriptions
1IR LEDs IR LEDs for infrared illumination in night vision applications.
2Lens Motorized lens.
3Light Sensor Detects lights.
4Sunshield Protect the camera from the direct rays of the sun.

Value IP 288 / 368 / 468 Series
3
Dimensions
EBN288/368/468
EDN288M/368M/468M
EMN468/468W

Value IP 288 / 368 / 468 Series
4
EZN288/368/468
EZN288M/368M/468M
System Requirements
Before installing, please check that your computer meets the following system requirements.
Operating System: Microsoft Windows XP / Vista (32-bit) / 7 (32-bit)
Microsoft Internet Explorer 11 or later, Chrome (Windows version 44 and earlier), Firefox
version 50 and earlier, EverFocus Browser

Value IP 288 / 368 / 468 Series
5
Packing List
Please check that there is no missing item in the package before installing.
No Item Name EBN288/
368/468
EDN288M/
368M/468M
EMN468/
468W
EZN288/
368/468
EZN288M/
368M/468M
1Camera x 1 x 1 x 1 x 1 x 1
2MAC Address Sticker x 2 x 2 x 2 x 2 x 2
3
Screw Anchor
(in conjunction with
Screw)
x 4 x 3 x 3 x 3 x 4
4Screw x 4 x 3 x 3 x 3 x 4
5
Hexagon Wrench
(for adjusting camera
position)
x 1 - x 1 x 1 x 1
6
Cable Gland Kit
(connect to the LAN/PoE
cable for waterproofing)
x 1 x 1 x 1 x 1 x 1
7Set Screw x 3 - - - -
8Power Pigtail Cable x 1 x 1 x 1 x 1 x 1
9
Accessories Instruction
(for installation of Set
Screw)
x 1 - - - -
10 Software CD x 1 x 1 x 1 x 1 x 1
11 Quick Installation Guide x 1 x 1 x 1 x 1 x 1
12 Sticker
(Mounting Template) x 1 x 1 x 1 x 1 x 1
13 Gasket - -
x 1
(EMN468
W only)
- -
Note:
1. Equipment configurations and supplied accessories vary by country. Please consult your local
EverFocus office or agents for more information. Please also keep the shipping carton for possible
future use.
2. Contact the shipper if any items appear to have been damaged in the shipping process.
Optional Accessory
You can go to the product page on EverFocus’ website to check the related optional accessories.
www.everfocus.com.tw

Value IP 288 / 368 / 468 Series
6

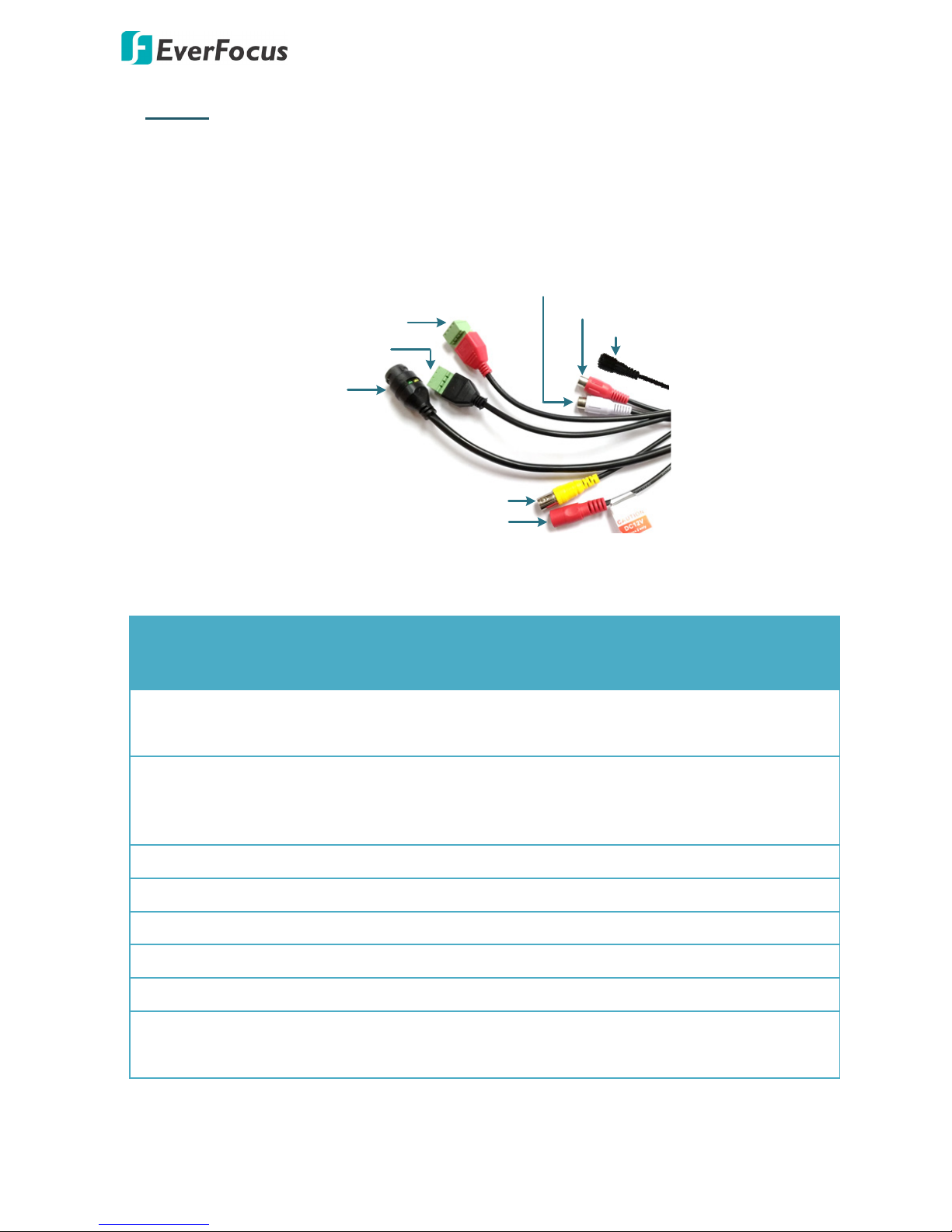

2. Cables
For Standard models, the cables provide connections for Network, BNC output, power, audio input
/ output, RS-485 (reserved) and alarm inputs / output. A Reset Button is also provided. Note that
the audio-in / out cable features a line 3.5mm jack (TRS). Be sure to prepare microphones /
speakers with TRS connector (see TRS Connector image below). Also, microphones / speakers with
a (built-in) amplifier and external power supply are required.
12VDC Input
LAN / PoE Cable
Audio Input (TRS Line-in) (Red)
Audio Output (TRS Line-out) (White)
Alarm Input (Black)
Reset Button
Alarm Output / RS-485 (Red)
Video Output (BNC) (Yellow)
Cable EBN288/
368/468
EDN288M/
368M/468M
EMN468/
468W
EZN288/
368/468
EZN288M/
368M/468M
Alarm In (with
Terminal Block) Yes Yes - Yes Yes
Alarm Out /
RS-485 (reserved)
(with Terminal
Yes Yes - Yes Yes
Audio In (Red) Yes Yes - Yes Yes
Audio Out (White)
Yes
Yes
-
Yes
Yes
Video Out (BNC)
Yes
Yes
-
Yes
Yes
LAN/PoE Yes Yes Yes Yes Yes
12VDC
Yes
Yes
Yes
Yes
Yes
Reset Button (with
a dust-proof cap)Yes - - - Yes

Value IP 288 / 368 / 468 Series
7
For Economic models, the cables provide connections for Network, power and Reset Button.
12VDC Input
LAN / PoE Cable
Reset Button
Cables of Economic Models
Model LAN/PoE 12VDC Reset Button
EBN288/368/468 Yes Yes Yes (with a
dust-proof cap)
EDN288M/368M/468M Yes Yes -
EMN468/468W Yes Yes -
EZN288/368/468 Yes Yes -
EZN288M/368M/468M Yes Yes Yes (with a
dust-proof cap)

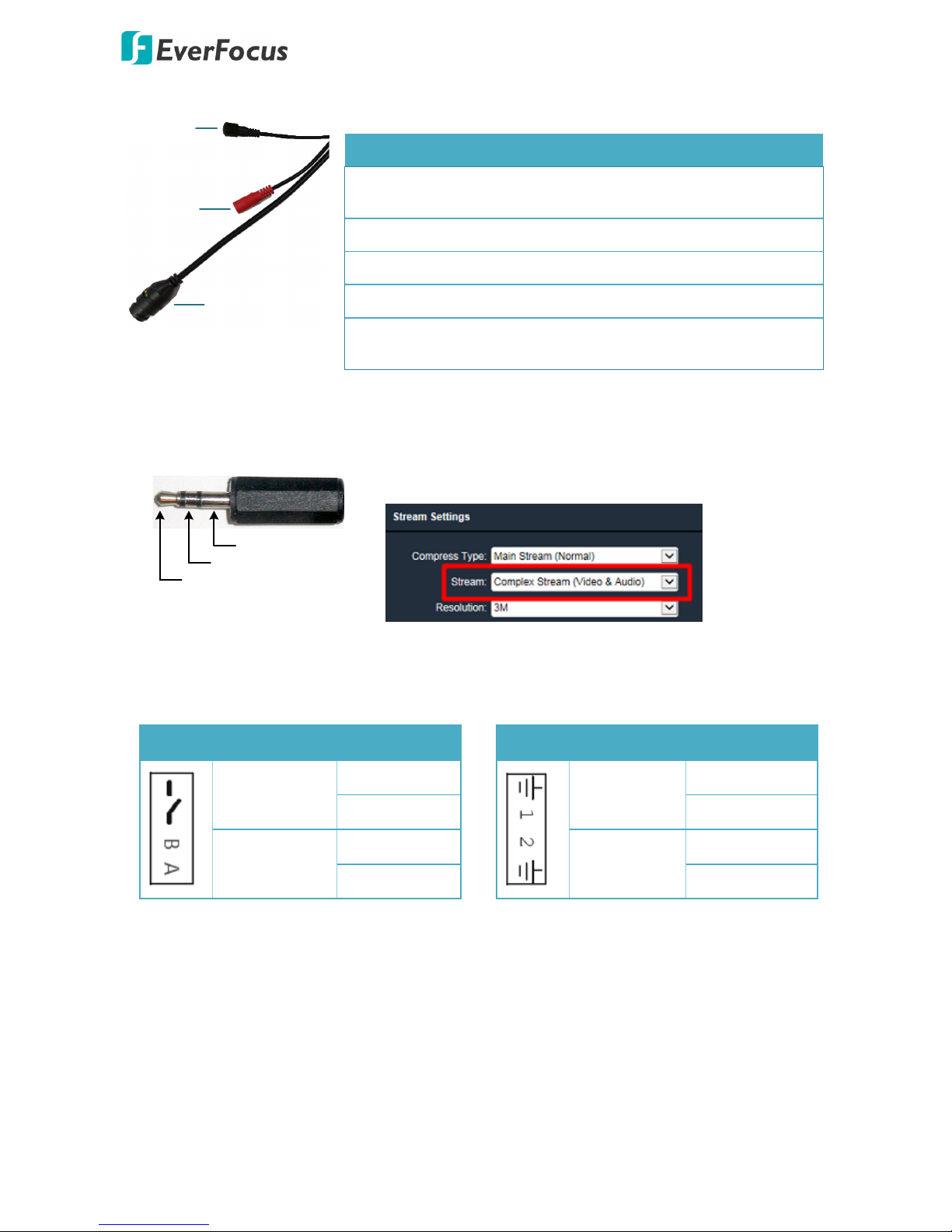

Audio Function
TRS Connector
Left Channel (Tip)
Right Channel (Ring)
Ground (Sleeve)
To activate the Audio function, the Complex Stream must be
selected. See Stream in 7.2.1.2 Streaming Settings.
Pin Assignment
Alarm Output / RS-485 (reserved)
Alarm Output
COM (-)
NO (+)
RS-485
(reserved)
B (+)
A (-)
Alarm Input
Alarm In 1
GND (-)
Alarm In (+)
Alarm In 2
Alarm In (+)
GND (-)
Reset Button
1. Reboot the camera:
When the camera is powered up, press the Reset Button will reboot the camera.
2. Restore the camera:
Keep the Reset Button pressed, at the same time unplug the camera power then plug it back
again will return camera settings to the factory default values.

Value IP 288 / 368 / 468 Series
8
3. Installation
This installation guide provides the basic instructions on installing an Value IP camera. For details,
please refer to the User’s Manual in the software CD.
3.1 Mounting and Wiring
EBN288/368/468

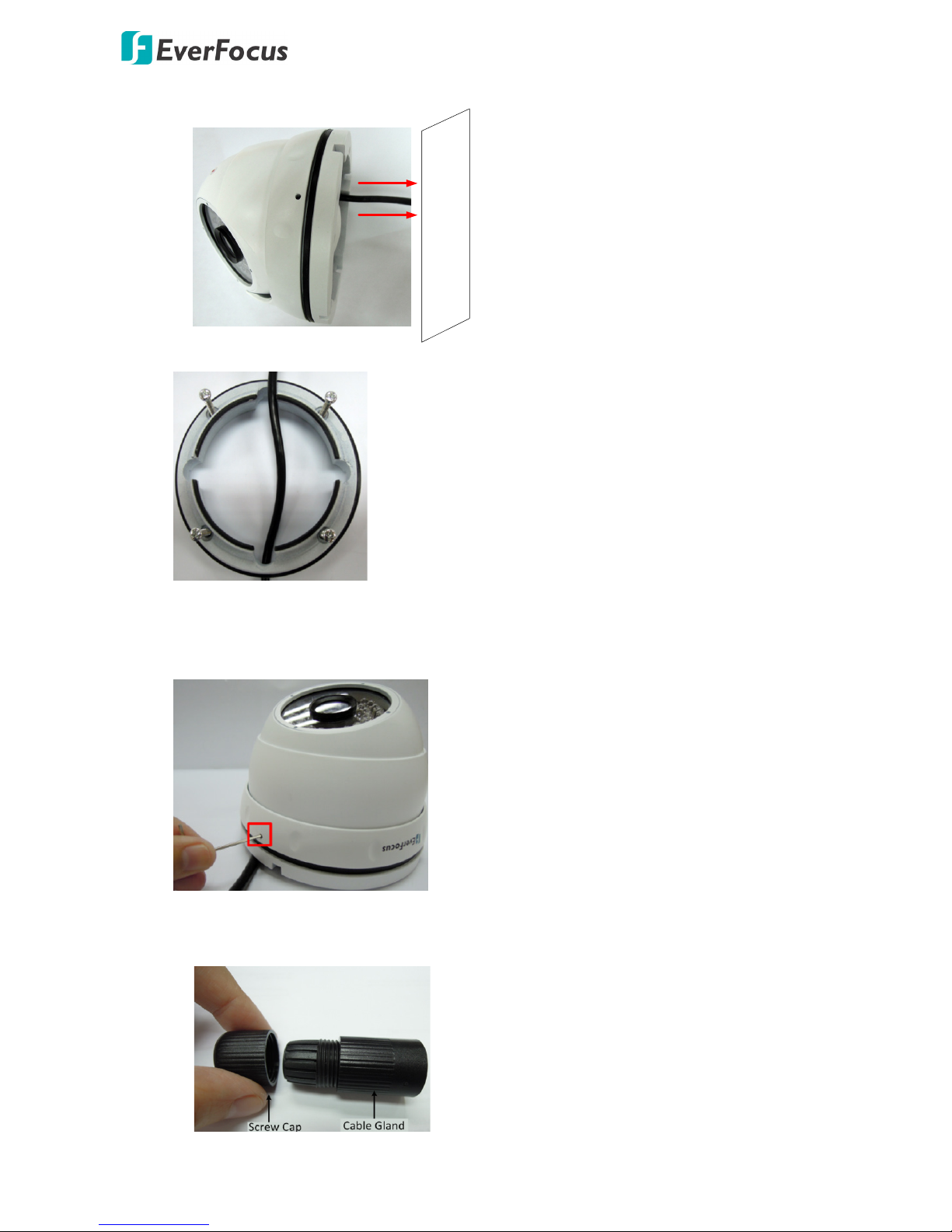

1. Before screwing the camera to the wall, stick the Sticker on the wall / ceiling to mark the
position for installation. Drill four holes on the wall / ceiling according to the supplied Sticker
and push the supplied four Screw Anchorsinto the four holes on the wall / ceiling. Drill
another hole in the middle of the Sticker if you wish to run the wires into the wall / ceiling.
2. Twist the Outer Housing counterclockwise and then remove the Outer Housing from the
camera base.
3. Place the camera base on the wall / ceiling and run the cable through the camera base first.
4. Tread the cables:
a. From the side cut of the camera base

Value IP 288 / 368 / 468 Series
9
b. Through the wall / ceiling: run the cables through the hole on the wall / ceiling.
Wall or
Ceiling
5. Use the supplied four Screws to screw the camera base to the ceiling / wall.
6. Adjust the camera angle and twist back the Outer Housing simultaneously.
7. Optionally screw back the Set Screw by using the supplied Hexagon Wrench to prevent
uninstallation.
8. Connect the LAN / PoE cable to the camera.
a. Remove the Screw Cap from the Cable Gland.

Value IP 288 / 368 / 468 Series
10

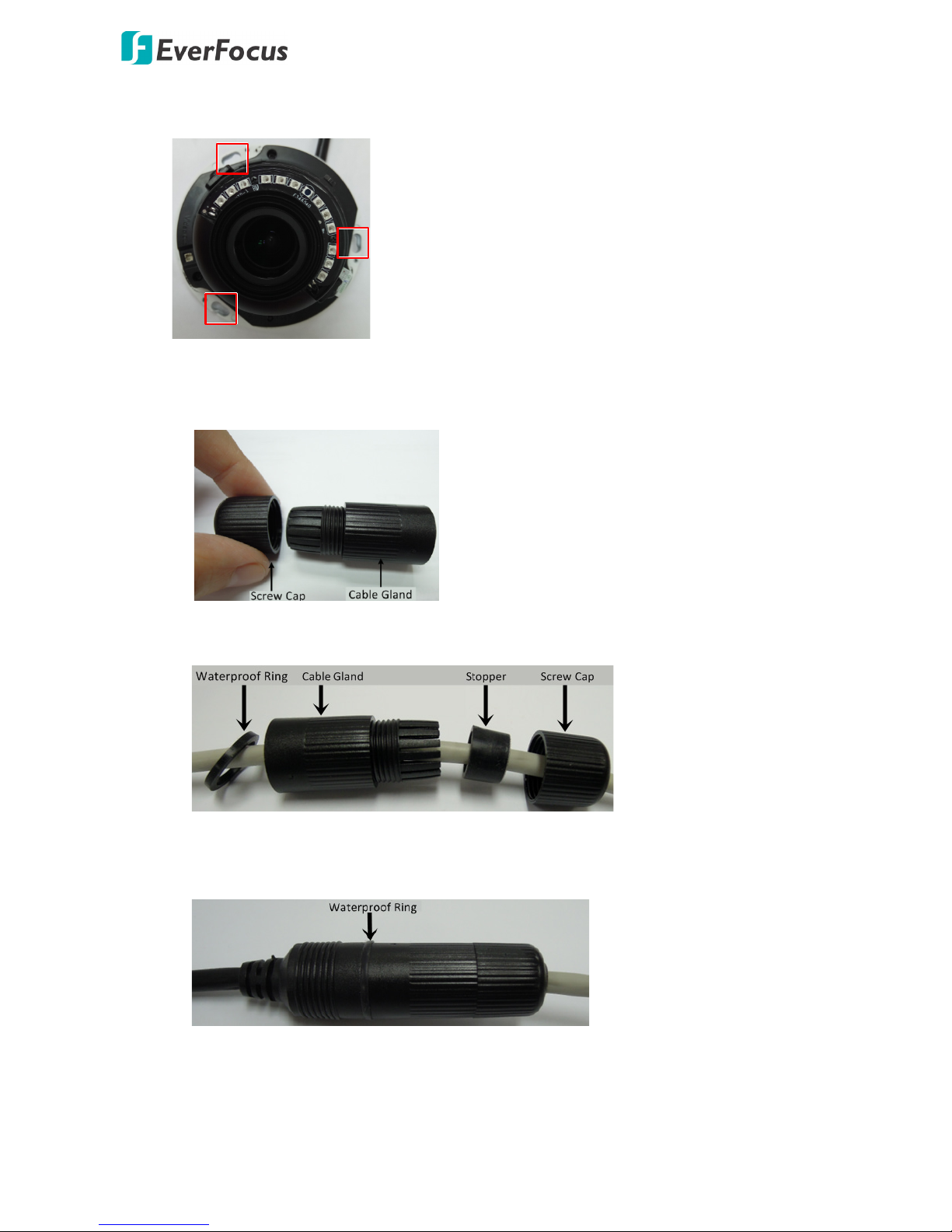

b. Insert a RJ-45 network cable (without the RJ-45 connector on the one end) through the
Cable Gland and Screw Cap.
c. Place the Waterproof Ring into the LAN / PoE cable. Connect the RJ-45 cable to the RJ-45
Connector Cable. Tightly screw the Cable Gland and Screw Cap to the RJ-45 Connector
Cable.

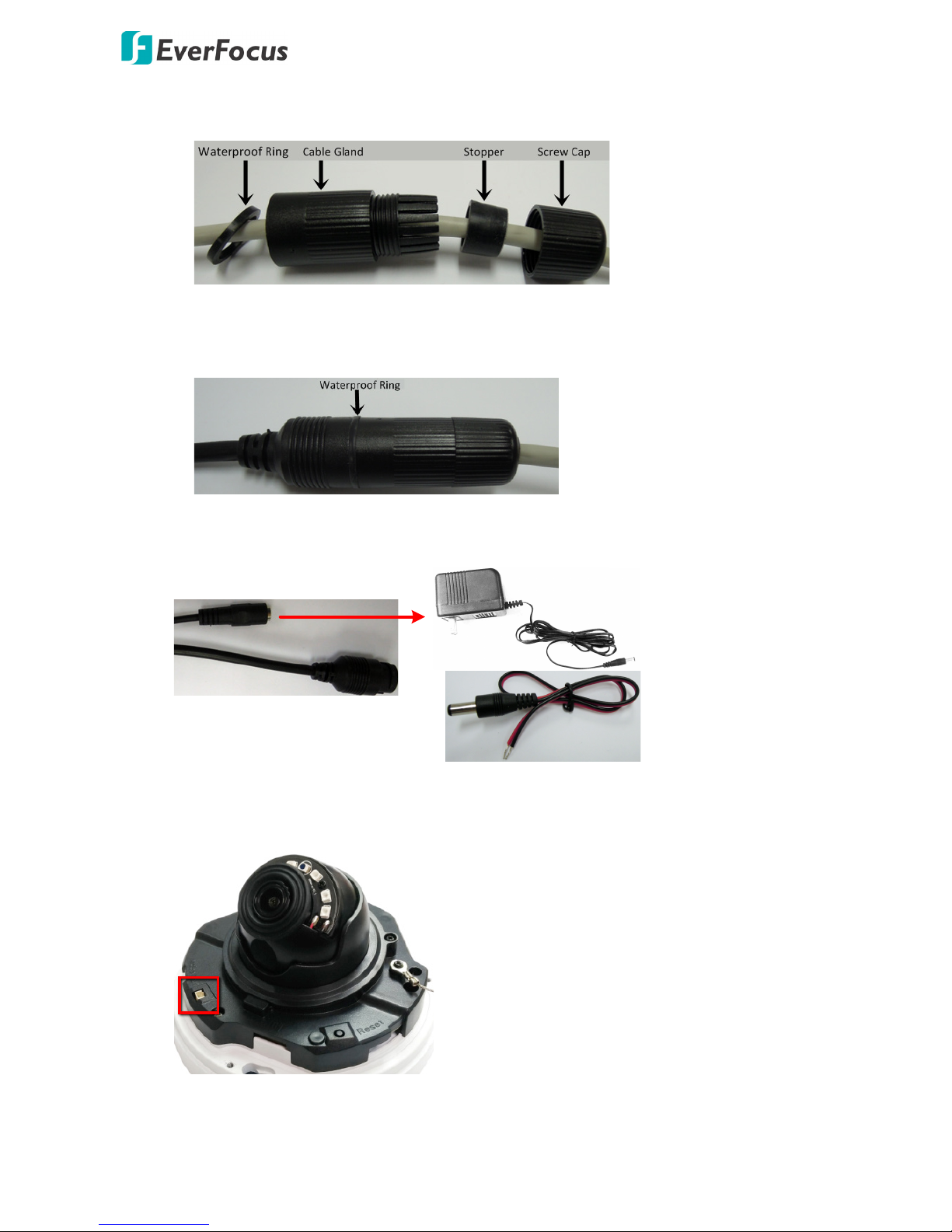

9. Optionally connect the camera to the 12VDC power source using the supplied Power
Adapter Pigtail or a power adapter.
Power Adapter Pigtail
Power Cable
RJ-45 Connector
or
Power Adapter
EDN288M/368M/468M
1. Before screwing the camera to the wall, stick the Sticker on the wall / ceiling to mark the
position for installation. According to the supplied Sticker, drill three screw-depth holes on
the wall / ceiling, and then drill a through-wall hole for wiring the camera cables. Push the
supplied three Screw Anchorsinto the three holes on the wall / ceiling.
Wall or Ceiling
Sticker
Anchors
Screws

Value IP 288 / 368 / 468 Series
11
2. Unscrew the camera cover and screw the camera base to the ceiling / wall by using the
supplied Screws.
3. Optionally insert the micro SDHC / SDXC card. Please refer to 3.2 Inserting a micro SD Card.
4. Connect the LAN / PoE cable to the camera.
a. Remove the Screw Cap from the Cable Gland.
b. Insert a RJ-45 network cable (without the RJ-45 connector on the one end) through the
Cable Gland and Screw Cap.
c. Place the Waterproof Ring into the LAN / PoE cable. Connect the RJ-45 cable to the RJ-45
Connector Cable. Tightly screw the Cable Gland and Screw Cap to the RJ-45 Connector
Cable.

Value IP 288 / 368 / 468 Series
12
5. Optionally connect the camera to the 12VDC power source using the supplied Power
Adapter Pigtail or a power adapter.
Power Adapter Pigtail
Power Cable
RJ-45 Connector
or
Power Adapter
6. Access the camera live view. See 5. Accessing the Camera. Or using a video Test-Out cable to
connect a monitor to the camera for setting image aim and focus.

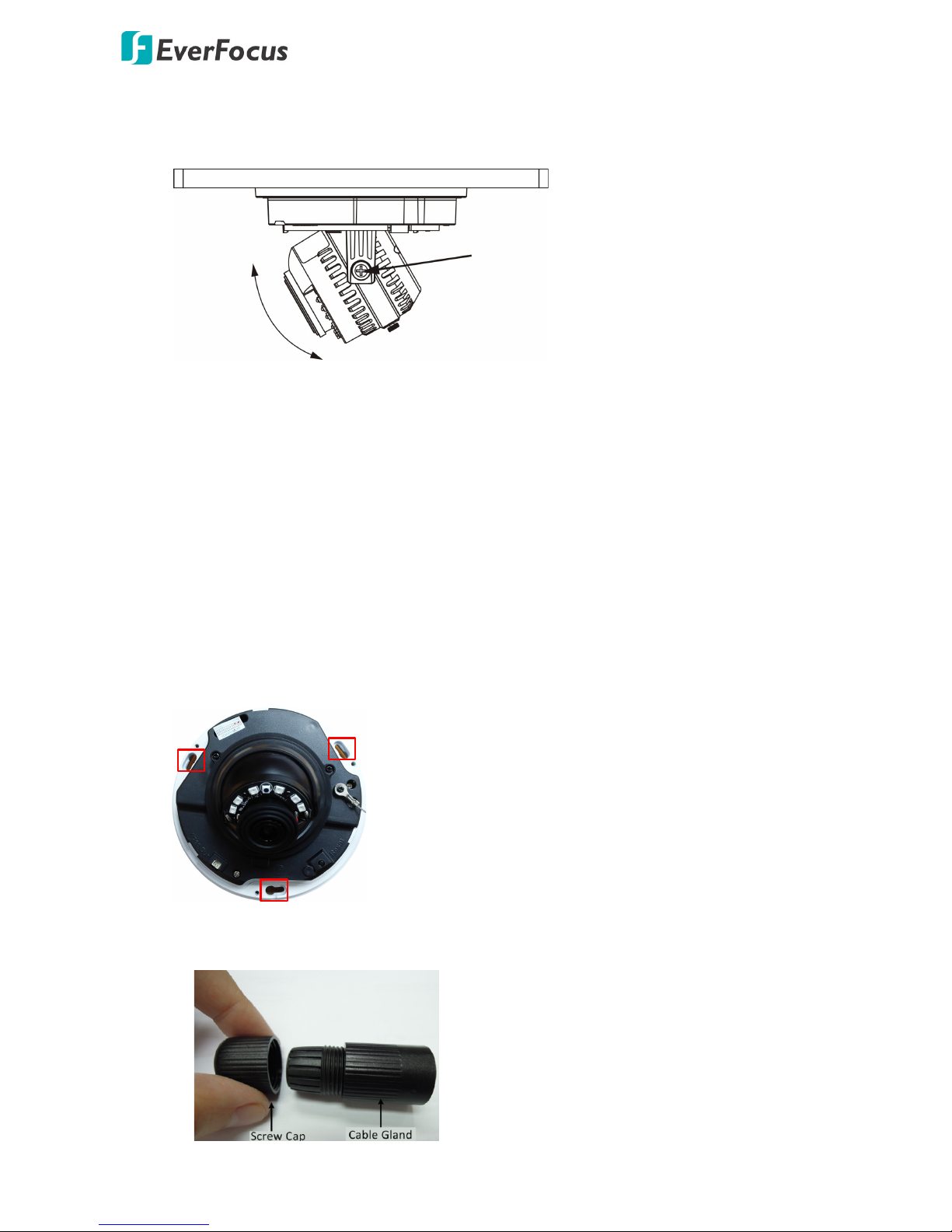

7. To adjust camera angles.
Pan Adjustment: Simply turn left / right of the 3-Axis bracket by 75° to the desired position.
75° 75°
3-Axis
Bracket
Rotational Adjustment: Loosen the rotate screw and rotate the camera left / right to the
desired position, then tighten the rotate screw. Due to the internal connector design, it is
recommended not to rotate the camera more than 30°.
30°
30°
Rotation screw

Value IP 288 / 368 / 468 Series
13
Tilt Adjustment: Loosen the two tilt screws and adjust the angle by 75° to the desired
position, then tighten the tilt screw.
75°
Tilt screw
8. Secure the cover back to the camera.
EMN468/468W
1. Before screwing the camera onto the surface, stick the Sticker onto the surface to mark the
position for installation. According to the supplied Sticker, drill three holes on the surface,
and optionally drill a through-out hole for wiring the camera cables. Push the supplied three
Screw Anchorsinto the three holes on the surface.
2. Unscrew the camera cover and screw the camera base to the surface by using the supplied
Screws. Note that for EMN468W, place the supplied Gasket between the camera base and
the surface; and then screw the camera base to the surface with the Gasket in the middle.
3. Connect the LAN / PoE cable to the camera.
a. Remove the Screw Cap from the Cable Gland.

Value IP 288 / 368 / 468 Series
14

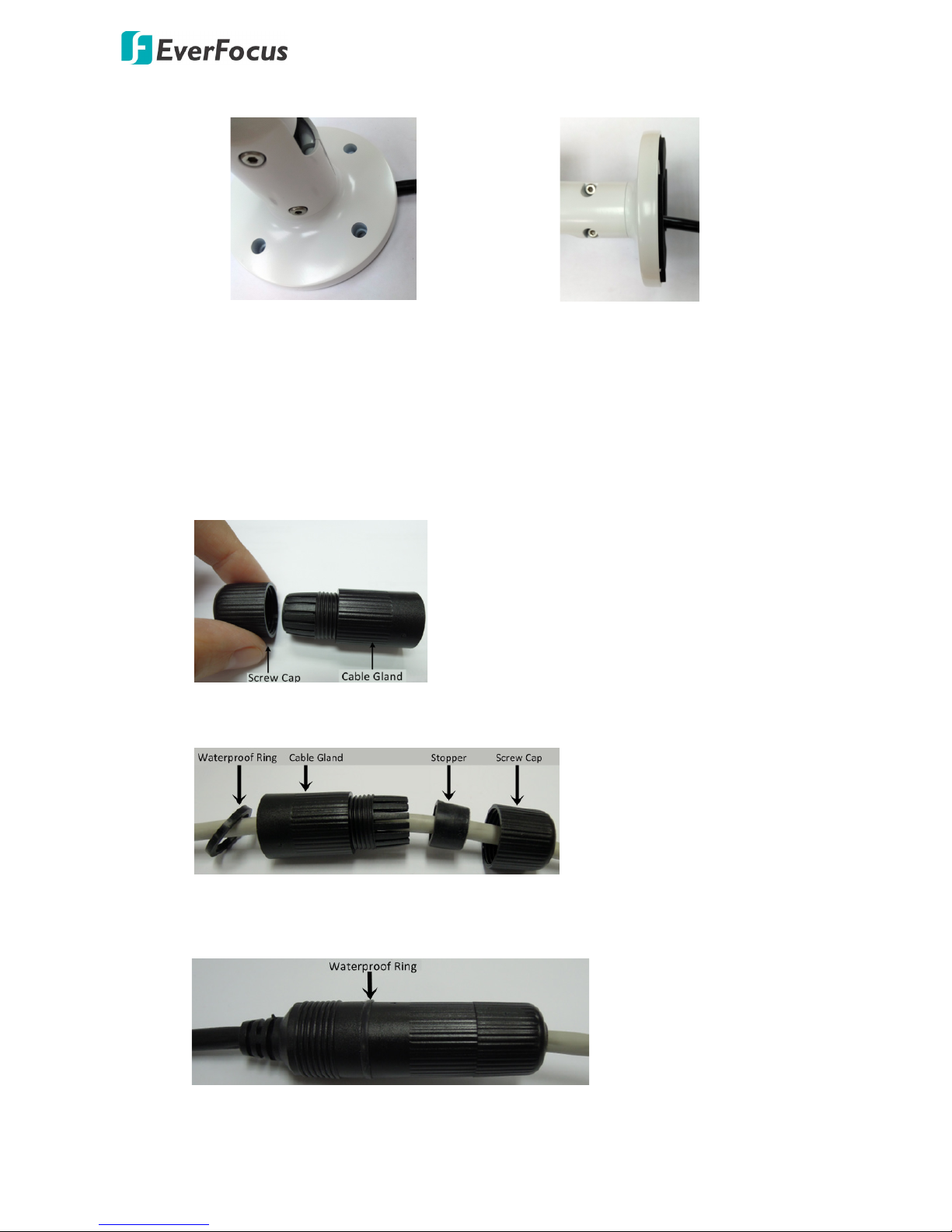

b. Insert a RJ-45 network cable (without the RJ-45 connector on the one end) through the
Cable Gland and Screw Cap.
c. Place the Waterproof Ring into the LAN / PoE cable. Connect the RJ-45 cable to the RJ-45
Connector Cable. Tightly screw the Cable Gland and Screw Cap to the RJ-45 Connector
Cable.
4. Optionally connect the camera to the 12VDC power source using the supplied Power
Adapter Pigtail or a power adapter.
Power Adapter Pigtail
Power Cable
RJ-45 Connector
or
Power Adapter
5. Access the camera live view. See 5. Accessing the Camera. Or using a video Test-Out cable to
connect a monitor to the Video Test Output on the camera for setting camera angles.

Value IP 288 / 368 / 468 Series
15
6. To adjust camera angles.
Pan Adjustment: Simply turn left / right of the camera by 175° each side to the desired
position.
175°175°
Tilt Adjustment: Adjust the tilt angle between 25° and 90°.
25~90°
7. Secure the cover back to the camera.
EZN288/368/468 &EZN288M/368M/468M
1. Before screwing the camera to the wall, stick the Sticker on the wall / ceiling to mark the
screw position. Drill three (EZN288/368/468) or four (EZN288M/368M/468M) holes on the
wall / ceiling according to the supplied Sticker and push the supplied Anchors into the holes
on the wall / ceiling. Drill another hole in the middle of the Sticker if you wish to run the
wires into the wall / ceiling.
EZN288/368/468
EZN288M/368M/468M

Value IP 288 / 368 / 468 Series
16
2. You can wire the cables from the side of the camera or through the wall.
Wire the cables from the side of the camera Wire the cables through the wall
3. Place the camera’s base against the anchoring surface so that the holes line up. Screw the
camera to the wall / ceiling using the supplied Screws.
4. Optionally insert a micro SD / SDHC / SDXC card into the card slot. Please refer to 3.2
Inserting a micro SD Card.
5. Connect the LAN / PoE cable to the camera.
a. Remove the Screw Cap from the Cable Gland.
b. Insert a RJ-45 network cable (without the RJ-45 connector on the one end) through the
Cable Gland and Screw Cap.
c. Place the Waterproof Ring into the LAN / PoE cable. Connect the RJ-45 cable to the RJ-45
Connector Cable. Tightly screw the Cable Gland and Screw Cap to the RJ-45 Connector
Cable.

Value IP 288 / 368 / 468 Series
17
6. Optionally connect the camera to the 12VDC power source using the supplied Power
Adapter Pigtail or a power adapter.
Power Adapter Pigtail
Power Cable
RJ-45 Connector
or
Power Adapter
7. Access the camera live view. See 5. Accessing the Camera. Or connect a handheld test
monitor to the CVBS wire on the Cable Assembly for adjusting viewing angles.
8. To adjust the camera angles:
Pan Adjustment: Loosen the Set Screw using the supplied Hexagon Wrench. Rotate the
camera by 360° to the desired position and screw the Set Screw until it locks against the
Camera Base.
Set Screw
Camera
Base
360°
Set Screw
Camera Base
360°
EZN288/368/468 EZN288M/368M/468M

Value IP 288 / 368 / 468 Series
18
Tilt Adjustment: Loosen the Set Screw using the provided Hexagon Wrench and adjust the
angle by 90°.
Set Screw
90°
Set Screw
90°
EZN288/368/468 EZN288M/368M/468M
Rotational Adjustment: Loosen the Screw using the provided Hexagon Wrench and rotate
the camera by 360°.
Set Screw
Set Screw
EZN288/368/468 EZN288M/368M/468M
Note:
1. Before start operating the IP camera, please make sure the camera date and time are
correct. To configure the camera date/time, go to System > Date/Time setting page on
Web UI.
2. By default, the system will automatically adjust the IR LED strength according to the
scene, so please avoid IR reflection when installing the camera to prevent out-of-focus at
night.
3. Under Auto focus mode, if the camera does not focus after switching the Day/Night
mode, it is recommended to switch the focus mode to Manual and adjust focus manually.

Value IP 288 / 368 / 468 Series
19
3.2 Inserting a Micro SD Card
You can optionally insert a micro SD card to the card slot on the camera module for recording
videos.
EDN288M/368M/468M
1. Unscrew and then remove the camera cover.
2. Insert a micro SD card into the card slot.
EMN468/468W
1. Unscrew and then remove the camera cover.
2. Insert a micro SD card into the card slot.
EZN288/368/468
1. Open the cover on the bottom of the camera by loosening the screws.
2. Insert a micro SD card into the card slot.
