HIGH PERFORMANCE

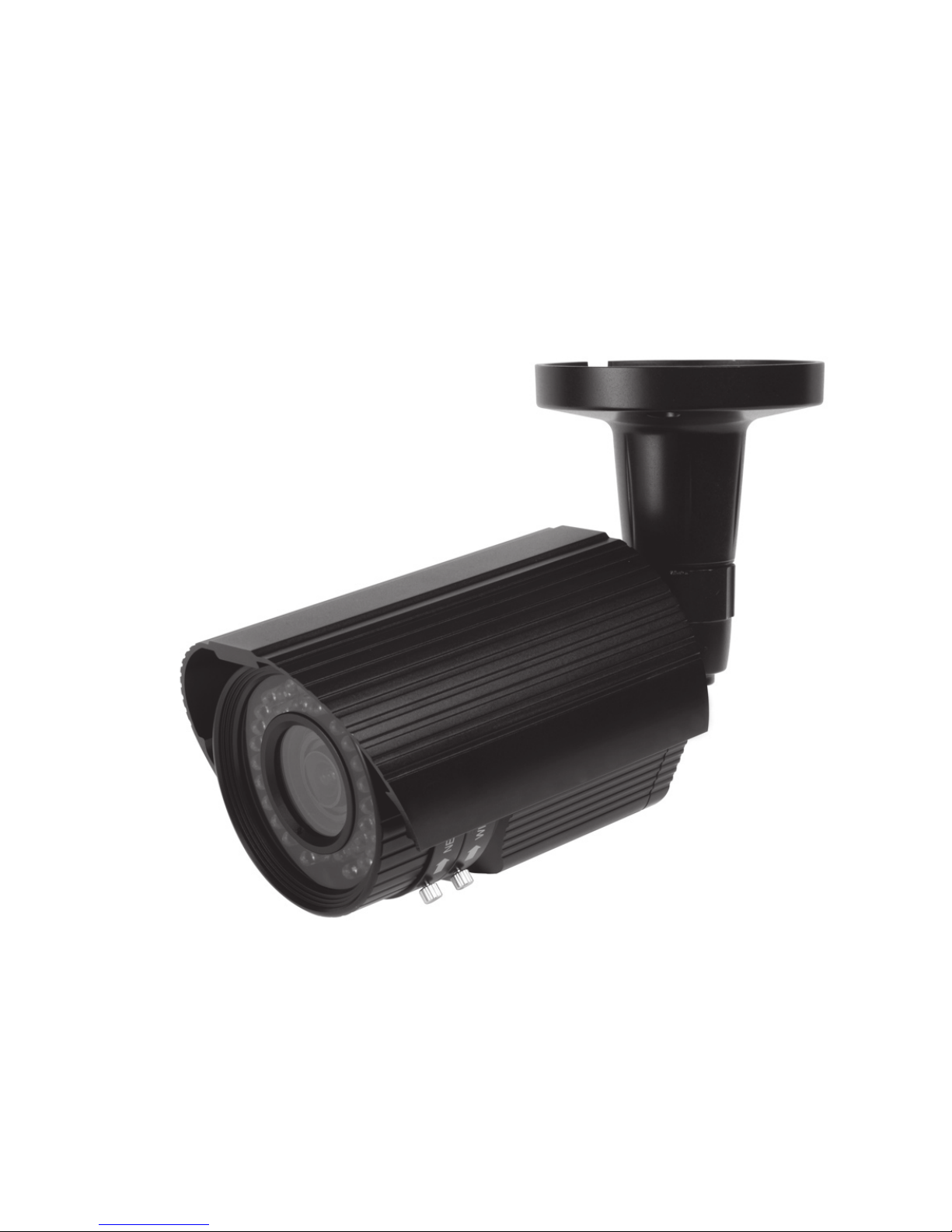

Super Night Vision Camera
OPERATION MANUAL
Thank you for choosing our high quality camera. Before attempting
to connect operate this unit,please read and follow these instructions.
M117-N701-001

2
These servicing instructions are for use by qualied service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualied to do so.
In USA and Canada, Use Class 2 Power Supply Only
CAUTION

CONTENTS
1. CAUTIONS
2. IMPORTANT SAFETY INSTRUCTIONS
3. FEATURES
4. COMPONENTS
5. NAME AND FUNCTION
6. INSTALLATION
7. DIMENSIONS
8. SPECIFICATION
9. OSD MANUAL
10. COMMUNICATION PROTOCOL
3

1. CAUTIONS
4
1. A regulated DC12V 1A power supply is recommended for use with this camera
for the best picture and the most stable operation.
An unregulated power supply can cause damage to the camera.
When unregulated power supply is applied, product warranty will be
out of subject.
2. It is recommended that the camera is used with a monitor that has a CCTV quality
75 video impedance level.
If your monitor is switched to high impedance then please adjust accordingly.
3. Do not attempt to disassemble the camera to gain access to the internal componets.
Refer servicing to your dealer.
4. Never face the camera towards the sun or any bright or reective light, which may
cause smear on the picture and possible damage to the CCD.
5. Do not remove the serial sticker for the warranty service.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions;
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
Note
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.”
WARNING
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Caution
Any changes or modications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment.

1. CAUTIONS
5

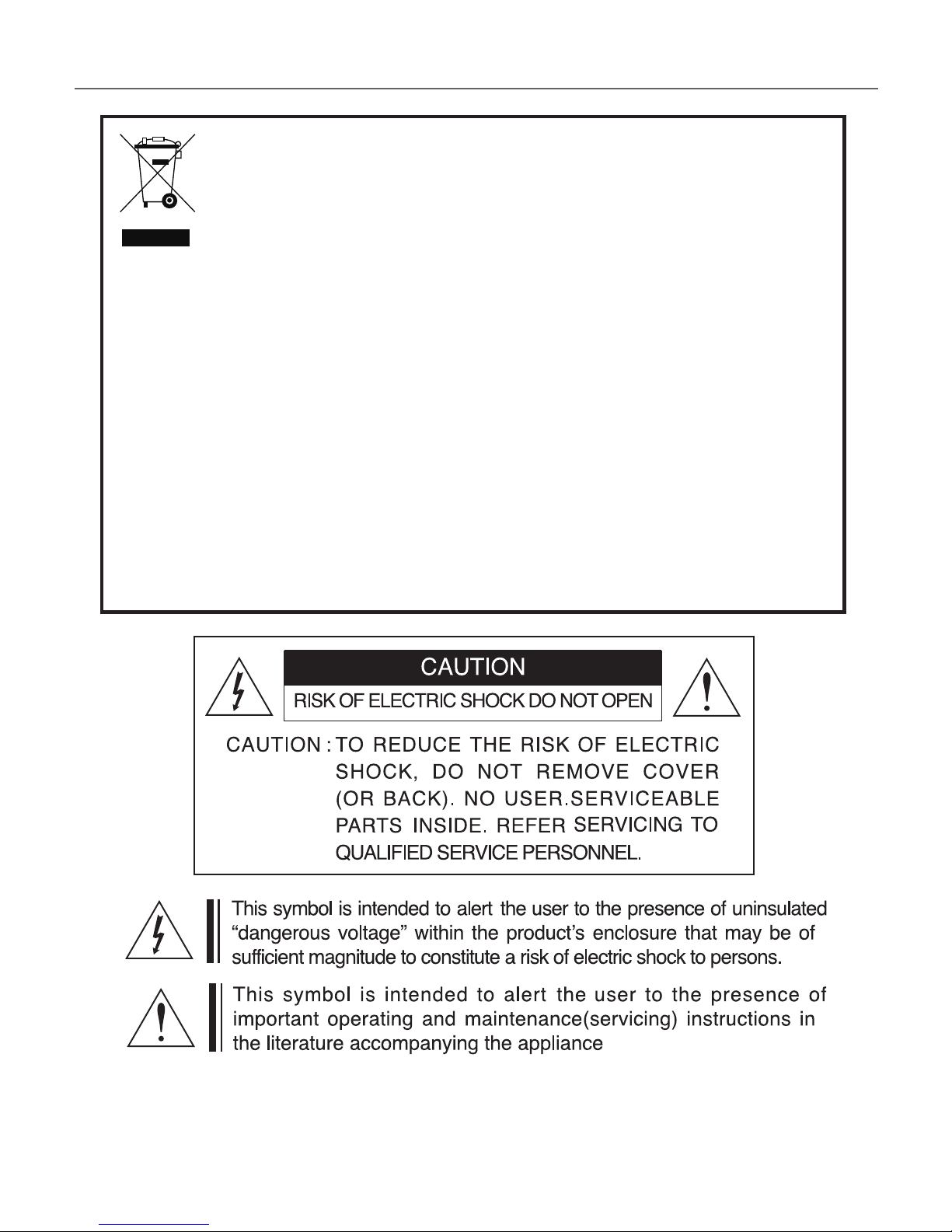

Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with
separate collection systems)
This marking shown on the product or its literature, indicate that it should not
be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
This product should not be mixed with other commercial wastes purchased this
product, or their local government ofce, for details of where and how they can
take item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract.
Household users should contact either the retailer where they for disposal.

2 . IMPORTANT SAFETY INSTRUCTION
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including ampliers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specied by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specied by the
manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long
periods of time.
14) Refer all servicing to qualied service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
6

3. FEATURES
• 1/3960H SONY EXview HAD CCD II
• High Resolution of 700TV Lines
• OSD Function
• Multi Language
(ENGLISH, CHINESE, RUSSIAN, SPANISH, GERMAN, FRENCH, PORTUGUESE, JAPANESE)
• 2DNR
• Privacy Zone / Motion Detect
• Smart IR
• DC12V / AC24V Dual Voltage
• ATR(Adaptive Tone-curve Reproduction / Digital WDR)
The function provides gradation compensation to improve the contrast of subjects both
low-luminance areas and high luminance areas exist in the same picture
7

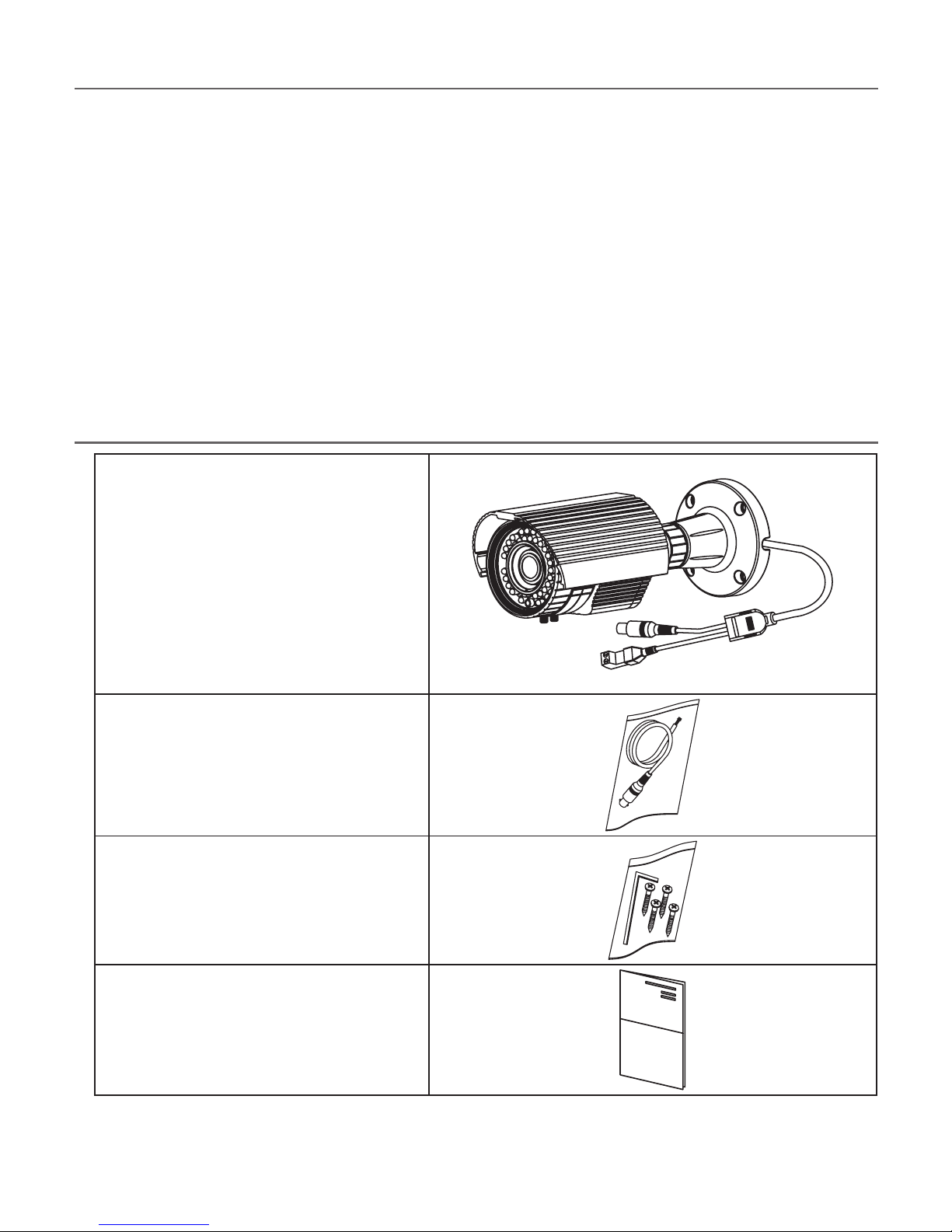

4. COMPONENTS
SUPER NIGHT VISION CAMERA
VIDEO OUTPUT
TEST CABLE
L-WRENCH / SCREW - 4ea
OPERATION MANUAL

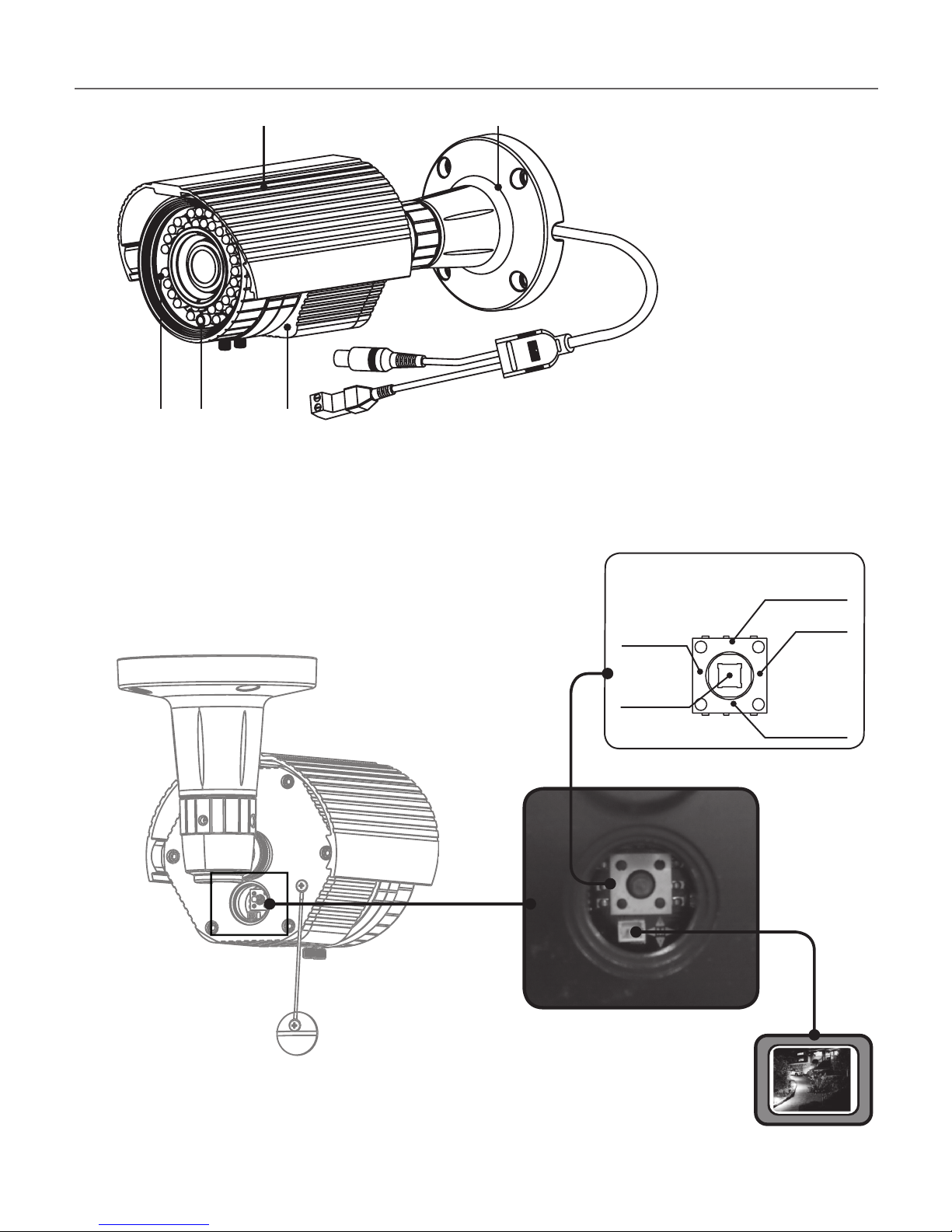

5. NAME AND FUNCTION
• Service Video connector & OSD Joystick
8
① Sunshield
② Cable Concealed
Thru Bracket
③ LED : 45ea
④ Photo cell
⑤ Body
③ ④ ⑤
① ②
• CONTROL FUNCTION
(OSD JOYSTICK)
LEFT
UP
RIGHT
DOWN
MENU

5. NAME AND FUNCTION
• Heater
• External Zoom & Focus Adjustable
9
Heater
Built in heater protects the camera from low temperature.
(Operating temperature with Heater:-40℃)
External Zoom & Focus Adjustable

6. INSTALLATION
• MOUNTING POSITION
10
90
˚TLIT 360
˚PAN
360
˚PAN
90
˚TLIT

6. INSTALLATION
• MONITOR CONNECTION
11
When you install the camera, please glue up the end of cable to
keep it stable in order to protect the camera from the humidity problems.
DC12V/AC24V
DC12V/AC24V
BNC FEMALE
DC 12V POWER SUPPLY or
AC 24V POWER SUPPLY
DC 12V POWER SUPPLY or
AC 24V POWER SUPPLY
VIDEO IN
VIDEO IN
RS485
MONITOR
MONITOR

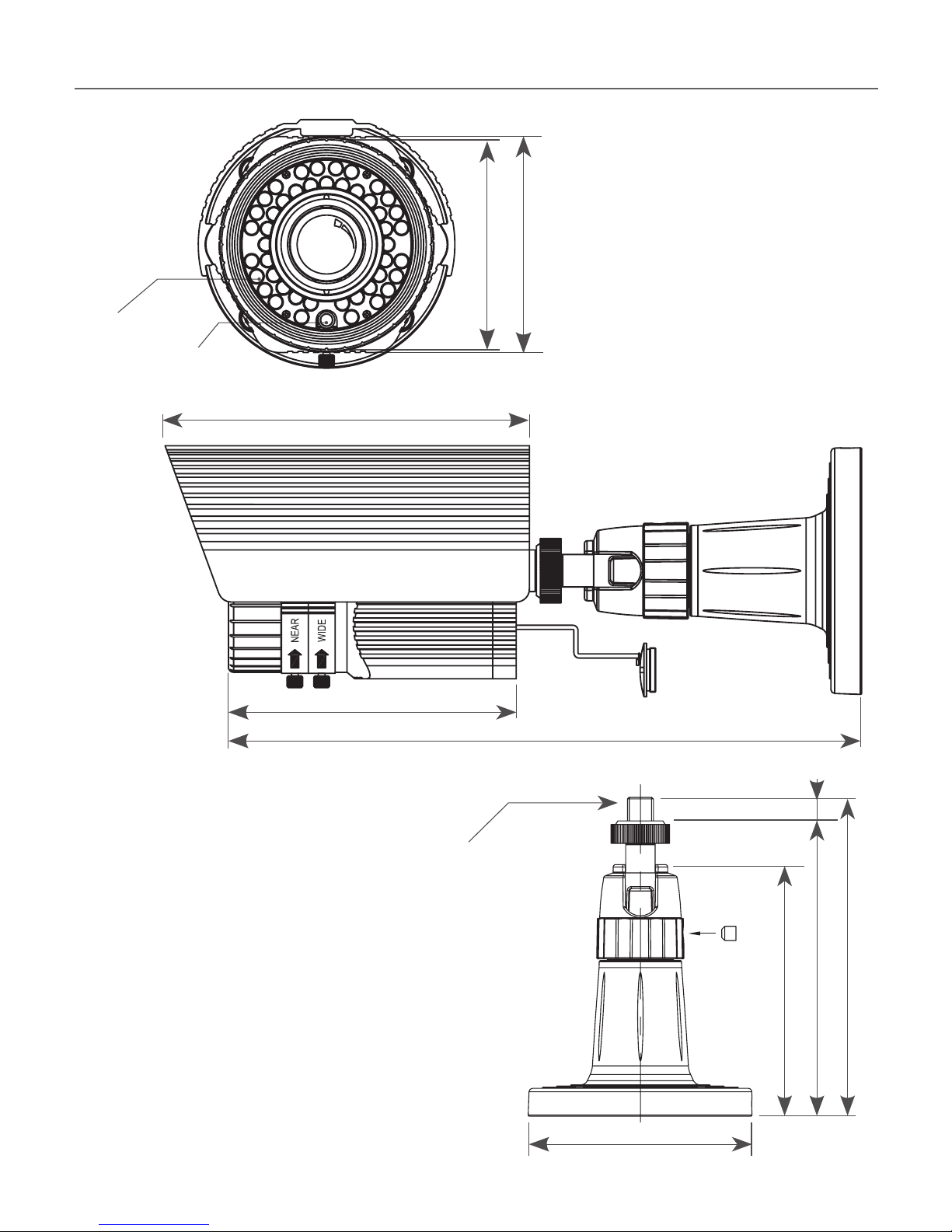

7. DIMENSIONS
Unit : mm
12
Ø95
M12XP1.25
135
125
106.5
(2EA)
10
Ø80.6
83
45 LED
SENSOR
140
110.6
243.3

8. SPECIFICATION
Signal Format NTSC PAL
Image Device 1/3˝960H SONY EXview HAD CCD II
Scanning System 2 : 1 Interlace
Scanning Frequency 15.734KHz(H), 59.94Hz(V) 15.625KHz(H), 50Hz(V)
Total Pixels 1020(H) X 508(V) 1020(H) X 596(V)
Effective Pixels 976(H) X 494(V) 976(H) X 582(V)
Electronic Shutter Speed 1/60 sec 1/50 sec
H.Resolution 700TV Lines
S/N Ratio More than 50dB(AGC OFF)
Min.Illumination LED On : 0 Lux
Sync System Internal
Gamma r= 0.45
Video Output Level 1.0 Vp-p Composite(75Ω)
OSD Built in (Joystick)
BLC OFF / BLC / HLC
2DNR OFF/ON(Level adjustable)
ATR OFF/ON(Level adjustable)
SMART IR On / Off
White Balance ATW / PUSH / MANUAL / PUSH-LOCK
Privacy Masking 4 Zones
Motion Detection 4 Zones
Day & Night(ICR) AUTO / Color / BW
Language ENGLISH, CHINESE, RUSSIAN, SPANISH, GERMAN, FRENCH,
PORTUGUESE, JAPANESE
IP Rating IP67 (Water proof)
IR LED 850nm, 45ea
IR LED Distance Up to 50M
Operating Temperature 14°F~122°F(-10°C~+50°C) / Heater On: -40°F~122°F(-40°C~+50°C)
Storage Temperature -4°F~140°F(-20°C~+60°C)
Humidity Less than 80%
Power Consumption DC12V (±10%) Max.850mA, 1.1A(Heater On)
AC24V (±10%) Max.10W, 21W(Heater On)
Lens Varifocal Lens
Dimension 98.6(W) x 83(H) x 110.6(D)
Weight Approx. 900g
Option RS-485, Heater
Specications and designs are subject to change for improving the functionality of this product without notice.
13

9. OSD MANUAL
GENERAL STRUCTURE
14
SETUP
>FOCUS ADJUST [-]
EXPOSURE [-]
WHITE BALANCE [-]
BLC [-]
DAY&NIGHT [-]
IMAGE [-]
SPECIAL [-]
FACTORY DEFAULT
EXIT
EXPOSURE
>BRIGHTNESS ... 7
SHUTTER ... 1/60
FLICKERLESS ... OFF
AGC MAX ... 32dB
INITIAL
RETURN
FOCUS ADJUST
> RETURN
WHITE BALANCE
> WB MODE AUTO
RED CONTROL ----
BLUE CONTROL ----
PUSH AUTO ----
INITIAL
RETURN
BLC
>ATR MODE ON
ATR LEVEL 4
BLC MODE ON
BLC ZONE CENTER
BLC LEVEL 8
INITIAL
RETURN
DAY & NIGHT
>D&N MODE AUTO
DWELL TIME 3SEC
D -> N LEVEL 1
N -> D LEVEL 3
BURST OFF
SMART-IR ON
SMART-IR LEVEL 8
LED CONTROL MANUAL
LED LEVEL 20
INITIAL
RETURN

9. OSD MANUAL
15
PRIVACY
>ZONE NO 0
MASK MODE ON
V START 7
V END 12
H START 10
H END 19
COLOR 1
TRANSPARENCY 0%
MOSAIC OFF
INITIAL
RETURN
MOTION DETECT
>ZONE NO 0
MOTION MODE ON
LEVEL 4
V START 7
V END 12
H START 10
H END 19
INITIAL
RETURN
>MIRROR OFF
DNR ON
DNR LEVEL 4
SHARPNESS 8
INITIAL
RETURN
SPECIAL
>CAM TITLE [-]
LANGUAGE ENGLISH
COMM ADJUST [-]
PRIVACY [-]
MOTION DETECT [-]
DISPLAY [-]
DEFECT
INITIAL
RETURN
CAM TITLE
0123456789ABCDEFGHIJK
LMNOPQRSTUVWXYZ!()<>
SPA >> <<BAK
TITLE SET
LOCATION [┛]
RETURN
DISPLAY
> CAM ID ON
CAM TITLE ON
MOTION DETECT ON
INITIAL
RETURN
COMM ADJUST
> CAM ID 1
BAUDRATE 9600
RETURN
DEFECT
> COMPENSATION ON
DETECTION (↑)
RETURN
[TITLE LOCATION]
TITLE
[U][D][L][R][M] <

9. OSD MANUAL
16
MAIN MENU Sub Menu Sub MENU
SETUP
FOCUS ADJUST RETURN
EXPOSURE
BRIGHTNESS 0~15
SHUTTER 1/60(50), 1/120(100),1/250, 1/500, 1/1k, 1/2k, 1/4k, 1/6k, 1/10k, 1/50k, 1/100k
FLICKERLESS OFF, ON
AGC MAX 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, 27dB, 30dB, 33dB, 36dB, 39dB, 42dB
INITIAL
RETURN
WHITE BALANCE
WB MODE ATW, PUSH, PUSH LOCK, MANUAL
RED CONTROL 0 ~ 255
BLUE CONTROL 0 ~ 255
PUSH AUTO -
INITIAL
RETURN
BLC
ATR MODE OFF, ON
ATR LEVEL 0 ~ 4
BLC MODE OFF, ON, HLC
BLC ZONE TOP, BOTTOM, CENTER, LEFT, BIGHT
BLC LEVEL 0 ~ 15
INITIAL
RETURN
DAY&NIGHT
D&N MODE COLOR, B/W, AUTO
DWELL TIME 0 ~ 10
D -> N LEVEL 0 ~ 19
N -> D LEVEL 1 ~ 20
BURST OFF, ON
SAMRT-IR OFF, ON
SMART-IR LEVEL 0 ~ 15
LED CONTROL MANUAL, AUTO
LED LEVEL 0 ~ 20
INITIAL
RETURN
MIRROR OFF, ON
DNR OFF, ON
DNR LEVEL 0 ~ 15
SHARPNESS 0 ~ 15
INITIAL
RETURN
SPECIAL CAM TITLE
CAM TITLE
0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K
L M O P Q R S T U V W Y Z ! - () <>
SPA>> <<BAK
LOCATION
RETURN

9. OSD MANUAL
MAIN MENU Sub Menu Sub MENU
SPECIAL
LANGUAGE
ENGLISH, CHINESE, RUSSIAN, SPANISH, GERMAN, FRENCH, PORTUGUESE, JAPANESE
COMM ADJUST
CAM ID 0 ~ 255
BAUDRATE 2400, 4800, 9600, 19200
RETURN
PRIVACY
ZONE NO 0 ~ 3
MASK MODE OFF, ON
V START 0 ~ 17
V END 1 ~ 18
H START 0 ~ 29
H END 1 ~ 30
COLOR 0 ~ 7
TRANSPARENCY 0%, 25%, 50%
MOSAIC OFF, ON
INITIAL
RETURN
MOTION DETECT
ZONE NO 0 ~ 3
MOTION MODE OFF, ON
LEVEL 0 ~ 15
V START 0 ~ 6
V END 1 ~ 7
H START 0 ~ 10
H END 1 ~ 11
INITIAL
RETURN
DISPLAY
CAM ID OFF, ON
CAM TITLE OFF, ON
MOTION DETECT OFF, ON
INITIAL
RETURN
DEFECT
COMPENSATION OFF, ON
DETECTION
RETURN
INITIAL
RETURN
FECTORY DEFAULT
EXT
17

9. OSD MANUAL
OSD FUNCTION DESCRIPTION
1. FOCUS ADJUST
: According to the brightness of light to minimize the depth of focus, to be more accurate to focus.
2. EXPOSURE
: Enable user to set up the function of BRIGHTNESS, SHUTTER, FLICKERLESS, AGC.
Set up using LEFT, RIGHT KEY at each menu.
- BRIGHTNESS
: Enable user to control the image brightness (0~15steps).
- SHUTTER
:Enable user to set up the Shutter Speed.
-> 1/60(50), 1/100(120), 1/250, 1/500, 1/1K, 1/2K, 1/4K, 1/6K, 1/10K, 1/50K, 1/100K.
*() is for PAL TYPE.
- FLICKERLESS
: Enable user to set up the FLICKERLESS ON/OFF.
- AGC MAX
: Enable user to make imager bright to amplify the Gain.
-> 6dB~42dB
- INITIAL
: Enable user to initialize the Exposure menu set up.
18
FOCUS
>RETURN
EXPOSURE
>BRIGHTNESS 7
SHUTTER 1/60
FLICKERLESS OFF
AGC MAX 30dB
INTIAL
RETURN

9. OSD MANUAL
3. WHITE BALANCE
: Enable user to represent the accurate white color by controlling the R,G,B level. Setting up
LEFT, RIGHT KEY on each menu.
- WB MODE
①ATW : Enable user to trace the White Balance
automatically in the range of 2,300K~10,000K.
②PUSH : Enable user to search for White Balance
automatically. In this mode, color temperature range is
broader than ATW.
③ PUSH LOCK : Enable user to x the White Balance
according to the color temperature in the certain
environment.
④MANUAL : Enable user to sets the White Balance
according to the circumstance.
- RED CONTROL
:In the MANUAL setting of WB MODE, enable user to set the RED GAIN.
- BLUE CONTROL
: In the MANUAL setting of WB MODE, enable user to set the BLUE GAIN.
- PUSH AUTO
: In the PUSH LOCK setting of WB MODE, enable user to x the White Balance in
camera setting.
- INITIAL
: Enable user to reset the WHITE BALANCE menu setting..
4. BLC
: Use the condition which Image doesn’t gure out with BLC such as place surrounded windows
and lobby. Set the BLC using the LEFT, RIGHT KEY on the each menu.
- ATR MODE
: In this mode, the brightness of a single image is
compensated using the gamma curve.
- ATR LEVEL
: Enable user to set ATR Level(0~4 level).
- BLC(Back Light Compensation)
①OFF : BLC mode off.
②ON : BLC mode on.
③HLC : High Light Compensation Mode on.
*High Light Compensation (HLC) is a function that improves the visual recognition of
license plates and other such objects by suppressing or masking strong light sources (such as
the headlights of automobiles).
19
WHITE BALANCE
>WB MODE AUTO
RED CONTROL - - -
BLUE CONTROL - - -
PUSH AUTO - - -
INTIAL
RETURN
BLC
>ATR MODE ON
ATR LEVEL 4
BLC MODE ON
BLC ZONE CENTER
BLC LEVEL 8
INTIAL
RETURN

9. OSD MANUAL
- BLC ZONE : Enable user to set the BLC area
-> TOP, BOTTOM, CENTER, LEFT, RIGHT.
- BLC LEVEL : Enable user to set BLC in selected
area(0~15 level).
- INITIAL : Enable user to initialize the BLC setting.
5. DAY&NIGHT
: Conversion of output image COLOR / BW depending on exterior environment
Enable user to set the LEFT, RIGHT KEY in menu.
- D&N MODE
① COLOR : Enable user to t the output image in color.
② B/W : Enable user to t the output image in B/W.
③ AUTO :
Enable user to convert to COLOR/BW automatically.
- DWELL TIME : In D&N MODE AUTO, enable user to
set to delay time for changing COLOR/BW(0~10sec).
- D->N LEVEL
: Day(Color) to Night(BW) a Sensor level(0~19).
- N->D LEVEL
: Night(BW) to Day(Color) a Sensor level(1~20).
- BURST
: In BW mode, Color burst signal ON / OFF.
- SMART-IR
: By the IR LED light, the screen is saturated, and automatically adjust the brightness,
so you can see the screen.
- SMART-IR LEVEL
: Enable user to control the Level (0~15steps).
- LED CONTROL
① MANUAL : IR LED brightness is adjusted manually.
② AUTO : IR LED brightness is adjusted automatically.
- LED LEVEL
: Enable user to control the IR-LED Level (0~15steps).
- INITIAL
: Enable user to initialize the setting in DAY&NIGHT menu.
20
DAT&NIGHT
>DAY&MODE AUTO
DWELL TIME 3SEC
D -> N LEVEL 1
N -> D LEVEL 3
BURST OFF
SMART-IR ON
SMART-IR-LEVEL 8
LED CONTROL MANUAL
LED LEVEL 20
INTIAL
RETURN
TOP
BOTTOM
LEFT CENTER RIGHT
