EverFocus Stainless Steel Series User manual

Stainless Steel Series Network Camera
2MP / 3MP / 4MP
Quick Installation Guide
EZN288MS / EZN368MS / EZN468MS
EDN288MS / EDN368MS / EDN468MS
Copyright © EverFocus Electronics Corp.
Release Date: December, 2017
All the images including product pictures or screen shots in this document are for example only. The
images may vary depending on the product and software version. Information contained in this
document is subject to change without notice.

Stainless Steel 2MP/3MP/4MP Network Cameras
1
1. Introduction
The marine-grade (AISI 316) stainless steel network cameras come with two types, Dome and Bullet,
providing resolution up to 4-megapixel (2592 x 1520). The stainless steel series supports dual
streams from H.265 and H.264 video compression formats.
Stainless Steel Series Models
Type Model Lens Megapixel Storage IR LED/Range IP68 & IK10
Dome
EDN288MS
Motorized
2.8-12mm
2MP
Micro SD/SDHC/SDXC
Class 10, Max. 128GB
12 Units,
30m/98ft. SupportedEDN368MS 3MP
EDN468MS 4MP
Bullet
EZN288MS
Motorized
2.8-12mm
2MP
Micro SD/SDHC/SDXC
Class 10, Max. 128GB
3 Units (high
power),
30m/98ft.
SupportedEZN368MS 3MP
EZN468MS 4MP
1.1 System Requirements
Before installing, please check that your computer meets the following system requirements.
Operating System: Microsoft Windows XP / Vista (32-bit) / 7 (32-bit)
Microsoft Internet Explorer 11 or later, Chrome (Windows version 44 and earlier), Firefox
version 50 and earlier, EverFocus Browser
1.2 Packing List
Please check that there is no missing item in the package before installing.
Item EDN Series EZN Series
Camera x 1 x 1
MAC Address Sticker x 2 x 1
Screw + Screw Anchor x 3 x 4
Hexagon Wrench x 1 x 1
Mounting Sticker x 1 x 1
Cable Gland Kit x 1 x 1
Power Pigtail Cable x 1 x 1
Desiccant Bag x 1 -
Software CD + QIG x 1 x 1
Note:
1. Equipment configurations and supplied accessories vary by country. Please consult your local
EverFocus office or agents for more information. Please also keep the shipping carton for
possible future use.
2. Contact the shipper if any items appear to have been damaged in the shipping process.

Stainless Steel 2MP/3MP/4MP Network Cameras
2
1.3 Optional Accessory
You can go to the product page on EverFocus’ website to check the related optional accessories.
www.everfocus.com.tw
2. Physical Description
EDN288MS / EDN368MS / EDN468MS EZN288MS / EZN368MS / EZN468MS
4
1
2
3
6
5
2
1
3
5
4
6
No. Item Name Descriptions
1 Light Sensor Detects lights.
2 IR LEDs
EDN Series: 12 IR LEDs for infrared illumination in night vision applications.
EZN Series: 3 high power IR LEDs for infrared illumination in night vision
applications.
3 Lens Motorized 2.8~12mm lens.
4 Video Output CVBS output for connecting to a monitor to adjust camera viewing angle.
5 Reset Button Press the button to restore the camera to factory default. Note that the
EZN models also features a Reset Button on the cable (refer to 2.2 Cables).
6 SD Card Slot Insert a micro SD/SDHC/SDXC card (up to 128GB) for recording.
2.1 Dimensions
EDN288MS / EDN368MS / EDN468MS:
Ø 135mm / 5.3" 100.5mm / 4"

Stainless Steel 2MP/3MP/4MP Network Cameras
3

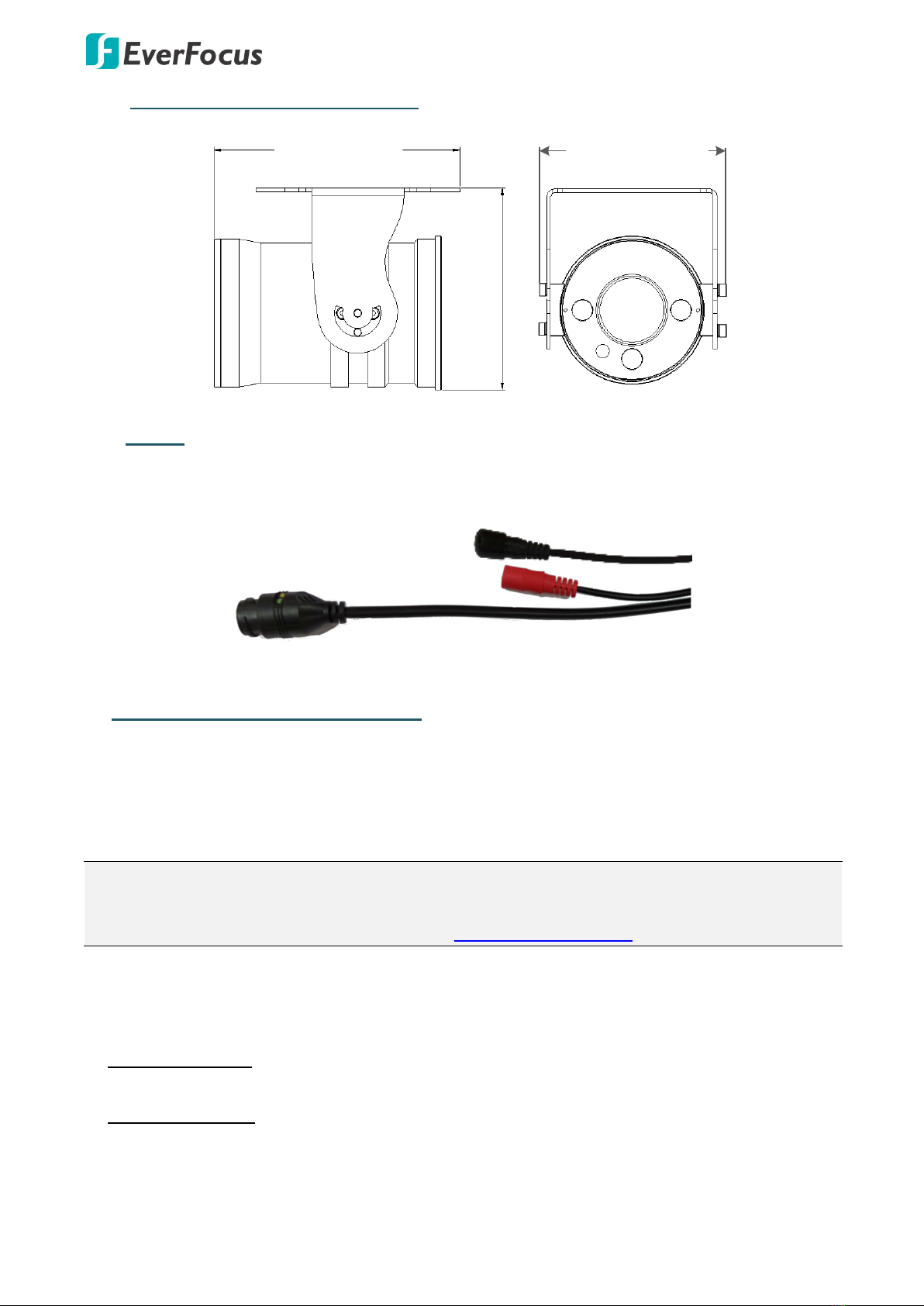

EZN288MS / EZN368MS / EZN468MS:
127.8mm / 5.03"
105.1mm / 4.1"
100.4mm / 3.95"
2.2 Cables
The cables provide connections for connecting to the Network and Power. You can also power up
the camera through PoE. The Reset Button cable is only available for EZN models.
12VDC Input
LAN / PoE Cable
Reset Button
(only for EZN models)
3. SD Card Slot and Reset Button
You can use the SD Card and the Reset Button to:
SD Card Slot: Optionally insert a micro SD card to the card slot for recording videos. Before
inserting a micro SD card, make sure you turn off the camera first.
Note: This IP Camera supports micro SD/SDHC/SDXC card up to 128GB. You can go to the
Download page on the product website to find the Storage Compatibility Table for viewing the
tested SD cards. Please visit EverFocus’ Website www.everfocus.com.tw
Reset Button:
Reboot the camera: When the camera is powered up, press the Reset Button will reboot the
camera.
Restore the camera: Keep the Reset Button pressed, at the same time unplug the camera power
then plug it back again will return camera settings to the factory default values.

Stainless Steel 2MP/3MP/4MP Network Cameras
4
EDN288MS / EDN368MS / EDN468MS:
To find the SD Card Slot and the Reset Button on the camera module, remove the camera cover
using the supplied Hexagon Wrench. After inserting the SD card, be sure to place the supplied
Desiccant Bag inside the module and then tightly screw back the camera cover.
SD Card Slot
Reset Button
Desiccant Bag
EZN288MS / EZN368MS / EZN468MS:
To find the SD Card Slot on the camera module, use the supplied Hexagon Wrench to unscrew the 4
screws on the rear side of the camera and then slowly pull out the camera module. After inserting
the SD card, place a Desiccant Bag inside the module, put the module back to the housing and then
tightly screw back the module. The Reset Button is on the cable.
Note: There is already a Desiccant Bag placed inside the camera module before shipping. It’s
recommended for users to prepare a Desiccant Bag and place it inside the camera module every
time when you pulled out the camera module from the housing.
SD Card Slot
Desiccant Bag
Reset Button

Stainless Steel 2MP/3MP/4MP Network Cameras
5
4. Installation
Please refer to the steps below to mount the IP cameras.

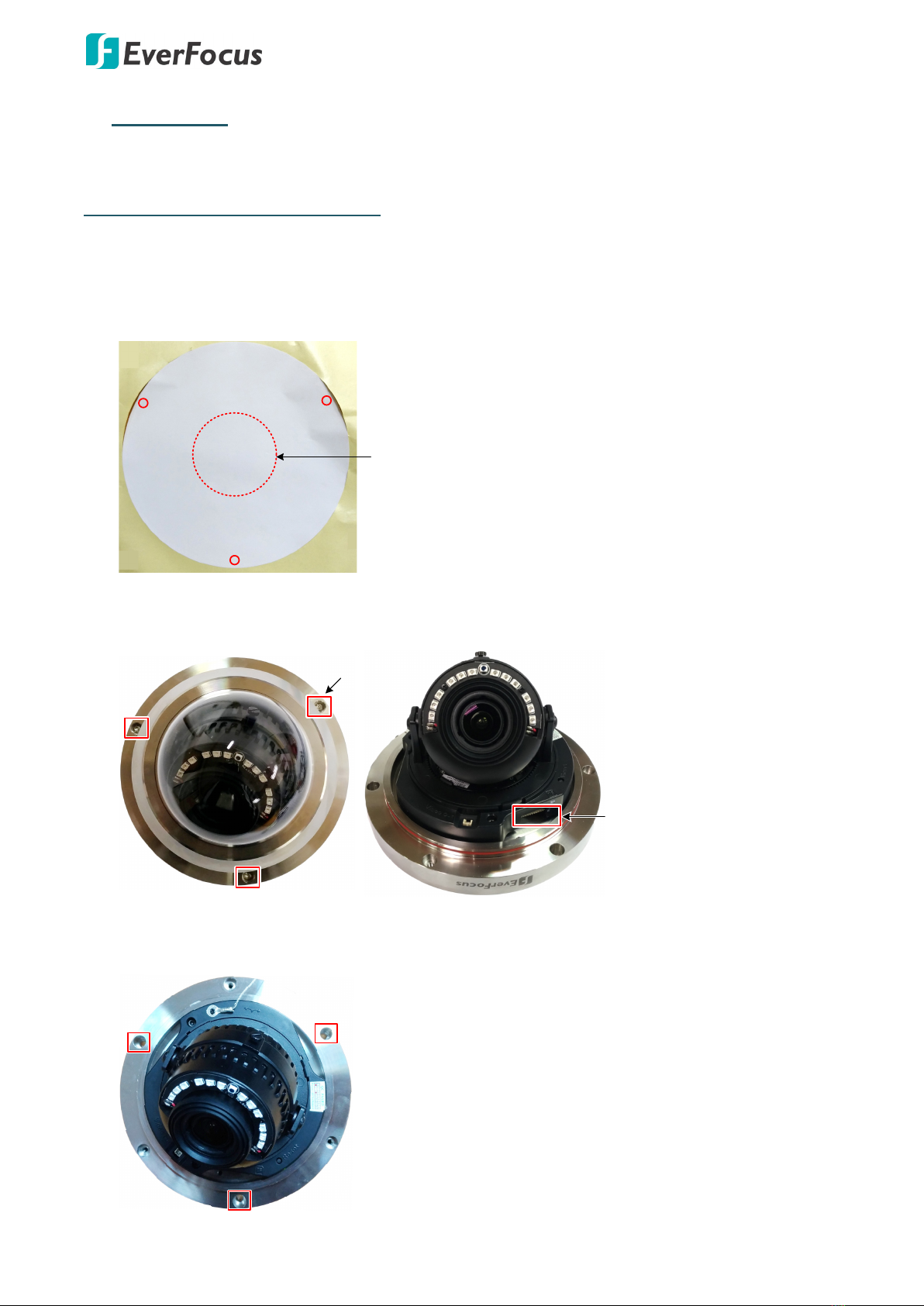

EDN288MS / EDN368MS / EDN468MS:
1. Before screwing the camera to the wall/ceiling, stick the Mounting Sticker on the wall/ceiling
to mark the position for installation. Drill three screw holes on the wall/ceiling according to the
Mounting Sticker. Push the supplied 3 Screw Anchors into the holes on the wall/ceiling. Drill
another hole in the middle only if you want to run the cables through the wall/ceiling.
Drill a hole only if you want to run the
cables through the wall/ceiling.
2. Unscrew the 3 screws using the supplied Hexagon Wrench and then remove the camera cover.
Optionally insert a micro SD/SDHC/SDXC card into the card slot.
SD Card Slot
Screw
3. Place the camera base against the anchoring surface so that the holes line up. Screw the
camera base to the ceiling/wall by using the supplied 3 Screws.

Stainless Steel 2MP/3MP/4MP Network Cameras
6
4. Connect a LAN/PoE cable to the camera.
a. Remove the Screw Cap from the Cable Gland.
Screw Cap
Cable Gland
b. Insert a RJ-45 network cable (without the RJ-45 connector on the one end) through the
supplied Waterproof Ring, Cable Gland, Stopper and Screw Cap accordingly.
Waterproof Ring Cable Gland Stopper Screw Cap
c. Connect the RJ-45 cable to the LAN/PoE Cable of the camera.
RJ-45 Cable
LAN/PoE Cable
d. Tightly screw the Cable Gland and Screw Cap to the Rugged RJ-45 Connector Cable.
Screw Cap
Cable Gland
e. Crimp the RJ-45 connector onto the RJ-45 network cable. Note that the wires should be
placed into the RJ-45 connector based on the following order (from left to right).
Orange with white stripe
Orange
Green with white stripe
Blue
Blue with white stripe
Green
Brown with white stripe
Brown
5. If you are not powering the IP camera through PoE, you can connect the camera to a 12VDC
power source using the supplied Power Pigtail Cable or using a power adapter.
Power Pigtail Cable
12VDC Power Cable
or
Power Adapter

Stainless Steel 2MP/3MP/4MP Network Cameras
7

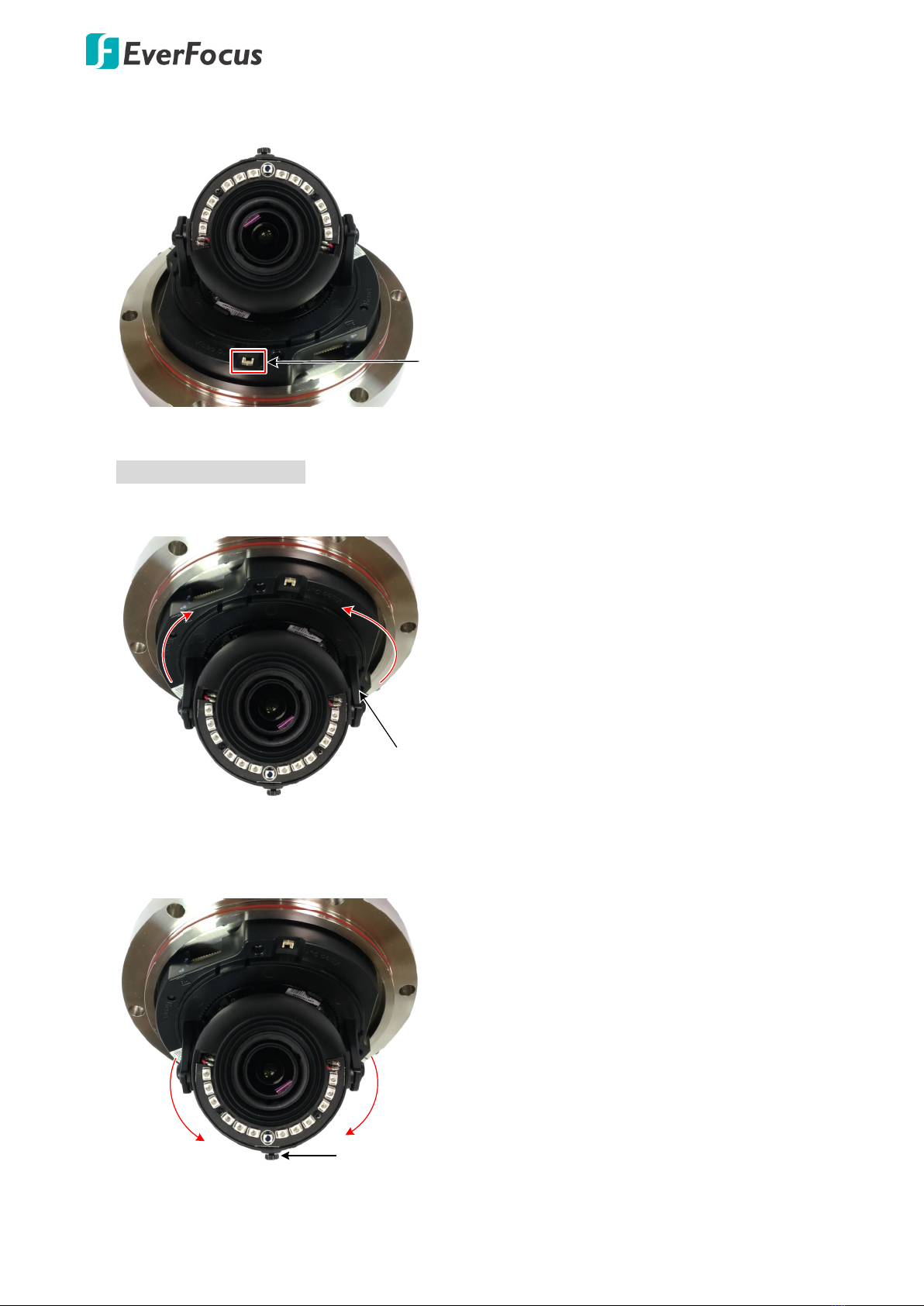

6. Connect a monitor to the Video Output on the IP camera to access camera live view while
adjusting camera angles. To access camera live view, please refer to 5. Accessing the Camera.
Video Output
To adjust camera angles:
Pan Adjustment: Simply turn left / right of the 3-Axis bracket by 75° to the desired position.
3-Axis Bracket
75° 75°

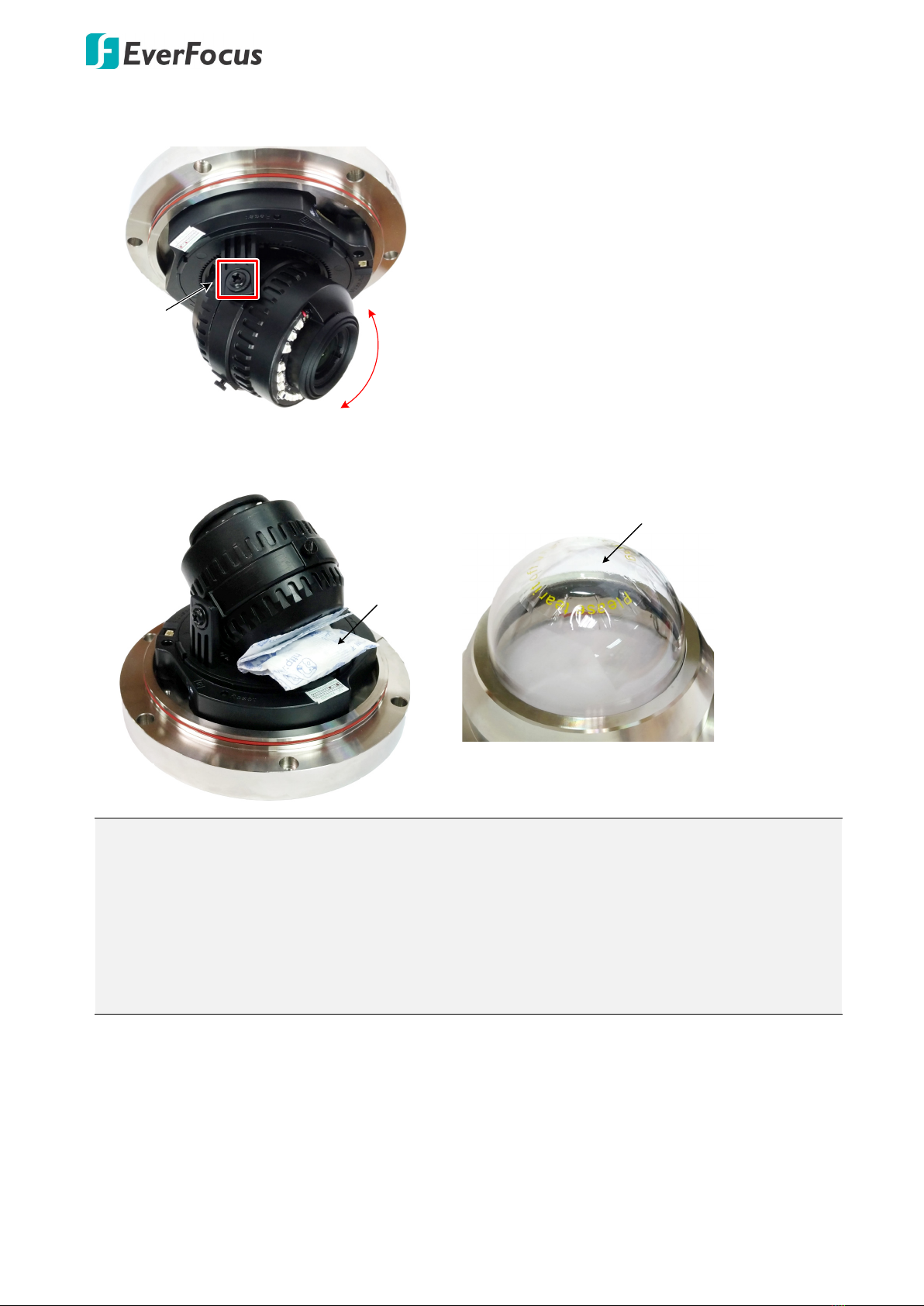

Rotational Adjustment: Loosen the rotation screw and rotate the camera left / right to the
desired position, then tighten the rotation screw. Due to the internal connector design, it is
recommended not to rotate the camera more than 30°.
Rotation Screw
30°
30°

Stainless Steel 2MP/3MP/4MP Network Cameras
8
Tilt Adjustment: Loosen the two tilt screws on both side and adjust the angle up to 75° to the
desired position, then tighten the tilt screws.
Tilt Screw
0° ~ 75°
7. Place the supplied Desiccant Bag, tear down the Protection Film from the inside of the cover
and then screw the camera cover back.
Protection Film
Desiccant Bag
Note:
1. Before start operating the IP camera, please ensure the camera date and time are correct.
To configure the camera date/time, go to System > Date/Time setting page on Web UI.
2. By default, the system will automatically adjust the IR LED strength according to the scene,
so please avoid IR reflection when installing the camera to prevent out-of-focus at night.
3. Under Auto focus mode, if the camera does not focus after switching the Day/Night mode,
it is recommended to switch the focus mode to Manual and adjust focus manually.

Stainless Steel 2MP/3MP/4MP Network Cameras
9
EZN288MS / EZN368MS / EZN468MS:
1. Optionally screw the sunshield to the camera (please refer to Optional Accessory in this QIG).
2. Optionally insert a micro SD/SDHC/SDXC card into the card slot. Please refer to 3. SD Card Slot
and Reset Button.

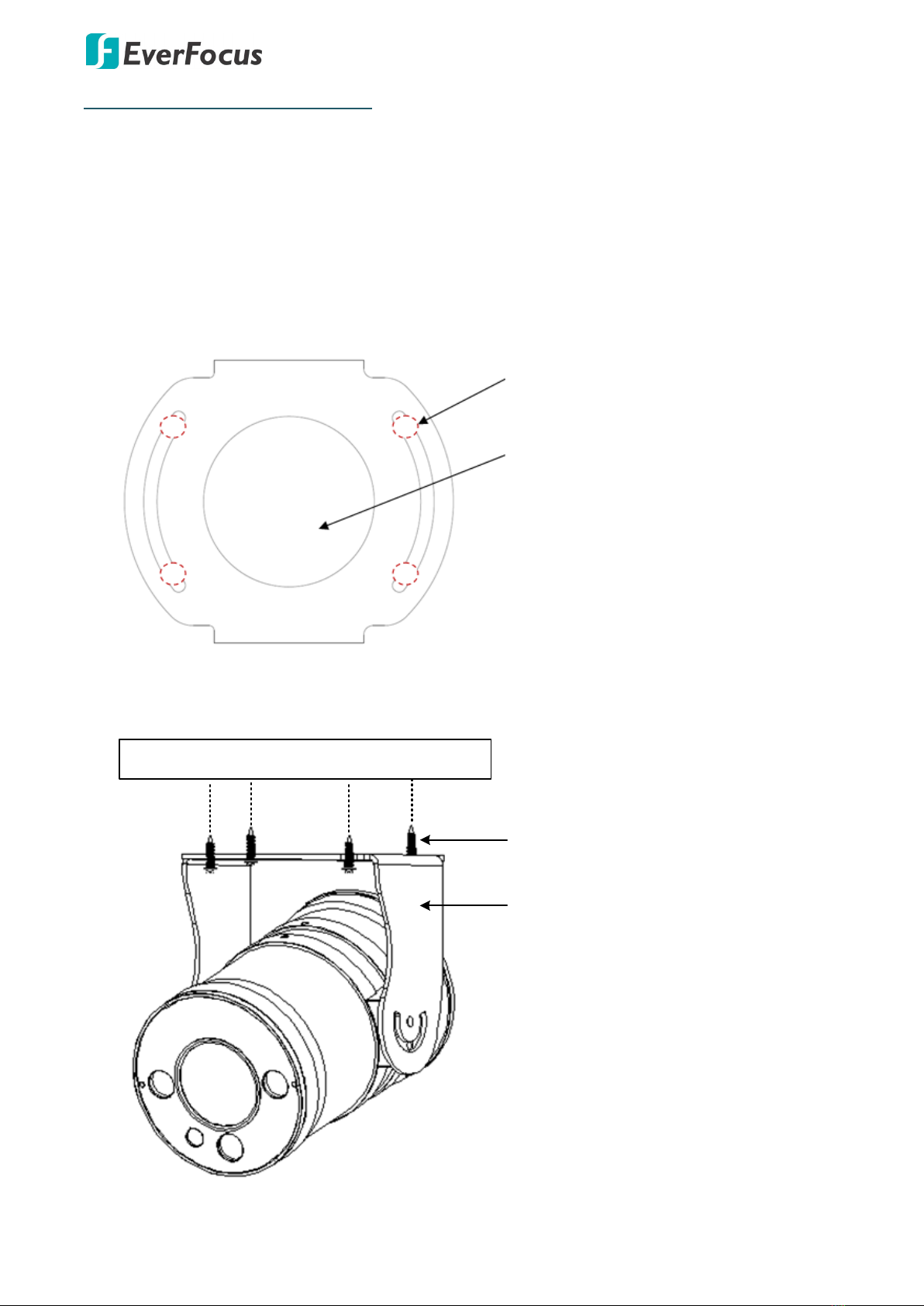

3. Before screwing the camera to the wall/ceiling, stick the Mounting Sticker on the wall/ceiling
to mark the position for installation. Drill four screw holes on the wall/ceiling according to the
supplied Mounting Sticker and push the supplied 4 Screw Anchors into the holes on the
wall/ceiling. Drill another hole in the middle inside the area only if you want to run the cables
through the wall/ceiling.
Screw Hole Position
Drill a hole if you want to
run the wires through
the wall/ceiling.
4. Place the camera’s bracket against the anchoring surface so that the holes line up. Screw the
camera to the wall/ceiling using the supplied 4 Screws.
Wall/Ceiling
Bracket
Screw

Stainless Steel 2MP/3MP/4MP Network Cameras
10
5. Connect a LAN/PoE cable to the camera.
a. Remove the Screw Cap from the Cable Gland.
Screw Cap
Cable Gland
b. Insert a RJ-45 network cable (without the RJ-45 connector on the one end) through the
supplied Waterproof Ring, Cable Gland, Stopper and Screw Cap accordingly.
Waterproof Ring Cable Gland Stopper Screw Cap
c. Connect the RJ-45 cable to the LAN/PoE Cable of the camera.
RJ-45 Cable
LAN/PoE Cable
d. Tightly screw the Cable Gland and Screw Cap to the Rugged RJ-45 Connector Cable.
Screw Cap
Cable Gland
e. Crimp the RJ-45 connector onto the RJ-45 network cable. Note that the wires should be
placed into the RJ-45 connector based on the following order (from left to right).
Orange with white stripe
Orange
Green with white stripe
Blue
Blue with white stripe
Green
Brown with white stripe
Brown
6. If you are not powering the IP camera through PoE, you can connect the camera to a 12VDC
power source using the supplied Power Pigtail Cable or using a power adapter.
Power Pigtail Cable
12VDC Power Cable
or
Power Adapter

Stainless Steel 2MP/3MP/4MP Network Cameras
11

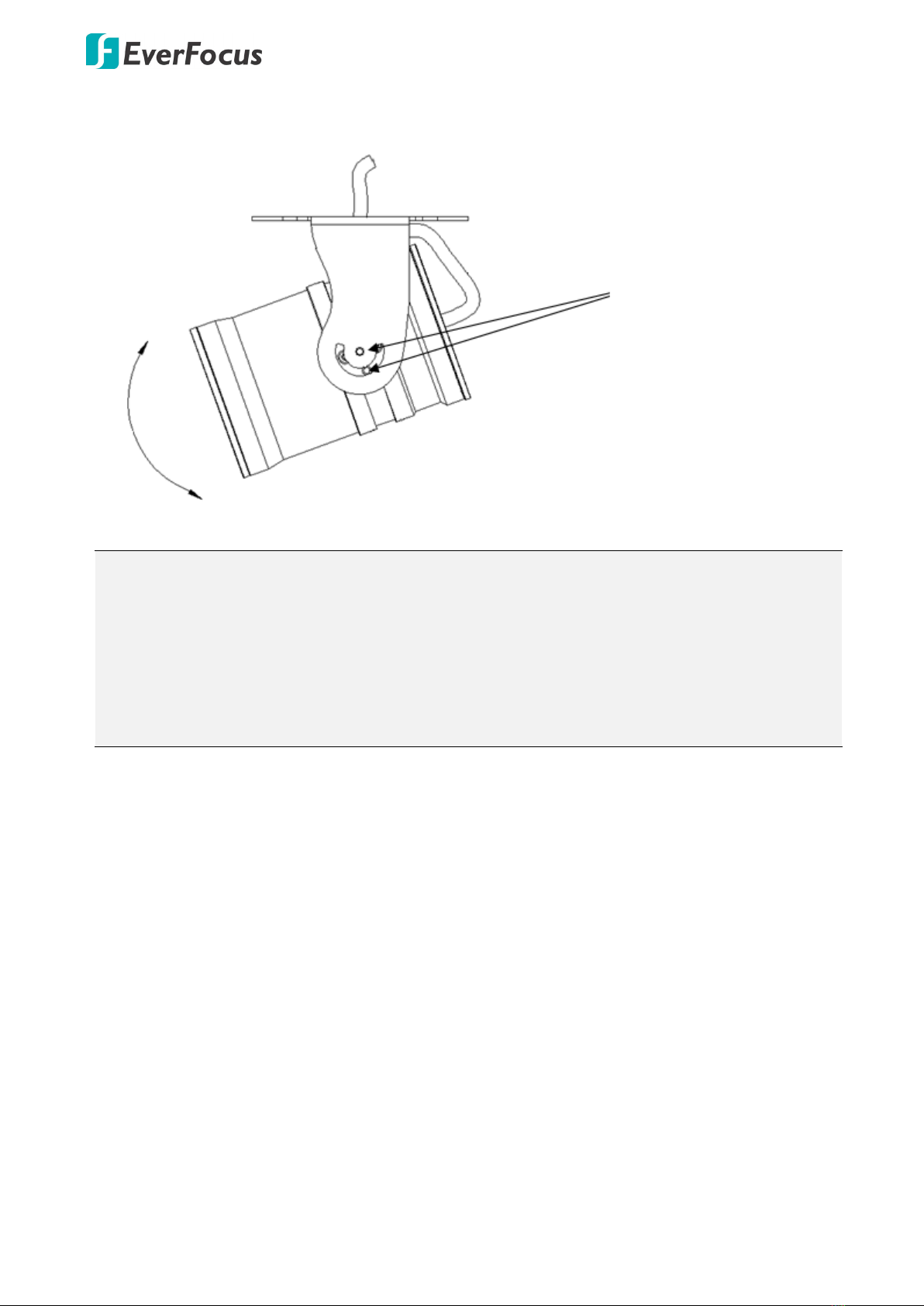

7. Access the camera live view while adjusting camera tilt angle. Loosen the screws to adjust the
tilt angle. To access the camera live view, please refer to 5. Accessing the Camera.
0° ~ 210°
Screws
Cable
Note:
1. Before start operating the IP camera, please ensure the camera date and time are correct.
To configure the camera date/time, go to System > Date/Time setting page on Web UI.
2. By default, the system will automatically adjust the IR LED strength according to the scene,
so please avoid IR reflection when installing the camera to prevent out-of-focus at night.
3. Under Auto focus mode, if the camera does not focus after switching the Day/Night mode,
it is recommended to switch the focus mode to Manual and adjust focus manually.

Stainless Steel 2MP/3MP/4MP Network Cameras
12

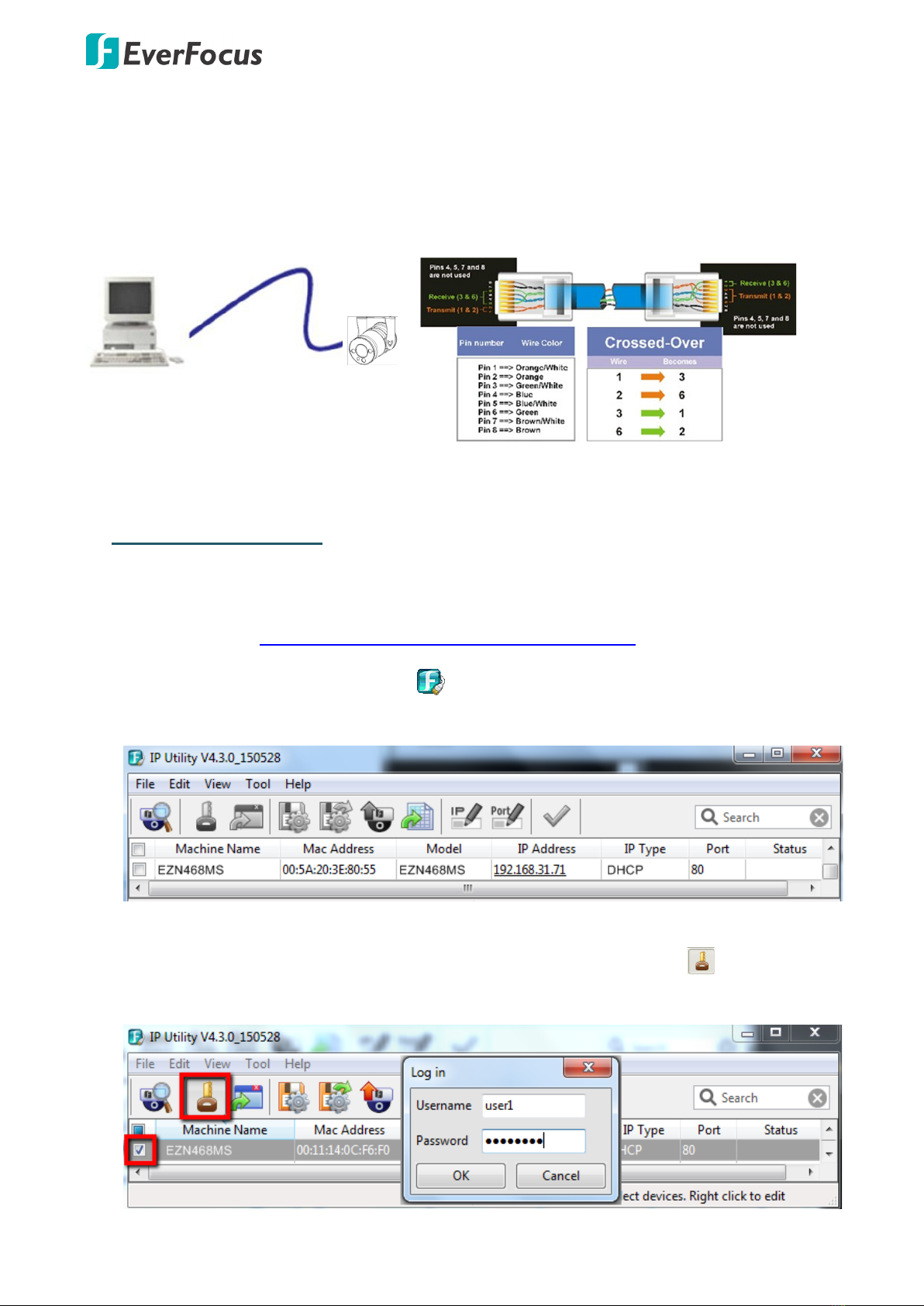

5. Accessing the Camera
You can look up the IP address and access the Web interface of the IP camera using the IP Utility
(IPU) program, which is included in the software CD. The IP Utility can also be downloaded from
EverFocus’ Website: http://www.everfocus.com.tw/product/ip-utility/. Please connect the IP
camera on the same LAN of your computer.
1. Save IP Utility Setup .exe in your computer. Double click the .exe file and follow the
on-screen instructions to install the IP Utility.
2. Click the Finish button, the IP Utility will be automatically launched to search the IP devices
connected on the same LAN.
3. To access the Live View window, double click the IP address column of the desired device,
the login window pops up. Type the user ID and password to log in. By default, the user ID is
user1 and the password is 11111111

Stainless Steel 2MP/3MP/4MP Network Cameras
13

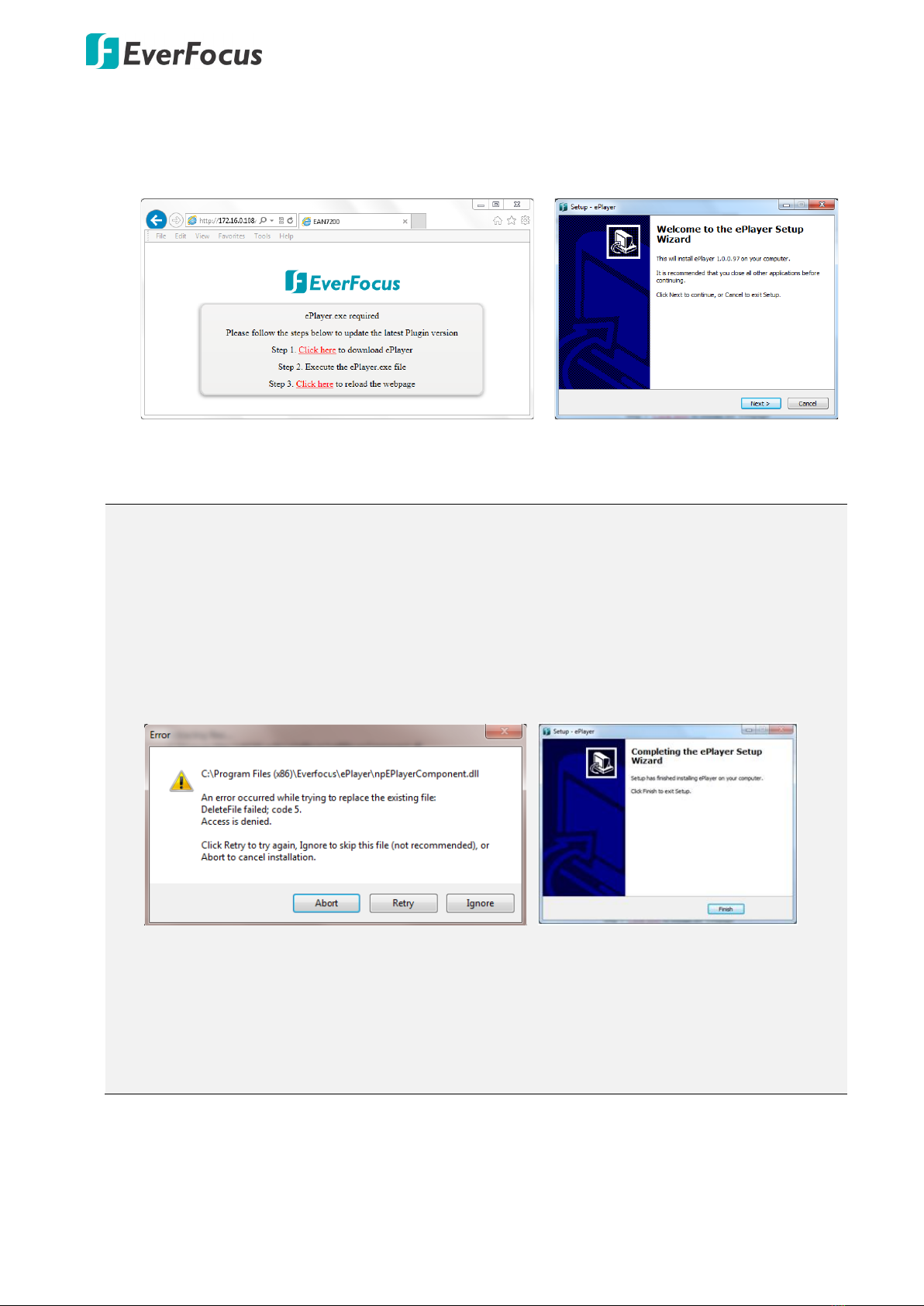

4. If you log in for the first time, follow the on-screen instructions to update the latest Plugin
version (ePlayer). After reloading the webpage, the login window pops up again. Type the
user ID and password to log in again. By default, the user ID is user1 and the password is
11111111
5. Now you are able to see the remote live page.
Note:
1. The “Download ePlayer Instruction” page will only be prompted for the first time login in
order to update the system to the latest Plugin version.
2. If the Error window appears, please be sure to close ALL the Web browser windows first
and then click Retry. When the Completing the ePlayer Setup Wizard window shows up,
click Finish. Then, you can open a new browser again to access the camera’s remote Web
interface.
3. To enable Remote Live View, Firmware Upgrade and ActiveX Prompt on Internet Explorer,
some settings have to be complete. Please refer to 5.2 Settings for Microsoft Internet
Explorer in the User’s Manual.
4. The default IP mode of the IP camera is DHCP. However, if there is no dynamic IP address
assigned to the device, its IP will switch to 192.168.0.10

Stainless Steel 2MP/3MP/4MP Network Cameras
14
6. To optionally configure the Machine Name, IP Address, IP Type or Port Number using the
IPU:
a. Log in the device by checking the desired model and then click the Log in icon. The
Log in dialog box appears.
b. Type the Username and Password and click OK. The Status column will display Login.
Note:
1. The default user ID is user1 and the default password is 11111111
2. If you select more than one camera that has the same user ID / password, you will
be able to log in several cameras at once.
c. Right click the column to configure the setting. Click Apply Changes button to
apply and save the settings.
Note:
1. Most networks uses DHCP to assign IP address, if you are unsure of your network
settings, please consult your network administrators for configuration details.
2. If you want to set up PPPoE, please refer to 7.1.1 Network in the User’s Manual.

Stainless Steel 2MP/3MP/4MP Network Cameras
15

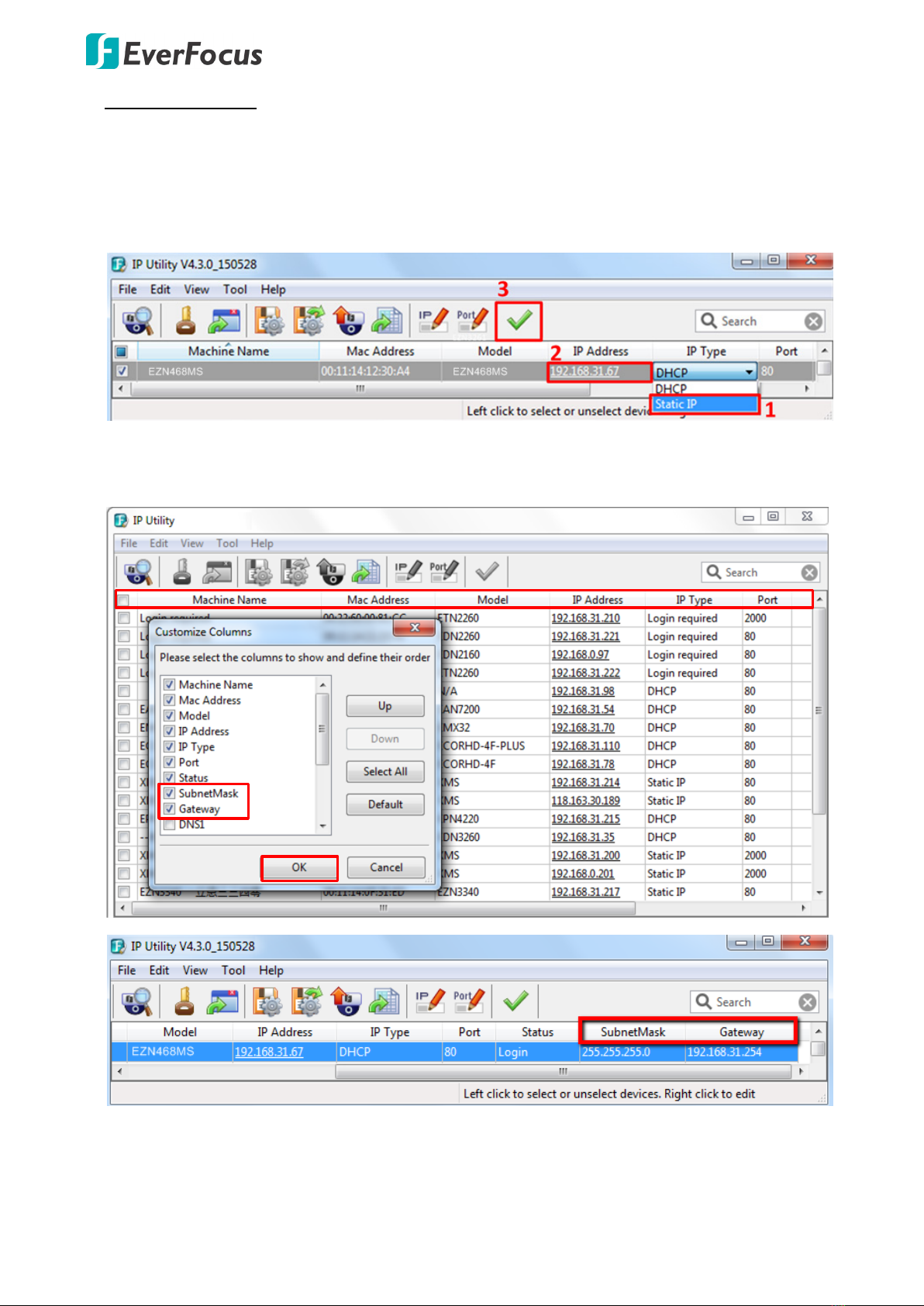

To set up a static IP:
By default, EverFocus’ IP cameras are set up with DHCP. To change the IP setting to static IP, select
Static IP from IP Type drop-down list and set up the desired IP Address, for example,
192.168.31.67.
Please also set up the Subnet Mask and Gateway. Click the Apply Changes button to apply and
save the settings.
To show the Subnet Mask and Gateway items on the title bar, right click the title bar to display the
Customize Columns window, select Subnet Mask and Gateway and then click OK.
1
2
3

Stainless Steel 2MP/3MP/4MP Network Cameras
16
6. Network Connections
You can use one of the methods below to connect the camera to the network.
Direct High-Speed Connection
In a Direct High-Speed Connection, the camera connects directly to a modem without the need for a
router. You need to set the static or dynamic WAN IP address assigned by your ISP (Internet Service
Provider) in the camera’s configuration web pages. To access the camera, just type
“http://xxx.xxx.xxx.xxx”, where xxx.xxx.xxx.xxx is the IP address given by your ISP. If you have a
dynamic IP address, this connection may require that you use DDNS for a reliable connection.
Please refer to DDNS Settings in 7.1.1 Network in the User’s Manual.
Cat 5
Straight Through Cable
High-speed modem
Internet
Router or LAN Connection
This is the most common connection in which the IP camera is connected to a router and allows
multiple users on and off site to see the IP camera on a LAN/WAN (Internet). The camera must be
assigned an IP address that is compatible with its LAN. By setting up port forwarding on the router,
you can remotely access the cameras from outside of the LAN via the Internet. To remotely access
the Web interface of the IP camera, please refer to DDNS Settings in 7.1.1 Network in the User’s
Manual. To set up port forwarding, please consult the manual of the router.
High-speed modem
Internet
Straight-through LAN patch cable
Router
Cat 5 Straight Through Cable
Left: Pinout of a straight-through cable.

Stainless Steel 2MP/3MP/4MP Network Cameras
17
One-to-One Connection (Directly from PC to IP Camera)
You can connect directly without using a switch, router or modem. However, only the PC connected
to the camera will be able to view the IP camera. You will also have to manually assign a compatible
IP address to both the computer and the IP camera. Unless the PC has another network connection,
the IP camera will be the only network device visible to the PC. See the diagram below:
Cat 5
Right: Pinout of a crossed-over cable.
7. Upgrading Firmware
You can upgrade the Firmware using the IP Utility software included in the software CD. The IP
Utility can also be downloaded from EverFocus’ Website. Please connect the IP camera on the same
LAN of your computer. http://www.everfocus.com.tw/product/ip-utility/
1. Install and then start the IPU program , the following IPU window appears. The IPU will
automatically search the IP devices connected in the LAN.
2. Log in the camera by checking the desired model and then click the Log in icon. The Log
in dialog box appears.

Stainless Steel 2MP/3MP/4MP Network Cameras
18

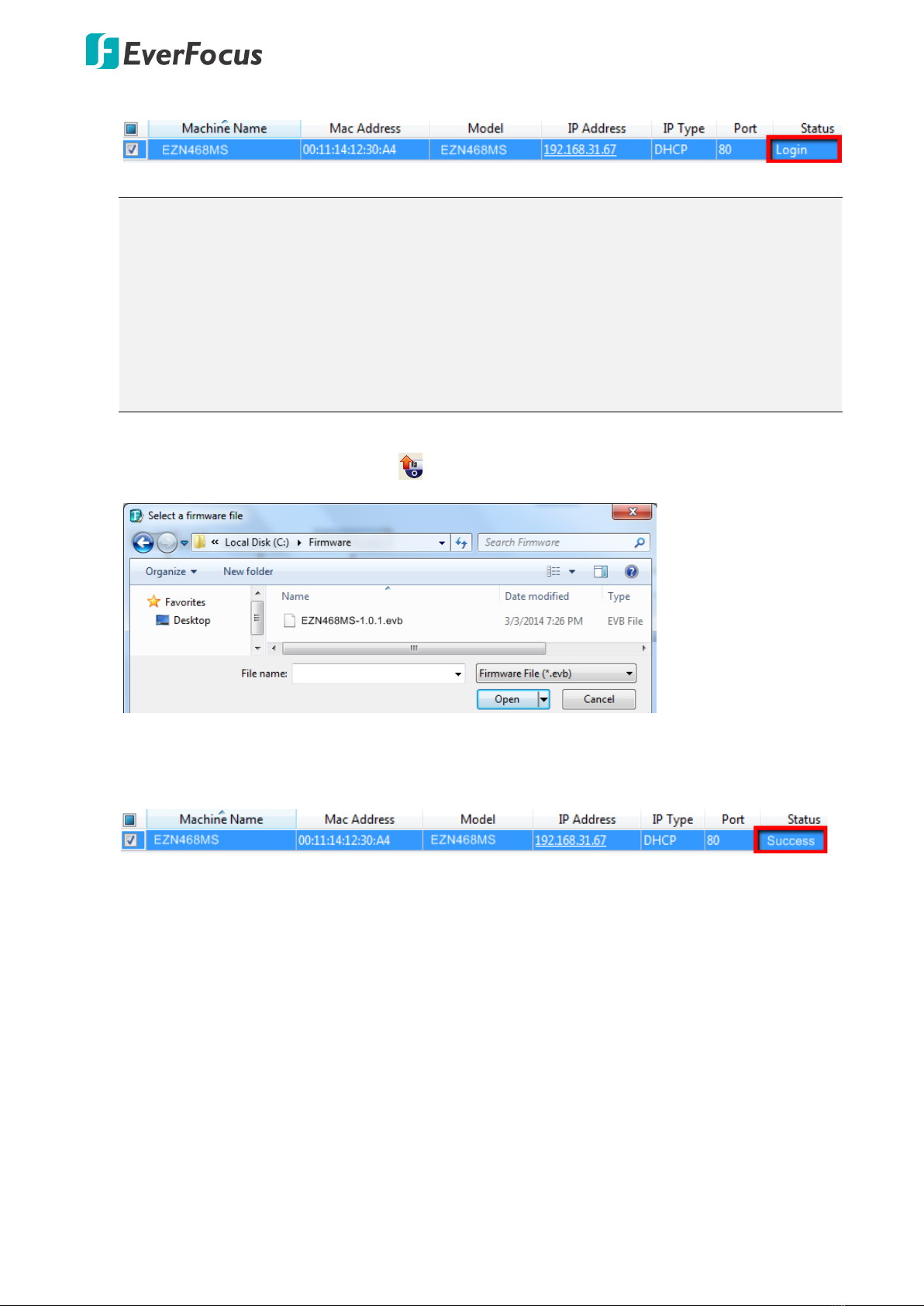

3. Type the Username and Password. Click the OK button, the Login status displays.
Note:
1. The default user ID is user1 and the default password is 11111111
2.
If you select more than one camera that has the same user ID / password, you will be able
to log in several cameras at once.
3. Up to 10 cameras can be simultaneously upgraded to the latest firmware. If you connect
the cameras to a PoE switch, please make sure the Power Consumption of the PoE switch
is sufficient.
4. Click the Upgrade Firmware button , a browsing window appears.
5. Select the firmware file (.evb) and then click Open. The IPU will automatically upgrade the
firmware. The camera will reboot once the upgrade process is complete.

EverFocus Electronics Corp.
EverFocus Taiwan:
12F-1, No.79, Sec. 1, Shin-Tai Wu Road,
Hsi-Chih, New Taipei City, Taiwan
TEL: [phone]
FAX: [phone]
www.everfocus.com.tw
[e-mail]
EverFocus Europe - Germany:
Albert-Einstein-Strasse 1, D-46446
Emmerich, Germany
TEL: [phone]
FAX: [phone]
www.everfocus.de
[e-mail]
EverFocus China - Beijing:
Room 609, Technology Trade Building,
Shangdi Information Industry Base,
Haidian District, Beijing 100085, China
TEL: [phone]~39
FAX: [phone]
www.everfocus.com.cn
[e-mail]
EverFocus China - Shenzhen:
3F,Building 7,Longcheng Industrial
Park,No.440,Longguan Road, Dalang Street,
Longhua, Shenzhen, Guangdong, China
TEL: [phone]
FAX: [phone]
www.everfocus.com.cn
[e-mail]
EverFocus USA - California:
1801 Highland Avenue, Unit A, Duarte,
CA 91010, USA
TEL: [phone]
FAX: [phone]
www.everfocus.com
[e-mail]
EverFocus Japan:
3F, Kuramochi, Building II
2-2-3 Koto-Bashi, Sumida-Ku,
Tokyo, 130-0022, Japan
TEL: [phone]
FAX: [phone]
www.everfocus.co.jp
[e-mail]
Your EverFocus product is designed
and manufactured with high quality
materials and components which can
be recycled and reused.
This symbol means that electrical and
electronic equipment, at their
end-of-life, should be disposed of
separately from your household waste.
Please, dispose of this equipment at
your local community waste
collection/recycling centre.
In the European Union there are
separate collection systems for used
electrical and electronic product.
Please, help us to conserve the
environment we live in!
Ihr EverFocus Produkt wurde entwickelt
und hergestellt mit qualitativ
hochwertigen Materialien und
Komponenten, die recycelt und wieder
verwendet werden können.
Dieses Symbol bedeutet, dass
elektrische und elektronische Geräte am
Ende ihrer Nutzungsdauer vom
Hausmüll getrennt entsorgt werden
sollen.
Bitte entsorgen Sie dieses Gerät bei
Ihrer örtlichen kommunalen
Sammelstelle oder im Recycling Centre.
Helfen Sie uns bitte, die Umwelt zu
erhalten, in der wir leben!
