EverFocus Esd200 User manual

EVERFOCUS
1/3” Color Smoke Detector Camera
Operation Instructions
Model No. ESD200
Please read this manual first for correct installation and operation. This manual should be retained
for future reference. The information in this manual was current when published. The
manufacturer reserves the right to revise and improve its products. All specifications are therefore
subject to change without notice.
PRECAUTIONS
1. Do not have camera immersed in water.
2. Do not disassemble it or place it on an unstable base.
3. Do not touch the surface of CCD sensor by hand directly.
4. Never face the camera toward the sun.
5. Use proper power source otherwise the camera will not function correctly.
6. Use the camera at temperatures within 0℃~ 50℃/32℉~122℉and humidity between 20%~
80%. The input power sources is 12VDC only.

1
PREFACE

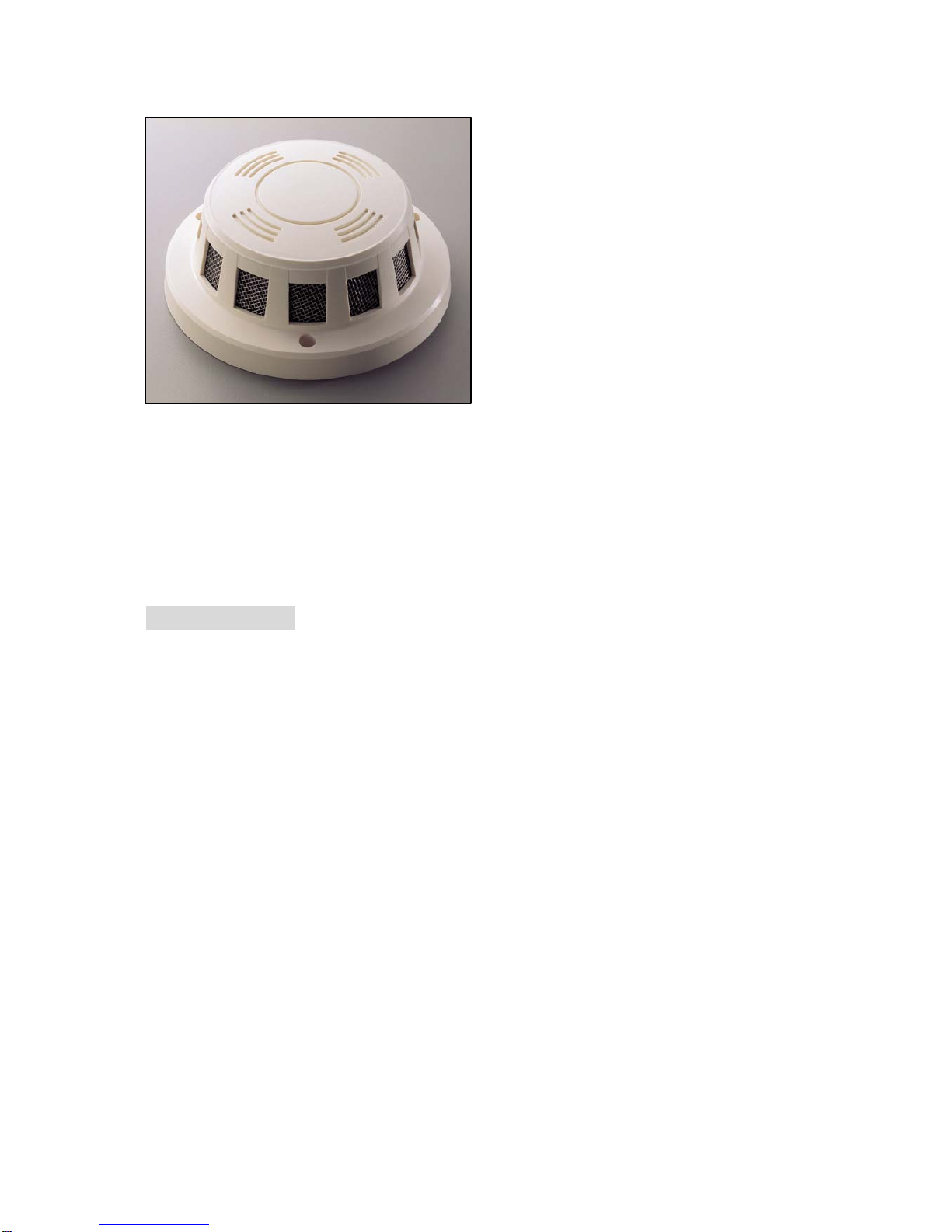

ESD200 is a smoke detectors built with color CCD cameras for discreet surveillance. It comes
with color CCD camera that delivers clear and sharp picture for side viewing; and it is easy to
change different lenses to adopt the best view angles for security need. ESD200 can
simultaneously install up to 4 cameras, which is most economic and effective for video
surveillance.
FEATURES
zDesigned with advance digital signal processing circuitry for high image quality
zThe high sensitivity is achieved by using 1/3” SONY Super HAD interline transfer color
CCD
zBuilt-in fixed lens
zUser can simultaneously install up to 4 cameras for a complete 360° surveillance
zBack Light Comp., Auto Gain Control and Auto White Balance functions
zCompact size: 150 mm x 50 mm ; 6” x 2”
zModels available for NTSC or PAL
STANDARD ACCESSORIES
zCamera Unit
zOperation Instructions (this document)

2
INSTALLATION

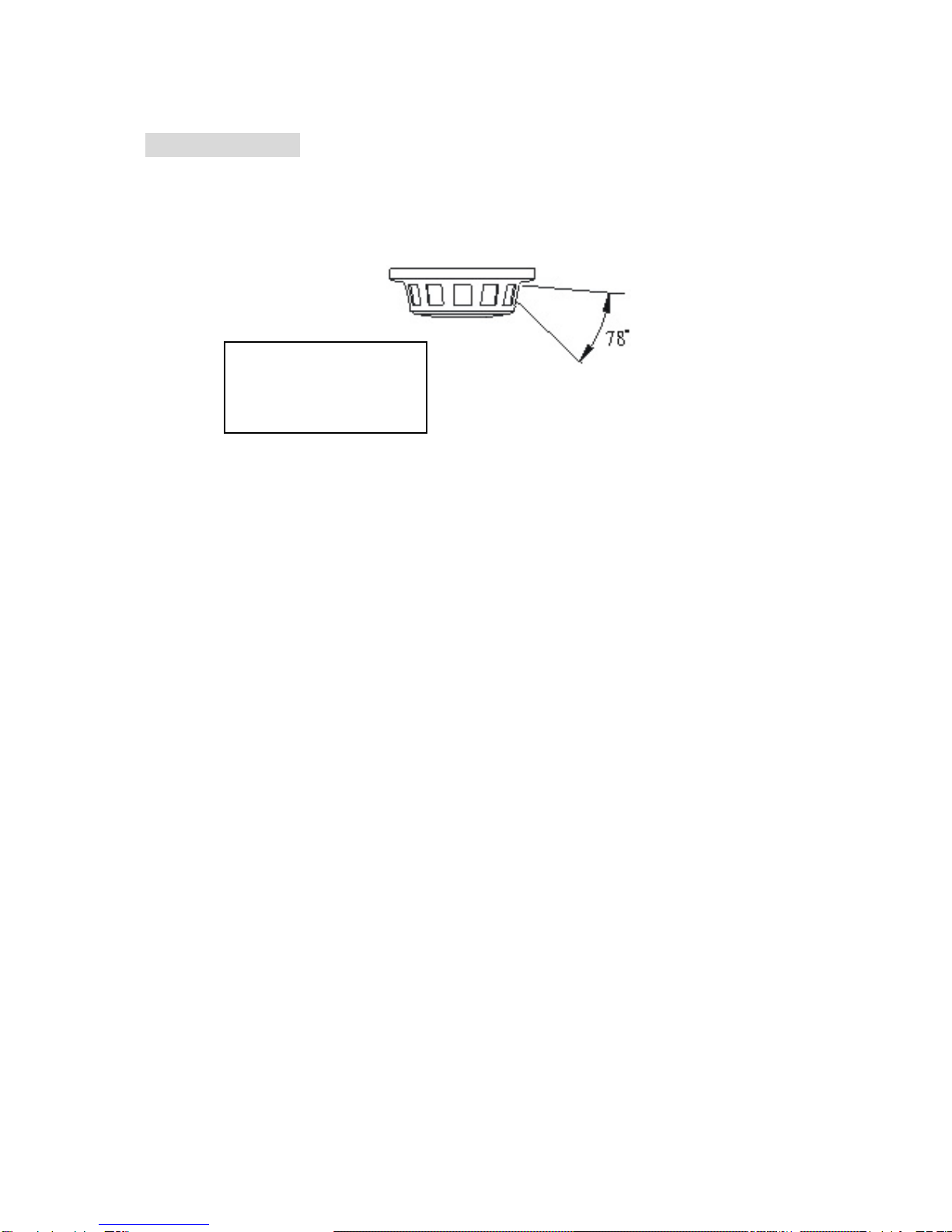

nThe horizontal view angle of the Smoke Detector Camera is 78-degree. Decide the location
to install the camera.
oInspect the package contents to make sure that no damage occurred during shipping.
ZPlug in the attached video and power cable to the camera connector.
[Connect the video output of the camera to a color monitor or other video device through a 75
ohm type coaxial cable with BNC female connector at cable extension.
\Connect the 12VDC regulated power source of the camera to the 12VDC Power-in jack with
2 mm, center+, outer-plug.
]Adjust the direction of the lens as per needed.
Full-Screen Width of View
= 1.6 XDistance between
Camera and Target

3
INSTALLING MORE CAMERAS
nThe following diagram shows the location for the other cameras.
YFix the camera by the screw. Tear off the black paper of the corresponding view window
where the lens faces to.
ZRepeat steps 3 to 6 in the Installation Instructions.
For Color CCD cameraFor Color CCD camera
For Color CCD Camera
For Color CCD cameraFor Color CCD camera

4
SPECIFICATIONS
Pickup Device 1/3'' SONY Super HAD CCD
Video Format NTSC or PAL
Scanning System NTSC: 525 TV lines, 60 fields/sec
PAL: 625 TV lines, 50 fields/sec.
Picture Elements NTSC: 510 x 492;
PAL: 500 x 582
Horizontal Resolution 380 TV Lines
Sensitivity 0.3 Lux/F=1.2
S/N Ratio Over 48dB (AGC Off)
Electronic Shutter 1/50(1/60)~1/100,000
Lens Type f=4.3mm; f=6.0mm; f=8.0mm
*Lens models and availability vary in different regions
Back Light Comp. Yes
Auto Gain Control Yes
Auto White Balance Yes
Gamma Correction 0.45
Video Output BNC 1.0Vp-p, 75ohm
Sync. Mode Internal sync
Power Source 12VDC
Power Consumption 12VDC: 1.5W max
Dimensions 150 mm(O.D.) x 50 mm(H) ; 6”(O.D.) x 2”(H)
Weight 0.1kg ; 0.22 lbs
Operating Temperature 0°C~50°C ; 32°F~122°F (20%~80% Humidity)
Certifications FCC/CE

5
