EverFocus EPR200 User manual

EPR200
Quick Installation Guide
About this manual
Before installing and using this unit, please read this
Manual carefully.
Date: Feb. 2006

2
Table of Contents
Hardware System Requirements....................................................................................3
Using Your Drive...........................................................................................................4
About DVD Media Types ..............................................................................................4
Product Specifications ...................................................................................................5
Copying Video from DVR to EPR200...........................................................................6
Viewing a Copied File ...................................................................................................8
Disc Care......................................................................................................................13
Troubleshooting & Technical Support.........................................................................14

3
Hardware System Requirements
Minimum
Intel® Pentium® III 800 MHz.
256 MB memory.
Used for such things as data backup.
Recommended
Intel Pentium 4 1.0 GHz.
512 MB memory.
Highly recommended for DVD+RW UDF format recording.

4
Using Your Drive
Busy Indicator LED: Lights up when reading or writing data.
Eject Button: Press to load or unload a disc.
Disc Tray: Open or close by pressing the eject button. Load discs into the tray with
the label side facing up.
Forced Eject Hole: If the eject button will not open the tray, insert a stiff rod such as
a large paper clip into the hole and push in to eject the tray after the drive has been
turned off and the disc has stopped spinning.
About DVD Media Types
Media compatibility
Disc Types EPR200 Supports
DVD+RW UDF format Read (by connecting to a PC)
Write (from a DVR, EDR series)
Eject Button
Forced Eject
Hole
Busy Indicator
LED
Disc Tray

5
Product Specifications
Read Speed: 16x max. DVD-ROM and 48x max. CD-ROM
Write Speed: DVD+R: 16x max., DVD+RW: 8x max., DVD+R DL:
4x max., DVD-R: 16x max., DVD-RW: 6x max.,
CD-R: 48x max., CD-RW: 24x max.
Access Time: 120 ms (CD), 140 ms (DVD)
Mechanism: Motorized tray load mechanism for horizontal
and vertical use
Audio: Digital-out and line-out at the back (MPC compatible)
Interface: IDE/ATAPI
Burst Transfer Rate: PIO mode 4/Ultra DMA 33
Cache: 2 MB
Compatibility: MPC level 3, Multi Read, PC2001
Media/Modes Supported: DVD-ROM, DVD-R, DVD-RW,
DVD+R, DVD+R DL, DVD+RW, DVD-Video,
CD-ROM, CD-ROM XA, CD-Audio, CD Extra, CD
Text, CD-I Ready, CD-Bridge, Photo-CD, VideoCD,
Hybrid CD
Writing Methods: DAO (disc at once), SAO (session at once), TAO (track
at once) with zero gap, variable or fixed packet,
multisession
Dust Protected Enclosure
Forced Eject Hole

6
Copying Video from DVR to EPR200
EPR200 allows you to copy an image or video from the DVR. (Only EDR series’
DVR is supported)
Connect the USB connector into the USB slot on the front panel or back panel of
the DVR to copy.
Back panel of EPR200
Front panel of DVR (EDR series with USB slot)
USB connector

7
Now, you need to copy image (video) and EDR Viewer which is the image
(video) player from DVR.
In the COPY MENU, we define:
COPY: Select Image (video) for copying images to movie file.
SelectViewer for copying EDR viewer player.
DISK NO: Disk number. It is fixed as “01” in this series.
CAMERA NO: Camera channel number. You can select the video of camera you
would like to copy.
START DATE & TIME: The start time of video you want to copy.
END DATE & TIME: The end time of video you want to copy.
DEVICE: The media (USB/CF) you wish to store the file.
Press SELECT to copy after setting up everything.
Press COPY key from the front panel of DVR and then the
copy menu appears.
COPY

8
Viewing a Copied File

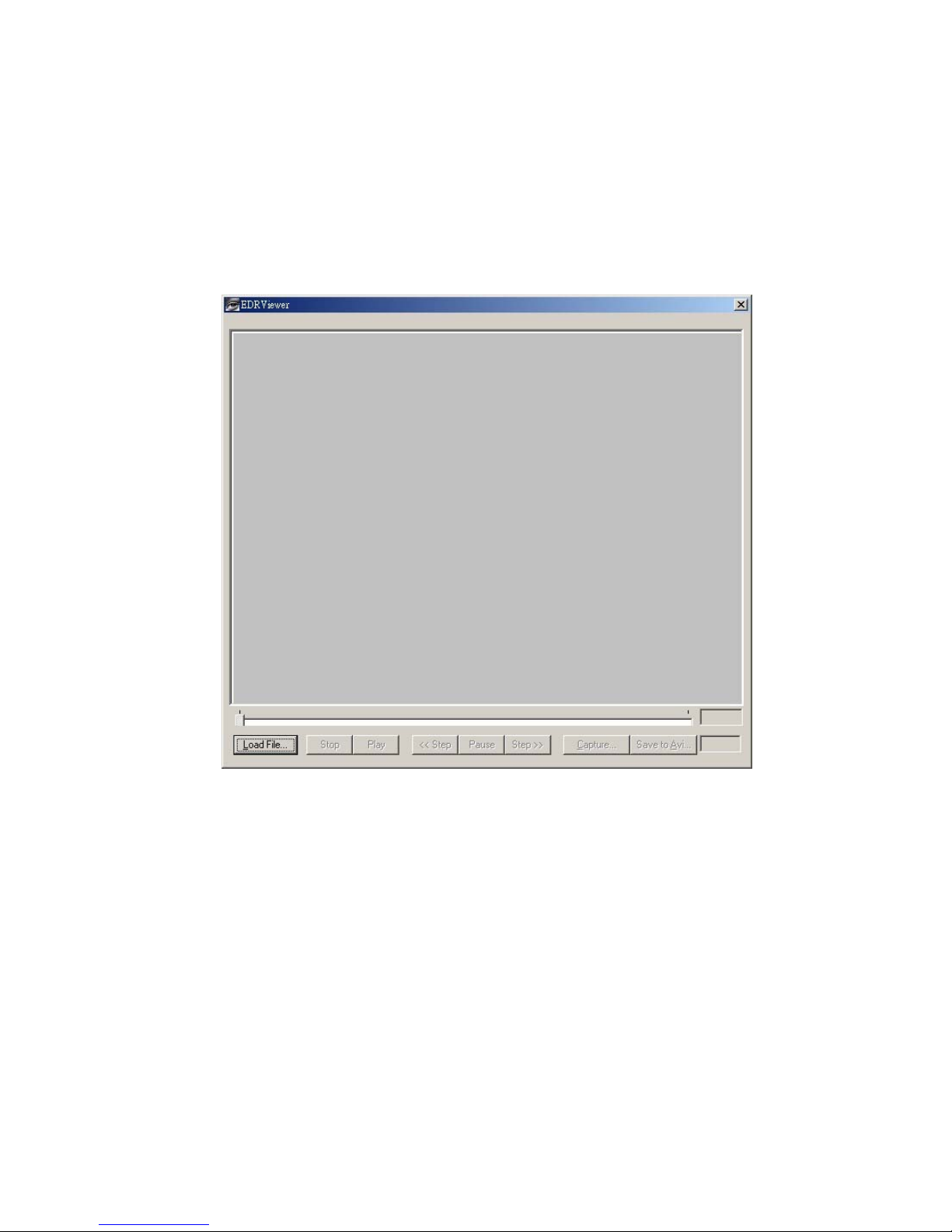

First Step is to open the viewer that you copied from DVR. Insert the DVD-RW
to your PC, and choose the appropriate drive, double-click on “EDRViewer.exe”
to open the viewer.

9
Once the viewer is opened, click on “Load file” to load the archived EDR MPEG
Files (.arv) that you just copied from DVR. Then, click on “Open”, and it will
start to play the video automatically.

10
Press STOP button whenever you would like to stop playing the video.
Press PLAY button whenever you would like to play the video again.
Press PAUSE button whenever you would like to pause the playing video.
During playback mode, press PAUSE button to freeze the playing back picture.
Press << STEP for reverse playback, or press STEP>> for slow forward. Or you can
simply drag the slide bar to the position where you would like to view the image.
