Everglades EVOD211 User manual

EVOD211
EVTD313EVTD313
Koelkast –Refrigerator
Kühlschrank –Refrigerateur
Gebruiksaanwijzing
User Manual
Gebrauchsanleitung
Mode dé Emploi
EVTD313EVTD313
EVTD313
EVOD211

14
What to do if...
17

WARNING—Food needs to be packed in bags before
putting into the refrigerator, and liquids need to be packed
in bottles or capped containers to avoid the problem that
the product design structure is not easy to clean.

-Avoid opening flames and sources of ignition.
-Thoroughly ventilate the room in which the appliance is
situated

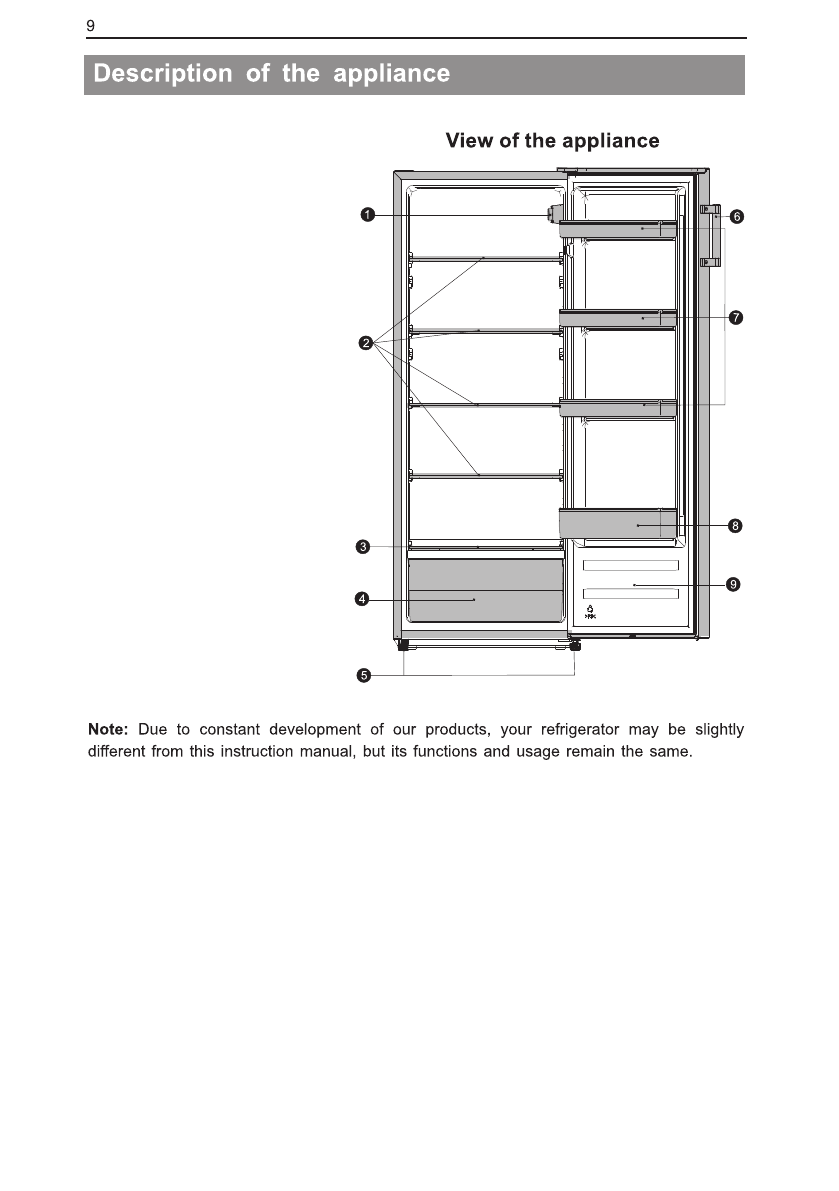

1.Controller box and LED light
2.Refrigerator shelf
3.Vegetable drawer cover
4.Vegetable drawer
5.Adjustable bottom feet
6.Handles
7.Upper door shelf
8.Lower door shelf
9.Refrigerator door

5. Remove the door from the lower hinge .
NOTE: When removing the door, watch
for washer(s) between the lower hinge
and the bottom of the lower door that
may stick to the door. Do not lose.

6. Place it on a smooth surface with its
panel upwards. Loose screw ②
①,
tighten securely.
and pard
then install them to the left side and
7.Lay the refrigerator on soft foam
8
9. Transfer the door to the property
door.
10.Transfer the upper hinge part and
make the upper hinge axis into the upper
hole of the door, and adjust the position
of the door (please support the door with
your hand when doing it), fixing the upper
hinge part with the special flange
self-tapping screws.

12. Move the handle from the left side of
door to the right side .
3
Noises during Operation
The following noises are characteristic of
refrigeration appliances:
Clicks Whenever the compressor switches
on or off, a click can be heard.
Humming As soon as the compressor is in
operation, you can hear it humming.
Bubbling When refrigerant flows into thin
tubes, you can hear bubbling or splashing
noises.
Splashing Even after the compressor has
been switched off, this noise can be heard
for a short time.
Energy saving tips
Do not install the appliance near cookers,
radiators or other sources of warmth.
Do not open the door too often or leave
the door open any longer than necessary.
Do not set temperature colder than
necessary.
Make sure the side plates and back plate
of the appliance are with some distance
from the wall, follow the instructions
relevant to installation.
If s k e t c h m a p s h o w s t h e r i g h t
combination of the drawers, crisper and
shelves, do not adjust the com -bination, it
would result in more energy-consuming.
Hints for refrigeration
Meat(all types): wrap in polythene bags
and place on the glass shelf above the
vegetable drawer.For safety, store in this
way only one or two days at the most.
Cooked foods, cold dishes, etc…: these
should be covered and may be placed on
any shelf.Fruit and vegetables: these
should be thoroughly cleaned and placed
in the special draw(s) provided.
Butter and cheese: these should be
placed in aluminum foil or polythene bags
to exclude as much air as possible .
Milk bottles: these should have a cap and
should be stored in the bottle rack on the
door
has a strong flavor.
Position food so that air can circulate
freely around.
Hints for fresh food refrigeration
To obtain the best performances:
Do not store warm foods or evaporating
liquids in the appliance.
Do cover or wrap the food, particularly if it

Cleaning and Care
Cleaning and Care
For hygienic reasons the appliance interior,
including interior accessories, should be
cleaned regularly.
The fridge should be cleaned and
maintained at least every two months.
Warning! Danger of electrical shock!
The appliance should not be connected to
the mains during cleaning. Before
cleaning switch the appliance off and
remove the plug from the mains, or switch
off or turn out the circuit breaker or fuse.
Important!
Never clean the appliance with a steam
cleaner. Moisture could accumulate in
electrical components,
Hot vapors can lead to the damage of
plastic parts.
Ethereal oils and organic solvents can
attack plastic parts, e.g. lemon juice or the
juice from orange peel, butyric acid,
cleanser that contain acetic acid.Do not
allow such substances to come into
contact with appliance parts.
Do not use any abrasive cleansers.
Clean the appliance and the interior
accessories with a cloth and lukewarm
water. Commercially available dish
washing detergents may also be used.
After cleaning wipe with fresh water and
clean dish cloth.
Accumulation of dust at the condenser
increases energy consumption, clean the
condenser at the back of the appliance
once a year with a soft brush or a
vacuum cleaner.
Check the water drain hole on the rear
wall of the refrigerator compartment.
Clear a blocked drain hole with the aid of
something like soft green peg, be careful
not to make any damage to the cabinet by
sharp things.
After everything is dry place appliance
back into service.
Remove the food from the appliance
before cleaning. Store them in a cool
place, well covered.
Defrosting
Why defrosting
Water contained in food or getting into air
inside the fridge be opening doors may
form a frost layer inside. It will weaken the
refrigeration when the frost is thick. While
it is more than 10mm thick, you should
defrost.
Defrosting in fresh food storage
compartment
It is automatically controlled by switching
the temperature regulator on or off so that
there is no need of operation of defrosting.
Water from defrosting will be drained into
an drip tray through a drain pipe at the
back of the fridge automatically.
Go out of use for a long time
Remove all refrigerated packages.
Switch off the appliance by turning the
temperature regulator to position “0”.
Remove the mains plug or switch off or
disconnect the electricity supply.
Clean thoroughly (see section: Cleaning
and Care)
Leave the door open to avoid the build up
of odors.
Note:If the appliance contains freezer
compartment

What to do if…
Warning! Before trouble shooting,
disconnect the power supply. Only a
qualified electrician of competent
person must carry out the trouble shooting
that is not in the manual.
Important! There are some sounds during
norm a l u se(com p ressor, r efrige r ant
circulation)
Important!
Repairs to refrigerators/freezers may only
be performed by competent service
engineers. Improper repairs can give rise to
significant hazards for the user. If your
appliance needs repairing, please contact
your specialist dealer or your local Service
Force Center.
Problem Possible cause Solution
Appliance does not
work.
Appliance cools too
much.
Appliance is not switched on.
Mains plug is not plugged in or
is loose.
Fuse has blown or is defective.
Socket is defective.
Temperature is set too cold.
Switch on the appliance.
Insert mains plug.
Check fuse, replace if necessary.
Mains malfunctions are to be
corrected by an electrician.
Turn the temperature regulator to
a warmer setting temporarily.
The food is too warm.
Interior lighting does
not work.
Unusual noises.
The compressor does
not start immediately
after changing the
temperature setting.
Water on the floor or
storage shelves.
Temperature is not properly
adjusted.
Door was open for an
extended period.
A large quantity of warm food
was placed in the appliance
within the last 24 hours.
The appliance is near a heat
source.
Light bulb is defective.
Door seal is not air-tight
(possibly after reversing the
door).
Appliance is not level.
The appliance is touching the
wall or other objects.
A component, e.g. a pipe, on
the rear of the appliance is
touching another part of the
appliance or the wall.
This is normal, no error has
occurred.
Water drain hole is blocked.
Please look in the “initial Start Up”
section.
Open the door only as long as
necessary.
Turn the temperature regulation
to a colder setting temporarily.
Please look in the “installation
location” section.
Please look in the “changing the
Light Bulb “section.
Carefully warm the leaking
sections of the door seal with a
hair dryer(on a cool setting). At
the same time shape the warmed
door seal by hand such that it sits
correctly.
Readjust the feet.
Move the appliance slightly.
If necessary, carefully bend the
component out of the way.
The compressor starts after a
period of time.
See the “cleaning and care”
section.
Heavy build-up of
frost, possibly also on
the door seal.

Disposal of the appliance
Correct Disposal of this product
It is prohibited to dispose of this appliance in domestic household waste.
Packaging materials
Packaging materials with the recycle symbol are recyclable. Dispose the packaging in a
suitable collector container to recycle it.
Before disposal of appliance.
1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.
This symbol on the product or in its packaging indicates that this
product may not be treated as household waste. Instead it should be
taken to the appropriate collection point for the recycling of electrical
and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for
the environment and human health, which could otherwise be
caused by inappropriate waste handling of this product. For more
detailed information about recycling of this product, please contact
your local council, your household waste disposal service or the
shop where you purchased the product.

~
~
~

WARRANTYYouhave 2 years warrantyon technical defects after purchaseNot included in warranty : Other thannormaldomesticuse (this applianceisfornormal domesticuseonly). Causesnotbeingrelateddirectlyto theappliance suchas;Damage occurringduringtransportor because of wrongusage such asdents,scratches, broken parts. Installationerrors(such as wrong voltage). Malfunctioning because of improper usage, dust/fluff inand on the appliance, amongst others blocking of air circulation, as well as breaking of plastics, rubber, glass which other than by normal use has gone defect, such to be judged by theservice man and or importer. You have 2 year warranty on technical defects on theapplianceafter dateof purchase,warranty is only valid if a valid notice of purchase/invoice can be shown. Warranty rights are not transferable. If appliance is offered for servicing it needs to be clean, otherwiseservicecan be refused. Servicenumber for the Netherlands: 0900-0404040 Servicenumber for Belgium: 0032-(0)38080919

10
11
Contenus
Informations de sécurité et de mises en garde
Installation de votre nouvel appareil électrique
Description de l’appareil électrique
Utilisation de votre appareil électrique
Opération
Inversion de la porte.
Conseils et astuces utiles
Nettoyage et entretien
Que faire si...
Élimination de l’appareil électrique
2
14
17
Informations de sécurité et de mises en garde
Pour votre sécurité et une utilisation correcte, avant d’installer et d’utiliser
l’appareil électrique pour la première fois, lisez ce manuel de l’utilisateur
avec attention, y compris les astuces et mises en garde. Pour éviter des
erreurs et des accidents inutiles, il est important de s’assurer que toutes les
personnes utilisant l’appareil électrique sont entièrement familiarisées avec
son fonctionnement et ses caractéristiques de sécurité. Enregistrez ces
instructions et assurez-vous qu’elles sont conservées avec l’appareil
électrique s’il est déplacé ou vendu, afin que toute personne l’utilisant au
cours de sa durée de vie d’utilisation soit informée de manière correcte sur
son utilisation et ses avis de sécurité.
Pour la sécurité des biens et des personnes, conservez les précautions
contenues dans ces instructions pour utilisateur, car le fabricant n’est pas
responsable des dommages causés par omission.
Sécurité des enfants et des personnes vulnérables
Conformément à la norme NE
Cet appareil électrique peut être utilisé par des enfants âgés de 8 ans et
plus et des personnes avec des capacités physiques, sensorielles ou
mentales réduites, ou ayant un manque d’expérience et de
connaissances à condition qu’elles soient supervisées ou guidées
concernant l’utilisation de l’appareil électrique de manière sûre et
comprend les risques encourus. Les enfants ne devraient pas jouer
avec l’appareil. Le nettoyage et l’entretien utilisateur ne devraient pas
être effectués par des enfants sans supervision.
Les enfants âgés de 3 à 8 ans sont autorisés à charger et décharger les
appareils de réfrigération.
Conformément à la norme IEC
Cet appareil électrique n’est pas prévu pour être utilisé par des
personnes (y compris des enfants) avec des capacités physiques,
sensorielles ou mentales réduites, ou un manque d’expérience et de
connaissance, à moins qu’elle soit supervisée ou guidée concernant
l’utilisation de l’appareil électrique par une personne responsable de
leur sécurité.
Les enfants doivent être surveillés pour éviter qu'ils ne jouent avec
l'appareil.
