Model 9795

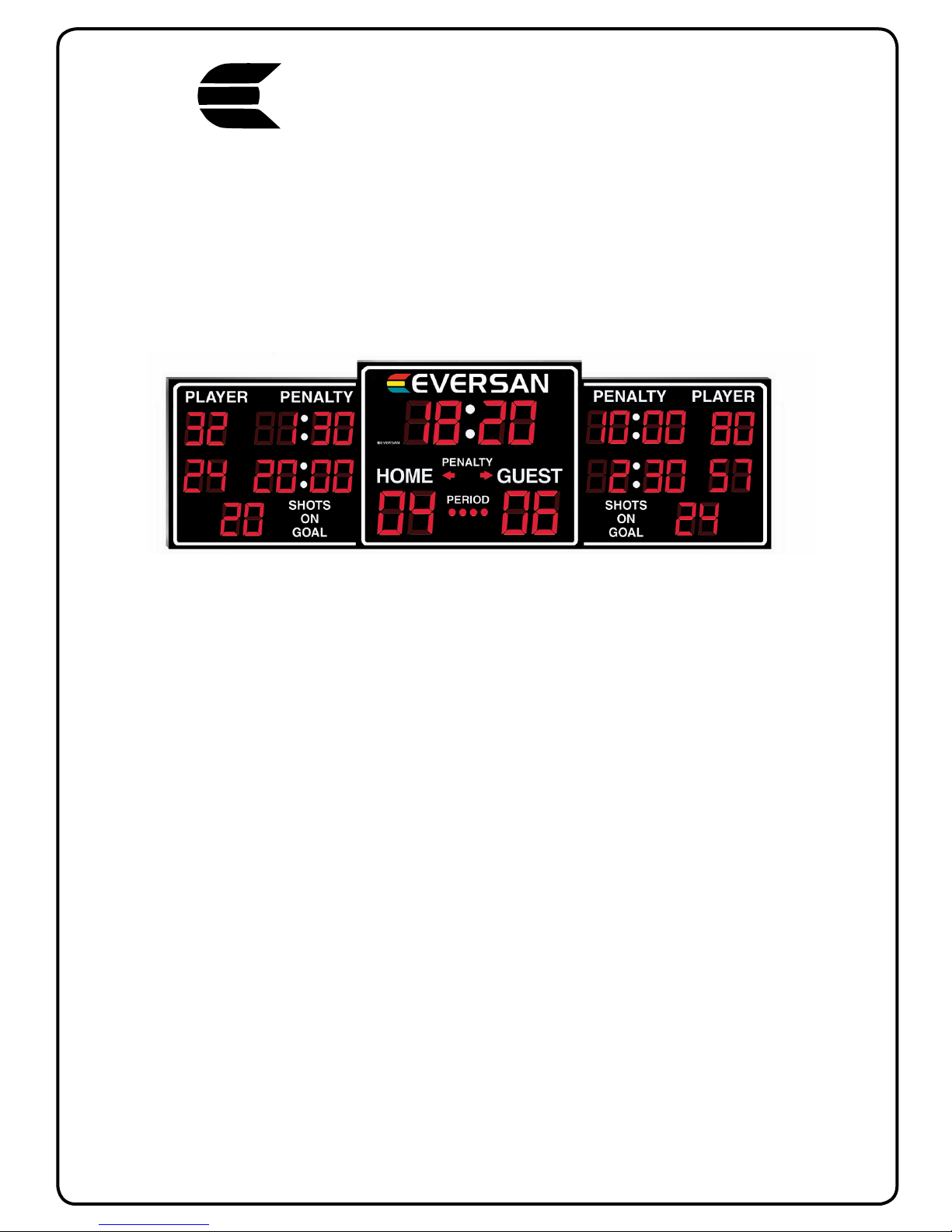

Hockey Scoreboard
Packing List
1. One (1) Scoreboard with Two (2) Player Penalty boards.
2. One (1) Control Console.
3. Two (2) Interconnection data cables from center scoreboard to Penalty boards.
4. One (1) Custom Cut Control Cable (A) with Connector and Wall Junction Box (Optional) Cable
System Only.
5. One (1) Custom cut Control Cable (B) with Connectors.(Optional) Cable System Only)
6. Two (2) Antenna. (Wireless Option Only)
7. Two (3) mounting Z-brackets. (Optional)
NOTE: Please check that these items are available prior to initial test of the scoreboard. If you are
missing any items check the all boxes that the parts were shipped in. If parts are still missing please
call [phone] for assistance.
CAUTION: (Cabled System Only) The data cable is a pre-wired, 2 conductor shielded, 22GA
stranded cable. Any cable splicing should be color-coded or failure of the computer power supply will
result. Continuity of the shield is essential in reducing possible damage due to lightening. Data cable
from the factory is wired as follows: Pin 1 – Red, Pin 2 – Black with the shield being secured to the
back shell of the connector using the cable clamp screw.
Before You Begin:
ALWAYS connect/disconnect cables before power is turned on.
NEVER service without contacting an Eversan, Inc. Technician.
NEVER service with the power on.

Page 2
EVERSAN INC.
SYNERGY
TM
resources
EVERSAN, INC. • 34 Main Street, Whitesboro, NY 13492 • 1-800-383-6060 Fax: [phone]
www.eversan.com
Out of Box Setup and Test
The Eversan, Inc. 9795 series scoreboard system comes complete and ready to operate.
NOTE: Follow these instructions in order to assure correct operation and installation. Warranties will
be void if the procedures below are disregarded. Failure to test scoreboard prior to hanging will
void all warranties.
1. Plug interconnection cables into center scoreboard and penalty boards to establish data link
throughout the system. (2-pin connectors)
2. Plug wall junction box cable (Optional) or Data cable (cabled systems only) to the side of the
scoreboard (2-pin connector).
3. Plug the console cable (cabled systems only) into the wall junction box.
4. Plug the console cable to the console. Connect 9V adapter to console.
5. Connect antenna to scoreboard and console (wireless systems only).
6. Plug the scoreboard and each penalty board into a 120VAC outlet to power the entire system.
Upon power up, your scoreboard will check the displays by ashing 8’s and then going blank.
7. Turn on the control console using the rocker switch on the upper left side. The console will display
EVERSAN, INC. SCOREBOARDS for approximately 2-seconds. The console will then display
TIME=00:00.0, HOME=00 GUEST=00. The scoreboard will respond and show the matching data
with the exception of the minute’s digits will remain blank along with the home and guest penalty
digits.
8. If using a wireless system you must always power the scoreboard before turning the control
console on. If you are operating multiple scoreboards with one console you must power all the
scoreboards prior to turning on the console. If you are operating multiple scoreboards with multiple
consoles. You must turn power on to one scoreboard and then the console you want to use to
operate that scoreboard. This allows each system to set automatically so as not to interfere with
each other.
9. Go to operating instructions to test scoreboard.
SCOREBOARD INSTALLATION INSTRUCTIONS
Scoreboard General Instructions for Each Display
The scoreboard has one half of a Z-bracket mounted on the back of the board. Securely, bolt the
other half of the Z-bracket to the wall using a minimum 3/8-inch diameter by 2-inch long lag bolts.
If additional reinforcement is necessary, bolt through the back plate by removing the minutes and
seconds displays, and screw directly into the wall.
Wall or Floor Junction Box:
Mount on the wall or in the oor near the desired scorer table.
Electrical Specications: 120VAC @ 1 AMP Each Display (3)

Page 3
EVERSAN INC.
SYNERGY
TM
resources
EVERSAN, INC. • 34 Main Street, Whitesboro, NY 13492 • 1-800-383-6060 Fax: [phone]
www.eversan.com
Electric outlets for scoreboards are always on a “clean” unused breaker box. Pay special attention to
the power source and connections. The scoreboard display can only be turned on or off by using
the 120VAC outlet that it is connected to, therefore it is recommended that either a key switch
or circuit breaker easily control the outlet.
Step – By - Step Installation:
1. Determine mounting location for the scoreboard.
2. Drill and mount “Z-bracket” to wall utilizing standard lag bolts.
3. Slip scoreboard display panel onto Z-bracket. (For wireless operation skip to step 7).
Connect inter-connection data cable from each penalty display to the center display.
4. Mount the junction box to the wall or oor near the score table.
5. Plug in the connector from the wall junction box to the power supply (see wire-up
diagram).
6. Plug in the cable from the console into the wall junction box. The scoreboard is now ready
for use-see Operating Instructions.
7. Attach antenna to the front of the scoreboard, to the right of the hole pattern for the horn.
(wireless option only) SEE: 2.4GHZ WIRELESS POWER UP INSTRUCTIONS.
2.4GHZ WIRELESS POWER UP INSTRUCTIONS
Eversan, Inc.’s 2.4GHZ frequency hopping wireless control system allows for multiple scoreboards
and shot timers to be controlled separately or together within feet of each other.
INITIALIZING THE WIRELESS SYSTEM
The following steps must be used to ensure proper communication from the 9795 wireless control
console and each scoreboard you want to control.
1. Turn on each 9795 Scoreboard that you want to control. The scoreboard(s) should display a dash
(-) in each numeric display.
2. Connect the antenna and 9VDC adapter provided to the 9795 wireless control console. (see
diagram for proper placement)
3. Turn on the control console. Once communication has been established the scoreboards will go
through an initial checkout. See operating instructions.
4. To use another scoreboard with a different control console repeat steps 1 through 3.

Page 4
EVERSAN INC.
SYNERGY
TM
resources
EVERSAN, INC. • 34 Main Street, Whitesboro, NY 13492 • 1-800-383-6060 Fax: [phone]
www.eversan.com
0/3)4)/./&-/5.4).'"2!#+%43/.4(%7!,,

gg gg

g
7!,,
8:"2!#+%4
3#/2%"/!2$
%.#,/352%
).34!,,!4)/.$)!'2!-
SHOTS
ON
GOAL
PENALTY
PLAYER
SHOTS
ON
GOAL
HOME GUEST
PERIOD
PENALTY PLAYER
g
gg g
g
g
PENALTY

Page 5
EVERSAN INC.
SYNERGY
TM
resources
EVERSAN, INC. • 34 Main Street, Whitesboro, NY 13492 • 1-800-383-6060 Fax: [phone]
www.eversan.com
Operating Instructions
Setting the Time: To set the time the clock must be stopped. Press and release the
TIME button and enter a four-digit number using the 0-9 numbered keypad. Example,
push and release the TIME button and enter 0-2-0-0 and the clock will show two
minutes. If an error has been made, press and release the TIME button and repeat
above procedure. The time entered is displayed on both the console’s LCD and
scoreboard display.
Starting and Stopping the Clock: The STOP/ GO button for the clock is located on the bottom left
side of the 0-9 keypad and is green. Pressing and releasing the button once will start the clock a
second time will stop the clock.
Setting the Score: Press the HOME or GUEST button once to increment by one. Press and hold
down to decrement. Press and release the button and enter any 2-digit number from 0-9 on the
numbered keypad.
Setting the Period: The clock must be stopped to set the period. Press and release the RED button
on the keypad to increment the period by one. The console LCD display will show each period
change, for approximately 5 seconds, on the console and then display the score.
Setting Penalties: The clock must be stopped to enter a penalty. Press and release either HOME
PLYR/PENALTY or GUEST PLYR/PENALTY button and enter six-digit number via the keypad. For
example, if you would like to enter player #23 with 1 minute, 30 second penalty time, enter: 2-3-0-1-
3-0. When the sixth digit is entered the penalty will be displayed on the scoreboard. The system will
automatically keep track of up to 7 players in each penalty box. To clear a penalty, stop the clock,
push and release HOME PLYR/PENALTY or GUEST PLYR/PENALTY, enter the player number
followed by four zero’s.
Intermission Mode: This feature allows you to time down the intermission without affecting the
penalty times on the scoreboard. With the clock stopped press and release the INTERMISSION
button and enter a four-digit time via the keypad. Press the STOP/GO switch and the clock will count
down and the horn will sound at zero time but the penalty times will not change. At the end of the
intermission increment the period and set the time using the TIME button.
Scroll: H/SCROLL and G/SCROLL allow you to review the active penalties, players and time left on
each penalty. The clock must be stopped to review the penalties. Each time you press and release
either H/SCROLL or G/SCROLL one penalty with player number and time left will be displayed on the
console. Continue to press and release the button and each active penalty will be
displayed in order of entry.
Shots-on-Goal: Press and release this SOG on either the home or guest side of the control console
and it will increment by one the corresponding display. Press and hold down to decrement. Press and
release the button and enter any 2-digit number from 0-9 on the numbered keypad.

Page 6
EVERSAN INC.
SYNERGY
TM
resources
EVERSAN, INC. • 34 Main Street, Whitesboro, NY 13492 • 1-800-383-6060 Fax: [phone]
www.eversan.com

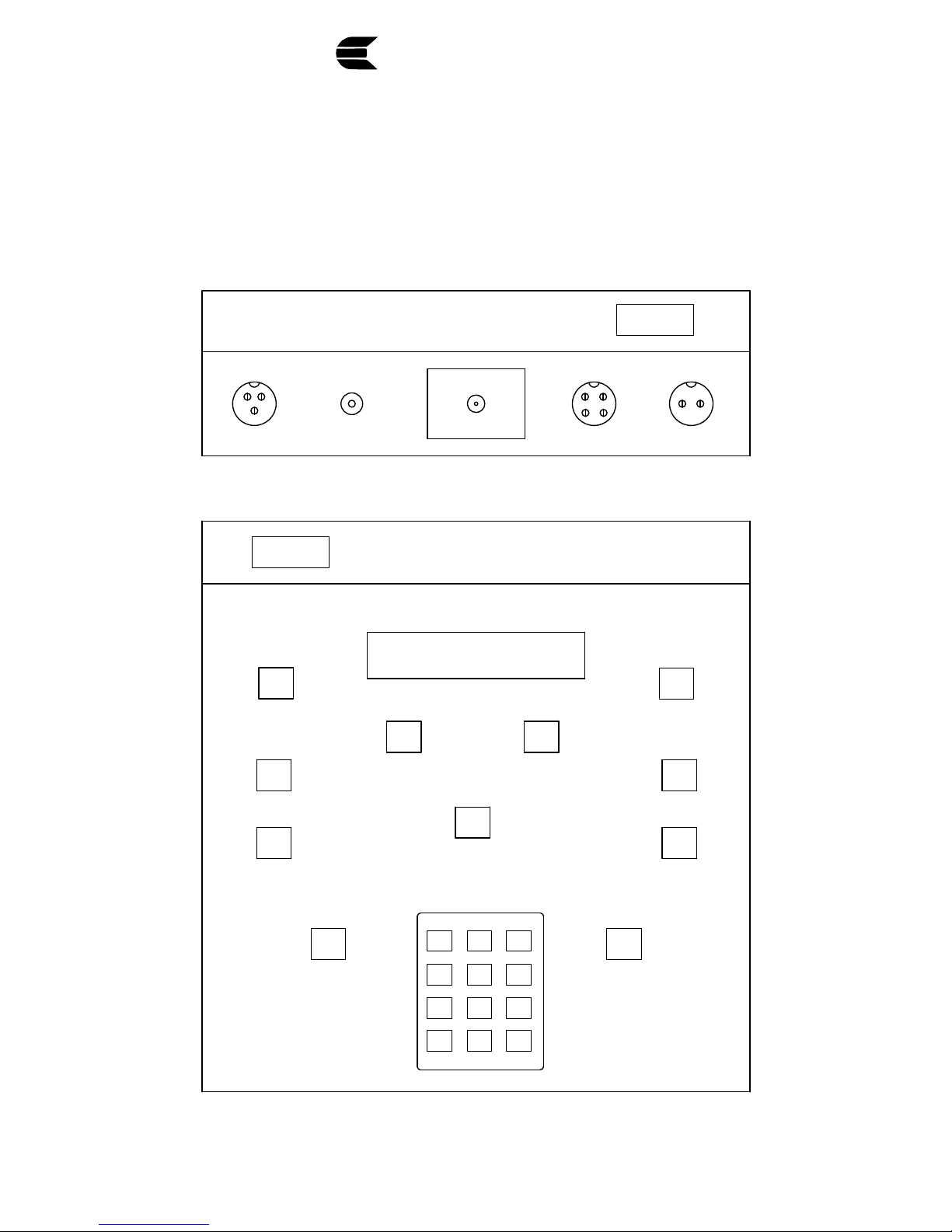

Wireless control console battery operation (optional):
1. Turn the scoreboard power on.
2. Attach Eversan, Inc.’s special battery connector to the 4-pin connector on the back of the wireless
control console (see diagram).
3. Connect the cigarette lighter plug into the Eversan battery pack or a car cigarette lighter.
Care of Battery Pack
Under no circumstances should the battery pack be punctured or disassembled in any way. NEVER
insert anything into the battery receptacle except a standard cigarette lighter type plug. The battery
pack should always be stored in a fully charged condition and in a cool, dry place. When stored for a
long period of time, the battery should be charged before use.
Charging
The Battery should be charged after each use. Insert the cigarette lighter type plug of the charger into
the receptacle on the side of the battery pack. Plug the charger into any standard 120volt household
plug. Depending on the amount of drain on the battery, the following is a guide for recharging time. A
25% discharge requires 4 hours recharging. A 50% discharge requires 8 hours. A 100% discharge
requires 14 hours recharging time.
NOTE: The Battery should NOT be left in the Recharging mode for more than 24 hours as this
can damage the cell.
CAUTION: DO NOT attempt to charge this battery pack on currents other than 60-cycles 110volt/
120volt AC current. Do not attempt to use the
Battery during charging.

Page 7
EVERSAN INC.
SYNERGY
TM
resources
EVERSAN, INC. • 34 Main Street, Whitesboro, NY 13492 • 1-800-383-6060 Fax: [phone]
www.eversan.com
REPLACEMENT OF MODULAR PANELS AND POWER SUPPLY
Eversan, Inc.’s scoreboard systems are easy to maintain. Each module of the scoreboard is totally
replaceable and interchangeable.
CAUTION: Before attempting any maintenance, please call and speak with an Eversan, Inc.
Technician at [phone].
To Change any of the Display Panels:
1. TURN THE SCOREBOARD POWER OFF.
2. Remove the four screws that are securing the panel.
3. Remove the display panel and CAREFULLY unplug connector.
(Rock connector back and forth to remove)
4. Properly replace the connector on the new display, taking care to install in the proper
polarization.
5. Reinstall panel and install the four screws.
6. Turn the power on and test the scoreboard.
To Change the Power Supply/Computer Box:
1. TURN THE SCOREBOARD POWER OFF.
2. Unplug the console connector (cabled systems only) from the power supply. Disconnect the
antenna from the scoreboard and remove the 1/4IN. nut holding the antenna connector to
the scoreboard. Push the antenna connector into the scoreboard. Save nut and washer.
3. Remove the 4 screws located in the upper left corner of the scoreboard holding the power
supply to the face of the scoreboard.
4. Slide the power supply to the left and carefully unplug the 8-pin data connector by pulling it
out, rocking it may help in removing.
5. Replace with new power supply, be sure to connect antenna cable to the face of the
scoreboard before fastening the power supply, and reconnect the console cable (cabled
systems only) and scoreboard connectors. Fasten the power supply to the front of the
scoreboard using the 4 screws. Turn the power on and test the scoreboard.

EVERSAN, INC. • 34 Main Street, Whitesboro, NY 13492 • 1-800-383-6060 Fax: [phone]
www.eversan.com
Page 8
EVERSAN INC.
SYNERGY
TM
resources
3(/43/.
'/!,
0,920%.!,49
(/2.

'(:#!",%$
,#$#/.42/,#/.3/,%

34/0'/
(/-%
-/$%,







0%2)/$
'5%34
3(/43/.
'/!,
#%.4%20/3)4)6%
6$#!$!04/2
0,920%.!,49
).4%2-)33)/.
$%,!9
2%-/4%2%3%4
OFF
'3#2/,,
4)-%
(3#2/,,
ON
6
"!44%29
6$#"!44%29
ON OFF
$!4!/54

EVERSAN, INC. • 34 Main Street, Whitesboro, NY 13492 • 1-800-383-6060 Fax: [phone]
www.eversan.com
Page 9
EVERSAN INC.
SYNERGY
TM
resources
3(/43/.
'/!,
0,920%.!,49
(/2.

'(:7)2%,%33
,#$#/.42/,#/.3/,%

34/0'/
(/-%
-/$%,







0%2)/$
'5%34
3(/43/.
'/!,
#%.4%20/3)4)6%
6$#!$!04/2
0,920%.!,49
).4%2-)33)/.
$%,!9
2%-/4%2%3%4
OFF
'3#2/,,
4)-%
(3#2/,,
ON
!.4%..!
6$#"!44%29
ON OFF
$!4!/54

www.eversan.com
MODEL 9795
HOCKEY
SCOREBOARD
Address: 34 Main Street, Whitesboro, NY 13492
Phone: [phone] • Toll Free: 800-383-6060 • Fax: [phone]
SCOREBOARDS • TIMERS • MESSAGE SIGNS • VIDEO DISPLAYS • WIRELESS
EVERSAN INC.
SYNERGY
TM
resources
