2400PSU-8 - Eight Channel 240xLT DC Power Supply
Revision 1.3
REVISION HISTORY
REVISION DESCRIPTION DATE
1.0 First Release Jan 08
1.1 Fixed formatting and typos May 08
1.2 Added Safety and conformance test Sep 08
1.3 Updated Environmental Specs Jan 09
Information contained in this manual is believed to be accurate and reliable. However, Evertz assumes no responsibility for the use thereof nor for
the rights of third parties, which may be affected in any way by the use thereof. Any representations in this document concerning performance of
Evertz products are for informational use only and are not warranties of future performance, either expressed or implied. The only warranty offered
by Evertz in relation to this product is the Evertz standard limited warranty, stated in the sales contract or order confirmation form.
Although every attempt has been made to accurately describe the features, installation and operation of this product in this manual, no warranty is
granted nor liability assumed in relation to any errors or omissions unless specifically undertaken in the Evertz sales contract or order confirmation.
Information contained in this manual is periodically updated and changes will be incorporated into subsequent editions. If you encounter an error,
please notify Evertz Customer Service department. Evertz reserves the right, without notice or liability, to make changes in equipment design or
specifications.

2400PSU-8 - Eight Channel 240xLT DC Power Supply
Revision 1.3
TABLE OF CONTENTS
1. OVERVIEW.......................................................................................................................................... 1
2. INSTALLATION................................................................................................................................... 2
2.1. 2400PSU-8 CONNECTIONS......................................................................................................3
3. 2400PSU-8 SPECIFICATIONS ........................................................................................................... 5
3.1. AC INPUT................................................................................................................................... 5
3.2. DC OUTPUT............................................................................................................................... 5
3.3. PHYSICAL.................................................................................................................................. 5
3.4. ENVIRONMENTAL..................................................................................................................... 5
4. STATUS INDICATORS ....................................................................................................................... 6
4.1. PSU1 AND PSU2 INDICATORS ................................................................................................ 6
4.2. UNIT 1-8 INDICATORS .............................................................................................................. 6
Figures
Figure 1-1: 2400PSU-8 Block Diagram.................................................................................................................1
Figure 2-1: 2400PSU-8 Module ............................................................................................................................2
Figure 2-2: 2400PSU-8 Dimensions and Mounting Centers.................................................................................3
Figure 2-3: Power Connector Pinout.....................................................................................................................4

2400PSU-8 - Eight Channel 240xLT DC Power Supply
Revision 1.3 Page 1
1. OVERVIEW
The 2400PSU-8 is used to supply power to up to eight 240xLT series RF fiber optic transmitters including
DC power for upstream LNBs. It contains dual, isolated, redundant DC power supplies and provides eight
outputs on F-Type connectors.
Features:
•Provides diode-isolated, redundant DC power for up to eight 240xLT series modules and upstream
LNBs
•Active fuses for protection of each DC output
•LED indicators display the status of each power supply and DC output
•PSU status signal output for remote monitoring via connected 2407LTA/2408LT transmitter and
connected 7708LR or 7708LRA receiver
~/-
Power
Supply #1
~/-
Power
Supply #2
L
N
G
PSU #1
Status
PSU #2
Status
Output #1
Status
1
8
DC
Outputs
AC Input
Connector
L
N
G
AC Input
Connector
Active
Fuse
Active
Fuse
Output
Sense
Output #8
Status
Output
Sense
Output
Sense
Output
Sense
Fault tone
generator
Figure 1-1: 2400PSU-8 Block Diagram

2400PSU-8 - Eight Channel 240xLT DC Power Supply
Page 2 Revision 1.3
2. INSTALLATION
The 2400PSU-8 comes in a diecast enclosure with integral mounting flanges. It is recommended that the
enclosure be mounted on a flat surface.

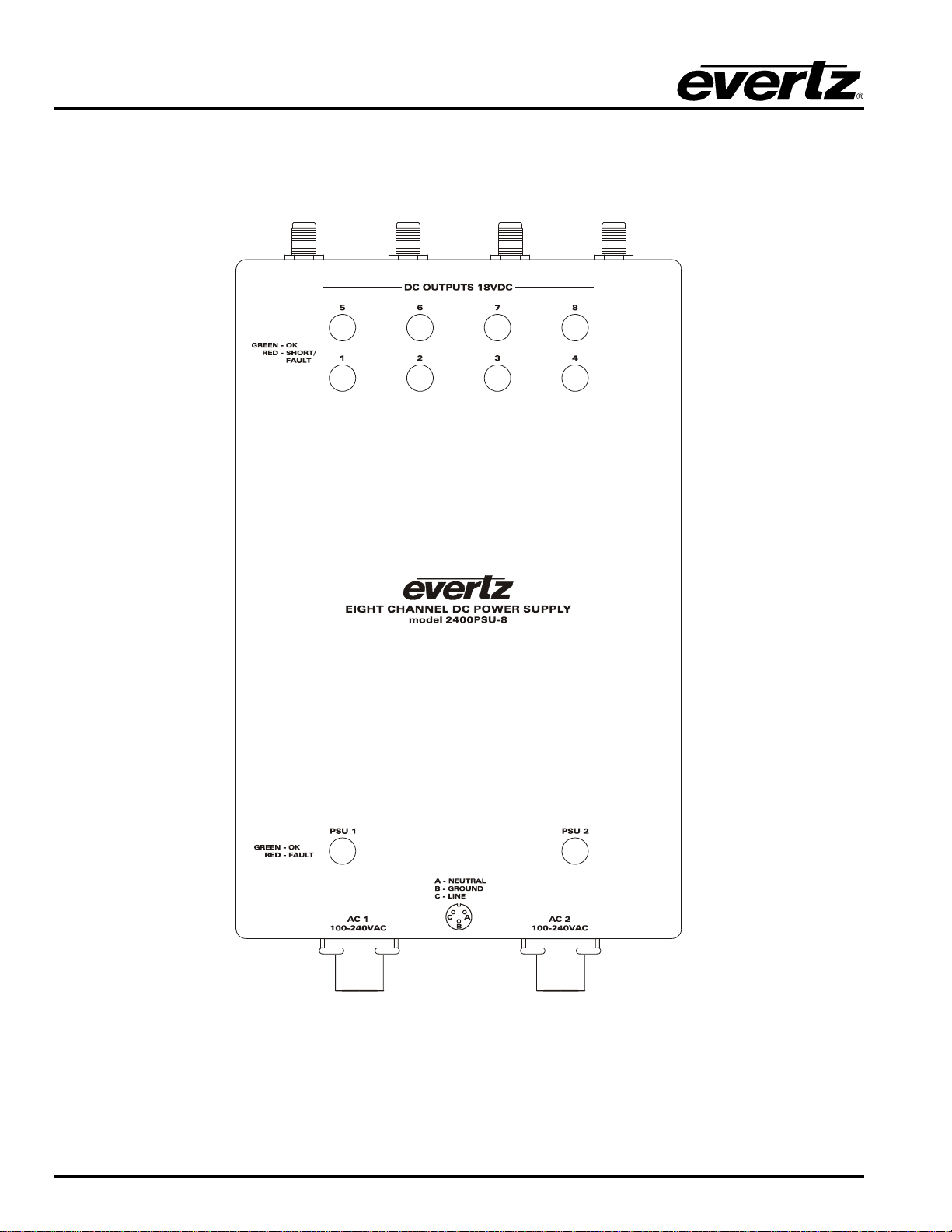

Figure 2-1: 2400PSU-8 Module

2400PSU-8 - Eight Channel 240xLT DC Power Supply
Revision 1.3 Page 3

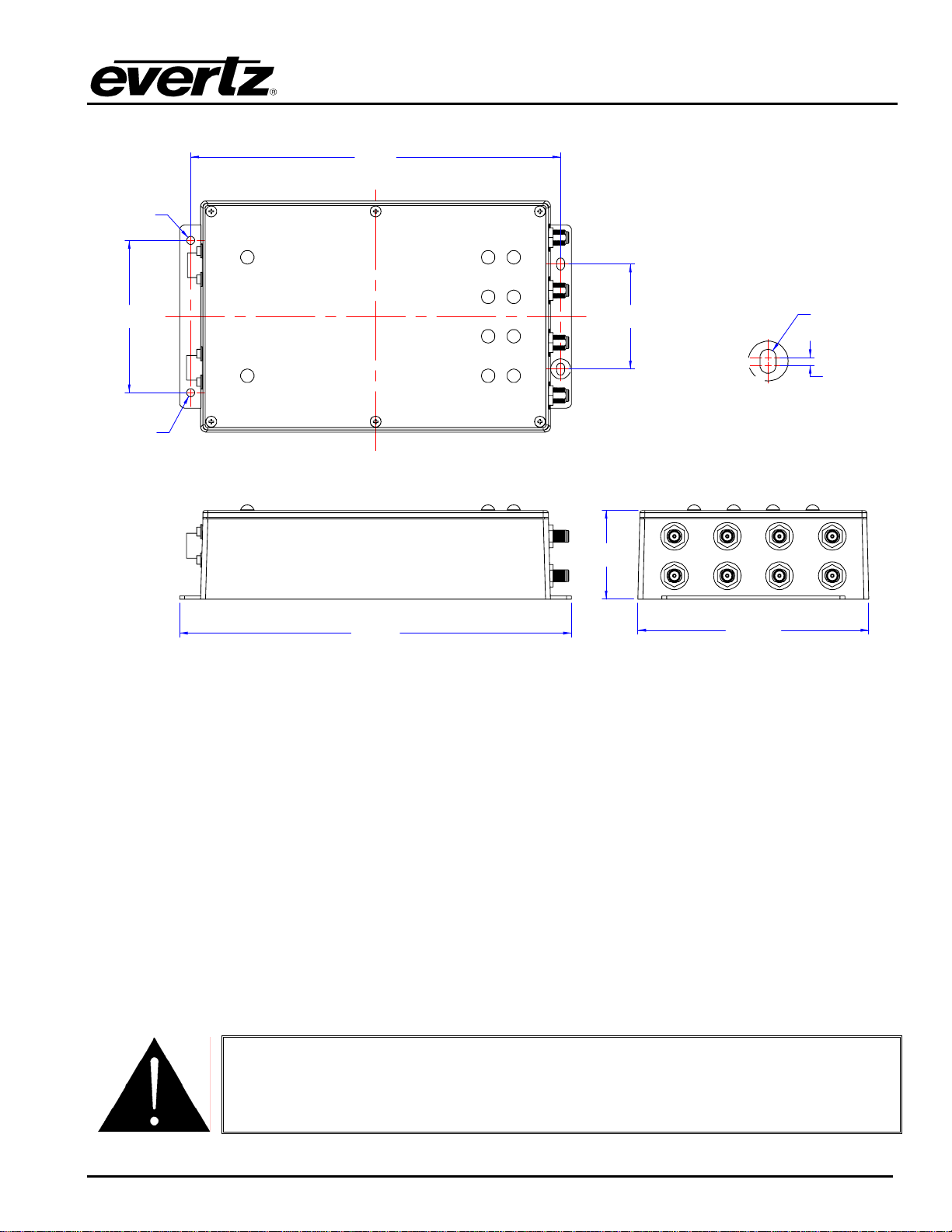

NOTE: ALL UNITS IN INCHES [MM]
(2 PLACES)
A
2.660
[ 67.56 ]
3.858
[ 97.99 ]
9.370
[ 238 ]
.100
[ 2.54 ]
O.203
[ 5.16 ]
9.925
[ 252.1 ] 5.851
[ 148.61 ]
2.244
[57]
O.203
[ 5.16 ]
O.203
[ 5.16 ]
DETAIL A
Figure 2-2: 2400PSU-8 Dimensions and Mounting Centers
2.1. 2400PSU-8 CONNECTIONS
AC IN 1+2: 100-240VAC, 50/60 Hz, auto-ranging AC inputs. Each input is separately connected to
one of the internal, redundant AC/DC power supplies. The dual connectors permit
connection to independent AC sources if available.
Two cable assemblies with mating connectors on one and male IEC320 connectors on the
other end is included. The IEC320 connectors permit the use of standard IEC320 line
cords with plug type appropriate for the particular area of the world where the 2400PSU-8 is
to be used.
Two mating connectors, without cable assemblies attached are also attached. These
permit customer connection of appropriate cable for hard-wired or other specific
applications. Connections are via solder-cup, using stranded 18 AWG (0.823 mm
2
) wire.
The properly assembled connector will provide a waterproof seal.
Please observe local electrical code.

2400PSU-8 - Eight Channel 240xLT DC Power Supply
Page 4 Revision 1.3
"
Maximum cable outside diameter for use with supplied connectors is 0.25” (6.4mm).

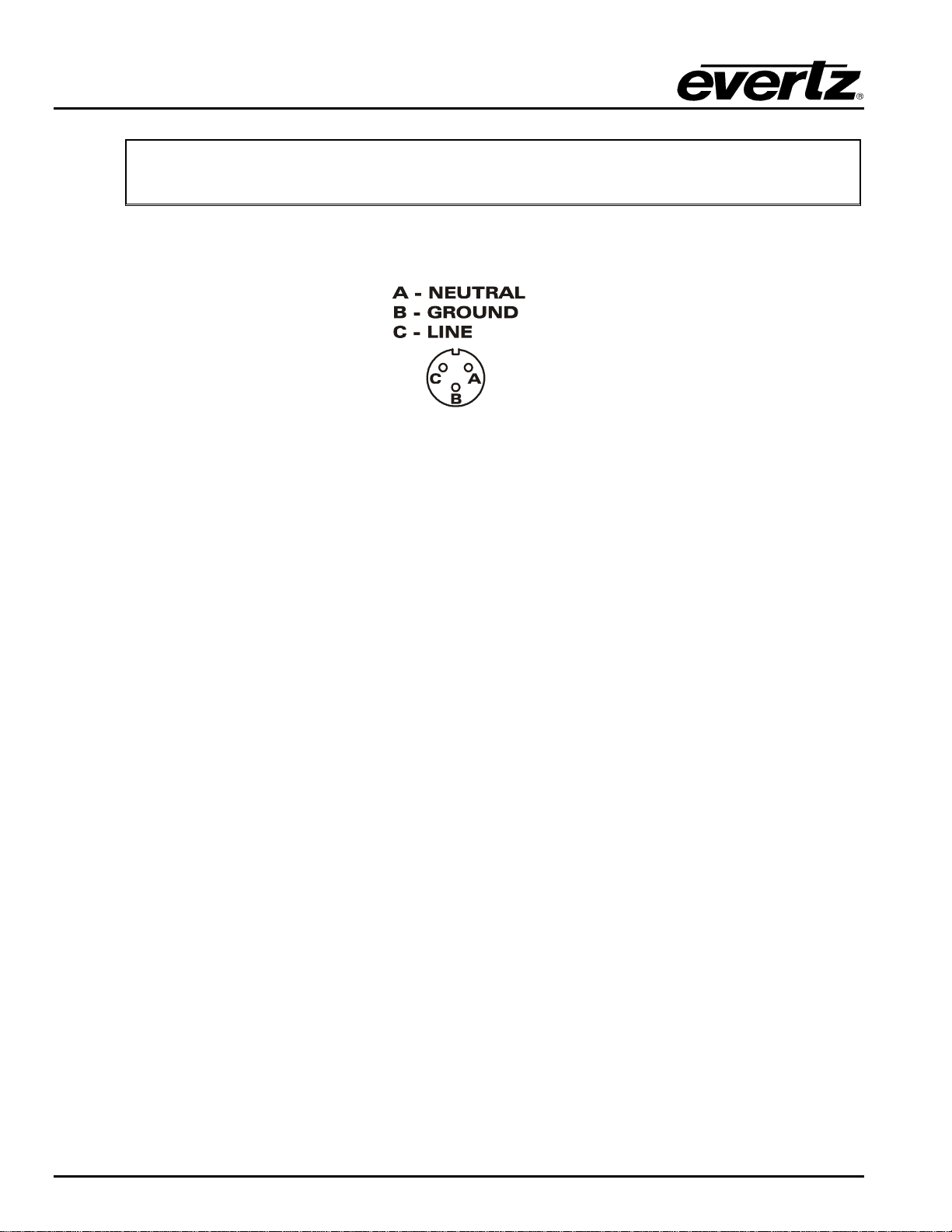

When viewed from the rear of the connector where wiring connections are made (as opposed to the
mating end) wire connections should be made as follows:
Figure 2-3: Power Connector Pinout
UNIT 1-8: Output F-Type connector for DC power connections to 240xLT’s. Each output features active
short-circuit and overload protection.

2400PSU-8 - Eight Channel 240xLT DC Power Supply
Revision 1.3 Page 5
3. 2400PSU-8 SPECIFICATIONS
3.1. AC INPUT
Number of Inputs:
2
Connector: Male, weatherproof, mating connectors included
Voltage: Auto ranging, 100 Ù 240 VAC, 50/60 Hz
Certified to 120VAC 60Hz only in North America
Power: 150W max per input
3.2. DC OUTPUT
Number of Outputs: 8
Connector: F-Type
Voltage: 18 ±1 VDC per output
Current:
Per Output: 900mA max, current limited
All Outputs, Combined Total: (to maintain upper temperature rating)
-20 to +50°C 8 Amps max
70°C 4 Amps max
3.3. PHYSICAL
Dimensions (with flanges): 9.93"L x 5.85"W x 2.24"H
(252mm L x 149mm W x 57mm H)
3.4. ENVIRONMENTAL
Temperature: -20 to +70°C

2400PSU-8 - Eight Channel 240xLT DC Power Supply
Page 6 Revision 1.3
4. STATUS INDICATORS
The 2400PSU-8 module has ten LED status indicators on the front of the box to show operational status of
the module at a glance.
4.1. PSU1 AND PSU2 INDICATORS
The PSU1 and PSU2 LEDs indicate the status of the internal power supplies:
GREEN: Internal power supply associated with the LED is operating normally.
RED: Internal power supply associated with the LED has failed or is not receiving AC input.
OFF: If both PSU1 and PSU2 LEDs are OFF, this indicates that there is no power input to the unit at
either AC connector, or both internal power supplies have failed.
4.2. UNIT 1-8 INDICATORS
The UNIT 1-8 LEDs indicate the status of each DC output:
GREEN: Output associated with the LED is operating normally.
RED: Load connected to output associated with the LED is excessive or short circuited.
OFF: If all UNIT 1-8 LEDs are off, this indicates that there is no power supplied to the unit on either
AC connector, or both internal power supplies have failed.
