EVGA X99 FTW User manual

- 1 -
User Guide
EVGA X99 FTW
Specs and Initial Installation
(Part 1)

- 2 -
Table of Contents
Before you Begin………………………………………………………………………3
Parts Not in the kit…………………………………………………………………….4
Intentions of the kit……………………………………………………………………4
Motherboard Spe ifi ations……………………………………………………………5
Unpa king and Parts Des riptions……………………………………………………..7
Equipment……………………………………………………………………………..7
Hardware Installation…………………………………………………………………..8
Component legend………..……………………………………………………………8
PCI-E Slot Breakdown………………………………………………………………....9
Rear I/O Panel legend………………………………………………………………..10
Preparing the Motherboard…………………………………………………………...11
Installing the CPU…………………………………………………………………….11
Installing the Cooling Devi e……………………………………….…………...…….12
Installing System Memory (DIMMs)……………...………………….......…..………...13
Complian e Information……………………………………………………………...14

- 3 -
Before You Begin…
EVGA wel omes you to the next generation of ground breaking performan e, the X99
FTW. The X99 platform redefines high performan e with the introdu tion of the first
ever quad hannel DDR4 ar hite ture fueled by Intel’s Haswell-E/Broadwell-E CPU
family for up to 128GB’s of RAM running at a maximum memory speed up to
3000MHz+ (OC), possible due to the 4 layer memory T-Routing design. An Advan ed
8 phase Digital VRM (IR3563B+IR3350) and a CPU so ket with 150% higher Gold
ontent, all rested on a 8 layer Hybrid Bla k PCB to provide industry leading stability for
all your appli ations.
Also, the board is not ONLY for peak over lo king, it is also fully featured to support
any/all peripherals and fun tions available, 4 way SLI support without the need for PLX
hips, 2 Intel Gigabit LAN, Intel AIC with Thunderbolt support, right angle power
onne tors, PCI-E disable swit hes and mu h more!
Lastly, a motherboard is only as good as its BIOS, and we have revamped our GUI
BIOS with a fo us on over lo king, fun tionality, in a lean, straight forward pa kage.
And you should expe t nothing less from a modern enthusiast BIOS.
With the features above and many more, EVGA is going to redefine motherboard
performan e.

- 4 -
Parts NOT in the Kit
This kit ontains all the hardware ne essary to install and onne t your new
EVGA X99 FTW Motherboard. However, it does NOT ontain the following
items that must be pur hased separately in order to make the system fully
fun tional and install an Operating System:
 Intel Socket 2011-3 Processor
 DDR4 System Memory
 CPU Coolin Device
 PCI Express Graphics Card
 Power Supply
 Hard Drive or SSD
 Keyboard / Mouse
 Monitor
 (Optional) Optical Drive
EVGA assumes you have pur hased all the ne essary parts needed to allow for
proper system fun tionality. For a full list of supported CPUs on this
motherboard, please visit www.evga. om/support/motherboard
Intentions of the Kit
This kit provides you with the motherboard and all onne ting ables ne essary
to install the motherboard into a PC ase.
When repla ing a motherboard in a PC ase, you will need to reinstall an
operating system even though the urrent storage drive may already have one
installed.

- 5 -
Motherboard
Motherboard Specifications
 Size:
EATX form fa tor of 12 in hes x 10.375 in hes (305x264mm)
 Microprocessor support:
Intel So ket 2011-3 Pro essor
 Operatin Systems:
Supports Windows 8 / 7
 Contains Intel X99 chipset
 System Memory support:
Supports Quad hannel DDR4 up to 3000MHz+ (OC).
Supports up to 128GB of DDR4 memory.
 USB 2.0 Ports:
8x from Intel X99 PCH – 6x external, 2x internal
Supports hot plug
Supports wake-up from S1 and S3 mode
Supports USB 2.0 proto ol up to a 480 Mbps transmission rate
 USB 3.0 Ports:
6x from Intel X99 PCH – 4x external, 2x internal
Supports transfer speeds up to 5Gbps
Ba kwards ompatible USB 2.0 and USB 1.1 support
 SATA Ports:
Intel X99 PCH Controller
6x SATA 3/6G (600 MB/s) data transfer rate
- Support for RAID 0, RAID 1, RAID 5, AND RAID 10
- Supports hot plug
4x SATA3/6G AHCI Only
 Onboard LAN:
1x Intel i217 Gigabit Ethernet PHY
1x Intel i210 Gigabit Ethernet MAC
Supports 10/100/1000 Mb/se Ethernet

- 6 -
Ethernet Teaming Supported
 Onboard Audio:
Realtek Audio (ALC1150)
Supports 8- hannel (7.1) audio
Supports Opti al Output
 PCI-E 3.0 Support:
Low power onsumption and power management features
 Power Functions:
Supports ACPI (Advan ed Configuration and Power Interfa e)
Supports S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4
(Suspend to disk - depends on OS), and S5 (soft - off)
 Expansion Slots:
5x PCI-E 16x slot 2x16/8, 3x8, 4x8
1x PCI-E 4x slot

- 7 -
Unpacking and
Parts Descriptions
Equipment
The following a essories are in luded with the EVGA X99 FTW
Motherboard:
The EVGA X99 FTW Motherboard
This PCI-E motherboard contains the Intel X99 chipset.
I/O Shield
Installs in the system case to protect internal components from
dust, foreign objects, and aids in proper airflo ithin the
chassis.
6x SATA 6G Data Cables
Used to support the SATA protocol and each one connects a
single drive to the motherboard.
I/O Cover
This optional cover attaches to the PCB and covers the I/O
area
I stallatio CD
Contains drivers and soft are needed to setup the
motherboard.
User Ma ual
The user manual you are reading right no !

- 8 -
Intel X99 FTW Motherboard
The EVGA X99 FTW Motherboard with the Intel X99 and PCH Chipset. Figure 1
shows the motherboard and Figure 2 shows the ba k panel onne tors

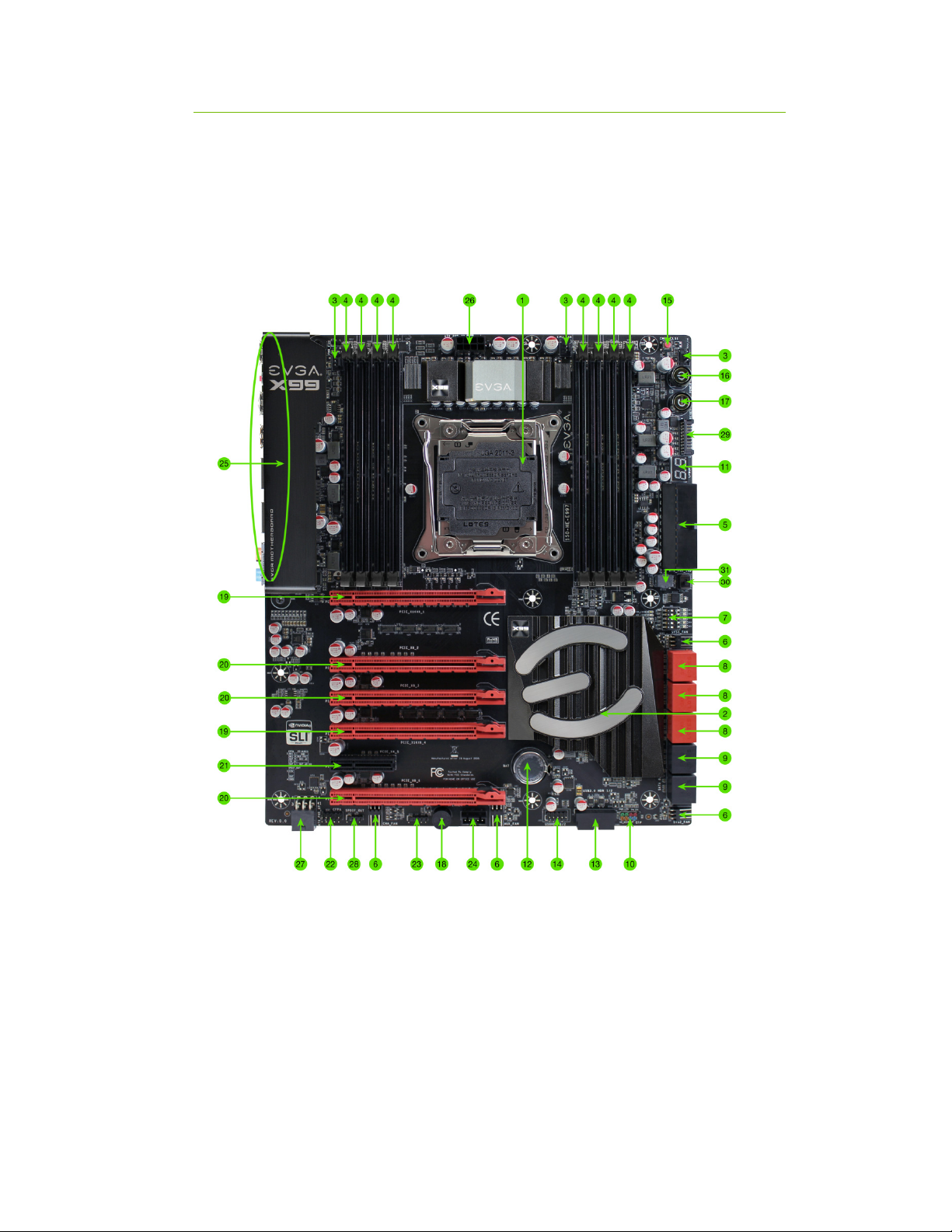

FIGURE 1. X99 FTW Motherboard Layout

- 9 -
1. CPU Socket 2011-3 12. CMOS Battery 23. EVGauge
2. Intel X Southbridge 13. USB 3.0 Headers 24. Thunderbolt GPIO Connector
3. CPU Fan Header (1 amp PWM) 14. USB 2.0 Headers 25. Back Panel Connectors (Figure 2)
4. DDR4 Memory DIMM Slots 1-8 15. CMOS Reset Button 26. 8 pin EPS Connector
5. 24-pin ATX power connector 16. Power Button 27. Supplemental PCI-E 6pin Power
6. Fan Headers (1 amp DC) 17. Reset Button 28. S/PDIF Out
7. PCI-E Disable Dipswitches 18. PC Speaker 2 . Probe It Header
8. Intel Sata 6G RAID Ports 1 . PCI-E Slot 16x/8x 30. BIOS Selector Switch
. Intel Sata 6G AHCI Ports 20. PCI-E Slot 8x 31. Removable BIOS Chip
10. Front Panel Connectors 21. PCI-E Slot 4x
11. Debug LED / CPU Temp Monitor 22. Front Panel Audio Connector
PCI-E Slot Breakdown
PCI-E Lane Distribution (40 Lane Processor)
 PE1 – x16 (x8 if PE2 is used)
 PE2 – x8
 PE3 – x8
 PE4 – x16 (x8 if PE3 is used)
 PE5 – x4 (Gen 2 only, 4 lanes pulled from PCH)
 PE6 – x8
PCI-E Lane Distribution (28 Lane Processor)
 PE1 – x16 (x8 if PE2)
 PE2 – x8
 PE3 – x8 (Not fun tional with a 28 lane pro essor.)
 PE4 – x8
 PE5 – x4 (Gen 2 only, 4 lanes pulled from PCH)
 PE6 – x4

- 10 -
Fi ure 2. Chassis Rear Panel Connectors
1. USB 2.0 4. Intel i217 NIC 7. Analog Audio Output Jacks
2. USB 3.0 5. Intel i210 NIC
3. BIOS/CMOS Reset 6. Optical Out
Analog Audio Port
Breakdown
2/2.1
Channel
4.0/4.1
Channel 5.1 (6 Channel) 7.1 (8 Channel)
Blue Line in Line In Line in Side channel
Green Line Out/
Speaker Out
Front Speaker/
Speaker+Sub
Out
Front Speaker/
Speaker+Sub Out
Front Speaker/
Speaker+Sub Out
Pink Mic In Mic In Mic In Mic In
Black
Rear Speaker
Out Rear Speaker Out Rear Speaker Out
Orange
Center/Voice
channel
Center/Voice
channel
Only used in 7.1 and is changed via Realtek Software from within Windows.

- 11 -
Preparing the Motherboard
Installing the CPU
Be very areful when handling the CPU. Hold the
pro essor only by the edges and do not tou h the
bottom of the pro essor.
Note: Use extreme caution when working with
the CPU, not to damage any pins in the
CPU socket on the motherboard!
Use the following pro edure to install the CPU onto the motherboard:
 Unhook the left so ket lever by pushing down and
towards the so ket.
 Unhook the right so ket lever by pushing down
and towards the so ket.
 Gently press the left so ket lever and the load
plate will lift from the so ket.
 Open the load plate and make sure not to
damage any of the pins inside of the so ket.
Note: After removing the CPU socket cover, it is recommended to store it in case
you ever need to transport your motherboard. If you ever remove the CPU, it
is highly recommended to reinstall the socket cover.

- 12 -
 Align the not hes on the CPU to the not hes in
the so ket.
 Lower the pro essor straight down into the
so ket.
Note: Make sure the CPU is fully seated and level
in the socket.
 Lower the load plate so it is resting on the CPU.
 Press the right so ket lever down to lo k into
pla e.
 Carefully lo k the left lever ba k into pla e.
Installing the CPU Cooling Device
There are many different ooling devi es that an be used with this
motherboard. Follow the instru tions that ome with your ooling assembly.

- 13 -
Installing System Memory (DIMMs)
Your X99 FTW has (8) 288-pin slots for DDR4 memory. These slots support
2GB, 4GB, 8GB and 16GB DDR4 DIMMs. There must be at least one
memory slot populated to ensure normal operation.
The Intel X99 hipset supports quad hannel memory; supports a maximum of
128GB of DDR4 and up to
3000MHz+ (OC) in quad hannel
onfiguration. It is required to
populate an odd slot (1, 3, 5, 7)
first. The board will not boot if
only even slots (2, 4, 6, 8) are
populated.
Use the following pro edure to
install DIMMs. Note that there is
only one gap near the enter of the
DIMM slots. This slot mat hes the
slot on the DIMM to ensure the omponent is installed properly.
 Unlo k a DIMM slot by pressing the module lips on both sides
outward.
 Align the memory module to the DIMM slot, and insert the module
verti ally into the DIMM slot, pressing straight down to seat the
module. The plasti lips at top side of the DIMM slot automati ally
lo k the DIMM into the onne tor.
Note: The memory controller on most Haswell-E and Broadwell-E CPUs runs at a
default frequency of 2133MHz. To achieve memory speeds above 2133MHz+
may require manual setting of the memory timings, frequency and voltages
and/or overclocking of the CPU.
Refer to the memory manufacturer specifications for the recommended
memory timings. For overclocking support you can visit our forums:
http://forums.evga.com/

- 14 -
Compliance Information
FCC Compliance Information
This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
(1) Increase the separation between the equipment and signal source, or (2) connect the equipment to an outlet on a
circuit different from that to which the signal source is connected. Consult the dealer or an experienced computer
technician for help. The use of shielded cables for connection of peripheral devices to the PC systems is required to
ensure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
CE Compliance Information
Generic Radiation Interference Standard for Information Technology Equipment. (EN 55022: 2006, Class B), (EN 61000-
3-2: 2006), (EN 61000-3-3: 1995 + A1: 2001 + A2: 2005). Warning: This is a Class B product. In a domestic environment
this product may cause radio interference in which case the user may be required to take adequate measure. Generic
Immunity Standard for Information Technology Equipment. (EN 55024: 1998 + A1: 2001 + A2: 2003).
Trademark & Copyright Information
2001-2014 EVGA Corp. EVGA, the EVGA logo and combinations thereof are trademarks of EVGA Corp. All brand names,
company names, service marks, logos, and trademarks of the company, or its affiliates or licensors are trademarks or
registered trademarks of the company or its subsidiaries, affiliates or licensors in the US and other countries. Other
company, products and service names may be trademarks or service marks of others. EVGA reserves the right to
terminate this license if there is a violation of its terms or default by the Original Purchaser. Upon termination, for any
reason, all copies of Software and materials must be immediately returned to EVGA and the Original Purchaser shall be
liable to EVGA.com CORP for any and all damages suffered as a result of the violation or default.
Legal Information
All material including but not limited to, text, data, design specifications, diagnostics, graphics, logos, reference boards,
files, images, drawings, and software including this document and the software itself (together and separately) is owned,
controlled by, licensed to, or used with permission by EVGA Corporation and is protected by copyright, trademark, and
other intellectual property rights. All is being provided “as is”, EVGA Corporation makes no warranties, whether express
or implied, statutory or otherwise with respect to the materials and expressly disclaims all implied warranties of non-
infringement, merchantability, and fitness for a particular purpose. In no event shall the liability of EVGA Corporation for
claims arising from the use of the materials by anyone exceed the original purchase price of the materials (or replacement
of the materials at EVGA Corporation’s option). All information furnished is believed to be accurate and reliable. However,
EVGA Corporation assumes no responsibility for the consequences of use of such information or for any infringement of
patents or other rights of third parties that may result from its use, or use of the Software. No license is granted by
implication or otherwise under any patent or patent rights of EVGA Corporation except as expressly provided herein. All
specifications mentioned in this publication are subject to change without notice.
Ver. 2
