Evident SZX-AR1 User manual

Instructions
Note
This instruction manual is for the our SZX-AR1 System.
To ensure safety, obtain optimum performance and to familiarize yourself fully with the use of this
product, we recommend that you study this manual thoroughly before operating the product,
For details about the products included in the configuration of this system, see page 17.
SZX-AR1 System
A M 5 1 8 6
Optical Microscope and Accessory

This product is applied with the requirements of standard IEC/EN61326-1 concerning
electromagnetic compatibility.
- Emission Class A, applied to industrial environment requirements.
- Immunity Applied to industrial environment requirements.
Some interference may occur if this product is used in domestic location.
NOTE: This product has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the product is operated in a commercial environment. This product
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of
this product in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the product.
FCC Supplier's Declaration of Conformity
Hereby declares that the product
Product name: Optical Microscope and Accessory
Model Number: SZX2-ARTTR
Conforms to the following specifications:
FCC Part 15, Subpart B, Section 15.107 and Section 15.109
Supplementary Information:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Responsible Party Name: Olympus Scientific Solutions Americas Corp.
Address: 48 Woerd Ave Waltham, MA 02453, U.S.A.
Phone Number: 781-419-3900
In accordance with European Directive on Waste Electrical and Electronic Equipment, this
symbol indicates that the product must not be disposed of as unsorted municipal waste,
but should be collected separately. Refer to your local our distributor in EU for return and/or
collection systems available in your country..
For Korea only
󼓣󾖴 󺮟󺮟󻀃󾖴 󼌴󻢣󼐘󾖴 󽏇󺨬󼌿󻺋󾖴 󻸛󼐘󽋏󾖴 󻠘󼕰󼒫󻗋󾖴 󼕰󽋘󻺠󽄸󺥯󻛫󾖴 󻦊󼒯󾖴 󺮟󺮟󻗋󻺋 
󺥯󼖄󼐘󾖴󽏇󺨬󼌿󻺋󾖴󻸛󼐘󽋇󻀃󾖴󺨬󼐟󾖴󼕳󽁻󺥳󻺜󼓇󾖴󼐟󻖓󺥯󾖴󼓷󼀤󻀷󻁓

i
SZX-AR1 System
Concept of this instruction manual.................................................................................................................1
Product Concept.....................................................................................................................................................................3
Safety precautions.................................................................................................................................................................4
Handling precautions........................................................................................................................................................6
System requirements for the PC......................................................................................................................11
1 Setup workflow..................................................................................................................................................................12
2 Unpacking and packing procedures...................................................................................................13

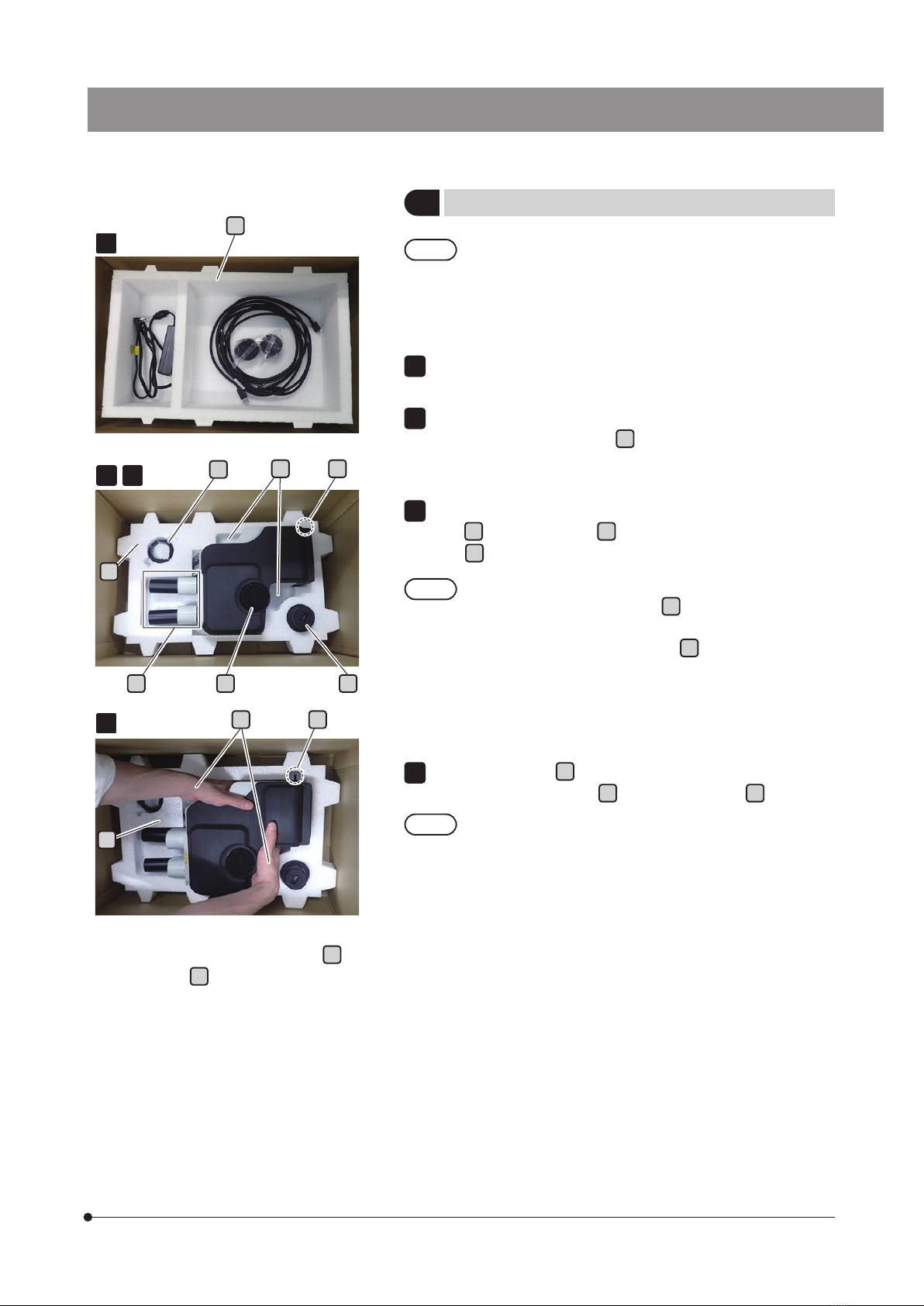

1Unpacking procedure....................................................................................................................................................................................... 13
2Packing procedure.................................................................................................................................................................................................14
3 Maintenance and storage................................................................................................................................. 16
4 System diagram..............................................................................................................................................................17
1System diagram in combination with the SZX-SB7 zoom microscope body............................17
2System diagram in combination with the SZX2-ZB10 zoom microscope body....................18
3System diagram in combination with the SZX2-ZB16 zoom microscope body....................19
5 Nomenclature of main operation parts ............................................................................................20
6 Observation procedure..........................................................................................................................................21
7 Operation procedure of each unit...........................................................................................................22
7-1 Stand...........................................................................................................................................................................................................22
1Using the stage plate.........................................................................................................................................................................................22
2Placing the sample...............................................................................................................................................................................................22
7-2 Microscope frame and focusing unit................................................................................................................22
1Adjusting the tension of the coarse focusing knob and the focusing knob ..............................22
7-3 Observation tube.........................................................................................................................................................................23
1Interpupillary distance adjustment....................................................................................................................................................23
2Diopter adjustment (zoom parfocal adjustment).............................................................................................................23
3Using the eye shades.......................................................................................................................................................................................23
4Tilting adjustment....................................................................................................................................................................................................23
Contents

ii
7-4 Observation and acquisition with camera..................................................................................................24
7-5 Setting up the software........................................................................................................................................................ 25
1Starting the system................................................................................................................................................................................................25
2Setting up Windows.............................................................................................................................................................................................25
3Setting up the software....................................................................................................................................................................................26
4Configuring the microscope system..............................................................................................................................................26
5Performing the parfocal adjustment of the camera.....................................................................................................27
6Adjusting the AR image view...................................................................................................................................................................27
7Setting the zoom magnification sensor......................................................................................................................................29
7-6 Operating the AR tilting trinocular tube........................................................................................................30
7-7 Zoom magnification sensor........................................................................................................................................ 30
1Showing or hiding the AR image.......................................................................................................................................................30
2Adjusting the brightness of the displayed AR image...............................................................................................30
7-8 Connecting the barcode reader................................................................................................................................31
7-9 Connecting the external switches......................................................................................................................... 32
8 Troubleshooting..............................................................................................................................................................33
9 Specifications.....................................................................................................................................................................35
10 Assembly procedures..........................................................................................................................................37
10-1 Assembly diagram................................................................................................................................................................. 37
10-2 Detailed assembly procedure................................................................................................................................. 38
1Attaching the zoom magnification sensor..............................................................................................................................38
2Attaching the AR tilting trinocular tube........................................................................................................................................39
3Attaching the eyepieces.................................................................................................................................................................................40
4Attaching the camera and camera adapter..........................................................................................................................40
10-3 System wiring................................................................................................................................................................................41
1Connecting the power supply...................................................................................................................................................................42
2Routing the cables................................................................................................................................................................................................43
3Connecting the power outlet....................................................................................................................................................................44

iii
SZX-AR1 System
11 List of observation magnifications and observation ranges...............................45
12 Software..................................................................................................................................................................................46
12-1 Installation....................................................................................................................................................................................... 46
1Installing the software........................................................................................................................................................................................46
2Installing the device driver for DP23/DP28.............................................................................................................................47
3Installing the device driver for DP27................................................................................................................................................48
12-2 Uninstalling...................................................................................................................................................................................49
1Uninstalling the software................................................................................................................................................................................49
2
Uninstalling the device driver for the AR tilting trinocular tube..................................................................................................................50
3Uninstalling the device driver for the camera.....................................................................................................................51
12-3 Update the software..........................................................................................................................................................52
12-4 Collecting log files................................................................................................................................................................ 54
13 Check sheet when setting up the product.............................................................................56

1
SZX-AR1 System
Target group
This instruction manual describes the contents related to the whole SZX-AR1 system.
This instruction manual is intended for users who use the product according to “Intended use” on page 3, and for
our distributors.
Read all the instruction manuals supplied with the units you purchased.
The following instruction manuals are prepared for the units used with this product. In addition to the ones listed below,
instruction manuals are provided with units indicated by an ** mark in “4 System diagram” on page 17.
Manual names Main contents
SZX-AR1 system (this manual) Explains how to operate the AR tilting trinocular tube SZX2-ARTTR
DP23/DP28 Explains how to connect the digital camera DP23/DP28
DP27 Explains how to connect the digital camera DP27
SZX16 Explains how to operate the stereo microscope system SZX16
SZX10 Explains how to operate the stereo microscope system SZX10
SZX7 Explains how to operate the stereo microscope system SZX7
U-TV0.63XC Explains how to connect the C-mount 0.63X camera adapter
U-TV0.5XC-3 Explains how to connect the C-mount 0.5X camera adapter
U-TV0.35XC-2 Explains how to connect the C-mount 0.35X camera adapter
In addition to the above, Online Help is provided on the software.
Configuration of instruction manuals
Concept of this instruction manual

2
i
GX53
1
1
2
を登りな がら
6
6-1 OOOOOOOOOO
OOOOOOOO
OOOOOOOOOO
OOOOOOOOOOOOOOOOOOOOOOOOOOOOO
OOOOOOOOOOOOOOOOOOOOOOOOOOOOO
OOOOOOOOOOOOOOOOOOOOO
OOOOOOOOOOOOOOOOOOOOO
OOOOOOOOOOOOOOOOOOOOO
This instruction manual is created as follows.
How to read this instruction manual
Title in second layer
Title in third layer
The following symbols are used in this instruction manual.
DANGER : Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING
: Indicates a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION : Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury. It may also be used to alert against unsafe practices or
potential material damage.
NOTE
: Indicates a potential situation which, if not avoided, may result in failure of this
instrument.
TIP
: Indicates useful knowledge or information for use.
Title in first layer
2
1
Cautions and references
Operating procedure
Loosen the clamping screw
A
with a screwdriver.
Remove the unit
B
.
TIP
NOTE
CAUTION
1
,
2
... indicates the
operating procedure, and A,
B... indicates the portion you
operate.
B
A

3
SZX-AR1 System
Product outline
Microsoft, Excel, and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United
States and/or other countries.
Intel and Intel Core are trademarks of Intel Corporation or its subsidiaries in the United States and/or other countries.
“QR Code” is a registered trademark of DENSO WAVE INCORPORATED.
Other company names or product names described in this manual are either registered trademarks or trademarks of
their respective companies.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or rgistered
trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND
NONCOMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVC
VIDEO") AND/OR (ii) DECODE AVC VIDEO THAT
WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS
OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE
IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://
WWW.MPEGLA.COM
The SZX-AR1 system can superimpose the digital contents as Augmented Reality on the image observed through the
eyepieces of the stereo microscope.
Trademarks
Product Concept
Cautions and confirmation before use
When you unpack the package, check all the included items referring to the list of accessories. If any item is missing or
damaged, contact us.
Use cases for this product
· Assembly and inspection work in manufacturing processes
· Creation of assembly and inspection manuals
· Training related to basic skills and assembly/inspection skills
Suitable samples include semiconductors, electronic components, molded products, and mechanical parts.
Industrial applications include observation, inspection, and measurement.
Do not use this product for any purpose other than the intended use.
Intended use

4
Safety precautions
If the product is used in a manner not specified by this manual, the safety of the user may be imperiled. In addition, the
product may also be damaged. Always use the product according to this instruction manual.
Prevention of electric shock
·Never disassemble any part of this product.
It could cause electric shock or failure of the product.
·Do not touch the product with wet hands.
In particular, if you touch the main switch of the power unit or the power cord with wet hands, electric shock,
ignition or failure of the product may be caused.
·Do not bend, pull or bundle the power cord and cables.
Otherwise they could be damaged, causing a fire or an electric shock.
CAUTION
·Always use the power cord specified by us.
If the proper AC adapter and the power cord are not used, the electric safety and the EMC (Electromagnetic
Compatibility) performance of the product intended by us cannot be assured. If no power cord is provided,
please select the proper power cord by referring to the section “Proper selection of the power cord” at the end
of this instruction manual.
·Always connect the ground terminal.
Connect the ground terminal of the power cord and that of the power outlet.
If the product is not grounded, our intended electric safety and EMC performance of the product cannot be
assured.
·Do not use the product in close proximity to the sources of strong electromagnetic radiation.
Proper operation may be interfered. The electromagnetic environment should be evaluated prior to operation
of the product.
·Disconnect the power cord in case of emergency.
In case of emergency, disconnect the power cord from the power cord connector on the product or from the
power outlet.
Install the product at the location where you can reach the power cord connector or the power outlet at hand
to disconnect the power cord quickly.
·Do not connect or disconnect the power cord, cables, or units while the power is ON.
CAUTION
Electric safety

5
SZX-AR1 System
The following symbols are placed on this product.
Study the meaning of the symbols and always use the product in the safest possible manner.
Symbol Meaning
Indicates a non-specific general hazard. Follow the cautions given after this symbol or in
the instruction manual.
Indicates that the seesaw type main switch is ON.
(Seesaw type is the type of switch where ON or OFF is selected by pressing it to ON or
OFF side.)
Indicates that the seesaw type main switch is OFF.
Label position and instructions
Caution labels are placed on the positions which particularly require special cautions when using or operating this
product. Always follow these instructions.
Label position Label Instructions in instruction manual Page
Back side of AR tilting trinocular tube
Safety precautions - Electric safety
4
Safety precautions - Prevention of
electric shock
If caution labels are dirty or peeled off, contact us for assistance.
Safety symbols

6
Handling precautions
Restrictions
· When combining the units of the SZX7 system, SZX10 system, or SZX16 system with this system, never use this
system as a medical instrument or for diagnostics, etc.
· Each focusing unit has a limit in load capacity. See “Load capacity of focusing unit” on page 8, and do not use a
combination that exceeds the load capacity.
· This system displays dimensions and magnifications but their accuracy is not guaranteed. Therefore, use them as
reference values.
· This system is not dustproof or mold-proof.
· This system does not support ESD.
· If you move your line of sight while looking into the AR tilting trinocular tube, the AR image may shake.
· If the sample is not in focus, the AR image may appear doubled.
· If you change the zoom magnification, the depth perception of the AR image may change.
· If the focus adjustment knob is not in the click position, the AR image is not displayed.
· When acquiring images with the camera, the light (room light, etc.) through the eyepieces may appear on the image.
In this case, put on the eyepiece cover provided with the AR tilting trinocular tube before acquiring images.
· If you increase the exposure time of the camera when the observed image is dark and also the AR image brightness
is set to maximum, flares or ghosts may appear on the acquired image.
· If you observe a highly reflective sample, flares or ghosts may appear on the acquired image.
· For the observable ranges on sample surfaces through the eyepieces and the camera when using the objective with
1X magnification, see “7-4 Observation and acquisition with camera” on page 24.
· If you observe the image with the camera exceeding the observable range through the eyepieces, the peripheral light
may be insufficient if the zoom magnification is set to the minimum.
· During observation, some areas around the field of view may appear darker than the center of the field of view.
· If the diopter of the eyepiece is not adjusted correctly, the camera image may not be focused even though the
sample is in focus. If the camera image is still unfocused even though the diopter is adjusted, focus and acquire the
image while checking the camera image on the monitor.
· Before adjusting the tension of the focusing unit, lower the focusing unit to the lowest position.
General precautions
·This product is a precision instrument. Handle it with care and avoid subjecting it to a sudden or
severe impact.
·Disassembling the product could cause unexpected accidents or failure. Never disassemble the
product.
·Do not use the product in areas where it may be subjected to direct sunlight, high humidity, dust,
vibrations or out of operating temperature range (10 to 35°C). Otherwise the product may be
damaged.
(For conditions of operating environments, see “9 Specifications” on page 35).
·For units attachable to this product, see pages 17, 18, and 19.
The use of this product in combination with other units not only creates the risk of abnormal operation, but
may also damage the product.
·Before disposing of this product, be sure to follow the regulations and rules of your local government.
NOTE

7
SZX-AR1 System
· When the zoom magnification sensor is attached, minor scratches may be made on the focus adjustment knob.
· The magnification indicated on the focus adjustment knob may be different from the total magnification on
the software in the following cases. To avoid this confusion, remove the magnification indication sticker or the
magnification ring attached to the focus adjustment knob before use.
(a) When the magnification ring provided with the objectives (DFPL0.75X-4, DFPLAPO1.25X, SZX-ACH1.25X-2,
DFPL1.5X-4, or DFPL2X-4) is attached.
(b) When the magnification indication sticker provided with the ergonomic trinocular tube SZX2-LTTR is attached.
· Attach the extendable eyepoint adjuster, AS unit (SZX-XB7 only) and coaxial reflected light illumination unit between
the AR tilting trinocular tube and the zoom microscope body in the order from the top.
· With the SDFPLAPO1.6XPF or SDFPLAPO2XPFC objective, vignetting may occur when the zoom is set at low
magnification.
· If you use the extendable eyepoint adjuster function to set the eyepoint height at 150 mm, set the zoom magnification
to the minimum, and set the AS to a value other than maximum, vignetting occurs in the area around the field of view.
· If you use the extendable eyepoint adjuster function to set the eyepoint height at 50 mm or higher, ghosts may
appear on the edge of the image acquired with the camera.
· This system does not support the location change of the PC. Therefore, use the OS keeping the language setting
made at setup, i.e. Japanese or English. (The change of time zone is supported.)
· When connecting the camera to the USB, connect it directly without going through the USB hub, etc.
· The AR tilting trinocular tube cannot be used if it is connected to SZX2-ARTTR via a VGA analog signal converter.
· The camera function cannot be used on the software without connecting the AR tilting trinocular tube. Confirm that
the connection of the AR tilting trinocular tube and the camera is recognized.
· After attaching the zoom magnification sensor to the zoom microscope body, if you tilt the zoom microscope body,
the obtained zoom magnification values may not be displayed correctly. To use it tilted, set up the zoom magnification
sensor again.
· If the temperature increases or decreases by 25°C or more or the humidity increases or decreases by 30% or more
after the product is set up, the zoom magnification sensor value may not be obtained correctly. Adjust the zoom
magnification sensor again if necessary.
· On the AR image on the eyepiece side, the graphics and text that can be displayed on the AR image and the black
areas of the image are displayed transparent when they are displayed on the software.
· When using the SZX-ZB7 zoom microscope body in combination with the AS unit, or when using the SZX2-ZB10
zoom microscope body or the SZX2-ZB16 zoom microscope body, if the aperture diaphragm is stopped down,
vignetting may occur.
· Do not use a microscope instrument that is not registered in the software. The incorrect dimension information may
be displayed.

8
Weight of each unit
Category Product name Weight
[kg]
AR tilting trinocular
tube
AR tilting trinocular tube 3.7
Zoom magnification
sensor 0.4
Eyepiece WHSZ10X-H (2 pieces) 0.22
WHN10X-H (2 pieces) 0.27
Camera DP23-CU/DP28-CU 0.38
DP27-CU 0.16
Camera adapter
U-TV0.35XC-2 0.14
U-TV0.5XC-3 0.27
U-TV0.63XC 0.43
Extendable eyepoint
adjuster SZX2-EEPA 2.1
AS unit SZX-AS 0.3
Coaxial reflected
light illumination unit SZX2-ILLC10 0.84
Zoom microscope
body
SZX-ZB7 0.96
SZX2-ZB10 1.3
SZX2-ZB16 1. 3
Load capacity of focusing unit
Product name Load capacity [kg]
Focusing unit SZX2-FO 10
Coarse/fine focusing unit SZX2-FOF 15
Standard stand SZ2-ST 7
Load capacity of focusing unit
Weight of each unit
Category Product name Weight
[kg]
Focusing adapter SZX-STF 0.5
Objective
DFPL0.5X + SZ2-ET 0.286
DFPL0.75X 0.356
DFPLAPO1X-4 0.418
SZX-ACH1X 0.18
DFPLAPO1.25X 0.54
SZX-ACH1.25X 0.26
DFPL1.5X 0.466
DFPL2X 0.615
Ring light guide
adapter SZX-LGR66 0.097
4-part LED ring
illumination unit SZX2-ILR66 0.47
6-point ring light
guide SZ2-CLGR 0.29
Ring light guide LG-R66 0.45
LED illumination unit SZ-LW61 0.12

9
SZX-AR1 System
Precautions for the PC
· The PC data may be lost (corrupted) unexpectedly. Be sure to back up the data frequently.
· We are not liable for any damage (including compensation for the corrupted PC data) caused by the use or the
inability to use the product.
·When themes other than standards are set on the Windows®desktop, the software window may not
be displayed or printed properly.
·If you use the PC that does not meet the system requirements and operating environments, the
correct operation of the product cannot be assured. Contact our distributors for the PC models where
operations have been confirmed by us.
·If this product is used in connection with a network, the product may not work properly due to the
following causes.
1) Virus infection through the network
2) Malfunction caused by applying OS service pack or security patch, or updating third party software
including runtime libraries
·If this product is used in connection with a network, the use of security software is recommended.
·If the unexpected behavior occurs, disconnect the product from the network, restore to the factory
defaults and check whether the product operates properly.
·The following tasks should be done by customers even if the PC was kitted by us. We are not
responsible for any incidents that occur caused by your failure to perform these tasks.
1) Change the password
2) Install security software
3) Comply with the security policy of the facilities where this system is used
·The default settings of DP2-PC-M are as follows:
•Automatic logon: Enable
•Account: olympus
•Password: olympus
•olympus account authority: Administrator
If the instruction manual provided with DP2-PC-M contains an account and password, follow them.
·The operation of this system cannot be guaranteed if the PC environment is changed as follows.
1) Change in settings caused by applying OS service pack, security patch, or updating third party software
including runtime libraries
2) Change in settings caused by installation of software other than SZX-AR1-APP or version upgrades
·If a problem occurs in the system due to a change in the PC environment or inappropriate actions by
a third party, we are not responsible for a full recovery to the environment before the event occurred.
·We are not responsible for indemnity/compensation for loss of profit occurring due to inappropriate
actions (server attacks, virus infections, server damage, or hacking) by third parties via a network or to
eliminate any other dangers from other security incursions.
·We are not responsible for the following phenomena in the event of a system overload occurring due
to the use of anti-virus software, etc.
1) Loss of data (loss of audio or images) or flickering images while recording video
2) Reduced processing speed of the this system
3) Flickering of observed live image or reduced EPS
4) Deteriorated operability, loss of acquired images, delay or stop of operations
NOTE

10
·We are not responsible for indemnity/compensation for loss of profit due to the occurrence of such
incidents as the falsification or destruction of confidential information due to the loss of information in the
PC or external memory device (HDD, SSD, etc.) due to threats, such as of unauthorized direct or physical
interference by a third party with the instrument.
·If this product is connected to the PC via a network, the use of security software is recommended.

11
SZX-AR1 System
· The PC used with this system should be conformed to IEC/EN60950-1 or IEC/EN62368-1.
· The system requirements for the PC used with this system are listed below. Even though the following mentioned
recommended operating environments are satisfied, it does not necessarily guarantee the functions of combination
use with all commercially-available PCs.
Item Specifications
OS Windows 10 Pro (64bit), Windows 10 pro for Workstation (64bit)
Windows 10 version:2014, 21H1
Windows 10 IoT Enterprise LTSC 2019 (only when combined with DP23/DP28)
OS language Japanese, English
Processor Intel®Core™i5 or later or equivalent
(Recommended core: 4 or more, clock frequency: 3.2 GHz)
Memory 8 GB or more
Storage capacity required to
install software
1 GB or more
Graphic controller Intel UHD Graphics 630 or more
Monitor resolution 1366 x 768 or more
USB interface USB2.0 Type-A x 1 (for connection with AR tilting trinocular tube)
USB2.0 Type-A x 1 (for zoom magnification sensor)
USB3.1 Type-A x 1 (for DP23/DP28) / USB3.0 Type-A x 1 (for DP27)
Monitor interface HDMI x 1 (for connection with AR tilting trinocular tube)
HDMI 1.4 or more
HDMI connector: Type-A
System requirements for the PC

12
Unpack the units. 1Unpacking procedure.........................................................................................(page 13)
Section name (Page)
"10-1 Assembly diagram".............................................................................................(page 37)
"10-2 Detailed assembly procedure".............................................................(page 38)
Assemble the instrument.
Install the software.
Connect the cables.
Setup the system.
Start
Finish
Check the setup
"10-3 System wiring"...........................................................................................................(page 41)
1Connecting the power supply..................................................................(page 42)
2Routing the cables.................................................................................................(page 43)
3Connecting the power outlet.....................................................................(page 44)
1Installing the software *.....................................................................................(page 46)
"6 Observation procedure".........................................................................................(page 21)
"7-1 Stand".......................................................................................................................................(page 22)
"7-2 Microscope frame and focusing unit" *........................................(page 22)
"7-3 Observation tube" *.................................................................................................(page 23)
"7-5 Setting up the software" *...............................................................................(page 25)
"7-8 Connecting the barcode reader" *......................................................(page 31)
"7-9 Connecting the external switches".....................................................(page 32)
"13 Check sheet when setting up the product" *.......................(page 56)
11Setup workflow
This section describes the preparation and setting orders to use the SZX-AR1 system.
This section also describes the usage and adjustments related to the assembly procedure.
Be sure to operate the procedure in the order from the top. Remove the units in the reverse order. (The procedures marked with
an asterisk (*) are not necessary for removal.)

13
SZX-AR1 System
Take off the top lid to open the packing box and remove the internal
pad cover while paying attention not to damage the product.
The cables are packed as shown in the picture on the left. Remove
them and pull out the top pad Afrom the packing box.
1
2
Insert your fingers into the concave part for taking out the AR trinocular
tube Con the bottom pad B, and scoop up the AR tilting trinocular
tube Dto remove it.
3
1Unpacking procedure
Fingers are inserted into the concave part for
taking out the AR tilting trinocular tube Bof
the bottom pad C.
When you unpack the package, the product and units are
packed in plastic bags. However, in this section, to make the
explanation and illustration easy to understand, the photos
showing the status where these items are taken out from the
plastic bags are used.
TIP
·When removing the AR tilting trinocular tube, be careful
not to make the wiring clamp Ecaught by the pad or
apply the impact on it.
·Do not hold the eyepiece mount Hwhen taking out
or carrying the AR tilting trinocular tube. Unexpected
accidents or failure may be caused.
·The center of gravity of the AR tilting trinocular tube is on
the eyepiece mount side. When taking out the AR tilting
trinocular tube, be careful not to lose the balance.
Remove the clamp Fof the zoom magnification sensor and the
zoom magnification sensor Gfrom the bottom pad B.
If you need to pack this product, such as to ship to the
distant location, you must use the packing box, pads
and plastic bags. In this case, be sure to contact us for
assistance.
NOTE
4
NOTE
22Unpacking and packing procedures
A
C
F
GD
E
B
C
H
E
2
3 4
B
3

14
2Packing procedure
Before performing procedures in this section, attach the eyepiece
caps and the cap of the straight tube to mount the camera adapter.
Before packing the AR tilting trinocular tube, minimize the interpupillary
distance of the eyepiece mount Aand set the tilting angle to the
lowest point.
To lower the tilting angle, hold the eyepiece mount Awith
one hand while holding the top surface of the observation
tube with the other hand, and set the tilting angle to the
lowest point.
Insert the zoom magnification sensor clamp Cinto the zoom
magnification sensor Band tighten the two mounting screws E
with the mark Don the clamp in position.
Put the product and the units into the plastic bags you kept when
unpacking the product.
When packing the product and the units, pack them kept in
the plastic bags. In this section, to make the explanation and
illustration easy to understand, the photos showing the status
where these items are taken out from the plastic bags are
used.
Insert the bottom pad Finto the bottom of the packing box. Put your
finger on the bottom surface of the AR tilting trinocular tube and insert
your hand into the concave part for taking out the AR tilting trinocular
tube Gon the bottom pad. Then, put the AR tilting trinocular tube
into the pad.
When packing the AR tilting trinocular tube, be careful not
to make the wiring clamp Hcaught by the pad or apply
the impact on it.
1
2
TIP
3
4
TIP
5
NOTE
F HG
2
3
A
5
E
D
B
C
Fingers are inserted into the concave part for
taking out the AR tilting trinocular tube Hof
the bottom pad F.

15
SZX-AR1 System
Insert the clamp Cof the zoom magnification sensor and the
zoom magnification sensor Binto their respective positions.
At this time, insert the zoom magnification sensor Hinto the
bottom pad Cwith the larger diameter side facing down.
Place the top pad Ion the bottom pad F.
At this time, place the top pad so that the convex parts J
(6positions) of the bottom pad and the convex parts K
(6positions) of the top pad Iare aligned.
Put the AC adapter in the left side space, and put the cables, eyepiece
cover, instruction manual, and DVD (photos of the instruction manual
and the DVD are omitted for convenience of explanation) in the right
side space of the top pad I.
Put on the top lid to close the packing box, seal it securely so that it
does not open during transportation.
·Make sure that the internal pad cover is attached in the
correct direction. If not, the top lid does not close. With
the protrusion on the internal pad cover facing down,
attach the internal pad cover so that the protrusion is
housed in the right-side space of the top pad I.
·Close the packing box and seal it securely so that it does
not open during transportation.
6
7
8
9
NOTE
I
K
K
J
J
7
8
C
B
F
6
F
