OWNER’S MANUAL
RETAIN FOR FUTURE REFERENCE
TOLL FREE CUSTOMER SERVICE
1.888.800.1167
MODEL NUMBER: 51552B
SERIAL NUMBER:
APPLICATION STANDARD
ASSEMBLY
OPERATING INSTRUCTIONS
CONDITIONING GUIDELINES
WARRANTY
SERVICE
EVO TAHOE Home Gym
Adjustable Incline Bench
preassembly
-2-
BEFORE BEGINNING
Open the boxes
You are now ready to open the boxes
of your new equipment. Make sure
to inventory all of the parts that are
included in the boxes. Check the
Parts List for a full count of the
number of parts included for this
product to be assembled properly.
If you are missing any parts or have
any assembly questions contact your
local Smooth Retailer.
Gather your tools
Before starting the assembly of
your unit, make sure that you have
gathered all the necessary tools you
may require to assemble the unit
properly. Having all of the necessary
equipment at hand will save time
and make the assembly quick and
hassle-free.
Clear your work area
Make sure that you have cleared
away a large enough space to
properly assemble the unit. Make
sure space is flat, level and free from
anything that may cause injury during
assembly. After the unit is fully
assembled, make sure there is a
comfortable amount of free area
around the unit for unobstructed
operation.
For future service or related
questions.
Please staple your receipt and/or
write in the name and phone number
of the retail store where you
purchased your EVO home gym.
Name:
Phone Number:
Receipt:
Invite a friend
Some of the assembly steps may
require heavy lifting. It is
recommended that you obtain the
assistance of another person when
assembling this product.
A MAJORITY OF THE LISTED HARDWARE IS ALREADY IN PLACE
ORDER NUMBER
51552B-201
51552B-202
51552B-203
51552B-204
51552B-205
51552B-209
51552B-210
51552B-214
51552B-215
1” 2” 3” 4”0 1/2 3/41/4 1/2 3/41/4 1/2 3/41/4 1/2 3/41/4
INCHES
parts list
-3-
DESCRIPTION
FRONT STABILIZER
MAIN FRAME
REAR STABILIZER
BACK BONE
SEAT ARM
BACK PAD
SEAT PAD
2” SQ END CAP
2” SQ END PLUG
NUMBER
201
202
203
204
205
209
210
214
215
QUANTITY
1
1
1
1
1
1
1
2
4
201 202
203 204
205 209
210 214
215
A MAJORITY OF THE LISTED HARDWARE IS ALREADY IN PLACE
0 1” 2” 3” 4”
1/2 3/41/4 1/2 3/41/4 1/2 3/41/4 1/2 3/41/4
INCHES 5”
1/2 3/41/4 6”
1/2 3/41/4
parts list
-4-
ORDER NUMBER
51552B-220
51552B-221
51552B-222
51552B-225
51552B-226
51552B-227
51552B-228
51552B-229
51552B-230
51552B-231
51552B-232
51552B-235
51552B-237
51552B-240
51552B-241
51552B-242
DESCRIPTION
STOPPER
WHEEL
POP PIN
1/2” STEEL BUSHING
3/8” X 1/2” BUSHING
1/2” X 4-1/4” HEX HEAD BOLT
1/2” X 3-1/8” HEX HEAD BOLT
3/8” X 2-3/4” HEX HEAD BOLT
5/16” X 1-1/2” HEX HEAD BOLT
3/8” X 2-3/4” HEX HEAD BOLT(ALL THREADED)
3/8” X 5/8” INNER HEX HEAD SCREW
1/2” WASHER
3/8” WASHER
1/2” NYLON NUT
3/8” NYLON NUT
5/16” NYLON NUT
NUMBER
220
221
222
225
226
227
228
229
230
231
232
235
237
240
241
242
QUANTITY
1
2
2
4
2
2
2
1
2
4
1
10
6
6
1
2
242241240237235
232231230
228 229
226 227
222 225
221220

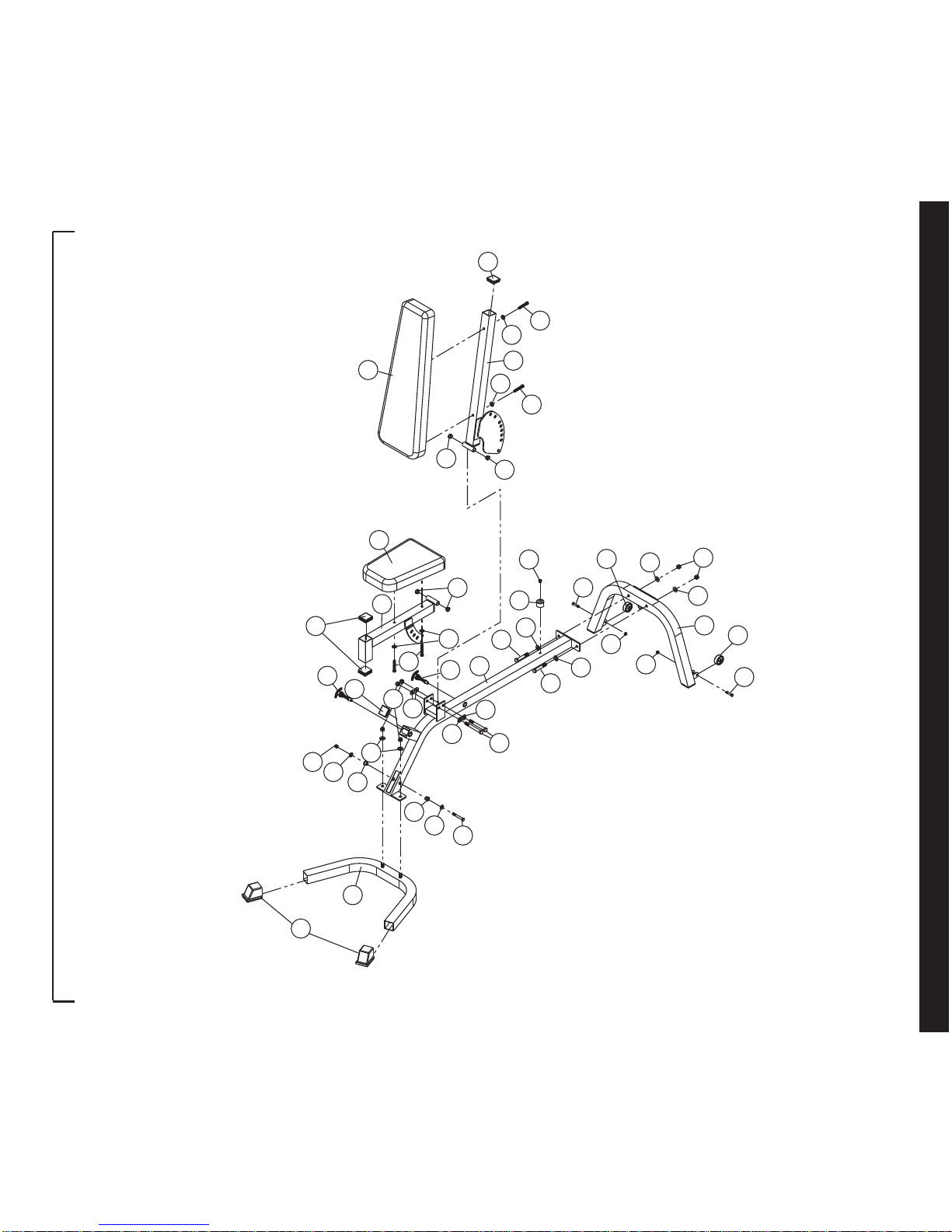

parts diagram
MANY PARTS SHOWN HAVE BEEN PRE-ASSEMBLED BY THE FACTORY
-5-
215
231
237
204
237
231
225
225
240
235
235
203 221
230
242
242
230
235
228
235
220
232
228
201
214
229
237
226
227
235
202
235
215 240
222
226
237
241
209
210
225
205
235
235
222
231
237
221
215
Step 1:
Cap Front Stabilizer (201) with 2" Sq End
Caps (214). Place Front Stabilizer (201)
on the floor.
Cap Main Frame (202) with 2" Sq End Plug
(215). Attach Stopper (220) to Main Frame
(202) using 3/8" x 5/8" Inner Hex Head
Screw (232). Attach Main Frame (202) to
Front Stabilizer (201) using two 1/2"
Washers (235) and two 1/2" Nylon Nuts
(240).
Attach Wheels (221) to the bracket on Rear
Stabilizer (203) each using 5/16" x 1-1/2"
Hex Head Bolts (230) and 5/16" Nylon Nut
(242). Attach Rear Stabilizer (203) to Main
Frame (202) using two 1/2" x 3-1/8" Hex
Head Bolts (228), four 1/2" Washers (235)
and two 1/2" Nylon Nuts (240).
assembly instructions
-6-
ASSEMBLY
235 240
203
221
230
242
230
232
220
235
228
202
215
240
235
201
214
235
221
235
228
240
235
assembly instructions
-7-

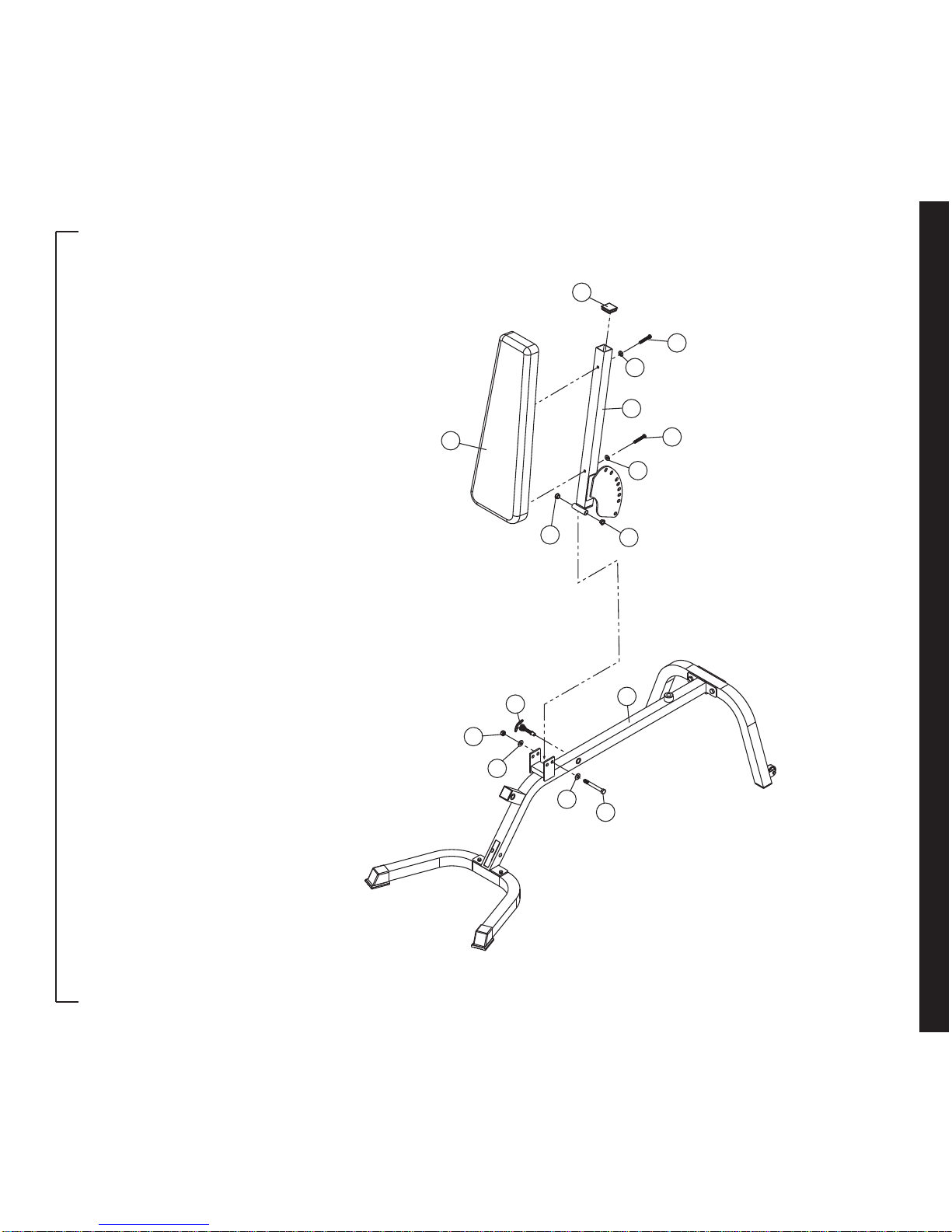

Step 2:
Cap Back Bone (204) with 2" Sq End
Plug (215). Attach Back Pad (209) to
Back Bone (204) using two 3/8" x 2-3/4"
Hex Head Bolts (231) and two 3/8"
Washers (237). Insert two 1/2" Steel
Bushings (225) to the sleeve on Back
Bone (204).
Attach Back Bone (204) to the bracket
on Main Frame (202) using 1/2" x 4-1/4"
Hex Head Bolt (227), two 1/2" Washers
(235) and 1/2" Nylon Nut (240). Lock
Back Bone (204) with Pop Pin (222).
ASSEMBLY
240
215
231
237
204
237
231
225
209
202
222
235 227
225
235
assembly instructions
-8-
Step 3:
Attach Seat Pad (210) to SeatArm (205)
using two 3/8" x 2-3/4" Hex Head Bolts
(231) and two 3/8" Washers (237).
Insert two 1/2" Steel Bushing (225) to
the sleeve on Seat Arm (205).
Attach SeatArm (205) to the bracket on
Main Frame (202) using 1/2" x 4-1/4"
Hex Head Bolt (227), two 1/2" Washers
(235) and 1/2" Nylon Nut (240). Lock
Seat Arm (205) with Pop Pin (222).
Insert 2” Sq End Plugs (215) into Seat
Arm 205.
ASSEMBLY
210
205
225
237
231 222
235 227
202
235
240
215
-9-
notes
NOTES
-10-
warranty
WARRANTY
Warranty Coverage: Smooth Fitness, Inc. ("Smooth Fitness") warrants to the original purchaser that each new product to be
free from defects in workmanship and material, under normal use and conditions.
Period of Coverage: The Warranty on this product runs for the period of the lifetime of the original purchaser. This is a Parts-
only Warranty, labor is not included. Smooth Fitness reserves the right to inspect damaged parts for misuse.
It is recommended that the Original Receipt be kept with the product manual.
Remedy Provided by Smooth Fitness: Smooth Fitness will provide a replacement part free of charge if a defect is found during
the Warranty period. You must pay any charges for shipping and handling outside of the Continental United States and for labor.
To obtain service call your local Smooth Retailer.
Parts repaired or replaced pursuant to this Warranty shall be warranted for the unexpired portion of the Warranty applying to
the original product. Any technical advice furnished before or after delivery in regard to the use or application of Smooth Fitness
products is furnished without charge and on the basis that it represents Smooth Fitness' best judgment under the circumstances
but that the advice is used at your sole risk.
Procedure for Obtaining Your Remedy Under This Warranty: To obtain service call your local Smooth Retailer. To help us
assist you, please have the following information ready:
Model name or number from the cover of the manual;
Serial number located on the frame of the unit; and
The part description and the order number.
Limitations on Warranty: This Warranty will only apply to the original end user. This Warranty does not cover any problems,
damages or failures that are caused by accident, improper assembly, failure to observe cautionary labels on the product, failure
to operate the product correctly, abuse or freight damage. Smooth Fitness does not warrant against any damage or defects that
may result from repair or alterations made to the product by an unauthorized repair facility.
This Warranty shall terminate if you sell or otherwise transfer this product. This Warranty does not apply to any product shipped
or handled outside of the United States. This Warranty does not apply if the product is used for rental or commercial use.
Consequential and incidental damages are not recoverable under this Warranty. (Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.)
THIS WARRANTY IS EXPRESSLY IN LIEU OFALLOTHER EXPRESS WARRANTIES. ALLIMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO
ONE (1) YEAR FROMTHE EFFECTIVE DATE OF THIS WARRANTY. SMOOTH FITNESS IS NOT LIABLE FOR CONSEQUENTIAL
OR INCIDENTAL DAMAGES RESULTING FROM ANY DEFECT IN PARTS NOR FORANY BREACH OF EXPRESS OR IMPLIED
WARRANTIES. SMOOTH FITNESS' SOLE LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE TERMS DESCRIBED
IN THIS FORM.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAYALSO HAVE OTHER RIGHTS WHICH VARY FROM
STATE TO STATE.
For assistance with assembly or to order replacement parts, simply call your local Smooth Retailer. To help them assist you,
please have the following information ready:
Model name or number from the cover of the manual;
Serial number located on the frame of the unit; and
The part description and order number.
