Evocare LM9808 User manual

Mighty Bariatric Wheelchair
Thank you for purchasing this Mighty Bariatric Wheelchair. It is
strongly recommended that you read through this user manual prior
to using your Mighty Bariatric Wheelchair for the first time. Your
Mighty Bariatric Wheelchair should provide years of trouble-free use,
provided that you adhere to these recommendations.
LM9808 318kg

2

Note: Maximum user weight for this wheelchair is 318kgs
Evocare is a quality endorsed company and supplies equipment listed with the
Therapeutic Goods Administration.
The ARTG number for the LM9808 Mighty Bariatric Wheelchair is 218602.
Mighty Bariatric Wheelchair
Removable padded
desk length armrests
Padded elevating leg rests
with security stainless steel
ratchet bar lock system
Double Cross Bar,
black colour
Height
adjustable with
triple axle
design
Aluminium foot plates
Nylon upholstery
Grey hammertone
finish
Net Weight 46kgs
Seat width
71cm (28") W x 50cm (20") D
3

4

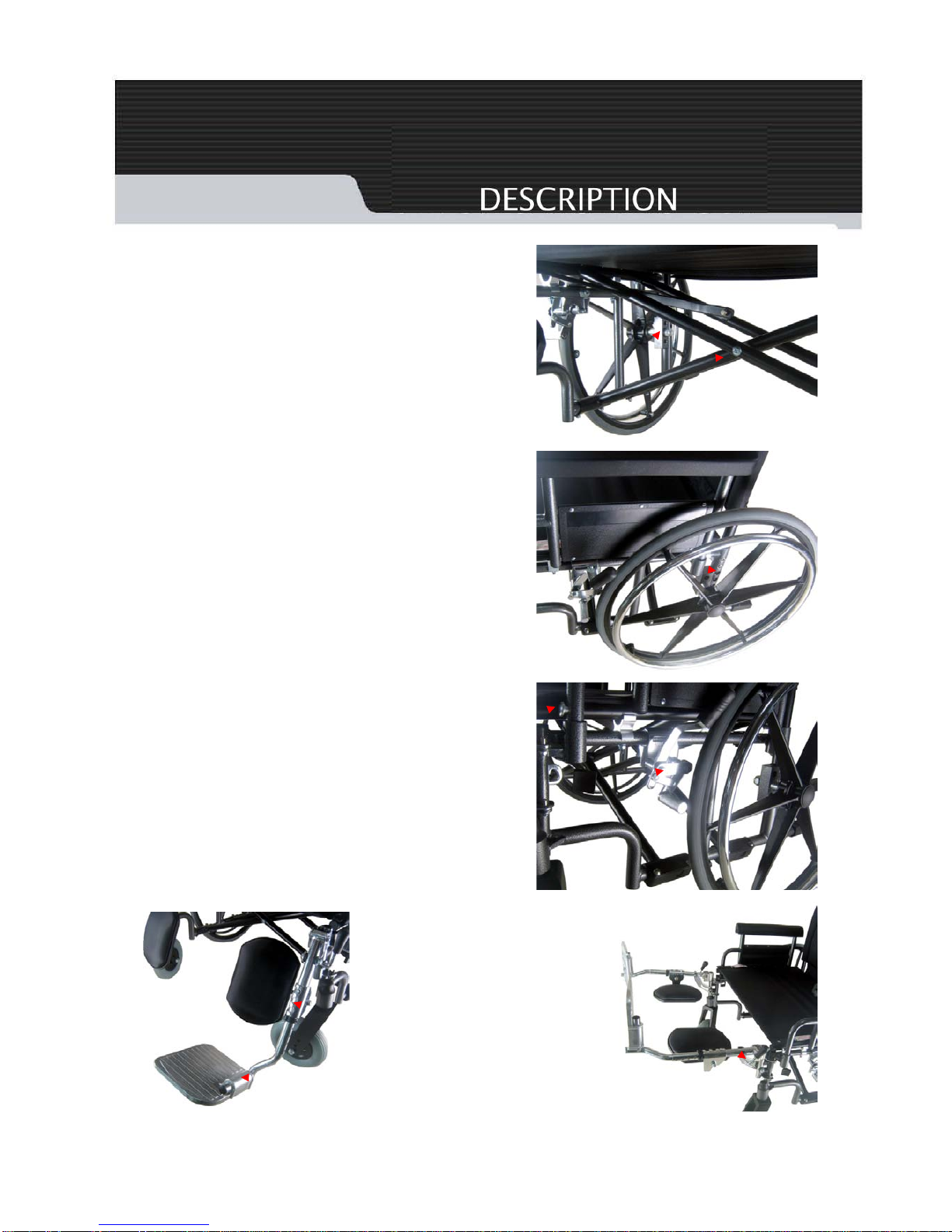

Mighty Bariatric Wheelchair
Removable padded desk length armrests
Adjustable Padded Calf Pad
Double Cross Bar, black colour
Height adjustable with triple axle design
Parking Brake Lever
Aluminium foot plates
Elevating leg rests with
security stainless steel ratchet
bar lock system

SPARE PARTS
Evocare Code Description
Spare Parts for (LM9808)
9SK1U8081 Seat Nylon width 28"W x 20" D
9SK1U8082 Back Nylon with embroidery 28" WIDE
9SK1A8081L Armrest pads and screws. Restaurant style. ‐LH
9SK1A8081R Armrest pads and screws. Restaurant style. ‐RH
9SK1W8081 Front wheel including bearing (each)
9SK1W8082 Bearings for front castors (each)
9SK1L8081L Foot plates ‐LH
9SK1L8081R Foot plates ‐RH

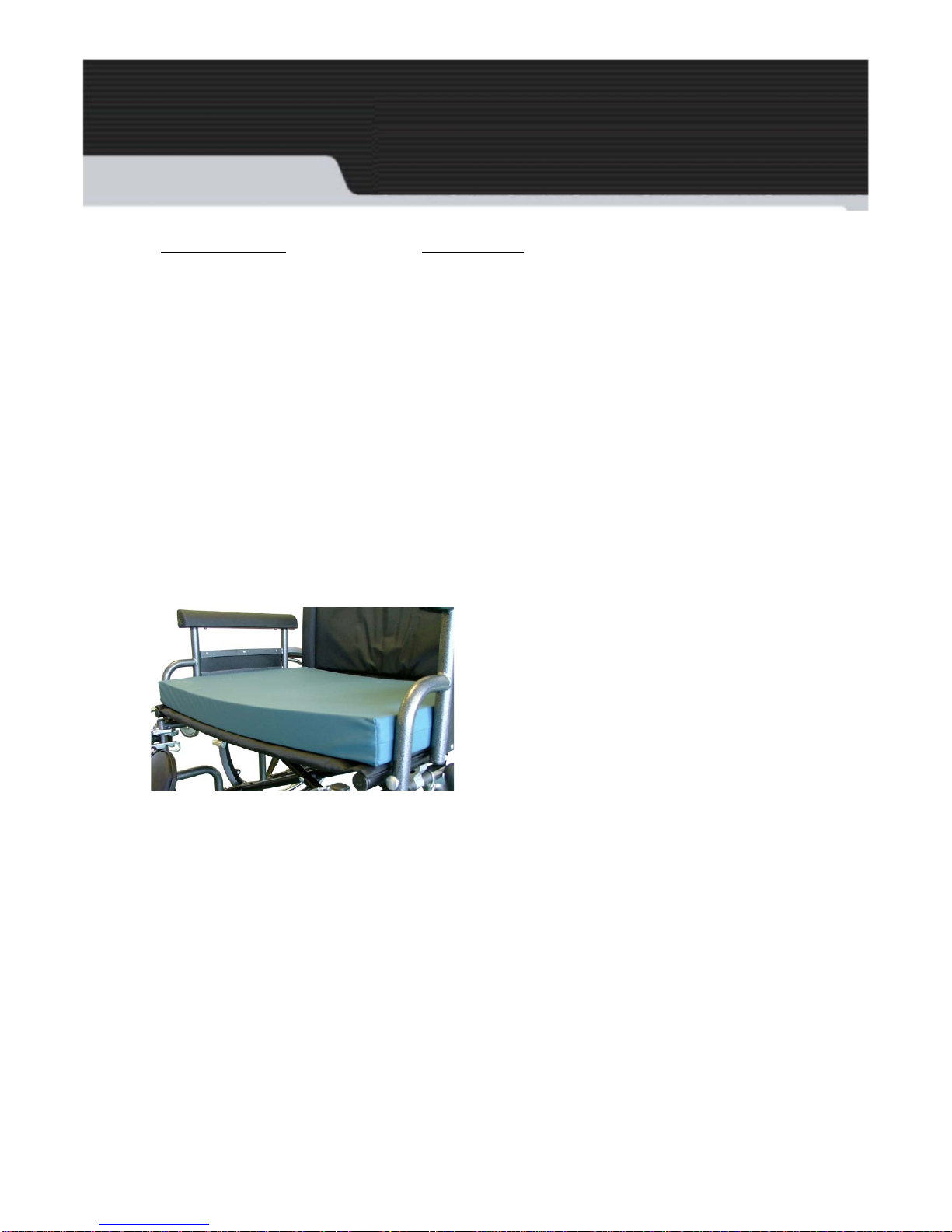

The comfort convoluted (egg shell)
foam cushion – LM9808C is an
option

6
Advantages:
.Easier to propel and turn due to the frame rigidity—No energy lost in frame
movement.
.Greater strength and durability; parts moving less.
.Less likely to be stolen as it is harder to transport.
A Comfort Cushion (LM9808C ) is recommended as there will be less give in the seat.

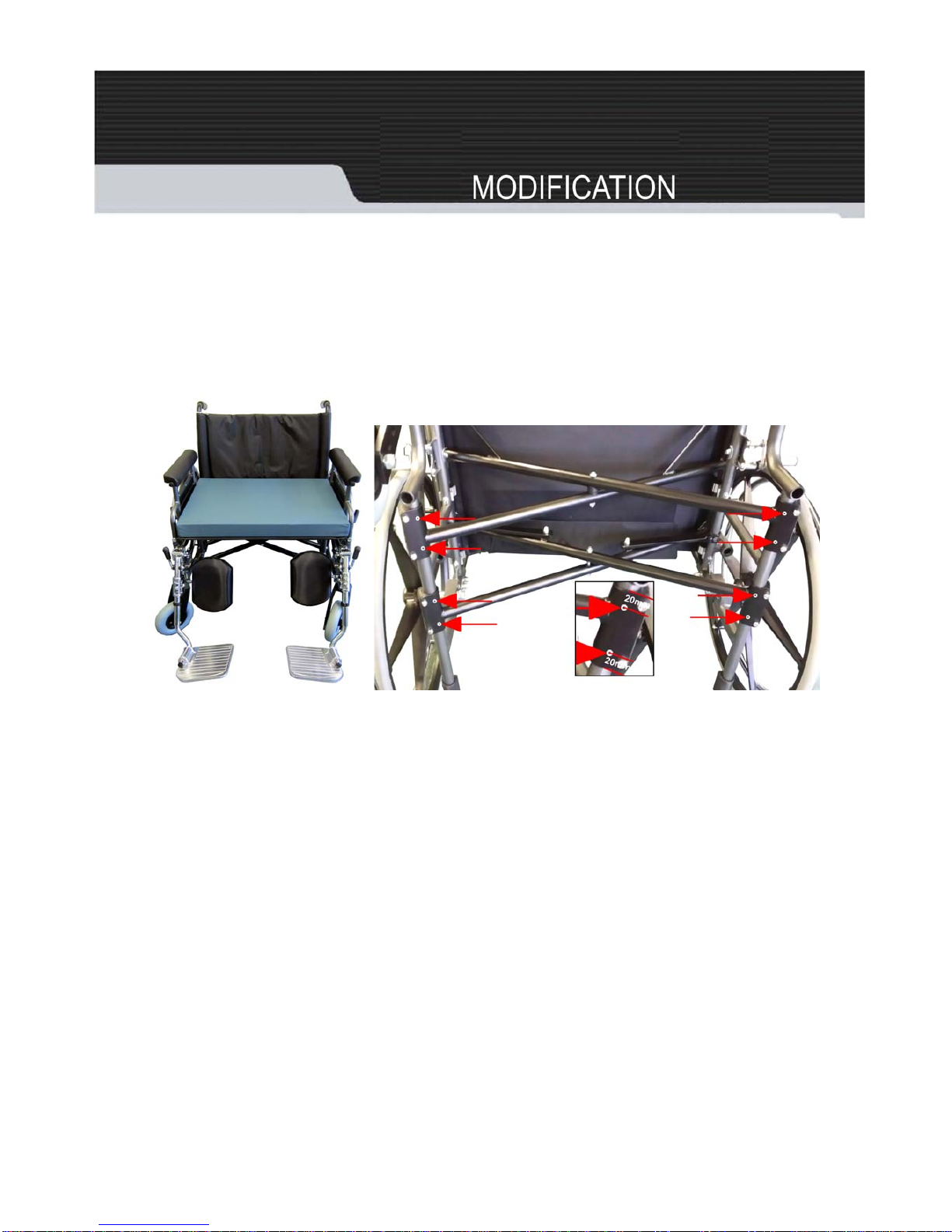

Making LM9808 Wheelchair Non-Folding
Rivet positions for LM9808 Wheelchair
Procedure:
.Ensure wheelchair is fully unfolded—At its full width.
.Use 8 x 3/16” Stainless Steel Rivets.
.Place rivets 20mm from each end of the bracket and in the middle of the bracket
.Use 1/8” drill bit for initial holes then use 3/16” drill bit to finish hole to correct size.
.A pneumatic rivet tool is best, although a hand lever type may be used—it will be
difficult with a standard rivet tool, as rivets are large and stainless steel—NOTE: Only
use stainless steel rivets.
.One location on each side should be drilled and riveted before other holes are drilled
so holes don’t become misaligned.
In hospitals and nursing homes, theft of wheelchairs is often a common problem.
Because most wheelchairs can be folded, they can easily be placed into the boot
of a vehicle. These loses causes expense and inconvenience to institutions that
rely on wheelchairs for the safe transport of people. Theft is less likely with a non-
folding wheelchair.
Under wheelchair view

7

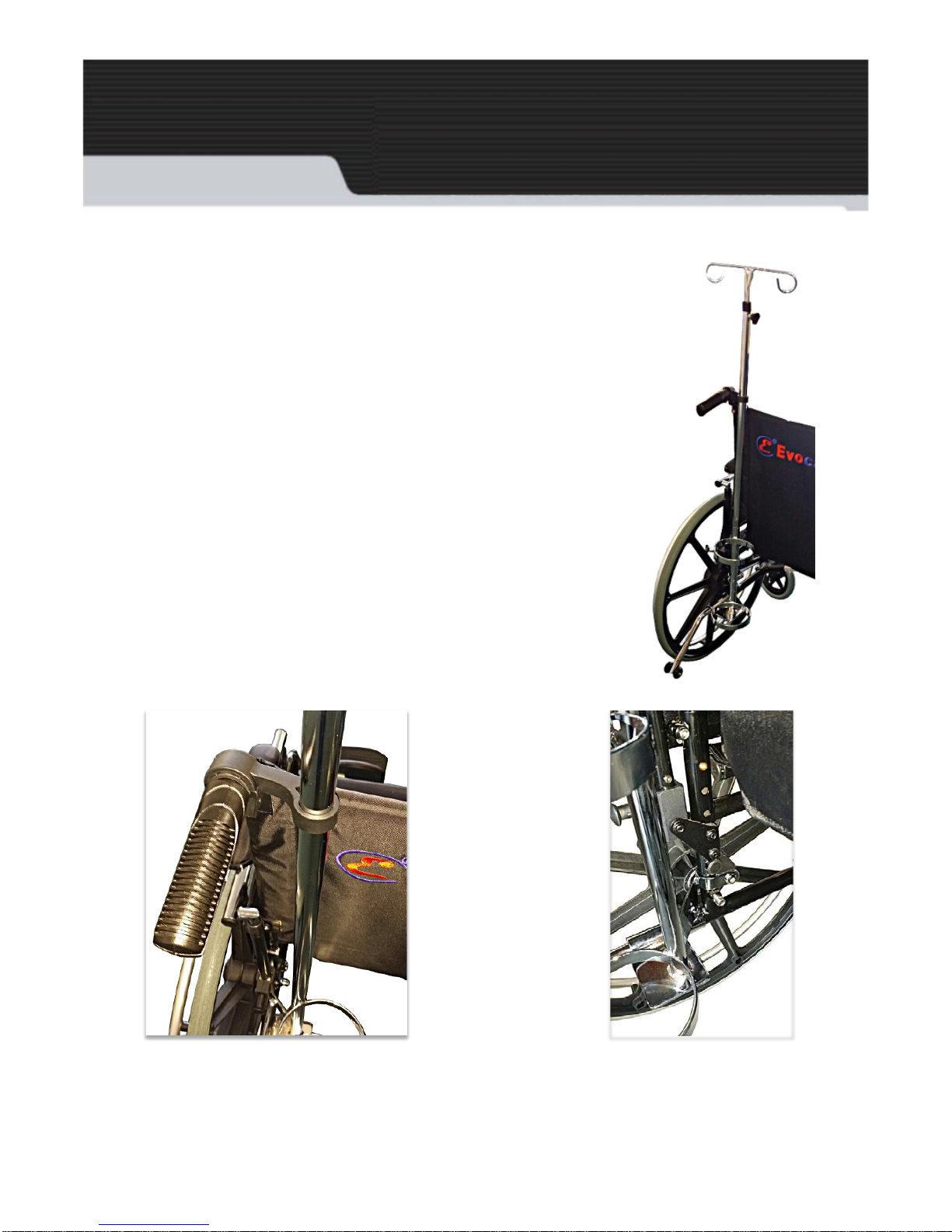

IV Pole, Oxygen Bottle Holder Attachment
Attaches at handle
A two-prong, chrome plated steel IV
with telescoping stem which can be
easily height adjusted, allowing use
of medication while on the move
With attached chrome plated steel
oxygen bottle holder is designed to
fit a “C” size cylinder. Perfect for
people who need to bring their
Oxygen cylinder with them.
Product Code: 9SK1H0005
OPTIONAL
Attaches at axle

8
Safety / Handling of Bariatric Wheelchairs
Safety and handling of the Bariatric wheelchair requires the close attention of the
Bariatric wheelchair user as well as the assistant. This manual points out the
most common procedures and techniques involved in the safe operation and
maintenance of the Mighty Bariatric wheelchair. It is important to practice and
master these safe techniques until you are comfortable in manoeuvring around
the frequently encountered architectural barriers.
Use this information only as a basic guide. The techniques that are discussed on
the following pages have been used successfully by many users.
Individual Bariatric wheelchair users often develop skills to deal with daily living
activities that may differ from those described in this manual. All warnings and
cautions given in this manual MUST be followed.
Techniques in this manual are a starting point for the new Bariatric wheelchair
user and assistant with safety as the most important consideration for all.
Stability and Balance
To assure stability and proper operation of your Mighty Bariatric wheelchair, you
must at all times maintain proper balance. Your Mighty Bariatric wheelchair has
been designed to remain upright and stable during normal daily activities as long
as you do not move beyond the centre of gravity.
Virtually all activities which involve movement in the Mighty Bariatric wheelchair
have an effect on the centre of gravity. Use the adjustable seatbelt for additional
safety.
DO NOT lean forward out of the Mighty Bariatric wheelchair any further than the
length of the armrests. Make sure the castors are pointing in the forward position
whenever you lean forward. This can be achieved by advancing the Mighty
Bariatric wheelchair and then reversing a little in a straight line.

9
Operating Instructions
To determine and establish your particular safety limits, practice bending, reaching
and transferring activities in several combinations in the presence of a qualified health
professional before attempting active use of the Mighty Bariatric wheelchair.
ALWAYS check hand grips for looseness before using the Mighty Bariatric wheelchair.
If loose and/or worn, replace immediately.
If the Mighty Bariatric wheelchair is exposed to extreme temperature (above 38°C or
below 0°C), high humidity and/or becomes wet, prior to use, ensure hand grips DO
NOT twist on the Mighty Bariatric wheelchair handle—otherwise damage or injury
may occur.
DO NOT attempt to reach objects if you have to move forward in the seat as this may
tip the wheelchair.
DO NOT attempt to reach objects if you have to pick them up from the floor by
reaching down between your knees as this may tip the wheelchair.
DO NOT lean over the top of the back upholstery to reach objects behind you, as this
may tip the wheelchair.
DO NOT shift your weight or sitting position toward the direction you are reaching, as
this may tip the wheelchair.
DO NOT tilt the Mighty Bariatric wheelchair without assistance.
DO NOT use an escalator to move a wheelchair between floors—serious injury may
occur.
NEVER leave an unoccupied Mighty Bariatric wheelchair on an incline.
DO NOT attempt to stop a moving Mighty Bariatric wheelchair with the wheel locks.
Wheel locks are not brakes.
Before attempting to transfer in or out of the Mighty Bariatric wheelchair, every
precaution should be taken to reduce the gap distance. Turn both castors parallel to
the object you are transferring onto. When transferring to and from the Mighty
Bariatric wheelchair, ALWAYS lock both hand brakes (locks) before transferring to and
from the Mighty Bariatric wheelchair.
DO NOT sit or transfer into the Mighty Bariatric wheelchair unless it is fully open.
DO NOT operate on roads, streets or highways.
DO NOT climb, go up or down ramps or traverse slopes greater than 9°.
DO NOT attempt to move up or down an incline which has a film of water, ice or oil on
it.
DO NOT attempt to ride over kerbs or obstacles. Doing so may cause your Mighty
Bariatric wheelchair to tip, causing bodily harm or damage to the wheelchair.
DO NOT over tighten hardware attaching to the frame. This could cause damage to
the frame tubing.

10
Quick Release Components
The Mighty Bariatric wheelchair comes with a number of components which can be
easily removed without tools for storage or transport.
Armrests
Remove the armrest by pushing in the button on the armrest tubing (1) whilst lifting the
armrest up (2).
Because the armrest are detachable , DO NOT lift the wheelchair by the armrests.
Using the Stepper Tube
Use the stepper tube to raise the front castors (when mounting a low kerb for example).
To use, push down on the stepper tube with your foot. DO NOT raise the front castors
by pushing down on the push handles as this could tip the wheelchair.
To mount a low kerb. Approach the low kerb head on. Then the assistant uses the
stepper tube to raise the front castors, and lowers the front castors on the raised kerb.
Finally the assistant should push the wheelchair forward, lifting it up slightly to mount
the kerb if required.
To go down a low kerb. Line up the front castors with the edge of the low kerb. The
assistant uses the stepper tube to raise the front castors and tip the users back slightly.
Keeping the castors raised slowly move the wheelchair forward and slowly lower it
down the low kerb.
WARNING
After any adjustments, and before use, make sure
all attaching hardware is tightened securely.
Otherwise, injury or damage may result.
As with any vehicle, the wheels and tyres should
be checked periodically for cracks and wear, and
should be replaced when necessary.
Warning: When going down a low kerb, the front
castors must be raised to prevent the user from
falling forward. The above are only
recommendations and may not be suitable for all
events.

11
1. Evocare provides consumers with the following warranty in relation to this Product, in addition to complying with the
requirements of any relevant legislation, including the Competition and Consumer Act2010 (Cth) in Australia and the
Consumer Guarantees Act 1993 in New Zealand (theActs), except where a New Zealand consumer acquires the Product
for the purposes of a business.
2. In this warranty, we have used the following definitions:
(a) Form means a warranty claim form issued by Evocare in respect of Products;
(b) Evocare or our means Evocare Australia Pty Limited,ABN 98 078 566 604 of Level 19, 144 Edward Street,
Brisbane 4000;
(c) Products means the goods manufactured for Evocare (including products manufactured by its contract
manufacturers);
(d) Material means a material or component used by Evocare in the manufacture of the Products;
(e) Retailer means the authorised dealer of Products from whom the Product was purchased;
(f) Warranty Period means the warranty period commencing from the date of purchase of the relevant Product. If the
Product or part (as the case may be) is repaired or replaced, there will be no extension to the original warranty period;
and
(g) Workmanship means the handling, assembly and manufacturing processes performed by or on behalf of Evocare in
order to manufacture the Products.
3. Evocare warrants that for the duration of the Warranty Period, all Products will be free of faults arising from defects in
Workmanship or Materials, on the terms and conditions set out in this warranty.
4. Evocare undertakes that if during the Warranty Period any Product, or any part of a Product, has failed to operate
correctly due to faulty Workmanship or defective Material, it will repair or replace the Product or part (as the case may
be) free of charge provided that the following procedures are met :
(a) The consumer must contact the Retailer or Evocare upon becoming aware of any defect to a Product upon which the
consumer will be required to complete a Form and provide satisfactory proof of purchase.
(b) Evocare will review the Form to determine whether there is a defect, and if so Evocare agrees to (at its option) repair,
replace or supply equivalent goods, or pay the cost of any of those remedies to the consumer.
(c) If Evocare requests the return of the applicable Product or part, the consumer will be responsible for the collection
and freight costs of returning that Product or part to Evocare.
(d) The consumer acknowledges that it is also responsible for the freight costs to deliver any new Product or replacement
part to it.
5. This warranty is in addition to any non-excludable legal rights or remedies conferred on the consumer under any
applicable Act and any similar laws. To the extent permitted by law, Evocare's liability for any non-excludable condition
or warranty is limited to rectifying any defect at its option, as set out in paragraph 4(b).
6. Subject to the requirements of any applicable Act or legislation and to the extent permitted by law, no liability
(whether expressed or implied) of any nature whatsoever, is accepted by Evocare for any consequential loss, damage or
injury arising as a result of any fault in the Products.
7. This warranty does not extend to damage to Products which occurs during transit or transportation, or which is caused
by any abuse, accident or improper installation, connection, use, adjustment or repair or use of goods otherwise than in
accordance with instructions issued by Evocare.
8. The warranty on Products is waived if any addition or attachment to the Products do not have Evocare's approval or
are not sold as Evocare products. The Products are designed to perform specific tasks under established test loads and
unauthorised attachments may produce stresses for which the design is not appropriate.
9. The following applies to consumers who purchased a relevant Product in Australia:
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.

12
Your Evocare Mighty Bariatric Wheelchair is warranted to be free of defects in material
and workmanship for 12 months, for the original consumer.
This warranty does not cover device failure due to owner misuse, negligence, or normal
wear and tear.
The warranty does not extend to non-durable components such as rubber accessories,
brakes and grips, which are subject to normal wear and tear. Non-durable components are
warranted for 3 months.

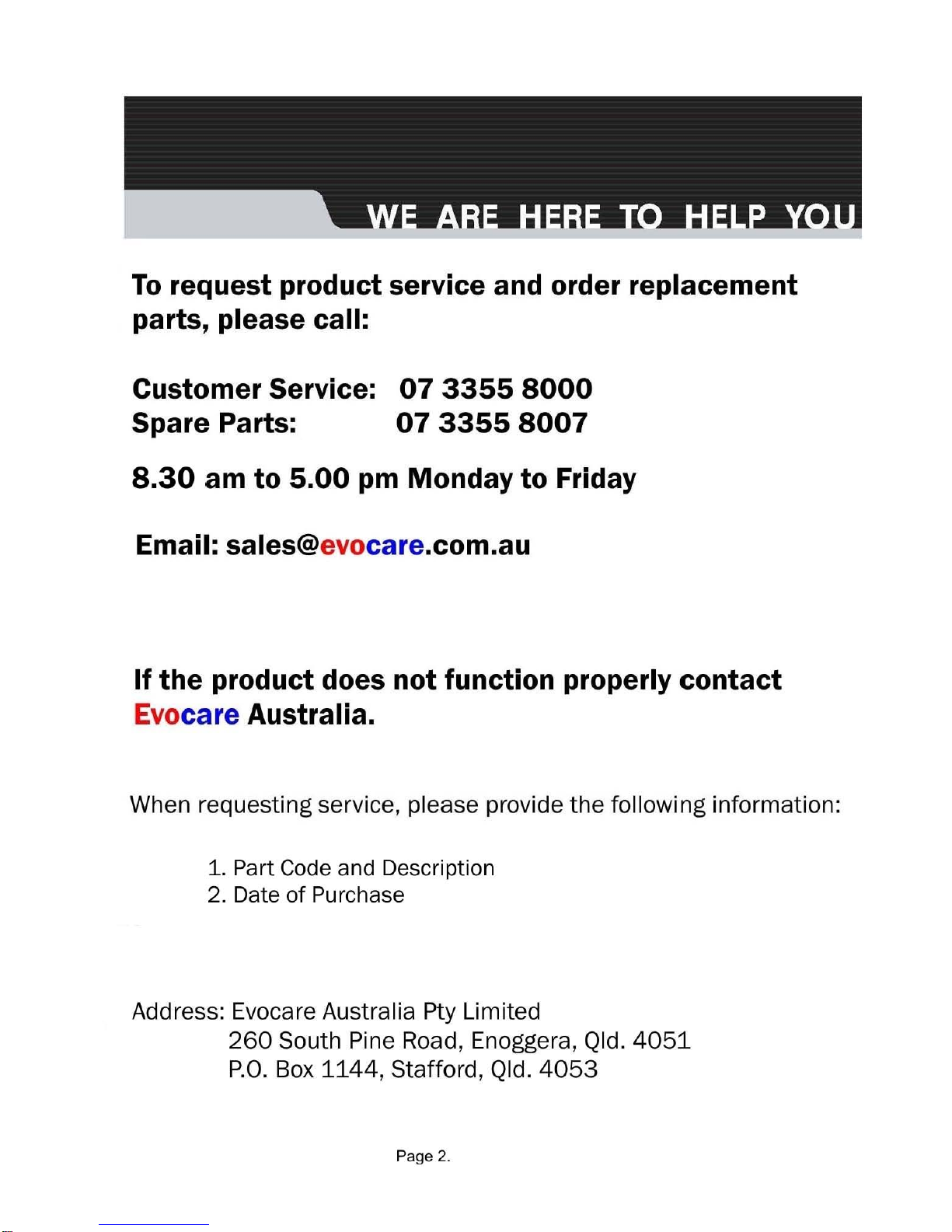

For more information about your LM9808 Mighty Bariatric Wheelchair, warranty or to
order parts call 07 3355 8007.
Manufactured for:
Evocare Australia Pty Limited, 260 South Pine Road, Enoggera. QLD. 4051.
Phone: [phone] FAX: [phone]
E- mail: [email protected]
Website www.evocare.com.au
