Evocare LM9434SO User manual

Wheelchair
LM9434SO136kg LM9434SB136kg
Thank you for purchasing this Wheelchair. It is strongly recommended
that you read through this user manual prior to using your Wheelchair for
the first time. Your Wheelchair should provide years of trouble-free use,
provided that you adhere to these recommendations.

2"

Wheelchairs
LM9434SO "
Folding Aluminium Wheelchair
powder coated.
Fixed armrest with PU pad and
plastic side panel
Swing away Legrest with plastic
removable footplates
Fold down back
Hand brake system
483mm (19") ORANGE Seat pad
and back pad with double cloth.
8" PVC front wheel with aluminium
fork
559mm (22”) Mag wheel with PU
tyre
ORANGE leg strap
Silver frame
Maximum user weight 136kgs
Net Weight 12.4kgs
Gross Weight 15.9kgs
Carton 915 x 910 x 280mm
LM9434SB
Folding Aluminium Wheelchair
powder coated.
Fixed armrest with PU pad and
plastic side panel
Swing away Legrest with plastic
removable footplates
Fold down back
Hand brake system
480mm (19") BLUE Seat pad and
back pad with double cloth.
8" PVC front wheel with aluminium
fork
559mm (22”) Mag wheel with PU
tyre
BLUE leg strap
Silver frame
Maximum user weight 136kgs
Net Weight 12.4kgs
Gross Weight 15.9kgs
Carton 915 x 910 x 280mm
Evocare is a quality endorsed company and supplies equipment listed with the
Therapeutic Goods Administration.
The ARTG number for the LM9434SO & LM9434SBWheelchair is 218602.

SPARE"PARTS"
Evocare Code Description
Spare Parts for (LM9434SB and LM9434SO)
9SK1U4041B Seat pad with double cloth. BLUE.
9SK1U4042B Back pad with double cloth. BLUE.
9SK1U4041O Seat pad with double cloth. ORANGE
9SK1U4042O Back pad with double cloth. ORANGE.
9SK1W4043 22" Plastic Mag wheel with Black PU tyre
9SK1U4043 Mesh seat
9SK1U4044 Mesh back
9SK1A4041L Fixed armrest PU pad and screws. ‐LH
9SK1A4041R Fixed armrest PU pad and screws. ‐RH
9SK1A4042L Nylon side panel ‐LH
9SK1A4042R Nylon side panel ‐RH
9SK1W4041 Front Castors (each)
9SK1W4042 Bearings for front castors (each)
9SK1L4041 Foot plates (each)
9SK1L4042 Legrest adjustment pin (each)
9SK1X0041 Metal screw inserts and metal washer

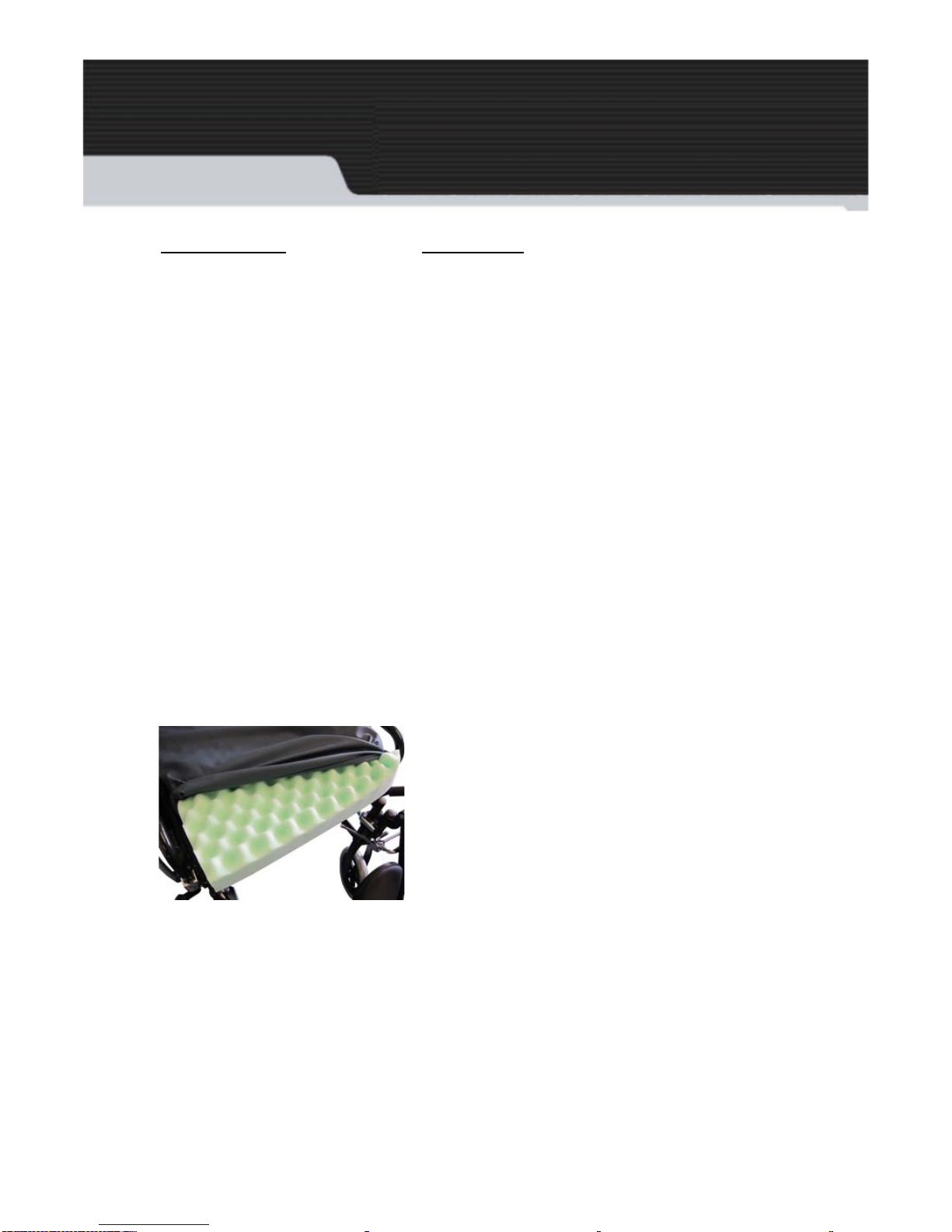

The"comfort"convoluted"(egg"shell)"foam"
cushion"<"LM97C450"is"an"opFon"

5"
Safety / Handling of Wheelchairs
Safety and handling of the wheelchair requires the close attention of the
wheelchair user as well as the assistant. This manual points out the most
common procedures and techniques involved in the safe operation and
maintenance of the wheelchair. It is important to practice and master these safe
techniques until you are comfortable in manoeuvring around the frequently
encountered architectural barriers.
Use this information only as a basic guide. The techniques that are discussed on
the following pages have been used successfully by many users.
Individual wheelchair users often develop skills to deal with daily living activities
that may differ from those described in this manual. All warnings and cautions
given in this manual MUST be followed.
Techniques in this manual are a starting point for the new wheelchair user and
assistant with safety as the most important consideration for all.
Stability and Balance
To assure stability and proper operation of your wheelchair, you must at all times
maintain proper balance. Your wheelchair has been designed to remain upright
and stable during normal daily activities as long as you do not move beyond the
centre of gravity.
Virtually all activities which involve movement in the wheelchair have an effect on
the centre of gravity. Use the adjustable seatbelt for additional safety.
DO NOT lean forward out of the wheelchair any further than the length of the
armrests. Make sure the castors are pointing in the forward position whenever
you lean forward. This can be achieved by advancing the wheelchair and then
reversing a little in a straight line.

6"
Operating Instructions
To determine and establish your particular safety limits, practice bending, reaching
and transferring activities in several combinations in the presence of a qualified health
professional before attempting active use of the wheelchair.
ALWAYS check hand grips for looseness before using the wheelchair. If loose and/or
worn, replace immediately.
If the wheelchair is exposed to extreme temperature (above 38°C or below 0°C), high
humidity and/or becomes wet, prior to use, ensure hand grips DO NOT twist on the
wheelchair handle—otherwise damage or injury may occur.
DO NOT attempt to reach objects if you have to move forward in the seat as this may
tip the wheelchair.
DO NOT attempt to reach objects if you have to pick them up from the floor by
reaching down between your knees as this may tip the wheelchair.
DO NOT lean over the top of the back upholstery to reach objects behind you, as this
may tip the wheelchair.
DO NOT shift your weight or sitting position toward the direction you are reaching, as
this may tip the wheelchair.
DO NOT tilt the wheelchair without assistance.
DO NOT use an escalator to move a wheelchair between floors—serious injury may
occur.
NEVER leave an unoccupied wheelchair on an incline.
DO NOT attempt to stop a moving wheelchair with the wheel locks. Wheel locks are
not brakes.
Before attempting to transfer in or out of the wheelchair, every precaution should be
taken to reduce the gap distance. Turn both castors parallel to the object you are
transferring onto. When transferring to and from the wheelchair, ALWAYS lock both
hand brakes (locks) before transferring to and from the wheelchair.
DO NOT sit or transfer into the wheelchair unless it is fully open.
DO NOT operate on roads, streets or highways.
DO NOT climb, go up or down ramps or traverse slopes greater than 9°.
DO NOT attempt to move up or down an incline which has a film of water, ice or oil on
it.
DO NOT attempt to ride over kerbs or obstacles. Doing so may cause your
wheelchair to tip, causing bodily harm or damage to the wheelchair.
DO NOT over tighten hardware attaching to the frame. This could cause damage to
the frame tubing.

7"
Using the Stepper Tube
Use the stepper tube to raise the front castors
(when mounting a low kerb for example). To
use, push down on the stepper tube with your
foot. DO NOT raise the front castors by pushing
down on the push handles as this could tip the
wheelchair.
To mount a low kerb. Approach the low kerb
head on. Then the assistant uses the stepper
tube to raise the front castors, and lowers the
front castors on the raised kerb. Finally the
assistant should push the wheelchair forward,
lifting it up slightly to mount the kerb if required.
WARNING
After any adjustments, and before use, make sure all attaching hardware is
tightened securely. Otherwise, injury or damage may result.
As with any vehicle, the wheels and tyres should be checked periodically for
cracks and wear, and should be replaced when necessary.
To go down a low kerb. Line up the front castors with the edge of the low kerb.
The assistant uses the stepper tube to raise the front castors and tip the users
back slightly. Keeping the castors raised slowly move the wheelchair forward and
slowly lower it down the low kerb.
Warning: When going down a low kerb, the front castors must be raised to
prevent the user from falling forward. The above are only recommendations and
may not be suitable for all events.

8"
Installing Swingaway Removable Legrest
Assembly
NOTE: For this procedure refer to FIGURE 1.
.Turn the footrest to the side (open footplate
perpendicular to wheelchair).
.Install the hinge plates on the footrest onto
the hinge pins on the wheelchair frame.
.Push the footrest towards the inside of the
chair until it locks into place.
NOTE: The footplate will be on the inside of
the wheelchair when locked in place.
.Repeat this procedure for the other footrest
assembly.
.To release the footrest, push the footrest
release lever inward, rotate the footrest
outward.
Adjusting Footplate Height
NOTE: For this procedure, refer to FIGURE 2.
.Remove the swingaway footrest assembly.
NOTE: lay the assembly on a flat surface to
simplify this procedure.
.Loosen, but DO NOT remove, the footplate
mounting bolt until the footplate assembly
moves freely.
.Reposition the footplate assembly to the
desired height.
.Securely tighten the footplate mounting bolt.
.Repeat this procedure for the other footrest, if
necessary.
.Reinstall the swingaway footrest assembly.
WARNING
After any adjustments, and before use, make sure all attaching hardware is
tightened securely. Otherwise, injury or damage may result.

9"

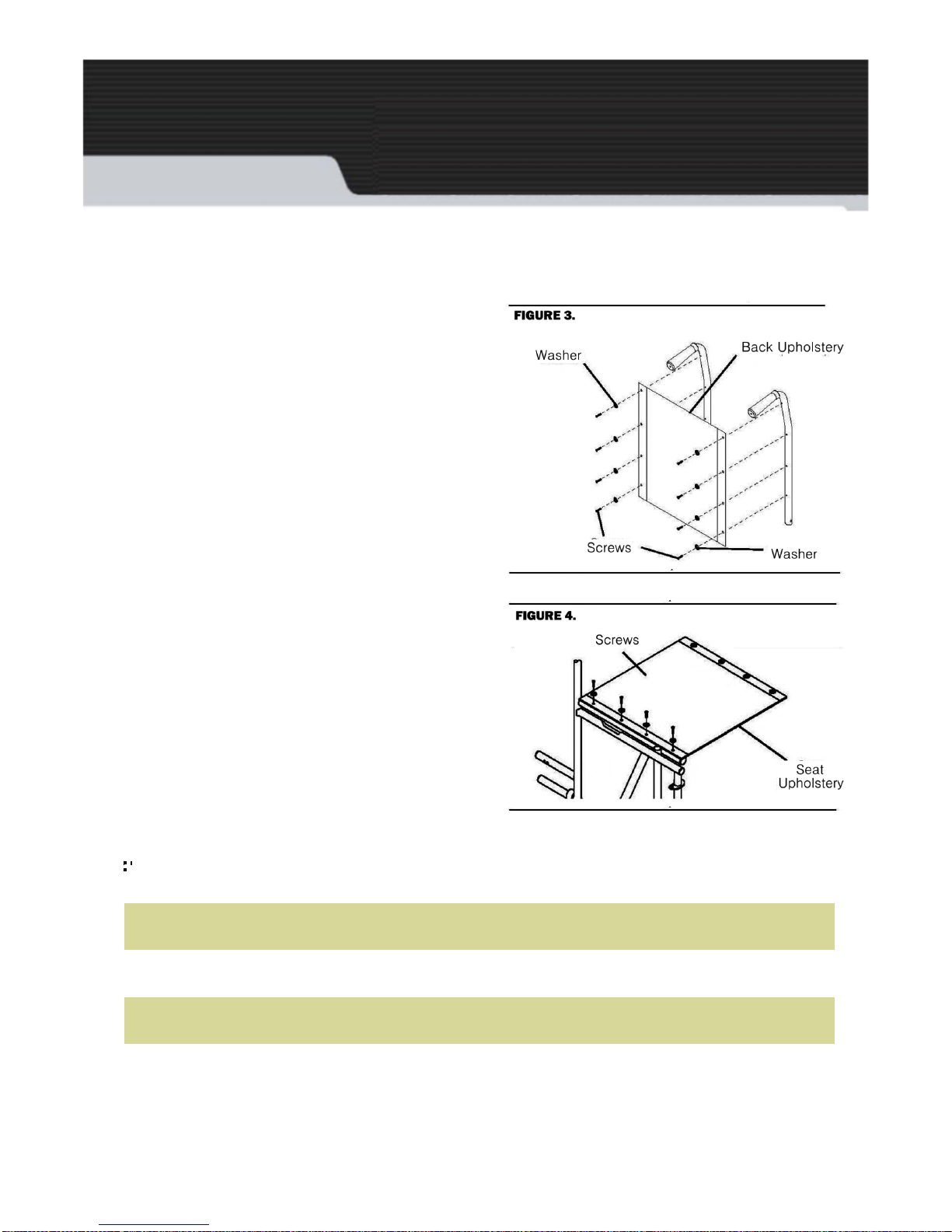

Replacing Back Upholstery
NOTE: For this procedure, refer to FIGURE 3.
.Remove the screws and washers that
secure the existing back upholstery to the
back frame tubes.
.Position new back upholstery on the back
frame tubes.
.Securely tighten the new back upholstery to
the back frame tubes with the screws and
washers.
WARNING
After any adjustments, and before use, make sure all attaching hardware is
tightened securely. Otherwise, injury or damage may result.
Replacing Seat Upholstery
NOTE: for this procedure, refer to FIGURE 4.
.Remove the screws that secure the existing
seat upholstery to the crossbraces.
.Remove the existing seat upholstery from the
crossbraces.
.Securely tighten the new seat upholstery to
the crossbraces with the screws.
Wheelchair Specifications
Model
Overall
(mm)
Folded
(mm)
Between Arms
(mm)
Rear Wheel
Dia. (mm)
Front Wheel
Dia. (mm)
Seat Height
(mm)
LM9434SO
LM9434SB
600
220
450
559mm (22”)
200
500
Model
Height to
Grips (mm)
Seat Width
(mm)
Backrest Height
(mm)
SWL (kg)
Gross Weight
(kg)
Nett Weight
(mm)
LM9434SO
LM9434SB
860
483mm
(19”)
400
136
15.9
12.4
MAINTENANCE"

10"
1. Evocare provides consumers with the following warranty in relation to this Product, in addition to complying with the
requirements of any relevant legislation, including the Competition and Consumer Act2010 (Cth) in Australia and the
Consumer Guarantees Act 1993 in New Zealand (theActs), except where a New Zealand consumer acquires the Product
for the purposes of a business.
2. In this warranty, we have used the following definitions:
(a) Form means a warranty claim form issued by Evocare in respect of Products;
(b) Evocare or our means Evocare Australia Pty Limited,ABN 98 078 566 604 of Level 19, 144 Edward Street,
Brisbane 4000;
(c) Products means the goods manufactured for Evocare (including products manufactured by its contract
manufacturers);
(d) Material means a material or component used by Evocare in the manufacture of the Products;
(e) Retailer means the authorised dealer of Products from whom the Product was purchased;
(f) Warranty Period means the warranty period commencing from the date of purchase of the relevant Product. If the
Product or part (as the case may be) is repaired or replaced, there will be no extension to the original warranty period;
and
(g) Workmanship means the handling, assembly and manufacturing processes performed by or on behalf of Evocare in
order to manufacture the Products.
3. Evocare warrants that for the duration of the Warranty Period, all Products will be free of faults arising from defects in
Workmanship or Materials, on the terms and conditions set out in this warranty.
4. Evocare undertakes that if during the Warranty Period any Product, or any part of a Product, has failed to operate
correctly due to faulty Workmanship or defective Material, it will repair or replace the Product or part (as the case may
be) free of charge provided that the following procedures are met :
(a) The consumer must contact the Retailer or Evocare upon becoming aware of any defect to a Product upon which the
consumer will be required to complete a Form and provide satisfactory proof of purchase.
(b) Evocare will review the Form to determine whether there is a defect, and if so Evocare agrees to (at its option) repair,
replace or supply equivalent goods, or pay the cost of any of those remedies to the consumer.
(c) If Evocare requests the return of the applicable Product or part, the consumer will be responsible for the collection
and freight costs of returning that Product or part to Evocare.
(d) The consumer acknowledges that it is also responsible for the freight costs to deliver any new Product or replacement
part to it.
5. This warranty is in addition to any non-excludable legal rights or remedies conferred on the consumer under any
applicable Act and any similar laws. To the extent permitted by law, Evocare's liability for any non-excludable condition
or warranty is limited to rectifying any defect at its option, as set out in paragraph 4(b).
6. Subject to the requirements of any applicable Act or legislation and to the extent permitted by law, no liability
(whether expressed or implied) of any nature whatsoever, is accepted by Evocare for any consequential loss, damage or
injury arising as a result of any fault in the Products.
7. This warranty does not extend to damage to Products which occurs during transit or transportation, or which is caused
by any abuse, accident or improper installation, connection, use, adjustment or repair or use of goods otherwise than in
accordance with instructions issued by Evocare.
8. The warranty on Products is waived if any addition or attachment to the Products do not have Evocare's approval or
are not sold as Evocare products. The Products are designed to perform specific tasks under established test loads and
unauthorised attachments may produce stresses for which the design is not appropriate.
9. The following applies to consumers who purchased a relevant Product in Australia:
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure.

11"
E- mail: [email protected]
Website www.evocare.com.au
Your Evocare Wheelchair is warranted to be free of defects in material and workmanship
for 12 months, for the original consumer.
This warranty does not cover device failure due to owner misuse, negligence, or normal
wear and tear.
The warranty does not extend to non-durable components such as rubber accessories,
brakes and grips, which are subject to normal wear and tear. Non-durable components are
warranted for 3 months.
For more information about your LM9434SO or LM9434SBWheelchair, warranty or to
order parts call 07 3355 8007.
Manufactured for:
Evocare Australia Pty Limited, 260 South Pine Road, Enoggera. QLD. 4051.
Phone: [phone] FAX: [phone]
