EVOBRIGHT
POOL LIGHT TRANSFORMER
Installation and Operation Manual for
EVOBRIGHT POOL LIGHT TRANSFORMER
SINGLE | DUAL | QUAD
This equipment must be installed and serviced by a qualied technician. Improper installation can create electrical
hazards which could result in property damage, serious injury or death. Improper installation will void the warranty.
This manual contains important information about the installation, operation and safe use of this product. Once
the product has been installed this manual must be given to the owner/operator of this equipment.

TABLE OF CONTENTS
1.0 FOREWORD . . . . . . . . . . . . . . . . . . . . 1
2.0 TRANSFORMER SPECIFICATIONS . . . . . . . . . . . . 1
3.0 INSTALLATION LOCATION . . . . . . . . . . . . . . . 2
4.0 INSTALLATION INSTRUCTIONS . . . . . . . . . . . . . 3
5.0 OPERATION & TROUBLESHOOTING . . . . . . . . . . . 4
6.0 GENERAL SAFETY INSTRUCTIONS . . . . . . . . . . . 4
7.0 WARRANTY . . . . . . . . . . . . . . . . . . . . 4

1
1.0 FOREWORD
1.1 Congratulations on purchasing an Evolution Evobright Pool Light Transformer. Please read
the instructions thoroughly before operating the unit. If you have any concerns or require
further assistance, please do not hesitate to contact our friendly staff or any of our Evolution
distributors.
1.2 Evobright Pool Light Transformers are offered in a variety of models to suit different LED pool
lighting requirements. The transformers are designed to supply 12VAC to LED pool lights via
the terminals on the underside of the unit. The unit also features a 10 amp AC Outlet to allow
a maximum of 5 units to be tethered together in series.

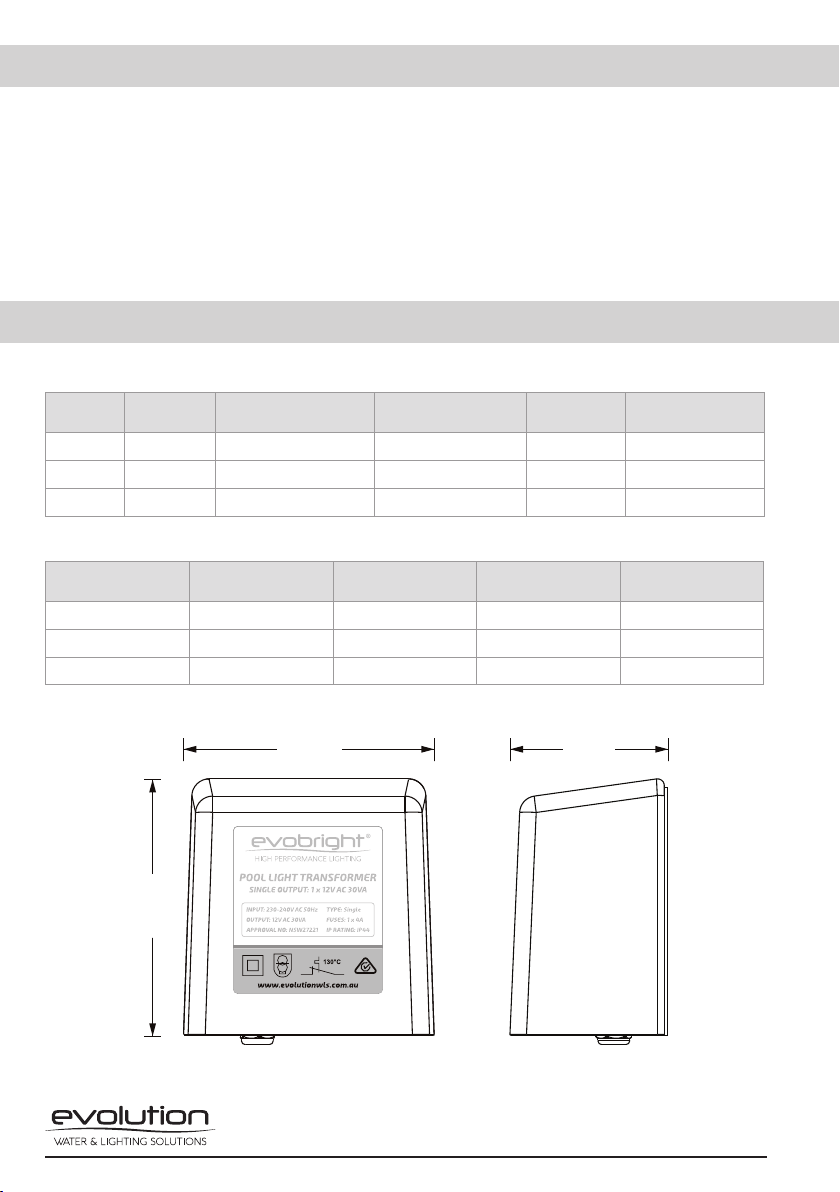

2.0 TRANSFORMER SPECIFICATIONS
2.1 Table 1: Evobright Pool Light Transformer Specifications
Type IP Rating Input Maximum Output Terminals Secondary Fuses
SINGLE IP44 230-240VAC 50Hz 12VAC 30VA x 1 1 x 4A
DUAL IP44 230-240VAC 50Hz 12VAC 60VA x 2 2 x 4A
QUAD IP44 230-240VAC 50Hz 12VAC 120VA x 4 4 x 4A
Type Height Width Depth Weight
SINGLE 150mm 146mm 92mm 2.5kg
DUAL 150mm 146mm 92mm 2.75kg
QUAD 150mm 146mm 92mm 3kg
2.2 Table 2: Product Dimensions
92 mm
146 mm
150 mm
Fig. 1

2

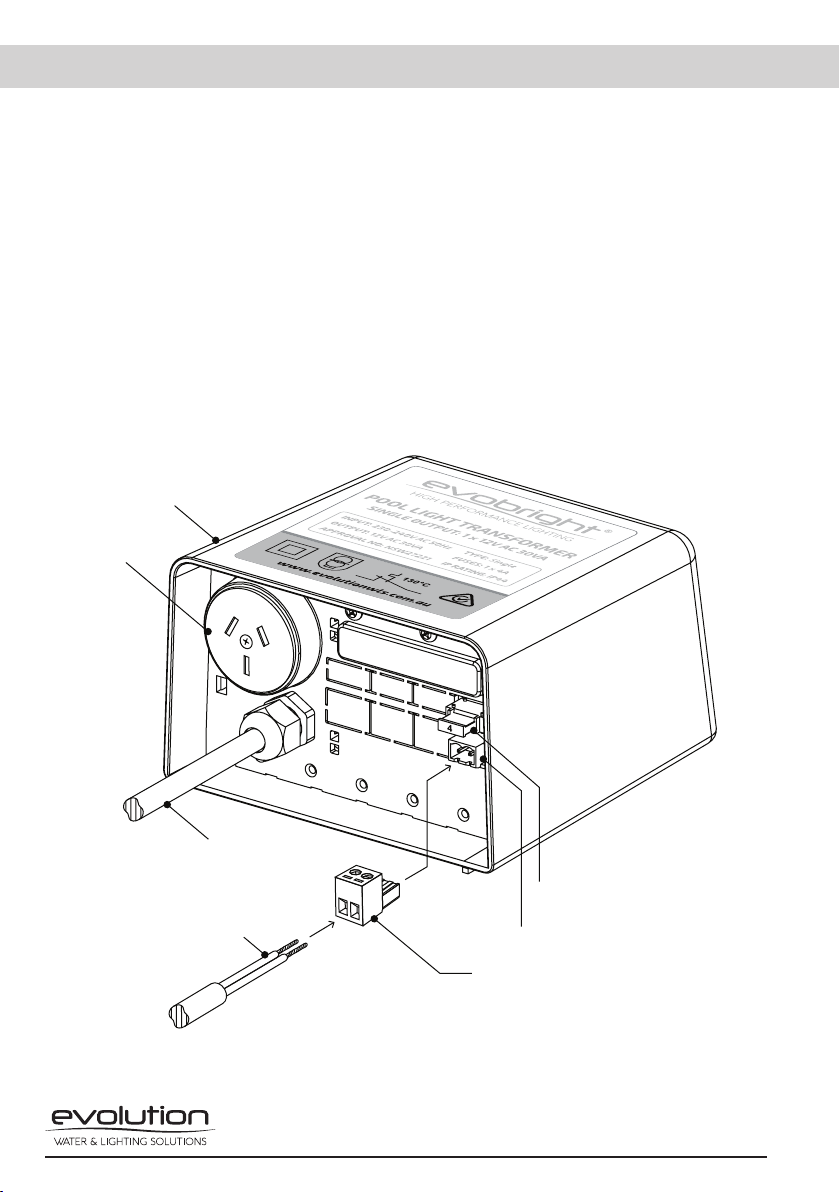

3.0 INSTALLATION LOCATION
3.1 Always refer to the LED Pool light manufacturer’s specifications before installing and using
the Evobright Pool Light Transformer.
3.2 Ensure that the Transformer can be connected to a mains power outlet in the pool area. Also
ensure the Transformer installation location is within the maximum length of the LED Pool
Light power cable.
3.3 The Transformer can be installed either indoors or outdoors. However, the Transformer
must be positioned so the Terminal Sockets are facing downward to the ground to ensure
protection of all electrical connections.
3.4 The Transformer should not be installed in areas where pool chemicals are stored.
3.5 Do not use a double adaptor to connect the Transformer to the mains power as this may
overload the system and void the warranty.
AC POWER SUPPLY
ELECTRICAL TERMINAL
CONNECTOR
TERMINAL SOCKET
10A
AC OUTLET
EVOBRIGHT POOL LIGHT
TRANSFORMER UNIT
FUSE
LED POOL LIGHT
POWER WIRES
Fig. 2

3
4.0 INSTALLATION INSTRUCTIONS
4.1 The Transformer is mounted using the two keyhole slots (93mm centres) on the back of the
enclosure (Fig. 3). A mounting template can be found on the last page of this manual. Drill
mounting holes for the supplied screws and wall plugs using the template as a guide.
4.2 Mount the Transformer at a minimum of 500mm above ground level. Multiple units should
be mounted at a minimum of 200mm from each other (Fig. 4) and a minimum distance of
500mm from any other electrical equipment or device.
4.3 Connect the LED Pool Light Power Wires to the Electrical Terminal Connector and tighten the
screws sufficiently to hold the wires securely (Fig. 2).
4.4 Firmly insert the wired Electrical Terminal Connector into the Terminal Socket.
MOUNTING KEYHOLE SLOT
MOUNTING SCREW
WALL PLUG
93 mm
Fig. 3
200 mm 200 mm 200 mm 200 mm
MASTER
POWER OUTLET
SLAVE
500 mm
Fig. 4

4
5.0 OPERATION & TROUBLESHOOTING
5.1 Plug the TransformerAC Power Supply (Fig. 2) into a 10A 230-240VAC General Purpose Power
Outlet (Fig. 4) and switch the power on. The pool lights will turn on when the power is on.
5.2 To connect additional Transformers in series (a maximum of 5), plug the slave unit/s into the
10A AC Outlet on the underside of the Master Transformer. The primary Slave can provide
power to a secondary Slave up to a maximum of 5 units (Fig. 4).
5.3 If there is no power being supplied to the LED lights, ensure power is available to the
Transformer through the Power Outlet. If power is available, switch off and unplug the
Transformer from the Power Outlet. First, check any 4A fuses fitted for signs of overload, and
rectify any electrical overload situation. Secondly, remove the Electrical Terminal Connector
from the Terminal Socket and ensure Pool Light Power Wires are secure and fitted properly
into the Connectors. Ensure the Connectors are fitted securely into the Terminal Sockets.
6.0 GENERAL SAFETY INSTRUCTIONS
6.1 The operating safety of the Evobright Pool Light Transformer is only guaranteed if the
Installation and Operation Manual is correctly followed.
6.2 During operation, some parts of the Transformer are subject to dangerous electric voltage.
Work may only be performed on the Transformer, or on the equipment connected to it, after
disconnecting from the mains power.
6.3 If the AC Power Supply Cord is damaged, it must be replaced by Evolution Water & Lighting
Solutions or an authorised service agent.
6.4 Evolution Water & Lighting accepts no liability for damage or injuries caused by unauthorised
replacement parts. Original replacement parts ensure a high level of safety.
7.0 WARRANTY
7.1 Evolution Evobright Pool Light Transformers are covered by a 1-year warranty from the date
of purchase. Warranty will not be covered without proof of purchase, so keep the original
purchase invoice in a safe place.
7.2 Warranty only applies if the equipment is installed and operated in complete compliance
with the Installation and Operation Manual.
7.3 Evolution Water & Lighting Solutions will not accept liability for any consequential loss or
damage of any kind.
For all warranty enquiries, please do not hesitate to call 07 5565 0000
or email [email protected]

5

Evolution Water and Lighting Solutions
1/33 Hinkler Drive, Highland Park QLD 4211, Australia [phone]
Unless otherwise indicated, copyright in the content of this document is the property of Evolution Water and
Lighting Solutions under Australian copyright law. Unless otherwise indicated, content may not be reproduced
or transmitted without our prior written permission.
© 2021 Evolution Water and Lighting Solutions. All rights reserved.
