EVRY X-FIT User manual

User Manual 2019

Introduction & Disclaimer
First of all, we would like to thank you for buying our X-Fit electric bike.
Our e-bike has been refined and perfected for almost 2 years by our senior designers and engineers to make it
the best e-bike in its class.
X-FIt has a modern design and convenient folding feature. It is very easy to operate and ride. X-Fit is an
economical and practical form of portable, alternative transport, that is also environmentally friendly.
For your riding safety and to help you understand the e-bike, you should read this user manual before riding.
Please do not use your X-Fit until you learn about its performance and operating systems to ensure a smooth,
safe ride.
WARNING
Using this product could result in serious injury, even if you are using safety equipment. X-Fit, its companies,
partners, associates and factories do not accept any liability whatsoever, in regards to the use of this product by
any person. This product is intended for adult use only (age 18+). This product is not a toy. Do not permit
individuals under the age of 18 to operate it. Keep this product away from unsupervised children. Do NOT
exceed the weight limit of 265 lbs (120 kg) and do not allow more than one passenger on the bike at a time.
Always wear a safety helmet and proper protective gear. Do not ride barefoot and always ride with both hands
on the handlebars.

Table of Contents
1. Product Diagram____________________4
2. Precautions Before Use______________5
3. Basic Parameters & Performance_______6
4. LCD Multi-Display Panel______________7
5. Electrical Wiring Diagram_____________8
6. Battery and Charger Care____________10
7. Use & Installation___________________12
8. Troubleshooting____________________15
9. Warranty__________________________16
10. Quality Control___________________18

1. Product Diagram
1. 10-inch Pneumatic Tire (air 40psi)
2. Suspension Fork
3. Shock Absorber
4. Slip Joint for Folding Function
5. Horn and Front LED Light Switch
6. Brake Levers (Disconnects Power to
Motor When Pulled)
7. LCD Multi Display Panel
8. Twist Throttle
9. Trigger for Folding the e-bike
10. Adjustable Seat
11. Charging Port
12. Battery Cover With LED Brake Light
13. Brushless, Gearless Motor (Hub)
14. Kickstand
15. Foot Rests
16. Mechanical Lock/Key
Start

2. Precautions Before Use
1. Before using, learn about X-Fit features, functions, and basic operations in this handbook.
2. Make sure that the brakes are working correctly and the tires have been sufficiently filled with air ( pressure
of approximately 40 psi).
3. For riding comfort and safety, adjust the seat height to ensure that your feet can touch the ground.
4. When using your X-Fit for the first time, please ride a short distance to make sure you can handle the e-bike.
Only attempt to ride longer distances—on the road, bike lane, sidewalk, or across roads—AFTER you have
learned to control the e-bike.
5. This e-bike is not suitable for use in poor road and weather conditions, such as in rain or snow or on icy
surfaces. Do not use your e-bike for extreme sports or try to do tricks UNLESS you are a professional and
use protective gear. We always recommend riders wear a helmet.
6. When the outside temperature is 23 °F (-5 °C), it will have a negative impact on battery usage. So
please charge your battery at room temperature. Please always discharge your battery before charging. This
will improve performance and lifespan.
7. The riding distance of this e--bike is measured based on an average temperature of 77 °F (25 °C),
an average weight of 170 LBS (77 KG), and assumption of smooth, flat surfaces. Battery life will fluctuate
based on variations in a rider’s weight, riding environment, temperatures and riding habits/speed. Maximum
range is achieved when riding on a flat, even surface, below the maximum speed, and with the rider’s weight
around 170 lbs.

3. Basic Parameters & Performance
Finished e-bike
Battery
Wheel base
30.55”
Voltage
36V
L x W x H (unfolded)
40.75”*41.34”*21.65”
Capacity
25 mile = 8.4AH
37 mile =11.6AH
L x W x H (folded)
41.54”*23.74”*11.8”
Battery core
Panasonic 18650-2900PF
Maximum speed
15.5 miles/h
Cycle life
More than 1,000 times
Maximum riding mileage
25/37 miles
Discharging rate
3C
Maximum load
265 lbs
Charging time
4h
Noise
Less than 60db
Controller
Wheel diameter
10”
Style
Sine wave
Overall weight
Less than 40 lbs
Maximum current
14A
Motor
Minimum voltage
29V
Rated voltage
36V
Charger
Rated power
350W
Input voltage
220V
Rated rotor speed
600RPM
Output voltage
42V
Maximum torque
16N.M
Output current
2A
Maximum efficiency
83%
Plug style
3pin aviation plug
Style
Brushless and gearless
Maximum permissible
gradient
15°

4. LCD Multi-Display Panel
▶LCD Display Panel
▶LED Headlight
▶Speedometer
▶Remaining Battery Meter
▶Temperature Display
▶Odometer/Tripometer Display

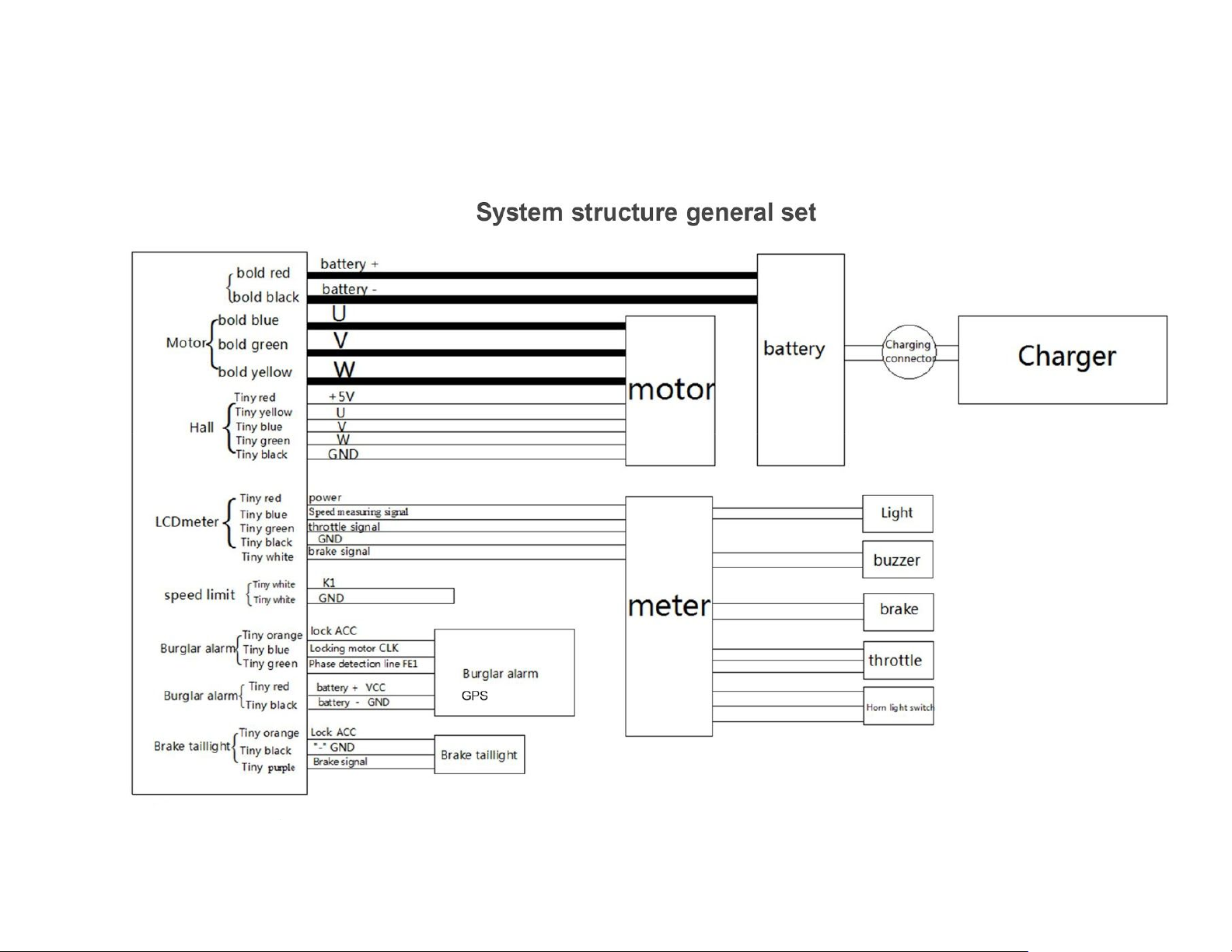

5. Electrical Wiring Diagram

Wiring diagram for controller (general set)

6. Battery and Charger Care
Battery description
Fully-charged
voltage
41.5v
Undervoltage
protection
29v
Core brand
Panasonic power core
Core quantity
30/40pcs
Charging
temperature
32~113 F
Discharging
temperature
-4~140 F
IMPORTANT
The battery is located in the frame of the
e-bike underneath the charging port area. Do
not attempt to disassemble the battery
compartment, or try to connect positive to
negative. Please charge the e-bike every
15-30 days (even if not being used) in order
to keep the battery healthy. For optimum life
span, the battery should be empty before
charging.
USING THE CHARGER:
1. Connect charger plug to 110/240v main
power supply socket first.
2. Connect charger to the e-bike charging
port, and screw into place.
3. After the e-bike is fully charged, remove
the plug from the e-bike charge port and
then pull the power cord gently from the
wall.
4. Always try to charge the battery from an
almost empty charge, and never let it stay
uncharged for more than 1 month.

PRECAUTIONS:
1. Please ONLY use the original charger to charge the X-Fit. If a third party charger is used, it may cause fire,
battery explosion, or other dangerous hazards. It will also invalidate your warranty.
2. Input voltage and output voltage are 110v and 42v respectively. The charger connector has 1 positive
electrode and 3 negative electrodes. Please do not disassemble or connect negative to positive. Do not use
third party batteries.
3. When lit, the red light on the charger box indicates that the battery is currently charging. When lit, the green
light on the charger box indicates that the battery is fully charged.
4. Only charge your e-bike indoors. Keep it away from water. Do not leave your e-bike in the sun. When
transporting your e-bike, do not shake it around too much.
5. If the charger cord is broken or damaged, please replace the charger. Do not attempt to disassemble the
charger, as you may cause yourself to get an electric shock.

7. Use & Installation: Alarm, GPS, Handlebar & Folding
Using the Anti-Theft Alarm
The mechanical lock is used if your key fob becomes lost or broken. Please keep your spare physical key and
extra key fob in a safe place.

Installation of Handlebar
1. Loosen screw A and remove the black cover.
2. Place the handlebar onto the X-Fit and insert
screw A back into the same hole. Tighten using the
included allen wrench.
3. Once you have tightened the screw, stand in
front of the X-Fit and align the handlebars and front
wheel so they are straight.
4. Now tighten the two side screws B
located underneath the handlebar.

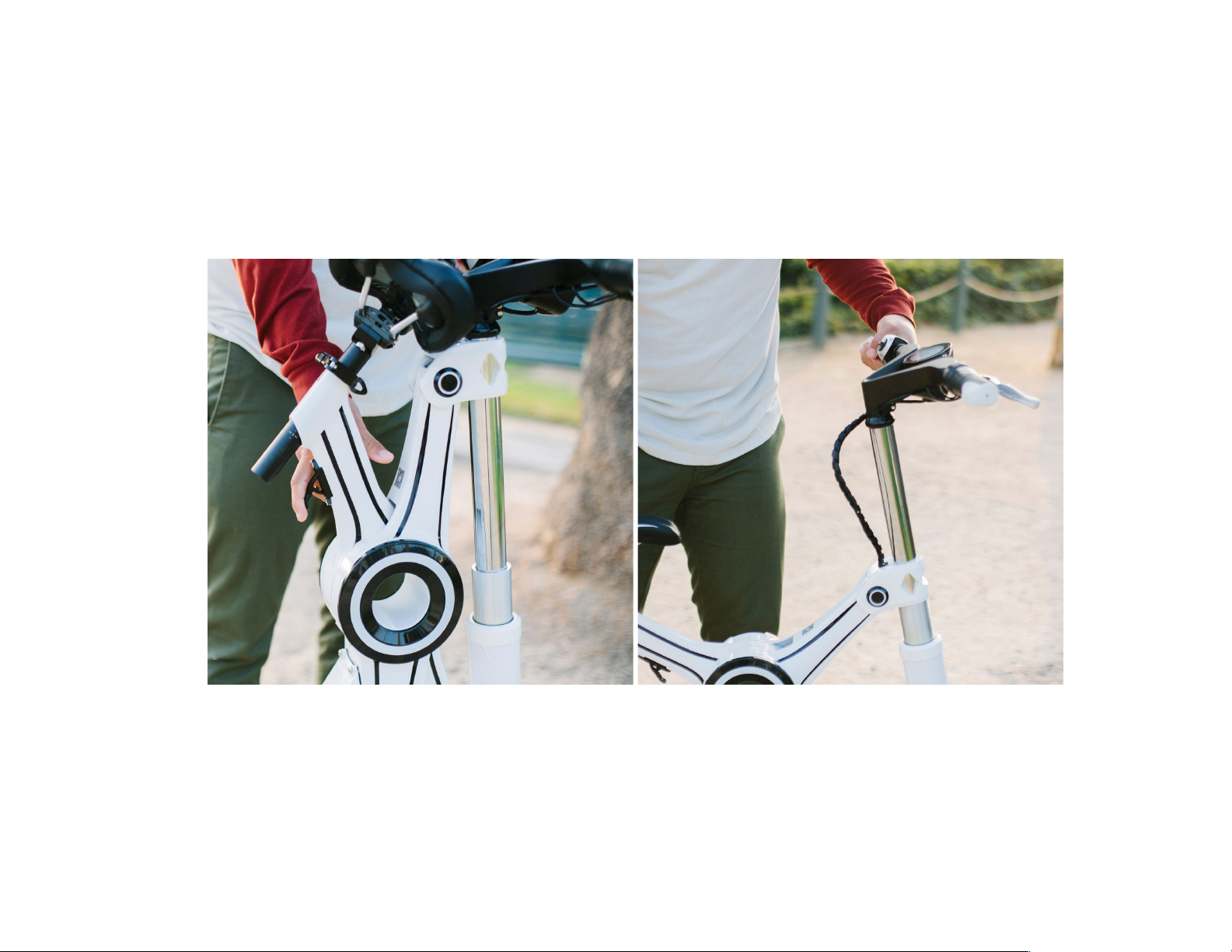

Folding System

8. Troubleshooting
If one of the following occurs, use this checklist to troubleshoot the issue:
MOTOR DOES NOT ROTATE
1. Motor joint became loose.
2. Battery may be too low.
3. Motor cable is damaged.
4. Throttle is faulty.
5. Controller is faulty.
6. Motor hub is damaged.
BATTERY CANNOT BE CHARGED
1. Charger connector is loose.
2. Charger is damaged.
3. Battery pack is damaged.
4. Battery needs reconditioning
THERE ARE ABNORMAL SOUNDS COMING
FROM DAMPERS / SUSPENSION
1. Damping spring needs to be lubricated.
2. Damping sleeve is loose.
Maintenance tips:
1. Do not park your e-bike outdoors in an
exposed area. Avoid direct sunlight
and rainwater. If water enters the
e-bike’s circuits, your e-bike may
become damaged.
2. Check your tires regularly. Always
make sure your brakes are in working
order. Check all joints regularly to
make sure they are operational.

9. Warranty
WARRANTY INFO
Every bike is covered under our manufacturer's 90 days warranty for the original owner against all manufacturing defects.
Warranty parts will only be shipped within US and Canada. If you purchased a bike and had it then shipped to another country,
parts will only be sent to the country in which the bike was originally sent. EVRY warrants this product, including all individual
components against defects in material or workmanship as follows:
EVRY BIKES LIMITED 90 DAYS WARRANTY
EVRY bicycle components including frame, forks, stem, handlebar, seatpost, saddle, brakes, lights, rims, wheel hub, freewheel,
motor, throttle, controller, wiring harness, LCD display, kickstand, reflectors and hardware are warranted to be free from
manufacturer defects in materials and/or workmanship for a 90 days period from the date of original purchase. Wear and tear is
not covered under warranty. EVRY Bikes’ lithium-ion batteries are warranted to be free from manufacturing defects in materials
and/or workmanship for a 90 days period from the date of original purchase. The battery warranty does not include damage from
power surges, use of improper charger, improper maintenance or other such misuses, normal wear or water damage.
WHAT WILL WE DO TO CORRECT PROBLEMS WITH YOUR BIKE?
If a component is deemed to be defective or damaged without user error we will issue a replacement part. We will assist you in
replacing any defective part. We will replace any parts deemed to have been damaged during shipping. We will provide the owner
a replacement product if the product can not be repaired after a reasonable number of tries as determined by EVRY.
WHAT WILL WE NOT DO?
EVRY will not replace any part without first seeing photos or video of the damaged part. We will not offer warranty service to

second owners. We will not replace any part damaged by the user. We will not pay for any third party service or part replacement
unless agreed upon prior to the fix. We will not pay for return shipping on any damaged or defective product or component.
EVRY will not cover any damage that may occur during shipping if the owner sets up their own shipping option or if the bike is
shipped using a freight forwarder or similar service.
TERMS OF WARRANTY
This warranty only applies to the original owner of an EVRY bicycle. This warranty is expressly limited to the replacement of
defective parts at the sole discretion of EVRY. This warranty does not cover any damage or defects resulting from failure to follow
instructions in the owner’s manual, accident, misuse, neglect, abuse, commercial use, alterations, modification, improper
assembly, wear and tear, installation of parts or accessories not originally intended or compatible with the bicycle as sold, operator
error, water damage, extreme riding, stunt riding, or improper follow-up maintenance. Only in extreme cases will an entire
replacement bike be issued, in these cases the original bike may have to ship to the EVRY facility for inspection/repairs before a
new bike is sent out. If repairs can be made, a new bike will not always be sent. This warranty does not include consumables or
normal wear and tear parts (tires, tubes, brake pads, cables and housing, grips). EVRY will not be liable and/or responsible for any
damage, failure or loss caused by any unauthorized service or use of unauthorized parts. Shipping damage must be reported to
EVRY within a reasonable amount of time after shipment arrival. In no event shall EVRY be responsible for any direct, indirect or
consequential damages, including without limitation, damages for personal injury, property damage, or economic losses, whether
based on contract, warranty, negligence, or product liability in connection with their products.

10. Quality Control
This X-Fit was tested prior to packing, and has passed quality control inspections. The final product was
approved to leave the factory for distribution.
