C.T.M. HS-559 User manual




ServiceManual‐ CTMHS‐559
2

Content


GeneralInformation...........................................................................................................................................3
CheckListformaintenance................................................................................................................................4
TroubleShooting................................................................................................................................................5
Disassembly........................................................................................................................................................7
Maintenance....................................................................................................................................................12






ServiceManual‐ CTMHS‐559
3

GeneralInformation
1‐1Introduction,
Thisservicemanualonlycontainsbasictechnicalinformationaboutthecommondisassemblyand
replacementtoenabledealerstoprovidegoodafterservice.Yourscooterfeatureandrelatedparts
mightdifferentfromthisservicemanual,whichisbasedondifferentdemandinvariousmarkets.Ifyou
needmoreproductinformationortechnicalsupport,pleasecontactwithCTM,wewillprovidemore
detailedinformation.

1‐2TheManufacturer,
Thescooterisdesignedandmanufacturedby
ChienTiEnterpriseCo.,Ltd.
No.13,Lane227,FuYingRd.,HsinChuangDistrict,NewTaipeiCity,Taiwan
Tel :+886‐2‐29032987
Email:[email protected]om.tw
Web.www.chienti.com.tw

1‐3InformationofEuropeanRepresentative
EmergoEurope
Prinsessegracht20
2514APTheHague
TheNetherlands

1‐4WarrantyPolicy
PleaserefertoCTMwarrantypolicy.

1‐5Servicelife
Weestimateaservicelifeoffiveyearsforthisproduct,provideditisusedinstrictaccordancewiththe
intendeduseassetoutinthisdocumentandallmaintenanceandservicerequirementsaremet.The
estimatedservicecanbeexceedediftheproductiscarefullyusedandproperlymaintained,and
providedtechnicalandscientificadvancesdonotresultintechnicallimitations.Theservicelifecanalso
beconsiderablyreducedbyextremeorincorrectusage.Thefactthatweestimateaservicelifeforthis
productdoesnotconstituteanadditionalwarranty.


ServiceManual‐ CTMHS‐559
4

CheckListformaintenance
CheckPoint Inspection Remark
N‐Dlever Checkforthecorrectfunction
Horn Checkforcorrectfunction 
Throttles Pullthewigwagtotestthescootermovement 
Electro‐mechanical
brakeandemergency
handbrake
Pullthewigwagalittlebitandreleaseittotestifbrake
works.Ifyourscootercomeswithemergencyhandbrake,
pleasecheckitaswell.

BatteryGaugeCheckifthebatterygaugeisdisplayedandwhetheritisat
lowpower.

Rearmirror(s) Checkifthepartsarecleanandfirmlytightentothescooter
anddonotwobble
‐Cleanupthedirtandtightenthescreworclamping
stemthatholdsthemirror(s)

LightingCheckifalllights,suchasheadlights,rearlights,andturn
signalarefunctioningcorrectly.

SpeedDialKnobCheckforcorrectfunction

Armrests

Seat/Upholstery
Checkifthepartsarecleanandfirmlytightentothescooter
anddonotwobble.Tightenthescrewknobthatholdsthe
armrest.
Checkformovementandifit’sworn



Wheels/Tires
Inflatethetiretothecorrectpressureandcheckthat
1. Drivewheelsrotatewithoutwobbling.
2. Tiretreaddepthisnotlessthan0.5mm.
3. Noforeignobjectsintires.

MotorCheckforcorrectfunction
BatteryChargerCheckifthechargerisfunctioningcorrectlyandthe
batteriesarecharged.

ElectronicsCheckifallthebatterycablesandconnectorsarefirmly
tightentothescooter






ServiceManual‐ CTMHS‐559
5

TroubleShooting
3‐1Scooterwon’tmovewhenkeyinturnedon,
CheckPoint Solution
Checkifthepowerisoff Turnthepoweron.
CheckiftheN‐DleverisinNeutralposition SwitchtoD(drive)position.Turnoffthepowerand
turnonagain.
Checkifthebatterypowerisenough.(Battery
gaugeisunder25%)
Rechargethebatteryandthenretest.
Checkifthechargerpowercordisstillpluggedin
scooter
Unplugthechargerpowercord.

3‐2ErrorCode
FlashDescription InitialCheckPoints
1Batterylow Thebatteriesarerunninglow.
‐Rechargethebatteries
2Lowbatteryfault Thebatterieshaverunoutofcharge
‐Rechargethebatteries
‐Checkthebatteryandassociatedconnectionsandwiring.
3Highbatteryfault Batteryvoltageistoohigh,thismayoccurifoverchargedand/or
travelingdownalongslope.
‐Iftravelingdownaslope,reducethespeedtominimizethe
amountofregenerativecharging.
4Currentlimittime‐outor
controlleroverheat
Themotorhasbeenexceedingitsmaximumcurrentratingfortoo
long.
‐Thescootermayhavestalled.Turnthecontrolleroff,leavefora
fewminutesandturnbackonagain.
‐Themotormaybefaulty.Checkthemotorandassociated
connectionsandwiring.
5ParkbrakeEitheraparkbrakereleaseswitchisactiveortheparkbrakeisfaulty.
‐Checktheparkbrakeandassociatedconnectionsandwiring.
‐Ensureanyassociatedswitchesareintheircorrectpositions.
6Driveinhibit EitherastopfunctionisactiveorchargerinhibitsorOONAPU
conditionhasoccurred.
‐Releasethestopcondition(seatraisedetc.)
‐Disconnectthebatterycharger.
‐EnsurethethrottleisinNeutralwhenturningthecontrolleron.

ServiceManual‐ CTMHS‐559
6

‐Thethrottlemayrequirere‐calibration.
7Speedpot ThethrottlespeedlimitpotSRWortheirassociatedwiringmaybe
faulty.
‐Checkthethrottleandspeedpotandassociatedconnectionsand
wiring.
8Motorvoltage Themotororitsassociatedwiringisfaulty.
‐Checkthemotorandassociatedconnectionsandwiring.
9OthererrorThecontrollermayhaveaninternalfault.
‐Checkallconnectionandwiring.

3‐3Otherproblem
Tire:Thetiresshouldbeinspectedfrequentlyfordamage,thepresenceofforeignbodies,unusualwear
andsufficienttreaddepth.Ifreplacementtiresareneeded,pleasecontactthenearestdealer.
Thefollowingareasrequireperiodicinspection:
‐Tirepressurebetween35‐40psi
‐Treaddepthdropsbelow0.5mm
Recommendedrangeofstorage,Tempe rature:‐30oc~+50oc,Humidity:25%~85%
Followtheseeasystepstoreplacethetire:
‐Turnoffthescooterandremovethekey.MakesuretheleverisinDpositionbeforeyouliftthescooter.
‐Usearatchetandsockettoremovethedrivewheelscrewfromthecenterhubofthewheel.Pullthe
wheeloffoftheaxle.
‐Separatethetirefromtherim.
‐Removetheoldtireandreplaceitwithanewtire.
‐Slidethewheelbackontotheshaft.
‐Installthedrivewheelnutintothecenterhubandverifythekeyislinedupwithaxleandwheel,and
thentightentosecureitinplace.(Torque300±30kgf‐cm)

Charger:Duringcharging,lightonchargerdoesn’tchangetogreen.IfLED(POWER)lightisoff
‐Checktheinputvoltage(115V/230V)isthesameasyouadjust.
‐Iflightisstilloff,pleasecheckandrepairthebatterycharger.(B)IfLED(CHARGE)lightisoff
‐Checktoseeclipsconnectioniscorrect.
‐Ifthebatteryisfullycharged,theLED(CHARGE)lightwillbeoff.
‐Iflightisstilloff,thebatterymaybedefective.(C)IfORANGElightcanturntoGREEN
‐Thebatterycannotbecharged.Pleasecheckandrecoverit.(D)IfORANGElightturnstoGREEN
immediately
‐Checktoseethebatteryisfullycharged,ifnot,thebatterymaybedefectiveCheckandrecoverit.


ServiceManual‐ CTMHS‐559
7

Disassembly
4‐1Steering‐Starterassembly/VariableResistor

Toolrequirement,
‐PhilipScrewdriver
‐12mmoffsetwrench
Instructionfordisassembly
A. Takeoutthebarofangleadjustablelever.
B. Removetherearmirrorbyhandor12mmoffsetwrench.
C. RemovethesteeringcoverbyPhilipscrewdriver
D. RemovethesteeringrearcoverbyPhilipscrewdriver.
E. Removethestarterassembly/variableresistorcomp.(30KΩ)

Inspectionpoints
Whenassembling,pleaseusethetorquewrenchtomakesurethetighteningtorqueasthedrawing.



ServiceManual‐ CTMHS‐559
8

4‐2Frontframe–BarAssembly

Toolrequirement,
29mmoffsetwrench

Instructionfordisassembly
‐Whenchangingthepartsinthisarea,paymoreattentionaboutthissequence.Shouldtakenotethe
sequencewhendisassemble.
‐Belowlistisfromabove
12526680‐52800PADLOCK1
11536228‐56010NUT,STEERINGSTEMLOCK1
10536212‐56000WASHER1
9536211‐56000WASHERTOOTH1
8536213‐56000RACE,STEERINGOUTERUPPER1
7536215‐56000BALLSSET.2
Inspectionpoints
Whenassembling,pleaseusethetorquewrenchtomakesurethetighteningtorqueasthedrawing.


ServiceManual‐ CTMHS‐559
9

4‐3Frontwheel

Toolrequirement,
12mmhex‐keywrench
13mmsocketwrench
12mmoffsetwrench/17mmoffsetwrench/32mmoffsetwrench

Instructionfordisassembly
A. Pleaseturnoffthescooterandremovethekey.MakesuretheNDleverisinDpositionbeforethisjob.
B. Leaksomeairfromwheelbeforeyoudisassemblethewheel.(referto4‐4)
C. Usearatchetandsockettoremovethefrontwheelscrewfromthecenterhubofthewheel.
D. Separatethetirefromtherim.
E. Replacetheparts(innertubeoroutertube)asthedemand.
F. Installthefrontwheelnutintothecenterhub,tightenitasthetorqueastheabovedrawing.

Inspectionpoints
Whenassembling,pleaseusethetorquewrenchtomakesurethetighteningtorqueasthedrawing.
Rangeoftirepressureisaround35~40psi.


ServiceManual‐ CTMHS‐559
10

4‐4Airtire

Toolrequirement,
5mmhex‐keywrench

Instructionfordisassembly
‐Beforeremovingthefrontandrearwheels,pleasedoremovesomepressurefromwheelstoprevent
anyaccident.
‐Use12mmhex‐keywrenchtorotatethecapasdrawing,
‐Thenremovesomepressurefromtire.


ServiceManual‐ CTMHS‐559
11

4‐5RearWheel,Motor,Transaxle.

Toolrequirement,
5mmhex‐keywrench
17mmsocketwrench
12mmoffsetwrench

Instructionfordisassembly
G. Pleaseturnoffthescooterandremovethekey.MakesuretheNDleverisinDpositionbeforethisjob.
H. Leaksomeairfromwheelbeforeyoudisassemblethewheel.(referto4‐4)
I. Usearatchetandsockettoremovethefrontwheelscrewfromthecenterhubofthewheel.
J. Separatethetirefromtherim.
K. Replacetheparts(innertubeoroutertube)asthedemand.
L. Installthedrivewheelnutintothecenterhubandverifythekeyislinedupwithaxleandwheel,and
thentightentosecureitinplace.Thetorque300±30kgf‐cm.

Inspectionpoints
Whenassembling,pleaseusethetorquewrenchtomakesurethetighteningtorqueasthedrawing.
Rangeoftirepressureisaround35~40psi.

ServiceManual‐ CTMHS‐559
12

Maintenance

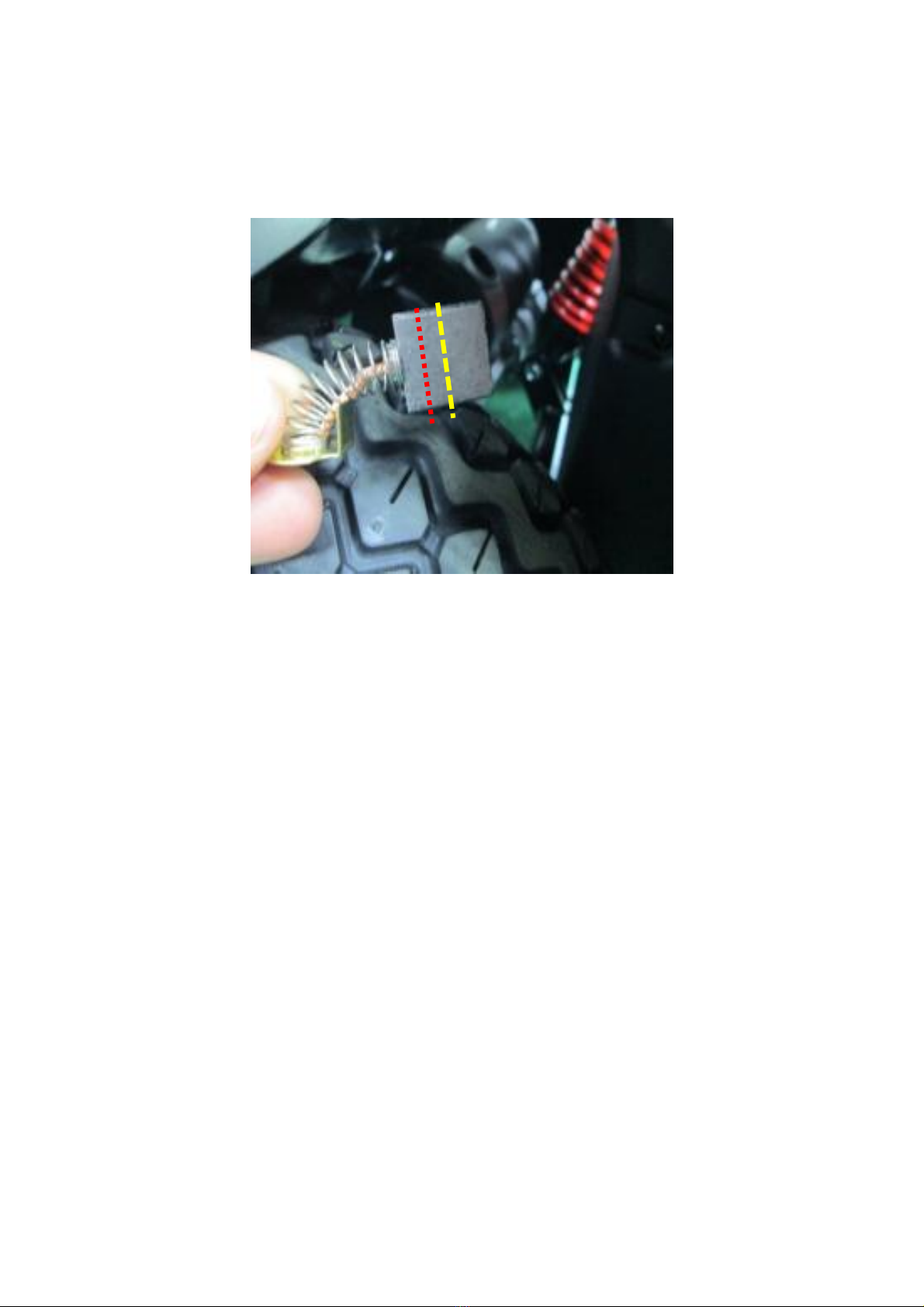

5‐1MotorCarbonbrushes,

Changeofnewcarbonbrushcouldeffectivelyimproveabnormalnoise.
Carbonbrushisconsumables,whichwearsoutafteruse,hence,inordertosustainmotorquality,CTM
wouldrecommendfollowing:
‐Whenonecarbonbrushiswornto1/2ofitsoriginallength,itisnecessarytoreplace4carbonbrushes
bynewones.
‐Whenonecarboniswornoutby2/3ofitsoriginallength,4carbonbrushesmustbereplacedbynew
ones.
‐Suggestedchangeforbrush=onetimeonly

5‐2Batteries(50ah)
Informationforbatteryvoltage,
‐Normalsituation:12.95V~13.1V
‐Lowbattery:Below12.9v
‐Deadbattery:Below12v
‐Firstchargingafterreceiving:8hr.

Informationforbatterystoragetemperature,
‐Below20°C,afterfullcharging,canstore9month.
‐Between20~30°C,afterfullcharging,canstore6month.
‐Above30°C,afterfullcharging,canstore3month.

Batterymaintenance,

ServiceManual‐ CTMHS‐559
13

‐Toconstantchargeafteruse(referencetousermanual)
‐Tocheckonbatteryterminalsforoxidizationorloosescrew.
‐Tocheckonbatterywireforfray
‐Tocheckonvoltageusingvoltammeter



