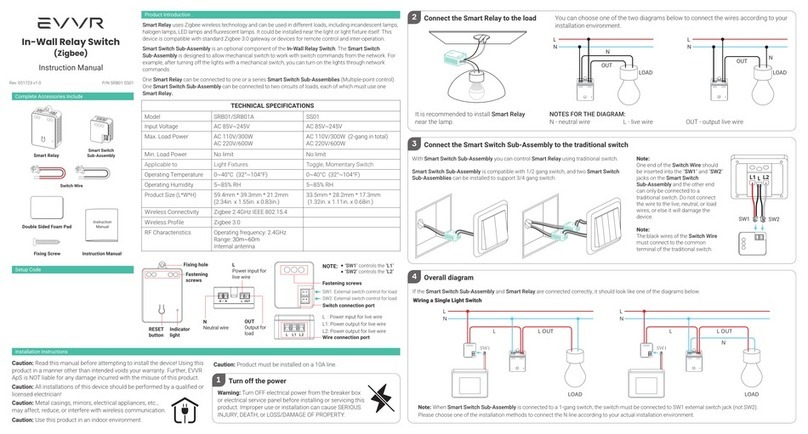

EVVR SRB01 User manual

*Please see separate Smart Switch Sub-Assembly
manual for complete instructions.
Smart Relay ×1
Fixing Screw ×1
Double Sided Foam
Pad ×1
Instruction Manual ×1
Product Introduction
Smart Relay uses Zigbee wireless technology
and may be used in different loads, including
incandescent lamps, halogen lamps, LED lamps
and fluorescent lamps. It is small in size and may
be installed in the box of light fixtures. This device
is compatible with standard Zigbee 3.0 gateway
or devices for remote control and inter-operation.
Technical Specifications
Model SRB01
Input Voltage AC 85V~245V
Max. Load Power AC 110V/300W
AC 220V/600W
Min. Load Power No limit
Type of Load Lighting
Operating Temperature 0~40°C
(32°~104°F)
Operating Humidity 5~85% RH
Wireless Connectivity Zigbee 2.4GHz IEEE 802.15.4
Zigbee Profile Zigbee 3.0
RF Characteristics Operating frequency: 2.4GHz
Range: 30m~60m
Internal antenna
Product Size (L*W*H) 59.4mm * 39.3mm * 21.2mm
(2.34in. x 1.55in. x 0.83in.)
Device Identification QR Code (Zigbee)
Complete Accessories Include
Caution: Read this manual before attempting to install the device! Using this product in a manner other than
intended voids your warranty. Further, Evvr ApS is NOT liable for any damage incurred with the misuse of this
product.
Caution: All installations of this device should be performed by a qualified or licensed electrician!
Caution: Product must be installed on a 10A line.
Caution: Metal casings, mirrors, electrical appliances, etc., may affect, reduce, or interfere with wireless
communication.
Installation Instructions
Caution: If you have purchased a Smart Switch Sub-Assembly
to use with it, please follow the installation instructions on the
Smart Switch Sub-Assembly manual.
With Smart Relay, you can turn a traditional lamp into a Zigbee
smart lamp. It is recommended to install Smart Relay near the
lamp.
Warning: Turn OFF electrical power from the breaker box or
electrical service panel before installing or servicing this
product. Improper use or installation can cause SERIOUS
INJURY, DEATH, or LOSS/DAMAGE OF PROPERTY.
Caution:
Use this product in
an indoor
environment.
N
L OUT 1
L
LOAD
NN
L OUT
L
LOAD
You can choose one of the two diagrams below to connect the
wires according to your installation environment.
NOTES FOR THE DIAGRAM:
N - neutral wire L - live wire L OUT - output live wire
Stick the foam pad at the recommended position on the Smart
Relay and then place the relay on a flat, cleaned surface.
Turn ON electrical power and check if the wires are connected
correctly. If they are correct, the indicator light will be on when the
load light, the light(s) connected to the switch, is on.
Recommended
placement
2Fix Smart Relay on a flat, cleaned surface
1Connect wires per wiring diagram as follows
OUT
Output for load
L
Power input for
live wire
N
Power input for
Neutral wire
Indicator Light
Fixing hole
Fastening screws
RESET Button
Instruction
Manual
In-Wall Relay Switch
Smart Relay (Zigbee version)
Instruction Manual
Rev. B-092822 P/N SRB01

Operating Instructions
Important: The In-Wall Relay Switch can be controlled from a smartphone when used with a Zigbee 3.0 gateway.
Note: Before pairing/re-pairing Smart Relay, you need to set your Zigbee 3.0 gateway into
inclusion/pairing mode with either methods.
Add devices and manually
select the device type Add devices by scanning the QR code on the device or manual
Short press the RESET button.
The load light must be on, at the same
time the indicator light will slowly flash
blue, wait until pairing is successful or
until 30 seconds timeout.
30
SEC
If the Smart Relay is successfully paired,
the indicator will show BLUE when the
load light is on.
Troubleshooting
Smart Relay pairing failedQ1
The device may be too far from the gateway/coordina-
tor or routing device, or there may be interference in the
current network environment. Add routing devices or
bring devices closer to the gateway/coordinator.
The device is already joined to another gateway. Please
restore the device to its factory default.
Cannot be controlled by gateway/coordinator or
other Zigbee devices
Q2
The device may be installed in an unreasonable location,
too far from the gateway or routing device, or there may be
signal interference. Please check whether there is strong
electromagnetic field equipment near the wireless switch
and check whether the equipment is installed in a closed
metal housing or in a closed concrete wall. Add routing
devices or bring devices closer to the gateway/coordinator.
In case of power loss while the lights were on,
the light status is on when power is restored?
Q4
Yes. The device will record the status of the light, and after
the device is powered off, re-powering will restore the state
before the device was powered off.
The light turns off automatically after a short
period of time (approximately 150 seconds).
Q3
The power of the light may exceed the maximum power (AC
110V/ 300W, AC 220V/600W). Please check whether the
power of the light exceeds the maximum power.
If the Smart Relay is successfully restored
tofactory settings, the indicator will show
RED when the load light is on.
Remove the Smart Relay
from your Zigbee 3.0 gateway. Press and hold the RESET button for more than 5seconds.
Restore Smart Relay to factory settings
Set the Smart Relay into inclusion/pairing mode
Warranty Policy
For warranty information, please visit
https://www.evvr.io/warranty
Please contact us for any technical issue
[email protected]
This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Consult the dealer or an experienced technician for help.
Important Announcement Important Note
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance
20cm between the radiator and your body.
This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
NOTE:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
FCC ID: 2A68U-SRB01
FCC Statement
Certifications (regional)
This product must not be disposed of with your other
household waste. Instead, it is your responsibility to dispose
of your waste equipment by handing it over to a designated
collection point for the recycling of waste electrical and
electronic equipment. The separate collection and recycling
of your waste equipment at the time of disposal will help to
conserve natural resources and ensure that it is recycled in a
manner that protects human health and the environment. For
more information about where you can drop off your waste
equipment for recycling, please contact your local city office,
your household waste disposal service or the shop where
you purchased the product.
Disposal Instructions
Rev. B-092822 P/N SRB01
or
Type of Connected Switch Double-click the reset button to switch between the three switching modes.
toggle switch (device changes status
when switch changes status)(default)
Switch Indicator
toggle switch (contact closed - ON,
contact opened - OFF)
momentary switch
the indicator will blink purple once
the indicator will blink purple twice
the indicator will blink purple three times
