Ewbank AQUAROVER 140 User manual

INSTRUCTION MANUAL

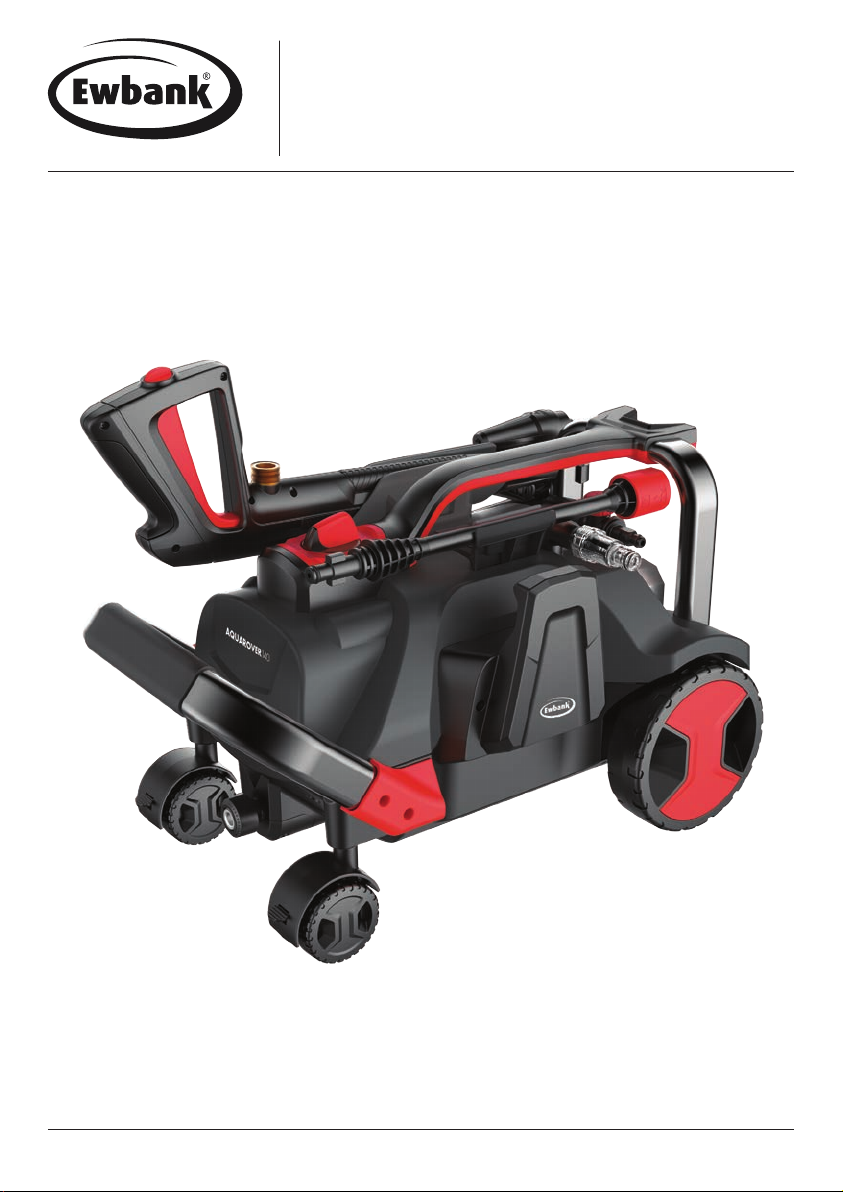

AQUAROVER14 0 1800W 140 Bar Corded Pressure Washer
EW6140
Ewbank has a British heritage to be proud of. It’s a household favourite and much loved brand that has been providing innovative cleaning solutions for over 140 years.

2
CONTENTS
Safety Instructions.............................................................................................................................3 - 11
Appliance Overview ..............................................................................................................................12
Product Assembly............................................................................................................................13 - 14
Operating Instructions ................................................................................................................... 15 - 19
Cleaning & Maintenance......................................................................................................................20
Troubleshooting.......................................................................................................................................21
Specifications.........................................................................................................................................22
Fuse Replacement ..................................................................................................................................23
Disposal of the Appliance.....................................................................................................................23
Warranty Terms & Conditions...............................................................................................................24

3
Ewbank, 38 Bluestem Road, Ipswich, Suolk, IP3 9RR Tel. [phone]
SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
PLEASE READ ALL THE INSTRUCTIONS BEFORE USE AND
STORE THEM IN A SAFE PLACE FOR FUTURE REFERENCE.
WARNINGS AND NOTES THAT ARE AFFIXED TO THE
APPLIANCE PROVIDE IMPORTANT NOTES FOR SAFE
OPERATION AND MUST BE FOLLOWED.
HAZARD LEVELS GUIDE
There are important notes throughout the safety instructions and
instruction manual that outline potential hazards when the appliance
is use which range in severity. Please see below guide to these hazard
levels to be aware of when reading through the instruction manual:
DANGER
This indicates an immediate danger, which if not avoided could lead
to serious injury or death
WARNING
This indicates a potentially dangerous situation, which if not avoided
could lead to serious injury or death
CAUTION
This indicates a potentially dangerous situation, which if not avoided
could lead to minor injury
ATTENTION
This indicates a potentially dangerous situation, which if not avoided
could lead to damage to the appliance and/or property

4
WHEN USING THE APPLIANCE, THE FOLLOWING
PRECAUTIONS MUST BE TAKEN: ELECTRICAL
COMPONENTS
DANGER
• Risk of electric shock
• Never touch the mains plug and the socket with wet hands
• Check the power cord and mains plug for damage prior to every
use
• Do not use the machine if the power cord, mains plug or other
important parts of the machine are damaged or appear damaged
e.g. safety devices, high pressure hoses, high-pressure gun etc.
• All electrical components within the area being cleaned must be
protected against jet water
• The mains plug and extension cable (if being used) must be
watertight and must never lie in water - the use of cable reels that
ensure that the sockets are at least 60 mm above the ground is
recommended
• Make sure that the power cord or extension cable is not damaged
by running over, pinching, dragging etc.
• Protect the power cords from heat, oil, and sharp edges or objects
• Always switch off the power at the mains plug switch when
leaving the appliance unattended
WARNING
• The appliance may only be connected to an electric supply that
has been installed by an electrician in accordance with IEC
60364
• The appliance may only be connected to alternate current and
the voltage must correspond with the rating label affixed to the
appliance
SAFETY INSTRUCTIONS

5
Ewbank, 38 Bluestem Road, Ipswich, Suolk, IP3 9RR Tel. [phone]
SAFETY INSTRUCTIONS
• For safety reasons, we recommend that you operate the
appliance only via a residual current device (max. 30mA)
• An unsuitable electrical extension cable can be hazardous - only
use an electrical extension cable which has been approved and
labeled for this purpose and has an adequate cable cross-section
outdoors: 1 - 10 m: 1.5 mm2;10 - 30 m: 2.5 mm2
• Always fully unreel the extension cable from the cable drum
OPERATION
DANGER
• Please only operate the appliance as it is intended to be used -
the operator must consider the surrounding conditions and must
pay attention to other people in the vicinity when working with
the appliance
• Check important components, such as high-pressure hose, hand
spray gun and safety installations, for damage prior to every
operation - immediately replace damaged components and do
not operate appliance
• The appliance has been designed for use with the cleaning agent
supplied or recommended by the manufacturer - the use of the
other cleaning agents or chemicals may adversely affect the
safety of the appliance
• High-pressure jets can be dangerous if subject to misuse - the
jet must not be directed at persons or animals, live electrical
equipment or the machine itself
• Do not direct the jet against yourself or others to clean clothes or
foot-wear
WARNING
• Do not use the appliance within range of persons unless they
wear protective clothing
• It is recommended to wear appropriate Personnel Protection
Equipment (PPE) while operating the appliance

6
• The appliance must not be operated by children or untrained
personnel
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capacities, or
lacking experience and knowledge
• Children must not play with this appliance
• Supervise children to prevent them from playing with the
appliance
• Create stability for the appliance prior to any work on or with the
appliance to prevent accidents damage
• The water jet that is emitted from the high-pressure nozzle, could
result in a repulsion power action on the hand spray gun - make
sure that you have a firm footing and are also holding the hand
spray gun and spray lance firmly
• Never leave the appliance unattended if it is in operation
CAUTION
• Be aware of kick-back when using the appliance – always hold
with both hands
ATTENTION
• In case of extended breaks in usage, switch the appliance off at
the main switch or pull the mains plug
• Do not operate the appliance at temperatures below 0°C
OTHER RISKS
DANGER
• The appliance must not be operated in explosive environments
• Risk of explosion - do not spray flammable liquids
• Never draw in fluids containing solvents or undiluted acids and
solvents - this includes petrol, paint thinner and heating oil where
the spray mist is highly inflammable, explosive and poisonous
• Do not use acetone, undiluted acids and solvents, as they corrode
the materials used on the appliance
SAFETY INSTRUCTIONS

7
Ewbank, 38 Bluestem Road, Ipswich, Suolk, IP3 9RR Tel. [phone]
• Never use the product with inflammable or toxic liquids, or liquids
with characteristics incompatible with its proper operation
• Keep packaging films away from children as there is a risk of
suffocation
WARNING
• According to the applicable regulations, the appliance may
never be used with the drinking water network without a system
separator; ensure that the connection to your house water system,
with which the high-pressure cleaner is operated, is equipped
with a system separator according to EN 12729 type BA
• Water that has flowed through a system separator is no longer
classified as drinkable
• High-pressure hoses, fittings and connections are important for
the safety of the appliance; only use high-pressure hoses, fittings
and couplings recommended by the manufacturer
• Only use original spare parts from the manufacturer or that are
approved by the manufacturer
• Switch the appliance off and disconnect it from the power
supply by removing the mains plug from the socket outlet before
assembly, cleaning, adjustments, maintenance, storage and
transportation
• The improper use of detergents can cause severe injuries or
oxidation
• Store cleaning agents away from the reach of children
• Discharge any residual pressure before disconnecting the hose
from the appliance
• Check before each use of the appliance, that all metal fasteners
are tight, and the products components are in good condition;
inspect for broken or worn parts
CAUTION
• Check the weight of the appliance when selecting the storage
location and during transport to prevent accidents or injuries
SAFETY INSTRUCTIONS

8
• Several hours of continuous use of the appliance can lead to
numbness in the hands in rare cases; we recommend you:
o Wear gloves when operating the appliance
o Keep hands warm
o Take regular breaks
SERVICING OF DOUBLE-INSULATED APPLIANCE
In a double-insulated product, two systems of insulation are provided
instead of grounding. Grounding means are not provided for a
double- insulated product, nor should grounding means be added
to the product. Servicing a double-insulated product requires
extreme care and knowledge of the system and should only be done
by qualified service personnel. Replacement parts for a double-
insulated product must be identical to the original parts. A double-
insulated product is marked with the words “Double Insulation” or
“Double Insulated”, and is indicated by the following symbol which
will be visible on the rating label affixed to the appliance:
RESIDUAL RISKS
Even if you are operating this product in accordance with all the
safety requirements, potential risks of injury and damage remain.
The following dangers can arise in connection with the structure and
design of this product:
• Health defects resulting from vibration emission if the product is
being used over long periods of time or not adequately managed
and properly maintained
• Danger of injury and property damage caused by flying objects
• Injuries and damage to property due to broken accessories or the
sudden impact of hidden objects during use
SAFETY INSTRUCTIONS

9
Ewbank, 38 Bluestem Road, Ipswich, Suolk, IP3 9RR Tel. [phone]
SAFETY DEVICES
CAUTION
Safety devices have been installed on the device to provide
protection to the user and may not be modified or bypassed.
• POWER SWITCH
o The appliance switch prevents unintentional operation of the
appliance
• GUN TRIGGER LOCK
o This locks the trigger on the gun to prevent the inadvertent
starting of the appliance
• AUTO STOP SYSTEM
o If the lever on the gun trigger is released the auto stop system
turns off the pump AND the high-pressure jet is stopped
o If the lever is pulled the pump is turned on again
• MOTOR PROTECTION SWITCH
o The motor protection switches off the device if the power
consumption is too high
• PERSONAL PROTECTIVE EQUIPMENT
CAUTION
o Wear protective clothing and safety goggles to protect against
splash back containing water or dirt
o During use the pressure washer can develop aerosols which
can potentially cause health issues
o Depending on the application, completely shielded nozzles
(e.g. surface cleaner) that significantly reduce the emission of
aqueous aerosols can be used for high-pressure cleaning
o The use of such shielding is not possible with all applications
SAFETY INSTRUCTIONS

10
• SYMBOLS ON THE MACHINE
The high-pressure jet must not be directed at persons,
animals, live electrical equipment or at the appliance
itself
The appliance must not be directly connected to the public
drinking water network
For protection against injury, wear ear defenders and safety
goggles
Wear safety gloves during use to protect hands
Wear non-slip footwear that will protect your feet and
improve your footing on slippery surfaces
Sound power level is 92dB(A)
SAFETY INSTRUCTIONS

11
Ewbank, 38 Bluestem Road, Ipswich, Suolk, IP3 9RR Tel. [phone]
PROPER USE
• Use this pressure washer for private households only
• This high-pressure cleaner is designated with a rated input current
• The intended use of this product covers the cleaning of vehicles,
buildings, terraces, facades and garden equipment using clean
water and biodegradable chemical detergents, paving slabs or
rain gutters
• This product may not be used to clean clothing, shoes and other
textiles
• The water jet should not be directed at people, animals, any
electrical equipment or at the product itself
• Do not flush any objects which contain health hazardous
materials
• The product must not be run with inflammable, explosive and
toxic liquids
• For safety reasons it is essential to read the entire instruction
manual before first operation and to observe all the instructions
inside
SAFETY INSTRUCTIONS

12
1. Handle
2. Spray lance
3. Water inlet
4. Spray lance holder
5. High-pressure hose hook
6. High-pressure hose
7. Power switch OFF/ON
8. Handle
9. Front wheels with brakes
10. Self-suction valve
11 . High-pressure gun
12. High-pressure gun holder
13. Jet nozzle
14. Adjustable fan nozzle and angled
spray nozzle
15. Rear wheels
16. Detergent bottle
17. Power cord
APPLIANCE OVERVIEW
1
2
3
4
5
678910 17 16 15 14
13
12
11
5
4
6
2
1
7
8
3
1. Spray lance
2. High-Pressure gun
3. Detergent bottle
4. Angled spray nozzle
5. Jet nozzle
6. Adjustable fan nozzle
7. Patio brush
8. Fixed brush
ACCESSORIES

13
Ewbank, 38 Bluestem Road, Ipswich, Suolk, IP3 9RR Tel. [phone]
CAUTION
Ensure that the appliance is fully and correctly assembled before use.
PRODUCT ASSEMBLY
1. Installing the handle with screws
• Insert/line up the handle as shown in Fig.1
• Ensuring each hole aligns with the screws
provided, insert and fasten tightly to secure
Fig.1
Fig.2
Fig.3
2. Installing the spray lance
• Fit the spray lance into the high-pressure gun
and rotate it until the two parts are completely
locked (Fig.2)
• Push the desired nozzle onto the quick connect
collar of the spray lance until it clicks into
place (Fig.2)
3. Connect the high-pressure hose to the high-pressure gun
• Connect the silver end of the high-pressure
hose to the high-pressure gun and twist the nut
to secure the connection (Fig.3)

14
PRODUCT ASSEMBLY
Fig.4
Fig.5
4. Connect the high-pressure hose to the water outlet
• Connect the other end of the high-pressure hose
to the water outlet on the pressure washer and
twist the black rotatable end-piece as indicated
to secure the connection (Fig.4)
5. Connect the garden hose to the water inlet
• Connect the garden hose adaptor (female
coupler) to the water inlet of the pressure
washer, then thread your garden hose (male
end) into the garden hose adaptor (Fig.5)
APPLIANCE START UP
1. Park the appliance on an even surface
2. Insert the mains plug into the socket
Water supply
For connection values, see type plate.
ATTENTION
Impurities in the water can damage the high-pressure
pump and the accessories.
Connect to
water supply
Garden hose
3. Attach garden hose to water supply
CAUTION
o Do not connect to potable water system
o The water supply must not exceed 0.7MPa
o The washer must only be used with clean water, use of unfiltered water containing
corrosive chemicals will damage the pressure washer
4. Bleed the device as follows prior to operation:
i) Turn on the appliance “OFF/ON”
ii) Unlock the lever of the high-pressure gun
iii) Push the lever of the high-pressure gun, the device will switch on
iv) Let the device run (max. 2 minutes) until the water exits the high-pressure gun without
bubbles
v) Release the lever of the high-pressure gun
vi) Lock the lever of the high-pressure gun

15
Ewbank, 38 Bluestem Road, Ipswich, Suolk, IP3 9RR Tel. [phone]
OPERATING INSTRUCTIONS
ATTENTION
Dry running of more than 2 minutes leads to damage of the high-pressure pump. If the appliance
does not build up pressure within 2 minutes, switch the appliance off and proceed in accordance
with the instructions in the “Troubleshooting” section of the instruction manual
HIGH PRESSURE OPERATION
CAUTION
Keep a distance of at least 30 cm when using the jet for cleaning painted surfaces to avoid
damage.
CAUTION
Make sure the power switch is set to “OFF” before inserting the plug into a properly installed
socket.
ATTENTION
• The washer must be used on a secure and stable surface
1. Connect the product to power and water supply as described.
i. Open the water supply
ii. Hold the high-pressure gun with both hands
iii. Direct the nozzle of the chosen accessory away from you towards the surface to be
cleaned
iv. Unlock the trigger and press it until a constant amount of water flows through the nozzle,
to allow air trapped in the hose to escape
v. Release the trigger
vi. Turn the power switch from “OFF” to “ON”
vii. Hold the spray gun with both hands. Direct the water jet to the object to be cleaned
and press the trigger
viii. Release the lever of the high-pressure gun; the device will switch off again and stop the
water jet. High pressure remains in the system
WARNING! Beware of kickback when pressing the trigger!

16
OPERATING INSTRUCTIONS
DETERGENT OPERATION
ATTENTION
Detergent can only be added when the device is operated in low pressure mode. Like below pic.
Only gun and lance can be used.
DANGER
When using detergents, the material data safety sheet issued by the detergent manufacturer must
be adhered to, especially the instructions regarding personal protective equipment.
Remove the cap of the clean detergent bottle. Gently pull the onboard detergent tank out of its
storage position.
Fill the tank with detergent designed specifically for use with pressure washers.
Push the detergent bottle with the opening pointing downwards into the connection for the hose
clean detergent.
Note: Detergent will not work on jet nozzle
RECOMMENDED CLEANING TECHNIQUE
• Spray the detergent sparingly on the dry surface and allow it to react, but not to dry
• Spray off loosened dirt with the high-pressure jet
AFTER OPERATION WITH DETERGENT
• Remove the hose clean detergent bottle from the intake and close it with the lid
• For storage, put the detergent bottle into the retainer with the cap pointing up
INTERRUPTING OPERATION
• Release the lever of the high-pressure gun
• Lock the lever of the high-pressure gun
• Put the high-pressure gun with the spray lance into the parking position
• Switch the device off “0/OFF” during work breaks longer than 5 minutes
OPERATION WITH ATTACHMENTS
ATTENTION
Your AQUAROVER140 comes with certain accessories. Only use original accessories and
original spare parts for this model. They ensure that the appliance will run fault-free and safely.

17
Ewbank, 38 Bluestem Road, Ipswich, Suolk, IP3 9RR Tel. [phone]
OPERATING INSTRUCTIONS
ASSEMBLING PATIO BRUSH
Thread the patio brush connector into the larger hole on top of the brush head (fig 6). On the
underside push the rotating spray arm in and screw into place (fig 7).
Fig.6 Fig.7
Fig.8
With chosen nozzle or brush line the opening together with the lance. Push in to place and twist to
secure (fig 8).
ENDING OPERATION
CAUTION
Pressure in the system
Injuries from high-pressure water escaping uncontrollably.
Only disconnect the high-pressure hose from the high-pressure gun or the device when the system
is fully depressurised.
• Release the lever of the high-pressure gun
• Turn the power switch to“OFF”
• Disconnect the mains plug from the socket
Only separate the high-pressure hose from the high-pressure gun or the device when there is no
pressure in the system
TURN OFF TAP
• Press the lever of the high-pressure gun to release any remaining pressure in the system
• Release the lever of the high-pressure gun
• Lock the lever of the high-pressure gun

18
ATTENTION
• When disconnecting the supply or high-pressure hose, warm water may leak from the
connection after operation
• Detach the appliance from the water supply
TRANSPORTATION
CAUTION
Risk of personal injury or damage!
Mind the weight of the appliance during transport.
Transporting by hand
• Switch the product off and disconnect it from the water and power supply
• Pull out the transport handle until it audibly clicks into place. Attach transportation guards, if
applicable
• Pull the appliance by its transport handle
Transporting in vehicles
• Prior to horizontal transport: close the cap of clean detergent bottle
• Tilt the product towards you until it balances on the wheels. Then move it by its transportation
handle
• Protect the product from any heavy impact or strong vibrations which may occur during
transportation in vehicles
• Secure the appliance against shifting and tipping over
STORAGE
CAUTION
Risk of personal injury or damage!
Consider the weight of the appliance when storing it.
STORING THE APPLIANCE
• Park the machine on an even surface
• Detach spray lance from the high-pressure gun
• Push the disconnect button on the high-pressure gun and pull the high-pressure hose out of
the high-pressure gun
• Place the high-pressure gun into the storage part for the high-pressure gun
• Put both spray lances into the storage part for the spray lance
• Dirt grinder spray lance: Nozzle towards the bottom
• Coil the high-pressure hose and hang it over the hose storage
• Store the mains connection in the accessory compartment
• Prior to extended storage periods (such as during winter months) also observe the
instructions in the care section
• Always store the pressure cleaner, parts, and accessories in a place that is inaccessible to
children
• The ideal storage temperature is between 10 °C and 30 °C
OPERATING INSTRUCTIONS

19
Ewbank, 38 Bluestem Road, Ipswich, Suolk, IP3 9RR Tel. [phone]
• Store the power washer indoors to prevent the water in the unit from expanding under
freezing conditions
• We recommend using the original package for storage or covering the product with a
suitable cloth or enclosure to protect it against dust
FROST PROTECTION
ATTENTION
Appliance and accessories that are not completely drained can be destroyed by frost.
Completely drain appliance and accessories and protect them against frost. To avoid damage:
• Detach the appliance from the water supply
• Detach spray lance from the high-pressure gun
• Turn on the appliance “ON/OFF”
• Push the lever of the high-pressure gun until no more water is escaping
• Release the lever of the high-pressure gun
• Lock the lever of the high-pressure gun
• Turn off the appliance “ON/OFF”
• Store the appliance and the entire accessories in a frost-free room
OPERATING INSTRUCTIONS

20
CLEANING AND MAINTENANCE
CARE AND MAINTENANCE
DANGER
Risk of electric shock
Prior to all work on the appliance, switch off the appliance and pull the power plug.
High pressure hose
The high-pressure hose is specially constructed with reinforced walls it can be easily damaged
and should be stored carefully.
• Do not kink
• Do not drive vehicles over the hose
• Do not expose the hose to sharp edges or corners. Misuse will lead to ballooning or
premature failure and will invalidate warranty
Nozzle
• To disconnect a nozzle from the spray wand once the cleaning job is complete
• Do not expose the nozzle in corrosive liquid
Filter in the water connection
ATTENTION
• The filter must not be damaged
• Pull the filter out using flat pliers
• Clean the filter under running water
• Reinsert the filter into the water connection
Clean the filter in the water connection regularly.
• Remove coupling from the water connection, and rinse with warm water to prevent any
foreign matter from clogging the pump
• Clean the nozzle with the needle clean-out tool provided
• Remove the spray wand from the gun
• Remove any dirt from the nozzle hole and rinse
