Xtream p1415en User manual

operation manual

2

3
table of contents
Introduction
4 Using the Operators Manual
Product Identification
5 Pressure Washer
Safety
6 Understanding the Machine Safety Decal
7 Safety Rules
7 Hazard Symbols and Meanings
Washer Components
11 Component Chart
Operating Instructions
12 Operating instructions
Trouble Shooting
13 Trouble Shooting Chart
Storage
13 Storage

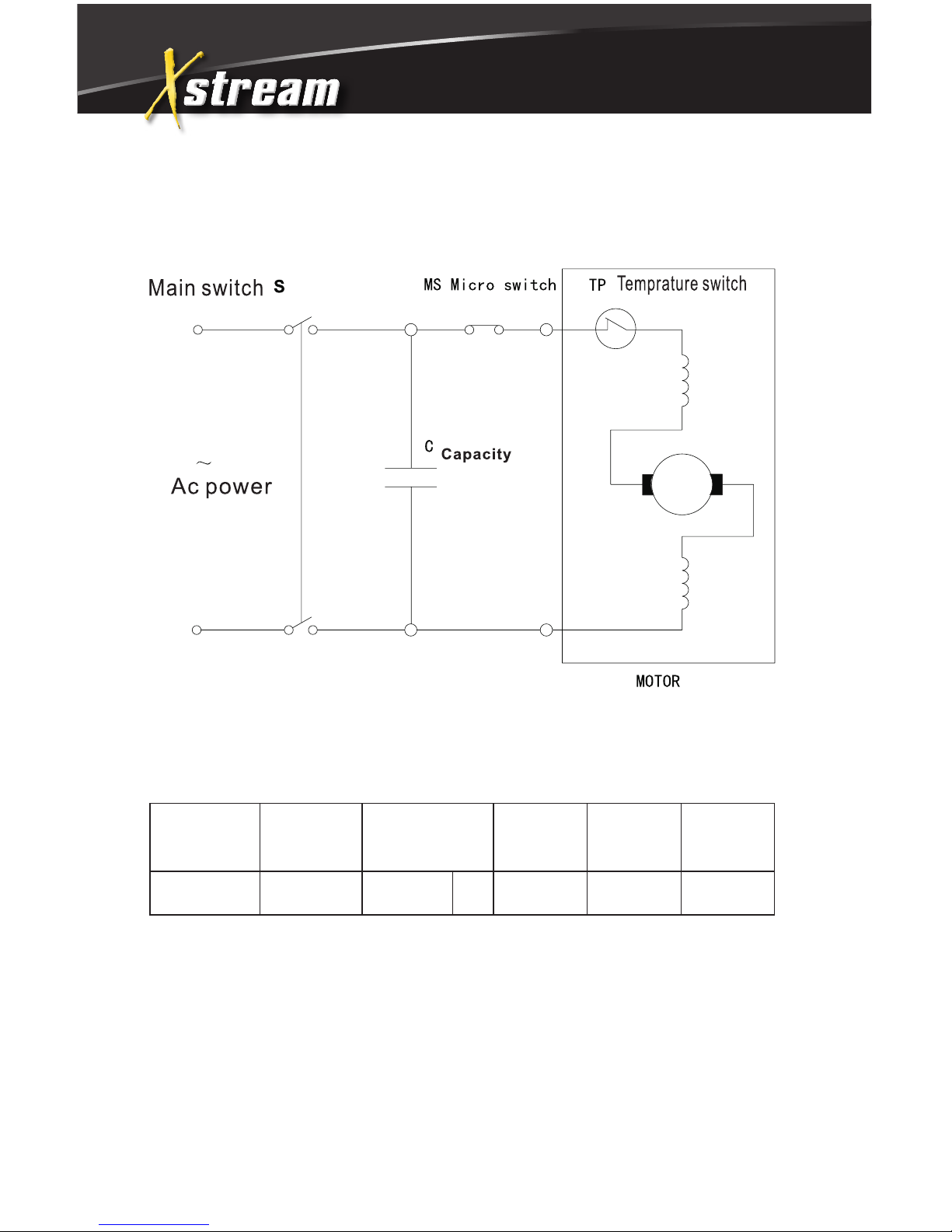

Electrical Diagram
14 Electrical Diagram
14 Techincal Data
Packing List
15 Packing List

4
Using the Operator’s manual
The operating manual is an important part of your pressure washer and
should be read thoroughly before initial use, and referred to often to make
sure adequate safety and service concerns are being addressed.
Reading the owner’s manual thoroughly will help avoid any personal injury
or damage to your machine. The information in this manual will offer you
the most effective tools for cleaning as well as the safest. By knowing
how best to operate this machine you will be better positioned to show
others who may also operate the unit.
Notice
Actual pressure released at the point of discharge may very by machine
due to varying factors including: Volume of water being fed to the ma-
chine by the water source, the inclusion of a Chemical injector in the line,
or variations in Engine performance
Attention: Read through the complete
manual prior to the initial use of your
pressure washer.
introduction

5
product identification
Record Identification Numbers
Pressure Washer
If you need to contact an Authorized Dealer or Customer Service line (1-
866-770-1711) for information on servicing, always provide the
product model and identification numbers.
You will need to locate the model and serial number for the machine and
record the information in the places provided below.
Date of Purchase:
Dealer Name:
Dealer Phone:
Product Identification Numbers
Model Number:
Serial Number:

6
Understanding the Machine Safety Labels
The machine safety label shown below is placed on your machine
to draw attention to potential safety hazards.
safety
Caution Gun kicks back - Hold with both hands.
Warning Risk of explosion - Do not spray flam-
mable liquid.
Caution To reduce risk of injury, read operating
instructions carefully before using.
Warning Risk of injection or injury to persons
or animals - Do not direct discharge stream at
persons or animals.
Store IndoorS, Cold water uSe only,
ConneCt to IndIvIdual branCh CIrCuIt only
mise en garde Le fusil rebondit - maintenir des
deux mains.
attention Risque d’explosion - Ne pas
vaporiser de liquide inflammable.
mise en garde Afin de réduire le risque de bles-
sures, lire attentivement les consignes d’utilisation.
attention Risque d’injection ou de blessures pour
les personnes et les animaux - Ne pas diriger le jet
vers les personnes ou les animaux.
entrepoSer à l’IntérIeur, utIlISer
unIquement de l’eau froIde, branCher
unIquement à un CIrCuIt de dérIvatIon.

7
The safety alert symbol ( ) is used with a signal word (DANGER,
CAUTION, WARNING), a pictorial and/or a safety message to alert
you to hazards.
DANGER indicates a hazard which, if not avoided, will result in death
or serious injury.
WARNING indicates a hazard which, if not avoided, could result in
death or serious injury.
CAUTION indicates a hazard which, if not avoided, might result in
minor or moderate injury.
NOTICE indicates a situation that could result in equipment damage.
Follow safety messages to avoid or reduce the risk of injury or
death.
Hazard Symbols and Meanings
Save these Instructions
Safety Rules
safety
This is the safety alert symbol. It is
used to alert you to potential personal
injury hazards. Obey all safety
messages that follow this symbol to
avoid possible injury or death.
explosion
kickback
fall fluid injection moving parts read manual
hot surface flying objects slippery
fire electric shock toxic fumes

8
safety
WARNING
Use of pressure washer can create puddles and
slippery surfaces.
Kickback from spray gun can cause you to fall.
• Operate pressure washer from a stable surface.
• The cleaning area should have adequate slopes and drainage to
reduce the possibility of a fall due to slippery surfaces.
• Be extremely careful if you must use the pressure washer from a
ladder, scaffolding, or any other similar location.
• Firmly grasp spray gun with both hands when using high pressure
spray to avoid injury when spray gun kicks back.
WARNING
The high pressure stream of water that this equipment
produces can cut through skin and its underlying
tissues, leading to serious injury and possible
amputation.
Spray gun traps high water pressure, even when engine
is stopped and water is disconnected, which can cause
injury.
• DO NOT allow CHILDREN to operate pressure washer.
• NEVER repair high pressure hose. Replace it.
• NEVER repair leaking connections with sealant of any kind. Replace
o-ring or seal.
• NEVER connect high pressure hose to nozzle extension.
• Keep high pressure hose connected to pump and spray gun while
system is pressurized.
• ALWAYS point spray gun in safe direction and squeeze spray gun
trigger, to release high pressure, every time you stop engine.
• NEVER aim spray gun at people, animals, or plants.
• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is running.
• NEVER use a spray gun which does not have a trigger lock or trigger
guard in place and in working order.
• Always be certain spray gun, nozzles and accessories are correctly
attached.

9
safety
WARNING
Risk of electrocution.
Contact with power source can cause electric shock
or burn.
• NEVER spray near power source.
• NEVER use the pressure washer in the rain.
• Use only extension cords that are intended for outdoor use and the
socket must be watertight.
WARNING
Starter and other rotating parts can entangle hands,
hair, clothing, or accessories.
• NEVER operate pressure washer without protective housing or
covers.
• DO NOT wear loose clothing, jewelry or anything that may be caught
in the starter or other rotating parts.
• Tie up long hair and remove jewelry.
WARNING
Risk of eye injury.
Spray can splash back or propel objects.
• Always wear safety goggles when using this equipment or in vicinity
of where equipment is in use.
• Before starting the pressure washer, be sure you are wearing
adequate safety goggles.
• NEVER substitute safety glasses for safety goggles.
NOTICE
High pressure spray may damage fragile items including glass.
• DO NOT point spray gun at glass when using red 0° spray tip.
• NEVER aim spray gun at plants.

10
safety
NOTICE
Improper treatment of pressure washer can damage it and shorten its
life.
• If you have questions about intended use, ask dealer or contact
nearest authorized dealer.
• NEVER operate units with broken or missing parts, or without
protective housing or covers.
• DO NOT by-pass any safety device on this machine.
• DO NOT operate pressure washer above rated pressure.
• DO NOT modify pressure washer in any way.
• Before starting pressure washer in cold weather, check all parts of
the equipment to be sure ice has not formed there.
• NEVER move machine by pulling on hoses. Use handle provided on
unit.
• Correct all defects before operating pressure washer.
• Use clean water and neutral detergent only.
• The rating voltage (V/Hz) of the appliance has to be in compliance
with the local power supplying voltage.
• Only a professional electrician should reconnect or change plug or
wire.
• Do not pluck the wire.
• Keep the wire away from heat and sharp edges.
• If the pressure washer stops working, immediately turn the power off.
• Make sure to turn the power switch to off before unplugging the
power cord.
• Only use spare parts from the manufacturer.
WARNING
• Stay alert and attentive.
• Do not use when fatigued or under the influence of alcohol or drugs.
• Pressure washer must be in upright position during use.

11

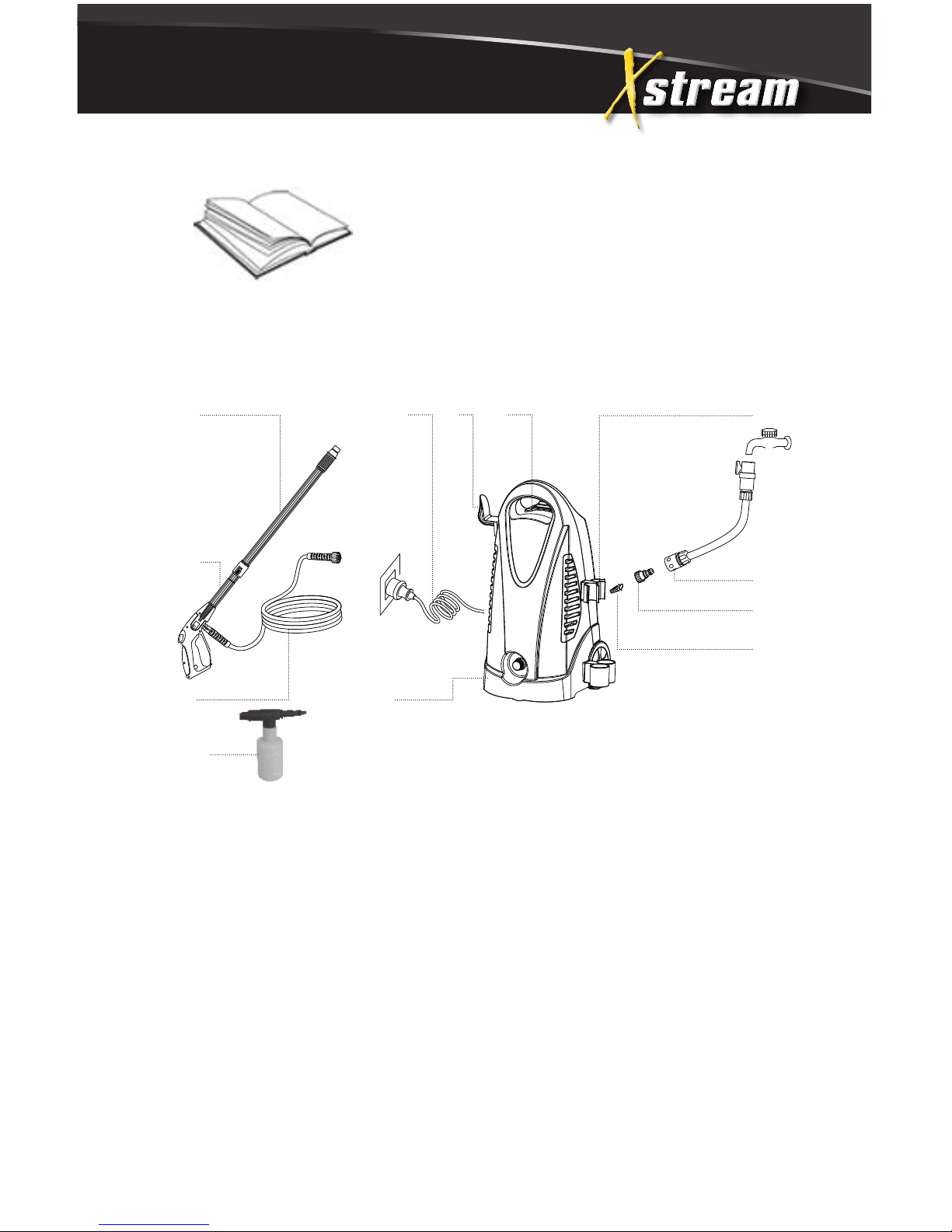

washer components
Read this operator’s manual and safety
rules before operating your pressure
washer.
1. Spray Lance
2. Gun Handle
3. High Pressure Hose
4. Cable Hook
5. Cable
6. Main body
7. Power Switch
1.
2.
12.
6.
9.
10.
11.
8.7.4.5.
3.
8. Gun Hook
9. Water Input Filter
10. Water Input Screw
11. Water Input Hose
12. Soap Bottle (optional)

12
operating instructions
Operating Instructions
1. Connect the nozzle onto the spray lance.
2. Connect the water supply hose. Check that the hose has no kinks in it.
3. Connect the spray gun onto the outlet hose.
4. Connect the spray gun onto the main body of the washer.
5. Check gauze filter is clear of any blockage.
6. Add scour for more effective cleaning.
7. Lay down the washer and connect it to the water supply. (Be sure that
there’s no leak and the water supply is clear and constant).
8. Plug in the power cord and turn the power switch to “ON”.
9. Be sure that the switch on the trigger is opened (lock the switch on
the trigger when not using it, see item 32 on the adjustable spray
nozzle parts diagram). Press the trigger to allow air to be expelled
through the pump and hoses. (Be sure that the spray gun should be
shut down less than 3 minutes when working).

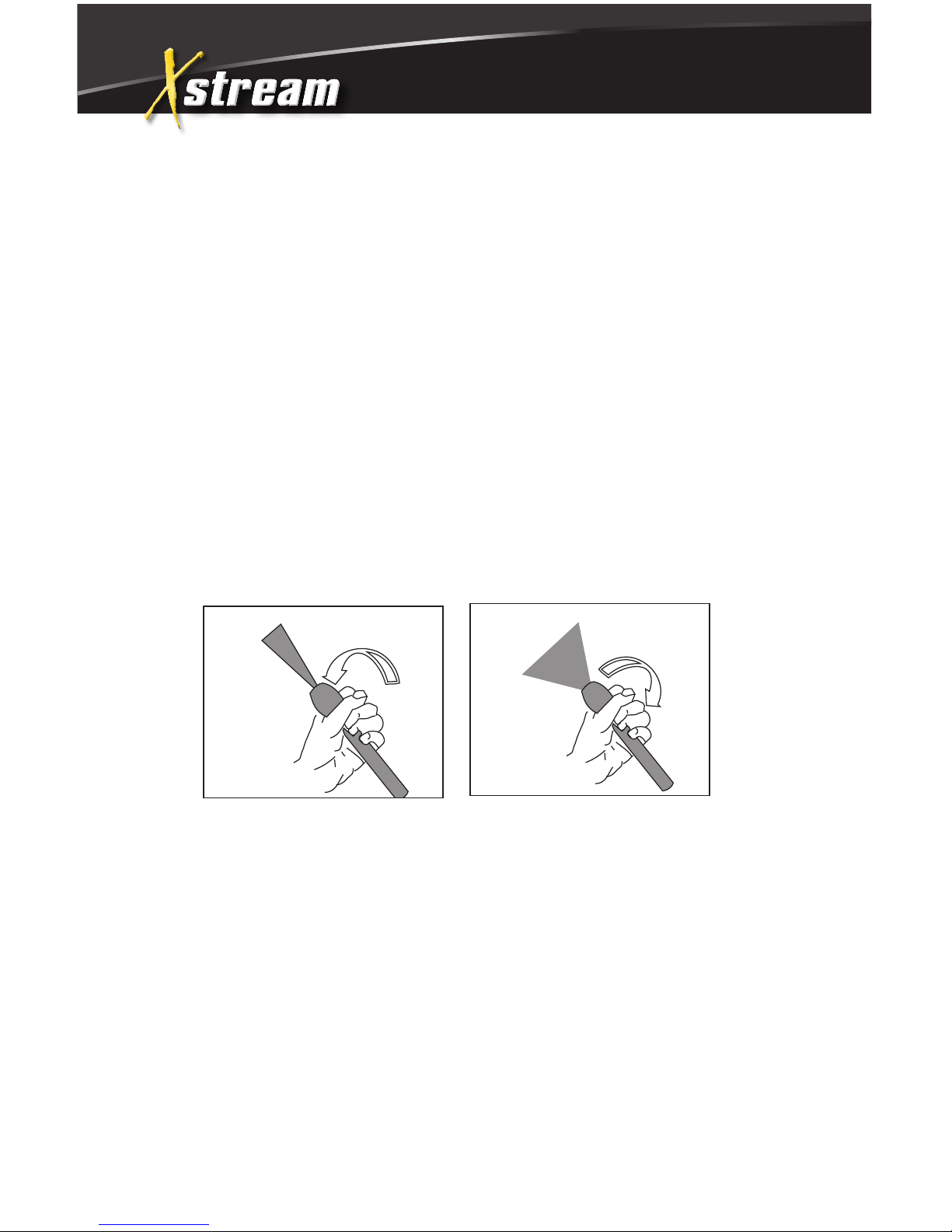

10. Turn on water and check for leaks (see picture 1 & 2).
11. After using, turn off the switch and unplug the power cord.
Picture 1 Picture 2

13
Troubleshooting Chart
If you are experiencing a problem that is not listed in this chart, or have
checked all the possible cause listed and you are still experiencing the
problem, see your authorized dealer.
troubleshooting & storage
Problem Cause Correction
When switched on, the
machine will not start
working.
1. Plug is not well connected or electric socket
is faulty.
2. The main voltage is insufficient, lower than
minimum requirement.
1. Check plug, socket and fuses.
2. Check that the main voltage is adequate.
The motor stops
suddenly.
1. Thermal safety switch is tripped due to
overheating.
1. Check that the main voltage corresponds
to specifications. Switch off the unit and let
it cool for a few minutes.
Fluctuating pressure. 1. Pump sucking air.
2. Valves are dirty, worn or stuck.
3. Pump seals worn out.
1. Check that hoses and connections are
airtight.
2. Clean and replace or call dealer.
3. Clean and replace or call dealer.
The pump doesn’t reach
the necessary pressure.
1. Water inlet filter is clogged.
2. Pump sucking air from connections or
hoses.
3. Suction/delivery valves are clogged or
worn out.
4. Lance nozzle incorrect or worn out.
1. Clean the water inlet filter.
2. Check that all the supply connections are
tight.
3. Check that the water feeding hose is not
leaking. Clear or replace valves.
4. Loosen and retighten regulation screw.
Check and replace.
Water leaking from the
pump.
1. Seals worn out. 1. Check and replace or call dealer.
Storage
The temperature range for using this machine is 0ºC - 60ºC .
This machine must be stored in a frost free environment.
NOTICE
You must protect your unit from freezing temperatures.
• Failure to do so will permanently damage your pump and render your
unit inoperable.
• Freeze damage is not covered under warranty.

14
electrical diagram
Electrical Diagram
Techincal Data
Model Motor
Capacity
Power Supply
Voltage
Electrical
Current
Rated Max.
Pressure
Water Flow
(W) (V) (Hz) (A) (PSI) (GPM)
P1415EN 1100 120
(100-120)
60 13 1400 1.3

15
Packing List
packing list
Part Quantity
Main body 1
Gun Handle 1
Spray Lance 1
High Pressure Hose 1
Pin 1
Cable Hook 1
Gun Hook (up) 1
Water input screw 1
Gun Hook (down) 1
Filter 1
Instructions 1

If you need assistance with the
assembly or operation of this Pressure
Washer please call 1-866-770-
1711

Si vous avez besoin d’assistance avec
l’assemblage ou l’opération de cette
Nettoyeur à pression, s’il vous plait
appelez le
1-866-770-1711

15
Liste de colisage
liste de colisage
Pièces Quantité
Corps principal 1
Poignée du fusil 1
Lance de pulvérisation 1
Tuyau à haute pression 1
Broche 1
Crochet de câble 1
Crochet de pistolet 1
Filtre d’admission d’eau 1
Crochet de pistolet 1
Filtrer 1
Consignes 1

14
schéma électrique
Schéma électrique
Données techniques
Model Capacité
du moteur
Tension d’alimentation
électrique
Courant
électrique
Pression
NominalMax.
Débit d’eau
(W) (V) (Hz) (A) (PSI) (GPM)
P1415EN 1100 120
(100-120)
60 13 1400 1.3
Commutateur principal SMSMicrocommutateur TPDonnées techniques
CCapacité
Courant CA
Moteur
~

13
dépannage & entreposage
Problème Causes Solution
Si le commutateur reste
ouvert, l’appareil ne se
mettra pas en marche
ultérieurement.
1. La fiche n’est pas bien branchée ou la prise
électrique est défectueuse.
2. La tension du secteur est insuffisante, plus
basse que la norme requise.
1. Vérifier la fiche, la prise et les fusibles.
2. S’assurer que la tension du secteur est
adéquate.
Le moteur s’arrête
brusquement.
1. L’interrupteur de sécurité thermique est
déclenché en raison d’une surchauffe.
1. S’assurer que la tension du secteur corre
spond aux spécifications. Mettre l’appareil
hors tension et laisser refroidir quelques
minutes.
Pression fluctuante. 1. La pompe aspire l’air.
2. Les soupapes sont sales, usées ou
obstruées.
3. Les joints de la pompe sont usés.
1. S’assurer que les tuyaux et les connexions
sont étanches.
2. Nettoyer et remplacer ou appeler le
concessionnaire.
3. Nettoyer et remplacer ou appeler le
concessionnaire.
La pompe n’atteint pas la
pression nécessaire.
1. Le filtre d’admission d’eau est obstrué.
2. La pompe aspire de l’air à travers les con
nexions ou les tuyaux.
3. Les soupapes d’aspiration/de distribution
sont obstruées ou usées.
4. La buse de la lance est incorrecte ou usée .
1. Nettoyer le filtre d’admission d’eau.
2. Vérifier que tous les raccords d’alimentation
sont serrés.
3. S’assurer que le tuyau d’alimentation en
eau ne présente pas de fuite. Dégager ou
remplacer les soupapes.
4. Relâcher et resserrer la vis de régulation.
Vérifier et remplacer.
De l’eau s’écoule de la
pompe.
1. Les joints sont usés. 1. Vérifie et remplacer ou appeler le
concessionnaire.
Entreposage
La température d’utilisation de cet appareil se situe entre 0 °C et 60 °C.
Cet appareil doit être entreposé dans un environnement protégé du gel.
AVIS
Vous devez protéger votre appareil du gel.
• Ne pas le faire causera des dommages permanents à votre pompe et
rendra votre appareil non fonctionnel.
• Les dommages provoqués par le gel ne sont pas couverts par la
garantie
Dépannage
Si vous éprouver un problème qui ne se trouve pas dans la liste ci-des-
sous, ou que vous avez fait la vérification de toutes les causes possible
et que vous éprouvez toujours un problème, veuillez contacter votre
détaillant autorisé.
