Promaker PRO-H1800 User manual

High Pressure Washer
User’s Manual
Model No.: PRO-H1800

2
SAVE THESE INSTRUCTIONS
Please read and comply with these original instructions prior to
the initial operation of your appliance and store them for later use or
subsequent owners.
Apart from the notes contained herein the general safety provisions
and rules for the prevention of accidents of the legislator must be
observed.
Warnings and notes that are attached on the appliance provide
important notes for the safe operation.
DANGER
Pointer to immediate danger, if not avoided, which leads to severe
injuries or death.
WARNING
Pointer to a possibly dangerous situation, if not avoided, which can
lead to severe injuries or death.
CAUTION
Pointer to a possibly dangerous situation, if not avoided, which can
lead to minor injuries.
ATTENTION
Pointer to a possibly dangerous situation, which can lead to property
damage.
DANGER
Risk of electric shock.
IMPORTANT SAFETY INSTRUCTIONS
Hazard levels
Electric components

3
Never touch the mains plug and the socket with wet hands.
Check the power cord with mains Plug for damage prior to every
use. Do not use the machine if a supply cord or important parts of
the machine are damaged, e.g. safety devices, high pressure hoses,
trigger gun.
All current-conducting parts in the working area must be protected
against jet water.
The mains plug and the coupling of an extension cable must be
watertight and must never lie in water. Moreover, the coupling may
never lie on the ground. The use of cable reels that ensure that the
sockets are at least 60 mm above the ground is commended.
Make sure that the power cord or extension cable is not damaged by
running over, pinching, dragging or the like. Protect the power cords
from heat, oil, and sharp edges.
Always switch off the mains disconnecting switch when leaving the
appliance unattended.
WARNING
The appliance may only be connected to an electric supply that has
been installed by an electrician in accordance with IEC 60364.
The appliance may only be connected to alternate current. The voltage
must correspond with the type plate of the appliance.
For safety reasons, we recommend that you operate the appliance
only via a residual current device (max. 30mA).
An unsuitable electrical extension cable can be hazardous. Only use
an electrical extension cable which has been approved and labeled for
this purpose and has an adequate cable cross-section outdoors: 1 - 10
m: 1.5 mm2;10 - 30 m: 2.5 mm2
Always fully unreel the extension cable from the cable drum.
An unsuitable electrical extension cable can be hazardous.

4
DANGER
The user must be the appliance as intended. The person must
consider the local conditions and must pay attention to other persons
in the vicinity when working with the appliance.
Check important components, such as high pressure hose, hand
spray gun and safety installations, for damage prior to every operation.
Immediately replace damaged components. Do not operate appliance
with damaged components.
The appliance has been designed for use with the cleaning agent
supplied or recommended by the manufacturer. The use of the other
cleaning agents or chemicals may adversely affect the safety of the
appliance.
High-pressure jets can be dangerous if subject to misuse. The jet must
not be directed at persons, live electrical equipment or the machine
itself.
Do not direct the jet against yourself or others in order to clean clothes
or foot-wear.
Do not use the appliance within range of persons unless they wear
protective clothing.
Wear appropriate Personnel Protection Equipment (PPE) while
operating the appliance.
Do not direct the jet against yourself or others in order to clean clothes
or foot-wear.
WARNING
The appliance must not be operated by children or untrained
personnel.
This appliance is not intended for use by persons(including children)
with reduced physical, sensory or mental capacities, or lacking
experience and knowledge.
Safe handling

5
Children must not play with this appliance.
Supervise children to prevent them from playing with the appliance.
Create stability for the appliance prior to any work on or with the
appliance to prevent accidents damage.
The water jet that is emitted from the high pressure nozzle results in
a repulsion power acting on the hand spray gun. Make sure that you
have a rm footing and are also holding the hand spray gun and spray
lance rmly.
Never leave the appliance unattended as long as it is in operation.
ATTENTION
In case of extended breaks, switch the appliance off at the main switch
or pull the mains plug.
Do not operate the appliance at temperatures below 0ºC.
DANGER
The appliance may not be operate in explosive atmospheres.
Risk of explosion-Do not spray ammable liquids.
Never draw in uids containing solvents or undiluted acids and
solvents! This includes petrol, paint thinner and heating oil. The spray
mist is highly inammable, explosive and poisonous. Do not use
acetone, undiluted acids and solvents, as they corrode the materials
used on the appliance.
Never use the product with inammable or toxic liquids, or liquids with
characteristics incompatible with its proper operation.
Keep packaging lms away from children, there is a risk of suffocation!
Other risks

6
WARNING
According to applicable regulations , the appliance must never be
used on the drinking water net without a system separator. Ensure
that the connection of your building water installation on which the
high pressure cleaner is operated is equipped with a system separator
pursuant.
Water that has own through backow preventers is considered to be
non-potable.
High-pressure hoses, ttings and couplings are important for the
safety of the appliance. Only use high-pressure hoses, ttings and
couplings recommended by the manufacturer.
To ensure applicable safety, use only original spare parts from the
manufacturer or approved by the manufacturer.
Switch the product off and disconnect it from the power supply
removing the power plug from the socket outlet before assembly,
cleaning ,adjustments, maintenance, storage and transportation or
converting the product to another function.
CAUTION
Mind the weight of the appliance when selecting the storage location
and during transport to prevent accidents or injuries.
Several hours of continuous use of the appliance can lead to
numbness in the hands in rare cases.
• Wear gloves.
• Keep hands warm.
• Take breaks at regular intervals. Working with detergent.
WARNING
The improper use of detergents can cause severe injuries or oxidation.
Store cleaning agent away from the reach of children.
Discharge residual pressure before disconnecting the hose from the
product.

7
Check before each use, and at regular intervals, that all metal
fasteners are tight and the product’s components are in good
condition; inspect for broken or worn parts.
Be aware of kick-back: Hold With Both Hands.
SERVICING OF A DOUBLE-INSULATED APPLIANCE
In a double-insulated product, two systems of insulation are provided
instead of grounding. Grounding means are not provided for a double-
insulated product, nor should grounding means be added to the
product. Servicing a double-insulated product requires extreme care
and knowledge of the system, and should only be done by qualied
service personnel. Replacement parts for a double-insulated product
must be identical to the original parts. A double-insulated product is
marked with the words “Double Insulation” or “Double Insulated”.
Even if you are operating this product in accordance with all the
safety requirements, potential risks of injury and damage remain.
The following dangers can arise in connection with the structure and
design of this product:
Health defects resulting from vibration emission if the product is
being used over long periods of time or not adequately managed and
properly maintained.
Danger of injury and property damage caused by ying objects.
Injuries and damage to property due to broken accessories or the
sudden impact of hidden objects during use.
CAUTION
Safety installations serve the protection of the user and may not be
modied or by past.
Residual Risks
Safety devices

8
The appliance switch prevents unintentional operation of the
appliance.
This lock locks the lever of the trigger gun and prevents the inadvertent
start of the appliance. Overow valve with.
Water that has owed through backow preventers is considered to be
non-potable.
If the lever on the trigger gun is released the pressure switch turns off
the pump, the high pressure jet is stopped. If the lever is pulled the
pump is turned on again.
The motor protection switch off the device if the power consumption is
high.
CAUTION
Wear protective clothing and safety goggles to protect against splash
back containing water or dirt.
During the use of high-pressure cleaners aerosols can develop.
Inhaling aerosols can cause health damage.
- Depending on the application, completely shielded nozzles(e.g.
surface cleaner)that signicantly reduce the emission of aqueous
aerosols can be used for high-pressure cleaning.
- The use of such shielding is not possible with all applications.
Power switch
Lock trigger gun
Pressure switch
Motor protection switch
Personal protective equipment

9
The high pressure jet must not be directed at persons,
animals, live electrical equipment or at the appliance
itself.
The appliance must not be directly connected to the public
drinking water network.
For protection against injury, wear ear defenders and safety
goggles.
Wear safety gloves during use to protect hands.
Wear non-slip footwear that will protect your feet and improve
your footing on slippery surfaces.
Sound power level is 92dB(A).
Use this pressure washer for private households only:
If connection is made to a potable water system, the system shall be
protected against backow.
This high pressure cleaner is designated with a rated input current.
The intended use of this product covers the cleaning of vehicles,
buildings, terraces, facades and garden equipment using clean water
and biodegradable chemical detergents. Likewise the product can be
used to clean paving slabs or rain gutters.
This product may not be used to clean clothing, shoes and other
textiles. The water jet should not be directed against persons. Animals,
Symbols on the machine
PROPER USE

10
any electrical equipment or on the product itself. Do not ush any
objects which contain health hazardous materials. The product must
not be run with inammable, explosive and toxic liquids.
For safety reasons it is essential to read the entire instruction manual
before rst operation and to observe all the instructions there in.

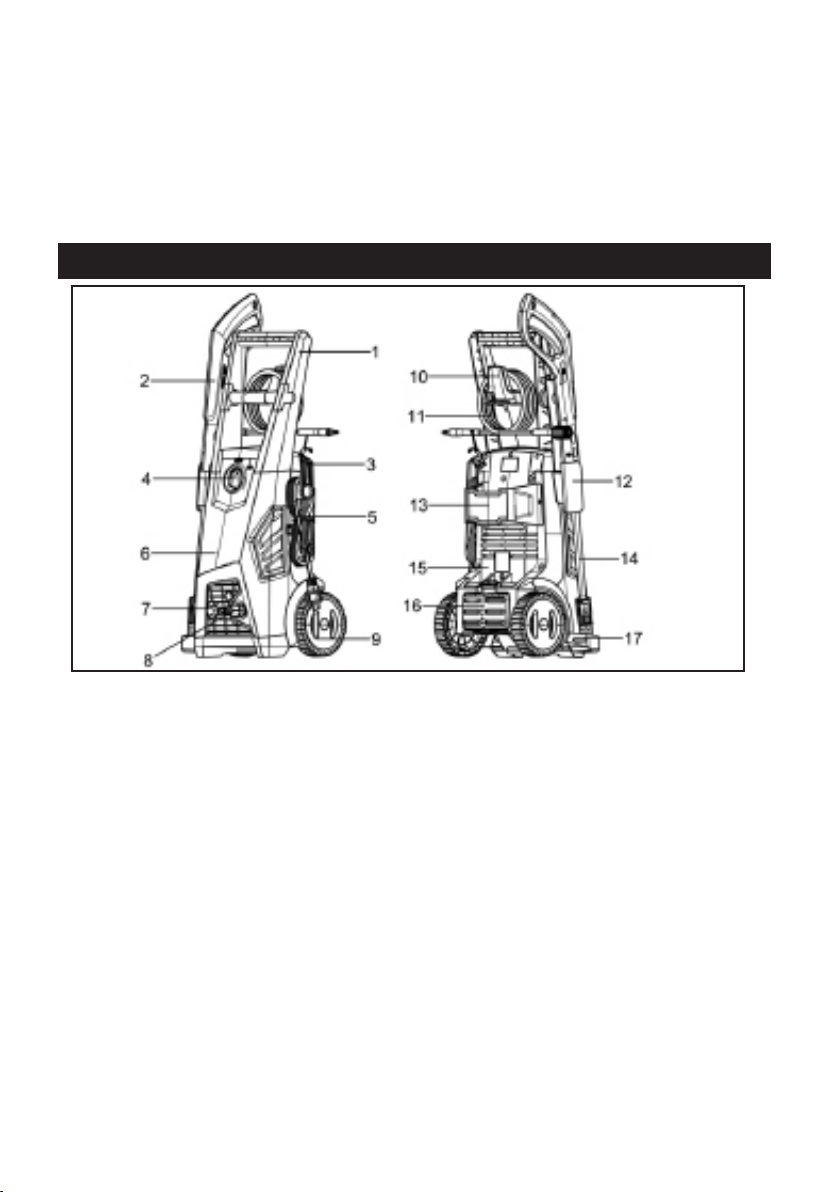

1. Handle
2.Trigger gun
3. Power cord hook
4. Adjust switch OFF/ON
5. Power cord
6. Front case
7. Water outlet
8. Water inlet
9. Wheel
10. High-pressure hose hook
11. High-pressure hose
12. Trigger gun holder
13. Rating label
14. Spray wand
15.Rear case
16. Detergent bottle
17. Trigger gun protector
DESCRIPTION OF THE APPLIANCE

11
Mount loose parts delivered with appliance prior to start-up.
1. Installing the handle with two screws
ASSEMBLY
Voltage 120V ~
Frequency 60Hz
Watt 1800W
Protection Class II
Degree of protection IPX5
Rated pressure 10MPa
Max. pressure 14MPa
Rated ow 6.7/min
Max. ow 7.8l/min
Max. inlet pressure: 0.7Mp
Sound pressure level:
Uncertainty:
LpA=77 dB(A)
KPA=3dB
Sound power level:
Uncertainty: LwA=92dB (A)
Vibration value αh=5.9m/s2
Kαh=1.5m/s2
G.W/N.W (kg) 10.60/8.80
TECHNICAL SPECIFICATIONS

12
2. Installing the High-pressure hose hook
3. Slide the trigger gun holder into position of unit left
4. Installing the trigger gun protector

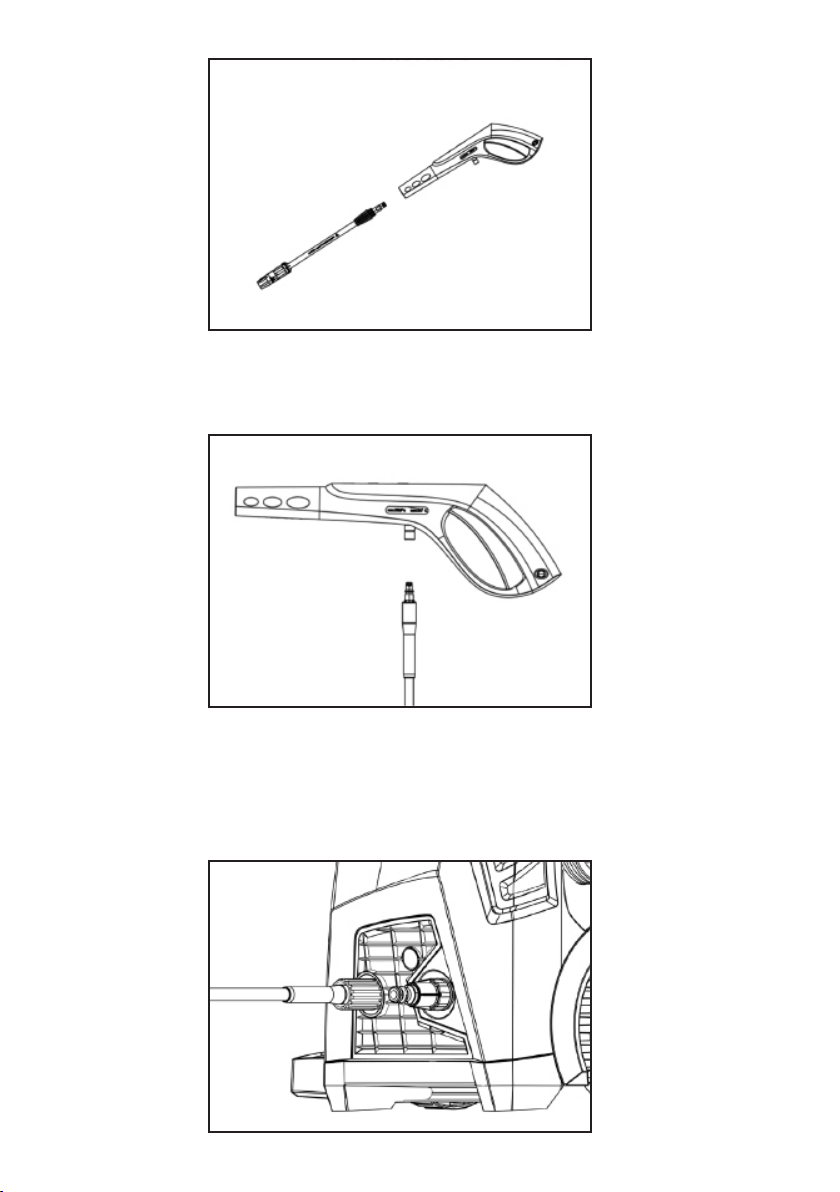

5. Installing the spray wand
• Fit the spray wand into the gun and rotate it until the two parts are
completely locked.

13
6. Connect the high-pressure hose to the trigger gun
• Connect the sliver end of the high-pressure hose to the trigger gun
and twist the nut as indicated to secure the connection.
7. Connect the high-pressure hose to the water outlet
• Connect the other end of the high-pressure hose to the water outlet
on the washer and twist the black rotatable end-piece as indicated to
secure the connection.

14
Park the appliance on an even surface.
Insert the mains plug into the socket.
Water supply
For connection values, see type plate.
ATTENTION
Impurities in the water can damage the high-pressure pump and the
accessories.
Water supply from mains.
Drawing in water from the open reservoirs.
This high-pressure cleaner is suited to work with the YILI suction hose
with backow vale to draw in surface water, e.g. from water butts or
ponds.
Fill the suction hose with water.
Screw the suction hose into the water connection of the appliance and
insert it into the water source (e.g. rainwater drum).
Bleed the device as follows prior to operation:
• Turn on the appliance “OFF/ON”
• Unlock the lever of the trigger gun.
• Push the lever of the trigger gun, the device will switch on.
• Let the device run (max. 2 minutes) until the water exits the
trigger gun without bubbles.
• Release the lever of the trigger gun.
• Lock the lever of the trigger gun.
ATTENTION
Dry running of more than 2 minutes leads to damage of the high-
START UP
OPERATION

15
pressure pump. If the appliance does not build up pressure within 2
minutes, switch the appliance off and proceed in accordance with the
instructions in Chapter “Troubleshooting”.
CAUTION
Keep a distance of at least 30 cm when using the jet for cleaning
painted surfaces to avoid damage.
CAUTION
Make sure the on/off switch is set to “OFF/O” and insert the plug into a
properly installed socket.
ATTENTION
• The washer must be used on a secure and stable surface in a
standing, upright position.
Connect the product to power and water supply as described.
• Open the water supply
• Hold the spray gun with both hands.
• Direct the nozzle of the chosen accessory away from you towards
the surface to be cleaned.
• Unlock the trigger and press it until a constant amount of water
ows through the nozzle, to allow air trapped in the hose to
escape.
• Release the trigger.
• Turn on the switch “OFF/ON”.
High pressure operation

16
• Hold the spray gun with both hands. Direct the water jet to the
object to be cleaned and press the trigger.
Release the lever of the trigger gun; the device will switch off again and
stop the water jet. High pressure remains in the system.
WARNING! Beware of kickback when pressing the trigger!
Detergent can only be added when the device is operated in low
pressure mode.
DANGER
When using detergents, the material data safety sheet issued by the
detergent manufacturer must be adhered, especially the instructions
regarding personal protective equipment.
Remove the cap of the clean detergent bottle. Gently pull the onboard
detergent tank out of its storage position.
Fill the tank with detergent designed specically for use with pressure
washers.
Push the detergent bottle with the opening pointing downwards into the
connection for the hose clean detergent.
Operation with detergent

17
• Spray the detergent sparingly on the dry surface and allow it to
react, but not to dry.
• Spray off loosened dirt with the high pressure Met.
• Remove the hose clean detergent bottle from the intake and
close it with the lid.
• For storage, put the detergent bottle into the retainer with the cap
pointing up.
• Release the lever of the trigger gun.
• Lock the lever of the trigger gun.
• Put the trigger gun with the spray lance into the parking position.
• During longer breaks(more than 5 minutes), also turn the
appliance off using the “OFF/ON” switch.
• Release the lever of the trigger gun.
• Turn off the appliance “ OFF/ON”.
• Disconnect the mains plug from the socket.
Only separate the high-pressure hose from the trigger gun or the
device when there is no pressure in the system.
TURN OFF TAP
• Pressure the lever of the trigger gun to release any remaining
pressure in the system.
• Release the lever of the trigger gun.
• Lock the lever of the trigger gun.
ATTENTION
• When disconnecting the supply or high pressure hose, warm
Recommended cleaning method
After operation with detergent
Interrupting operation
Finish operation

18
water may leak from the connection after operation.
• Detach the appliance from the water supply.
CAUTION
Risk of personal injury or damage!
Mind the weight of the appliance during transport.
• Switch the product off and disconnect it from the water and power
supply.
• Pull out the transport handle until it audibly snaps into place.
Attach transportation guards, if applicable.
• Pull the appliance by its transport handle.
• Prior to horizontal transport: close the cap of clean detergent
bottle.
• Tilt the product towards you until it balances on the wheels. Then
move it by its transportation handle.
• Protect the product from any heavy impact or strong vibrations
which may occur during transportation in vehicles.
• Secure the appliance against shifting and tipping over.
CAUTION
Risk of personal injury or damage!
Consider the weight of the appliance when storing it.
TRANSPORTATION
When transporting by hand
When transporting in vehicles
STORAGE

19
• Park the machine on an even surface.
• Detach spray lance from the trigger gun.
• Push the disconnect button on the trigger gun and pull the high-
pressure hose out of the trigger gun.
• Place the trigger gun into the storage for the trigger gun.
• Put both spray lances into the storage for the spray lance.
• Dirt grinder spray lance: Nozzle towards the bottom.
• Coil the high-pressure hose and hang it over the hose storage.
• Store the mains connection in the accessory compartment.
• Prior to extended storage periods, as during the winter, also
observe the instructions in the care section.
• Always store the pressure cleaner, parts, and accessories
in a place that is inaccessible to children. The ideal storage
temperature is between 10 °C and 30 °C. Store the power washer
indoors to prevent the water in the unit from expanding under
freezing conditions.
• We recommend using the original package for storage or
covering the product with a suitable cloth or enclosure to protect it
against dust.
ATTENTION
Appliance and accessories that are not completely drained can be
destroyed by frost.
Completely drain appliance and accessories and protect them against
frost. To avoid damage:
• Detach the appliance from the water supply.
• Detach spray lance from the trigger gun.
• Turn on the appliance “ON/OFF”.
• Push the lever of the trigger gun until no more water is escaping .
• Release the lever of the trigger gun.
• Lock the lever of the trigger gun.
• Turn off the appliance “ON/OFF”.
• Store the appliance and the entire accessories in a frost free
room.
Storing the appliance
Frost protection

20
DANGER
Risk of electric shock.
Prior to all work on the appliance, switch off the appliance and pull the
power plug.
The high pressure hose is specially constructed with reinforced walls it
can be easily damaged and should be stored carefully.
• Do not kink.
• Do not drive vehicles over the hose.
• Do not expose the hose to sharp edges or corners. Misuse will
lead to ballooning or premature failure and will invalidate warranty.
Clean the sieve in the water connection regularly.
Remove coupling from the water connection, and rinse with warm
water to prevent any foreign matter from clogging the pump.
CARE AND MAINTENANCE
High pressure hose
Clean the sieve in the water connection
