CS-BB-FUGAC200A-1
Model Number:
PRODUCT AND INSTALLATION MANUAL
Point of Entry 2 Stage
Cartridge Filtration
ALL FILTRATION PRODUCT PROUDLY MADE & ASSEMBLED IN THE USA
Revised 4/17
Retain this Product & Installation Manual for Maintenance and Information
Please Register this Product - It is a Requirement for Warranty
EWS, Inc./Environmental Water Systems
ofce. 702.256.8182
Monday - Friday, 8:30 am - 4:30 pm Pacic Standard Time
fax. [phone]
www.ewswater.com
e-mail. [e-mail]

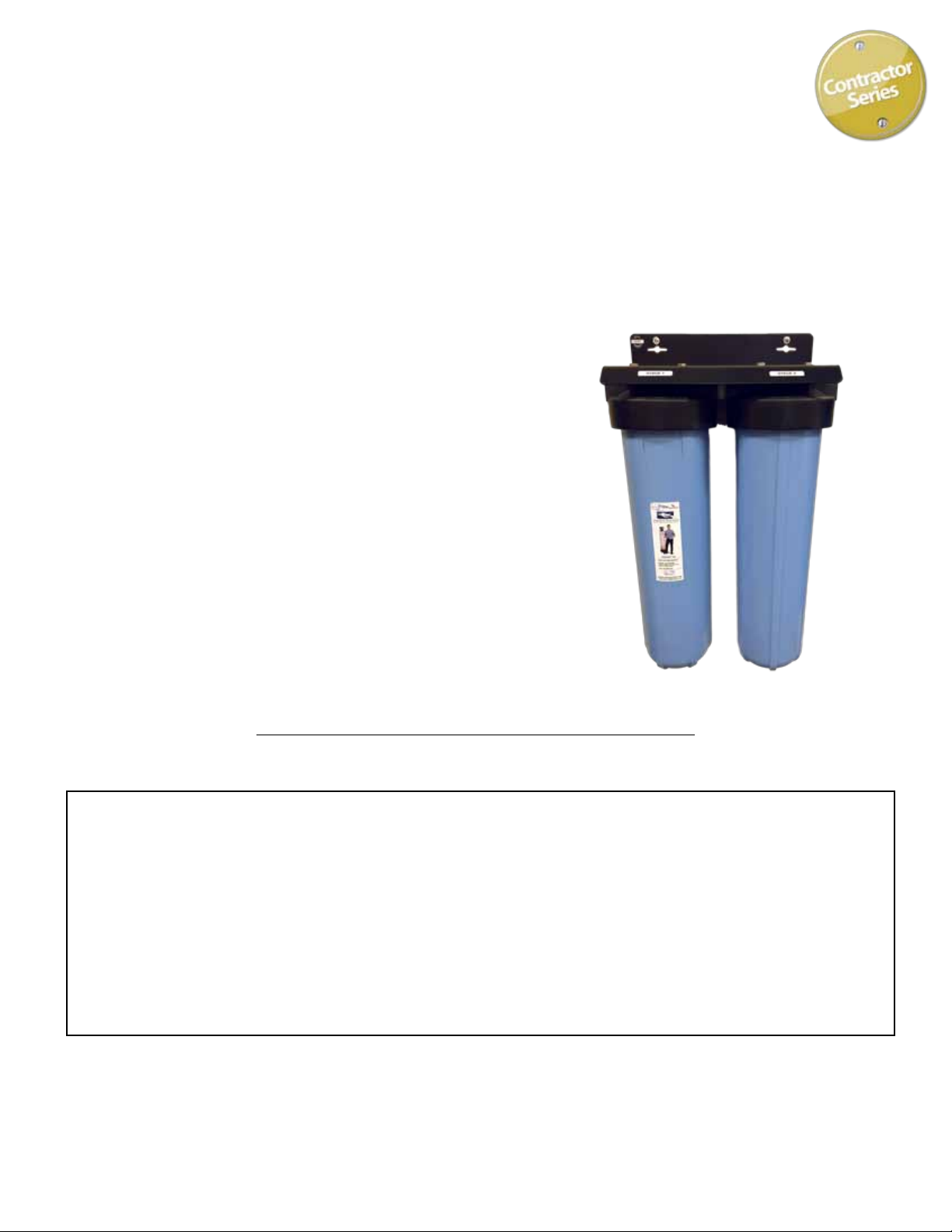

Picture for Illustration Purposes Only:
Model may have white or black brackets

www.ewswater.com O: 702.256.8182; M-F 8:30am-4:30pm PST E: [e-mail]
Technical Information: CS-BB-FUGAC200A-1
Point of entry cartridge ltration unit contains a string wound pre-sediment lter which prevents premature clogging
and a Radial Flow Carbon post-lter. For the initial budget conscious consumer looking for the benets of water
ltration throughout the home with yearly lter replacements**.
Improves taste, clarity and odor by removing chlorine and other volatile organic compounds. The 50 micron pre-
sediment lter serves to remove suspended matter, dirt, rust and sediment and improves performance of the post-
lter. Meets or complies with NSF Standard 42 and 61.
* Powder Coated, Corrosion Resistant Bracket Mounts Easily
* 20” Heavy Duty Housings Contain our Full Sized, Full Bed
Depth Cartridges for Optimum Performance and Longer Life
* Replacing Filters is Easy; Use the Included Spanner Wrench
to Spin Housings Off and On.
Benets:
* Improves Taste, Clarity and Odors
* Removes Chlorine and VOC’s
* Reduces Dirt, Silt, Sediment and Rust
* Replaces Costly Bottled Water
* Better Tasting, Quality, Filtered Water for Coffee,
Tea, Juices and Ice
* Quality Water Throughout the Home
Applications:
* Installs Easily at any Point of Entry Location
* For All Your Needs - Drinking and Cooking, Showering
and Bathing, Skin Absorption and Inhalation
* Safe for People, Pets and Plants
All completely assembled units include the following standard features:
Blue 20” housing with full bed depth ltration cartridges, spanner wrench to open housings for
easy lter replacement, simple to use mounting bracket
Upgrade Options:
EWS/CWL Series for Whole Home Filtration:
Filtration media lasts up to 10 years before replacement and have superior ow rates with no observed pressure or ow rate loss. Filtration of self-
cleaning EWS or CWL media does not degrade over usage like POE cartridge units between needed or routine lter cartridge(s) change-out
Sink Filtration or Drinking Water Upgrade Options, Based on Consumer Preference, Need or Local Water Conditions:
For the additional drinking safeguard of lead and cyst removal (Max Flow # SS-2.5), for the additional drinking safeguard of bacterial, viral, e-coli
and/or microorganism safeguard (#DWS-UV) or Reverse osmosis (#RO3), if applicable based on consumer preference or local water issues
Pictured: Fully Assembled CS-BB-FUGAC200A-1
Point of Entry, Two Stage Cartridge Filtration Unit
Model: CS-BB-FUGAC200A-1 application for 3/4” to 1” lines
For any larger service lines - see the EWS or CWL Series of whole home water
ltration for proper ow rates to the home and longevity of ltration media instead
of routine lter cartridge replacements.
Picture for Illustration Purposes Only: Model may have white or black brackets
Pre-Filter: BB-PRESED-50-SW
Construction: 100 % Pure Polypropylene Fibers
Dimensions: 4 1/2 in. x 20 in. (11.4 cm x 51.0 cm)
Micron Rating: 50 µm Nominal
Initial Pressure Change: 1.00 psid @10.0 GPM
Meets FDA Requirements for food and beverage contact.
Filter: BB-GACB-10-RFA
Vibration Packed Radial Flow Granular Activated Carbon Block
Dimensions: 4 1/2 in. x 20 in. (11.4 X 51.0 cm)
Micron Rating: 10 µm Nominal
Initial Pressure Change: 3.00 psid @7.0 GPM
Chlorine Reduction: 40,000 Gal. @ 7.0 GPM based on 2ppm chlorine with greater than
90% reduction, ANSI/NSF Standards 42 and 61 - Conforms to requirements.
System Weight: 29 lbs./ 13.18 Kgs., System Size: 8 5/8 in. W x 15 3/8 in. L x 26 1/4 in. H / 21.6 cm x 38.8 cm x 66.5 cm
Min/Max Water Temperature: 40º / 100 ºF - 4.4 / 37.8 ºC, Max Water Pressure for 20” Housings: 100 PSI / 6.2 Bar
Initial Pressure Change of Vessel without Filters: 1.00 psid @15.0 GPM
CS-BB-FUGAC200A-1 Housing Inlet/Outlet Size: 1”, Flow Rate : <10.0 GPM / 37.85 LPM, System ow rates to insure proper ltration tolerances.
SHIPPING INFORMATION: Carton Size.:16 in. W x 10 in. L x 28 in. H
FILTER SPECIFICATIONS:

www.ewswater.com O: 702.256.8182; M-F 8:30am-4:30pm PST E: [e-mail]
Pictured:
CS-BB-FUGAC200A-1 with Spanner Wrench and filter
cartridges, BB-PRESED-50-SW and BB-GACB-10-RFA
REPLACEMENT FILTERS
Part No. Description Replacement Time**
BB-PRESED-50-SW 50 Micron String Wound Sediment Cartridge Up to a Year
BB-GACB-10-RFA 20” Carbon Block Radial Flow Cartridge Up to a Year
SET-UP, INSTALLATION OF UNIT & BYPASS AND START-UP:
Unpack the unit. Unit comes completely assembled with the following:
Pre-Sediment and Post Carbon lters, housings with mounting bracket and spanner wrench
Identify an appropriate mounting location adjacent to the water line intended for installation.
Unit can be mounted in indoor or outdoor locations.
WARNING: Never allow unit to freeze. Avoid temperatures above 120OF.
If outdoors, unit must be protected from direct sun and heat.
Turn off the water supply. Route the cold water supply into the inlet side (clearly marked IN/FEED/STAGE 1) of the unit. Install
using proper plumber supplied pipe, ttings, unions and ball (shut-off) valves to the inlet, outlet and required bypass of the
unit for proper maintenance and lter service.
NOTE: GROUND CONTINUITY: Installed bypass with copper piping maintains electric continuity for the proper ground of
plumbing system. If bypass is not installed, a jumper is needed (copper wire clamped) between any metal piping
before and after the unit to maintain the proper ground.
WARNING: Use of teon tape is the only sealant to be used on threaded connections. NO pipe dope.
Do not cross-thread or over-tighten
Once unit installation and bypass is complete, slowly open (less than 1/2 regular ow rate or less than 5 gpm) inlet of unit
and close bypass. Keep outlet of unit closed and allow unit to ll slowly. Check unit at inlet connections, housings, bracket
and housing connections.
Once lled, open inlet and outlet of unit completely. Check all connections.
Flush unit of carbon nes. Find nearest faucet to the unit, remove aerator or any restriction, and open cold side only. Allow
carbon nes to ush through faucet until water runs clear. Open all faucets to clear air in lines.
Afx a plumber service label or card on unit and record installation date. Leave this booklet and warranty booklet with unit
and/or consumer. Replace lters up to one year after initial installation and/or at regular or needed intervals.**
WARNING: It is recommended that working pressure does not exceed or surge above 75 PSI and that a working PRV
be installed to control high household pressure and/or pressures surges.
Picture for Illustration Purposes Only:
Model may have white or black brackets
1.
2.
3.
4.
5.
6.
7.
**Up to one year or as needed, based on local water conditions, usage and ow rates. Diminished ow rate or ltration issues indicates cartridge change
needed. Application for known municipally treated or well water of known quality. All waranties and application requirements apply. For other performance
requirements or applications, other models are available.
Turn off water supply to lter. Keep bypass closed. Open water in home at nearest faucet to relieve pressure
Unscrew blue housings using spanner wrench.
CAUTION: Do not lose O-Ring that are in blue housings. When opening housing to change cartridge, it is common
for the O-Ring to lift out of blue housing or stick to black cap.
Remove used cartridges and discard.
RECOMMENDED: Rinse out housings and ll about 1/3 full with water. Add about 2 to 3 tablespoons of bleach and scrub thoroughly
with a brush or sponge. Rinse thoroughly.
Remove O-Ring from blue housings and wipe groove and O-Ring clean. Lubricate O-Ring with a coating of
clean silicone grease. (Do not use Vaseline or other petroleum-based lubricants.) Place O-Ring back in
place and press O-Ring down into the groove with two ngers.
NOTE: This step is important to ensure proper seal. Make sure the O-Ring is seated
level in the groove.
CAUTION: If O-Ring appears damaged or crimped it should be replaced at this time.
See your local dealer for replacement parts.
Insert the new replacement lter cartridges in the proper order (Pre-Sediment in Stage 1
and Green Carbon lter in Stage 2) into the blue housings making sure that lters slide
down over the housing stand-pipe found at the bottom of the housing.
CAUTION: The standpipe must insert properly into the bottom of the lter before
you go to Step # 7
Twist the blue housings onto the black caps and hand tighten.
WARNING: Do not overtighten or cross thread
CAUTION: Make sure the top standpipe found at the base of the black cap seats
properly into the top of each lter.
Turn on the water supply slowly to allow housings to ll with water. Allow water to
ow through the open faucet. Close faucet when water runs clear
REPLACING THE FILTERS
1.
2.
3.
4.
5.
6.
