EXALite EXL-L User manual

EXL-L Profile 19° RGBW 200W
USER MANUAL
CE RoHS
EXALITE

OVERVIEW
Thank you for using our product, this unit is designed for indoor using, it’s widely used for stage, building, disco, etc. as high
power led effects lighting, this unit can be operated as a single unit or multiple units for large applications. Direct input of
DMX512 signal to unit to allow it controlled by any DMX controller, powerful internal programs and friendly and convenient
operation interface allows customers to program freely to any different lighting project requirements for installation or
showing.
This high power par can has gotten the nice sculpt, efficient, save electricity and durable。
This product complies with the following standards:
EN61000-3-2:2006+A2:2009
EN60598-1:2008+A11:2009
Technical Parameter:
•Power Supply: AC100V-240V, 50/60Hz
•Power Consumption: Max. 260W
•LED: 200W LED, RGBW Color
•LED Life time: over 50,000 hours
•High quality optical system
•Beam Angel: 19°
•High-quality optical system , Glass reflector
•Control Mode: DMX, Autorun and Master/Slave
•DMX Channels: 4/8 CH
•Housing: Plastic , Color: Black
•IP Rating: IP20 ,
•N.W.:6 kgs
•G.W.: 8kgs
•Dimensions : 660x300x310mm

1. Product Introduction
1.1. Product Feature
4 kinds of running mode
External control mode (Slave mode)
DMX 512 controller control(2 kinds of DMX channel modes)
Master/salve model control (auto match the signal from controller and the Master light, no need to
set by menu)
Auto run mode (Master mode)
Different kind of Gradual change & pulse change
Different kind of Strobe：speed change strobe (slow to fast)、mixing strobe( Strobe +basic color、
Strobe +Gradual change)……
static mode (Master mode)
It can fix any color without the controller ,also work this color with strobe
Sound mode (Master mode)
Included 2 kinds of commonly used sound mode
“Software cutting ”
The light would be turn off when the dimmer channel is "0"（procedure would keep working)
The difference with “BLACKOUT” key(controller keys) &"Software cutting" ：only work this light , and
do not clear up the controller data .
No-liner dimmer &liner dimmer
The Effect get high praise from the professional technologist.
Balance of white light
It can be set 11 kinds of white light with different color temperature and controlled by the controller.
Screen Protect
It will enter blank screen without any operate on the keyboard in 30 seconds . Press any keys then it can
quit screen protection.
Temperature Protection
It can be set to temperature protection mode
Speed of the Fan
The fan will start to work when the working temperature reach 40 degree, and the speed will be changed
according to the change of temperature.
Can support reverse display

1.2. Multi-light working in the same time
When using controller to control multi lights to work in strobe or auto run, the controller just send the channel
data . The strobe and auto run effect will be depend on each light itself . And please take attention for the follow
situation:
1. There will be many situations make the lights are not synchronization in the beginning. (For example: the
different time of opening the light , or different time of them connect to the controller) .In this case, you can
change value of the controller( for example push 20 to 0, and back to 20), then it can be synchronization.
2. Due to crystal frequency of different lights are not the same exactly, so it may not be synchronization after
long time.
3. If need to keep synchronization for long time, there are two ways to do so:
A. Using the controller to edit program make the strobe, auto run effect, then they must be
synchronization.
B. Using the Maser/Slave model
2. Operation
MENU：Switch the main menu
UP/DOWN：Change the value of the current menu item

ENTER：If there are sub menu switch submenu
Menu
description
Sub menu
description
Display
Keys operation
Standard
channel model
（5 channel）
DMX(8CH)
Addr:001
UP/DOWN change the address code
Simple channel
model
（2channel）
DMX(4CH)
Addr:001
UP/DOWN change the address code
Static mode
Dimmer：
Color1（red）
Static >
R :000
UP/DOWN : dimmer
ENTER : switch sub menu
Dimmer：
Color2（Green）
Static >
G :000
UP/DOWN :dimmer
ENTER :switch sub menu
Dimmer：
Color3（blue）
Static >
B :000
UP/DOWN :dimmer
ENTER :switch sub menu
Dimmer：
Color4（White）
Static >
W :000
UP/DOWN :dimmer
ENTER :switch sub menu
Strobe
Static >
Strob:00
UP/DOWN :strobe
ENTER :switch sub menu
Temperature
control
Display the
current
temperature
Temp >
Curr: 0
ENTER :switch sub menu
Setting the
temperature
protection
Temp >
Top :080
UP/DOWN :temperature value
ENTER :switch sub menu
RESET TO
DEFAULT
Reset
After press ENTER, prompted for a password, as
follows：
Reset
Pwd:
Press the UP/DOWN key to enter the password,
input a password will display a "*". As follows:
Reset
Pwd:****
Press ENTER to confirm password. Password
correct will reset to default. Otherwise will remove
all the "*", in order to enter the password again。
Noticed：
1、If the first line of the menu display ">" symbol, means we can switch submenu by ENTER
2、Password is“UP、DOWN、UP、DOWN”。
2.1. Channel data
2.1.1. Standard channel model
channel
data
function
mark

1
0~255
dimmer
2
0~255
color 1 (red)
3
0~255
color 2 (green)
4
0~255
color 3 (blue)
5
0~255
color 4 (white)
6
0~30
no effect
31~200
multi color change
201~205
color temperature 1 (3200K)
……
color temperature 2~10 (each 5 data
is a color temperature level)
250~255
color temperature 11 (10000K)
7
0~10
no strobe
this channel control the speed when running
the build-in program
11~255
speed of strobe (255 is the fastest)
8
0~20
speed of dimmer 4 (the slowest and
softest)
21~40
speed of dimmer 3
41~60
speed of dimmer 2
61~80
speed of dimmer 1
81~99
speed of dimmer off (fastest and no
any delay)
100~109
inner program 1
……
each 10 data is a program
190~199
inner program 10
200~240
change color by sound control
241~255
strobe by sound control
2.1.2. Basic channel model
channel
data
function
1
0~255
color 1 (red)
2
0~255
color 2 (green)
3
0~255
color 3 (blue)
4
0~255
color (white)
SAFETY WARNING
1. Warning
﹡Every person involved with the installation , operation and maintenance of this device has to be qualified .
﹡User must follow the instructions of this manual
﹡Unqualified person can not open the housing cover and operate the device , or the dealer will not accept liability for any

resulting defects or problems.
﹡The device against rain and moisture
2. Waring notes :
﹡Power supply : AC 100V-240V , 50/60Hz
﹡Make sure the power switch is off , the power plug , outlet and the earth connection is in well condition before
connecting the device with the mains.
﹡Please use qualified power plug and the outlet. Never connect the power cord of this device with other electrical
equipment.
﹡During move and installation , make sure the device not crashed with metal parts and other tough materials.
﹡Always disconnect from the mains, when the device is on the installation and dismantled
﹡The minimum distance between light-output and the illuminated surface must be more than 50cm
﹡The device must only be installed on a non-flammable surface . In order to safeguard sufficient ventilation , leave 50cm
of free space around the device . Please note that heat-sensitive objects may be deformed or damaged by the emitted
heat .
﹡During the operation the housing becomes very hot ! Do not operate the device for 15 minutes after switching off .
﹡The maximum ambient temperature Ta = 45℃must never be exceeded , The maximum housing temperature Tb =
80℃must never be exceeded .
﹡For indoor use
﹡Replace any visible cracked protective shield , filters and lens .
﹡The protective shiel, filters and lens will require weekly cleaning as smoke “Cfluid tends to building up residues ,
reducing the light “Coutput very quickly.
APPENDIX

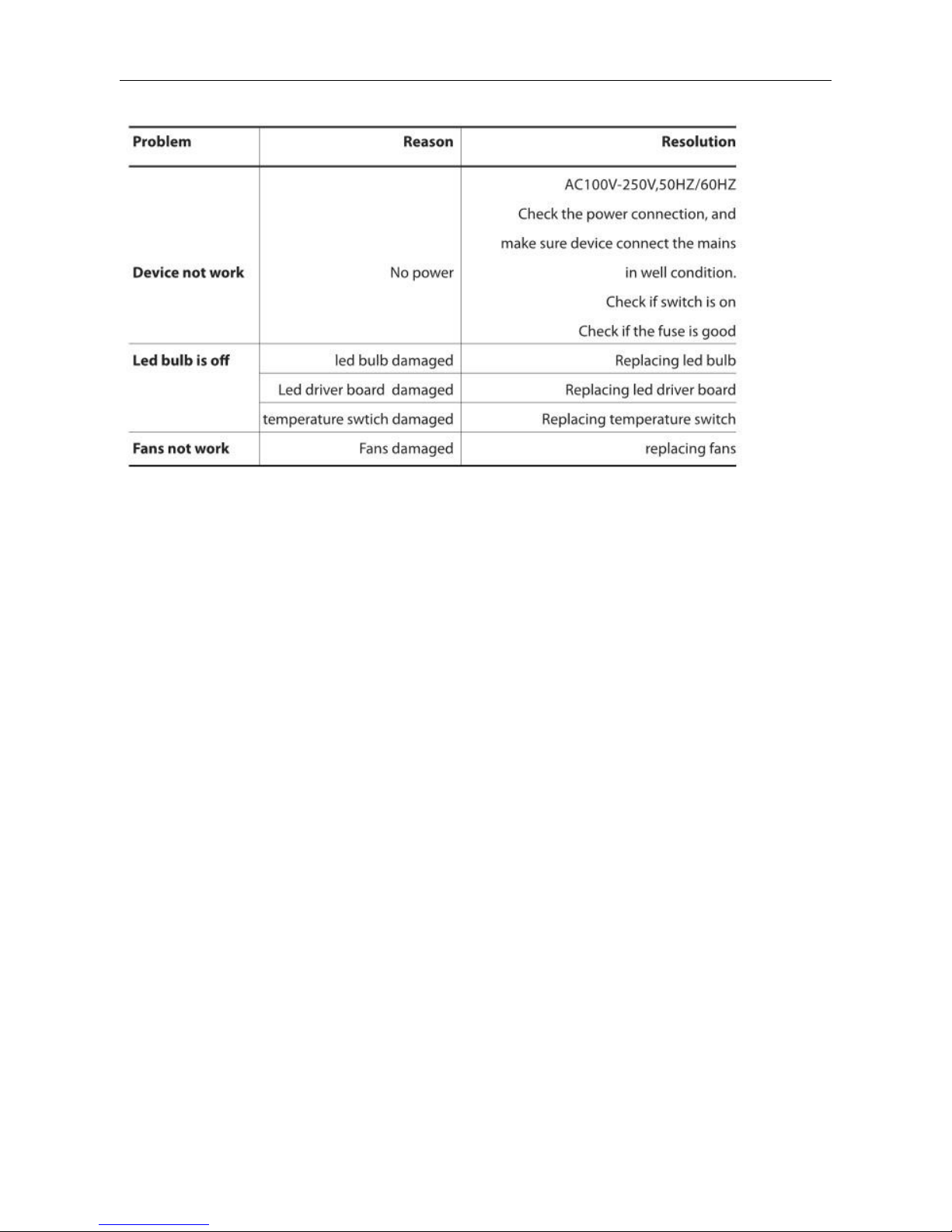

Problem and solution

Caution :
﹡Unqualified person involved with installation , operation and maintenance of this device is prohibited .
﹡If any above mentioned problem happened , or unknown problem happened , please contact manufactory or distributor
or distributor for assistance
DISCLAIMER
1. The device is with one year warranty . The warranty period appear non-artificial quality problem, this company is
responsible for free maintenance
2. User violate operation caused the machine failure, this is user responsibility.
3. If due to the wrong operation or intense impact caused product destroy even safety accidents, the manufacturer does
not undertake any responsibility

4. Prohibit replaced product components by any person, therefore caused any consequences will be whose responsible
Please contact us freely when you need our related products or informations...
