EXALite EXX-ML Beam 17R 350W User manual

1
EXX-ML Beam 17R 350W
WEIGHT：18KG
POWER：510W
COLOR TEMPERATURE：7400K
EXALITE

2
ITEM
Item...........................................................................................................................02
1.Product introduce ................................................................................................03
2.Fixture size............................................................................................................03
3.Parts introduce.................................................................................................... 05
4.Safety information...............................................................................................05
5.Packing and shipping .........................................................................................07
6.AC power............................................................................................................. 07
7.Lamp model and replace.................................................................................... 07
8.Control panel operate..........................................................................................10
9.DMX Channels.....................................................................................................13

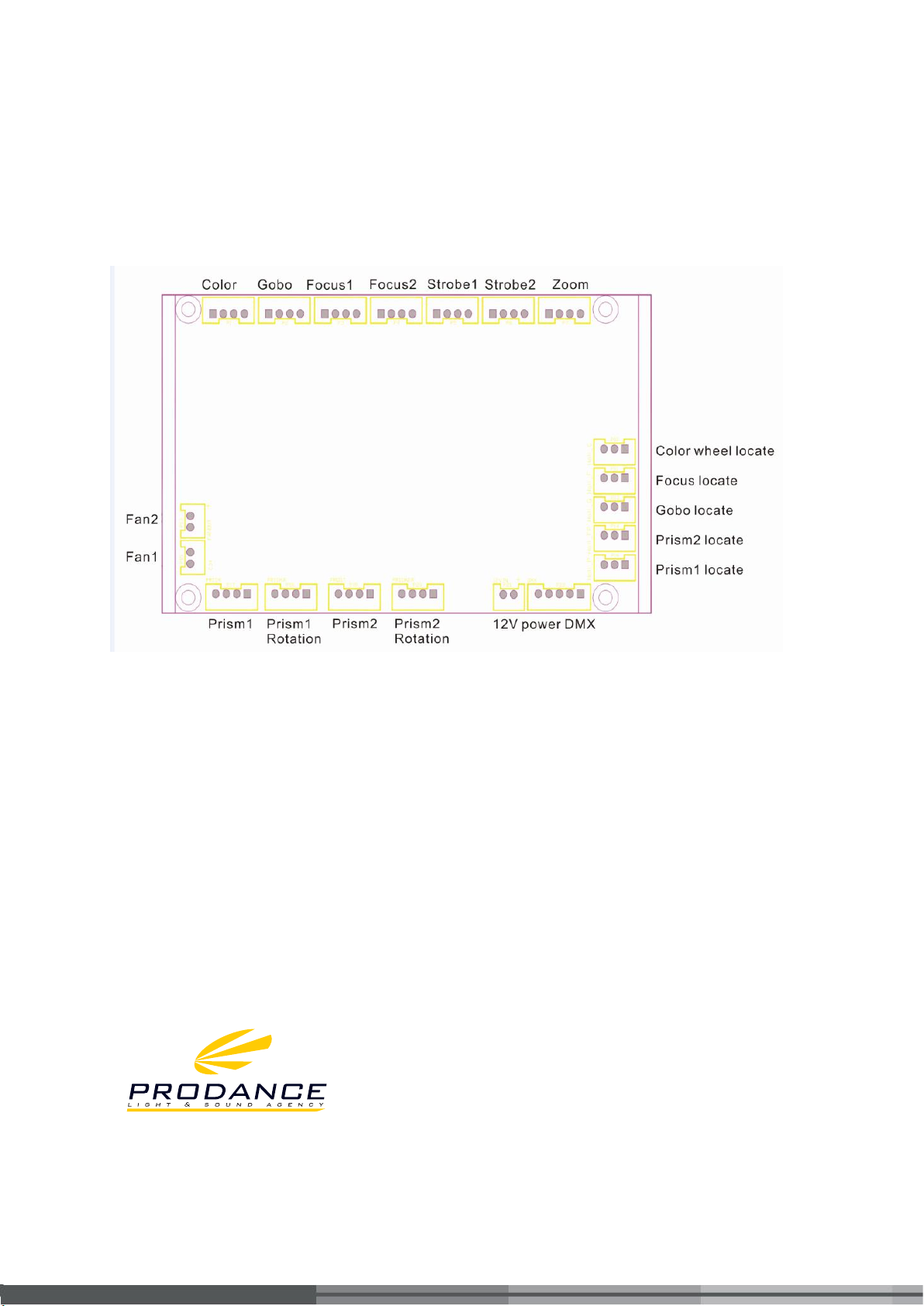

10.PCB Driving board............................................................................................20
STATEMENT
The product is good packing when ship out the factory. All users should strictly abide by the
warnings and instructions stated in this manual, any damage and results due to misuse and the
neglect of this operating manual will be excluded from the deal responsibility this manual will not
informed in additionally if have technical changes.

3
1. PRODUCTION INTRODUCE
Thank you for choosing this E products, this model is the moving head lightwhich is the
latest development of the smart, efficient products, beautiful shape, smooth R &
D, combined with the advanced technology of today's stage lighting products with
international advanced electronic control technology and excellent user-friendly industrial
design , fully comply with CE standard, accepted international standard DMX512 signal
mode.
EXX-ML Beam use efficient lamp and short distance condenser system, coupled with the
high-quality optical lens components, Gorgeous color and clear gobos, sharp and uniform
output light. Chinese/English language selected.
Operate menu intuitive and fast;The display can be inverted 180 °. DMX512 channels
optional . Horizontal scan: 540 ° vertical scanning 270 °. The color wheel is combined with
white and 14 colors. The static gobos is combined with white + 11 gobo + 3 color gobo .
5 kinds of prism effect
6 facet+12 facet prism+ 6 linear prism ,Frost function; +16 facet prism rotation
Beam angle : 2°
0-100% mechanical dimming, mechanical strobe, speed adjustable strobe effect and gobo
shaking effect, over-heat protection function.
2 FIXTURE SIZE
Size: 440(L)*310(W)*592(H) mm

4
3. PARTS INTRODUCE
EXX-ML Beam 17R 350W each part of product structure and main composition product name
description for better know the light unit.
EXX-ML Beam 17R 350W Control panel function introduction, mark for the part name on
the panel, familiar with the function of every part.
01
02
01
03
04
05
01 —LCD display
02 —Control wheel
01 —DMX In
02 —DMX Out
03 —Power Switch
04 —Power In
05 —Fuse
02

5
4. SAFETY INFORMATION
Safety warning message
This product is only suitable for professional use, and does not apply to security for other purposes.
After you got the lights, please check the package whether have any damage caused by
transportation. If there is any damage, do not use this fixture, and please contact the dealer or
manufacturer as soon as possible.This product is only suitable for indoor, IP20 protection class.
Lamps should be kept dry to avoid Moisture, overheating or dusty environment. Prevent lamps
come into contact with water or any other liquid.The use of this product should pay attention to:
fire, heat, electric shock, ultraviolet radiation, the lamp to explode or
Shedding caused serious or fatal injury. Need to read the instructions before use energized or
installing. Follow through the operation of security methods and pay attention to the warning signs
on the specification and equipment. If you have any problem for how to safely operate the
equipment. Please contact your dealer.
4.1 ANTI-HIGH TEMPERATURE
ta=40°C
Please don’t use the equipment if the temperature above 40℃
4.2 BURST PREVENTION
The lens should be changed if had damaged or any problems. Don’t change the non-original
manufacturer lens.
Len size：Φ158×43 mm
4.3 TO PREVENT FALLING WOUNDING
Please don’t move the package by one person only.
When Hang the fixture, please must verify that the facilities to be able to withstand the
weight of the lamps at least 10 times more.
Please make sure the Mounting hardware is strong enough no any damage, and insurance for
the safety rope as auxiliary security fixed in other facilities will need to verify before
installation. Installing or removing the equipment, to make the pulley below the work
location.
4.4 UA PROTECTION AND THE BULB EXPLOSION
Prohibit straight viewpoint with exposed bulbs to avoid UV damage to the eyes;
Do not use the equipment without the lens screen and the lid;
The lens and the light head covers should be timely replaced if any damage to rupture
The Fixture should be used with the protection screen together.
4.5 PREVENTION OF ELECTIC SHOCK
The electrical connection must only be carried out with corresponding qualifications;
Before installing, make sure you use the power voltage lamps must comply with the identified
power, voltage and have an overload or leakage protection;

6
Each lamp must be properly grounded, installed in accordance with the relevant standards;
Cut off the power when stall or replace the lamp and the fuse;
Prohibit the use of a lightning storm or wet environment.
4.6 TO PREVENT BURNING OR FIRE
1. The fixture can be mounted directly on the surface of ordinary combustible
material.
2. Do not short-circuit temperature protection switch or fuse, use the specified type of fuse.
3. The equipment must be installed away from inflammable and explosive materials.
4. The equipment should be projected range of 15 meters away objects and projectiles
temperature less than 60 ° C 15m
5. Fan or ventilation, at least in the range of 0.5 meters can not be an obstacle.
6. Do not place any object on the lens.
7. Handling at least allow the device to cool for 20 minutes.
8. Do not replace the non-original parts.
4.7 TRANSPORT PROTECT LOCK
In order to protect the light, there is a protect lock; During the transport , the lock catch
position need lock in the center, and the fixture keep in vertical state.
4.8 ABOUT PACKING
1. Before packed, make sure power is off, and wait for at least 20mins for cooling down.
2. Before clean the fixture, make sure X, Y axis protect lock closed.
3. After packed by plastic bag, high-lift the fixture with two handles besides the product. put
the product into the fly-case up-side-down.
4. After packed the product, put the accessory into the accessory case, then closed and lock the
fly-case.
5. Fly-case only up stacked two layers. Prohibited upside down
6. When packed with carton box, equipment should be put into the foam first, then set into a
carton, pay attention to the vertical position.
4.9 UNPACKING
Note: Before unpacking check the damage is whether due to the transportation or not, if you find any
such damage, please do not use this item, and contact with the dealer or manufacturer as soon as
possible.
1. Open the fly-case, and discover the inside plastic bag.
2. High-lift the product by two handles beside the bottom base and move it out.
3. Before power on, make sure you have opened the X, Y axis lock!
Attention!
Must use two clamps fix the fixture,and tighten the clamps with1/4 lock, only fully
clockwise rotate 90 °then can lock the fasteners. Add one safety insurance rope on the hole of

7
light base. pls attention not connect to the transport handle.
Attention! One product only can accept one input one output.DMX512 cable must use the
professional shielded twisted pair cable; standard loudspeaker cable is not reliable to control the
long-range data. 24AWG cable is suitable for more than 300 meters long-distance signal
transmission and must add\ DMX 512 signal amplifier.
Do not use two outputs to separate the connection, if separate a continuous connection to branch,
DMX512 splitter is necessary.
If use the DMX512 splitter. At first connect DMX512 Splitter input terminal to controller .And
then connected from the splitter output terminal to next device.
Do as above guide to connect other device, and finally coupled with terminal insertion
5. PACKAGE
EXX-ML Beam packed with fly-case of two in one ,or carton box. Attach follow accessory.
ACCESSORY
CONTENT
QUANTITY
USER MANUL
1
HANG FIXTURE
1
SIGNAL CABLE
2
6. AC POWER
VOLTAGE, POWER, FUSE SPECIFICATION
Input Voltage
Total Power
Frequency
110-240V
510W
50/60HZ
Fuse voltage
Electronic current
Specification
250V
10A
5×20
EXX-ML Beam 17R 350W Power connection attention:
Attention! The equipment must be operated by professionals; Make sure that the voltage of power
supply must be comply with the voltage identified on the lamp, and must have an overload or
leakage electrical protection.
Live wire(L)
Null(N)
Ground wire
RED
BLUE
Yellow +Green
7. LAMP MODEL AND REPLACE
EXX-ML Beam 17R 350W LAMP
LAMP MODEL
POWER
LIFE/HOUR
LUMEN

8
YODN MSD
350 S17
350w
1500 HOURS
7400K
WARNING! There is a safety hazard or damage if install similar bulb To reduce
the risk of damage to light ,do change the lamp before using time over 125% of
lamp life .

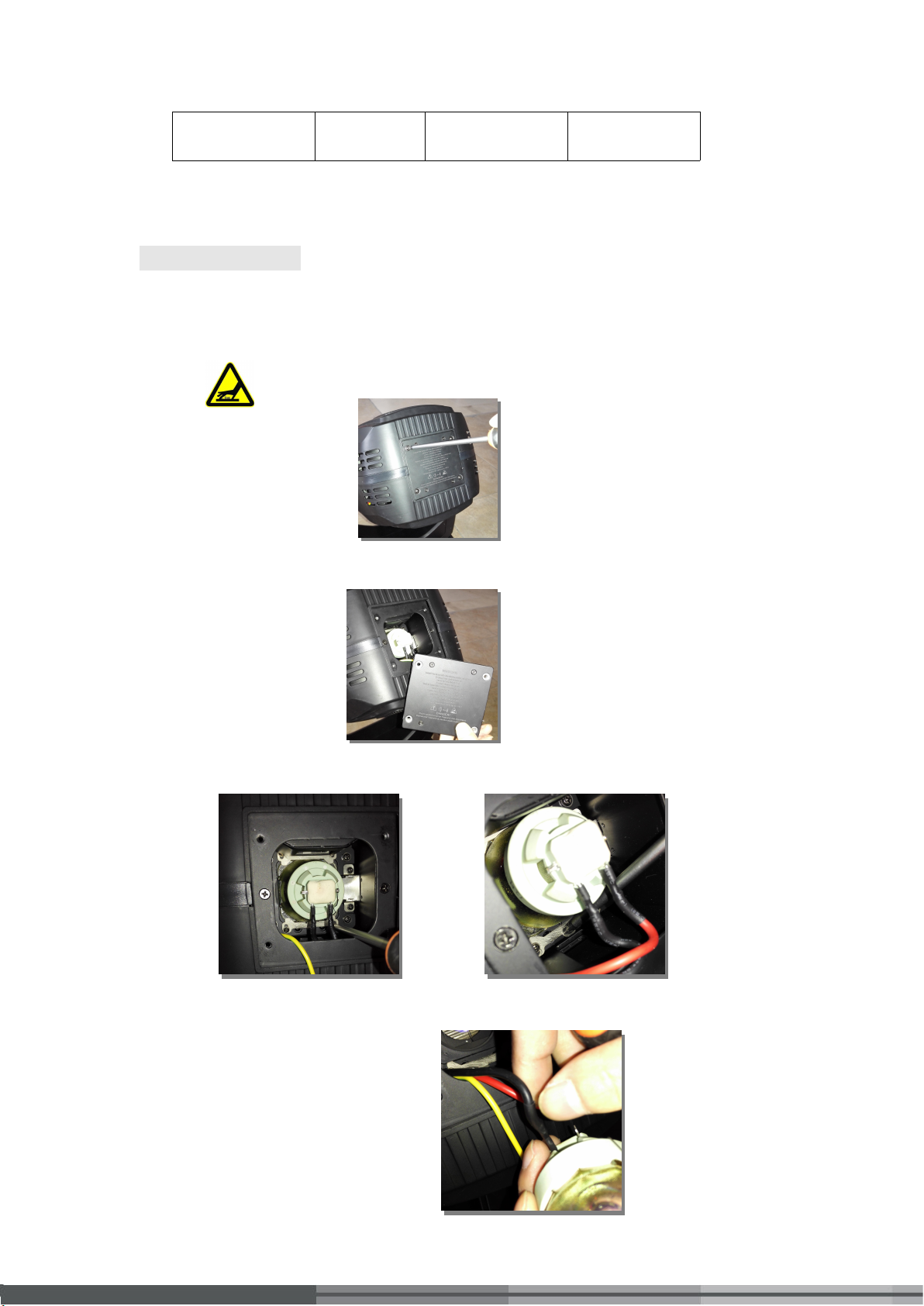

LAMP REPLACE
Attention! When replace the lamp is forbidden to touch lamp with bare hand, to avoid the greasy
dirt stains filament. filament must be kept clean. Disconnect the power. Before replace lamp,
fixture need 20 minutes for lamp cooling. Fasten the head with Y axis protect lock in 60 °
position.
1. Use cross screwdriver to open the light body cover(picture 1)
（1）
2. After open the cover,you can see the lamp inside,please wait the lamp be cool after used but not
touch it in hot status.(picture 2)
（2）
3. One hand press the lamp holder,another hand hold the lamp,and pull out the wires(picture 3,4)
（3） （4）
4.after take apart the lamp, please check the inside glasses, clear it will make the light better
effect.(Picture 5)
（5）

9
5.install the lamp after replaced.
8. CONTROL PANEL
Touch screen display：Display the data information and control operation;
Control wheel: can turn right,left and enter;
Turn left: Data increasing, scroll menu;
Turn right: Data diminishing, scroll menu;
Enter: OK
8.2. CONTROL PANEL MENU OPERATE
Main Menu
Submenu 1
Submenu2
Function SET
Function description
DMX
ADDRESS
<<
1-512
to address 1
<
address up
>
address down
<<
to address 512
SAVE
save and back
ESC
back
FEATURES
SETTING
Run Mode:
DMX
DMX
Wire
no function
Aoto
no function
Channel Mode:
16CH
16CH mode
19CH
19CH mode
Pan Reverse:
Off
Pan Scan Normal
On
Pan Scan Reverse
Tilt Reverse:
Off
Tilt Scan Normal
On
Tilt Scan Reverse
Opto Check:
Off
Pan/Tilt optical sensor testing off
On
Pan/Tilt optical sensor testing on
CONTROL
WHEEL
TOUCH
SCREEN
DISPLAY

10
PT Speed:
Noml
Pan/Tilt Scan Speed setting
normal
Slow
Pan/Tilt Scan Speed setting
slow
Fast
Pan/Tilt Scan Speed setting
fast
Pan Angle:
360
Pan Scan Angle setting 360
540
Pan Scan Angle setting 540
630
Pan Scan Angle setting 630
Singl Clear:
Off
keep signal data
On
clear signal data
Full Colour:
Off
half color function
On
full color function
ShortCut:
Off
Shortcut off for colors and gobos
On
Shortcut open for colors and gobos
ADV.
ADVANCED FUNCTION
RST.
Re-setting and back
SAVE
Save and back
ESC
Back
ADVANCED
FUNCTION
Redress
ZEROSETTING
Pan:
0-255
Motor zero calibration
Tilt:
Static Gobo:
Rot Gobo:
Colour:
Focus:
Zoom:
Dimmer:
Prism:
Beam:
Beam Rot:
Frost:
SAVE
Save and back
>
<
ESC
back
ChanlDef
No function
FactSett
Only factory only
UseManage
Limit
LimitTime
No function

11
limitCont
No function
DefConfig
YES
Return to default
NO
back
FacConfig
SAVE
Save and back
EPRT
for factory only
ESC
back
ESC
back
UNLOCK
Verify1:
0-255
need password
Verify2:
KEY
need password
ESC
back
MANUAL
LAMP REST
ALL MOTER
All step motor(do not adjust it )
XY MOTER
Pan/Tilt step motor adjust(do not
adjust it )
PART MOTER
Other step motor( except Pan/Tilt)
YES
The chose step motor re-set
ESC
Back
TEST RUN
AUTO
Auto
SOUND
Sound
ESC
Back
SMULATE
DMX
Pan:
0-255
Control Channel on display
Pan Fine:
Tilt:
Tilt Fine:
PT Speed:
Special Fun:
Colour:
Colour Fine:
Effect SP:
Static Gobo:
Rot Gobo:
Gobo Rot:
GRot Fine:
Prism:
Prism Rot:
Frost:
Zoom:
Zoom Fine
Focus:
Focus Fine:
Aoto Focus:

12
Shutter:
Dimmer:
Dimmer Fine:
>
<
ESC
Back
ESC
Back
SYSTEM
INFO
DMX VALUE
CH00-CH32
0-255
DMX value number
REST INFO
Colour:
Right/Erro
Motor reset state
Rot Gobo:
Static Gobo:
Pan:
Tilt:
Gobo Rot:
Prism:
Beam:
Prism Rot:
Beam Rot:
Zoom:
Focus:
Pan Opto:
Tilt Opto:
ESC
Back
OTHER INFO
Run Time:
0-9999
Machine running hours
Run Count:
0-9999
How many time of the Machine
power on and off
Residue T:
Most
Running time adjust(do not adjust)
Residue C:
Most
(do not adjust)
Type:
350W
Mode No.
Temp:
0
No function
Fan 1:
0-9999
Fan 1 speed
Fan 2:
0-9999
Fan 2 speed
Dis Version:
Vxxx
Version of display software
XY Version:
Vxxx
Version of Pan/Tilt software
M1 Version:
Vxxx
Software Version M1
M2 Version:
Vxxx
Software Version M2
ESC
Back
ESC
Back
DISPLAY
SETTING
Light Set:
1-7Lev
Back Ground light level
Light Off:
On
Keep back ground light on

13
1Min
Back light turn off after 1 min
2Min
Back light turn off after 2 mins
3Min
Back light turn off after 3 mins
Menu Back:
Off
Turn off the menu and back
1Min
Menu back after 1 min
2Min
Menu back after 2 mins
3Min
Menu back after 3 mins
Light Flash:
Off
Back ground light flash function off
On
Back ground light flash function on
Touch Cali:
Off
Touch screen calibration on
On
Touch screen calibration off
SAVE
Save and back
ESC
Back
LAMP
SETTING
Lamp
Default:
Off
Lamp off
On
Lamp on
Manual Lamp:
Off
Lamp off by manual
On
lamp on by manual
LampTime
0000-9999
Lamp time
LampState
Off
Lamp off
On
Lamp on
Lamp Off:
10M
After 10 mins no signal come in,
Lamp off
Lifh
No signal come in , lamp keep
lighting
9. DMX Channels
16 CH
19 CH
FUNCTION
DMX
DMX
0-4
5-8
White + red
9-12
Red
13-17
Red + orange
18-21
orange
22-25
Orange +blue
26-29
Blue
30-34
Blue + green
35-38
Green
39-42
Green +magenta
43-46
magenta
47-51
Magenta + yellow

14
52-55
yellow
56-59
yellow+ light blue
60-63
light blue
1
1
Color wheel
64-68
light blue + light green
69-72
light green
73-76
light green + pink
77-81
Pink
82-85
Pink + warming1
86-89
warming 1
90-93
warming 1+ fluorescence
94-98
fluorescence
99-102
Fluorescence + cooling 1
103-106
cooling 1
107-110
cooling 1+ cooling 2
111-115
cooling 2
116-119
cooling 2+ warming 2
120-123
Warming 2
124-127
Warming 2+ white
128-191
clockwise Water flows fast -
slow.
192-255
Anti clockwise Water flows
slow-fast
0－31
strobe off
32－63
strobe on
64－95
strobe slow-fast
96－127
Strobe open
2
2
Strobe
128－143
fast-slow . turn on slowly turn
off fast
144－159
Slow-fast turn on fast , turn off
slowly
160－191
strobe on
192－223
strobe slow -fast
224－255
strobe on
3
3
Dim
0-255
linear dim
0-3
-
4-7
Gobo 1
8-11
Gobo 2
12-16
Gobo 3
17-21
Gobo 4
22-25
Gobo 5
26-29
Gobo 6
30-33
Gobo 7
34-37
Gobo 8

15
38-42
Gobo 9
43-46
Gobo 10
47-51
Gobo 11
52-55
Gobo 12
56-59
Gobo 13
60-71
Effect gobo slow -fast
4
4
Fixed gobo
72-113
Gobo clockwise fast -slow
114-117
White
118-159
Gobo clockwise slow-fast
160-166
Gobo 1 slow-fast move
167-173
Gobo 2 slow-fast move
174-181
Gobo 3 slow-fast move
182-188
Gobo 4 slow-fast move
189-195
Gobo 5 slow-fast move
196-203
Gobo 6 slow-fast move
204-210
Gobo 7 slow-fast move
211-217
Gobo 8 slow-fast move
218-224
Gobo 9 slow-fast move
225-232
Gobo 10 slow-fast move
233-239
Gobo 11 slow-fast move
240-246
Gobo 12 slow-fast move
247-255
Gobo 13 slow-fast move
16CH
19 CH
0-19
0-15
20-39 prism
1
16-95 prism 1
5
5
Prism 1
40-79 prism
2
96-255 prism 2
80-119 prism
3
120-159 prism 4
160-255 prism 5
0-1
-
2-50
Index
6
6
Prism 1
rotation
51-151
Anticlockwise fast-slow
152-154
-
155-255
clockwise fast-slow
*
7
Prism 2
0-15
-
16-255
Prism
0-1
-
7
8
Prism2 rotation
2-50
Anticlockwise fast-slow
51-151
-

16
155-255
clockwise fast-slow
0-7
-
8-15
combination effect 1
16-31
combination effect 2
32-47
combination effect 3
48-63
combination effect 4
64-79
combination effect 5
80-95
combination effect 6
8
9
macro
96-111
combination effect 7
112-127
combination effect 8
128-173
combination effect 9
144-159
combination effect 10
160-175
combination effect 11
176-191
combination effect 12
192-207
combination effect 13
208-223
combination effect 14
224-239
combination effect 15
240-255
combination effect 16
9
10
FROST
0-255
Linear atomization
10
11
Zoom
0-15
-
16-255
linear amplification
11
12
Focus
0-255
Linear focus
12
13
X
0-255
X
*
14
X fine
0-255
X fine
13
15
Y
0-255
Y
*
16
Y fine
0-255
Y fine
14
17
X Y speed
adjust
0-255
X Y speed adjust
0-25
-
15
18
Reset
26-76
effect reset
77-127
XY reset
128-255
fixture reset
0-25
-
16
19
Lamp
26-100
Lamp off
101-255
Lamp on

17
10. PCB Driving board
PRODANCE, s.r.o.
Osadní 799/26, 170 00 Praha 7
T: 220 806 054 E: i[email protected]
www.prodance.cz
