EXALite EXL User manual

EXL Fresnel Zoom CW 300W
USER MANUAL
CE RoHS
EXALITE

OVERVIEW
Thank you for using our product, this unit is designed for indoor using, it’s widely used for stage, building, disco, etc. as high
power led effects lighting, this unit can be operated as a single unit or multiple units for large applications. Direct input of
DMX512 signal to unit to allow it controlled by any DMX controller, powerful internal programs and friendly and convenient
operation interface allows customers to program freely to any different lighting project requirements for installation or
showing.
This high power par can has gotten the nice sculpt, efficient, save electricity and durable。
This product complies with the following standards:
EN61000-3-2:2006+A2:2009
EN60598-1:2008+A11:2009

Technical Parameter:
•LED Power: 300W
•Light Color: Cool White
•IC Chip: Nichia
•LED Lamp: Japan Citizen
•LED Life Time: over 50,000 hours
•Color Rendering Index(CRI): Ra≥90
•Voltage : AC90V-260V 50-60Hz
•Max.power consumption : 160W/260W/390W
•Dimmer: 0~100% linearly adjustable
•Manual Zooming Scale: 15-50°
•House Material: Aluminum Alloy
•House Color: Black
•Control mode: DMX 512, mater and slave, auto running, sound mode
•DMX channel: 2/5CH
•Environment Temperature: -30°C~50°C
•Cooling system : No noise fan of Pccooler
•IP Grade: IP20
•Net weight: 8.5gs
•Gross weight: 10kgs
•Packing Size: 58x32.5x32cm (1pc/carton)

1. Product Introduction
1.1. Product Feature
2 kinds of running model
External control mode (Slave model)
DMX 512 controller control(2 kinds channel modes)
Master/salve model control (auto match the signal from controller and the Master light, no need to
set by menu)
static mode (Master model)
It can fix any color without the controller ,also work this color with strobe
Non-linear dimmer and linear dimmer
The speed of dimmer can be set under the controller control
Screen Protect
It will enter blank screen without any operate on the keyboard in 30 seconds . Press any keys then it can
quit screen protection.
Temperature Protection
It can be set to temperature protection mode
Speed of the Fan
The fan will start to work when the working temperature reach 40 degree, and the speed will be changed
according to the change of temperature.
Can be Reverse display
1.2. Multi-light working in the same time
When using controller to control multi lights to work in strobe, the controller just send the channel data . The
strobe effect will be depend on each light itself . And please take attention for the follow situation:
1. There will be many situations make the lights are not synchronization in the beginning. (For example: the
different time of opening the light , or different time of them connect to the controller) .In this case, you can
change value of the controller( for example push 20 to 0, and back to 20), then it can be synchronization.
2. Due to crystal frequency of different lights are not the same exactly, so it may not be synchronization
after long time.
3. If need to keep synchronization for long time, there are two ways to do so:
A. Using the controller to edit program make the strobe, auto run effect,then they must be synchronization.
B. Using the Maser/Slave model

2. Operation
2.1. Menu Data
Menu
State
Main Menu
Vice Menu
Operative Mode
DMX address
DMX channel Mode
Speed of Dimmer
No DMX signal
Screen Savers
Screen Rotation
Language switching
Speed of Dimmer
Manual mode
System information
Reset
Restore the default settings

Note:
1, if the first row of the menu shows ">" symbol, it indicates that there is the sub-menu can be switched by pressing
the ENTER key.
2, the password is "UP, DOWN, UP, DOWN".
Menu
Vice Menu
Display
Keys Operation
Standard
Channel Model
（5 CH）
DMX(5 CH)
Addr: 001
UP/DOWN: Change the ID address
Basic channel
Model
（2 CH）
DMX(2 CH)
Addr: 001
UP/DOWN: Change the ID address
Static Model
Dimmer
Static >
Dimm: 000
UP/DOWN: Dimmer
ENTER: Change the vice menu
Strobe
Static >
Strob: 00
UP/DOWN: Strobe
ENTER: Change the vice menu
Focus
Static >
Focu: 000
UP/DOWN: Focus Changing
ENTER: Change the vice menu
Control
Temperature
Current
temperature
Temp >
Curr: 0
ENTER: Change the vice menu
Set the
temperature
protection data
Temp >
Top: 080
UP/DOWN: Set temperature data
ENTER: Change the vice menu
Restore the
default settings
Reset
Press “ENTER” key, type your password, as follows:
Reset
Pwd:
Press “ UP / DOWN” keys to enter a password, enter
a password will display a "*" sign. as follows:
Reset
Pwd:****
Press “ENTER” to confirm the password. The
correct password will restore the default settings.
Otherwise, clear all "*" in order to re-enter the
password.

3. Channel Data
Standard channel model (5 CH)
Channel
Data
Function
Notes
1
0~255
Dimmer
2
0~10
Dimmer delay
11~15
No dimmer delay
16~255
Dimmer delay time
Option
Data 16 is the shortest time for dimmer delay, data 255
is the longest time for it
3
0~10
No Strobe
11~255
Speed of strobe
4
0~255
Focus
5
0~255
Speed of focus
Data 0 is the fastest, data 255 is the slowest
Basic Channel Model (2 CH)
Channel
Data
Function
1
0~255
Dimmer
2
0~255
Focus

4. Photographic Chart
4.1 Spectrogram

4.2 CRI

4.3 Lumen

SAFETY WARNING
1. Warning
﹡Every person involved with the installation , operation and maintenance of this device has to be qualified .
﹡User must follow the instructions of this manual
﹡Unqualified person can not open the housing cover and operate the device , or the dealer will not accept liability for any
resulting defects or problems.
﹡The device against rain and moisture
2. Waring notes :
﹡Power supply : AC 100V-240V , 50/60Hz
﹡Make sure the power switch is off , the power plug , outlet and the earth connection is in well condition before
connecting the device with the mains.
﹡Please use qualified power plug and the outlet. Never connect the power cord of this device with other electrical
equipment.
﹡During move and installation , make sure the device not crashed with metal parts and other tough materials.
﹡Always disconnect from the mains, when the device is on the installation and dismantled
﹡The minimum distance between light-output and the illuminated surface must be more than 50cm
﹡The device must only be installed on a non-flammable surface . In order to safeguard sufficient ventilation , leave 50cm
of free space around the device . Please note that heat-sensitive objects may be deformed or damaged by the emitted
heat .
﹡During the operation the housing becomes very hot ! Do not operate the device for 15 minutes after switching off .
﹡The maximum ambient temperature Ta = 45 ℃must never be exceeded , The maximum housing temperature Tb =
80℃must never be exceeded .
﹡For indoor use
﹡Replace any visible cracked protective shield , filters and lens .
﹡The protective shiel, filters and lens will require weekly cleaning as smoke “Cfluid tends to building up residues ,
reducing the light “Coutput very quickly.

APPENDIX

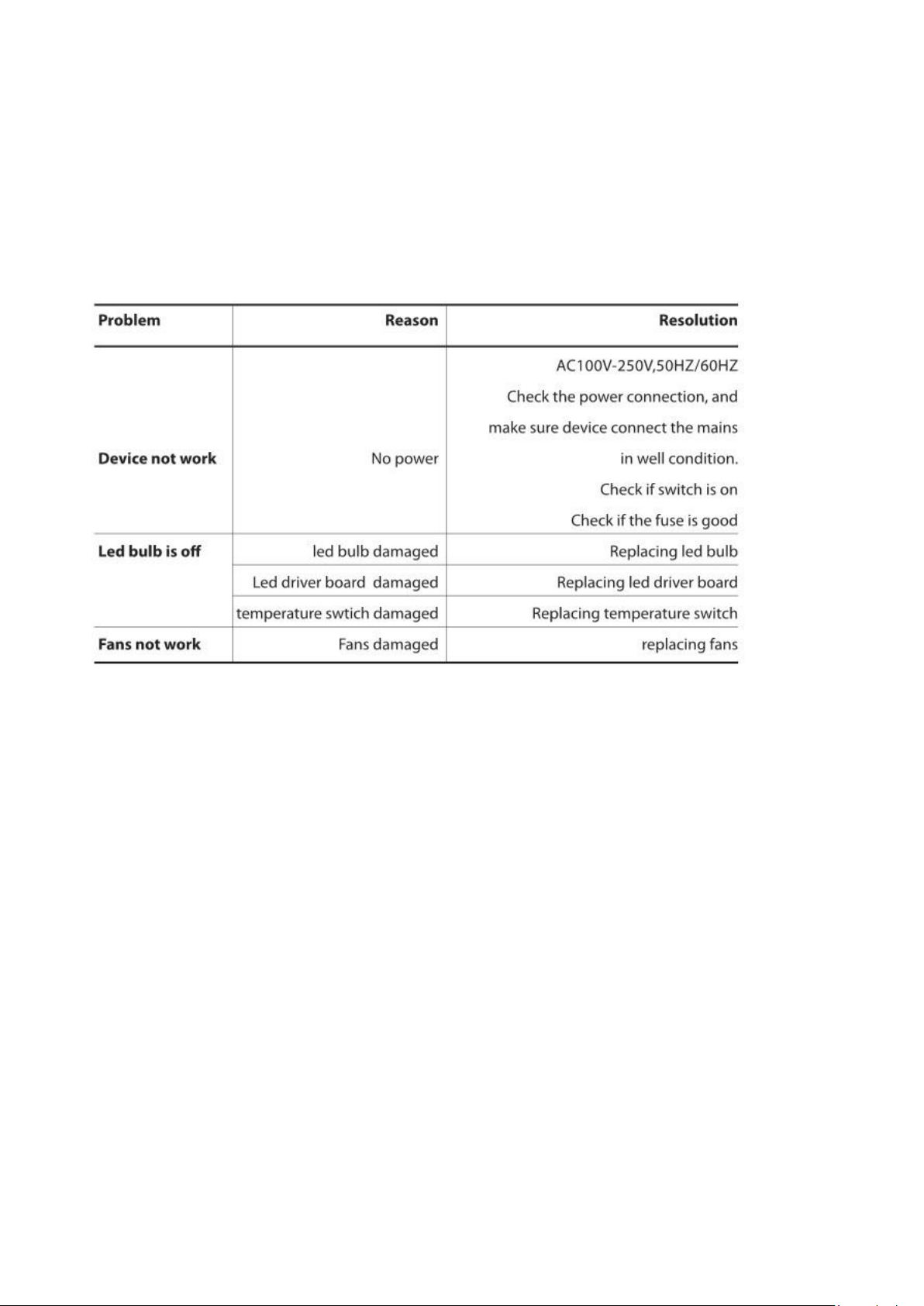

Problem and solution
Caution :
﹡Unqualified person involved with installation , operation and maintenance of this device is prohibited .
﹡If any above mentioned problem happened , or unknown problem happened , please contact manufacturer or distributor
for assistance

DISCLAIMER
1. The device is with one year warranty . The warranty period appear non-artificial quality problem, this company is
responsible for free maintenance
2. User violate operation caused the machine failure, this is user responsibility.
3. If due to the wrong operation or intense impact caused product destroy even safety accidents, the manufacturer does
not undertake any responsibility
4. Prohibit replaced product components by any person, therefore caused any consequences will be whose responsible
Please contact us freely when you need our related products or in formations...
