Exhausto VEX200 series User manual

VEX270HX without control system
Mechanical installation instructions
Product information........................................ Chapter 1 + 6
Mechanical assembly..................................... Chapter 2 + 3
Electrical installation.......................................Chapter 4
Maintenance...................................................Chapter 5
Unit supplied with (factory fitted):
The following accessories are supplied
separately:
Rotor with standard temperature efficiency
Rotor with high temperature efficiency
Compact filters FP
Bag filter FB
Trim damper and blowout zone, TB270
OD (roof for outdoor)
HCW heating coil
HCE heating coil
CCW cold water coil
DX cooling/heating coil
Mounting base, MSVEX270H
Closing damper, LS500x1000, (LSA exhaust)
Closing damper, LS500x1000, (LSF outdoor)
Closing damper, LSR500x1000, with
spring-return (LSFR outdoor)
Serial no.:
Prod. order no.:
Sales order no.:
Original instructions
3005063-2018-01-09 VEX270-X
EXHAUSTO A/S
Odensevej 76
DK-5550 Langeskov
Tel.: [phone]
Fax: [phone]
[email protected]
www.exhausto.dk

1. Product information
1.1. Model overview...................................................................................................... 5
Model overview................................................................................................ 5
1.2. Designations used in these instructions.............................................................7
1.2.1. Designations used in these instructions...........................................................7
1.3. Application............................................................................................................. 7
1.4. Location requirements.......................................................................................... 7
1.4.1. Spatial requirements........................................................................................ 8
1.4.2. Requirements for underlying surface.............................................................. 8
1.4.3. Requirements for duct system......................................................................... 8
1.5. Description............................................................................................................. 9
1.5.1. The VEX unit design....................................................................................... 9
1.6. Principal dimensions...........................................................................................13
VEX270, V1....................................................................................................13
VEX270, V2....................................................................................................14
2. Handling
2.1. Unpacking.............................................................................................................15
2.2. Transport.............................................................................................................. 15
2.2.1. Weight...........................................................................................................15
2.2.2. The VEX sections' principal dimensions........................................................ 15
2.2.3. Internal transport with reduced weight.......................................................... 16
3. Mechanical assembly
3.1. Installing the unit................................................................................................. 18
3.1.1. Removal and assembly instructions ..............................................................18
4. Electrical installation
4.1. Electrical installation........................................................................................... 21
5. Maintenance
5.1. Maintenance chart............................................................................................... 22
5.2. Service.................................................................................................................. 22
5.2.1. Filter change.................................................................................................. 22
5.2.2. Servicing and cleaning...................................................................................23
5.3. Airflow measurement.......................................................................................... 23
5.3.1. Determining airflow and pressure.................................................................. 23
6. Technical specifications
6.1. Weight, corrosion class, temperature ranges, etc............................................27
6.2. Compact filters.....................................................................................................28
6.3. Bag filters............................................................................................................. 29
6.4. Capacity diagrams............................................................................................... 30
6.5. Ordering spare parts........................................................................................... 30
3005063-2018-01-09
2/32

Symbols, terms and warnings
Prohibition symbol Failure to observe instructions marked with a prohibition symbol
may result in serious or fatal injury.
Danger symbol Failure to observe instructions marked with a danger symbol
may result in personal injury and/or damage to the unit.
Scope This instruction manual is for use with EXHAUSTO VEX-type air handling units.
Please refer to the product instructions regarding accessories and extra equip-
ment.
The instructions must be fully observed to ensure personal safety and to protect
the equipment and ensure its correct operation. EXHAUSTO A/S accepts no liabil-
ity for accidents caused by equipment not used in accordance with the manual’s
instructions and recommendations.
Supply air/extract
air
These instructions use the following terms as given in DS447-2013:
● Supply air (air blown in)
● Extract air (air removed)
● Outdoor air
● Exhaust air
Left/Right The term R for Right, indicates the supply air is to the right of the cooling unit, as
seen from the operating side. The term L for Left, indicates the supply air is to the
left.
Front page: Acces-
sories
The front page of the instruction manual contains a checklist, detailing the acces-
sories delivered with the VEX unit.
NB When retrofitting EXHAUSTO accessories, please update the checklist on
the front page.
Warnings
Opening the unit Do not open the service doors before the supply voltage has
been disconnected at the isolation switch and the ventilators
have stopped.
Prohibited The VEX unit must not be used to transport solid particles or in
areas where there is a risk of explosive gases.
No duct connection If one or more of the spigots is not connected to a duct: Fit a
protective net to the spigots with a maximum mesh width of 20
mm (in accordance with EN 294).
3005063-2018-01-09
3/32

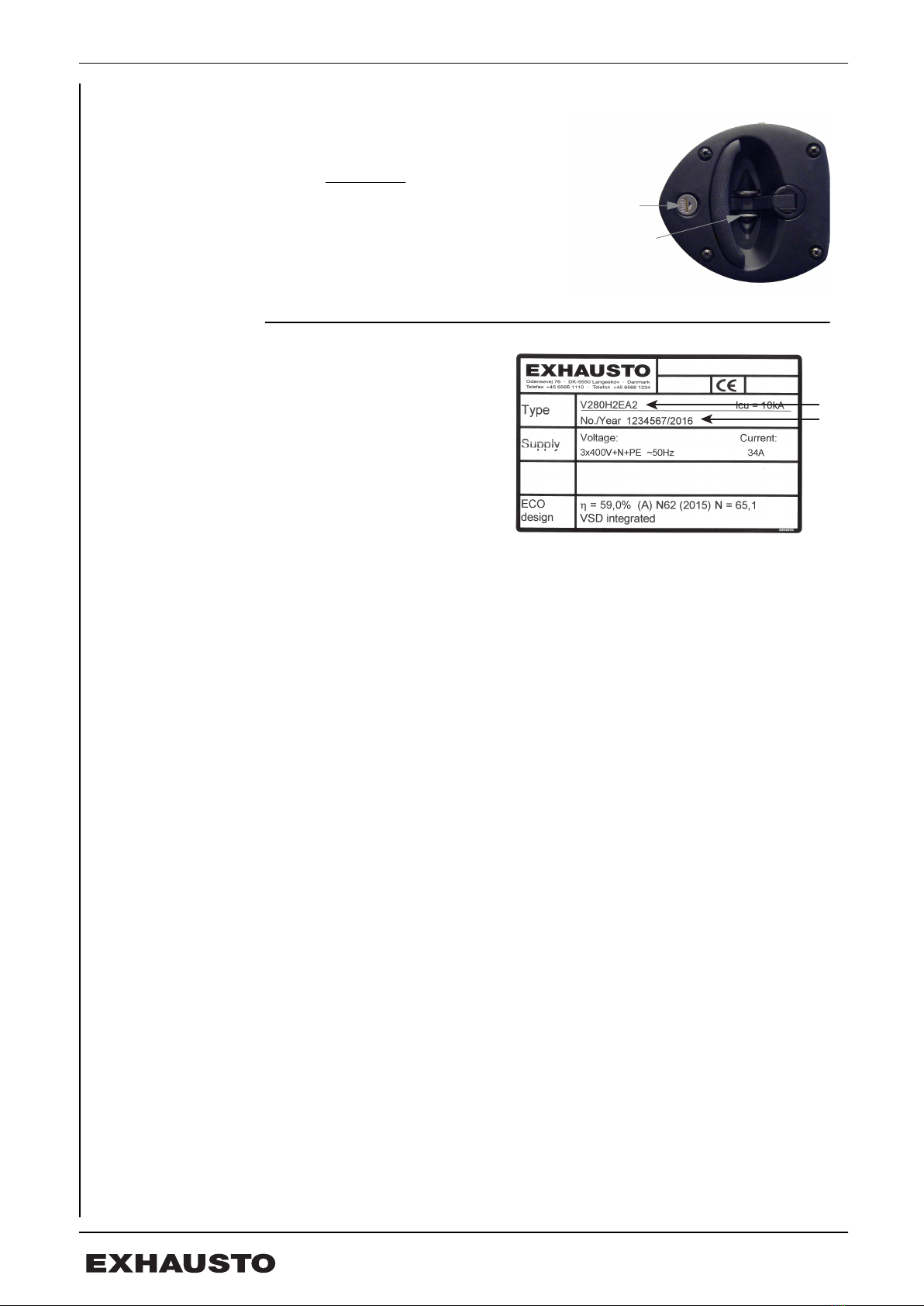

Lock the air han-
dling unit during
operation
The VEX unit must always be locked
during operation:
● Use the cylinder lock in the han-
dle. Remember to remove the key
from the lock.
● Or use a padlock. Use the han-
dle’s built-in padlock fixture.
Lock
Padlock fitting
Rating plate The VEX unit rating plate shows:
● VEX unit, type (1)
● production number (2)
1
2
NB Always have the production number ready when contacting EXHAUSTO A/S.
3005063-2018-01-09
4/32

1. Product information

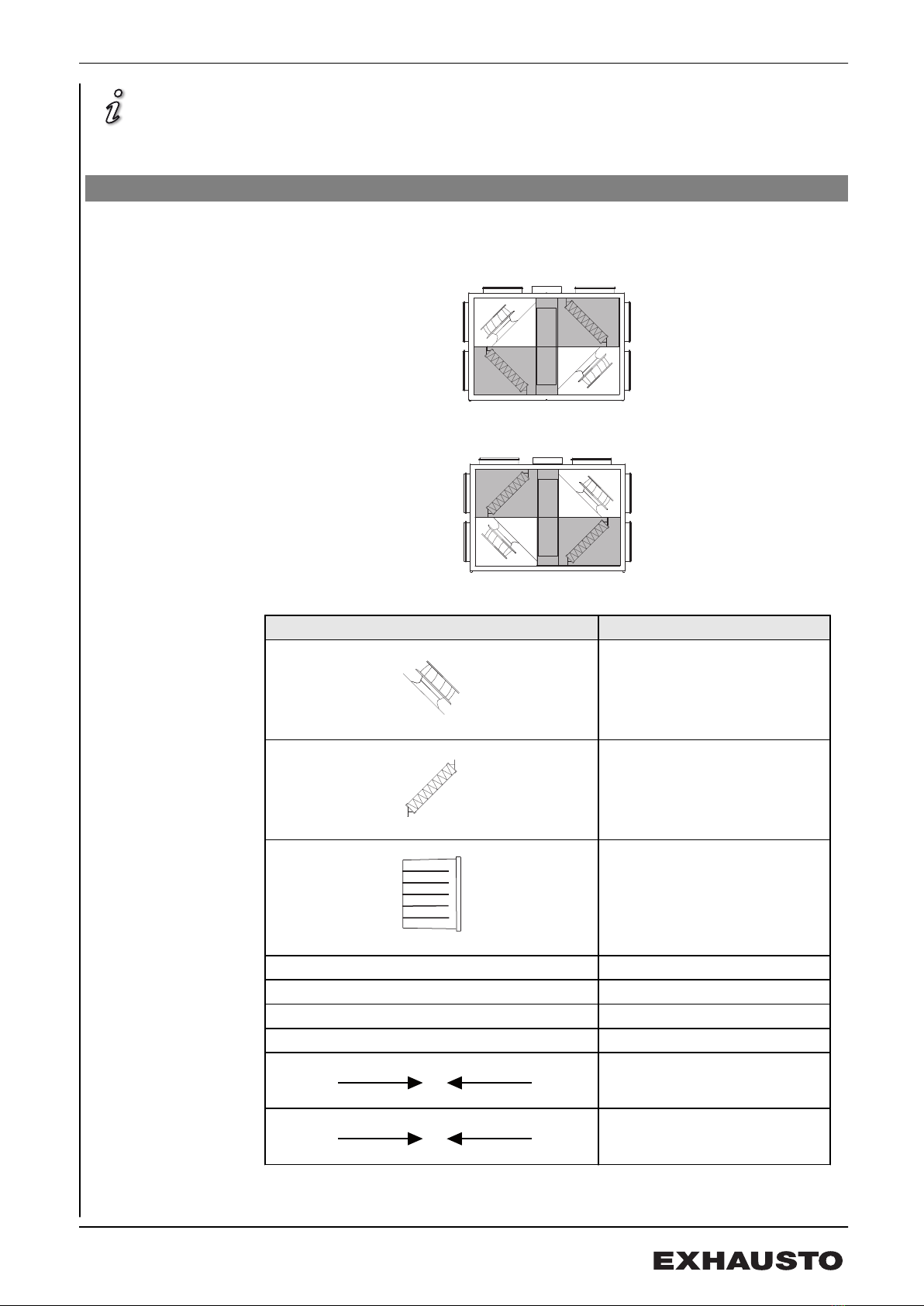

1.1 Model overview
Model overview
Positioning of fan,
motor (M) and mo-
tor control (MC)
Fan placement 1 (V1)
RD12178-01
M2
MC2
M1
MC1
Fan placement 2 (V2)
RD12179-01
M1
MC1
M2
MC2
Elements Description
RD12767-01
Fan
RD12763-01
Compact filter
RD12762-01
Bag filter
1,1,A or B Extract air spigot
1,2,A or B Exhaust air spigot
2,1,A or B Outdoor air spigot
2,2,A or B Supply air spigot
11
Air direction, extract air
22
Air direction, supply air
3005063-2018-01-09 Product information
5/32

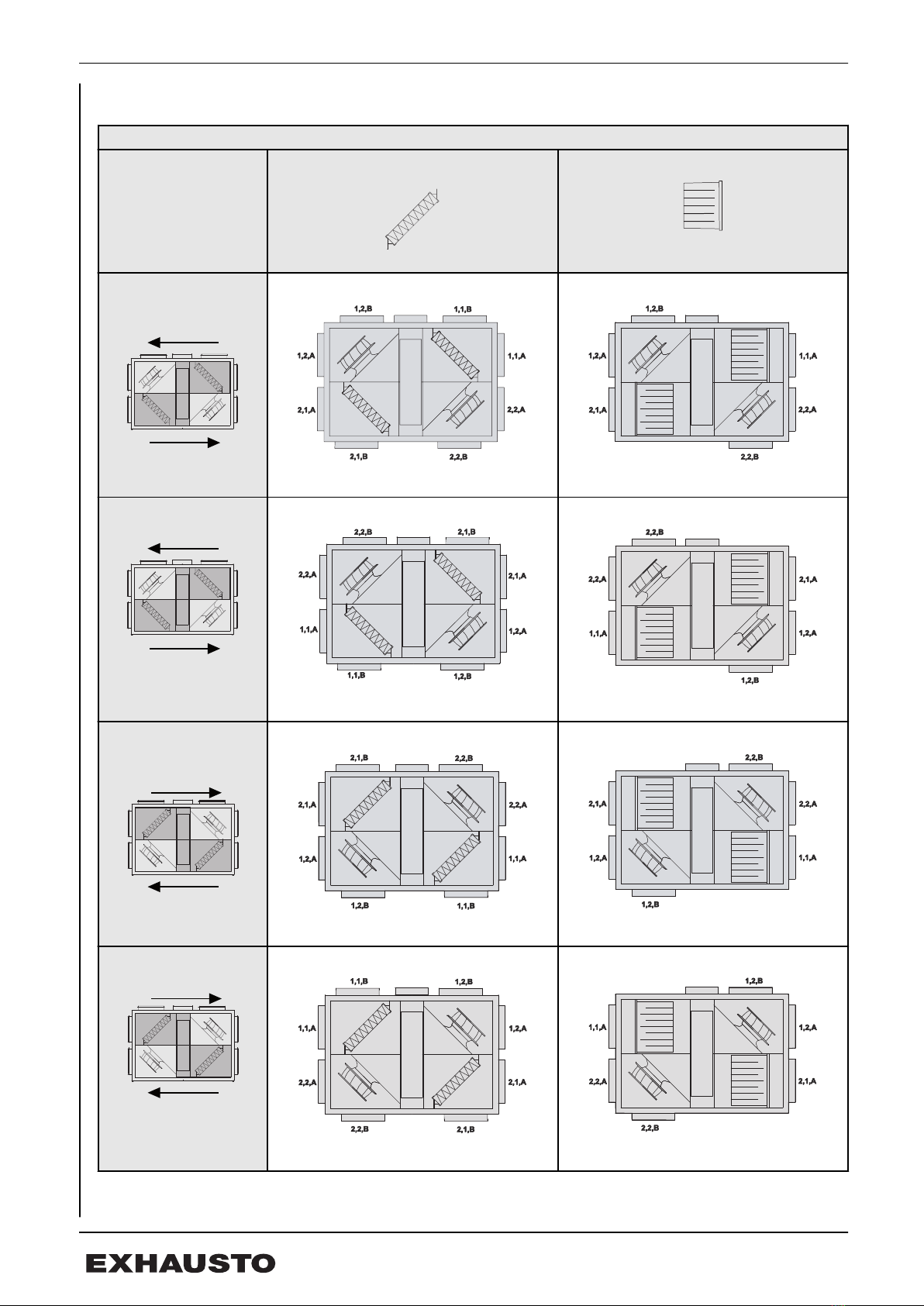

Optional spigot positions in relation to fan placement and filter type
Fan placement
and airflows
Compact filters
RD12763-01
Bag filters
RD12762-01
Fan placement 1,
Right
RD12178-01
1
2
RD12979-01
RD12980-01
Fan placement 1, Left
RD12178-01
1
2
RD12981-01
RD12982-01
Fan placement 2,
Right
RD12179-01
2
1
RD12983-01
RD12984-01
Fan placement 2, Left
RD12179-01
2
1
RD12985-01
RD12986-01
3005063-2018-01-09 Product information
6/32

1.2 Designations used in these instructions
1.2.1 Designations used in these instructions
The simplified diagram shows a VEX unit with fan location 1, Left
Component Function
MC1 Motor control, motor 1 (extract air)
MC2 Motor control, motor 2 (supply air)
LS1) Closing damper, outdoor air/exhaust air
M1 Fan motor 1
M2 Fan motor 2
DRHX Control unit for the rotary heat exchanger
P1.1X Measurement point, pressure drop across extract air filter
P1.1Y Measurement point, pressure drop across extract air filter
P1.2X Measurement point, airflow in exhaust air
P1.2Y Measurement point, airflow in exhaust air
P2.1X Measurement point, pressure drop across outdoor air filter
P2.1Y Measurement point, pressure drop across outdoor air filter
P2.2X Measurement point, airflow in supply air
P2.2Y Measurement point, airflow in supply air
1.3 Application
Comfort ventilation EXHAUSTO VEX is used for comfort ventilation tasks. Operating temperature
range for the unit – see section "Technical data".
Prohibited uses The VEX unit is not to be used to transport solid particles or in areas where there
is a risk of explosive gases.
1.4 Location requirements
Positioning The air handling unit is designed for indoor fitting. The air handling unit can be or-
dered for outdoor installation (accessory Outdoor, OD).
3005063-2018-01-09 Product information
7/32

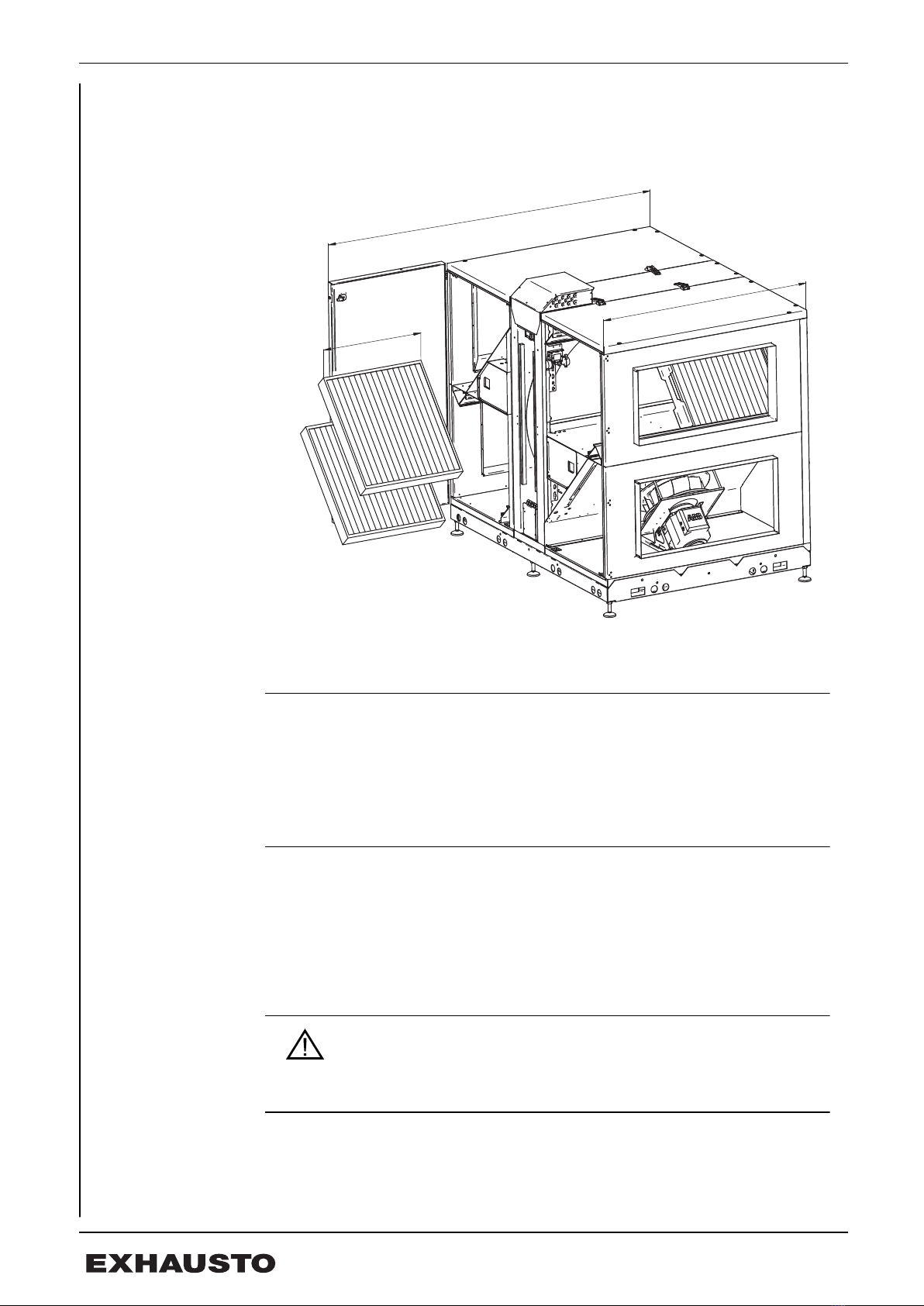

1.4.1 Spatial requirements
The drawing below indicates how much space is needed for servicing, replacing fil-
ters, cleaning, etc.
2300
704
1470
RD11621-02
NB: A free height of at least 200 mm is required above the unit’s connection box.
1.4.2 Requirements for underlying surface
When fitting the unit directly, the surface must be:
● flat
● level
● hard
● resistant to vibration
1.4.3 Requirements for duct system
Silencers The duct system must be fitted with silencers specified by the Project Manager,
which meet the requirements of the operating area.
Bends A duct bend may be fitted immediately after the unit, because the airflow in the
spigot has a uniformly moderate speed profile, which results in negligible system
pressure loss.
Insulation The duct system must be insulated against:
● condensation
● sound leakage
● heating/cooling losses
3005063-2018-01-09 Product information
8/32

Condensation Condensation in the ducts may occur when the exhaust/outdoor air has high hu-
midity. EXHAUSTO recommends a condensation outlet is also fitted at the lowest
point in the ducts.
No duct connection If one or more of the spigots is not connected to a duct: Fit a
protective net to the spigots with a maximum mesh width of 20
mm.

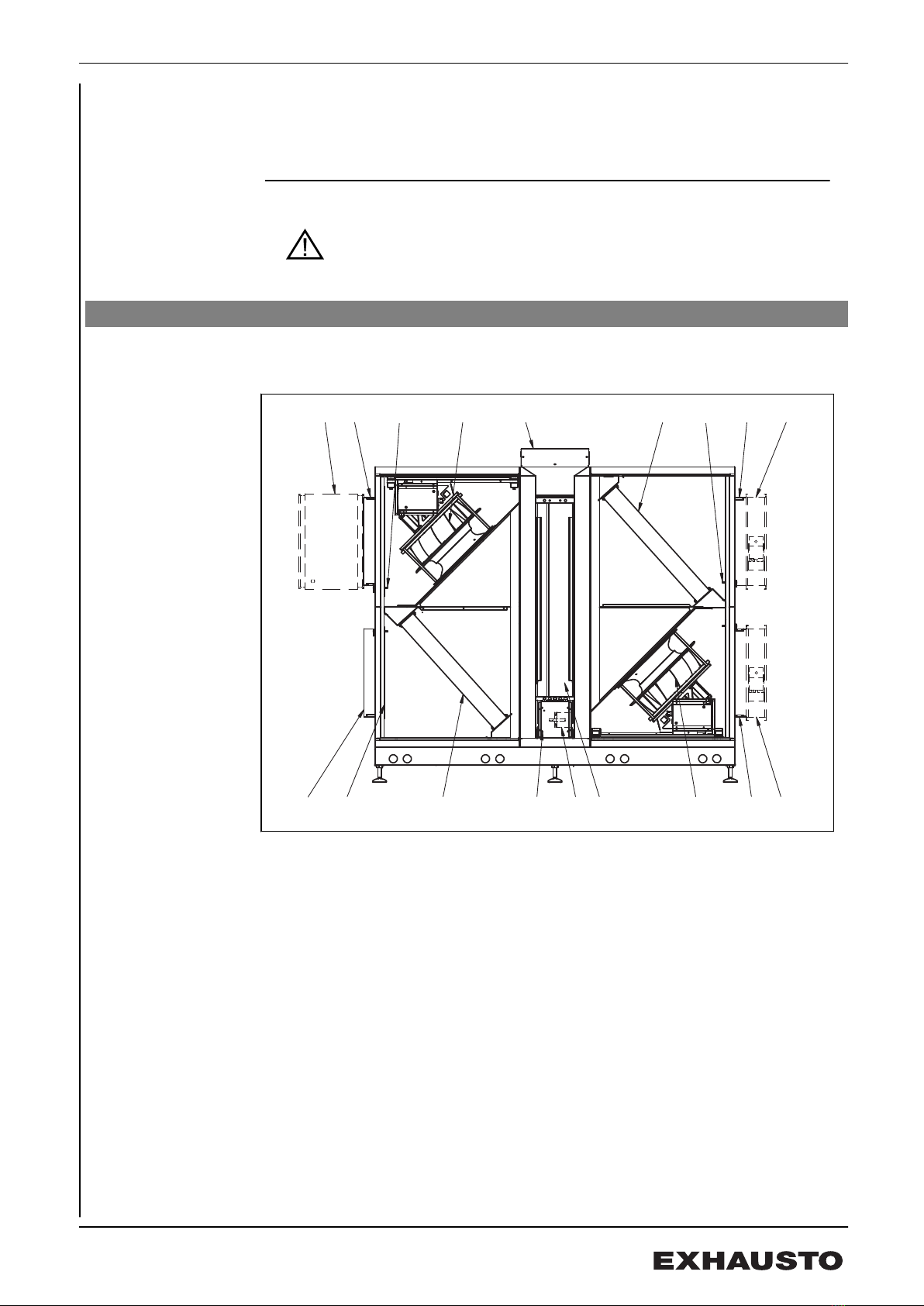

1.5 Description
1.5.1 The VEX unit design
VEX200L-V1 The drawing below illustrates the construction of the unit (without service doors).
RD11738-02
2,1,A
1,2,A
1,1,A
2,2,A
2
356891011
12 13 14 15 16 1
47
18 17
3005063-2018-01-09 Product information
9/32

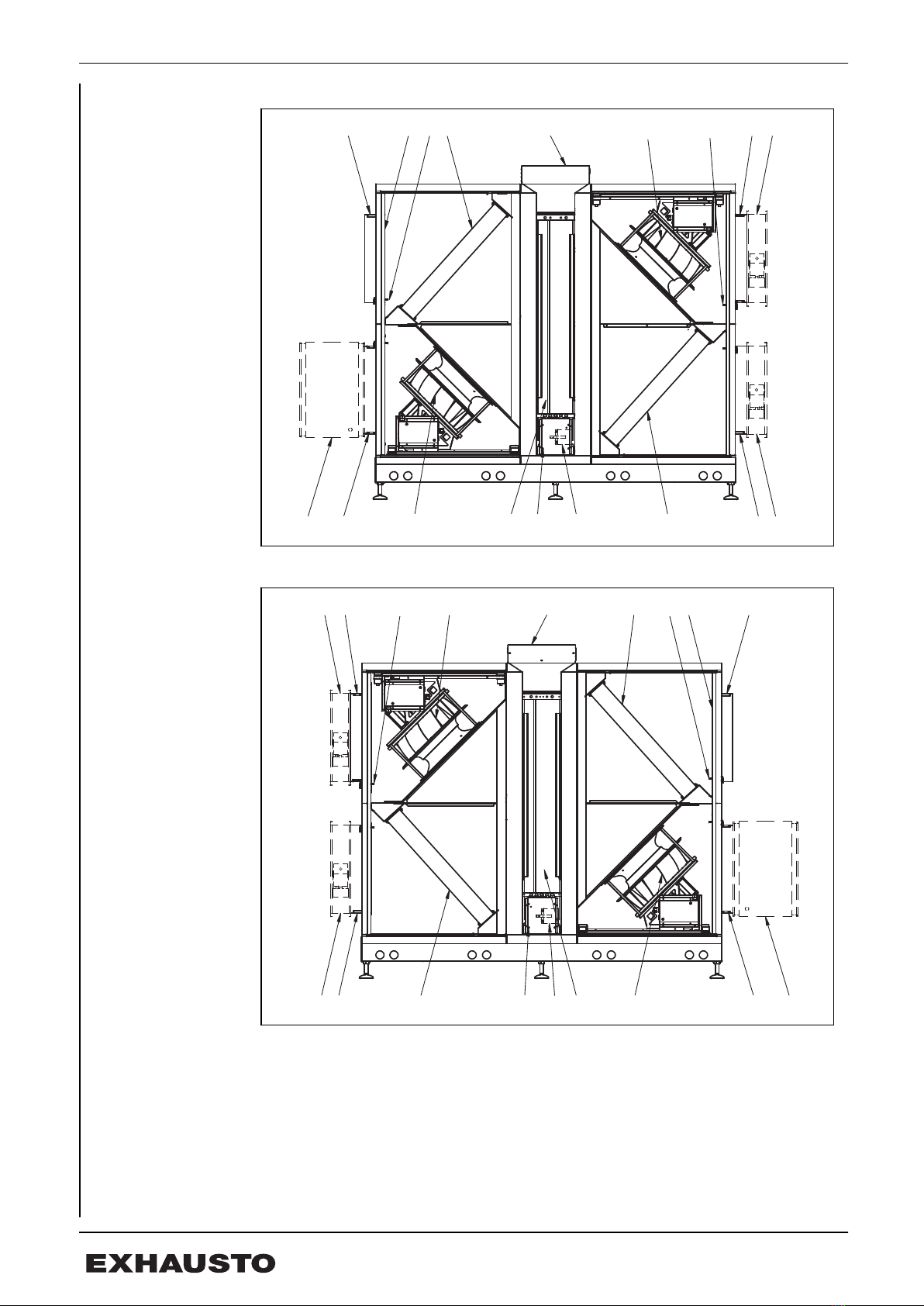

VEX200L-V2
2,1,A
1,2,A
1,1,A
2,2,A
5
12
34
68
91011
12 13 14
15
16
7
RD11739-02
18 17
VEX200R-V1 The drawing below illustrates the construction of the unit (without service doors).
RD11740-02
2,1,A
1,2,A 1,1,A
2,2,A
5
12
3 4
68
10 11
12
13
14
15
16 7
17 18
9
3005063-2018-01-09 Product information
10/32

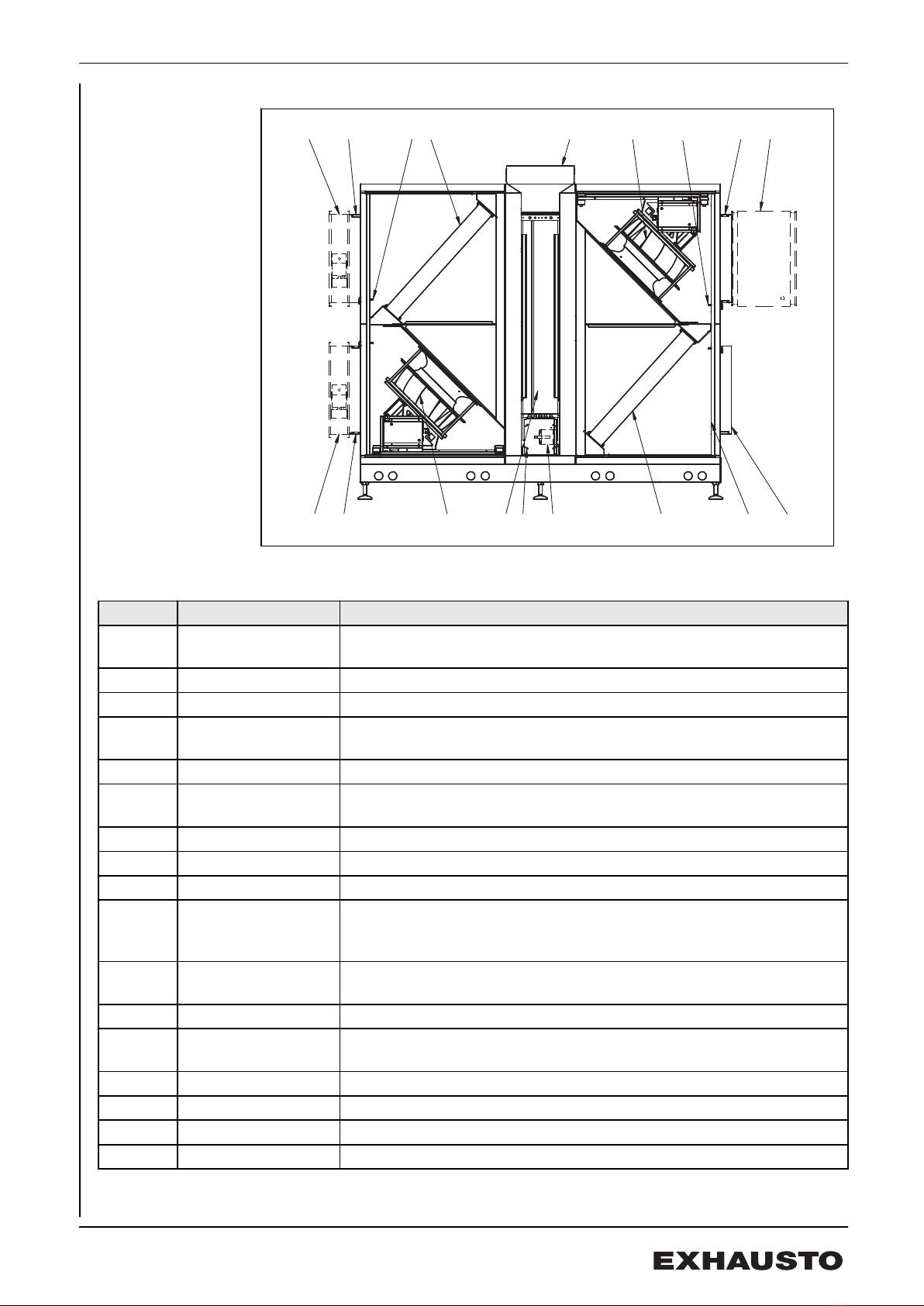

VEX200R-V2
RD11741-02
2,1,A
1,2,A 1,1,A
2,2,A
2
3568 91011
12131415161
47
17 18
Pos. no. Part Function
1 Spigot 2.1.A Outdoor air spigot The spigot can also be positioned on the top or in the
bottom of the unit (2.1.B) – however, only on units with compact filters.
2 Closing damper LS Closing damper, outdoor air, LSF (accessory).
3 Closing damper LS Closing damper, exhaust air, LSA (accessory).
4 Spigot 1.2.A Exhaust air spigot The spigot can also be positioned on the top of the
unit (1.2.B).
5 Fan unit For extract air/exhaust air
6 Rotary heat ex-
changer
Conducts heat from extract air to supply air.
7 Step motor Drives the rotary heat exchanger via the drive belt.
8 Rotor control Controls and monitors the step motor.
9 Extract air filter Filters extract air.
10 Trim damper The trim damper (accessory) ensures there is pressure balance across
the rotor and seals to prevent extract air from entering the supply air.
Used with purging sector (accessory).
11 Spigot 1.1.A Extract air spigot The spigot can also be positioned in the bottom of the
unit (1.1.B) – however, only on units with compact filters.
12 Heating coil Heats supply air if heat recovery is insufficient (accessory).
13 Spigot 2.2.A Supply air spigot. The spigot can also be positioned at the bottom of the
air handling unit (2.2.B).
14 Fan unit For outdoor air/supply air.
15 Connection box Connection box to fan motor and rotor control.
16 Outdoor air filter Filters outdoor air.
17 Measurement socket Measurement socket for pressure loss across the filters.
3005063-2018-01-09 Product information
11/32

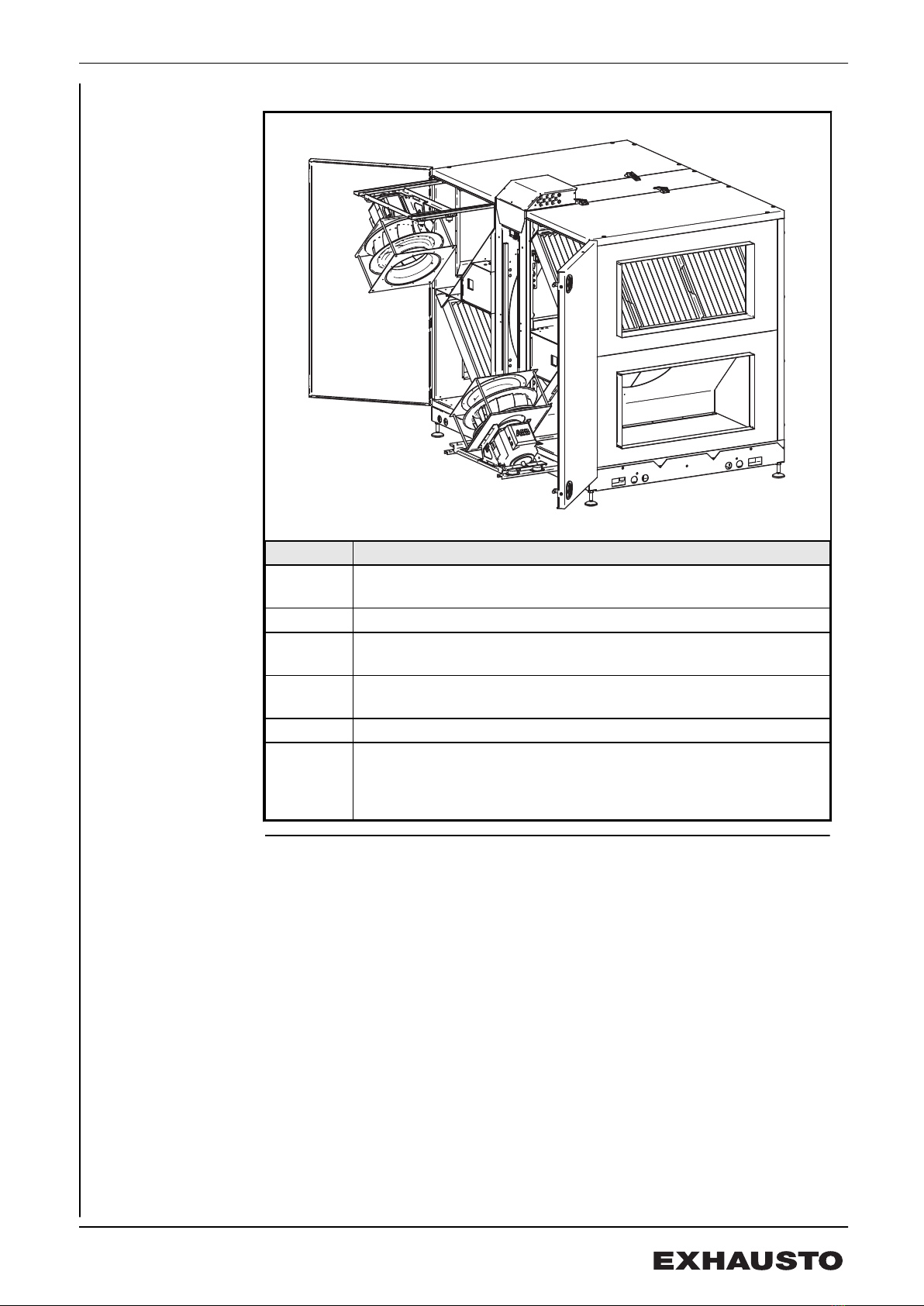

Pos. no. Part Function
18 Measurement socket Measurement socket for airflow calculation.
Cabinet The inside and outside of the cabinet is made of Aluzinc® and insulated with 50
mm mineral wool.
Ventilators The unit has a centrifugal fan for extract air and a centrifugal fan for supply air
Rotary heat ex-
changer
The rotary heat exchanger is driven by a step motor with rotor control, which con-
trols the rotor's speed.
Filters There are built-in compact filters (as shown on the drawings on the previous pa-
ges) or bag filters on both the extract air and supply air side.
3005063-2018-01-09 Product information
12/32

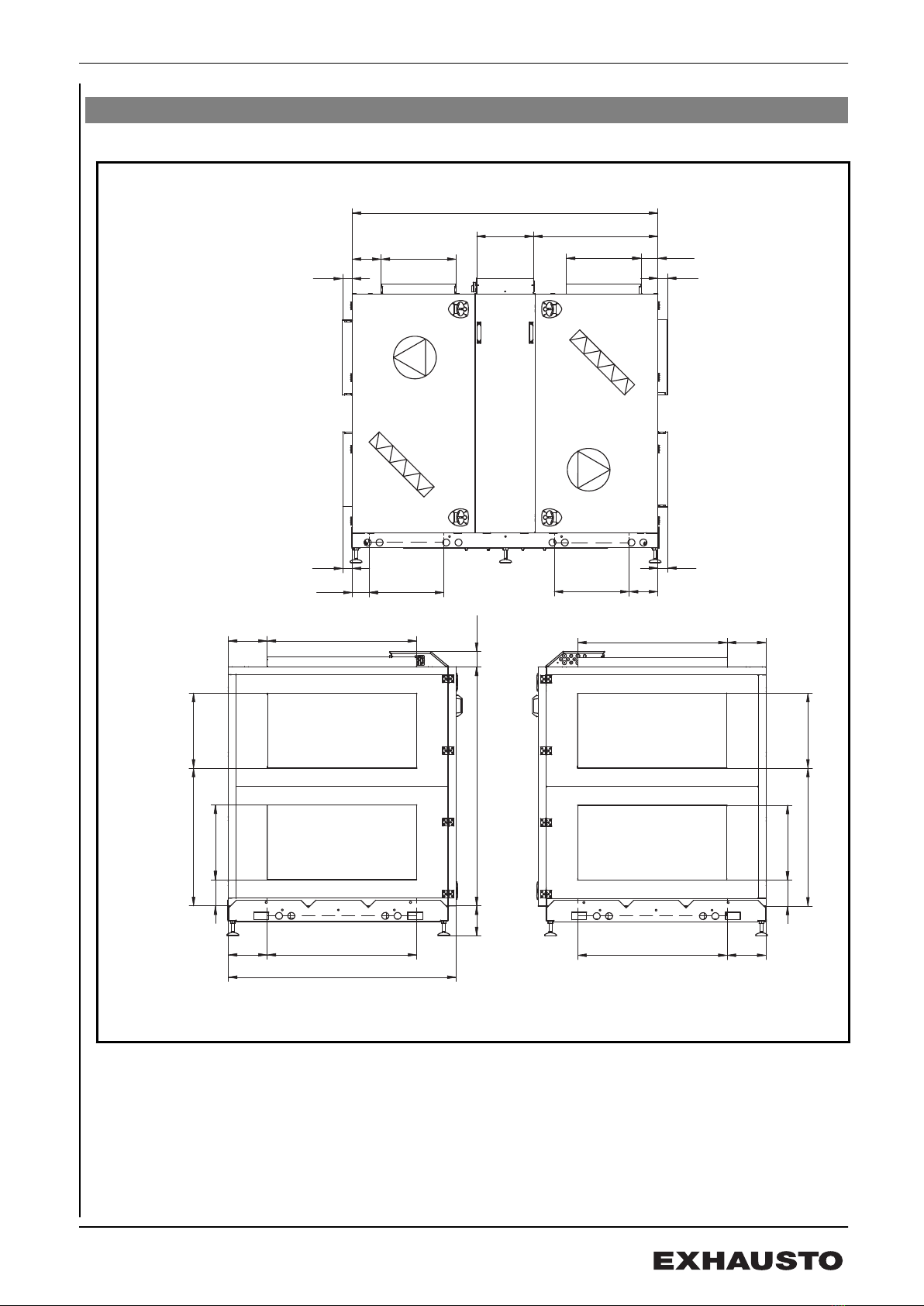

1.6 Principal dimensions
VEX270, V1
65
112500
832,5381
2050
65
193 500
65
193500
65
112 500
175 500
925 500
2631000
2631000
200 1600 105
263 1000
1525
175 500
925 500
263 1000
RD11582-01
*)
*)
The base height is factory-set to 200 mm. The height can be adjusted between 150–240 mm.
NB The drawing shows all of the spigot positioning options. Spigot positioning
marked with * is not available for VEX units with a bag filter.
3005063-2018-01-09 Product information
13/32

VEX270, V2
65
112 500
832,5 381
2050
65
193500
65
193 500
65
112500
175 500
925 500
263 1000
263 1000
200 1600 105
2631000
1525
175 500
925 500
2631000
RD11581-01
*)
*)
The base height is factory-set to 200 mm. The height can be adjusted between 150–240 mm.
NB The drawing shows all of the spigot positioning options. Spigot positioning
marked with * is not available for VEX units with a bag filter.
3005063-2018-01-09 Product information
14/32

2. Handling
2.1 Unpacking
Supplied compo-
nents
The following components are supplied:
● VEX unit
● Supplied with accessories (as indicated in the checklist on the front page of
the instructions)
Packaging The unit is delivered attached to a disposable pallet and packed in clear plastic.
NB Once the plastic has been removed, the unit must be protected against dirt
and dust:
●The covers on the spigots must not be removed until the spigots are
connected to the ventilation ducts.
●Whenever possible, keep the unit closed during fitting.
The unit should be
cleaned before it is
used.
Once the VEX unit is fitted, it must be checked and thoroughly cleaned. All dust,
debris and metal shavings must be vacuumed up.
2.2 Transport
2.2.1 Weight
The unit weighs 722 kg
Transport equip-
ment
See the supplementary instructions “3002454, Transport of VEX260-270” for the
transport and handling of the VEX.
2.2.2 The VEX sections' principal dimensions
Measurements are based on the exact dimensions of the VEX unit.
825 400
1475
1705
1600
825
RD12475-01
3005063-2018-01-09 Handling
15/32

2.2.3 Internal transport with reduced weight
Weight reduction The weight can be reduced during transport by removing the service doors and
fan units.
Removing the serv-
ice doors
To remove the service doors:
RD11628-01
Detail A Detail B
1
2
A
B
A● Open both doors.
● Tap the hinge door pin out from below using a small pin bolt or similar
● Lift the doors off
B● Lift the middle door
● Pull it horizontally from the unit to release it from the two steering bolts.
3005063-2018-01-09 Handling
16/32

To remove the fan
unit
RD11626-01
Step Action
1 Remove the fixing screws on the sliding rail (out towards the oper-
ating side)
2 Loosen the bindings on the motor cable and the measuring hose
3 Pull the fan unit out to the end-stop (a screw on each rail acts as a
stop)
4 Remove the supply cable and modbus cable in the motor control
box
5 Remove the measuring hose which is fixed to the intake
6 Remove the two end-stop screws (one on each rail). The fan unit
can now be lifted off.
NB: A single fan unit weighs 40 kg.
3005063-2018-01-09 Handling
17/32

3. Mechanical assembly
3.1 Installing the unit
3.1.1 Removal and assembly instructions
The VEX unit is supplied mounted on its base. It may be removed, if necessary, to
facilitate internal transport, as directed in this section.
Step 1 Step 2 Step 3
A
A
RD12202-01
1
1
22
RD12271-01
RD12471-01
Step 4
RD12474-01
Step 1, Assemble
the panels
● Removing the assembled base sides (1)
1
1
22
RD12271-01
3005063-2018-01-09 Mechanical assembly
18/32

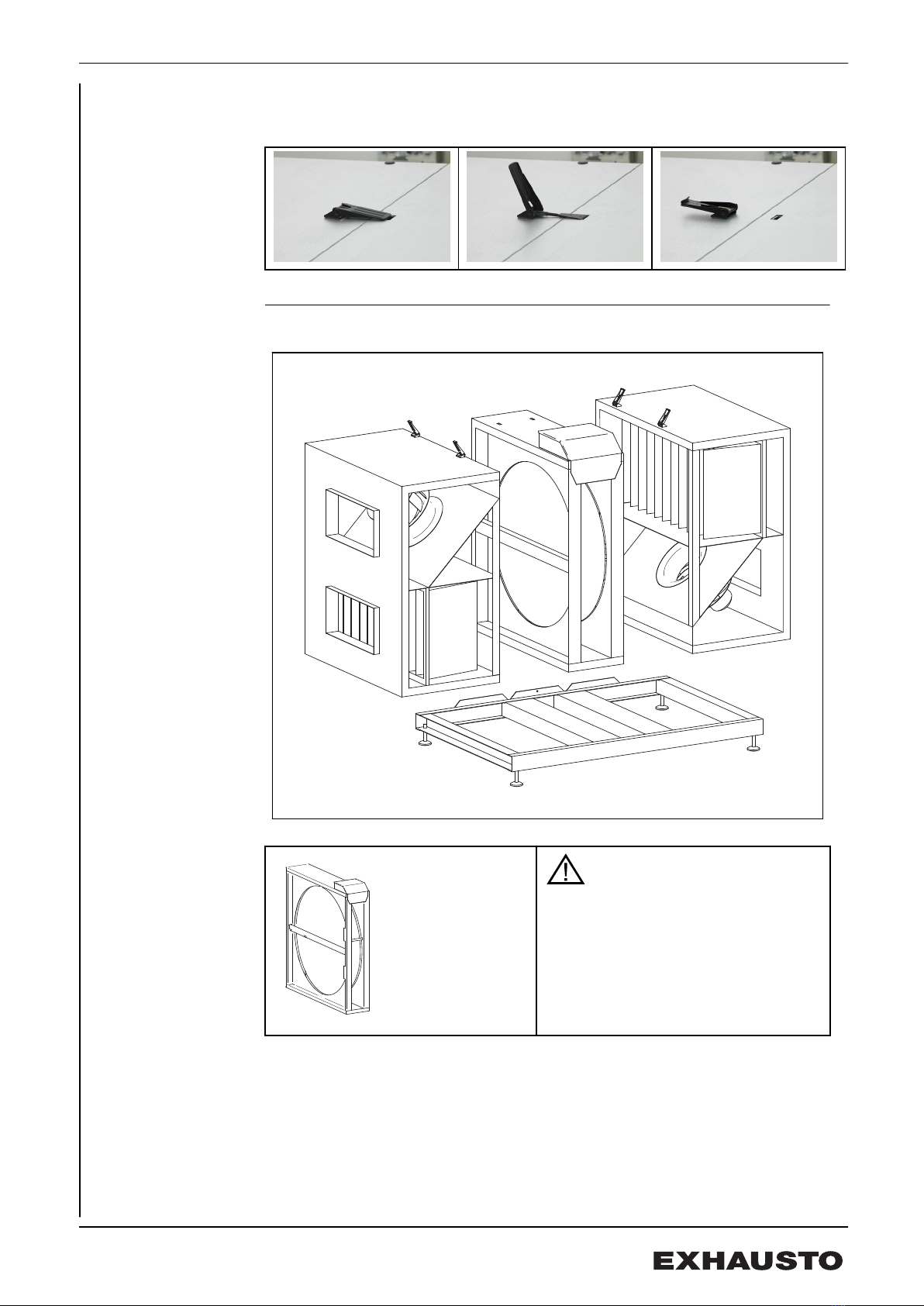

Step 2, Top fixtures ● Open the four fittings (2) on the top of the VEX.
Step 3, VEX sec-
tions
● Lift the fan sections and rotor section off the base. We recommend you place
these sections on pallets for further transport.
RD12472-01
RD12200-01
The rotor section must be
handled with care. It should
never be left to stand unsup-
ported, as it may tip over.
3005063-2018-01-09 Mechanical assembly
19/32

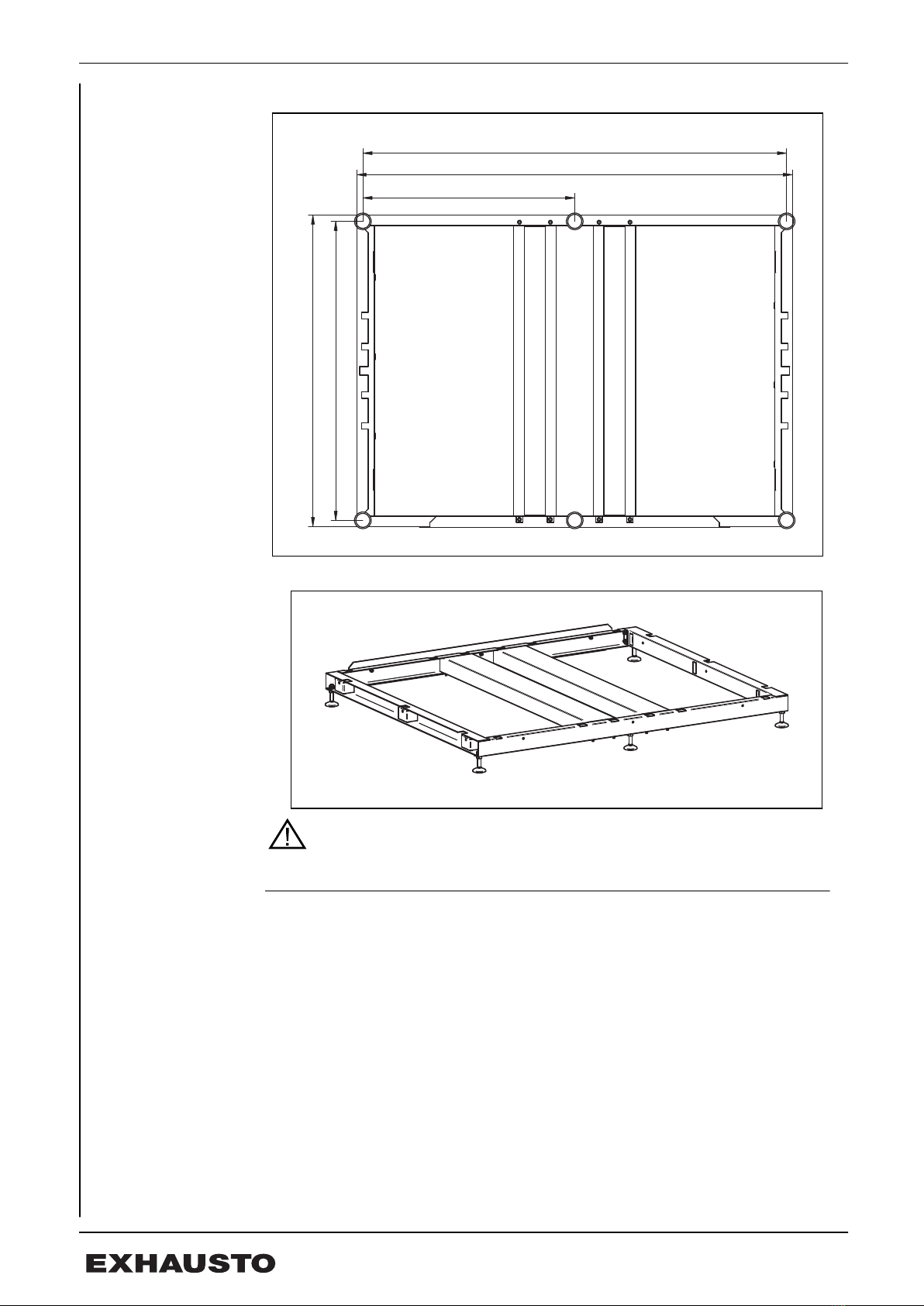

Step 4, Diagram
showing levelling
screw positions
2002
1412,5 1472,5
1001
2058
RD12476-01
RD12199-01
It is important that the base is level before the VEX unit is placed on
it. Adjust the levelling screws, so that the base is horizontal (+/- 20
mm per metre)
Assembly instruc-
tions
● Set the ventilator section up first
● When all three sections are on the base, tighten both sides in to the VEX
● Close the 4 fittings on the top
3005063-2018-01-09 Mechanical assembly
20/32
