Exibel Alpha BT V.1.2 User manual

Ver. 200810
English 3
Suomi 21
Car Handsfree Bluetooth
Autohandsfree Bluetooth
Art.no. Model
36-3553 Alpha BTV.1.2

2

3
ENGLISH
Car Handsfree Bluetooth
Art.no 36-3553, model Alpha BTV.1.2
Please read the entire instruction manual before using the product and save it for future reference.
We reserve the right for any errors in text or images and any necessary changes made to technical
data. If you have any questions concerning technical problems please contact our Customer
Services (see address on reverse).
Safety
• Always check the local legislation regarding use of mobile phones and handsfree equipment
while driving.
• Do not expose the product to extreme temperatures or direct sunlight.
• Never expose the product to moisture, liquid or humidity.
• Use only rechargeable batteries.
• Never mix rechargeable and alkaline batteries, also never mix old and new batteries.
• Use only the included or recommended charger.
• Never take apart the product or its accessories. The product should only be repaired by
qualied service personnel.

4
ENGLISH
Product Description
• Caller ID in clear foldable display.
• DSP technology for effective noise and echo cancellation.
• Battery operated (3 x LR03/AAA) makes it possible to mount it cordless.
• Easy to install, attaches directly on the car’s sun visor or can be used in meetings as a
conference phone where everyone can talk and listen.
• Built-in microphone and speaker.
• Supports for voice dialling (if the phone supports that).
• Phone book with memory for up to 600 entries.
• Comes with car charger for 12/24 V DC.

5
ENGLISH
Buttons and Functions
• Answering a call
• Conrm settings in menus
• Voice dialling (2 sec.)
• Finish a call
• Go back in menus
• Callback feature (2 sec.)
• Move down in menus
• Choosing phone (A/B)
• Activate menu
• Move up in menus
• Decreases the volume
• Increases the volume

6
ENGLISH

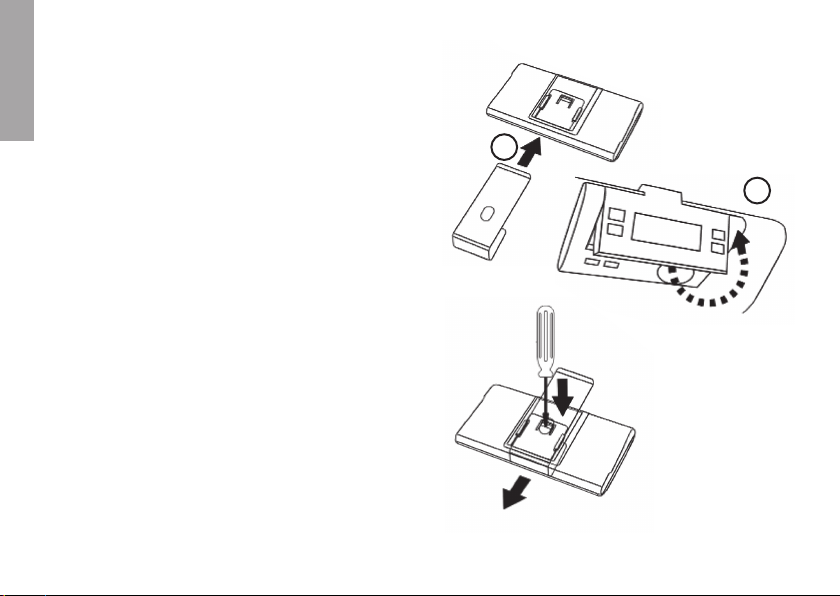

Getting Started
1. Open the battery compartment by sliding it
straight back and insert 3 x HR03/AAA-batteries.
Make sure to install the batteries according to
the markings in the battery compartment.
Important! Charge the batteries for a minimum
of 6 hours before st use.
2. Replace the battery cover.
3. Mount the sun visor on the tracks according to
the gure. Press the attachment all the way until
a click sound is heard and the attachment is
locked in place.
4. Attach the unit on the sun visor according to
the gure. Tilt the display to the desired angle.
Loosening the sun visor attachment
If you want to loosen the sun visor, press the
attachments catch with a screwdriver according to
the gure and simultaneously press the attachment
in the arrow’s direction.
3
4

7
ENGLISH
Charging the batteries
When the unit gives out several tones and the symbol is shown on the display it is time to
charge the unit’s batteries.
1. Connect the included car charger in the car’s cigarette outlet and then to the connection on
the sided of the device. The symbol on the display indicates that the charging is
in progress.
2. When the batteries are fully charged is shown on the display, the charger can
now be disconnected.
Using the headphone outlet
To the headphone outlet (3.5 mm) on the left side of the unit a pair of headphones can be
connected. The internal speaker quietens when headphones are connected.
Preparations
Turning the radio on/off
Turn on
Turn the display out, the unit gives out a short sound signal and the display is lit.
Turn off
Turn back the display to its original position, the device shuts off itself after a few seconds.

8
ENGLISH
Creating a Bluetooth connection
Before the mobile phone and the handsfree unit are used together for the rst time a connection
(pairing) has to be created. When this is done the connection is saved in the respective unit.
• Two mobile phones can be connected simultaneously.
• The handsfree unit has memory capacity for up to 8 mobile phones.
1. Place the mobile phone and the handsfree unit no more than a metre apart.
2. Activate the Bluetooth function on the mobile phone (if the mobile phone has pre-congured
“Proles” it is recommended that the handsfree prole is used instead of the headset prole).
3. Turn on the handsfree. The display indicates “A” (for the rst phone) and P (connection mode).
The connection mode is activated automatically for 4 minutes.
4. Choose searching for new Bluetooth unit in the mobile phone’s menu (see the mobile phone’s
instruction manual).
- The mobile phone searches for available units within approx. 10 metres and displays them
in a list.
- Choose to connect to unit Exibel and enter the password 1234 when the password is
asked for.
5. The connection is now ready and the units are ready to be used together. The phone’s
Bluetooth name is shown on the unit’s display with a symbol representing a car.

9
ENGLISH
N.B.
• On some phones the connection must be activated and approved after the connection
procedure has been made. Choose to manually activate the connection to the unit Exibel
(see the mobile phone’s instruction manual).
• If the connection has failed, repeat the connection procedure again.
• If you do not want to create a new connection when the handsfree unit is turned on,
wait a moment and let the unit automatically search and connect to an already connected
mobile phone.
Connecting another phone
• Press once directly after step 5.
• The display indicates “B” (for the second phone) and P (connection mode).
• Repeat steps 4 and 5.
Choose connected phone
If you have connected several mobile phones you can choose for which phone the current
features should function for.
• In the wait mode, press to choose connected mobile phone. The display shows which
phone has been selected, “A” or “B” and the name of the mobile phone.

10
ENGLISH
Operation
Making a call
1. Enter the phone number as usual on the mobile phone and press call.
2. The call is connected to the handsfree unit.
3. Press Hang up on the mobile phone or press on the unit when you want to nish the call.
Making a call from the phone book
To make a call from the phone book via the handsfree unit you must rst have transferred your
contacts from the mobile phone. See section Phonebook.
1. Choose Phonebook in the menu and conrm with .
2. Choose Ph.B. review and conrm with .
3. Press to in alphabetical order choose the rst letter of the name you are searching for
(the rst contact for each letter in the alphabet is shown).
4. Then press until you have found the desired contact. If there are several numbers on the
same name, press until the desired number for the name is shown.
5. Press to call the chosen contact. The call is connected to the phone and the sound is
transferred to the handsfree unit.
6. Press when you want to nish the call.

11
ENGLISH
Answering a call
When an incoming call is received, the unit sounds, press to answer the call.
Refusing an incoming call
Press to refuse an incoming call.
Answer a call on the other phone
If you have two mobile phones connected you can during a call on one phone, answer
an incoming call on the other phone.
Example:
1. Telephone A has a current call on the handsfree unit.
2. When an incoming call is received by telephone B the unit sounds to notify the user that there
is a new call.
3. Press to answer the call. The sound from telephone A is silenced and the call in
telephone B can begin.
4. Press to nish the call. When the call in telephone B is nished, the call from telephone
A is resumed.

12
ENGLISH
Turning off the microphone (mute)
• Press to temporarily turn off the microphone. You can now have a private conversation
without the person on the phone being able to hear you (tones indicate that the mute function
is activated).
• Press again to turn on the microphone.
Voice dialling
Call a contact by saying his/her name.
The mobile phone must support voice dialling and voice commands must be stored for the
contacts you wish to call using voice dialling. Follow the mobile phone’s instruction manual.
1. Make sure voice dialling is activated on the mobile phone.
2. Press and hold for approx. 2 seconds until the display shows Voice Dial.
3. Say the name after the tone. The phone calls the contact.
Transfering calls to the mobile phone
If you want to have a private conversation without the handsfree feature.
• During current call, press to transfer the call to the mobile phone. The handsfree unit’s
speaker and microphone are shut off. Press the button again to return to the handsfree.

13
ENGLISH
Automatic redial
Automatic redialling of the latest dialled number.
• Press and hold the automatic redialling button for approx. 2 seconds to call the latest
dialled number.
Using the menus
1. Open the menu by pressing once.
2. Then use and to go to the desired sub-menu.
3. Conrm your choice and settings by pressing .
4. Press to exit the menus.
Languages
If you want to change the language in which the menus are displayed. Available languages:
English, Spanish, French, German, Italian, and Portuguese.
1. Choose Languages in the menu and conrm with .
2. Choose desired language with or . Conrm your choice with .

14
ENGLISH
Phonebook
Allows you to via Bluetooth transfer the mobile phone’s contacts to the handsfree unit. Up to 600
entries can be stored in the phone book.
N.B. The mobile phone must be able to support the transfer of a phone book via Bluetooth. See
your mobile phone’s instruction book.
Transfering the entire phone book (Ph.B. reading)
1. Make sure that the mobile phone is connected to the handsfree unit (the display shows the
phone’s name and/or the car icon on the bottom part of the display)
2. Choose Phonebook in the menu and conrm with .
3. Choose Ph.B. reading and conrm with .
4. The transfer of the phonebook starts in a moment. The unit’s display shows the names and
numbers that have been transferred.
N.B. Do not touch any of the buttons and do not move the phone away from the unit whilst
the transfer is in progress.
5. When the transfer is completed, press to nish.
N.B.
If the mobile phone does not support transfer via Bluetooth the message “Phonebook push” in the
unit’s display. Press to nish.

15
ENGLISH
Transfering specic contacts
1. Make sure that the mobile phone is connected to the handsfree unit.
2. Choose in the mobile phone to send one or several contacts via Bluetooth to the handsfree
unit. Follow the mobile phone’s instruction manual.
3. The actual contact is show on the unit’s display when the transfer occurs.
Displaying a number in the phonebook (Ph.B. review)
1. Choose Ph.B. review and conrm with .
2. Press to in alphabetical order choose the rst letter of the name you are searching for.
3. Then press until you have found desired contact. If there are several numbers under
the same name, press until the desired number for the name is shown.
Erasing the entire phone book (Ph.B. delete)
1. Choose Ph.B. delete and conrm with .
2. The display shows “Delete the phone book”.
- Press to conrm that you want to erase the phonebook. N.B. This action cannot be
rewersed!
- Press to nish without erasing.

16
ENGLISH
Received Calls
Choose Received Calls to display received calls.
Call up a received number:
• Mark the number with or . Then press to call up the number.
Missed Calls
Choose Missing Calls to display missed calls.
Calling up a missed number:
• Mark the number with or . Then press to call up the number.
Dialled Out Calls
Choose Dial Out Calls to display previous called numbers.
Calling up a previously called number:
• Mark the number with or . Then press to call up the number.

17
ENGLISH
Hot Key
Choose a number in the phonebook that you want to call by pressing and
simultaneously.
The feature can be used for e.g. an emergency number, voice mail etc.
Storing a hot key:
1. Find the number you want to store as a hot key.
2. Press and simultaneously to store the number.
3. Then press to nish and go back to standby mode.
LCD reverse
Depending on how the handsfree unit is mounted or used the display can be turned upside down
for best visibility.
• Choose LCD reverse and conrm with . The display is turned upside down.

18
ENGLISH
Media Player
The handsfree unit can play the music that is stored on the phone. The phone must be A2DP
compatible for streaming of media via Bluetooth.
Starting playback
1. Make sure that the mobile phone is connected to the handsfree unit.
2. Start the playback of music in the mobile phone. The sound is played in the handsfree unit
and a headphone icon is shown on the display.
Changing track, pausing or stoping playback
You can control the playback directly from the handsfree unit.
1. Choose Media player and conrm with .
2. Mark the desired feature to control the playback:
► – Playback
■– Stop
II – Pause
I◄◄ – Previous track
►►I – Next track
3. Conrm your choice with .
Tip: You can also control the playback as usual from your mobile phone.

19
ENGLISH
Adjusting the volume
Adjust the volume with the volume control. The display shows set volume.
– Lowers the volume
– Increases the volume
N.B.
• Too high volume may cause echo during the call. Adjust the volume to desired level.
• Do not press the buttons simultaneously since you then call the hot key number.
Care and maintenance
Use a soft damp cloth to clean the product. Never use solvents or strong detergents.
Disposal
Follow local ordinances when disposing of this product. If you are unsure how to dispose of
the product, please contact your municipality.

20
ENGLISH
Specifications
Bluetooth interface Version 1.2 compatible (class II).
Adaptive Frequency Jump Lesser interference risk.
Data rate: 723 kbps.
Reduction against radio interferences from e.g. WLAN.
Profile A2DP/AV stereo.
Frequency 2.45 GHz.
Range Approx. 10 metres (class 2)
Phonebook Up to 600 entries.
Phone support Memory for 8 telephones.
Display Numerical background lit 4 lines display with 18 symbols per line.
DSP Full duplex. Noise and echo reduction.
Talk time Up to 8 hours.
Battery size 3 x HR03/AAA rechargeable batteries (included).
External power source 12-24 V DC.
Speaker power output 2 W max.
Ambient temperature - 10 °C to 40 °C.
Size (WxHxD) 120 x 23 x 93 mm.
