Exibel BIT100 User manual

Trådlösa hörlurar
Trådløs hodetelefon
Langattomat kuulokkeet
Kabellose Ohrhörer
Ver. 20180607
English 2
Svenska 10
Norsk 18
Suomi 26
Deutsch 34
Wireless Earphones
Art.no. Model
38-8649 BIT100

2
English
Wireless Earphones
Art.no 38-8649 Model BIT100
Please read theentire instruction manual before use and then
save it for future reference. We reserve theright for any errors in
text or images and any necessary changes made to technical
data. In theevent of technical problems or other queries, please
contact our Customer Services (see address details on theback).
Safety
• Protect your hearing. Listening on high volume for prolonged
periods can lead to permanent hearing loss. Set thevolume to
alow level before using theproduct.
• Be careful when using theproduct if it poses apossible
danger to yourself or others due to your inability to clearly hear
your surroundings.
• Never subject theproduct to high temperature, dust, heavy
vibration, impacts, humidity or moisture.
• Keep theproduct away from water or other liquids.
• Do not place theproduct in continuous sunlight or near naked
flames.
• Never attempt to tamper with or modify theproduct in any way.
• Only use thesupplied charger cable.
• Never let thebattery charge for extended periods when it is
not in use. Discontinue charging during thunderstorms.
• Check your local regulations regarding mobile phone use in
combination with driving.
• Shut off both theproduct and mobile phone in areas where
you are requested to do so, such as in hospitals, aircraft or
areas where there is arisk of explosion.
• Do not store theearphones or thecharging case in
adischarged state for anextended period of time. Charge
theearphones at least every third month to prevent thedeep
discharge of thebattery.

3
English
1
2
3
5
6
4
Contents
1. Earphone (L) for theleft ear
2. Earphone (R) for theright ear
3. Charging case with built-in
battery
4. Earbuds (2 extra pairs of
different sizes)
5. Micro-USB port
6. USB charger cable

4
English
LED indicator
Multifunction
button
On - Hold thebutton in for 3 seconds on both earphones at
thesame time. Release thebuttons when theLED indicators
flash blue or when you hear thevoice message “Power on”.
Off - Hold in one of themultifunction buttons for 3 seconds.
Release thebutton when theLED indicators flash red or
when you hear thevoice message “Power off”.
Theearphones will also be switched off when they are
placed into thecharging case and thelid is closed.
Instructions for use
Multifunction button
Play - Press either of themultifunction buttons to
play media. Use thepaired Bluetooth device to adjust
thevolume in theearphones.
Pause - Press either of themultifunction buttons to
pause media.
Return to the previous track - Press themultifunction
button of theleft earphone twice in quick succession.
Advance to the next track - Press themultifunction
button of theright earphone twice in quick succession.
Answer a call - Press to answer thecall.
End/Reject a call - Press once to end anongoing call.
Press twice in quick succession to reject anincoming call.

4 5
English
Connecting the earphones to a Bluetooth
device (Pairing)
Before using theearphones they must be paired with aBluetooth
device. Thetwo devices only need to be paired once.
1. With the earphones switched off, hold in both multifunction
buttons simultaneously for approx. 3 seconds until the LED
indicators start to flash blue or you hear the voice message
“Power on, Pairing”.
2. When the left earphone stops flashing blue and the right
earphone starts to flash red/blue or when you hear the voice
message “Connected right channel/Connected left channel”,
the two earphones have detected each other.
3. Activate Bluetooth mode on theexternal device that you want
to connect theearphones to. Search for theearphones in your
Bluetooth device (refer to themanual for your device).
4. Theearphones will appear on your device as “Exibel BIT100”.
Select them to pair with thedevice.
5. When thepairing has been successful, theright earphone will
stop flashing red/blue and thevoice message “2nd device
connected” will be heard.
Information
• For phone calls, only theright earphone is used. Theleft
earphone is silent.
• Theearphones will automatically re-connect with thelast
Bluetooth device they were paired to.
• If you have connected amobile phone to theearphones and
receive acall whilst you are listening to music, themusic will
be switched off automatically. Once thecall has ended, music
playback will be resumed (if your phone settings enable this).

6
English
7
8
9
11
12
10
Charging
Charging the charging case
1. Connect theincluded USB charger lead to theMicro-USB
charging port (5) on thecharging case and to acomputer or
other USB charger.
2. When charging is in progress thered LED indicator (12) will be lit.
3. When thebattery is fully charged, thered indicator will go out
and theblue LED indicator (11) will shine.
Information
• Thebattery built into thecharging case has thecapacity to
fully charge theearphones 2 times.
• If theearphones are in thecharging case with thelid closed
while it is being charged, they too will be charged.
Charging the earphones
1. Open thelid of thecase by pressing thebutton (8).
2. Insert theearphones into thecharging case making sure that their
contacts (9) engage with thecontact pins in thecharging case.
3. Carefully close thelid. When theearphones are pushed down
onto thecontacts they will begin charging.
4. TheLED indicators (10) on theearphones, which amongst
other things indicate thecharge status, can be seen through
thewindows (7) in thelid of thecharging case.
5. TheLEDs on theearphones shine red while charging is in
progress and go out when theearphones are fully charged.

6 7
English
1 2 3

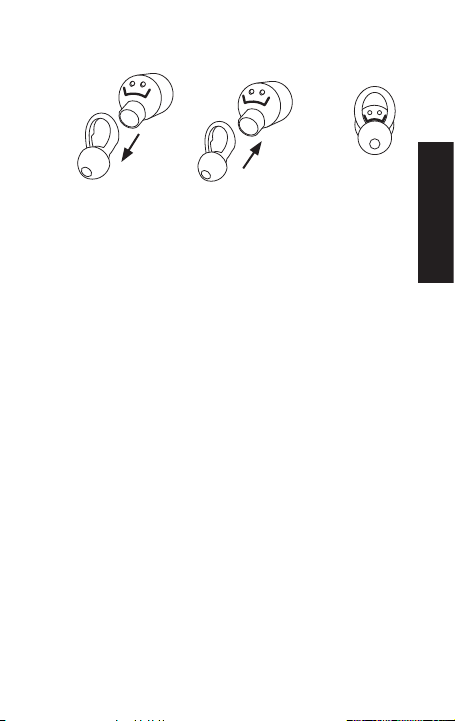

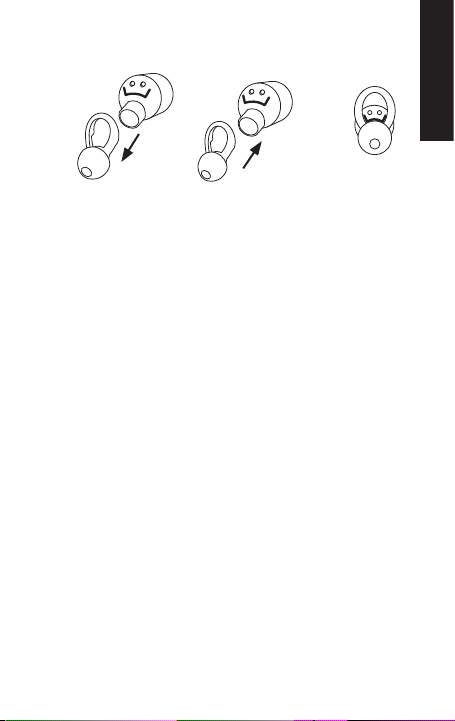

Changing the earbuds
1. Pull off theearbuds currently on theearphones.
2. Choose apair of theincluded earbuds, line up themarkings
and push them onto theearphones.
3. Check themarkings. If theearbuds are fitted incorrectly,
theearphones will not be able to be charged.
Care and maintenance
Clean theproduct using adamp cloth. Use only mild cleaning
agents, never solvents or corrosive chemicals.

8 9
English
Troubleshooting guide
Theearphones
will not switch on.
Make sure that thebatteries are charged.
See the Charging section above.
Thebattery
does not
charge.
Charging case
Make sure that:
• The computer is switched on and not in
standby mode, if you are using it as a
power supply.
• TheMicro-USB cable is properly connected
to both thecharging case and
thecomputer/charger.
Earphones
Make sure that:
• Thecharging case is charged.
• Theearphones are positioned correctly
in thecharging case with their contacts
mating with thecharging pins in thecase.
• Thelid of thecharging case is properly closed.
Won’t connect
to (pair with)
theexternal
device.
• Place theearphones next to thedevice
that you are trying to connect them to.
Make sure that:
• All devices are switched on.
• TheBluetooth function is enabled on
thedevice you are trying to connect to.
Poor or
no sound.
• Check thevolume on theconnected
Bluetooth device.
• Make sure that theBluetooth connection
has been properly established.
• Test playback from your telephone without
it being connected to your earphones to
check that it works.
• Try playback using another file or track, theone
you are attempting to play may be corrupt.
• Make sure that no other wireless devices
are disrupting your Bluetooth connection.
• Make sure that your telephone is within
the10 m reception range of theearphones.

8 9
English
Responsible disposal
Specifications
Earphones
Bluetooth V4.2
Range Up to 10 m
Frequency range Earphones: 20–20,000Hz
Microphone: 50–8,000Hz
Listening time 2–3 hours
Standby time Approx. 80 hours
Battery Lithium-ion, 55 mAh/earphone
IP rating IPX3
Weight 2×4.5 g
Charging case
Battery Lithium-ion, 400 mAh
Weight 51.8 g
This symbol indicates that this product should not
be disposed of with general household waste. This
applies throughout theentire EU. In order to prevent
any harm to theenvironment or health hazards
caused by incorrect waste disposal, theproduct
must be handed in for recycling so that thematerial
can be disposed of in aresponsible manner.
When recycling theproduct, take it to your local
collection facility or contact theplace of purchase.
They will ensure that theproduct is disposed of in
anenvironmentally sound manner.

10 11
Svenska
Trådlösa hörlurar
Art.nr 38-8649 Modell BIT100
Läs igenom hela bruksanvisningen före användning och spara
den sedan för framtida bruk. Vi reserverar oss för ev. text- och
bildfel samt ändringar av tekniska data. Vid tekniska problem
eller andra frågor, kontakta vår kundtjänst (se adressuppgifter på
baksidan).
Säkerhet
• Skydda din hörsel. Lyssning med hög volym under lång tid kan
leda till bestående hörselskador. Ställ in volymen på enlåg nivå
innan du börjar använda produkten.
• Var försiktig med att använda produkten om det kan innebära
fara för dig själv och andra att du inte kan höra omgivande ljud.
• Utsätt aldrig produkten för höga temperaturer, dammig miljö,
starka vibrationer, stötar, fukt eller väta.
• Håll produkten borta från vatten och annan vätska.
• Placera inte produkten iihållande solljus eller inärheten av
öppen eld.
• Försök inte ta isär eller modifiera produkten på något sätt.
• Använd endast medföljande laddkabel.
• Låt inte produkten vara på laddning under enlängre period när
den inte används. Avbryt laddningen vid åskväder.
• Kontrollera lokala föreskrifter om användning av mobiltelefon
ikombination med bilkörning.
• Stäng av både produkten och din mobiltelefon när du vistas
iutrymmen där du är anmodad att stänga av mobiltelefonen,
t.ex. isjukhus, flygplan eller områden där det föreligger
explosionsrisk.
• Förvara inte hörlurar eller laddbox urladdade under längre
perioder. Ladda hörlurarna minst var 3:e månad för att
förhindra att batterierna djupurladdas.
