EXMAX HRD-831 User manual

Portable card FM transmitter
Dear customer :
Thanks for ordering our portable plug in card type FM transmitter model HRD-831. This product build up with
High quality import electronic components , with super long power up to 20 hours , one button for mono / stereo audio
exchange , 16 sound level can be adjusted , with separate AUX audio input port , MIC microphone input port and key lock
function .Adjustable frequency 88.1-107.9 MHz ( can also set to fixed frequency )
good anti interference power for better security , suitable for tourist guide , training course , traveling , study activities .
Please read the manual in detail before use and keep the manual for later inquiry .

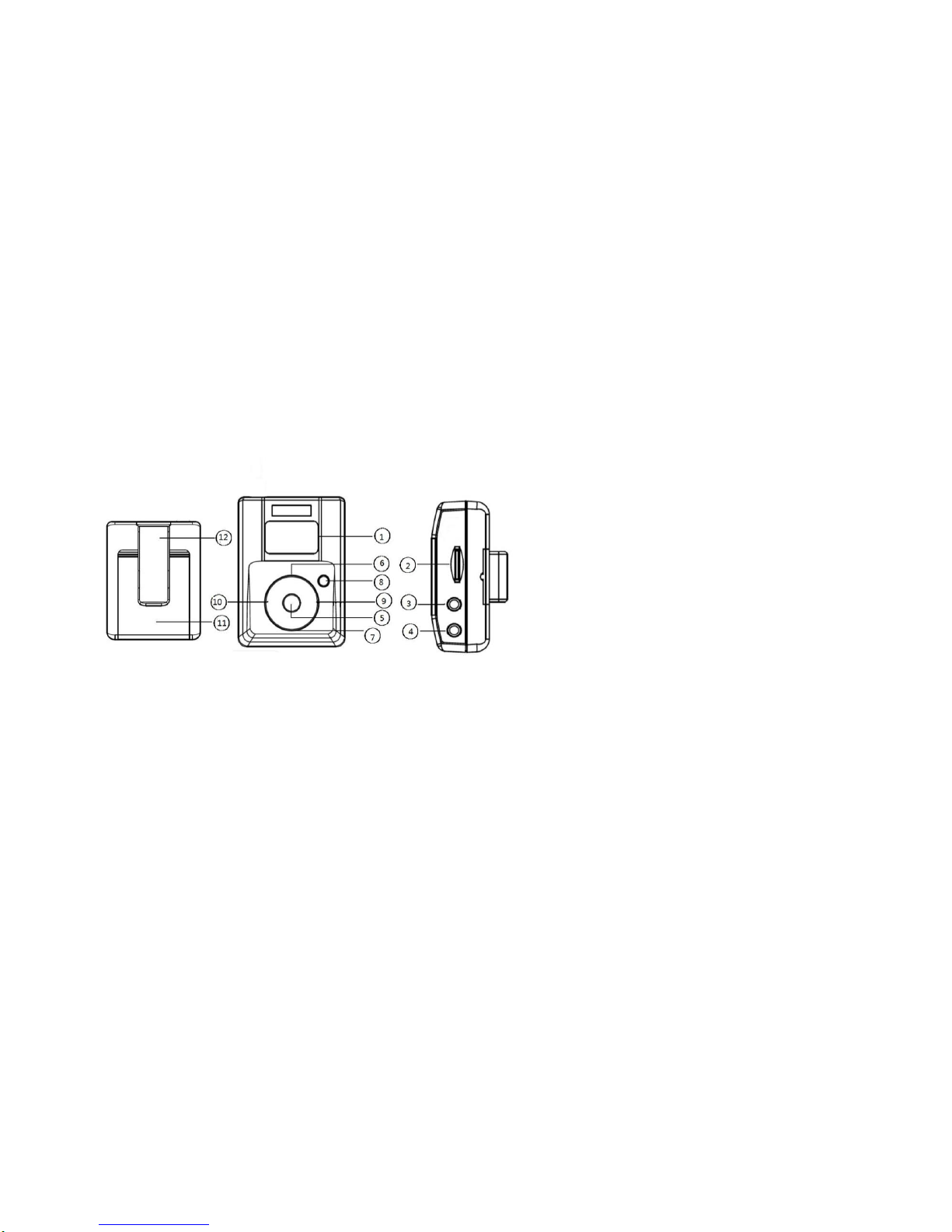

1) Product function diagram :
①LCD display
②TF card port ( support MP3 format )
③Mic port
④3.5 mmAUX port
⑤Power on / off button
⑥PREV - frequency , volume increase switch , long press for mono / stereo interchange
⑦NEXT - frequency , volume decrease switch , long press for frequency lock
⑧MENU - interchange button for MIC / AUX / FM
⑨▷‖Play / pause
⑩Lock switch
⑪battery cover
⑫、Waistband

一、：Operation :
1. Push open battery cover , insert BL-5C Li battery , close battery cover
2. Long press power button ⑥to power on,
(2.1) Internal MP3 playing : In condition no audio input in AUX port ⑤, insert TF card to enter MP3 playing mode ,
transmitter with automatically read card and play music , short press PREV⑦，NEXT⑧for previous / next song , short
press ▷‖⑩for play / pause
(2.2) Play external audio : connect AUX⑤port using audio cable to PC / TV / mobile to play external audio , unplug
audio cable inAUX playing mode will automatically change to TF card playing mode in 3 seconds.
(2.3) insert microphone to MIC port for chatting
3. Function interchange :
Short press MENU button , MIC / AUX / FM flashing in sequence。
When “MIC” flashing , short press PREV⑦,NEXT⑧to adjust Mic volume
When “AUX” flashing , short press short press PREV⑦,NEXT⑧to adjustAUX volume
When “FM” flashing , short press PREV⑦,NEXT⑧to adjust frequency
( if transmitter locked frequency 88.1MHz , long press NEXT button for frequency exchange )
4. Lock / unlock method :
（1）In normal condition , long press LOCK button , icon appear in display , function locked.
（2）In locked condition , long press LOCK button to release locking function , icon disappear.
5. Charging
(1) Connect transmitter to DC5V charging adapter by USB charging cable , icon flashing to indicate charging in
process .
(2) Icon stop flashing upon fully charged , charging time around 5 hours
6. Long press PREV button for 2 seconds to interchange mono / stereo mode , STEREO appear on display is stereo mode .
二、Notice for operate the product :
1. Maintenance should be done by professional technician
2. Please do not use it in easy explosive circumstance ( such as gas station , steam room )
3. Please don’t place transmitter in high dusty , high temperature & high humidity condition.
4. Please follow the rules set byAdministration of radio
5. Please don’t use the device in stormy weather.
三、Product feature :
1. This product using professional IC , high quality audio can be separate handled to obtain lossless audio
2. Professional level of noise wave / harmonic wave , ≤60dB , get rid of surrounding interference
3. Mono / stereo easily interchange , easy operate
4. Suitable applicant / organization
Driving college / school / stage director / public speech / tourist / vehicle mounted chatting , MP3 audio forward / in
house wireless audio system / wireless meeting system / simultaneous interpretation / outdoor traveling

Note :
A、Please recharge device when icon indicate empty .
B、No charging indication when charging in power off status.
C、Please release battery while long period not in use.
5. Main specification data :
no
item
technical spec
1
Working voltage
BL-5C 3.7V 1000mAh
2
Frequency range
88.1-107.9MHz(step value:0.2MHz)
3
Frequency stability
±10PPM
4
Frequency step up
0.2MHz
5
Duration period
8 hrs / 6 hrs / 5hrs / 3hrs level 1 to 4
6
Charging time
Around 5 hrs
7
noise wave / harmonic wave
radiation
≤-60dB
8
Audio loss
≤1%
9
Frequency response
50Hz~1500Hz
10
Input level
≤-15dBV
11
SNR
≥60dB
12
Support format
MP3 format
13
product dimension
80*58*18mm
14
product weight
83 grams
6. Package :
number
Product name
spec
quantity
unit
1
main product
HRD-831
1
set
2
Lithium battery
BL-5C1000mAh
1
pc
3
Microphone
Stereo , 1.2 M
with shielding
1
pc
4
Audio cable
3.5MM male to
male
1
pc
5
USB cable
USB to micro
usb plug
1
pc
6
packing box
Printed box +
blister
1
set
7. After sell service :

Warranty card
Name：Tel：
Address：
Purchase date：
Product occur non human damage during normal use in 12 months warranty period can be served with free of
charge maintenance service ( not on-site repair ) , customer will be charged for reasonable repair cost in below
situation :
1、Damage by self dis-assembly
2、Operate device not following user manual
3、Damage by human , broken , destroy , watering not relate to product quality
4、Device damaged by thunder strike or irresistible issue
5、Exist warranty period or can prove manufacturing date
6、Product case , Lithium battery , microphone , charging adapter , audio cable & USB charging cable did not provide
free of charge maintenance
8. Disclaimer :
Please follow the rule set byAdministration of radio we are not response for any claim related to this issue
