Exonic EXDTV-100 User manual

1TINSE104---003
R
INSTRUCTION MANUAL
ATSC Digital TV Tuner with Antenna
EXDTV-100
In Car Audio,
Sonic Excellence by
Mobile Entertainment
EXONIC Mobile Entertainment
Buena Park, CA. 90621 U.S.A.
MOBILE ENTERTAINMENT

1
Contents
Safety Instruction
Main Features/Accessories
Remote Control Unit (RCU)
Install Instruction
Starting
CH & CC Setup
CC Customer
Parental Control
V-Chip & Movie Ratings Setting
USATV Content Ratings
Canada Ratings
System Setting
Other Functions
Specification
2
3
4-5
6
7
8
9
10
11
12-13
14-15
16
17
18-20
20
Key NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
Function Data code Customer code
807F
IC:TT6222-1/
NEC6122
POWER
MUTE
1
2
3
4
5
6
7
8
9
0
MENU
EXIT
CH+/UP
VOL- / LEFT
/
VOL+/RIGHT
FAV
INFO
TV / AV
RECALL
AUDIO
CAPTION
LIST OK
CH-/DOWN
8A
8C
91
92
93
94
95
96
97
98
99
9A
90
9B
85
87
80
83
9F
82
81
9D
89
C0
88
8F
8B
Key code of remote controller
Specification
-
-/--

2
Safety instruction
19
Please read the following instructions carefully.
* Do not expose the receiver to rain, moisture, direct sunlight or do not
place it near a heater.
* Do not open or remove cover, refer all servicing to qualified service
personnel.
* Do not supply DC voltage over DC12-24V+15%.
* While driving , the driver not allow to watch TV programs.
WARNING
* ACC wire can connect to car ACC (engine start switch) only. If
connect to car battery, it will draw current continuously even in stand by
mode.
* Due to the new software upgrade, the new software may have
a slight difference then this manual.
CAUTION
switch
contents
Specification
Connector:
Power Cable And Jack
6Pins: 1.DC+12~24V Input 5.GND
2.ACC 6.GND Output
3.NC
4.DC+12~24V Output (2A MAX)
For IR Extension Box
Audio Output:2 RCA Jacks (R/L)
Video Output:1RCA Jack
S-Video:1DIN Jack
3.5 Jack for upgrade
Video: RCA Jacks
Audio: 2 RCA Jacks (R/L)
Female F Type
MPEG Chip
Flash Memory
SDRAM
Operating Temperature
Storage Temperature:
Power Supply
Power Consumption
Dimension
Packing Size (GIFT BOX)
Weight
Accessories
RENESAS R8A66953FP Main CPU 108MHZ
sub CPU 54 MHz
32 Mega bit
-10 ~ +50
-40 ~ +65
DC + 12V 360mA Max Standby:20mA Max.
Running:4.4W Max, Standby:0.3W Max
125(L)*92(W)*27(H)mm
185(L)*180(W)*56(H)mm
N.W.:0.25Kg
1.R/C Unit *1 5.IR Extension Box*1
2.DC Power Cable* 6.AV Wire*1
3.Mounting Lug*2 7.Operation Manual*1
4. Screw Set*1
℃?
??
General:

3
Main features
18
Accessories
The following have been packed in your receiver box:
*User's manual x1
*Remote control unit(RCU) x1
*Extended R/C Receiver x1
*Mounting LUGx2 with screw x4
*A/V Wire x1
*Power supply CORD x1
* Compliant with ATSC A/52 and QAM ITU-T J.83 ANNEX B 64/256
* Use high performance ATSC/QAM demodulator
* Provide antenna power supply function for pair use with
active antenna
* Favorite channel list
Closed caption supported
* AV input for other DVD/GPS/GAME application
* OSD options: English, Spanish and French
* Software upgrade available by PC
* Wide DC power input from DC 9V to 24V suitable for car.
* Video, stereo audio
* HDTV signal scale to SDTV 720X480P or 480I output
Specification
Tuner:
Demodulator
Video Decoder
Audio Decoder
R Input
Input Impedance
Signal Level
Connector Type
Channel Band Width
FULL BAND 57MHz ~ 803MHz
75
-81dBm ~ -25dBm
F Terminal
6M
Standard
Demodulation
ATSC A/52 and QAM
ITU-T J.83 ANNEX B 64/256
ATSC-8VSB OR CABLE 64/256QAM
Standard
Transport Stream
Video Aspect Ratio
Video System
Video Output
Video Resolution
MPEG-2 MP@HL
ISO/IEC 13818-1 MPEG-2
4:3 / 16:9
NTSC
1Vpp+0.3Vpp
720*480i@30fps
Standard
Audio Decoder
Audio Channel
Audio language
Audio Output
ISO/IEC 11172-3
MPEG-1 audio Layer
ST
English, Spanish and French
1Vpp 47K Ohm Adjustable With E Volume
F

4

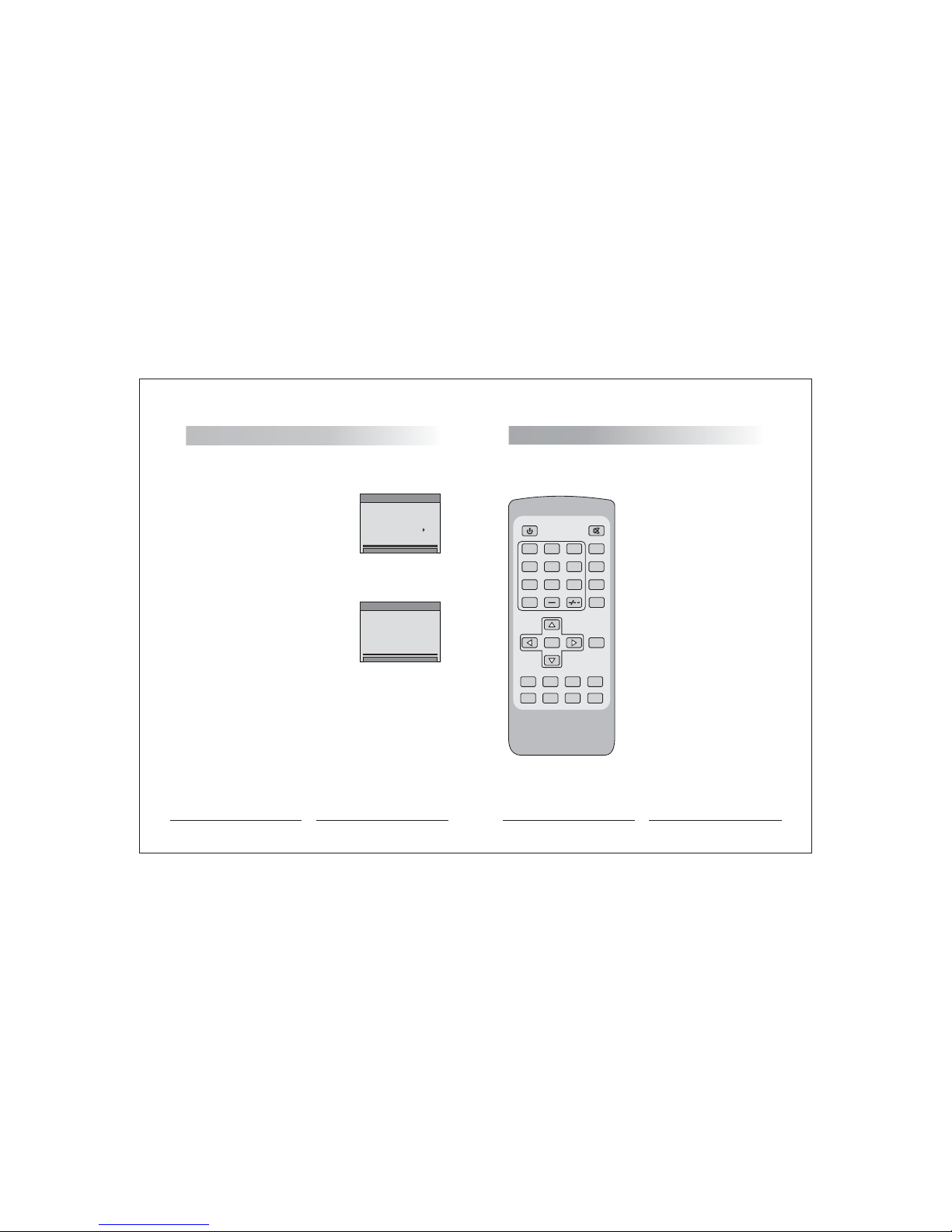

Remote control unit(RCU)
17
- POWER:
S
-MUTE :
Mute the audio output
- MENU:
A
- EXIT:
-TV/AV:
Switch between TV and AV input mode
witch the receiver between stand-by
& on modes
- Numeric Keys(0~9):
For direct entry of channel number
" " : for logical channel input
In digital TV mode, there are more then
1 program in a channel location.
for example:CH14 may has 14-1,14-2,
and 14-3
" " : no function
ccess the main menu
To return to previous status or exit
- AUDIO:
Switch the audio language if
transmitting more then one language
-FAV:
Select the favorite channels
-
-/--
LIST
OK
RECALL CAPTION
MENU
CH+
VOL- VOL+
CH-
EXIT
INFO
AUDIO
ABC DEF
TV/AV
FAV
POWER MUTE
123
456
0
GHI JKL MNO
PQRS TUV WXYZ
789
Other Functions
Figure 25-Program List menu
Program List
CH.
2-1
2-2
2-10
Label
WGB-SD
PBS-HD
WGBH-DX
Skip
On
On
Off
1. Program List:
Enter channel in the program list
Select item in the program list
Figure 26-Favorite List menu
Favorite List
FAV.1
FAV.2
FAV.3
FAV.4
FAV.5
2-1
2-2
2-10
NONE
NONE
2. Favorite List:
Set favorite channel in the favorite list
Select item in the favorite list
Figure 28-Information menu
2-1 ABCD
Audio (English)
Format (Normal)
12: 00 PM
Block (Off)
3. Information menu
1) Audio List: display current audio
language.
2) Clock: display current time in the
program.
3) Format: display current screen mode.
4) Audio List: display current status of
parent control.
Figure 29-Volume menu
Volume 20
4. Volume
1) Vol+/Vol- key: increase or decrease
Volume value.
Hold down Vol+/Vol- key to increase
or decrease Volume value continuously.
2) options: 0-40

5
Remote control unit(RCU)
16
- LIST/OK:
Select an item or confirms a choice.
A list will display in viewing mode
- RECALL:
Go back to the previously viewed channel
- CAPTION:
Switch the closed caption "on" if the
closed caption is transmitted on this
channel
hange channels sequentially up or
down in viewing mode and move to
the next higher or lower item in the
menu
lter the Audio output level up or
down in viewing mode or move to
the left or right item in the menu
information on viewed channel
- CH(+ / - ):
C
-VOL(+/-):
A
- INFO:
Display
LIST
OK
RECALL CAPTION
MENU
CH+
VOL- VOL+
CH-
EXIT
INFO
AUDIO
ABC DEF
TV/AV
FAV
POWER MUTE
123
456
0
GHI JKL MNO
PQRS TUV WXYZ
789
Figure 23-System Setting menu
System Setting
OSD Langue
Audio Langue
Format
Time Setup
ANT Power Switch ffO
English
English
Normal
1. OSD Langue: Select the OSD Langue
options: English, Spanish and French.
default: English
2. Audio Langue: Select the Audio Langue
options: English, Spanish and French.
default: English
3. Format:
Select the Format option list options: Normal, Crop, Squeeze
and Letter Box. default: Normal
4. Time Setup: Enter Time Setup menu
1) Clock:
Notes: the Clock displays the current
time from programs
2) Time Zone:
Select the Time Zone options: Eastern, Samoa, Hawaii,
Alaska, Pacific, Mountain, Central, Atlantic, Newfoundland.
default: Eastern
3) Daylight Sav.:
Switch the Daylight Sav. between on and off. default: off
Figure 24-Time Setup menu
Time Setup
Clock
Time Zone
Daylight Sav.
1:56 AM
Eastern
On
System Setting
System Setting

6
Install instruction
15
1.For car use: Connect the BATT wire to car battery and connect ACC wire to
car ACC switch.
2. Upgrade port is used for factory testing purpose only.
This port is not used during install.
3.GND ( ) must connect to ground or battery- .
4.DC output ground, connect to the device GND with which use the DC +12V-24V
output.
1
ANT IN
V 1
V 2
V 3
LR
VIDEO OUT AUDIO OUT
TV/MONITOR
BATT,+12~24VDC Power supply input(Yellow)
3.15A FUSE
2.5A FUSE
ACC, Car Engine Key(Red)
GND,Power Supply ground(Black)
Output GND, DC output ground( Brown)
DC OUT +12~24VDC, (Blue)2.5Amp output
FRONT
REAR
DC
IN/
OUT
ACC GND
OUT
+12V-24V
OUT
+12V-24V
IN
POWER LED
IR RECEIVER
VIDEO INPUT
AUDIO INPUT（）L/R
EXTENSION IR
VIDEO INUPGRADE
IR IN
VLR
IR POWER AUDIO IN
UPGRADE PORT
Figure 19-RRT Setting menu
RRT Setting
Dimension Name 1
Dimension Name 2
Dimension Name 3
Dimension Name 4
Note: blocking a rating affects all the higher ratings, so that
blocking "13 ans+" in the example above automatically
blocks "16 ans+"and "18 ans+", whatever previous state
of these ratings was. If a password is defined while a TV
program warning is received for the current channel,
sound is muted and the following menu is displayed on the
center of screen; what's more, the rating information should
be consistent with current active program rating.
This Channel is blocked by the French
Canada Rating of "G"
1. RRT Setting:
Enter Rating Value setting in current
dimension Name.
Figure 20-Rating Region Dimension menu
Dimension Name1
Rating V alue 1 B
Rating V alue 2 B
Rating V alue 3 B
Rating V alue 4 B
1. Rating value Setting:
Set Block or View in current Rating
Value.
RRT Setting
Rating value Setting
Canada Ratings

14 7
Auto Search
Source Type:
select the source type cable or antenna
1) Press VOL+/OK key to start auto
searching process
2) TO stop, press EXIT/VOL- key to stop
the searching process.
Note: When auto searching is completed
or stop in auto searching, the
following information is displayed.
Source Type Cable
Start Search
Figure 2-Auto Search menu
Auto Search
Searching Digital Channel
Source Type (Cable)
Searching is in process now
Please wait
To stop, press 56%
Found 1 Digital Channel
…
Figure 3-Searching process menu
Figure 4-Completed menu
Channel Search Completed
Found 100 Digital Channel
Main Menu
Auto Search
CH Setup
CC Setup
Parental Control
System S tting
Version Information
e
Figure 1-Main Menu
1.Press the power switch on R/C unit to
switch on the converter box. And press
themenukeytogoautosearch
2. The CH+/CH- key also have a multiple
function of UP/DOWN; and the
VOL+/VOL- key have a multiple function of RIGHT/LEFT.
3. There are 6 items in the main menu for all available setting.
Starting
Canada English Ratings
C
C8+
G
PG
14+
18+
Figure 17-Canada English Ratings menu
Canada English Ratings
View
View
Block
Block
Block
Block
1. C-18+:
Switch the check box between
view and block. default: View
Note: blocking a rating affects all the
higher ratings, so that blocking
"PG" in the example above auto
metrically blocks "14+" and "18+", whatever previous state
of these ratings was. If a password is defined while a TV
program warning is received for the current channel, sound
is muted and the following menu is displayed on the center
of screen; what's more, the rating information should be
consistent with current active program rating.
This Channel is blocked by the English
Canada Rating of "C8+"
G
8ans+
13 ans+
16 ans+
18 ans+
Figure 18-Canada French Ratings menu
Canada French Ratings
View
View
Block
Block
Block
Canada French Ratings
1. G-18 ans+:
Switch the check box between view
and block. default: View
Canada Ratings

813
CC Setup
CH Setup
Channel 2-1
Skip On
Favorite list
Figure 5-CH Setup menu
CH Setup
1. Select the program in the channel
2. Switch skip status between on or off
1. CC Display:
Select the closed caption display options: On, Off,
Muted=On default: Off
notes: "Muted = On" means "On"when sound is muted via the
MUTE key
2. 608CC Type:
Select the CC type options: C1, C2, C3, C4, T1, T2, T3, T4
default: C1
3. 708CC Type:
Select the CC type options:
Service 1, Service 2, Service 3,
Service 4, Service 5, Service 6
default: Service 1
4. CC Mode:
Select the CC mode options: Broadcast, Customer
default: Broadcast
notes: when CC Mode is Broadcast , CC Customer is grayed-out
and cannot be edited .
5. CC Customer:
Enter the CC Customer sub-menu
Figure 6-System Setting menu
CC Setup
CC Display
608CC Type
708CC Type
CC Mode
CC Customer
On
C1
Service1
Broadcast
CH & CC Setup
PG View Enable
View Enable
D
L
S
V
Figure 14-PG View Enable menu
PG
View
View
Block
Block
Block
1. View Enable:
Switch the check box between view.
default: View
2. PG: Switch the check box between view.
default: View
Figure 15-14 View Enable menu
14
View Enable
D
L
S
V
View
Block
View
Block
Block
14 View Enable
1. View Enable: Switch the check box
between view. default: View
2. 14: Switch the check box between view.
default: View
MA View Enable
Figure 16-MA View Enable menu
MA
View Enable
L
S
V
View
Block
Block
Block
1. View Enable:
Switch the check box between view.
default: View
2. MA: Switch the check box between view.
default: View
USA TV Content Ratings

9
12
CC Customer
CC Size
CC Font
CC Opacity
CC Color
Edge Color
Edge Type
Bk Color
Bk Opacity
Figure 7-CC Customer Menu
CC Customer
Standard
Font0
Solid
White
Black
None
Black
Solid
1. CC Size:
CC size options: Small ,Standard and
Large default: Standard
2. CC Font:
Select the CC font options: Font 0, Font 1, Font 2, Font 3,
Font 4, Font 5, Font 6 and Font 7 default: Font 1
3. CC Opacity:
Select the CC opacity options: Solid, Trnsl, and Trnsp.
default: Solid
4. CC Color:
Select the CC color options: Black, White, Red, Green, Blue,
Yellow, Magenta, and Cyan. default: White
5. Edge Color:
Select the Font Edge color options: Black, Gray, Red , Green ,
Blue , Yellow , Navy and Dark Gray. default: Black
6. Edge Type:
Select the Font Edge type options: None, Raised, Depressed,
Outline, L.Shadow and R.Shadow. default: None
7. Bk Color:
Select the Background color option list options: Black, Gray,
Dark Gray, Red, Navy, Green, Blue and Yellow.
default: Black
8. Bk Opacity:
Select the Background color options: Solid, Transparent
default: Solid
CC Customer
Y
Y7
G
PG
14
MA
Figure 12-USA TV Content Ratings menu
USA TV Content Ratings
View
Block
Block
Block
View
Block
1. Y to MA:
Switch the check box between view
or block. default: View
Note:blockingaratingaffectsallthe
higher ratings, so that blocking
"TV-PG" in the example above
automatically blocks "TV-14" and "TV-MA", whatever
previous state of these ratings was. If a password is
defined while a TV program warning is received for the
current channel, sound is muted and the following menu
is displayed on the center of screen; what's more, the rating
information should be consistent with current active program
rating.
USA TV Content Ratings
This Channel is blocked by the USA TV
Content Rating of "TV-G"
Y7 View Enable
View Enable
FV
Figure 13-Y7 view enable menu
Y7
View
Block
1. View Enable:
Switch the check box between view.
default: View
2. Y7: Switch the check box between view.
default: View

10
V-chip Setting
RRT Setting
Master Enable On
Unrated
Change Password
On
Figure 9-Parental Control menu
Parental Control
11
Parental Control
Before enter Parental Control menu, please enter the in order for the
child not to change any settings on the Parental Control.
Parental Control
Input Password
Please enter the password by 0-9
Figure 8-Enter Password menu
options: 0-9,default: ----
notes: return to upper menu
when user press "EXIT" key
If password is invalid, input numbers are cleared and you could
input password again; when password is valid, enter Parental
Control menu automatically.
1. V-chip Setting:
Enter the V-chip Setting menu.
2. RRT Setting
Enter the RRT Setting menu.
3. Master Enable: switch Master Enable between on and off.
default: on
4. Unrated: Switch Unrated between on and off. default: on
5. Change Password: enter Change Password sub-menu
Parental Control
Change Password
Change Password
New Password
Please enter the password by 0-9
Figure 21-Change Password menu
options: 0-9, default: ----
notes: Return to upper menu when user press
"EXIT" key, The default password is
"0000"
V-chip Setting
Movie Ratings
USA TV Content Ratings
Canada English Ratings
Canada French Ratings
Figure 10-V-chip Setting menu
V-chip Setting
1. Movie Ratings:
Enter Movie Ratings sub-menu
2. USA TV Content Ratings
Enter USA TV Content Ratings
sub-menu
3. Canada English Ratings
Enter Canada English Ratings sub-menu
4. Canada French Ratings
Enter Canada French Ratings sub-menu
Movie Ratings
G
PG
PG-13
R
NC-17
X
Figure 11-Movie Ratings Menu
Movie Ratings
View
View
Block
Block
Block
Block
1. G-X:
Switch the check box
between view or block. default: View
V-Chip & Movie Ratings Setting
Note: blocking a rating affects all the higher ratings, so that
blocking "R"in the example above automatically blocks
"NC-17" and "X", whatever previous state of these ratings
was. If a password is defined while a TV program warning
is received for the current channel, sound is muted and the
following menu is displayed on the center of screen; what's
more, the rating information should be consistent with
current active program rating.
This Channel is blocked by the Movie
Rating of R
