Exsys EX-1182VIS-2 User manual

Vers. 1.0 / 04.11.21
USB 3.2 Gen 1 Hub with 4 Port‘s,
15KV ESD Surge Protection &
3KV Optical Isolation
EX-1182VIS-2
USB 3.2 Gen 1 Hub mit 4 Port‘s,
15KV ESD Überspannungsschutz &
3KV Optische Isolation
Manual
Anleitung

2
Deutsch EX-1182VIS-2
1. Beschreibung···································································································· 3
2. Lieferumfang····································································································· 3
3. Aufbau & Anschlüsse························································································4-5
3.1 Aufbau························································································································ 4
3.2 Anschlüsse················································································································4-5
4. Hardware Installation··························································································· 6
5. Treiber Installation ······························································································ 6
6. Reinigung·········································································································· 6
7. Technische Daten······························································································· 7
8. Technische Zeichnung························································································· 7
Inhaltsverzeichnis
Index
© Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved
1. Description ······································································································· 8
2. Extent of Delivery······························································································· 8
3. Layout & Connectors ······················································································9-10
3.1 Layout ························································································································ 9
3.2 Connectors··············································································································9-10
4. Hardware Installation··························································································11
5. Driver Installation·······························································································11
6. Cleaning ·········································································································11
7. Technical Information ·························································································12
8. Technical Drawing ·····························································································12

3
EX-1182VIS-2Deutsch
Der EX-1182VIS-2 ist ein USB 3.2 Gen 1 HUB für bis zu 4 Endgeräte. Der Hub ist mit zwei USB 3.2
Gen 1 A-Ports, einem USB 3.2 Gen 1 C-Port und einem USB 2.0 A-Port für Endgeräte und einem
USB 3.2 Gen 1 B-Port für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Anschlüs-
se von 1.1 bis 3.2. Jeder Anschluss an der EX-1182VIS-2 ist zusätzlich verschraubbar. Durch die
Stromversorgung über die 5V Buchse können an jedem USB 3.2 Gen 1 Port 1,5A und an dem USB
2.0 Port 500mA zur Verfügung gestellt werden. Der USB 3.2 Bus unterstützt optimal die Leistung des
schnellen Genesys Chipsatz. Der EX-1182VIS-2 gewährleistet so eine sichere Datenübertragung und
exzellente Performance von bis zu 5Gbit/s. Er unterstützt den Self Powered und Bus Powered Mo-
dus. Zusätzlich ist der EX-1182VIS-2 mit einem 15KV ESD Überspannungsschutz und einer 3KV
optischen Isolation ausgestattet. Die EX-1182VIS-2 kann problemlos mit der im Lieferumfang ent-
haltenen Wandmontagehalterung an die Wand installiert werden. Im Lieferumfang ist zusätzlich
auch das DIN-Rail Kit für die Installation auf eine Trägerschiene enthalten. Das DIN-Rail Kit wird mit
vier Schrauben auf der Unterseite der Wandmontagehalterung festgeschraubt.
Merkmale:
• Kompatibel zu USB 1.1, 2.0, 3.0, 3.1 & 3.2
• Bis zu 5Gbit/s
• Es werden alles Betriebssysteme unterstützt
• Alle Anschlüsse sind verschraubbar
• 15KV ESD Überspannungsschutz & 3KV Optische Isolation
• Zertifiziert für
Bevor Sie den EX-1182VIS-2 an Ihren PC anschließen, überprüfen Sie bitte zuerst den Inhalt der
Lieferung:
• EX-1182VIS-2
• Netzteil (5V/4A)
• USB 3.2 Gen 1 Kabel (verschraubbar) (EX-K1581V)
• DIN-Rail Kit (EX-6095)
• Wandmontagehalterung
• Anleitung
1. Beschreibung
2. Lieferumfang
© Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved

4
Deutsch EX-1182VIS-2
3.1 Aufbau
3. Aufbau & Anschlüsse
© Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved
3.2 Anschlüsse
Betriebs LED
2x USB 3.2 Gen 1
Downstream A-Buchse
Vorderseite:
1x USB 3.2 Gen 1
Downstream C-Buchse
1x USB 2.0
Downstream A-Buchse
5V Buchse für
im Lieferumfang
enthaltenem Netzteil
Rückseite:
1x USB 3.2 Gen 1
Upstream B-Buchse
5V Buchse:
ACHTUNG!!!
Nur zur Verwendung mit im Lieferumfang enthaltenem Netzteil!

5
EX-1182VIS-2Deutsch
3. Aufbau & Anschlüsse
© Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved
Achtung!
Stecker niemals
umgekehrt oder mit
Gewalt einstecken.
USB 3.2 Gen 1 A-Buchse:
StdB_SSTX -
StdB_SSTX+
GND_DRAIN
VCC
StdB_SSTX +
StdB_SSTX -
D+D- GND
3.2 Anschlüsse
USB 3.2 Gen 1 B-Buchse:
D-
GND
StdB_SSTX -
StdB_SSTX +
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
D+
VBus
Achtung!
Stecker niemals
umgekehrt oder mit
Gewalt einstecken.
USB 3.2 Gen 1 C-Buchse:
Hinweis!
Durch die Doppelbelegung der Pins, kann der USB Typ-C Stecker beidseitig in die Buchse
gesteckt werden.
USB 2.0 A-Buchse:
USB 2.0 A-Buchse
Pin Signal Pin Signal
1VCC 3DATA+
2DATA- 4GND

6
Deutsch EX-1182VIS-2
© Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved
4. Hardware Installation
5. Treiber Installation
Alle Betriebssysteme
Nach Abschluss der Hardwareinstallation erkennt das Betriebssystem den EX-1182VIS-2 automa-
tisch und installiert diesen.
ÜBERPRÜFEN DES INSTALLIERTEN TREIBER
Öffnen Sie den >Geräte-Manager<. Jetzt müssten Sie unter „USB-Controller“ folgende Einträge
sehen:
Sind diese oder ähnliche Einträge vorhanden, ist der USB Hub richtig installiert.
6. Reinigung
Zur Reinigung des Gerätes verwenden Sie bitte ausschließlich ein trockenes nicht faserndes Tuch
und entfernen Sie die Verschmutzung mit leichtem Druck. Im Bereich der Anschlüsse bitte darauf
Achten, dass keine Fasern des Tuchs in der Buchse hinterlassen werden. Verwenden Sie bitte
zu Reinigung in keinem Fall ein feuchtes oder nasses Tuch!
Beachten Sie bitte die folgenden Installationshinweise. Da es große Unterschiede zwischen PC‘s
gibt, können wir Ihnen nur eine generelle Anleitung zum Anschluss der EX-1182VIS-2 geben. Bei
Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems.
1. Installieren Sie die EX-1182VIS-2 mit dem mitgelieferten DIN-Rail Kit auf einer Tragschiene
oder mit der Wandmontagehalterung an eine Wand.
2. Verbinden Sie das mitgelieferte USB-Kabel mit der USB 3.2 Gen 1 B-Buchse des Hub´s.
3. Verbinden Sie jetzt den Stromanschluss des im Lieferumfang enthaltenem Netzteils mit der 5V
Buchse des Hub´s und stecken Sie den Netzstecker des Netzteils in eine Steckdose.
4. Verbinden Sie nun das andere Ende (A-Stecker) des mitgelieferten USB-Kabels mit der A-
Buchse an Ihrem PC.

7
EX-1182VIS-2Deutsch
© Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved
8. Technische Zeichnung
7. Technische Daten
Chip-Set: Genesys
Datentransfer-Rate: 5Gbit/s
Anschlüsse: 2x USB 3.2 Gen 1 A-Buchse, 1x USB 3.2 Gen 1 C-Buchse,
1x USB 2.0 A-Buchse, 1x 5V Buchse
Hardwaresystem: USB 1.1, 2.0, 3.0, 3.1 & 3.2
Betriebssystem: Alle Betriebssysteme
Betriebstemperatur: 0° bis 55° Celsius
Lagertemperatur: -20° bis 85° Celsius
Rel. Luftfeuchtigkeit: 5% bis 95%
Stromversorgung: +5 Volt
Abmessung: 153,25 x 64,25 x 31,00 mm
Gewicht: 675g

8
English EX-1182VIS-2
© Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved
1. Description
The EX-1182VIS-2 is a plug & play high-speed USB 3.2 Gen 1 hub for 4 USB devices. The EX-
1182VIS-2 is equipped with two USB 3.2 Gen 1 A-Ports, one USB 3.2 Gen 1 C-Port and one USB
2.0 A-Port for devices and one USB 3.2 Gen 1 B-Port for connection to the PC. It supports all USB
connections from 1.1 to 3.2. All ports can fix with screw lock. Via a external power supply it is pos-
sible to provide a maximum of 1,5A on each USB 3.2 Gen 1 port and 500mA on the USB 2.0 port.
The EX-1182VIS-2 design fully utilize the Genesys chipset, which represents the latest in Super-
Speed USB interface technology. It uses data transfer rates up to 5Gbit/s. It provides a secure and
very high data transfer on each single USB 3.2 Gen 1 port. The EX-1182VIS-2 support self pow-
ered and bus powered mode. In addition the EX-1182VIS-2 is equipped with an 15KV ESD Surge
Protection an 3KV Optical Isolation. The EX-1182VIS-2 can be easily installed on the wall by using
the included wall mounting kit. The DIN-Rail kit for installation in a 19’’ Rack is also included in the
scope of delivery. The DIN-Rail kit is screwed onto the underside of the wall mounting kit with four
screws.
Features:
• Compatible for USB 1.1, 2.0, 3.0, 3.1 & 3.2
• Up to 5Gbit/s
• All operating systems are supported
• All ports are screw lock
• 15KV ESD Surge Protection & 3KV Optical Isolation
• Certificate for
Before connecting the EX-1182VIS-2 to your PC, please check the contents of the delivery first:
• EX-1182VIS-2
• Power Supply (5V/4A)
• USB 3.2 Gen 1 Cable (screw lock) (EX-K1581V)
• DIN-Rail Kit (EX-6095)
• Wall Mounting Kit
• Manual
2. Extent of Delivery

9
EX-1182VIS-2English
© Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved

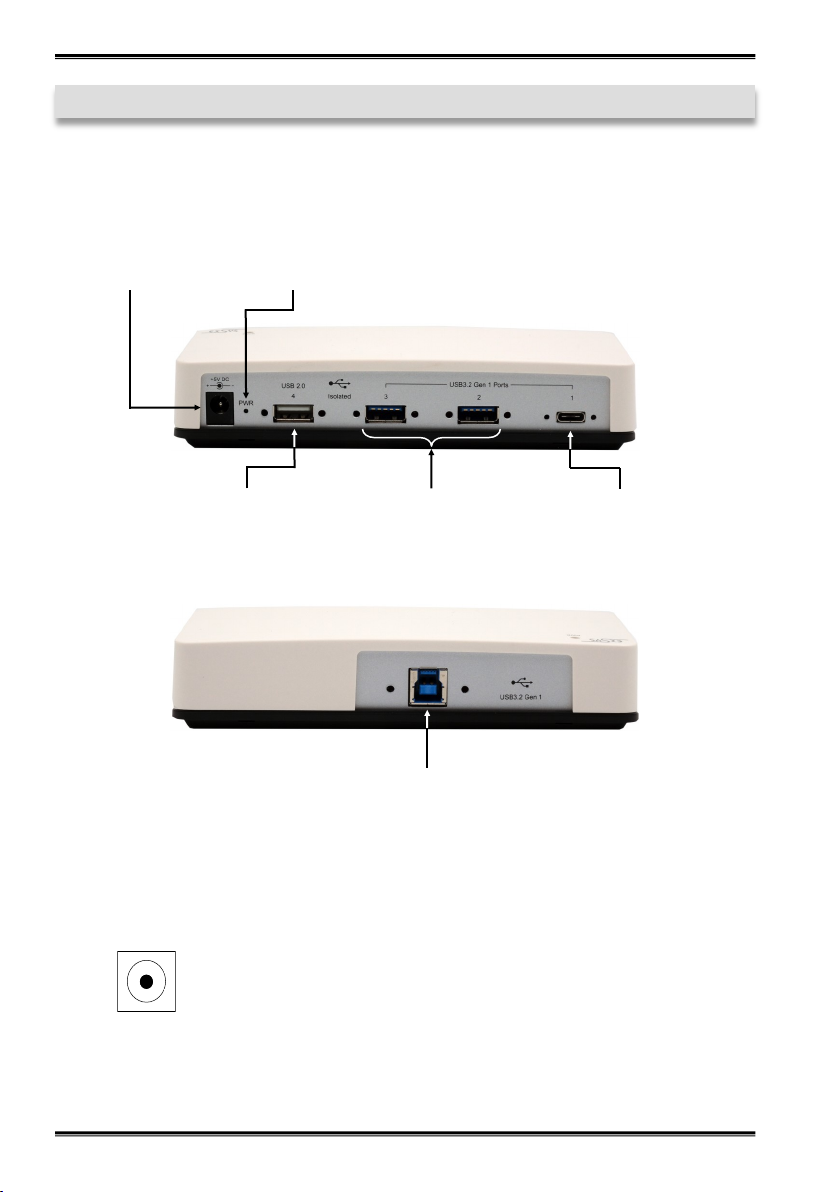

3.1 Layout
3. Layout & Connectors
3.2 Connectors
Power LED
2x USB 3.2 Gen 1
Downstream A-Port
Front:
1x USB 3.2 Gen 1
Downstream C-Port
1x USB 2.0
Downstream A-Port
5V Connector for
included external
Power Supply
Back:
1x USB 3.2 Gen 1
Upstream B-Port
5V Connector:
ATTENTION!!!
Use only with Power Supply which is included in delivery!

10
Deutsch EX-1182VIS-2
© Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved
3. Layout & Connectors

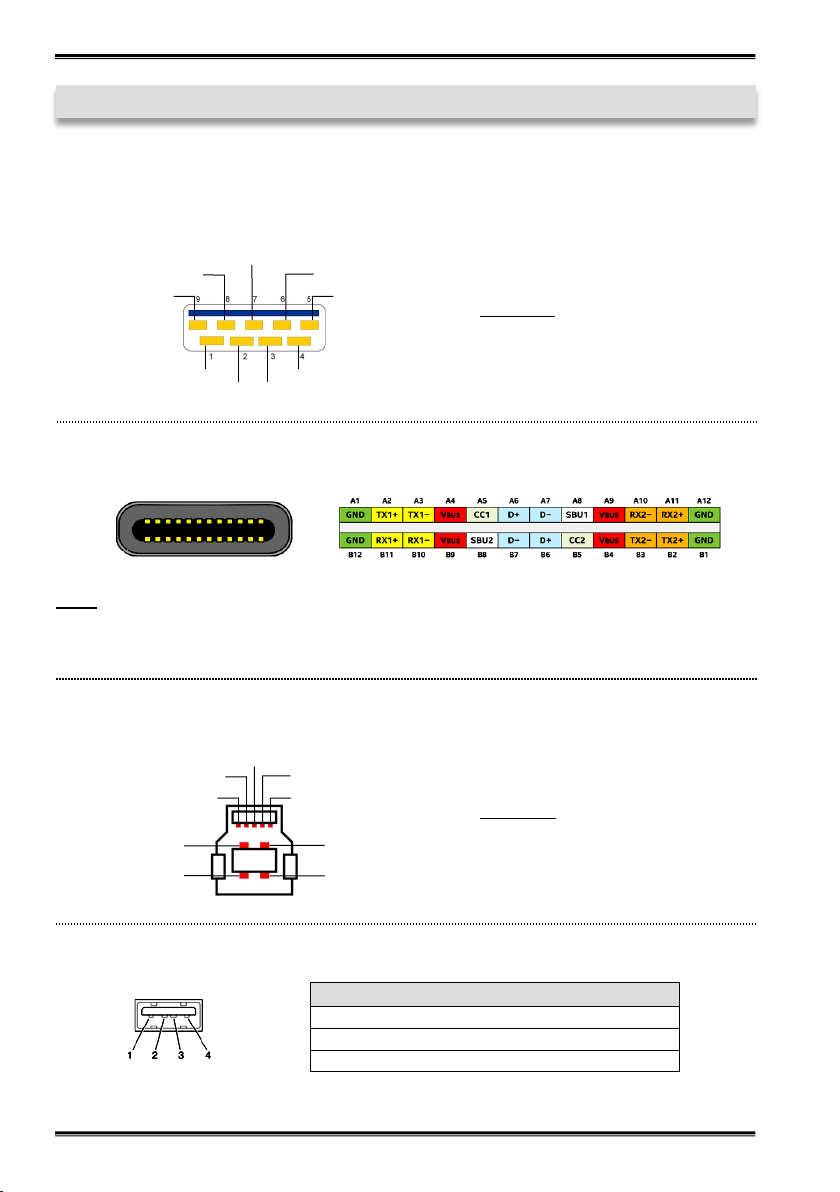

3.2 Connectors
Attention!
Never plug in with force
or in wrong direction.
USB 3.2 Gen 1 A-Port:
StdB_SSTX -
StdB_SSTX+
GND_DRAIN
VCC
StdB_SSTX +
StdB_SSTX -
D+D- GND
USB 3.2 Gen 1 B-Port:
D-
GND
StdB_SSTX -
StdB_SSTX +
GND_DRAIN
StdB_SSTX+
StdB_SSTX -
D+
VBus
Attention!
Never plug in with force
or in wrong direction.
USB 3.2 Gen 1 C-Port:
Note!
By dual assignment of the pins, the USB Type-C plug can be plugged into the port on both
sides.
USB 2.0 A-Port:
USB 2.0 A-Port
Pin Signal Pin Signal
1VCC 3DATA+
2DATA- 4GND

11
EX-1182VIS-2Deutsch
© Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved
4. Hardware Installation
5. Driver Installation
All Operating Systems
After the hardware installation the operating system will recognize the device automatically and
install the drivers.

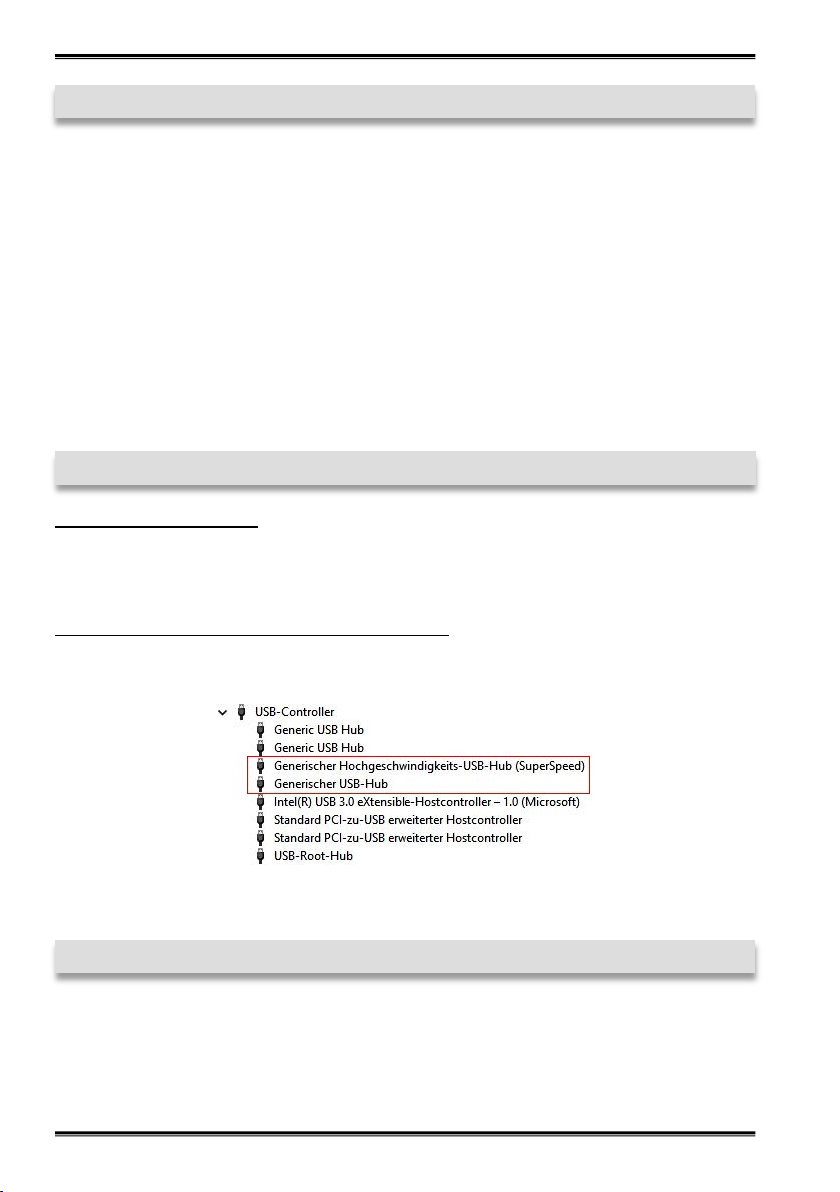

CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller“ the following new entry's:
If you see this or a similar information the device is installed correctly.
6. Cleaning
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In the
area of the connectors please make sure that no fibres from the cloth remain in the connectors.
Attention! Never use a moist or wet cloth for cleaning!
Because there are large differences between PC’s, we can give you only a general installation
guide. Please refer your computer’s reference manual whenever in doubt.
1. Install the EX-1182VIS-2 on a DIN-Rail using the supplied DIN-Rail kit or on a wall using the
wall mounting kit.
2. Now connect the USB cable to the USB 3.2 Gen 1 B-Port at the Hub.
3. Now connect the power connector of the included power supply to the 5V connector of the hub
and plug the power plug of the power supply into a power outlet.
4. Last connect the other end of the USB cable (A-Plug) to the USB A-Port at your PC.

12
English EX-1182VIS-2
© Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved

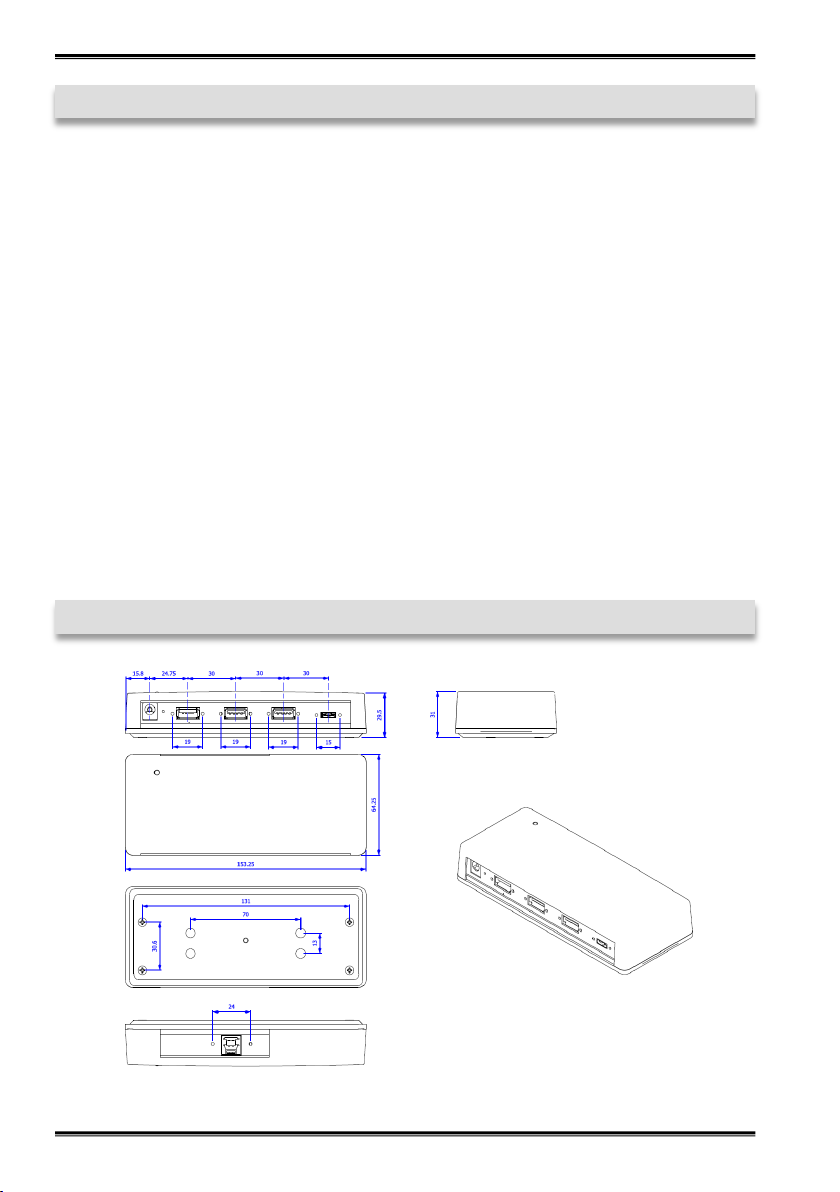

8. Technical Drawing
7. Technical Information
Chip-Set: Genesys
Data Transfer Rate: 5Gbit/s
Connectors: 2x USB 3.2 Gen 1 A-Port, 1x USB 3.2 Gen 1 C-Port,
1x USB 2.0 A-Port, 1x 5V Connector
Hardware System: USB 1.1, 2.0, 3.0, 3.1 & 3.2
Operating System: All Operating Systems
Operating Temperature: 32° to 131° Fahrenheit
Storage Temperature: -40° to 185° Fahrenheit
Rel. Humidity: 5% to 95%
Power: +5 Volt
Size: 153,25 x 64,25 x 31,00 mm
Weight: 675g
