1
Introduction
The AP-7532 external antenna and internal antenna Access Point’s are mid-tier Access
Point’s with a relatively small footprint which supports functionality for dependable and
efficient network performance.The AP-7532 is a 3x3:3 802.11ac Access Point utilizing one 2.4
GHz 802.11n radio and one 5 GHz 802.11ac radio. The Access Point housing is Plenum-rated
(UL2043).
The Access Point’s unique WiNG 5 software enables the Access Point to function as either a
Standalone Access Point, an Adaptive Access Point, or a Virtual Controller.
If new to Access Point technology, refer to the WiNG Access Point System Reference Guide
to familiarize yourself with Access Point technology and the feature set supported by the
WiNG operating system. The guide is available at www.extremenetworks.com/support.
This document is written for the qualified network device installer.
Document Conventions
The following graphical alerts are used in this document to indicate notable situations.
Warnings
• Read all installation instructions and site survey reports, and verify correct equipment
installation before connecting the AP-7532 Access Point.
• Remove jewelry and watches before installing this equipment.
• Verify any device connected to this unit is properly wired and grounded.
• Verify there is adequate ventilation around the device, and that ambient temperatures
meet equipment operation specifications.
NOTE
Tips, hints, or special requirements that you should take note of.
CAUTION
Care is required. Disregarding a caution can result in data loss or equipment
malfunction.
WARNING
Indicates a condition or procedure that could result in personal injury or
equipment damage.

Introduction
AP-7532 Access Point Installation Guide 4
Site Preparation
• Consult your site survey and network analysis reports to determine specific
equipment placement, power drops, and so on.
• Assign installation responsibility to the appropriate personnel.
• Identify and document where all installed components are located.
• Ensure adequate, dust-free ventilation to all installed equipment.
• Identify and prepare Ethernet and console port connections.
• Verify cable lengths are within the maximum allowable distances for optimal signal
transmission.
AP-7532 Package Contents
An AP-7532 Access Point is available in both external antenna (AP-7532) and internal
antenna (AP-7532I) configurations. An AP-7532 ships with the following:
• AP-7532 Access Point
• AP-7532 Installation Guide (This Guide)
• Wall mount screws and mounting bracket
Features
An AP-7532 Access Point supports the following feature set:
• Two RJ-45 connectors (GE1/POE and Console)
•TwoLEDindicators
• One 2.4 GHz 802.11n radio and one 5 GHz 802.11ac radio
• 3x3 MIMO, 3 spatial streams
The GE1/POE accepts 802.3at or 802.3af compliant power from an external source.
AP-7532 Antennas
AP-7532 Dual Band 2.4 GHz / 5 GHz Antennas - US
An AP-7532 external antenna Access Point supports the following dual band antenna
options for the US:
Note
When operating in a Gigabit Ethernet environment, CAT-5e or CAT-6 cable is
recommended for Gigabit operation.

Introduction
AP-7532 Access Point Installation Guide 5
*
* This antenna is for indoor placement only.
AP-7532 Dual Band 2.4 GHz / 5 GHz Antennas - EMEA
An external antenna AP-7532 supports the following dual band antenna options for the
EMEA:
AP-7532 Internal Antenna Model
An AP-7532 internal antenna Access Point supports the following dual band antenna:
Note
Per FCC requirement, the use of the Access Point on UNII-1 of 5GHz band requires
installers to input antenna elevation gain during configuration if the AP placement is
for outdoor coverage.
Part Number
Antenna
Type
2.4 GHZ
Gain (dBi)
5 GHZ
Gain (dBi)
Elevation Gain for
outdoor
placement (dBi)
ML-2452-APA2-01 Dipole 3.17 4.85 na*
ML-2452-HPA5-036 Dipole 3 5 na*
ML-2452-APAG2A1-01 Dipole 2.7 1.7 na*
ML-2452-PNL9M3-N36 Polarized-
Panel
11 10.7 7.3
ML-2452-PNA5-01R Panel 5.5 6 5.2
ML-2452-PTA3M3-036 Patch 5 4 na*
ML-2452-VMM5M3-
N72
Patch 4.5 5.4 2.9
Part Number Antenna Type 2.4 GHZ Gain (dBi) 5 GHZ Gain (dBi)
ML-2452-APA2-01 Dipole 3.17 4.85
ML-2452-HPA5-036 Dipole 3 5
ML-2452-APAG2A1-01 Dipole 2.7 1.7
ML-2452-HPAG4A6-01 Dipole 47.3
ML-2452-HPA6-01 Dipole 5.3 6.1
ML-2452-PNL6M3-N36 Polarized-Panel 6 6
ML-2452-PNA5-01R Panel 5.5 6
ML-2452-PTA3M3-036 Patch 5 4
ML-2452-VMM5M3-N72 Patch 4.5 5.4

Introduction
AP-7532 Access Point Installation Guide 6
:
AP-7532 Dual Band 2.4 GHz / 5 GHz Antennas - Canada
*An external antenna AP-7532 supports the following dual band antenna options for
Canada:
Antenna Type 2.4 GHZ Gain (dBi) 5 GHZ Gain (dBi)
PIFA 4.13 5.92
Part Number Antenna Type 2.4 GHZ Gain (dBi) 5 GHZ Gain (dBi)
ML-2452-APA2-01 Dipole 3.17 4.85
ML-2452-HPA5-036 Dipole 3 5
ML-2452-APAG2A1-01 Dipole 2.7 1.7
ML-2452-PNL9M3-N36 Polarized -Panel 11 10,7
ML-2452-PNA5-01R Panel 5.5 6
ML-2452-PTA3M3-036 Patch 5 4
ML-2452-VMM5M3-
N72
Patch 4.5 5.4
Note
A professional installer must enter the antenna type, gain, and indoor/outdoor
placement using the CLI. The AP software will then use this information and hardcode
maximum limits determined during testing to limit the EIRP. Please note that the
maximum EIRP in band 5.25-5.35GHz will be limited to 23dBm. This limit is hardcoded
in the software for this band.

7AP-7532 Access Point Installation Guide
2
Hardware Installation
An AP-7532 Access Point mounts either on a wall (with M 3.5 x 0.6 x 23 MM pan head
screws and mounting bracket- or equivalent) or on a suspended ceiling T-bar.
To prepare for the installation:
1 Match the part number on the purchase order with the part numbers in the packing list
and on the case of the Access Point.
2 Verify the contents of the box include the intended AP-7532 Access Point, and the
included hardware matches the package contents.
3 Review site survey and network analysis reports to determine the location and mounting
position for the AP-7532 Access Point.
4 Connect a CAT-5 or better Ethernet cable to a compatible 802.3at or 802.3af power
source and run the cable to the installation site. Ensure there is sufficient slack on the
cable to perform the installation steps.
.
Precautions
Before installing an AP-7532 Access Point, verify the following:
• Your are using the correctly rated power solution for the AP-7532 (either the AP-
PSBIAS-2P3-ATR power injector or the PWRS-14000-54R external power supply)
• Do not to install the AP-7532 in wet or dusty areas.
• Verify the environment has a continuous temperature range between -4° F to 104° F/
-20° C to 40° C for external antenna Access Points and 32° F to 104° F/0° C to 40° C
for internal antenna Access Points.
Part Number Description
AP-7532-67040-US AP-7532 dual radio 802.11ac 3x3:3 MIMO Access Point
external antenna
US version
AP-7532-67040-1-WR AP-7532 dual radio 802.11ac 3x3:3 MIMO Access Point
external antenna International version
AP-7532-67030-US AP-7532 dual radio 802.11ac 3x3:3 MIMO Access Point
internal antenna
US version
AP-7532-67030-1-WR AP-7532 dual radio 802.11ac 3x3:3 MIMO Access Point
internal antenna International version
NOTE
When operating in a Gigabit Ethernet environment, CAT-5e or CAT-6 cable is
recommended for Gigabit operation.

Hardware Installation
AP-7532 Access Point Installation Guide 8
Access Point Placement
For optimal performance, install the Access Point away from transformers, heavy-duty
motors, fluorescent lights, microwave ovens, refrigerators and other industrial equipment.
Signal loss can occur when metal, concrete, walls or floors block transmission. Install the
Access Point in an open area or add Access Points as needed to improve coverage.
Antenna coverage is analogous to lighting. Users might find an area lit from far away to be
not bright enough. An area lit sharply might minimize coverage and create dark areas.
Uniform antenna placement in an area (like even placement of a light bulb) provides even,
efficient coverage.
Install the Access Point at an ideal height of 10 feet from the ground.
To maximize the Access Point’s radio coverage area, recommends conducting a site survey
to define and document radio interference obstacles before installing the Access Point.
Power Injector System
An AP-7532 Access Point can receive power via an Ethernet cable connected to the GE1/
POE (LAN) port.
When users purchase a WLAN solution, they often need to place Access Points in obscure
locations. In the past, a dedicated power source was required for each Access Point in
addition to the Ethernet infrastructure. This often required an electrical contractor to install
power drops at each Access Point location. The Power Injector merges power and Ethernet
into one cable, reducing the burden of installation and allowing optimal Access Point
placement in respect to the intended coverage area.

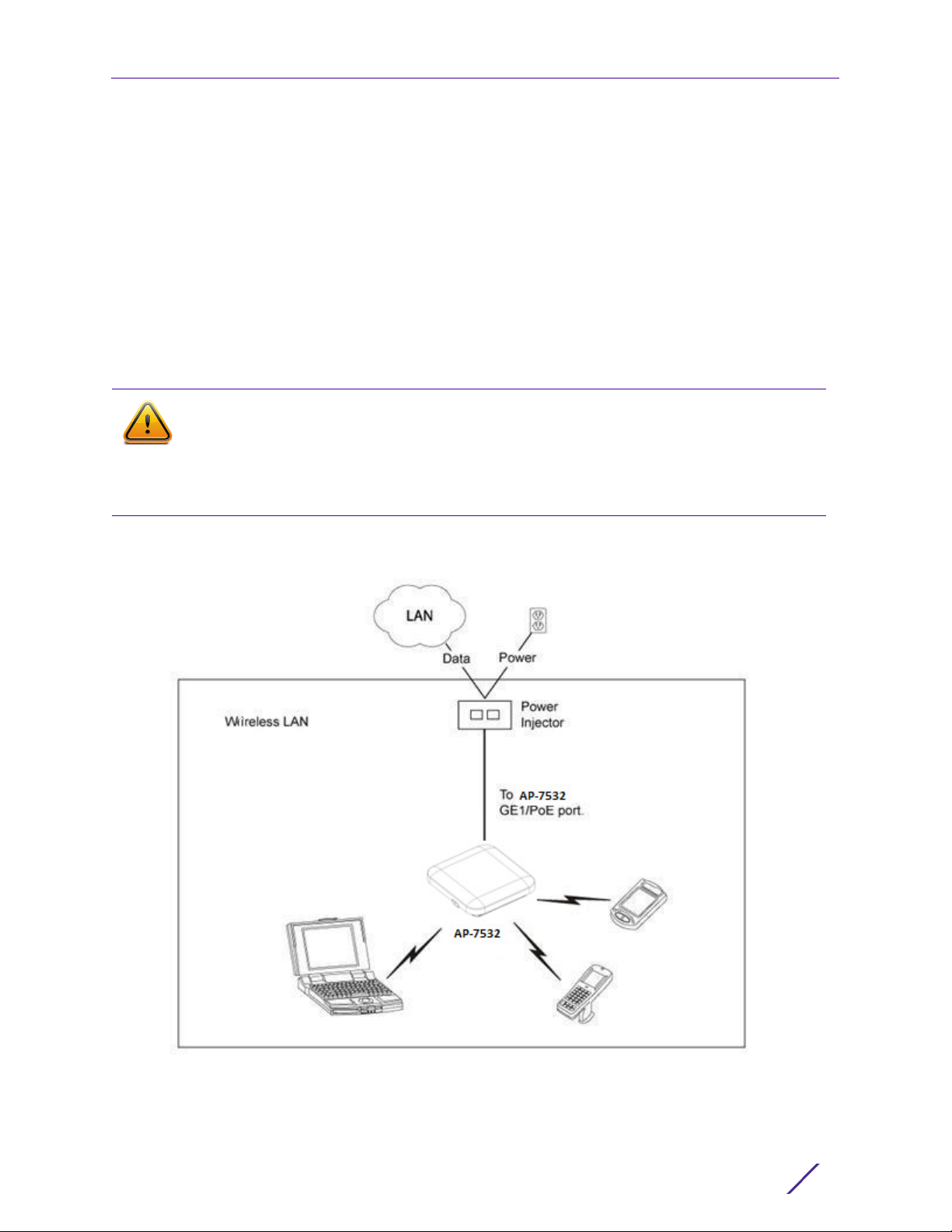

The AP-7532’s supported Power Injector (Part No. AP-PSBIAS-2P3-ATR) is a high power
POE Injector delivering up to 30 watts. The Access Point can only use a Power Injector
when connecting the unit to the Access Point’s GE1/POE port. The Power Injector is
separately ordered and not shipped with an existing AP SKU.
CAUTION
Using a non-compliant injector, or an injector supporting legacy modes will not allow
the AP-7532 to function at optimum performance levels.
CAUTION
Do not plug the AP-PSBIAS-2P3-ATR Power Injector into the Access Point’s Console
port. Connecting the Power Injector into the console port can damage the port and
void the AP-7532’s product warranty.

Hardware Installation
AP-7532 Access Point Installation Guide 9
The Access Point Power Supply (Part No. PWRS-14000-54R) is not included with the
Access Point, but it can be ordered separately as an accessory. If the Access Point is
provided both POE power and PWRS-14000-54R power concurrently, the Access Point will
source power from the PWRS-14000-54R supply only. Disconnecting the AC power from
the PWRS-14000-54R causes the Access Point to re-boot before sourcing power from the
POE power injector. If the AP is operating using injector supplied power, the AP will not
automatically reboot if an AC adapter is connected. The Access Point continues to operate
with power supplied from the AC adapter without change to the Access Point operating
configuration. If using AC adapter supplied power and a change to the AP’s operating
configuration is warranted, the Access Point needs to be manually rebooted by the
customer.
A separate Power Injector is required for each AP-7532 Access Point comprising the
network.
The Power Injector can be installed free standing, on an even horizontal surface or wall
mounted using the power injector’s wall mounting key holes.
CAUTION
The Access Point supports any standards-based compliant power source. However,
using the wrong solution (including a POE system used on a legacy Access Point)
could either limit functionality or severely damage the Access Point and void the
product warranty..

Hardware Installation
AP-7532 Access Point Installation Guide 10
The following guidelines should be adhered to before cabling the Power Injector to an
Ethernet source and an Access Point:
• Do not block or cover airflow to the Power Injector.
• Keep the Power Injector away from excessive heat, humidity, vibration and dust.
• The Power Injector isn’t a repeater, and does not amplify the Ethernet signal. For
optimal performance, ensure the Power Injector is placed as close as possible to the
data port.
To install the Power Injector to an Ethernet data source and an Access Point:
1 Connect the Power Injector to an AC outlet (110VAC to 220VAC).
2 Connect an RJ-45 Ethernet cable between the Power Injector Data & Power Out
connector and the Access Point’s GE1/POE port.
3 Connect an RJ-45 Ethernet cable between the network data supply (host) and the
Power Injector Data In connector.
Ensure the cable length from the Ethernet source (host) to the Power Injector and
Access Point does not exceed 100 meters (333 ft).
The Power Injector has no On/Off power switch. The Injector receives power and is
ready for device connection and operation as soon as AC power is applied. Refer to the
Installation Guide shipped with the Power Injector for a description of the LEDs.
Wall Mount Instructions
A wall mount deployment requires hanging the AP-7532 Access Point with the provided
mounting bracket and two screws. The AP-7532 can be mounted on to any plaster, wood or
cement wall surface using the provided mounting bracket.
The hardware required to install the AP-7532 on a wall consists of:
• Two wide-shoulder Phillips pan head self-tapping screws (M3.5 x 0.6 x 23 mm)
• Mounting bracket
Optional customer provided installation tools include:
• Phillips head screw driver, or drill and drill bit.
CAUTION
To avoid problematic performance and restarts, disable POE from a wired switch port
connected to an Access Point if mid-span power sourcing equipment (PSE) is used
between the two, regardless of the manufacturer of the switch.
CAUTION
Ensure AC power is supplied to the Power Injector using an AC cable with an
appropriate ground connection approved for the country of operation.

Hardware Installation
AP-7532 Access Point Installation Guide 11
Wall Mount Procedure - New Installation
This section describes a new AP-7532 installation with no previous Access Point existing on
the intended wall surface.
1 Place the mounting bracket against the wall.
2 Mark the screw hole locations depending on the intended deployment orientation of the
unit.
3 At each point, drill a hole in the wall and attach the mounting bracket.
4 Place the Access Point on the mounting bracket.
5 Cable the Access Point using either the Power Injector solution (AP-PSBIAS-2P3-ATR) or
the approved AP-7532 power supply (PWRS-14000-54R).
NOTE
When pre-drilling a hole the recommended hole size is 4mm (0.16in.).

Hardware Installation
AP-7532 Access Point Installation Guide 12
For Power Injector installations:
a Connect a RJ-45 CAT5e (or CAT6) Ethernet cable between the Power Injector Data &
Power Out connector and the Access Point’s GE1/POE port.
b Connect a RJ-45 CAT5e (or CAT6) Ethernet cable between the network data supply
(host) and the Power Injector Data In connector.
c Ensure the cable length from the Ethernet source (host) to the Power Injector and
Access Point does not exceed 100 meters (333 ft). The Power Injector has no On/Off
power switch. The Power Injector receives power as soon as AC power is applied.
For standard power adapter (non Power Injector) and line cord installations:
a Connect a RJ-45 Ethernet cable between the network data supply (host) and the
Access Point’s GE1/POE port.
b Verify the power adapter is correctly rated according to the country of operation.
c Connect the power supply line cord to the power adapter.
d Attach the power adapter cable into the power connector on the Access Point.
e Attach the power supply line cord to a power supply.
6 Verify the Access Point is receiving power by observing the LEDs are lit or flashing. For
more information on AP-7532 LED behavior, see “LED Indicator” on page 15.
The Access Point is ready to configure.
Wall Mount Procedure - Existing Access Point Replacement
An existing AP-7131 or AP-7131N Series Access Point installed on a wall can be replaced by
an AP-7532. Simply remove the existing AP-7131 or AP-7131N and install the new provided
mounting bracket for AP-7532 directly to the wall. The cabling procedure for such a
replacement is as described in the previous section.
Suspended Ceiling T-Bar Mount Instructions
Ceiling mount requires holding the AP-7532 up against a T-bar of a suspended ceiling grid
and twisting the unit on to the T-bar. If deploying the AP-7532 on a sculpted ceiling T-Bar,
the Access Point mounting kit (Part No. KT-135628-01) can optionally be used as well.
CAUTION
If not using an AP-PSBIAS-2P3-ATR power injector, ensure only the AP-7532’s
designated power supply (PWRS-14000-54R) is used to supply power to the Access
Point. Using an incorrectly rated power supply could damage the Access Point and
void the product warranty. Do not actually connect to the power source until the
cabling portion of the installation is complete

Hardware Installation
AP-7532 Access Point Installation Guide 13

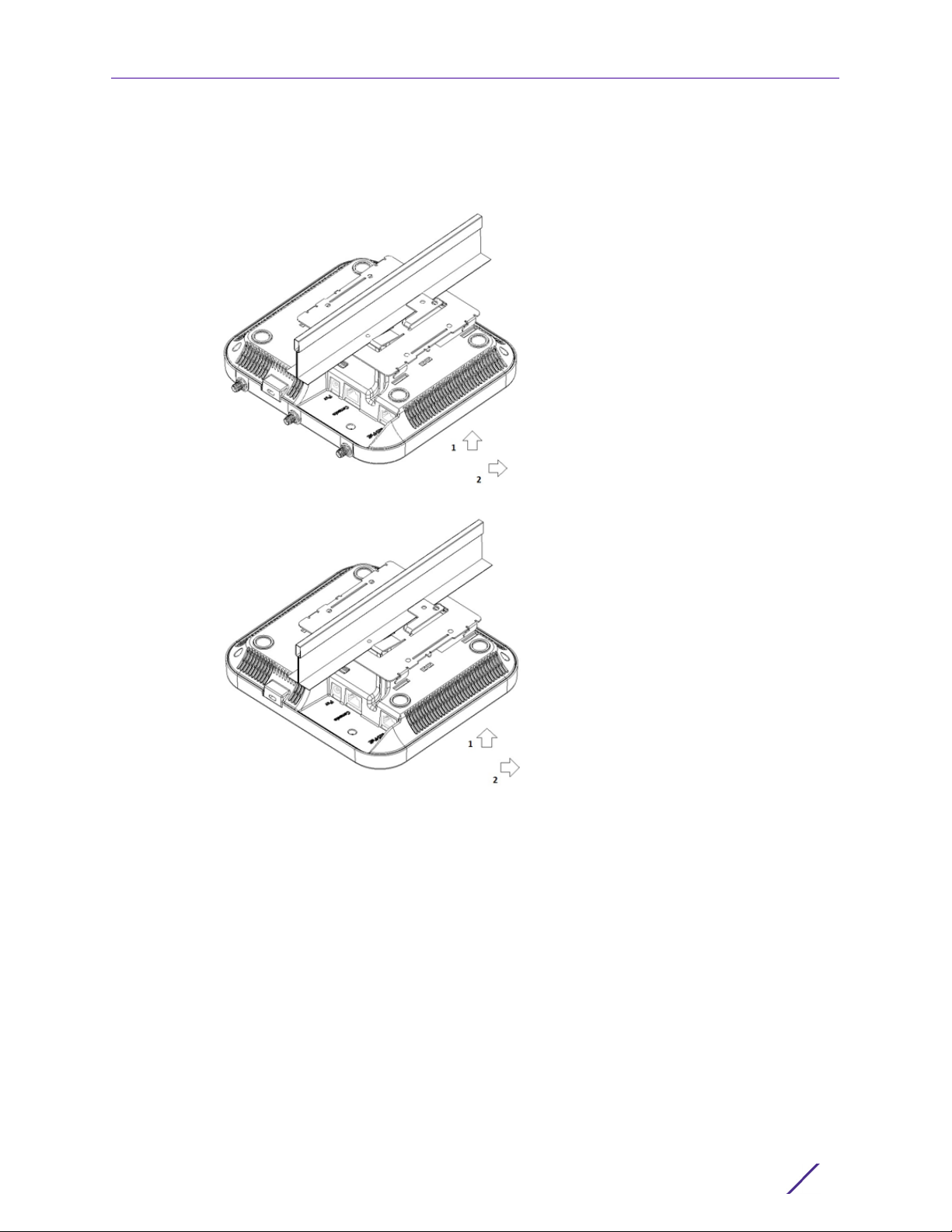

1 First install the mounting bracket on the T-bar then attach the mounting bracket using
the mounting slots on the Access Point.
.
2 Cable the Access Point using either the Power Injector solution (AP-PSBIAS-2P3-ATR) or
the approved AP-7532 power supply (PWRS-14000-54R).
For Power Injector installations:
a Connect a RJ-45 CAT5e (or CAT6) Ethernet cable between the network data supply
(host) and the Power Injector Data In connector.
b Connect a RJ-45 CAT5e (or CAT6) Ethernet cable between the Power Injector Data &
Power Out connector and the Access Point’s GE1/POE port.
c Ensure the cable length from the Ethernet source (host) to the Power Injector and
d Access Point does not exceed 100 meters (333 ft). The Power Injector has no On/Off
power switch. The Power Injector receives power as soon as AC power is applied.
e For standard power adapter (non Power Injector) and line cord installations:
f Connect a RJ-45 Ethernet cable between the network data supply (host) and the
Access Point’s GE1/POE port.
g Verify the power adapter is correctly rated according the country of operation.
h Connect the power supply line cord to the power adapter.

Hardware Installation
AP-7532 Access Point Installation Guide 14
i Attach the power adapter cable into the power connector on the Access Point.
j Attach the power supply line cord to a power supply.
3 Verify the unit has power by observing the LEDs. For more information on AP-7532 LED
behavior, see “LED Indicator” on page 15.
4 Align the bottom of the ceiling T-bar with the back of the Access Point.
5 Orient the Access Point chassis by its length and the length of the ceiling T-bar.
6 Rotate the Access Point chassis 45 degrees clockwise.
7 Push the back of the Access Point chassis on to the bottom of the ceiling T-bar.
8 Rotate the Access Point chassis 45 degrees counter-clockwise. The clips click as they
fasten to the T-bar.
CAUTION
If not using an AP-PSBIAS-2P3-ATR power injector, ensure only the AP-7532’s
designated power supply (PWRS-14000-54R) is used to supply power to the Access
Point. Using an incorrectly rated power supply could damage the Access Point and
void the product warranty. Do not actually connect to the power source until the
cabling portion of the installation is complete..

Hardware Installation
AP-7532 Access Point Installation Guide 15
.
The Access Point is ready to configure.
LED Indicator
The AP-7532 LED activity indicators are located on the front of the housing and are visible
through the enclosure.

Hardware Installation
AP-7532 Access Point Installation Guide 16
.
The LEDs provide a status display indicating error conditions, transmission, and network
activity for the 5 GHz 802.11ac (amber) radio and the 2.4 GHz 802.11n (green) radio.

Hardware Installation
AP-7532 Access Point Installation Guide 17
Task
5 GHz Activity LED
(Amber)
2.4 GHz Activity LED
(Green)
Unconfigured Radio On On
Normal Operation • If this radio band is
enabled:
Blink at 5 second
interval
• If this radio band is
disabled:
Off
• If there is activity on
this band:
Blink interval at 1
time per second
• If this radio band is
enabled:
Blink at 5 second
interval
• If this radio band is
disabled:
Off
• If there is activity on
this band:
Blink interval at 1
time per second
Firmware Update On Off
Locate AP Mode LEDs blink in an
alternating green, red
and amber pattern
using an irregular blink
rate. This LED state in
no way resembles
normal operating
conditions.
LEDs blink in an
alternating green, red
and amber pattern
using an irregular blink
rate. This LED state in
no way resembles
normal operating
conditions

Hardware Installation
AP-7532 Access Point Installation Guide 18
