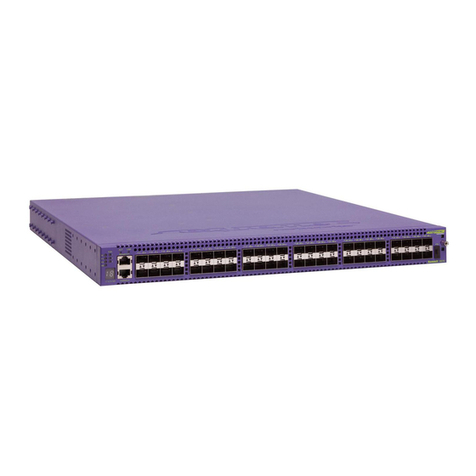

Summit X150 Series Switches Installation Note
This installation note describes how to install and remove the Summit X150 series switches.
This note includes the following sections:
●Safety on page 1
●Installing a Summit X150 Series Switch on page 2
●Connecting Power on page 3
●Connecting Power on page 3
●Removing a Summit X150 Series Switch from a Rack on page 3
NOTE
Optional external redundant power supplies are available for use with the Summit X150 series switches. When a
redundant power supply is used with a Summit X150 series switch, the power supplies (internal and redundant) are
fully fault tolerant and load-sharing. If one power supply fails, the other power supply will provide sufficient power to
operate the switch. The Summit X150-24t and X150-48t switches use the EPS-160 for redundant power; the
Summit X150-24p switch uses the EPS-500 for redundant power. Refer to the Summit Family Switches Hardware
Installation Guide for further details.
Safety
Only trained service personnel should perform service to Extreme Networks switches and their
components. Trained service personnel have read all related installation manuals, have the technical
training and experience necessary to be aware of the hazards to which they are exposed in performing a
task, and are aware of measures to minimize the danger to themselves or other persons.
Before installing a Summit X150 series switch into your network:
●Read the latest installation and safety information provided in the Summit Family Switches Hardware
Installation Guide.
●See Appendix A of the Summit Family Switches Hardware Installation Guide for additional information
regarding regulatory compliance certifications.
The Summit Family Switches Hardware Installation Guide can be downloaded from the following location:
http://www.extremenetworks.com/services/hardware-userguide.aspx.
NOTE
Die deutsche Version der für dieses Produkt von Extreme Networks relevanten Sicherheitshinweise finden sich im
Abschnitt “Sicherheitshinweise” im Summit Family Switches Hardware Installation Guide. Dieses
Installationshandbuch steht auf der folgenden Webseite zum Download zur Verfügung: http://
www.extremenetworks.com/services/hardware-userguide.aspx.

Installing a Summit X150 Series Switch
Summit X150 Series Switches Installation Note
2
CAUTION
Make sure that proper ESD controls are in use before maintenance is performed. This includes but is not limited to
wrist straps that are grounded to the switch chassis and earth grounds.
Installing a Summit X150 Series Switch
The Summit X150 series switch is designed to be installed in a standard 19-inch equipment rack or
placed free-standing on a tabletop. The installation process includes the following tasks:
●Install the switch in a rack or on a table.
●Ground the switch.
●Connect a redundant power supply (if applicable).
●Connect the internal power supply.
Rack-Mounting a Summit X150 Series Switch
To mount the switch in a rack, you will need the following tools, equipment, and resources:
●Mounting brackets (provided)
●Eight screws (provided) to secure the mounting brackets to the switch
●Four rack system mounting screws
The screw size will vary based on your organization’s rack; screws are not provided.
●Screwdriver for securing the switch to the rack
The screwdriver size will vary based on the requirements of your organization’s rack.
To rack-mount a Summit X150 series switch:
1Place the switch upright on a secure work surface.
2Place a mounting bracket over the mounting holes on one side of the unit.
3Insert the screws and fully tighten (see Figure 1).
Figure 1: Attaching a Mounting Bracket
4Repeat steps 2and 3for the other side of the switch.
Solid ON = Link
Blinking = Activity
34
3
336
35 38
3740
3942
41 4443 4645 48
47
46X
45X48X
47X
Shared Ports
SH_035

Connecting Power
Summit X150 Series Switches Installation Note 3
5Insert the switch into the rack.
●Take care to load the rack so that it is not top-heavy. Start installing equipment at the bottom and
work up.
●Do not cover vents that would restrict airflow. Leave half a rack space between adjacent units for
adequate ventilation.
6Secure the switch to the rack using suitable screws (not provided).
Free-Standing and Desktop Mounting of Multiple Switches
The Summit X150 series switch is supplied with four self-adhesive rubber pads. Apply the pads to the
underside of the switch in the marked area at each corner. Make sure that all corners are aligned. You
can safely place up to four Summit X150 series switches on top of one another.
Connecting Power
Connect the provided AC power cord to the input connector on the back of the switch. Then connect
the cord to an AC power outlet.
You can connect the Summit X150 series switch to an optional external redundant power module to
provide backup power for the internal power supply. If you are using the EPS-160 power supply, install
and connect it as described in the EPS-160 Installation Note. If you are using the EPS-500 power supply,
install and connect it as described in the EPS-500 External Power Supply Installation and Removal Note.
Removing a Summit X150 Series Switch from a Rack
CAUTION
Make sure that proper ESD controls are in use before maintenance is performed. This includes but is not limited to
wrist straps that are grounded to the switch chassis and earth grounds.
To remove the Summit X150 series switch from a rack:
1Attach an ESD-preventive wrist strap to your wrist and connect the metal end to an appropriate
ground point on the rack.
2Disconnect the switch from the redundant power supply (if applicable).
3Disconnect the AC power cord from the AC power outlet and from the power connector on the back
of the switch.
4Loosen and remove the rack-mounting screws holding the switch in place.
5Carefully remove the switch from the rack and place it on a secure surface.

Removing a Summit X150 Series Switch from a Rack
